Office building FA 206 in Berlin
22 July 2024
Architects: TCHOBAN VOSS Architekten
Location: Berlin, Germany
Photos © Klemens Renner
Office building FA 206, Germany

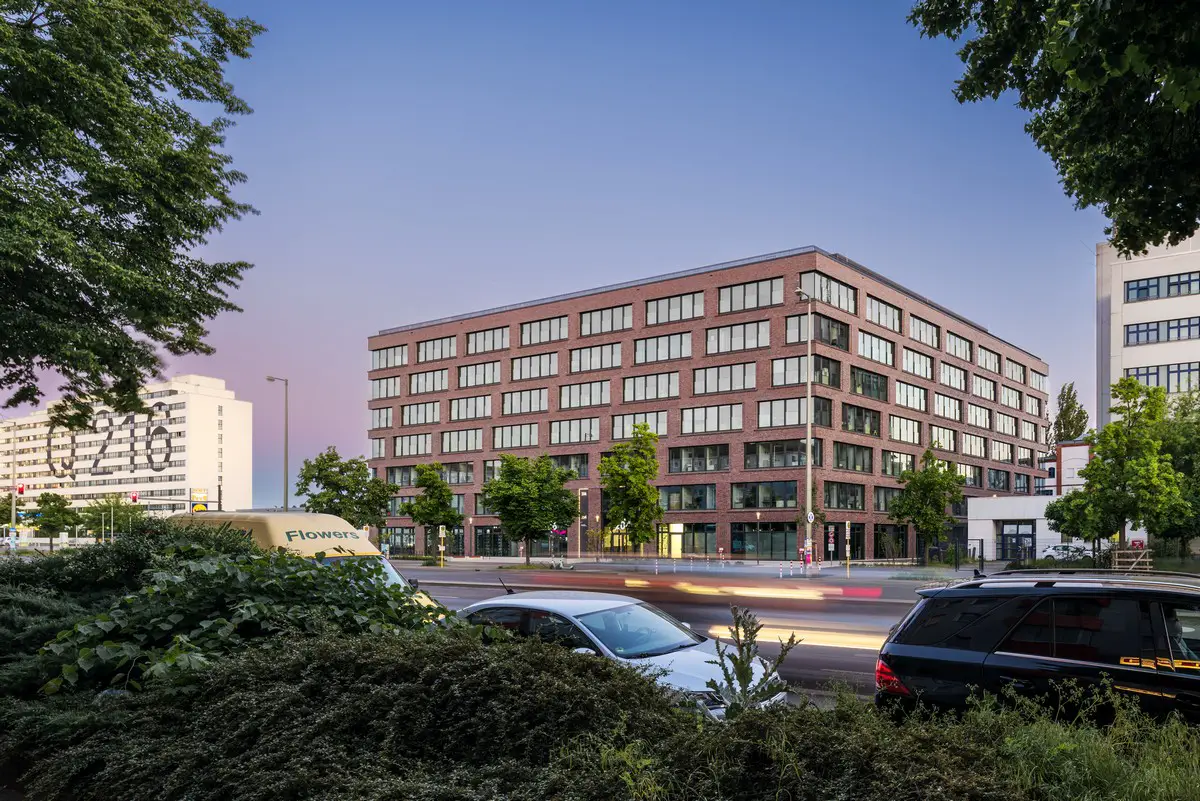

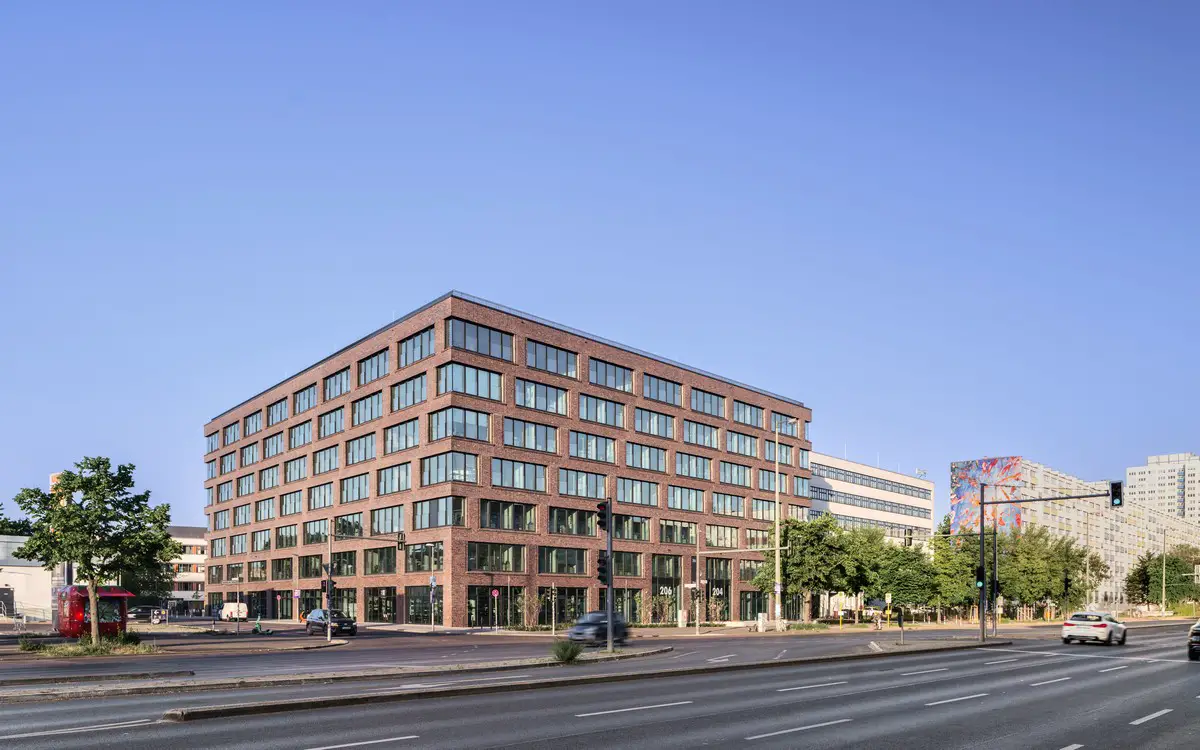

The Office building FA 206 is a new modern, trapezoidal office building now occupies an approximately 6000 sqm corner plot between Frankfurter Allee and Buchberger Strasse in the Berlin district of Lichtenberg. The building has a green inner courtyard and an expressive rust-red clinker brick façade whose materiality and colour refer to historical industrial buildings from the beginning of the 20th century and set up an emphatic new contrast with the otherwise postmodern architecture of surrounding buildings from the GDR era.

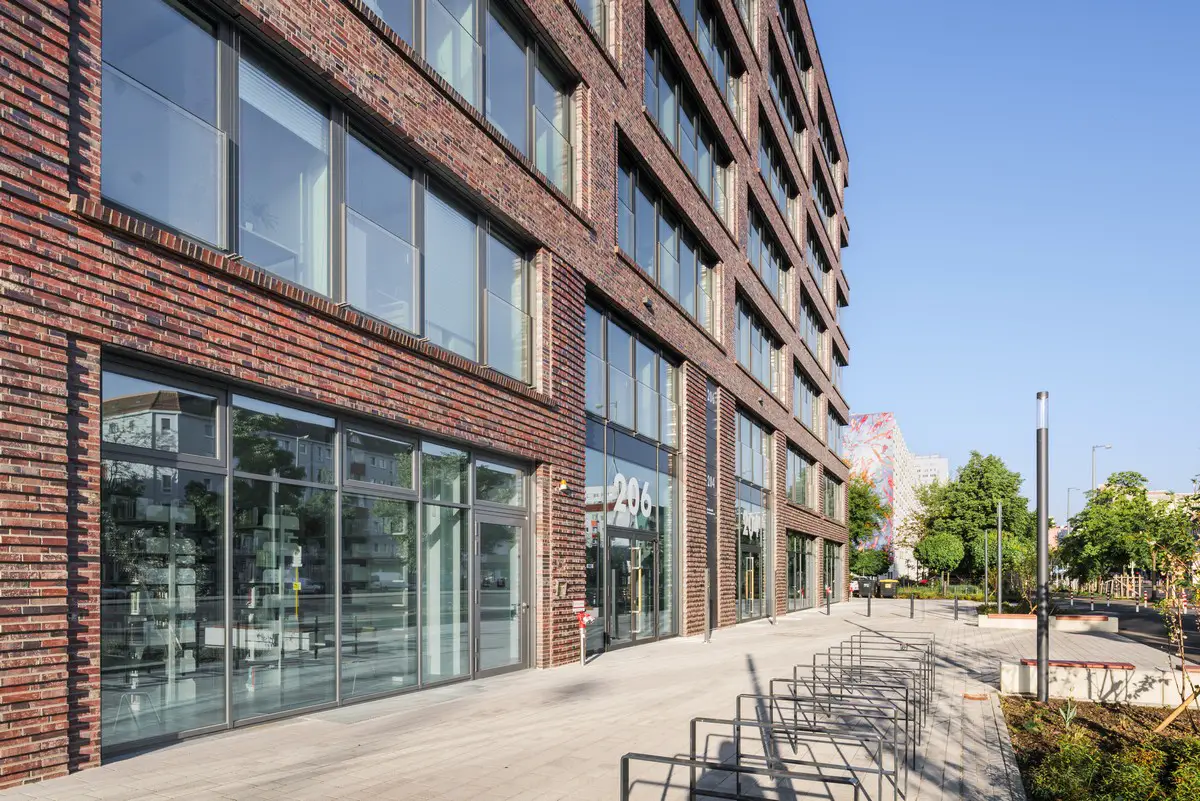

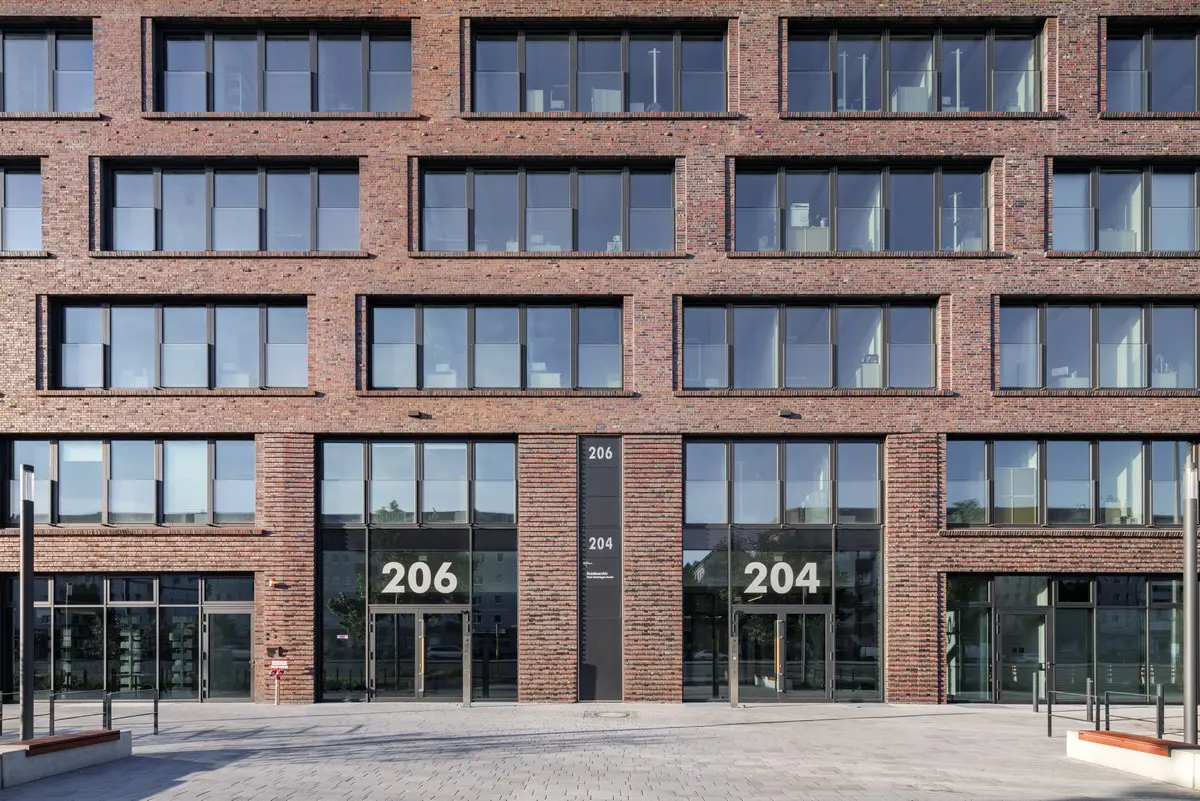

Impressive for its tactile quality and detailing, the façade is visually divided in two by a change in the pattern of the windows and the structure of the clinker bricks. The building’s plinth comprises the ground floor and the first floor. The linear, horizontal clinker brick relief here calls to mind Expressionist architecture. The window elements are positioned one above the other; the corners of the plinth have no openings

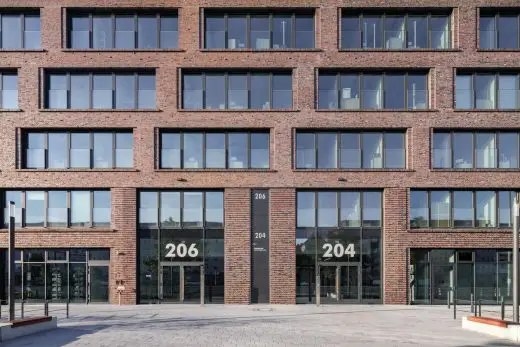

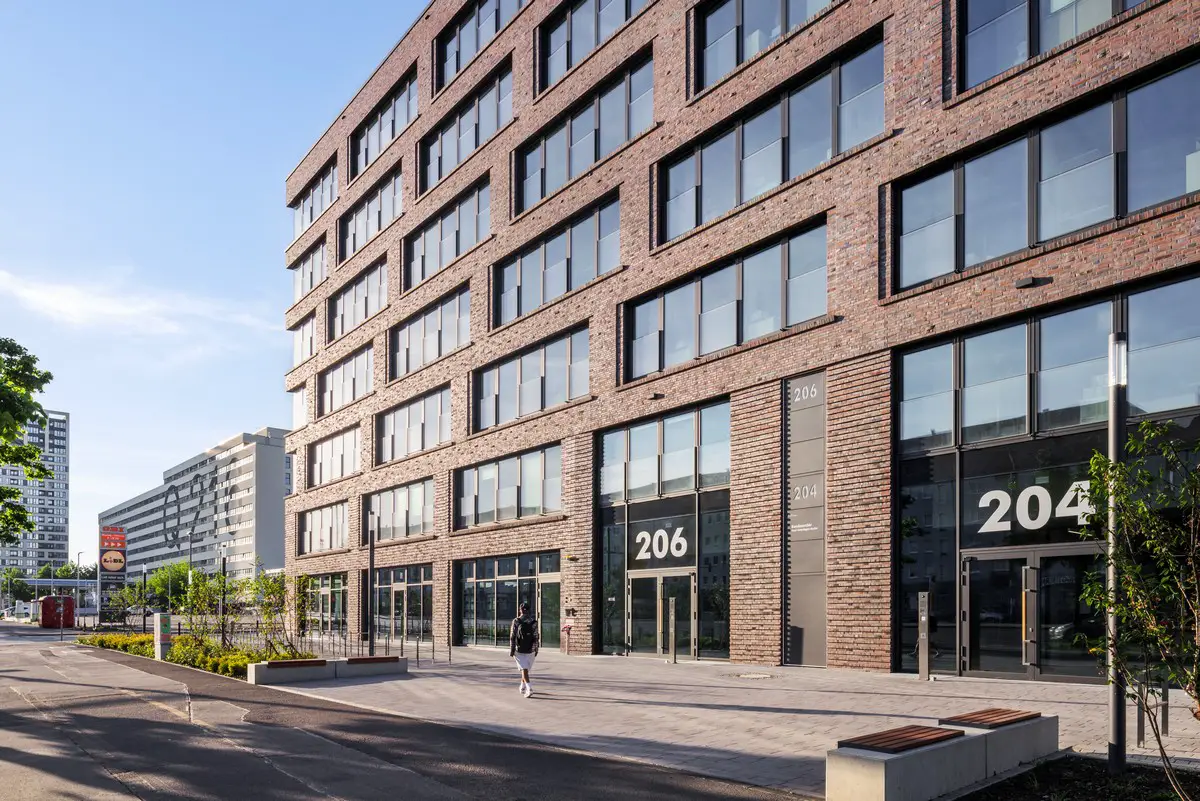

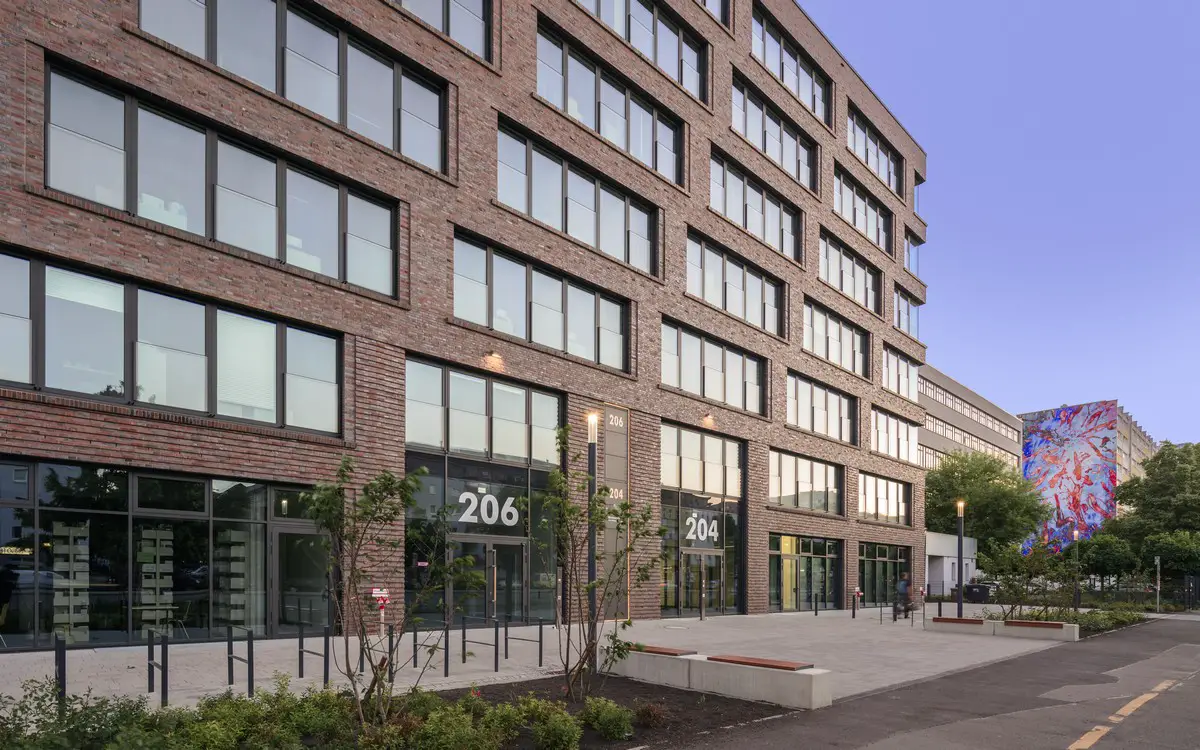

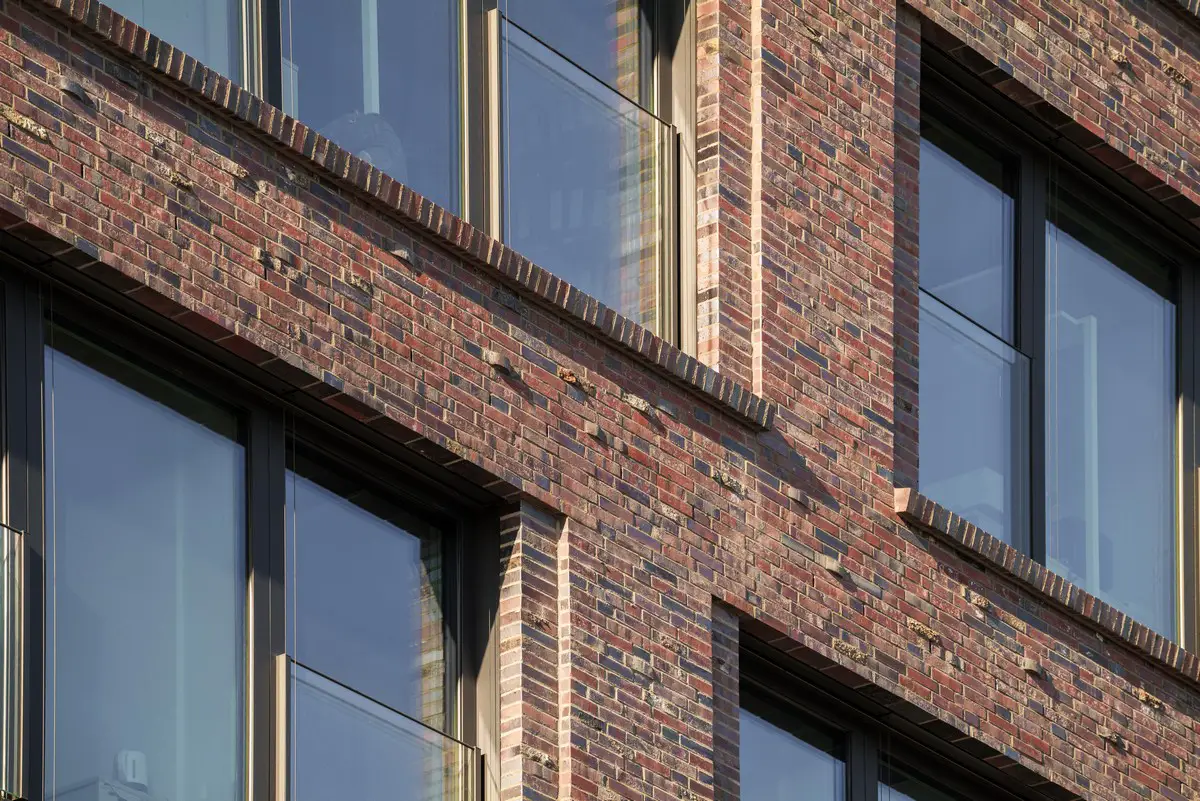

The entrances seem two-storey. Large-format house numbers ensure that the building’s address is clearly visible from afar. The clinker brick structure of the storeys above the plinth is predominantly smooth. Here individual clinker bricks with convex textured surfaces created by coal firing and arranged in irregular patterns stand out from the smooth surface and form exciting accents, particularly when the sun is at different angles and changes in the light create different moods.

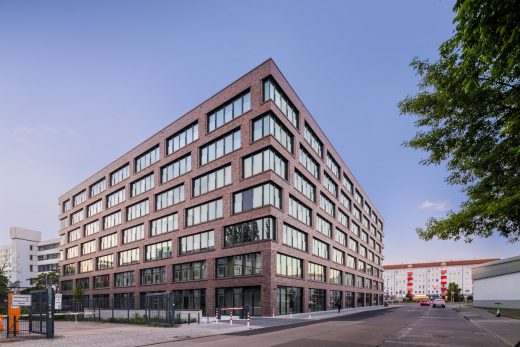

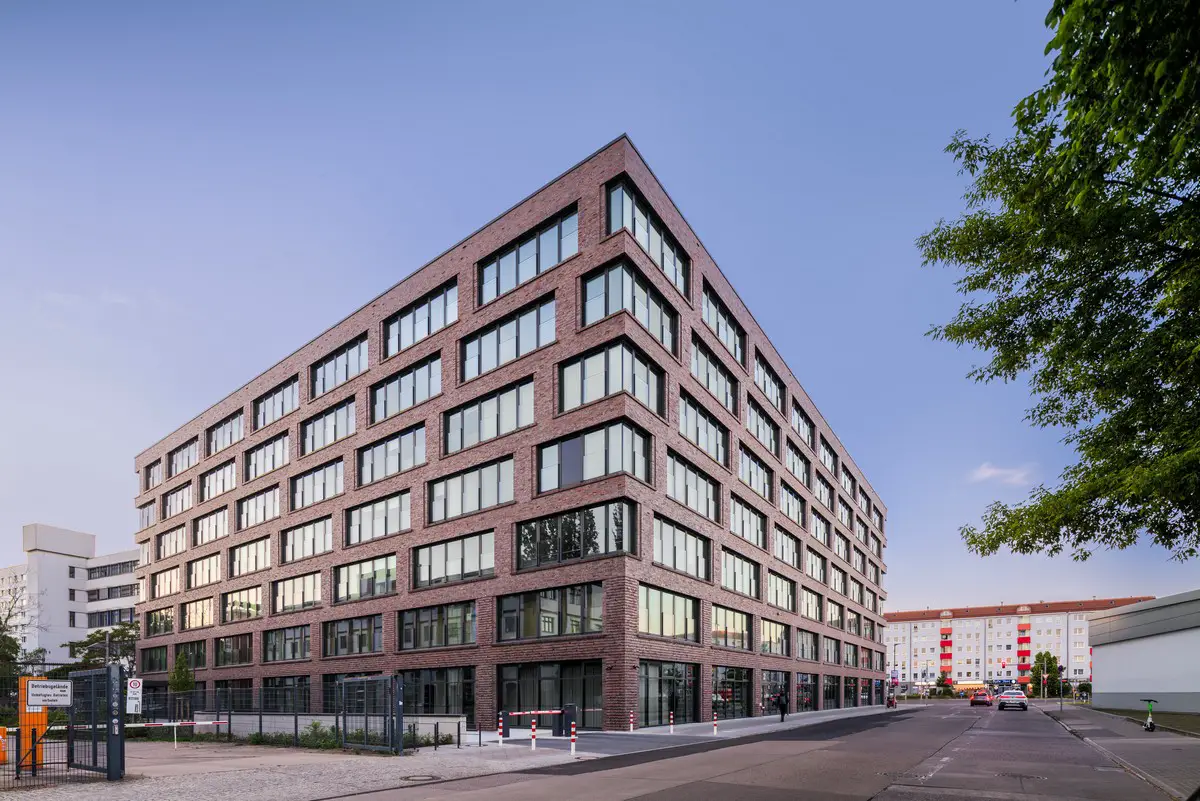

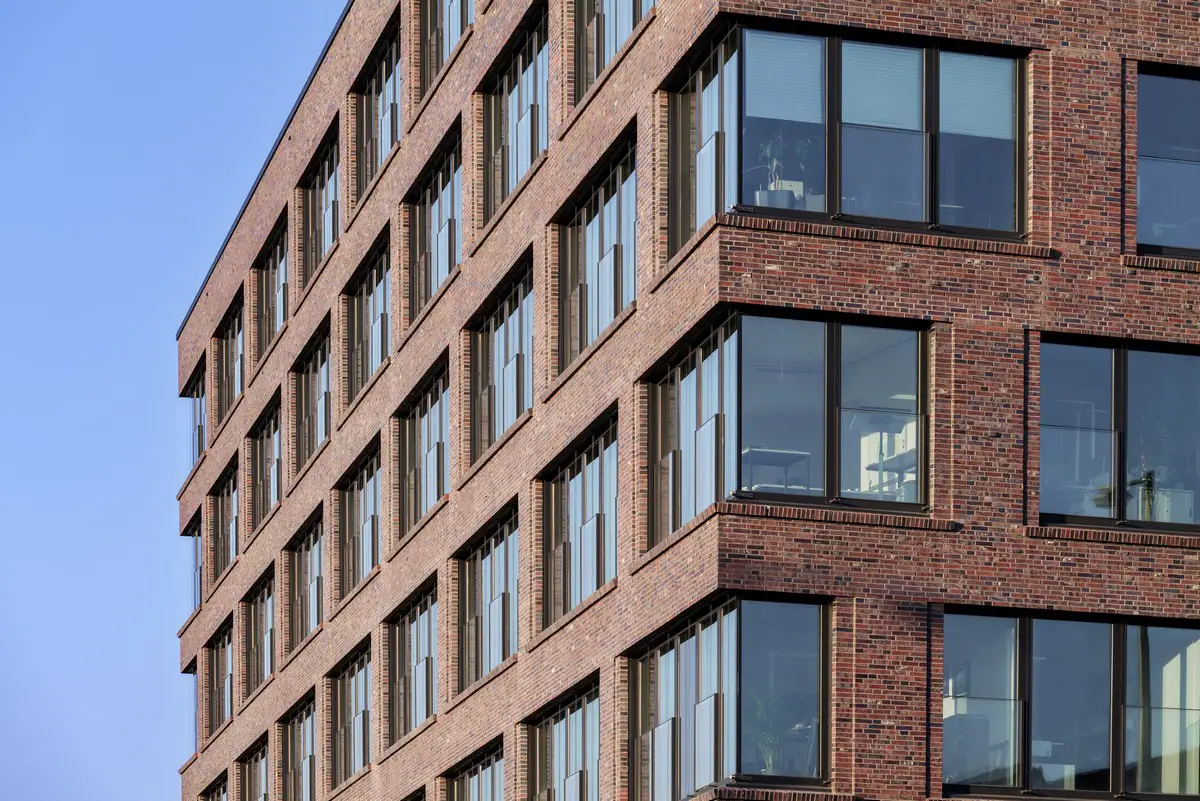

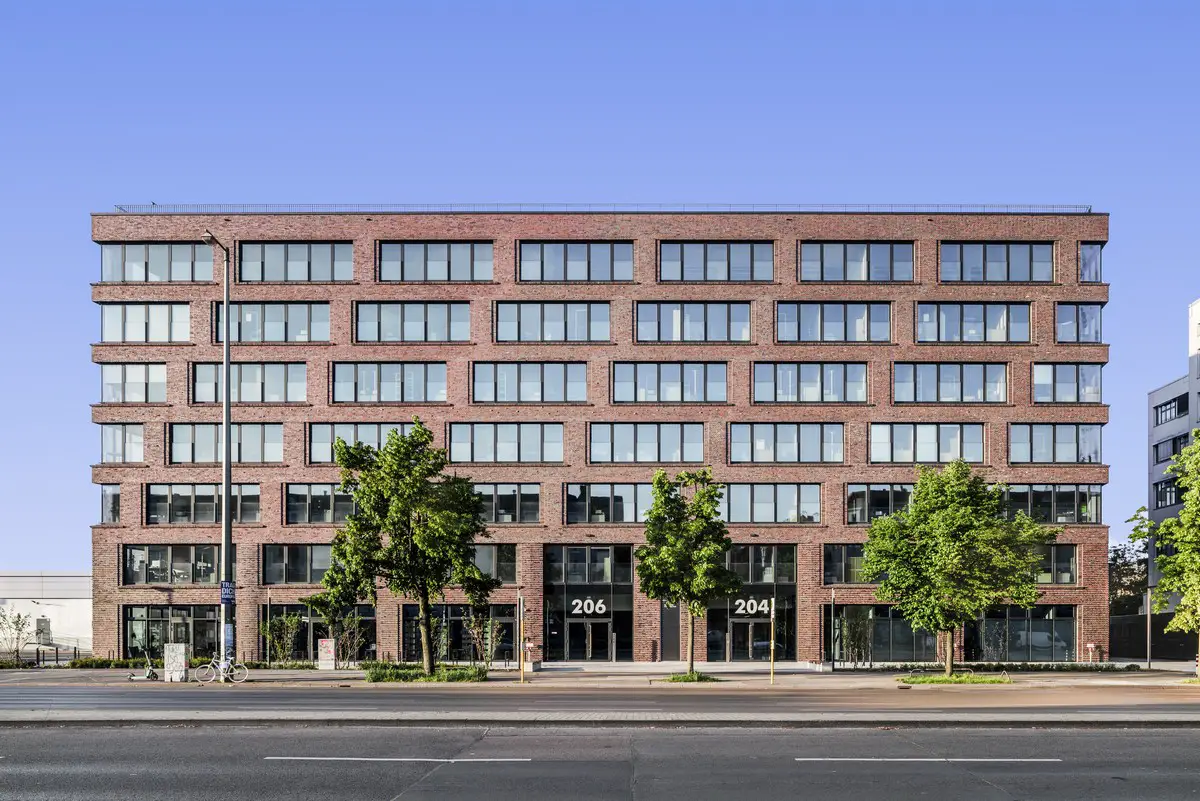

The floor-by-floor shifting of the individual, floor-to-ceiling window elements around a grid field creates a unique façade dynamic. The corners of the building are glazed following the rhythm of the grid.

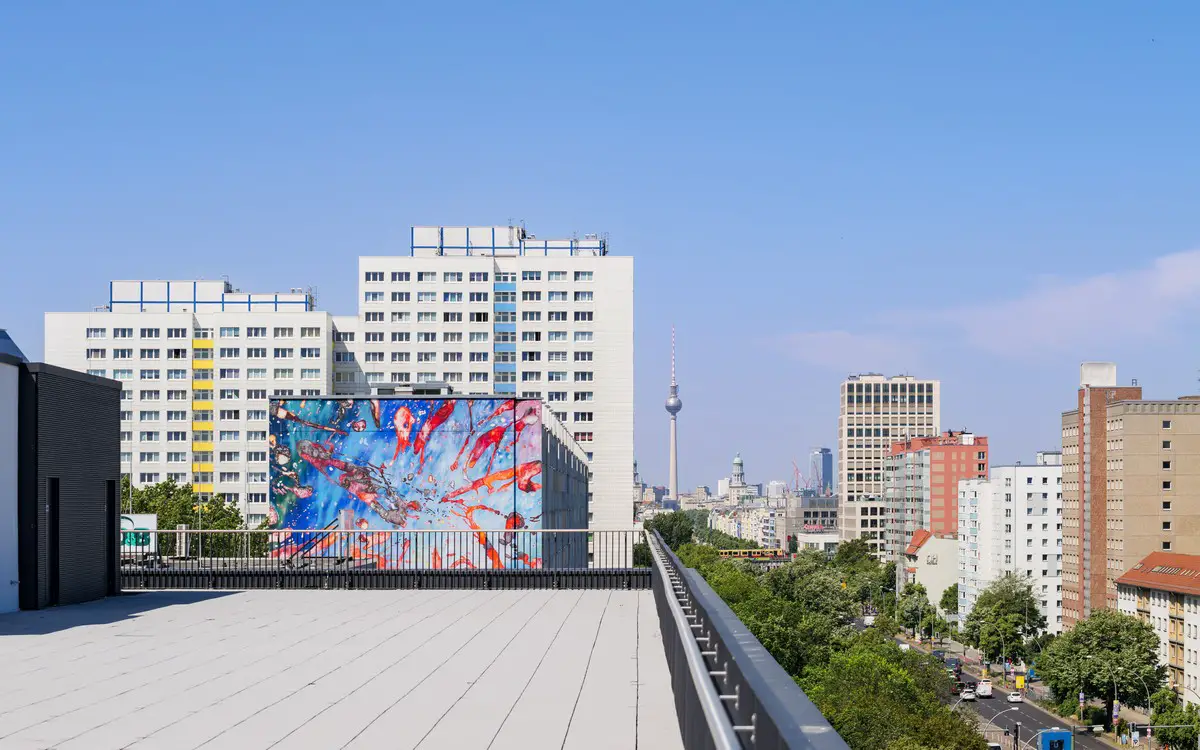

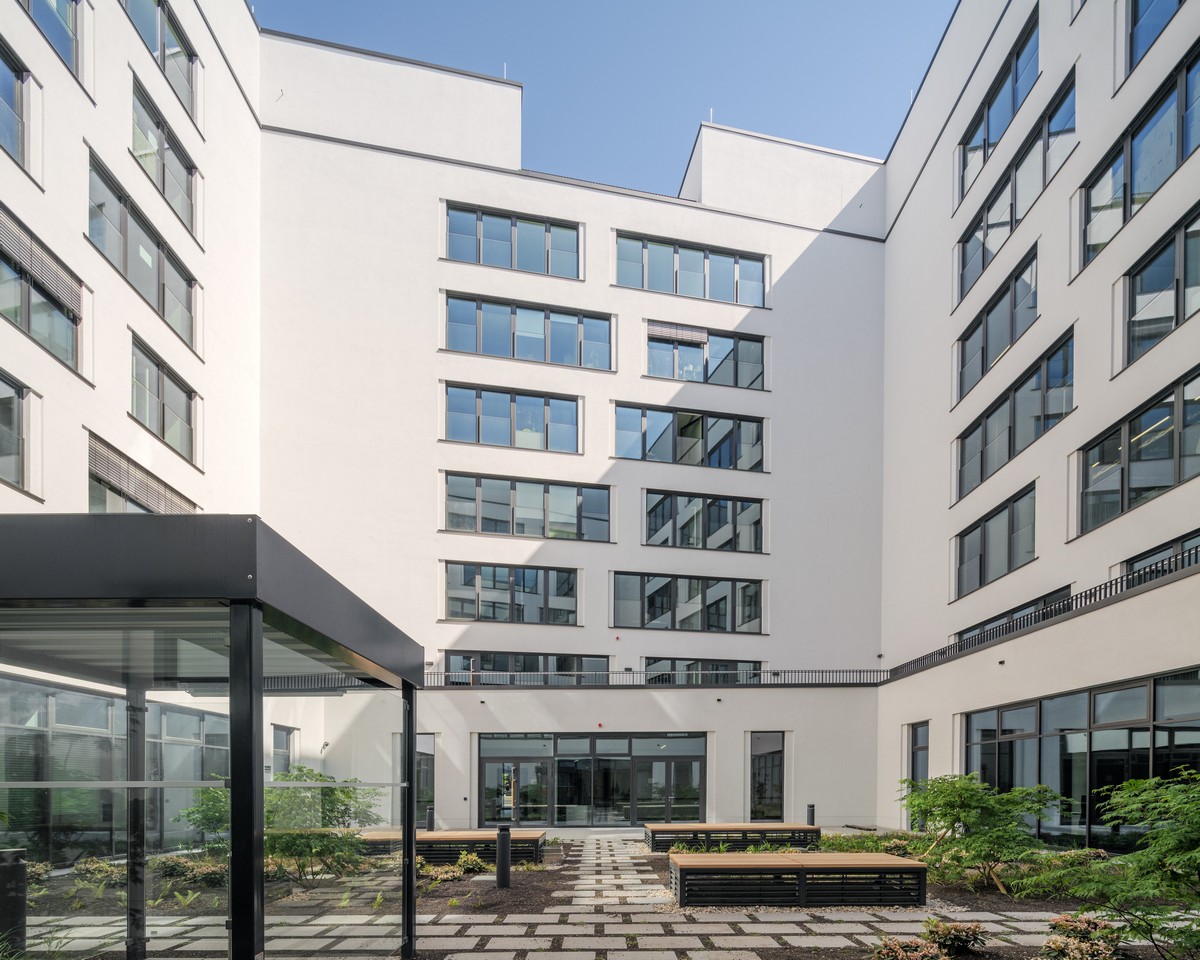

Seven storeys high and made from reinforced concrete, the building has a single-storey underground car park. The building’s horizontal top is a partly landscaped flat roof, which functions as a retention roof capable of storing water. A roof terrace with panoramic views towards Frankfurter Tor and the Berlin Television Tower can be used for events. The landscaped square inner courtyard has seating and a pavilion.

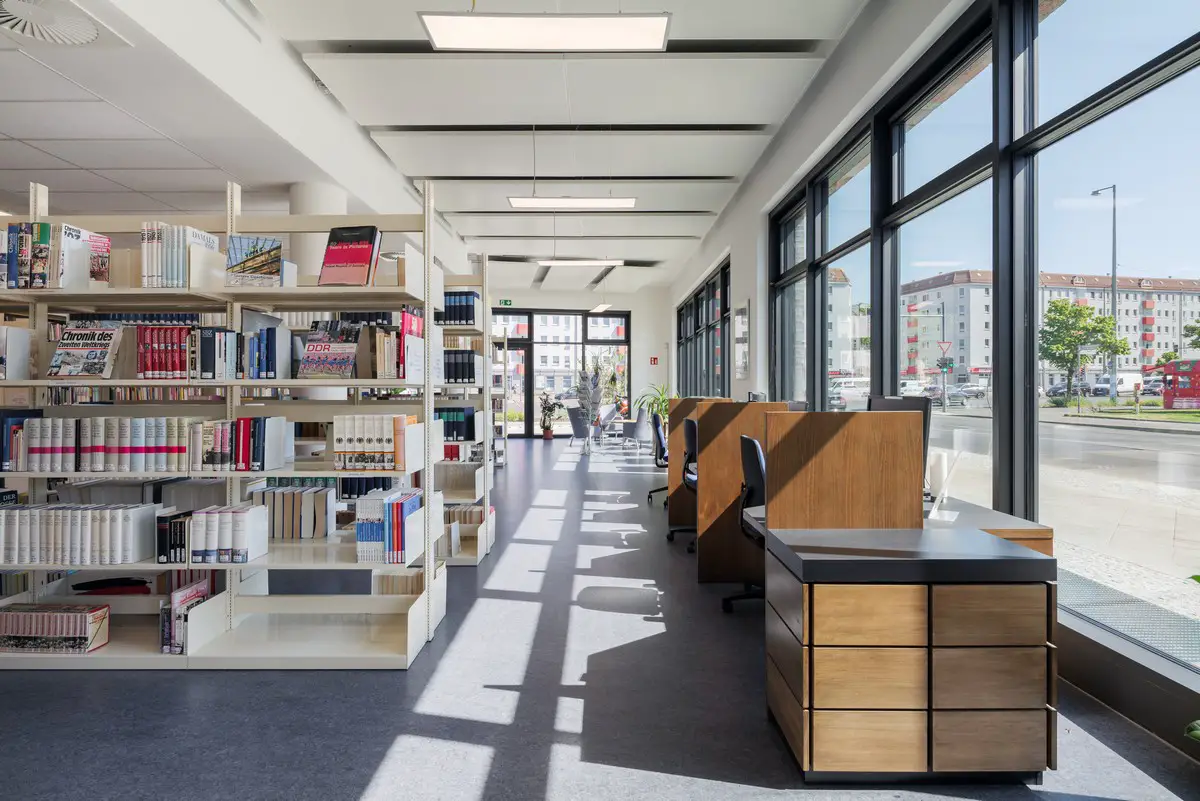

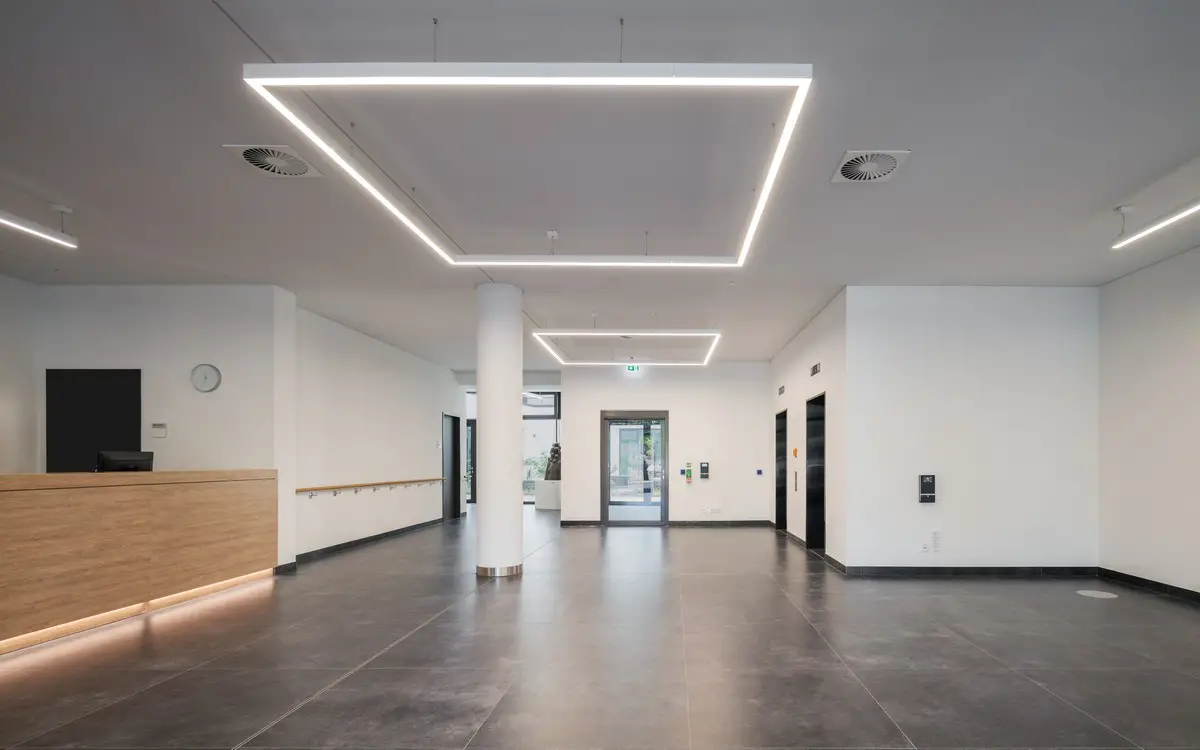

The office areas are accessed via two entrances from Frankfurter Allee and one from Buchberger Strasse. The ground floor contains public areas belonging to the main tenant, office space, and a delivery and waste-disposal area. In order to achieve a high degree of flexibility of use on the upper floors, each floor has been given four user units. Each user unit has its own supply core, which is located close to the stairwell in each case.
The underground car park has an access ramp at the rear of the building and provides sufficient car and bicycle parking spaces. Additional bicycle parking spaces are located in the grounds and in front of the building.
This project has received gold certification from the German Sustainable Building Council (DGNB).
Office building FA 206 in Berlin, Germany – Building Information
Design: TCHOBAN VOSS Architekten – https://www.tchobanvoss.de/
Construction of an office building with an underground car park
Address: Frankfurter Allee 206, 10365 Berlin, Germany
Client: Frankfurter Allee 206 GmbH c/o CTXL Property Consult GmbH – Scharfstein Group, Berlin
GFA: 23.300 square metres
Completion: 04 / 2024
Implementation stages: 1-5
Architect: Sergei Tchoban
Project partner and leader: Axel Binder
Team: Liza Gradinarova, Dirk Kollendt, Virginie Mommens, Stefan Petro, Katja Redmann, Valeria Kashirina, Ingo Schwarzweller, Ramona Schwarzweller
General contractor: MAX BOEGL Stiftung & Co. KG, Berlin
Project management WITTE Projektmanagement GmbH, Berlin
Planning: LP 6-9: das projekt. Projektmanagement, Consulting & Services, Berlin
Façade design: Schellhorn & Heese Ingenieure für Fassaden GmbH, Michendorf / Wildenbruch
Clinker bricks: Janinhoff GmbH & Co. KG, Muenster-Hiltrup
Mullion-transom façade and windows: Schuco International KG, Bielefeld
Structural engineering: AWD Ingenieurgesellschaft mbH, Berlin
Building physics, thermal and sound insulation: Ingenieurbuero Axel C. Rahn GmbH Die Bauphysiker, Berlin
Landscaping: atelier 8 landschaftsarchitektur, Berlin
Building equipment: implementation stages 1-2: Ingenieurgesellschaft W33 mbH Technische Gebaeudeausruestung, Berlin; implementation stages 3-9: decon® Deutsche Energie-Consult GmbH, Berlin
Fire protection: KREBS + KIEFER Ingenieure GmbH, Berlin
Sun protection: WAREMA Renkhoff SE, Marktheidenfeld
Internal glare protection: Glasgard ® GmbH, Lollar-Salzböden
Fotograf: Klemens Renner
Office building FA 206, Berlin, Germany images / information received 220724
Location: Berlin, Germany, western Europe
Berlin Architecture
Contemporary Architecture in the German Capital City
Berlin Architecture Designs – chronological list
New Berlin Office Buildings
German Capital Office Architectural Designs – workplace selection

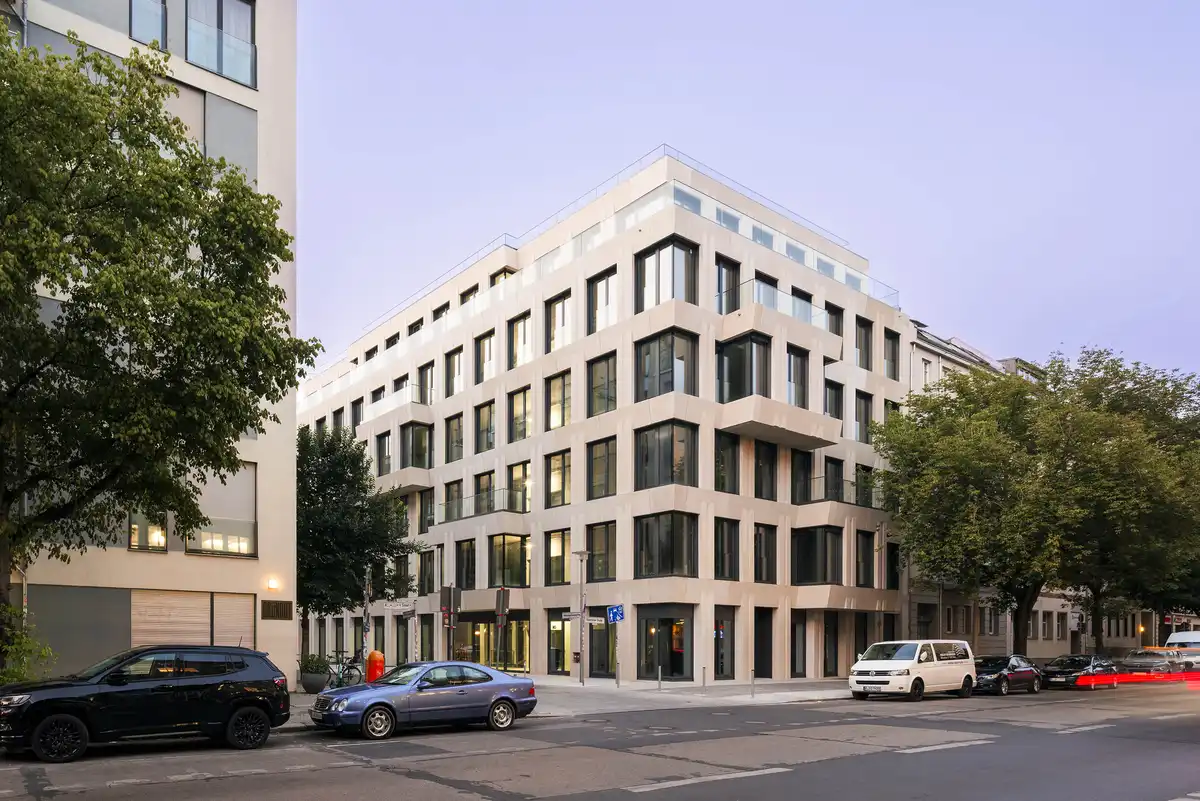

coe48 office and apartment building, Koepenicker Strasse 48
Architects: TCHOBAN VOSS Architekten
photo : Klemens Renner
coe48 office and apartment building

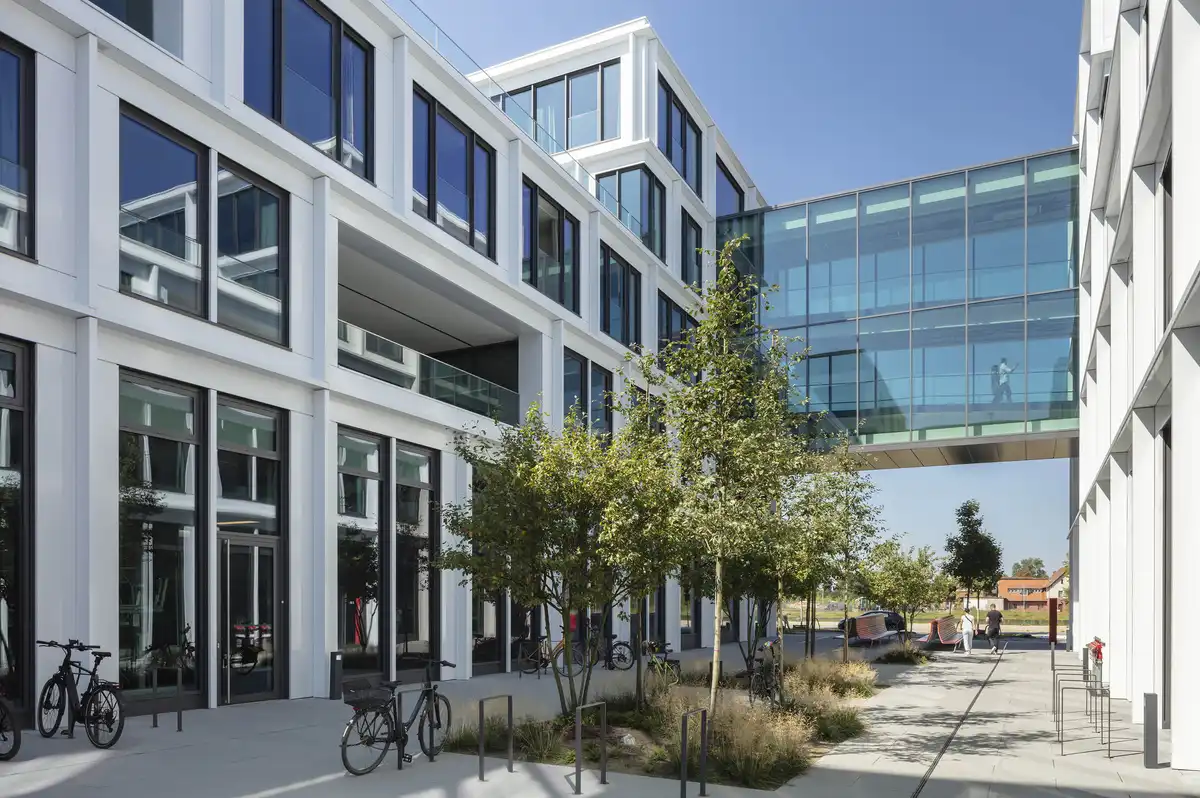

Headquarters of Berliner Sparkasse, Benno-Koenig-Straße 18
