Woodinville Whiskey Co, Quincy Washington

Woodinville Whiskey Processing, Barrel-Aging Facility, Washington Commercial Property, WA Architecture Photos

Woodinville Whiskey Co in Quincy WA

Mar 3, 2022

Design: Graham Baba Architects

Location: Quincy, Washington, USA

Woodinville Whiskey Co Quincy Washington
photo © Kristian Alveo

Photos: Kristian Alveo and Ross Eckert

Woodinville Whiskey Processing and Barrel-Aging Facility

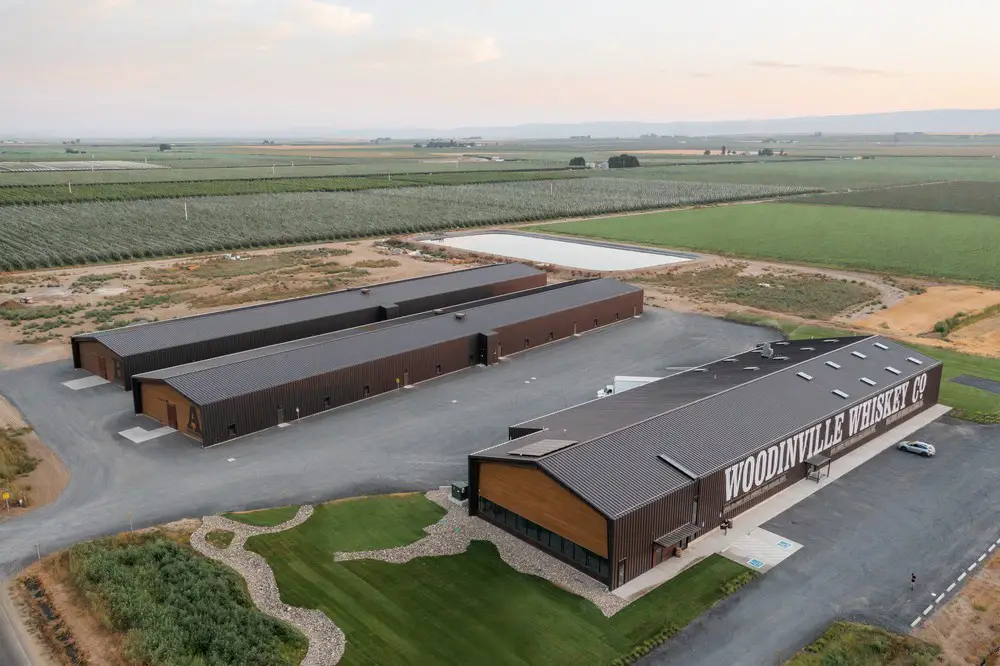

To meet increasing demand for its products, Woodinville Whiskey needed a larger distillery facility to process and age its whiskey. A 10-acre site set amidst the fields of grain used to produce the company’s whiskey in Quincy, Washington was selected for a multi-phase expansion that consolidates operations as well as provides space for continued development.

Woodinville Whiskey Co Quincy WA
photo © Kristian Alveo

The initial phase of the expansion features a processing and bottling building, which also houses new corporate offices, and a barrel rickhouse for aging the whiskey. A second barrel rickhouse is currently under construction. Four additional barrel rickhous-es are slated for future phases.

Woodinville Whiskey Co Washington
photo © Ross Eckert

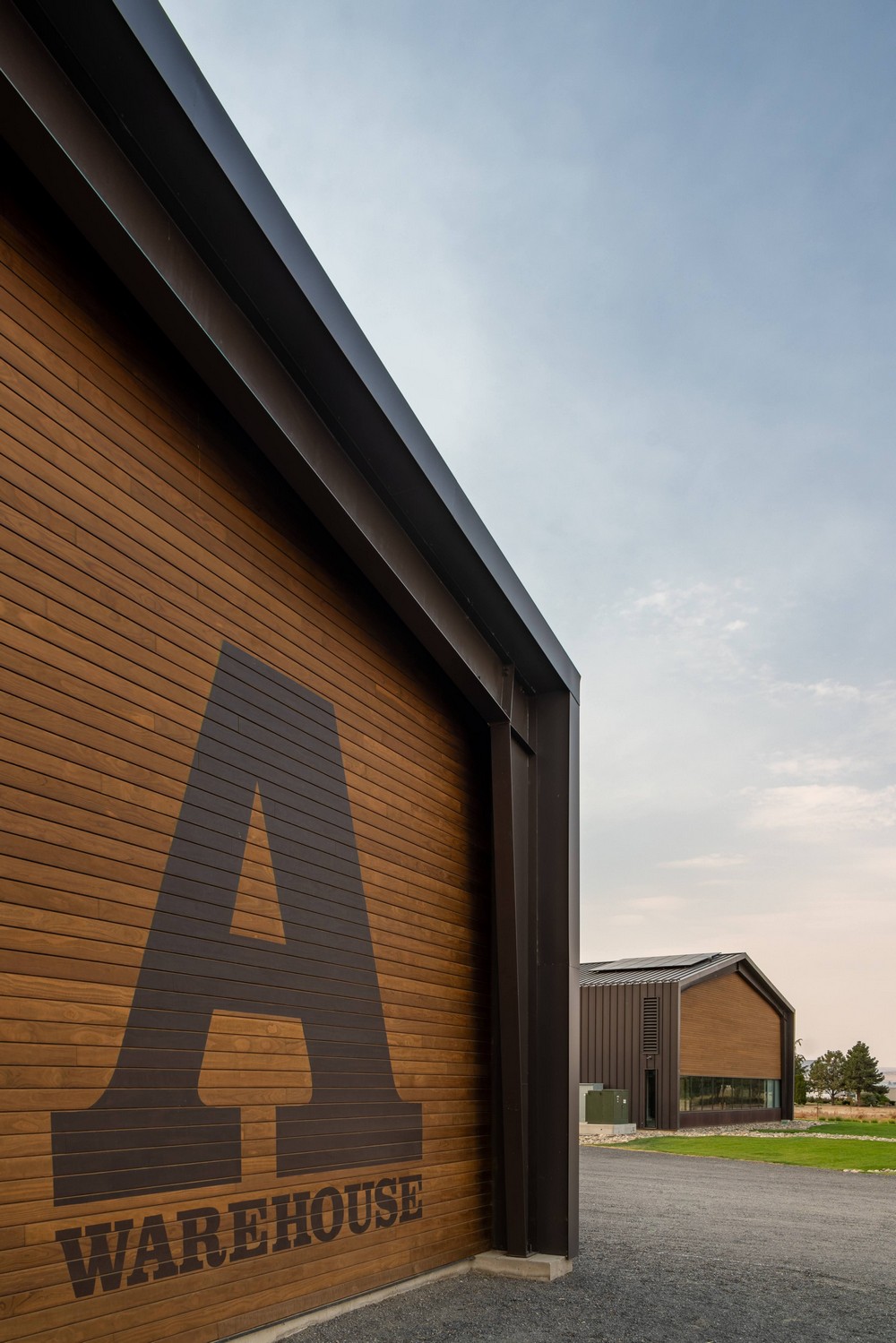

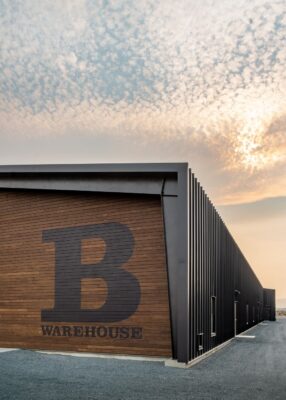

The buildings are large—ranging from 40- to 70-feet-wide-by-400-feet-long—and establish a monumen-tal presence within the fields that surround the site. Despite their size, the structures are an exercise in restraint, taking design inspiration from the simple agricultural and industrial warehouses found in the region, as well as from traditional ricking houses found throughout the American South.

Woodinville Whiskey Co Washington Woodinville Whiskey Co Washington USA
photos © Ross Eckert

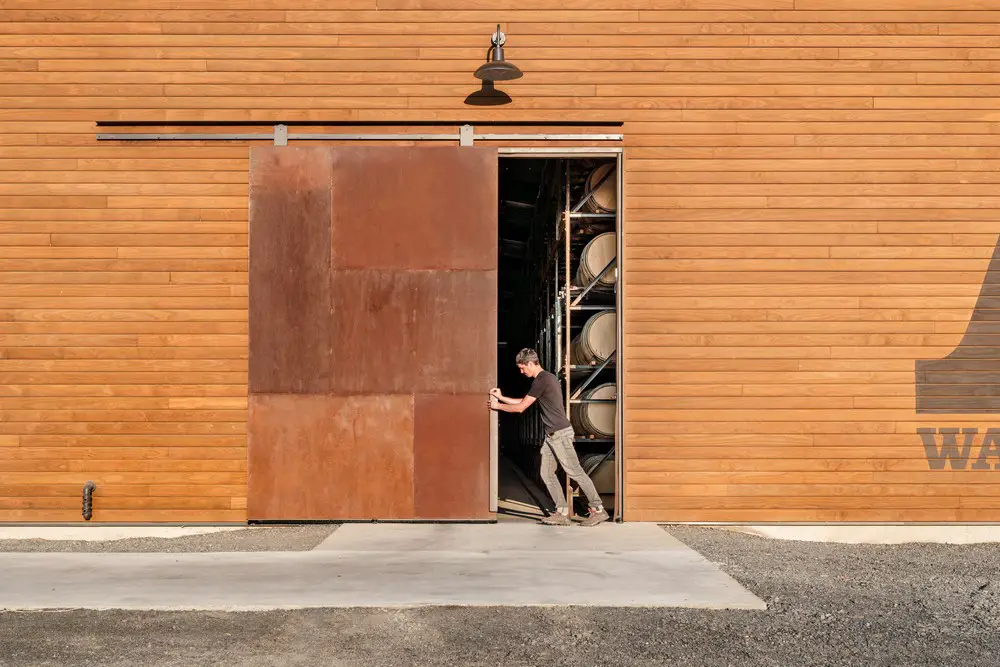

Inspired by the distillery’s production and tasting facility in Woodinville, Washington (also designed by Graham Baba Architects), the client’s directive required balancing functional and industrial requirements while clearly conveying the Woodinville Whiskey brand. Building massing is simple, with functional aspects such as vehicle circulation, loading and unloading dictating the site’s layout and the buildings’ scale. Maintaining the simple, rectilinear gabled form and dark brown hue of the Woodinville distillery, the new complex consists of buildings clad in dark metal siding and Kebony wood. Large Corten-clad slid-ing barn doors and bands of Corten siding at key locations combine to evoke the warmth and character of the whiskey.

Woodinville Whiskey Co Quincy WA Woodinville Whiskey Co Quincy Washington
photos © Kristian Alveo

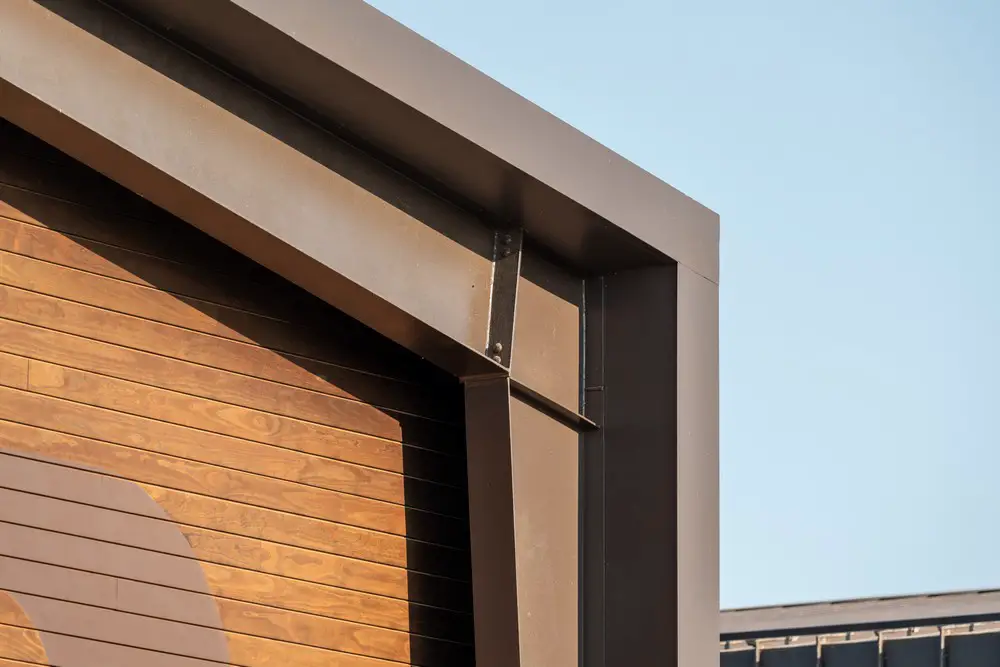

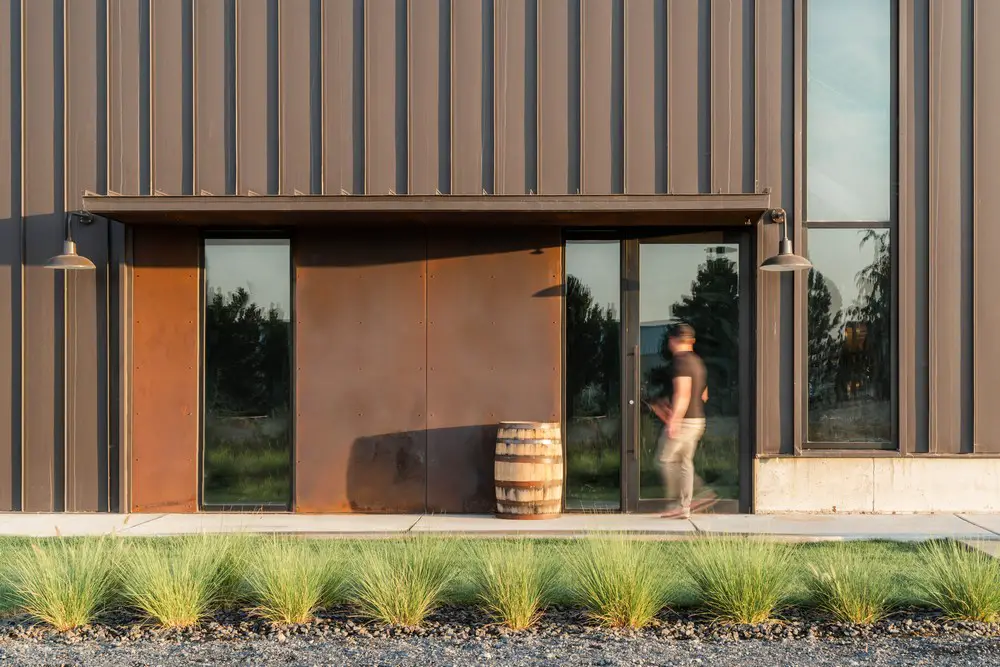

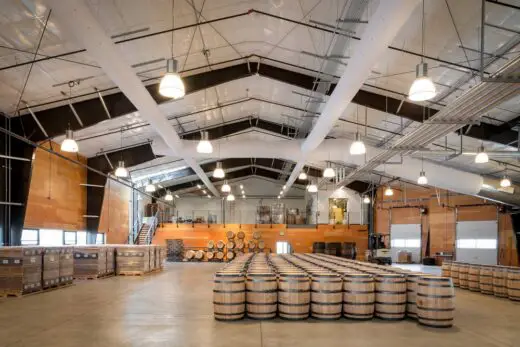

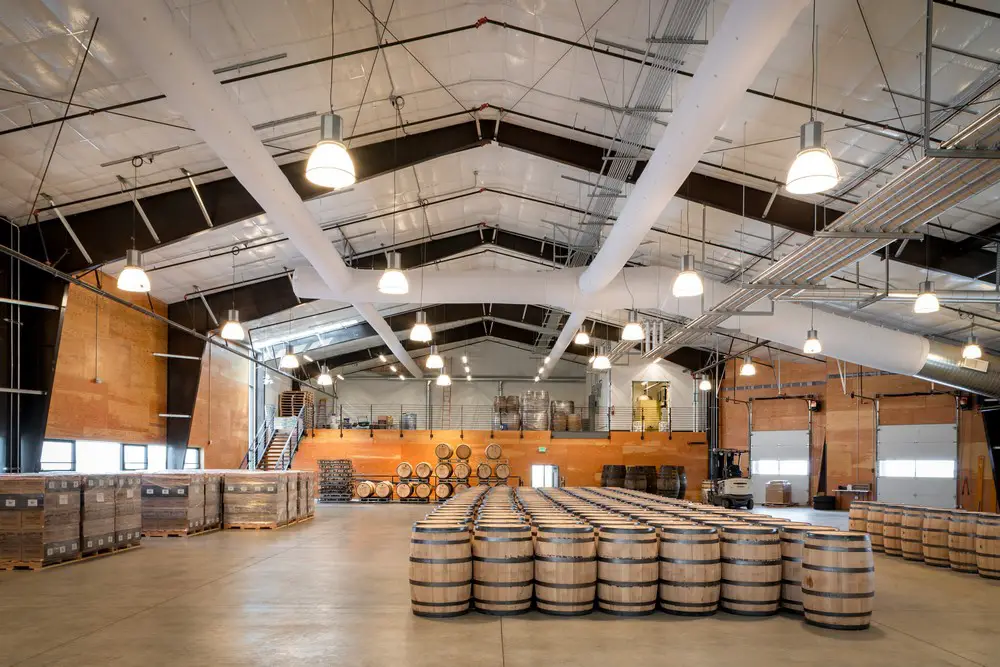

Leveraging the economy of prefabricated metal buildings, the team determined manufactured structures would provide a cost-effective way to create a lot of space while still preserving opportunities for cus-tomization. Highly crafted details are strategically located where they count the most—in places where they can be touched and seen. In the process building, the entry is topped by a slim canopy that appears to fold up and peel away from the building, revealing a Corten-clad inner core and a large off-center pivot door. The transition between office and process areas is demarcated with a long vertical window that folds from wall to ceiling, transforming into a skylight.

Woodinville Whiskey Co Quincy Washington
photo © Kristian Alveo

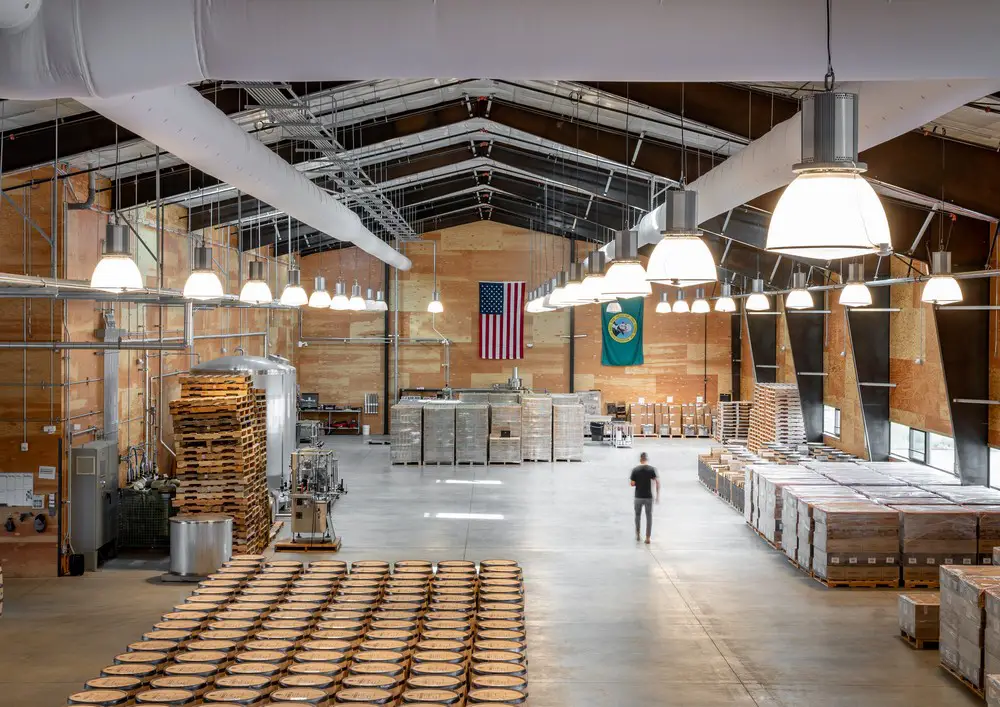

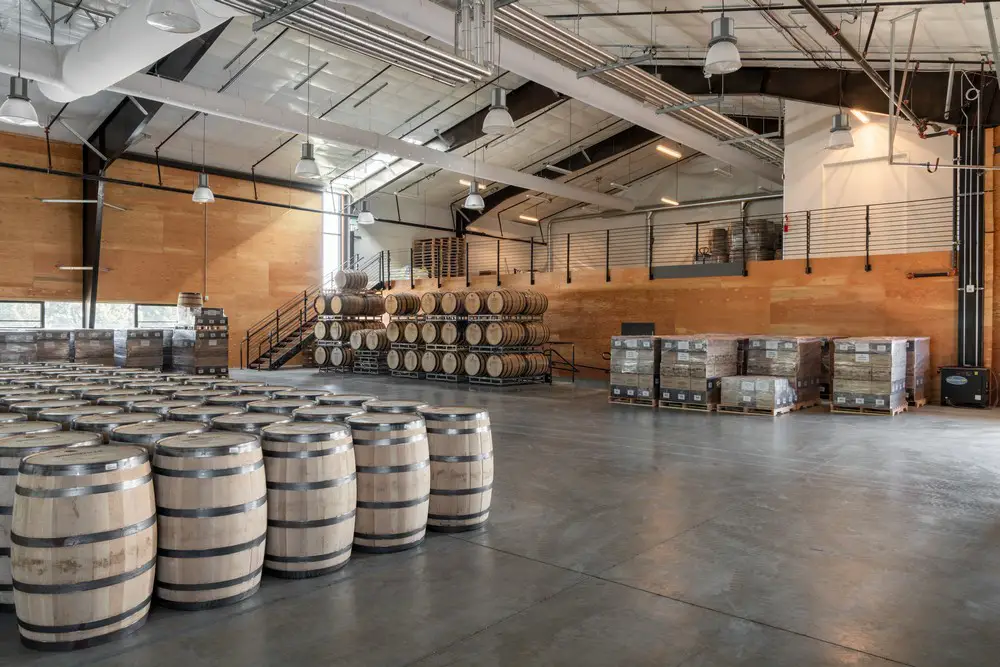

Horizontal windows on the north wall of the processing area frame the adjacent agricultural landscape and farmstead. A row of rooftop skylights provide natural daylighting into the processing space, while south-facing photovoltaic rooftop panels provide a renewable source of electricity.

Woodinville Whiskey Co Washington
photo © Ross Eckert

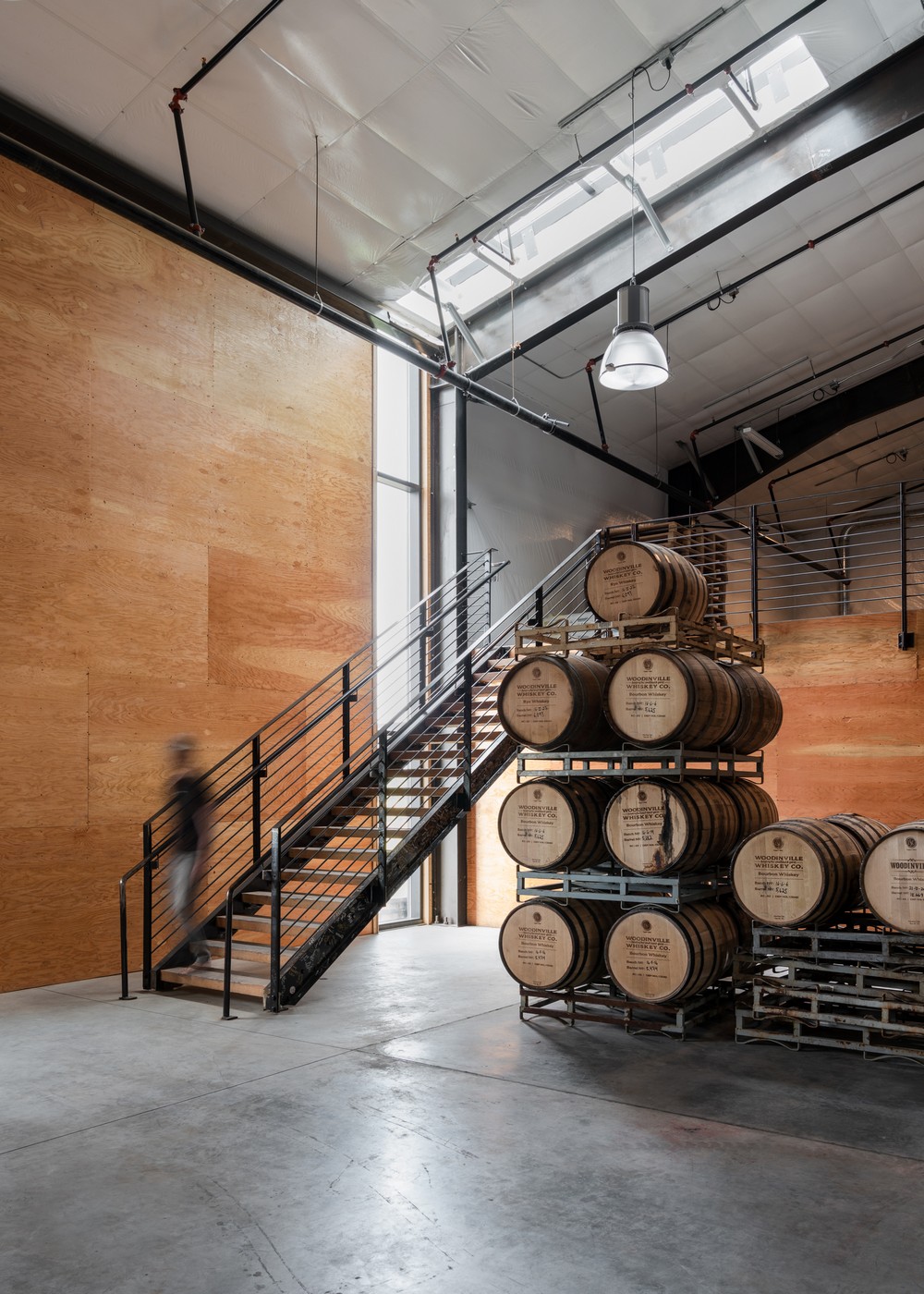

Selective elements demolished at the Woodinville distillery (steel and old growth Douglas fir stairs and steel railings) were salvaged and repurposed for the new complex, keeping them out of the landfill while creating a spiritual and physical link between the new facility and the distillery. Before the stair was moved to its new location, patrons of Woodinville signed a steel stringer, further connecting the past to the future.

Woodinville Whiskey Co Washington USA
photo © Ross Eckert

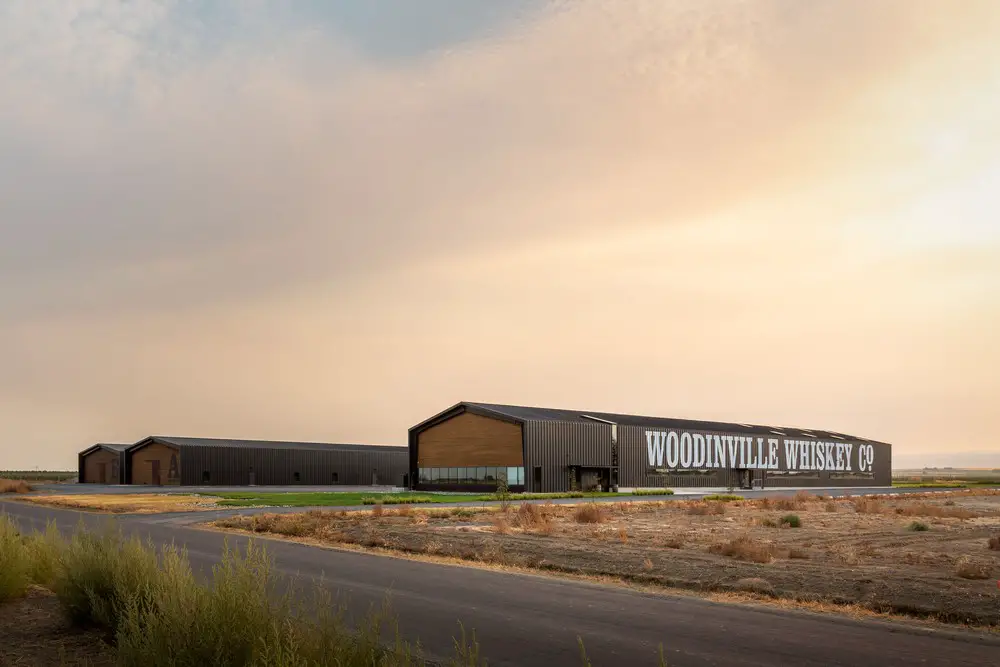

On the exterior, a huge “Woodinville Whis-key Co.” sign is rendered as a semi-transparent super-graphic painted onto the north façade of the build-ing, announcing the brand to passing motorists, and recalling signs such as those found on the sides of distilleries and rickhouses throughout rural and agricultural regions from Kentucky to Scotland.

Woodinville Whiskey Co Washington USA
photo © Ross Eckert

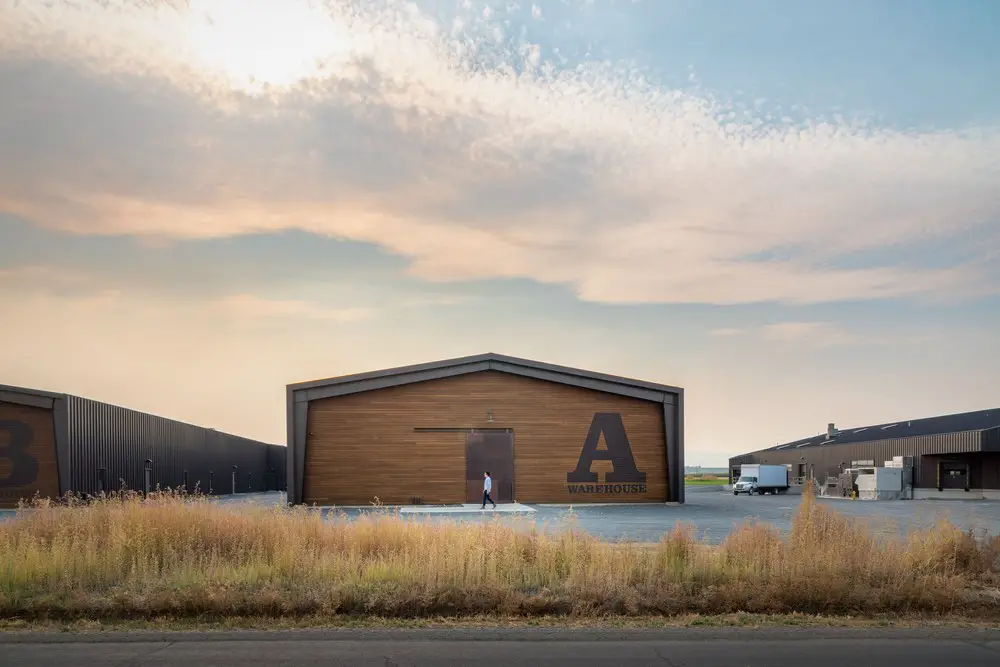

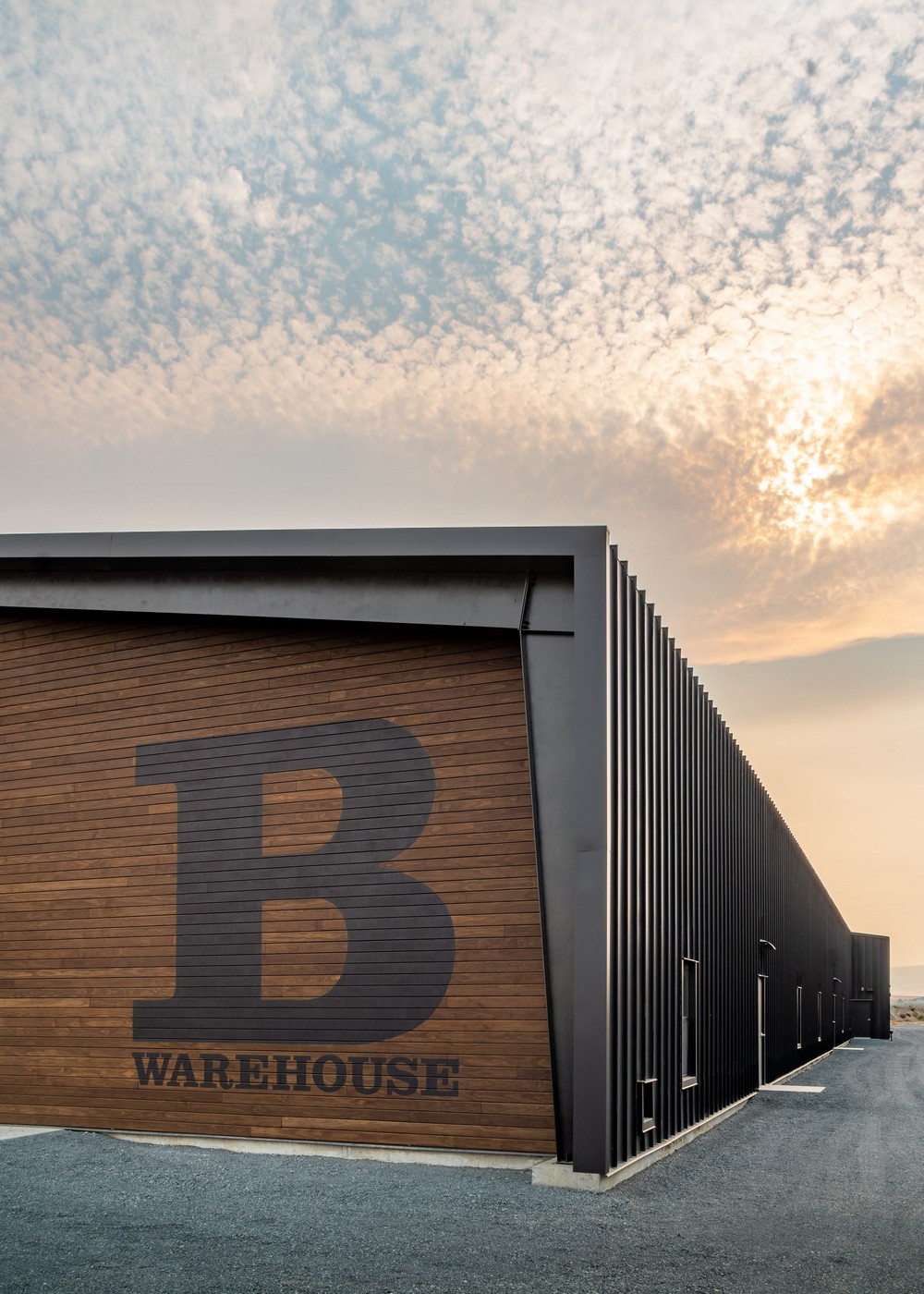

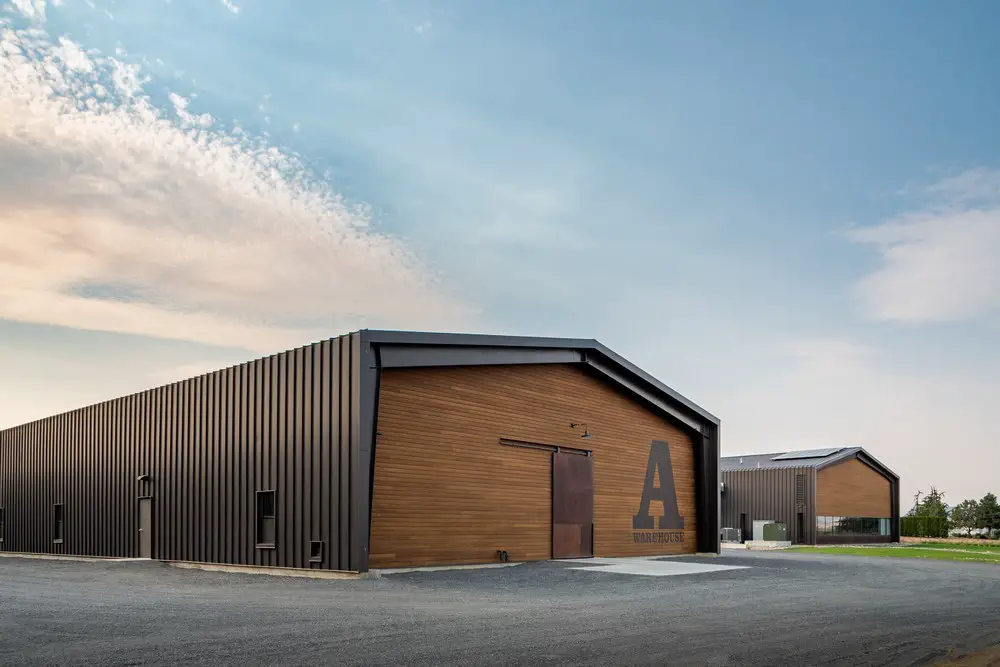

The shallow gabled roof, rectilinear form, and repetitive double hung windows of the barrel rickhouses were inspired by traditional whiskey ricking houses and serve both as a visual connection to the tradi-tional methods of whiskey aging as well as a functional purpose—the process of aging whiskey remains essentially unchanged since people first began distilling and enjoying spirits.

Woodinville Whiskey Co Quincy WA
photo © Kristian Alveo

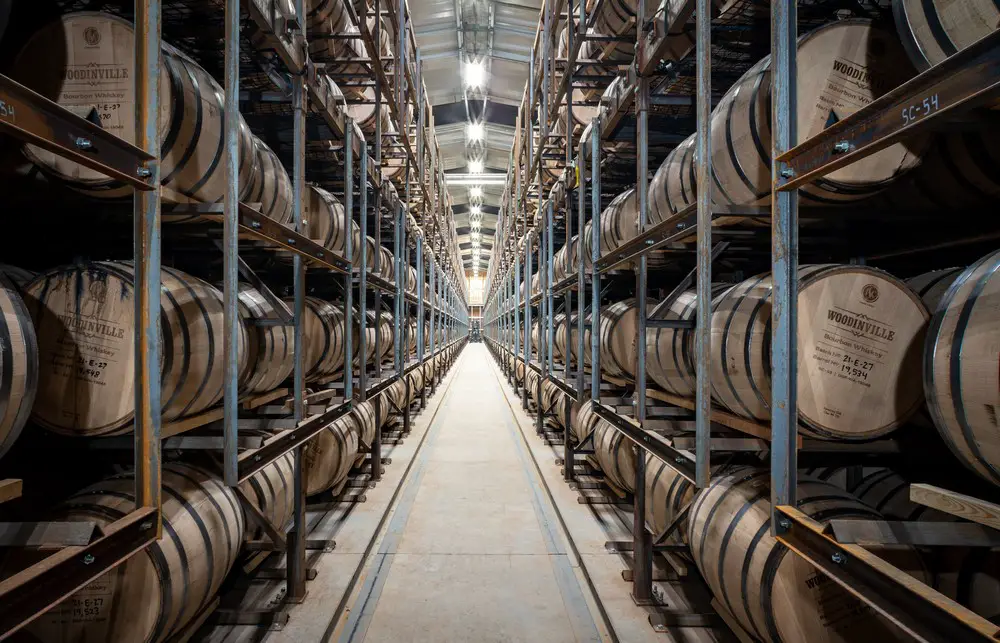

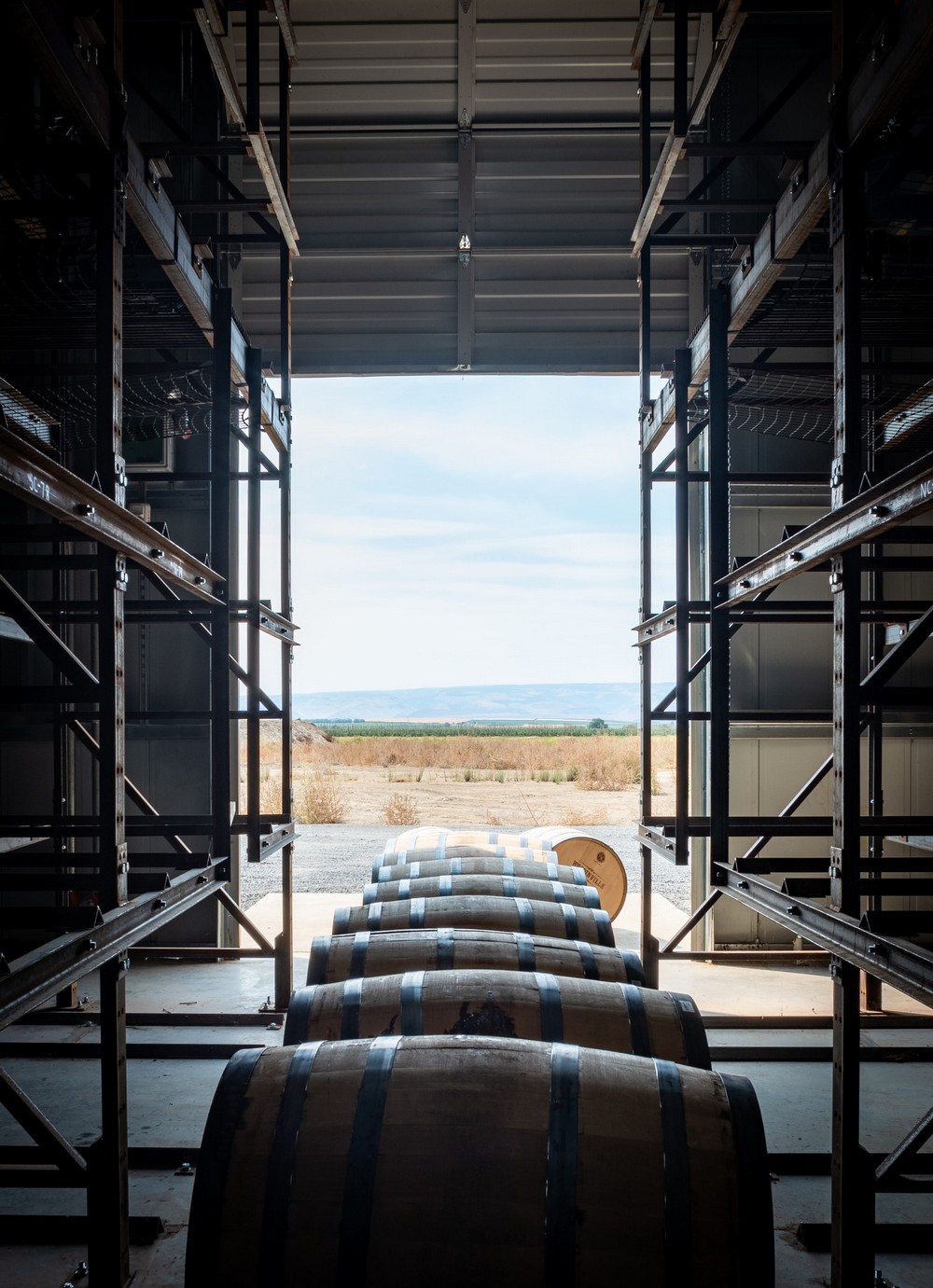

The hot days and cold nights of eastern Washington create the perfect conditions for aging whiskey, allowing for the expan-sion and contraction of the distillate within the charred oak interior of the barrels, resulting in the rich, oaken profile and russet hue so distinctive of a good bourbon and rye.

Woodinville Whiskey Co Quincy WA
photo © Kristian Alveo

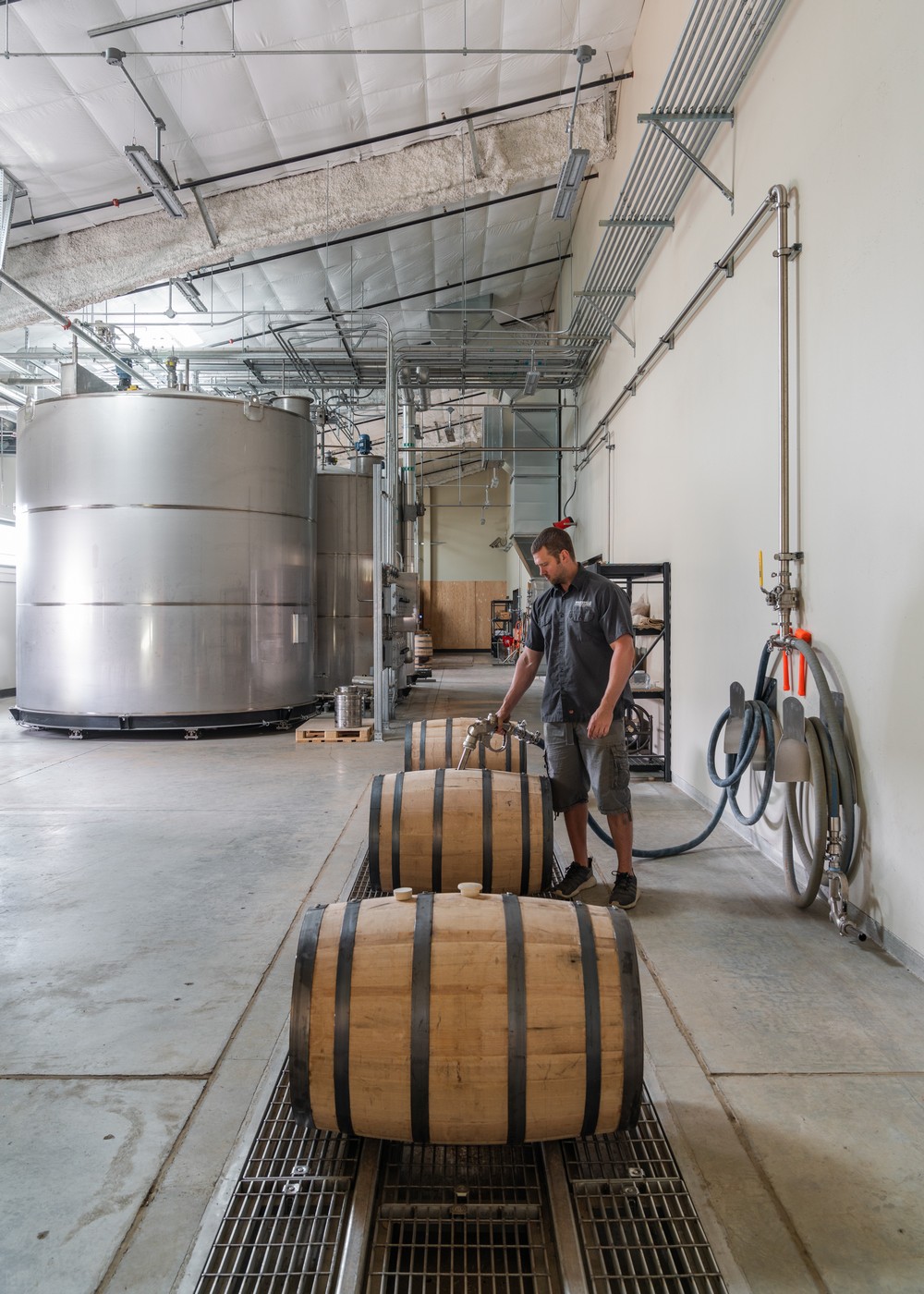

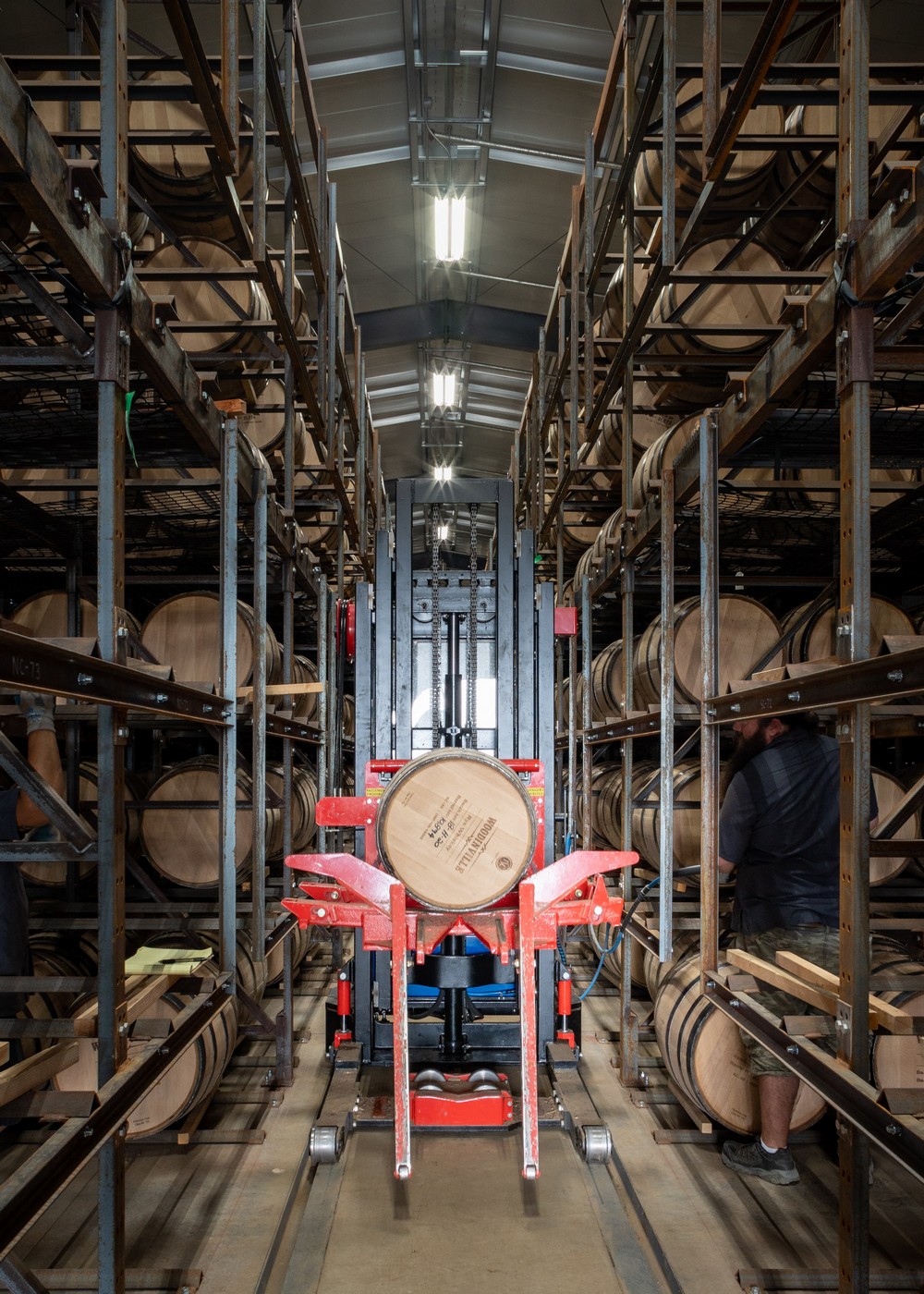

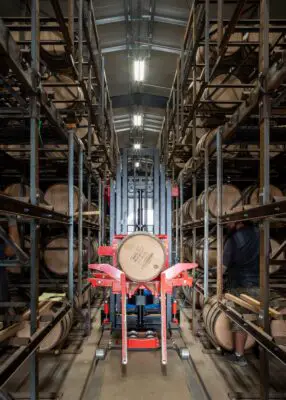

The rickhouses are uninsulated and unconditioned to maximize the temperature swings that support the aging process. After aging, the whiskey is piped from the barrels into bottles in the process building, which are then shipped to nearly half the states in the US.

Woodinville Whiskey Co Quincy Washington Woodinville Whiskey Co Quincy WA
photos © Kristian Alveo

A tasting room, featuring a tasting bar, windows into the processing area and covered and open patio areas overlooking the fields of rye, corn and wheat, is planned for a future phase. With fields and dis-tant mountain views, the tasting room will provide an on-site amenity open to the public, unlike any other in the region. The tasting room will be elevated several feet above ground level so that patrons will be visually immersed in the adjacent fields of grain—the perfect grain-to-glass experience.

Woodinville Whiskey Co Washington USA
photo © Ross Eckert

Woodinville Whiskey Co Quincy WA
photo © Kristian Alveo

Woodinville Whiskey Co in Quincy, Washington – Building Information

Design: Graham Baba Architects – http://grahambabaarchitects.com/

Graham Baba Architects team
Susan Tillack, design and project manager
Andy Brown, design and project architect
Brett Baba, design and detailing

Project team
Graham Baba Architects (architecture and interior design)
JSL Engineering (civil and structural engineering)
Western Pacific Engineering (geotechnical engineer)
AHBL (landscape architecture)
REAX Engineering (fire protection consultant)
Rimmer & Roeter (contractor)
Woodinville Whiskey/LVMH (client)

Woodinville Whiskey Co Quincy Washington
photo © Kristian Alveo

Materials/Products

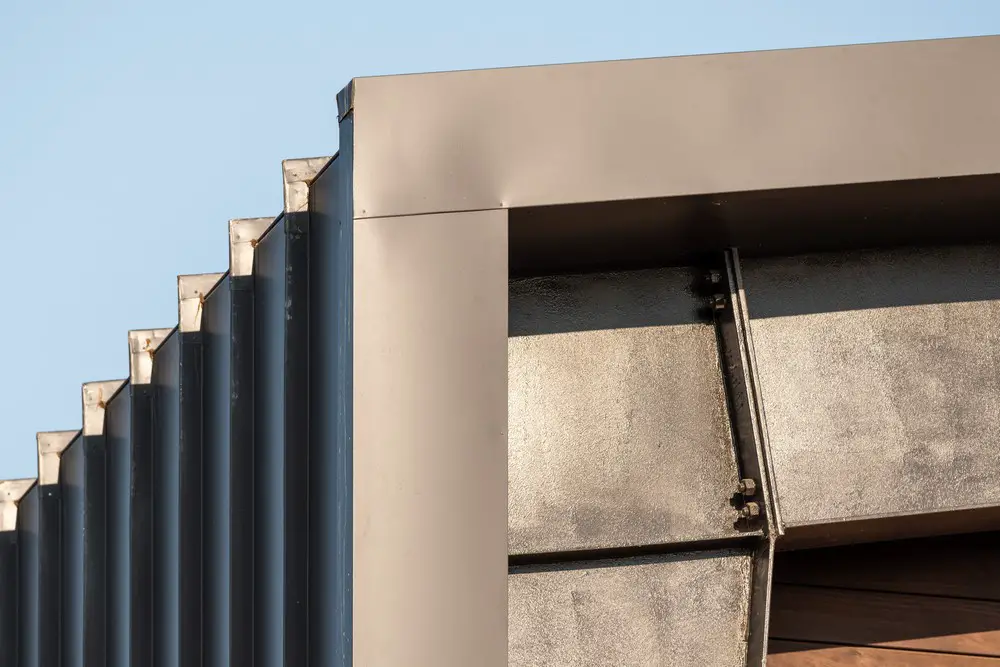

Structural system: Butler Building (prefabricated steel bents and girts)
Exterior cladding: Morin SLR 16-0 Panel; Kebony cladding; Corten metal siding
Roofing: Morin SLR 16-0 Panel
Windows: EFCO; Milgard
Glazing: Hartung; Vitro Solarban 60; Pyrostop 60
Skylights: Crystallite; EFCO
Exterior Doors: Western Window Systems
Interior Doors: Ceco
Paints and stains: Benjamin Moore
Solid surfacing: Wilsonart Laminate

Woodinville Whiskey Co Washington
photo © Ross Eckert

Photography: Kristian Alveo and Ross Eckert

Woodinville Whiskey Co, Quincy Washington images / information received 030322
