Lower Hill District Master Plan in Pittsburgh

Residential Development in Pennsylvania, USA design by BIG architects

Nov 18, 2015

Design: BIG

Location: Pittsburgh, USA

Lower Hill District Master Plan, Pittsburgh

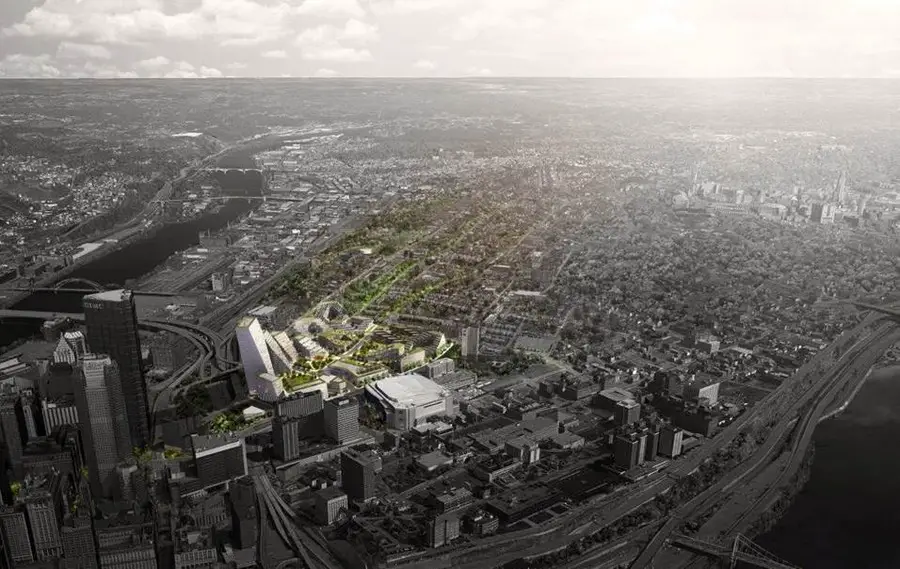

BIG + West 8 + Atelier Ten’s vision for a new master plan in Pittsburgh covers 28 acres, including 1,200 units of housing as well as 1+million sq ft of retail and commerce providing accessibility across Pittsburgh’s unique topography and creating a vibrant new open space for the city’s residents to enjoy.

Lower Hill District Master Plan

Lower Hill District Master Plan in Pittsburgh, PA

The Penguins and McCormack Baron Salazar hired BIG to design the residences and public spaces at the 28-acre Lower Hill District of Pittsburgh. Building upon the city’s efforts from the past decade, BIG’s proposal redevelops the public space around the former Civic Arena, including a public space across from Consol Energy Center, and connects the property to Downtown, Uptown and the rest of the Hill District.

“The masterplan for the Lower Hill District is created by supplementing the existing street grid with a new network of parks and paths shaped to optimize the sloping hill side for human accessibility for all generations. The paths are turned and twisted to always find a gentle sloping path leading pedestrians and bicyclists comfortably up and down the hillside. The resulting urban fabric combines a green network of effortless circulation with a quirky character reminiscent of a historical downtown. Topography and accessibility merging to create a unique new part of Pittsburgh. “ Bjarke Ingels, Founding Partner, BIG.

Lower Hill District Master Plan

“BIG’s master plan seeks to become a catalyst for future investment into the Hill District, moving beyond the standard sustainability solutions and reversing a tendency to vacate, and instead to refocus and reinvest into building a strong community.” Kai-Uwe Bergmann, Partner, BIG.

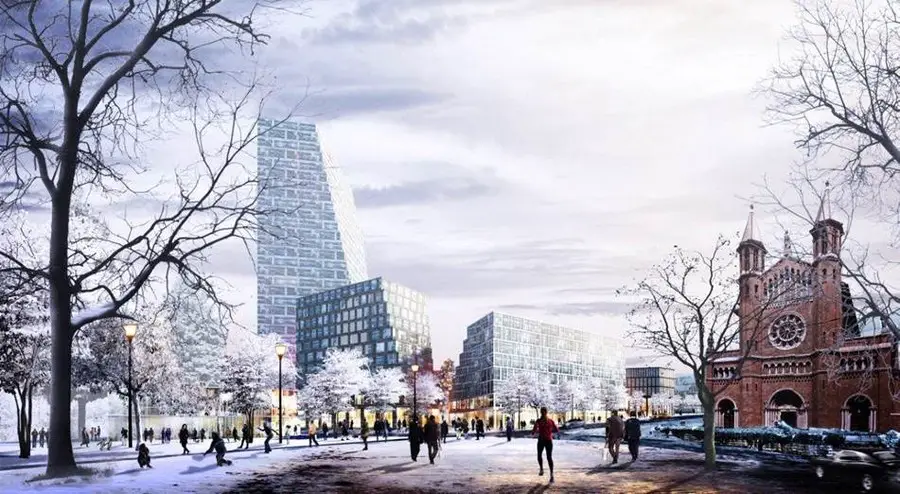

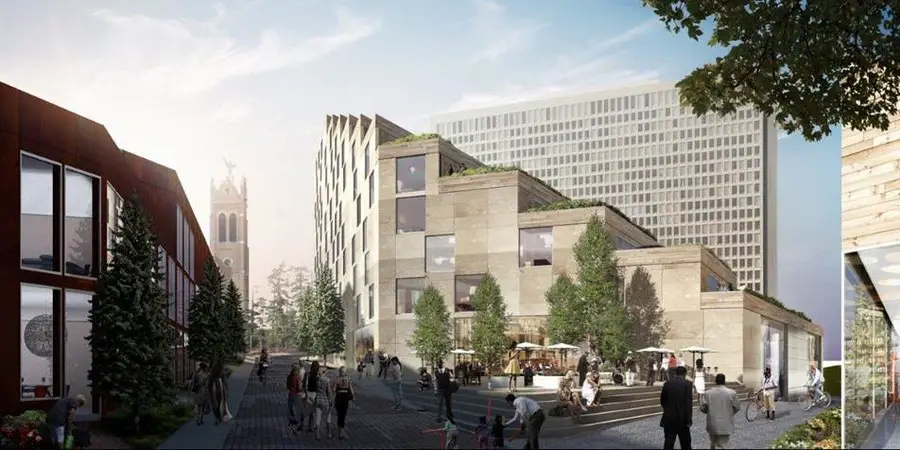

BIG envisions a multifunctional and revitalized neighborhood that is centered along a meandering public realm that serves to connect the Hill District back to its downtown core. The proposal combines individual buildings with a variety of functions bounded by a network of accessible paths and triangular plazas. The terraced sloping roofs and varying building volumes take advantage of the steep slope that is so unique to Pittsburgh and provides the neighborhood its distinct qualities of incredible views, daylight
and generous terraces.

Bill Peduto, Mayor of Pittsburgh, previously said: “This announcement is not just about developing. It’s about how adding on to what we have, which is already incredibly special, and building something for the next 50 years. By bringing BIG in, we’re taking that next big step on these 28 acres, and we’re looking at a way of not just building buildings there.”

Lower Hill District Master Plan

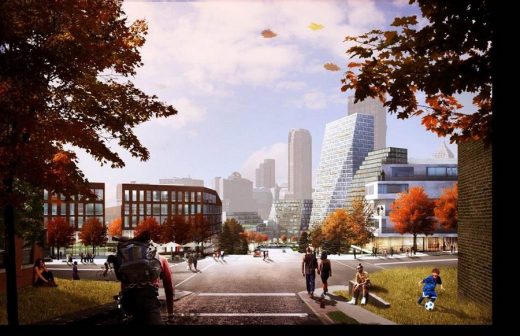

The public realm designed by West 8, is punctuated by granite outcroppings that are inspired by the regions Allegheny landscape and follows a daylit storm system that encourages discovery and play. The street pattern and crosswalks are designed for an active public life and an efficient flow of pedestrians, bikes, public transportation and cars that are all possible through the weaving pattern of pedestrian pathways.

“The site, with its slopes and views, is perfectly suited for bringing an experience of the native landscape to this urban condition. The design creates a new open space identity but more importantly gives neighbors and visitors the sensations of nature in the heart of the city.” Jamie Maslyn, Partner, West 8.

Lower Hill District Master Plan

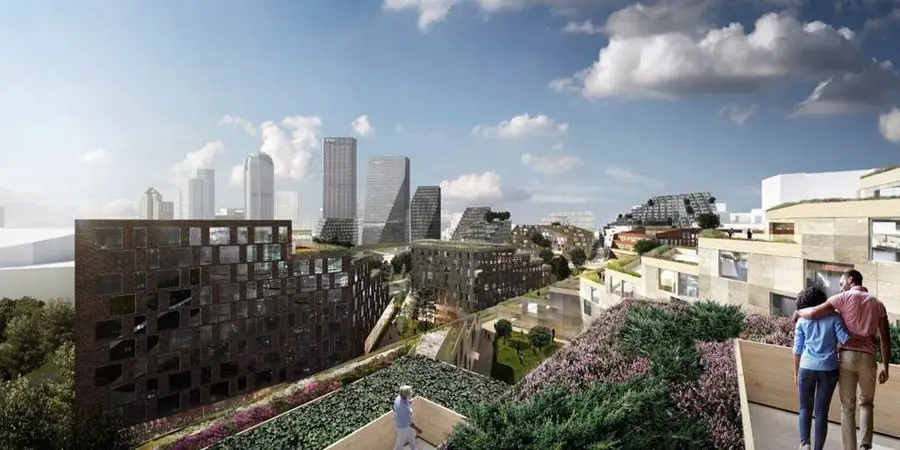

The terraced roofscapes in the residential areas ensure that residents can access outdoor areas to enjoy the views and to also encourage a sense of community among its neighbors. Atelier Ten has developed a set of comprehensive sustainable goals that consider district scaled heating and cooling opportunities, retaining all rainwater on the site and utilizing it for irrigation of the public space.

Lower Hill District Master Plan

Lower Hill District Master Plan Pittsburgh – Project Information

Project Name: New Lower Hill Master Plan
Type: Master Plan
Client: MBS – McCormack Baron Salazar ; PAR – Pittsburgh Arena Real Estate Redevelopment
Size: 28 Acres (ca. 1,200,000+ sqft residential ca. 1,250,000+ sqft office + retail +hotel)
Location: Pittsburgh, Pennsylvania, USA
Status: Concept / Commission
Project Start Date: 2016
Cost: $500+ Million USD estimated development costs

Collaborators: West 8 – Landscape Architecture, Atelier Ten – Sustainability, Massaro: Contractor, Graves Design Group: Architecture, La Quatra Bonci Associates: Landscape Architecture, Mongalo-Winston Consulting: Urban Planning/Public Liaison, Michael Baker International: Civil, Sota Construction Services: Construction Feasibility
Program: Residential, Office, Retail, Hotel
Partner-In-Charge: Kai-Uwe Bergmann, Daniel Sundlin, Bjarke Ingels
Project Leader: Jelena Vucic
Project Manager: Simon David
Project Team: Cheyenne Vandevoorde, Marcus Kujala, Nicolas Gustin, Ibrahim Salman, Terrence Chew, Peter Lee, Lasse Kristensen, Thomas Christoffersen

Pennsylvania Masterplan in Pittsburgh by BIG

Lower Hill District Master Plan in Pittsburgh, Pennsylvania, USA, images / information from BIG


Location: Pittsburg, Pennsylvania United States of America
