University of Economics & Business Vienna Spain Department Building, Image

University of Economics & Business Vienna Carme Pinos

Spain Department: Educational Building Austria design by Estudio Carme Pinos

5 Feb 2009

University of Economics & Business Vienna : Spain Department Building

2009-
Design: Estudio Carme Pinos

Competition win, Austria

University of Economics & Business Vienna Carme Pinos

5 Feb 2009

Description

The project consists of two main buildings responding to very different programs. One of the buildings is placed in the center of the campus while the other one is on the outer part, being the university’s external image with a more public program. Estudio Carme Pinos think that this last one should have a more singular character, as it can be seen as the entrance hall to the university.

University of Economics & Business Vienna Carme Pinos

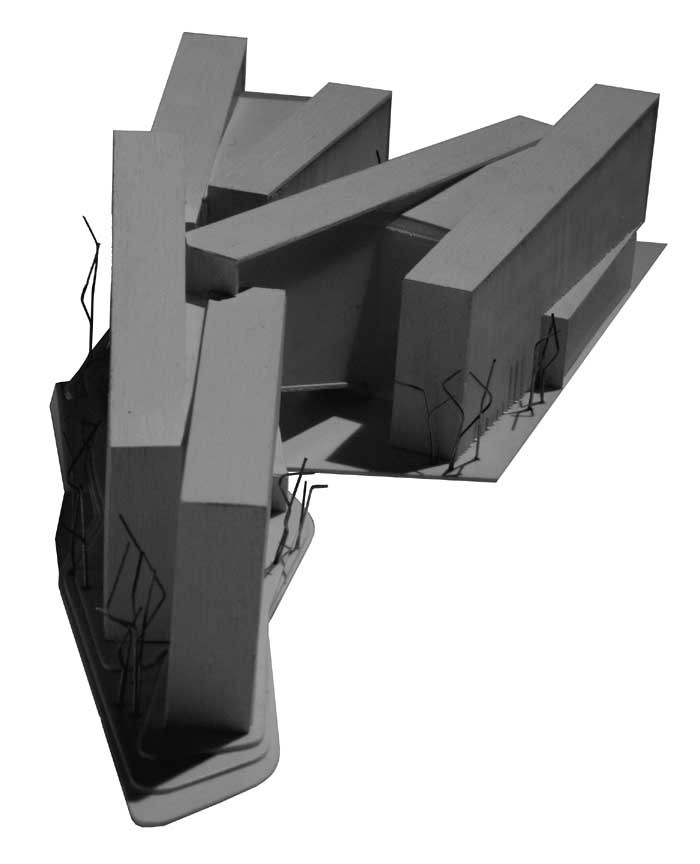

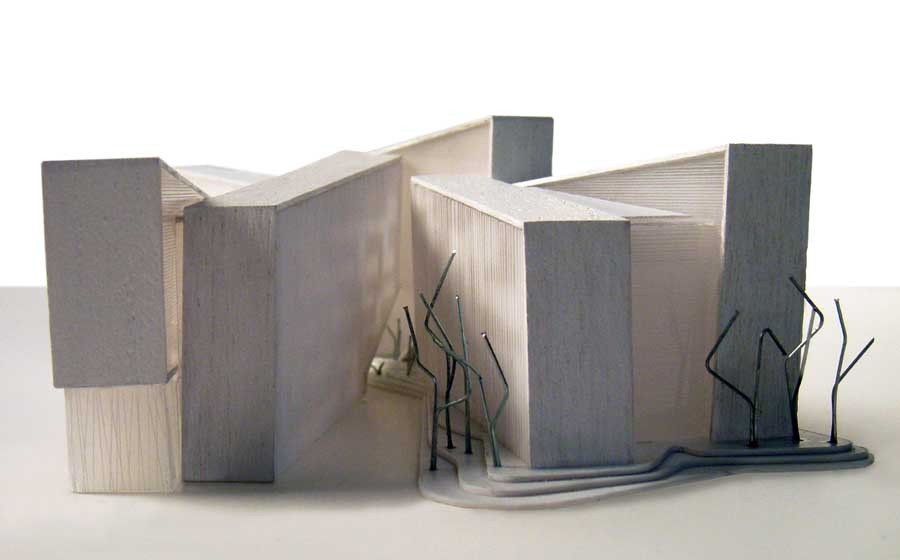

The architects solved the quite systematic program of the two buildings, with a game of parallelograms, which resolves very easily the placement of the different offices and other rooms.

University of Economics & Business Vienna Carme Pinos

In the institutes’ building, the game of volumes solves the connection between the two separated parts of the building proposed in the masterplan and each institutes’ program can be placed in only one level without losing the required pedestrian passage: by uplifting one of the wings Estudio Carme Pinos let the street pass underneath the building.

University of Economics & Business Vienna Carme Pinos

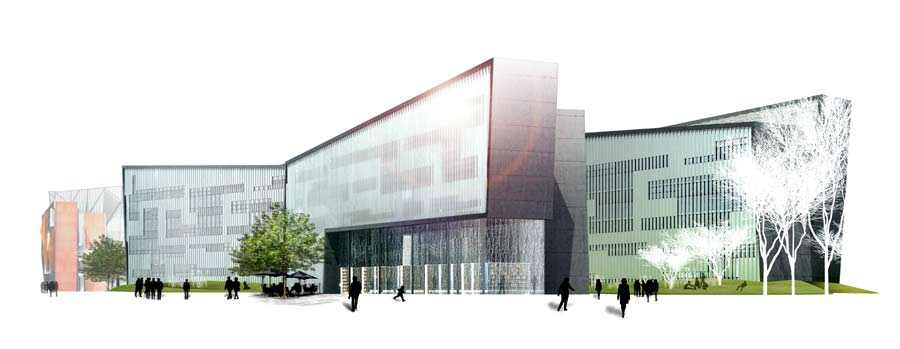

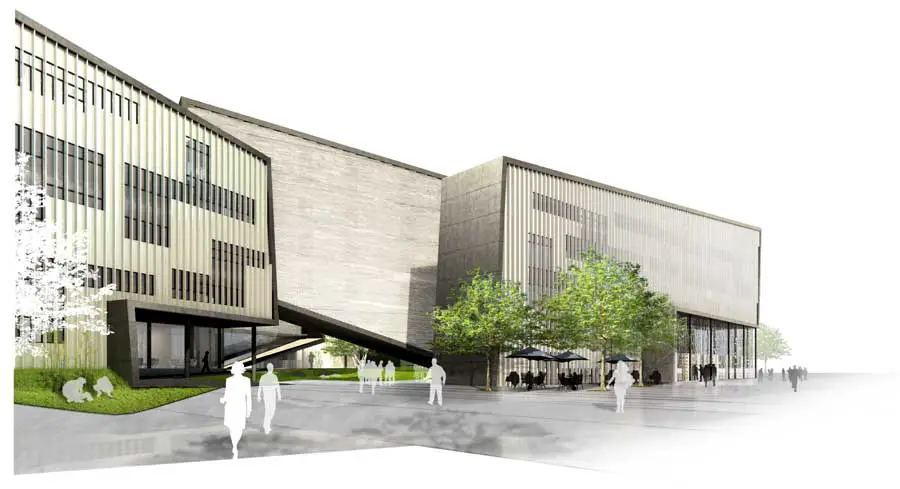

In this building, the game of volumes responds to our wish of creating public spaces and paths. The main street’s façade shelters the public areas, such as the cafeteria and the library, which have an independent entrance. The wing housing the classrooms on the ground floor is lifted 1,5 m on grass mounds to give them more privacy.

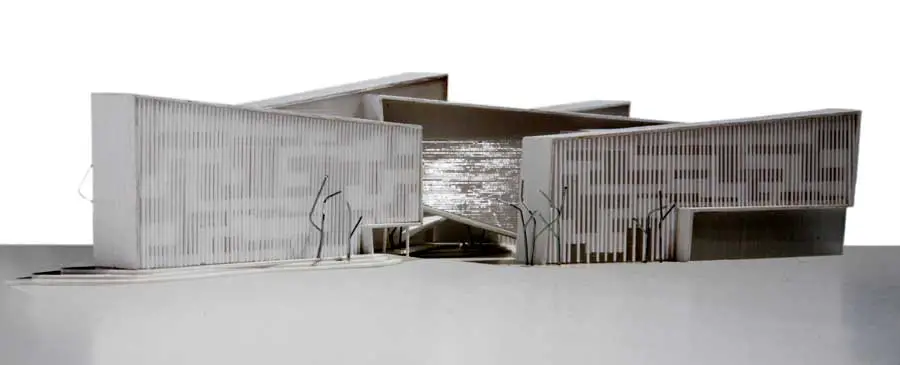

The vast façades are solved with 30 cm wide vertical strips that, as well as working as “brise-soleil”, create a constant change of image as the point of view is moved. The façades of the various parallelograms appear to be different even if they are more or less alike.

University of Economics & Business Vienna Spain Department Building University of Economics & Business Vienna Spain Department Building University of Economics & Business Vienna Spain Department Building University of Economics & Business Vienna Spain Department Building

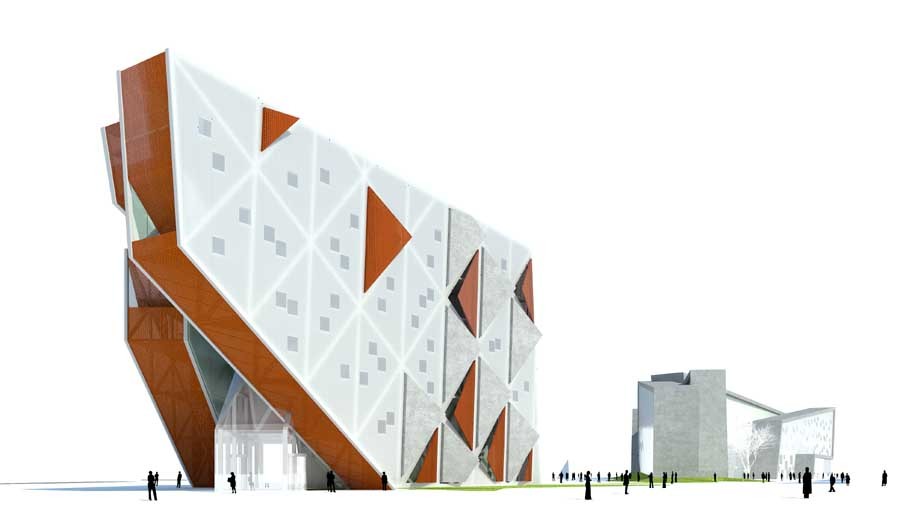

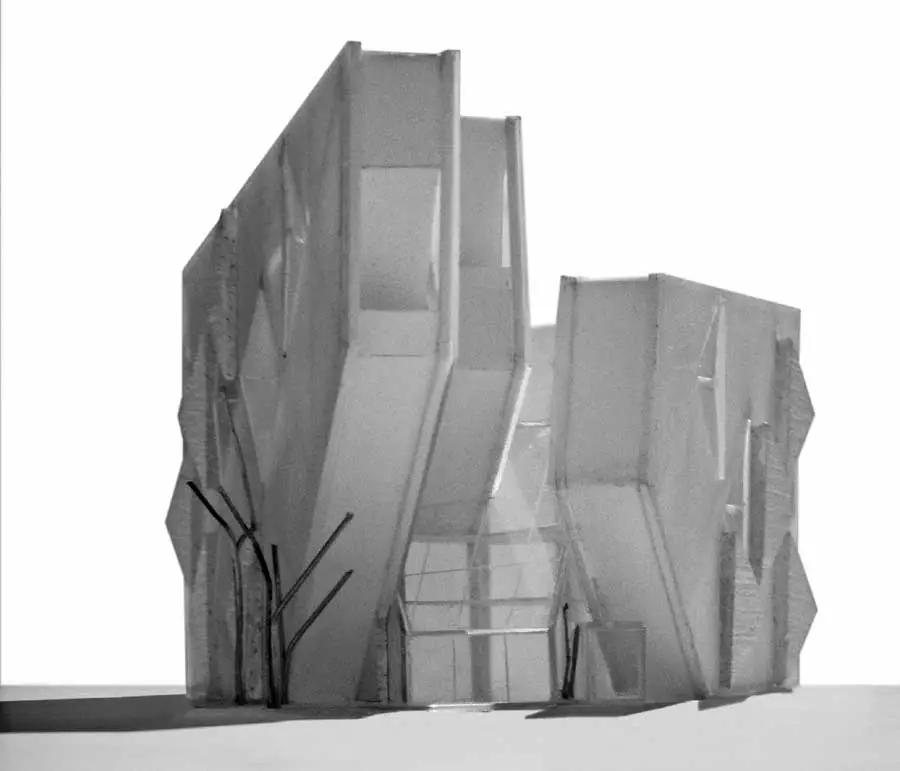

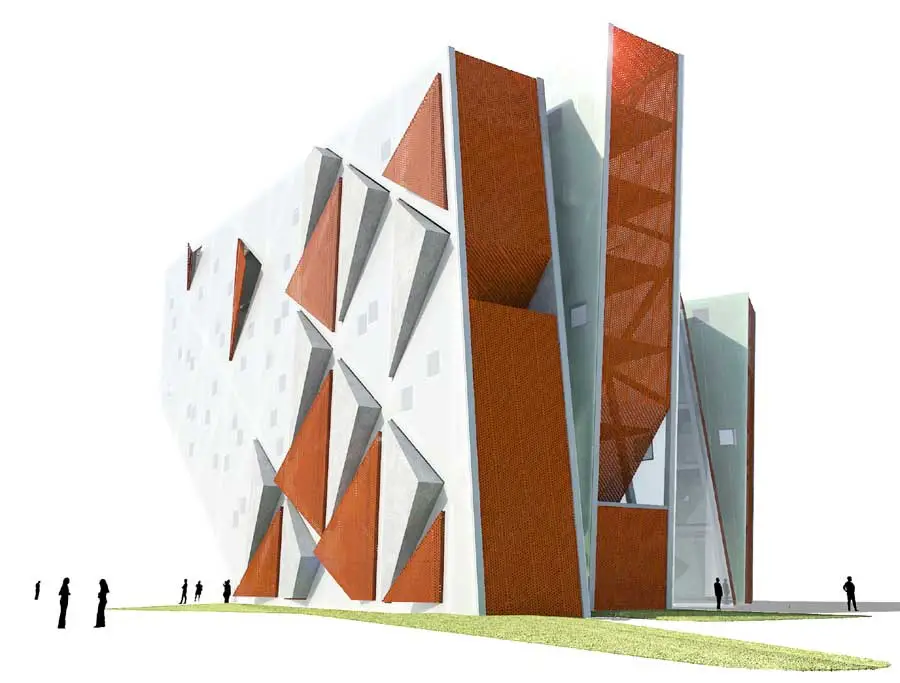

In the other building architects Estudio Carme Pinos wanted to emphasize the entrance to the university, so the volumes are lifted up as cantilevers, allowing one to pass under the others and converting it into a glass volume, the university’s hall.
The metal beams and the concrete fillings that make possible the cantilevering become the façade’s formal expression. A silk-screened glass wall covers the beams, blending them and providing the structure with an elegant quality.

Building in the new campus at the University of Economics, Vienna, Austria – Building Information

Location: Vienna, Austria
Client: University of Economics of Vienna
Dates:
Competition: 2008
Basic Design Project: ongoing
Detailed Design Project: estimated 2009
Construction Works beginning: estimated 2010
Construction Works finalization: estimated 2012
Surface:
Constructed: 14.515 m2
Budget: 18.000.000 €

Main architect: Carme Pinós Desplat

Collaborators:
Architects: Holger Hennefarth
Roberto Carlos García
Juan Antonio Andreu
Alexandra Clausen
Structure: Robert Brufau – BOMA
Model: Estudio Carme Pinós
Computer graphics: Daniel Cano

Photographs: Estudio Carme Pinós

University of Economics & Business Vienna : Spain Department Building images / information from Estudio Carme Pinos
