Tulum Train Station Building

post updated March 24, 2024

Architects: AIDIA STUDIO

Location: Tulum, Riviera Maya, Mexico

Tulum Train Station Mexico building

The station sits in the beach resort of Tulum, in the Mexican Caribbean, along the Riviera Maya. The primary goal in the design process was to push the sustainability agenda to the foreground and to find in that optimized performance a narrative which would speak about the qualities of pre-Hispanic Mayan Architecture through the use of light, shadows, patterns, materials and vegetation.

Tulum Train Station Mexico building

June 28, 2021

Tulum Train Station Building in Mexico

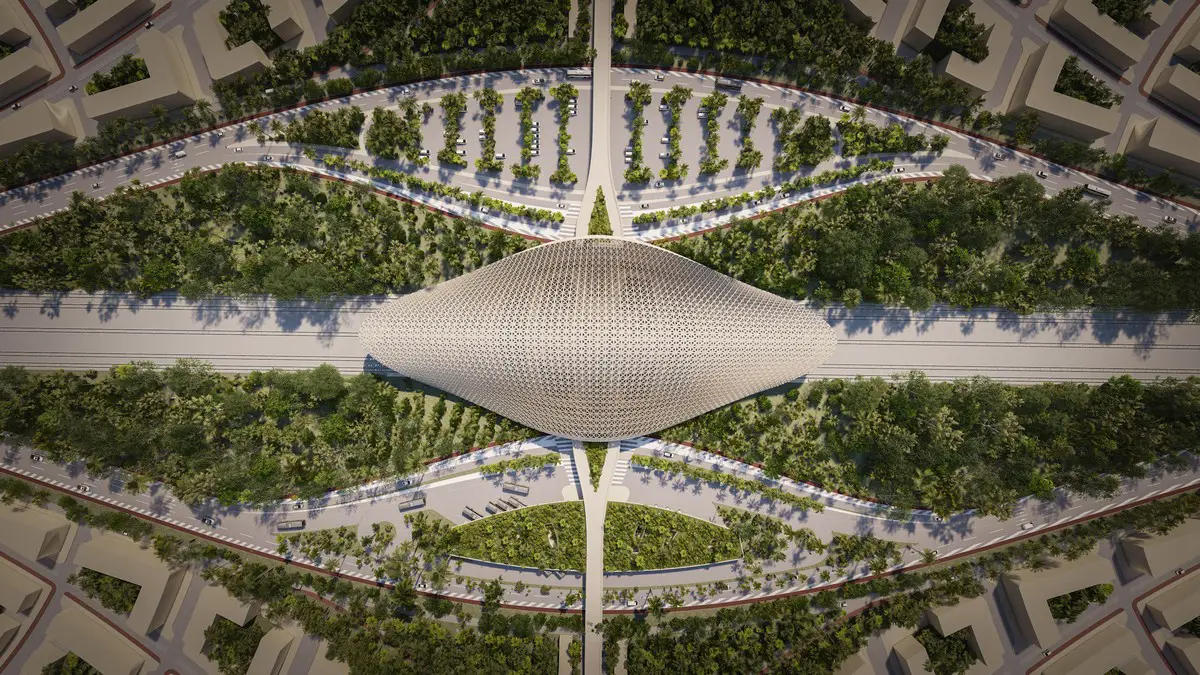

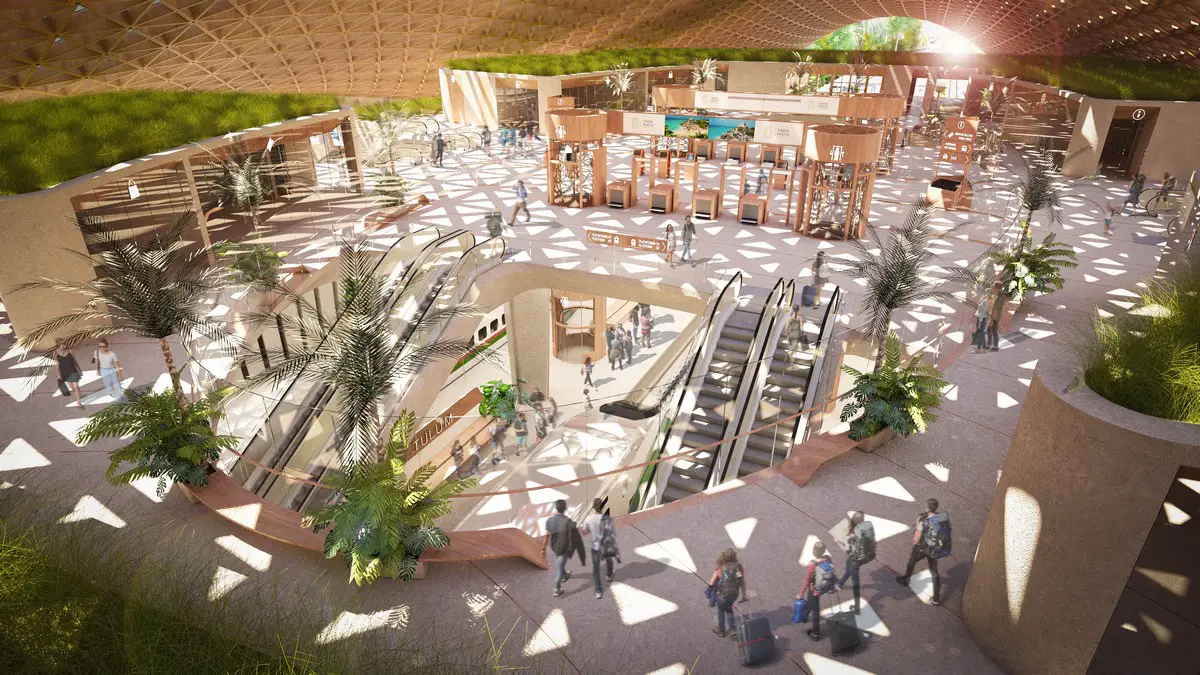

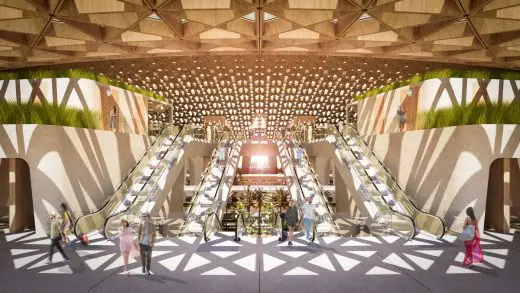

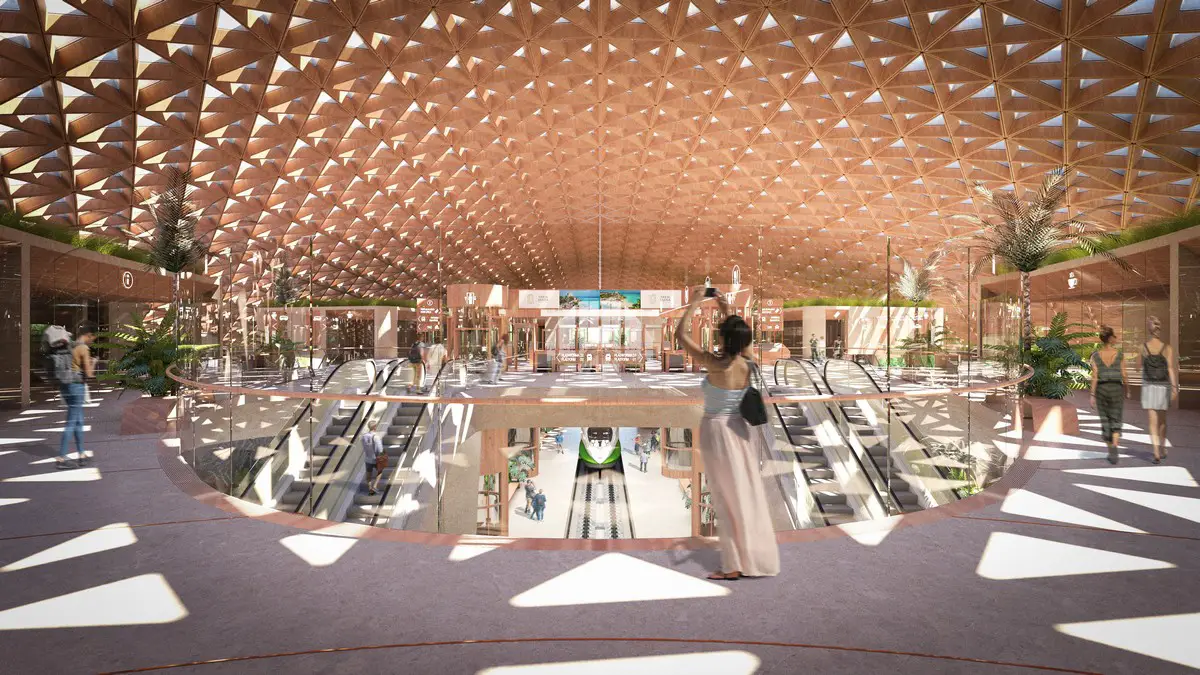

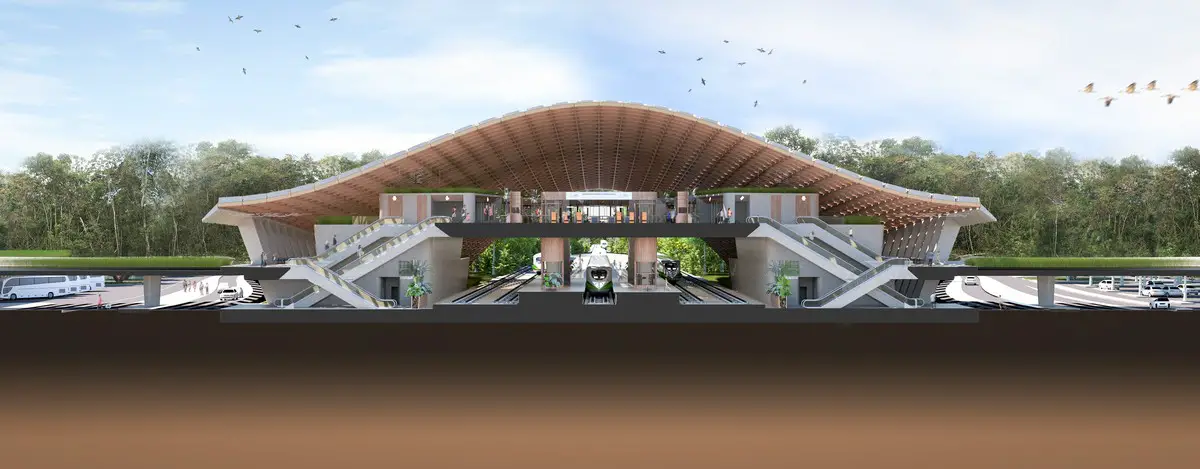

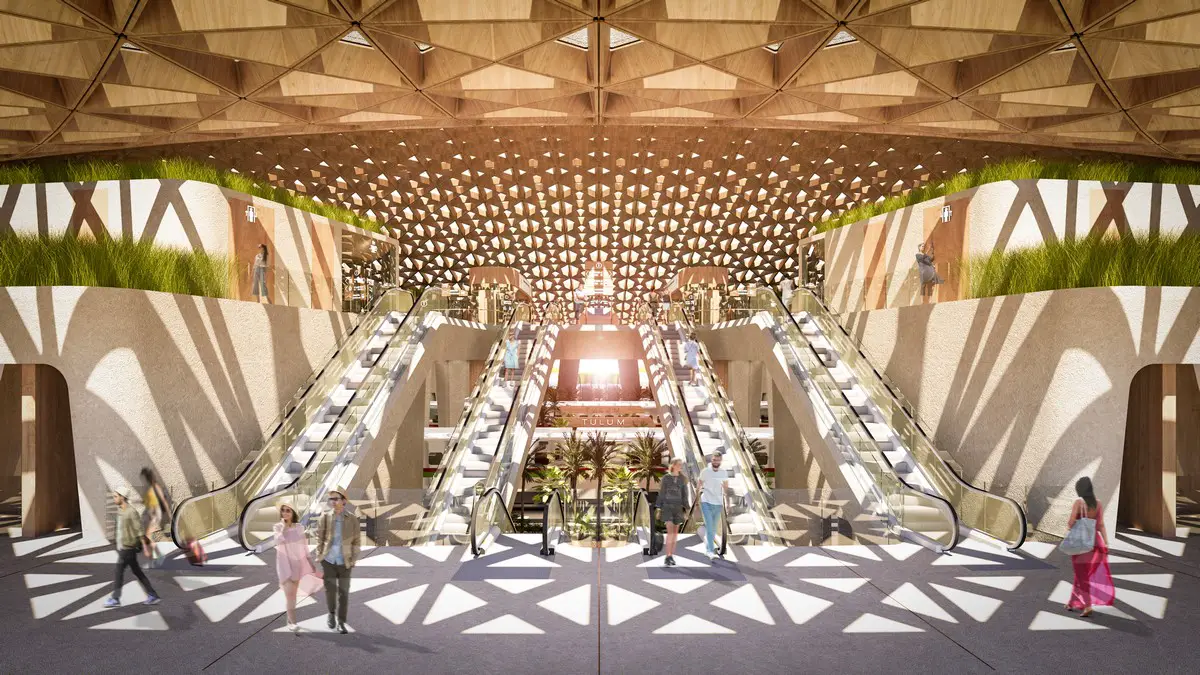

One of the key elements was to minimise the footprint of the station, so after exploring different spatial configurations, an eye shaped footprint, widest at the centre, where the main functions converge, seemed the most efficient use of space. This was enhanced by stacking the public programme of the station above the platforms deriving in a more compact scheme, connected across levels with vertical circulation and featuring a grand hall flooded with light and natural ventilation.

Tulum Train Station Mexico building

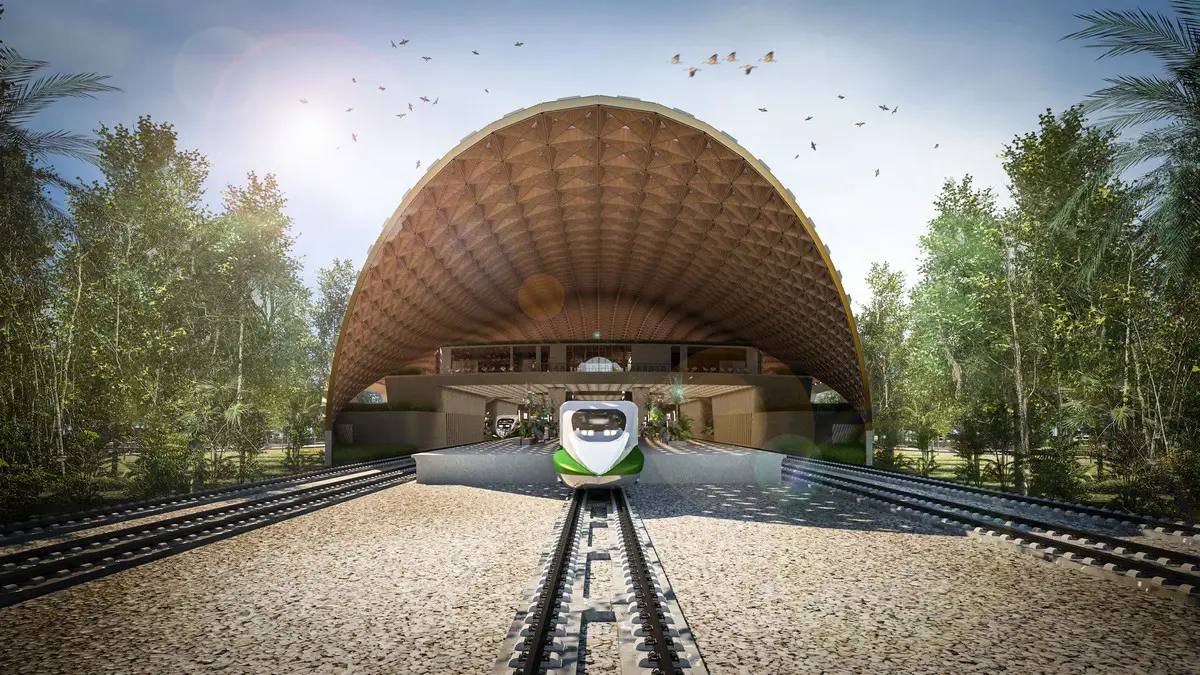

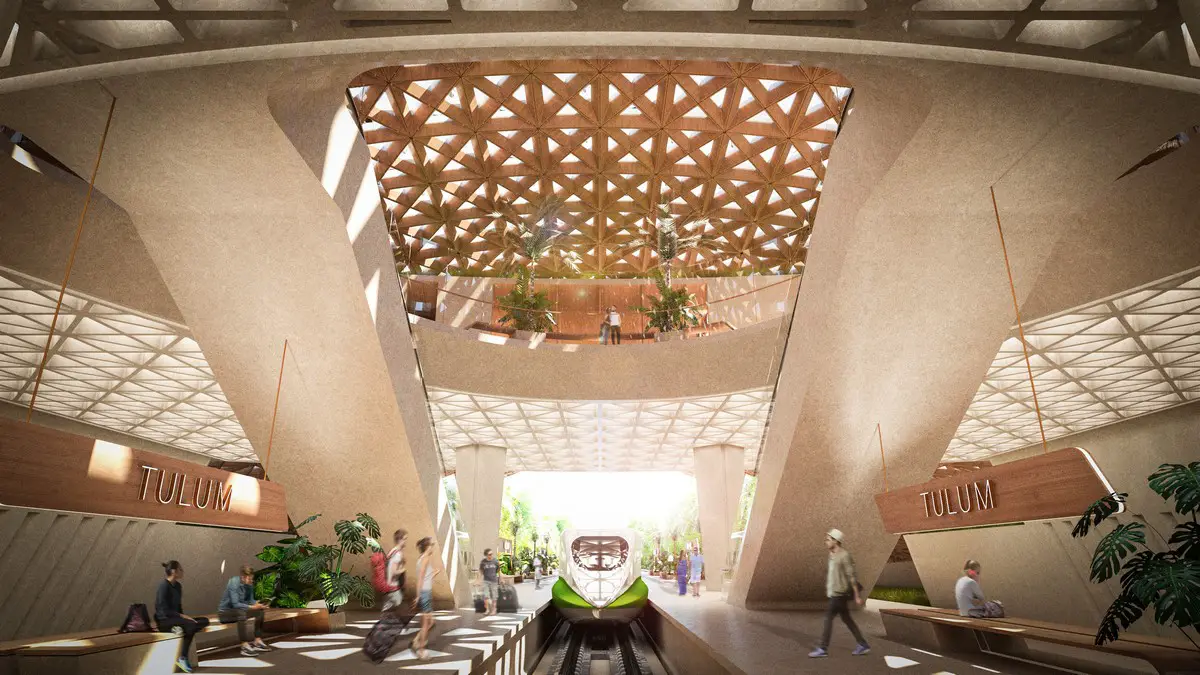

Another key priority during the design process was the user experience, ease of mobility, orientation and the presence of natural light. The linear configuration of the station and the symmetry naturally help, this was assisted by the roof geometry which intuitively navigates users towards the centre of the station.

Tulum Train Station Mexico building

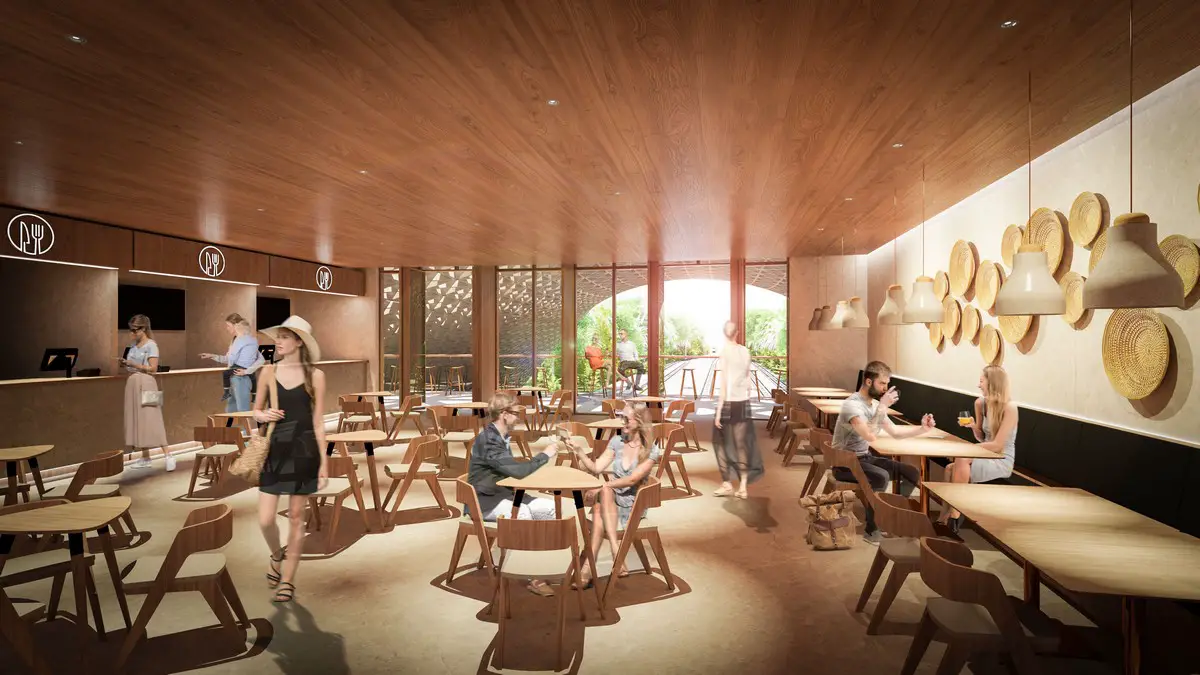

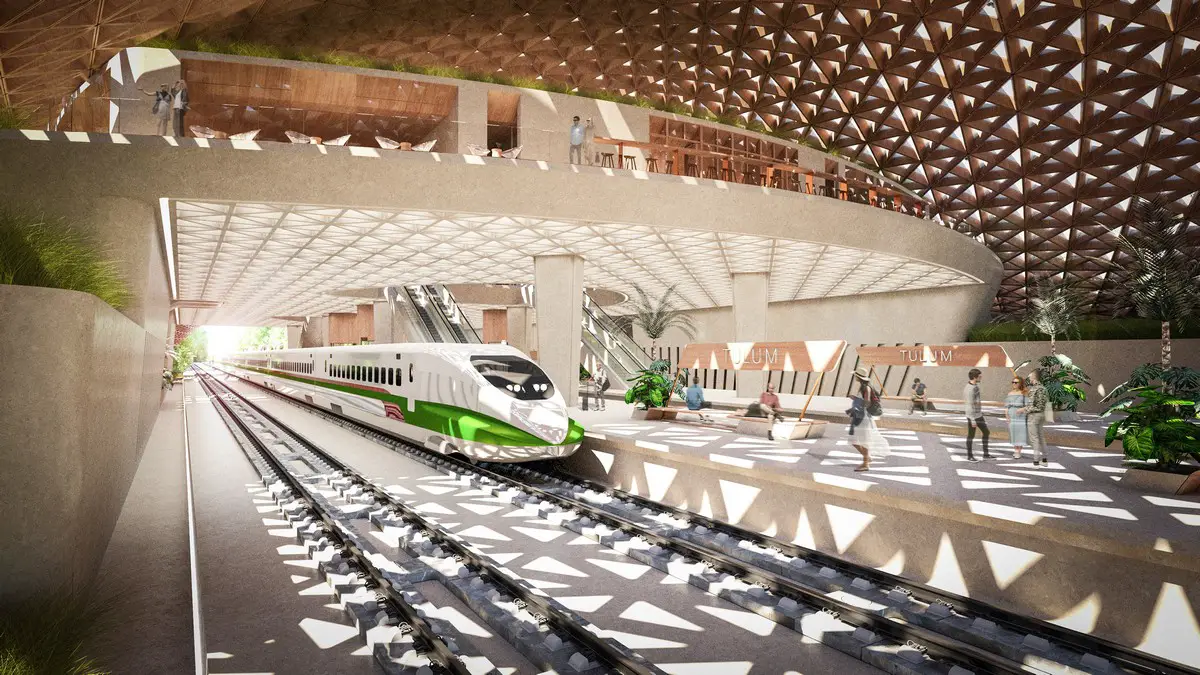

In laying out the commercial component, we aimed to design spaces which constantly celebrate the experience of rail transportation this was achieved by framing views of inbound and outbound trains, and by laying out these retail spaces on a direct visual connection with the platforms.

Tulum Train Station Mexico building

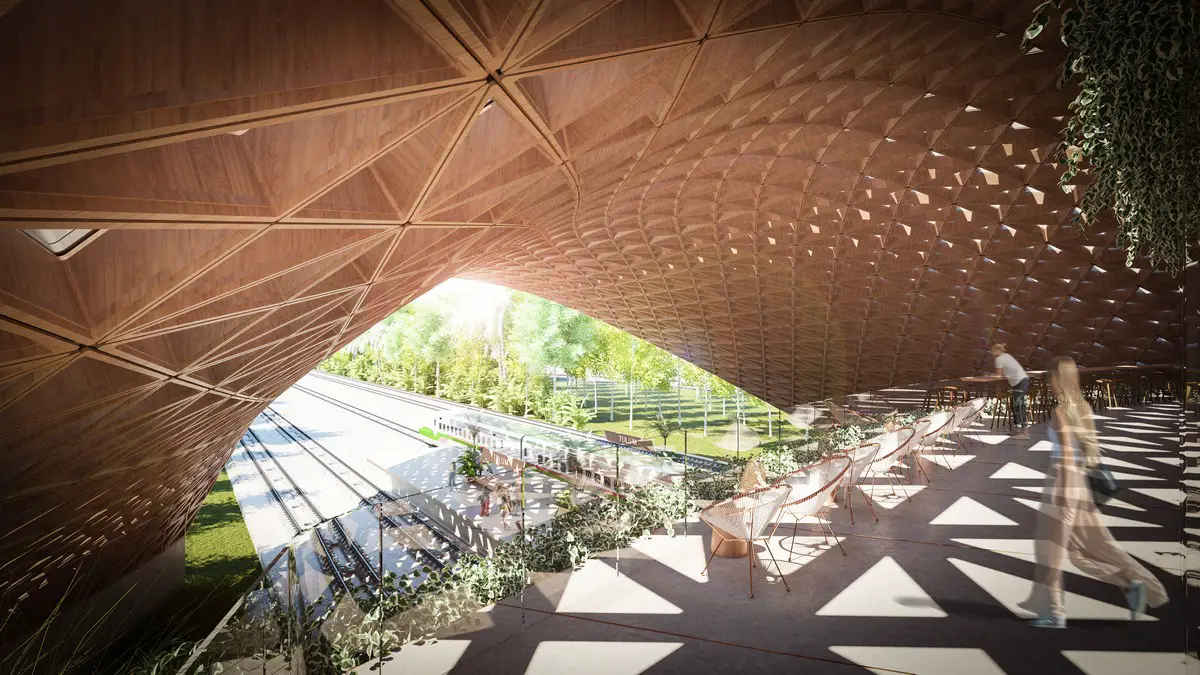

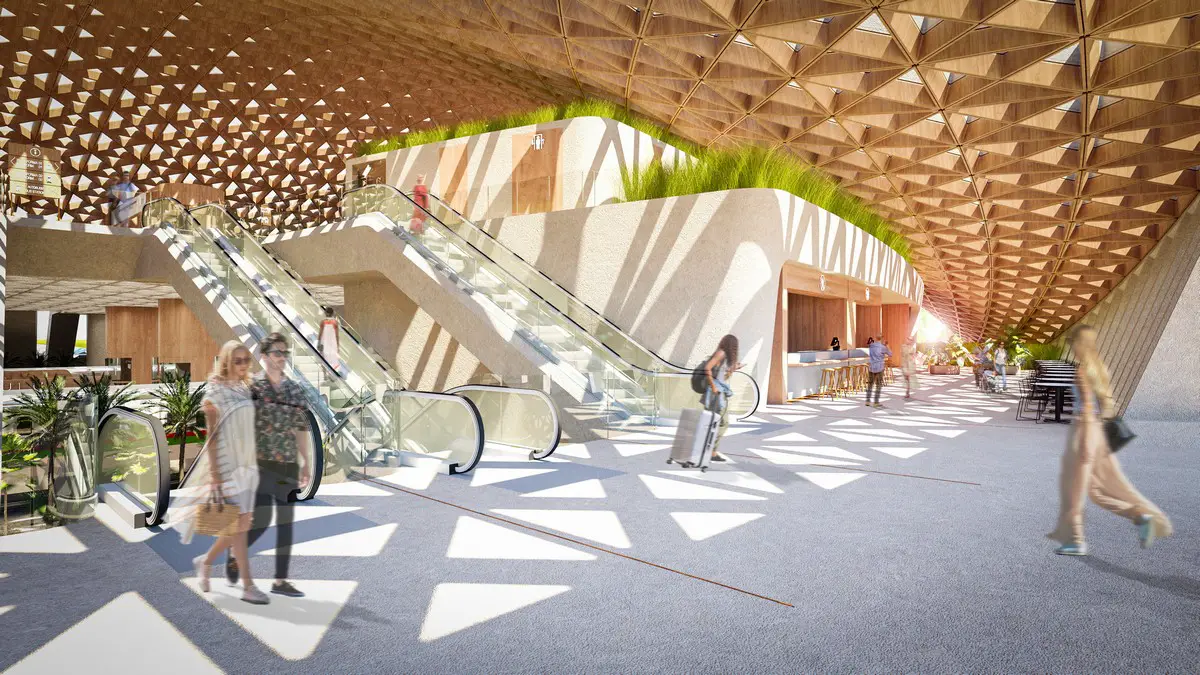

The climate in the Yucatan peninsula is tropical with rain and high humidity in the summer, to deal with this extreme weather, we envisaged a large open lattice roof, glazed in strategic locations, enabling public semi-open spaces that function without mechanical ventilation. The sun light piercing through the roof, projects complex geometric patterns on the walls and floors of the station, a play of lights and shadows travelling throughout the space and evoking different sensations on the users.

Tulum Train Station Mexico building

The openings on the gridshell respond to the radiation exposure throughout the day, smaller openings on the zenith reduce heat gains at the hottest hours and larger openings on the sides let air and light in when the temperature descends. This passive strategy negotiates the amount of radiation exposure and the amount of natural light let into the station.

Tulum Train Station Mexico building

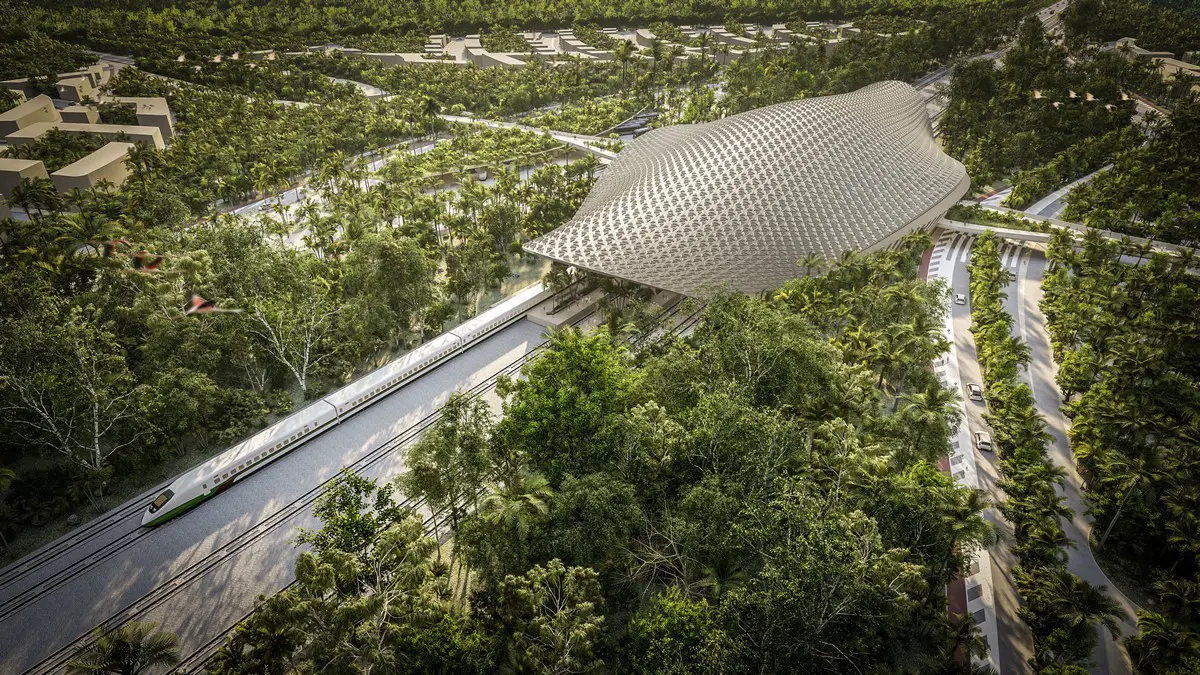

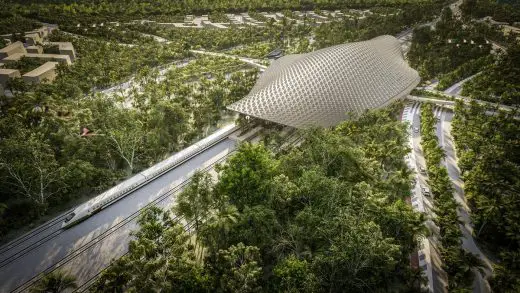

The aerodynamic geometry of the roof promotes the suctioning of the ocean breeze and funnels it through the station. This is key to create a comfortable atmosphere for users without the need of mechanical ventilation.

Maya Estación Tulum México building design

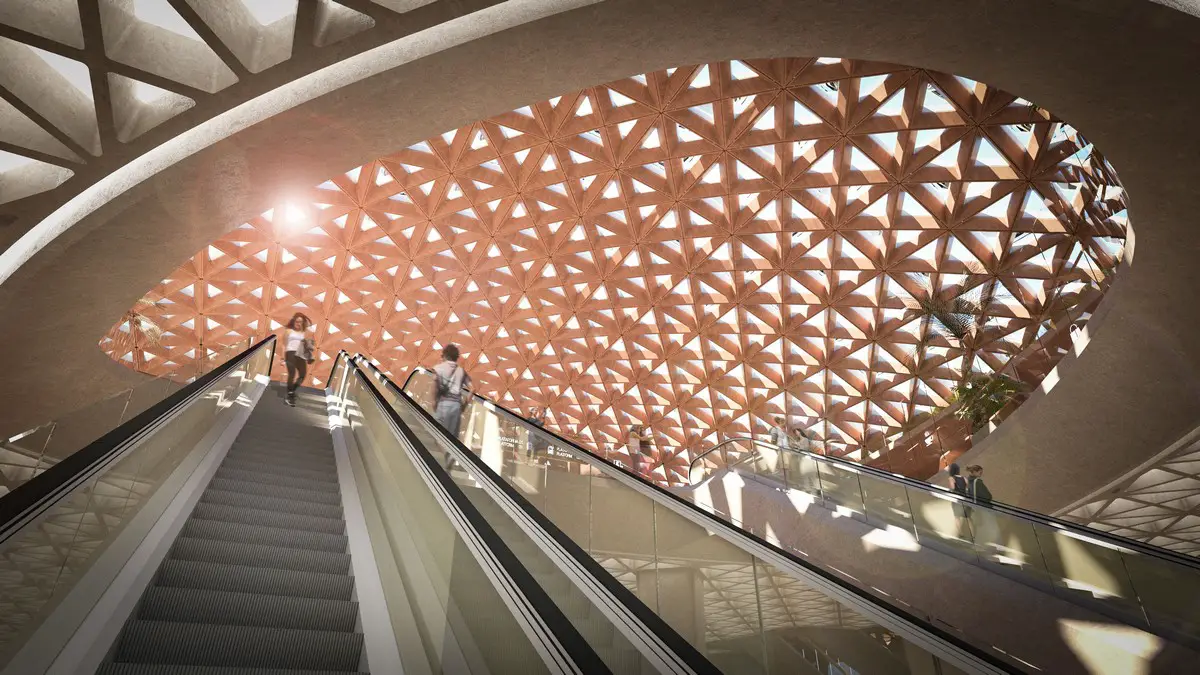

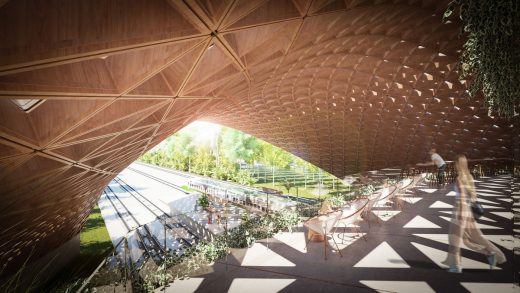

The roof structure is a steel gridshell cladded with Glass Fibre Reinforced Concrete (GRC) panels on the top and laminated wood panels below. The resulting motives on both outer and inner sides are reminiscent of Mayan traditional geometrical patterns.

Maya Estación Tulum México building design

Throughout the design journey, we aimed to infuse the station with some of the best-known features of Mayan Architecture; symmetry, monumentality, geometrical alignment, and the use of limestone are all constant treats in Mayan architecture. As such we have attempted to honour this heritage by rescuing that same spatial quality just reinterpreted it in a contemporary way.

Maya Estación Tulum México building design

Tulum Train Station México – Building Information

Project Name: Tulum Train Station
Lead Architects: Rolando Rodriguez-Leal & Natalia Wrzask
Project Team: Mariano González Silva, Emilio Vásquez Hoppenstedt, Rodrigo Wulf Sánchez

Film on YouTube

Structural Engineering: Project & Calc
Client: FONATUR Tren Maya

Maya Estación Tulum México building design

Area: 14,400 sqm
Construction: January 2022 – June 2023

Maya Estación Tulum México building design

Maya Estación Tulum México building design

Social Media: Instagram @aidiastudio Facebook @aidiastudioltd Twitter @aidia_studio LinkedIn @aidia-studio-ltd

Maya Estación Tulum México building design


Maya Estación Tulum México Building images / information received 280621 from AIDIA STUDIO

Location: Tulum, Riviera Maya, eastern Mexico, North America
