Tree House East London: Whitechapel Property

Tree House London, Building, Whitechapel Property, Grade II listed Home Images, Architecture, Architect

Tree House East London

Grade II listed Whitechapel Building Development design by 6a architects, England, UK

7 Sep 2014

Tree House London

Design: 6a architects

Location: Whitechapel, east London, south east England

Stephen Lawrence Prize Shortlisted for 2014

Tree House, east London by 6a architects

This sensitive and subtle little building elegantly extends a Grade II listed house, so its occupant, who has become increasingly immobile and wheelchair bound, can live independently in her home as an integral member of her family, with her husband and their daughters; and can continue actively to enjoy her garden.

Tree House London
photo from RIBA

Their home consisted of two smal11830s brick weavers’ cottages which were linked together in the1970s. The two ground floors were at different levels and these were half a storey and more above a narrow back garden, to which they were linked via a veranda on chunky concrete columns, the legacy of a previous owner. The garden which was overgrown and full of flowers focused on a sumac tree and was informally linked to those of neighbours.

Tree House London
photo from RIBA

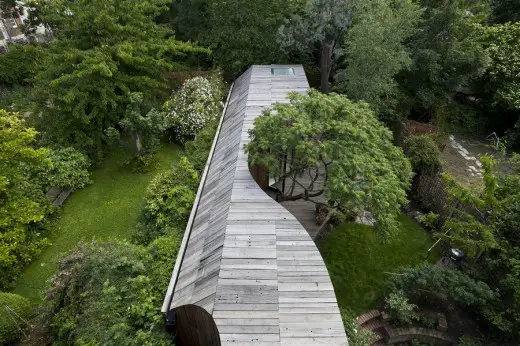

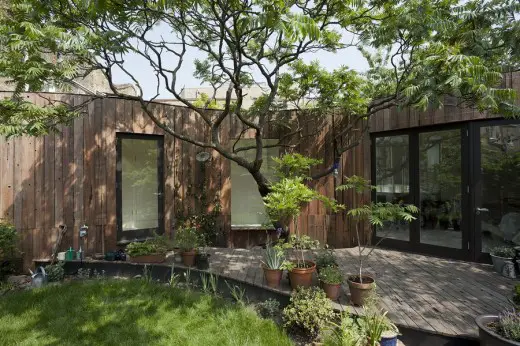

This new single storey extension makes all the communal rooms and principal bedroom accessible and effectively re-orientates the focus of the house. A ramp within the frame of the veranda connects the two ground floor levels, providing access between the kitchen and living room. Within the new addition, a ramp curves around the tree in the garden, down to a new bedroom and a washroom. The former has the quality of a delightful and very private summer house, which opens up onto a terrace which overlooks the garden and back to and through the original house.

Tree House London
photo from RIBA

The new building is timber frame on timber foundations and is clad in reclaimed Jarrah skimmings. Internally it is all painted white and simply detailed. Its exposed timber joists inevitably have quirky corners to accommodate the curves and the minimum headroom feasible, where the building abuts the neighbour’s garden. These, combined with the softwood lining and plywood floors, give the building a gentle and charming Shaker aesthetic.

Tree House London
photo from RIBA

The hypotheses of the Tree House are that everything should be reversible and infringe as minimally as possible on the listed buildings and that there should be a neighbourly use of shared gardens. Wherever possible existing elements have been kept and reused, including the oversized concrete columns supporting the veranda. The construction is of sustainably sourced softwood, with substantial insulation and double-glazed windows. External cladding is reclaimed Jarrah skimmings, recut and fitted in-situ. Heating is under floor and ventilation is natural.

This is a delightful building which has transformed this home, not only in making it accessible but also in embedding it in the garden, with a very simple and beautiful aesthetic.

Chair of Jury: Clare Wright
Regional representative: Tim Lynch
Lay assessor: David Shaw
Date of visit: 21.03.14

Tree House in East London – Building Information

Name of Scheme: Private House
Address of Scheme: London
Architect: 6a Architects
Client: confidential
Contractor: John Perkins Projects
Structural Engineer: Price & Myers
Contract Value: confidential
Date of completion: 03.01.13
Gross internal area in sqm: 57

Tree House East London images / information from RIBA

Stephen Lawrence Prize Shortlist for 2014

Tree House in East London – Awards:
RIBA London Award 2014
RIBA London Special Award 2014

Location: Whitechapel, East London, England, UK
