Eco Flow – Winning proposal for the Design competition

Design: Samoo Architects & Engineers

Garak Market Redevelopment, Seoul buildings design

Garak Market Redevelopment, Seoul

Garak Wholesale Market plans to transform itself from a neglected place that draws many criticism and cynicism due to its ever-present traffic congestion, smell of leftover vegetables and inefficient logistics system designed a quarter century ago.

To realize a state-of-the-art 21st century market place environment, design solution focused on creating duality and ambivalence at two distinctive zones: wholesale and retail (direct sale:TBD).

Garak Market Redevelopment, Seoul buildings design

Wholesale area needs efficiency of logistics while the retail (direct sales) area requires feeling of festivity and ways to attract many consumers by its charm of buying fresh produce of “land and sea” at affordable price.

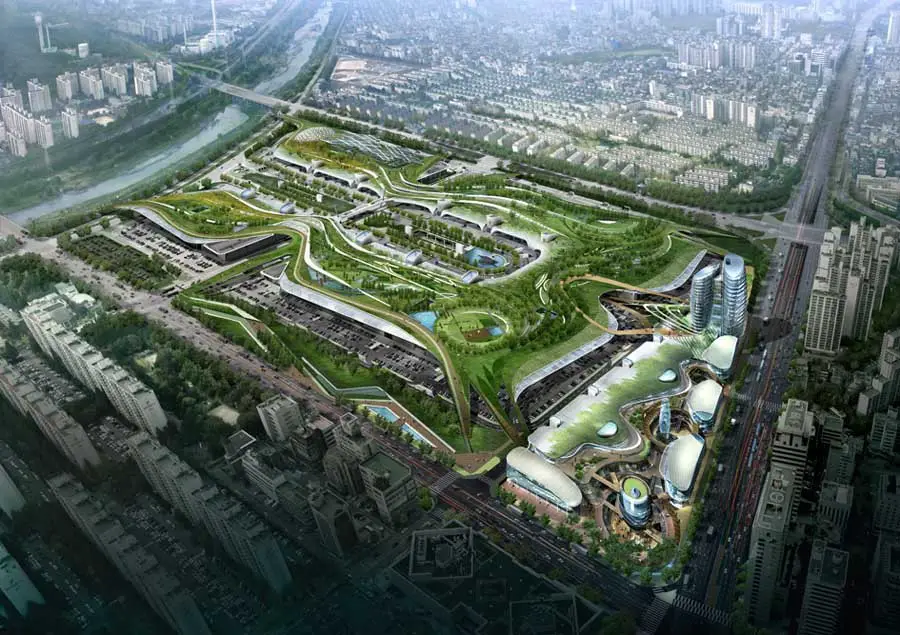

Also, the vision to transform 131 acres of land to be more neighborhood-friendly by making the roof of the market as a giant park that encourages diverse use for recreational, sports and cultural activities was a key issue for the design.

Garak Market Redevelopment, Seoul buildings design

Garak Market Redevelopment Seoul – Building Information

Location: Seoul, Korea
Site Area: 531,830sqm
Total Floor Area: 555,884sqm
Structure: RC, SC
Stories: Phase 1 – 18 Stories & 5 Basements, Phase 2 – 2 Stories & 1 Basement
Competition Year: 2009

Garak Market Redevelopment, Seoul buildings design

Other than solving the well-known problem of traffic congestions, market authority’s major concern was to reduce bad smell of rotten vegetables during late Fall’s peak season. This derived from Korean authentic tradition of “making and preserving Kimchi” at year’s end. The area for radish and cabbage auction will be located on a basement level to avoid smell at different levels and ensure quick auction and distribution.

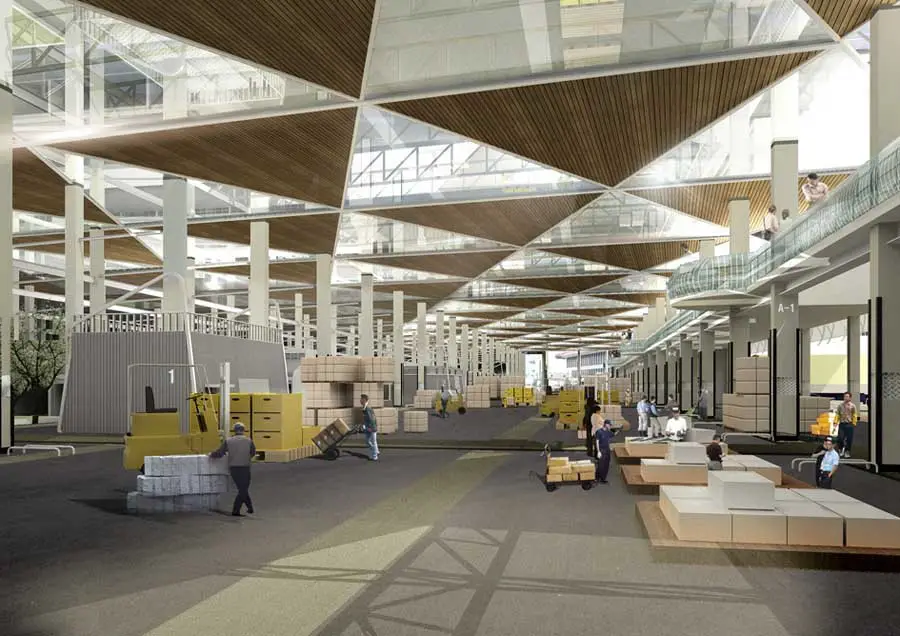

Considering the larger footprint of vegetables and fruits three pavilion will be replacing existing two structures with much enhanced work environment – daylight and ventilation by Eco-tubes. Fisheries and Meat pavilions will be located at the northern edge to allow better exposure from the approaching vehicles and emit night glow to give visual presence.

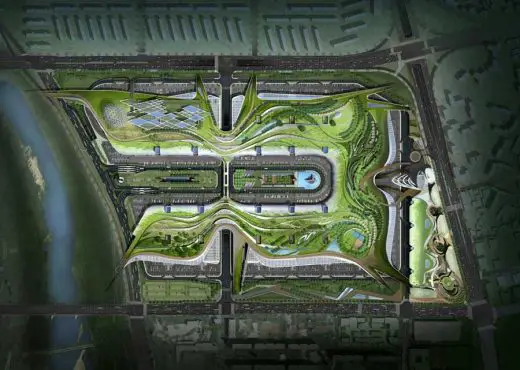

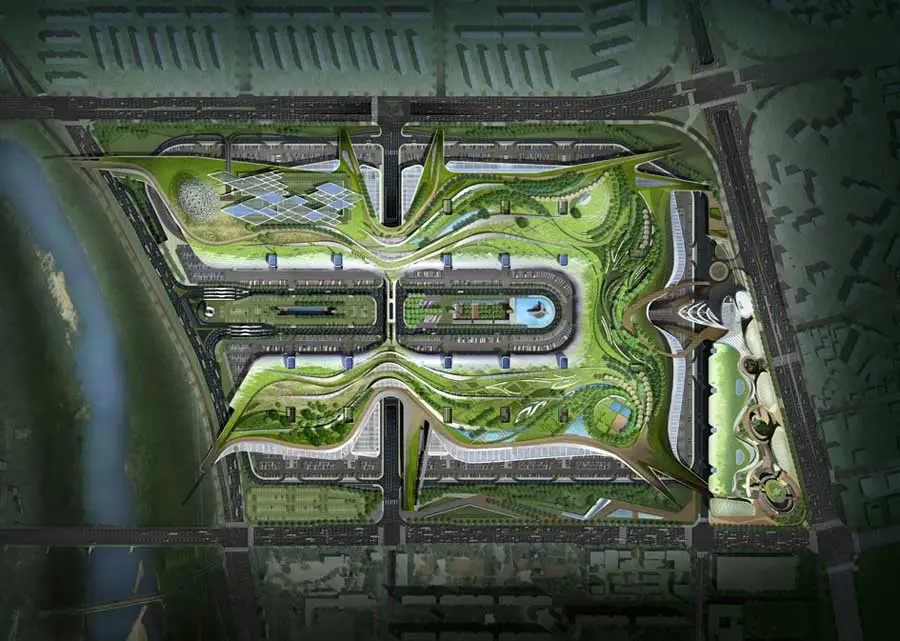

Most of the masterplanning area will be covered with giant U shaped landscaped deck, which symbolically opens the whole market towards nearby river. This symbolize radical transformation of the market into 21st century with sustainable and neighborhood friendly market.

The proposed Master Plan features a continuous pedestrian path along the East-West axis from Phase 1 direct sale area to the river in memory of the traditional riverboat town.

Garak Market Redevelopment, Seoul buildings design

Architecture of PHASE 1:

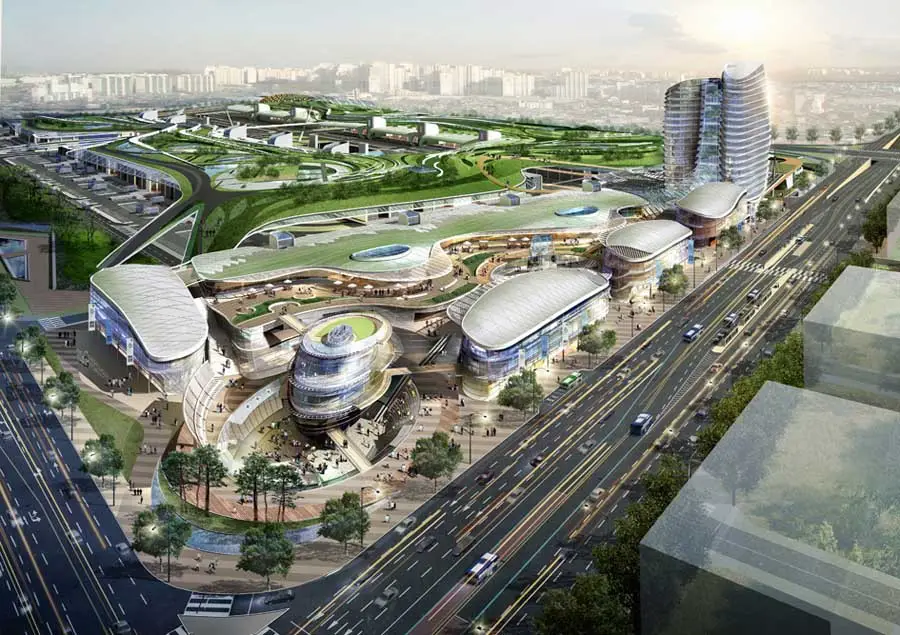

Direct sale area: The direct sale area of the Garak Wholesale Market must first create a strong public edifice for the Market; it should integrate and allow separate development with the Second Phase; and promote an active and vibrant shopping destination for the city of Seoul.

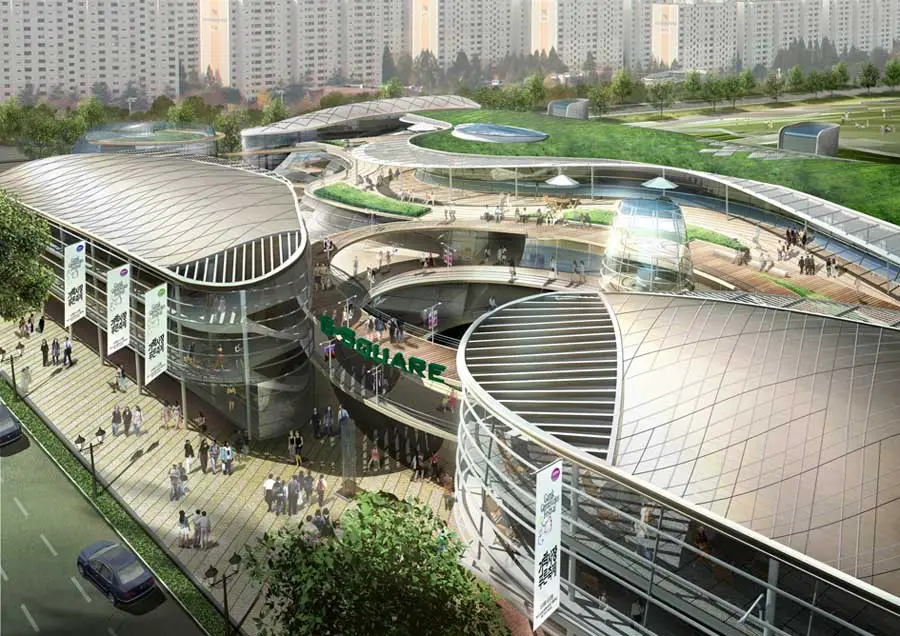

The breakdown of the Phase I mass promotes an active retail and event space. The edge of the site begins with a band of retail: the public façade. In order to mediate the large scale of the Market with the pedestrian, the band of retail is broken into five smaller, street friendly, elements. These elements are clean and austere in their materiality, yet soft in how their forms open to the street.

The most important retail element is on the prominent southeast corner where two major roads intersect, and two subway lines share a station. This small retail, the Gourmet Town, takes on the role of an iconic piece, a beautiful jewel that evokes the curiosity of commuters and visitors.

Inside of the band of retail is the large Direct Sales region of Phase I. The spacious open floor plan of the Direct Sales takes a larger presence compared to the smaller retail components. To separate these two types of massing is the major outdoor public space.

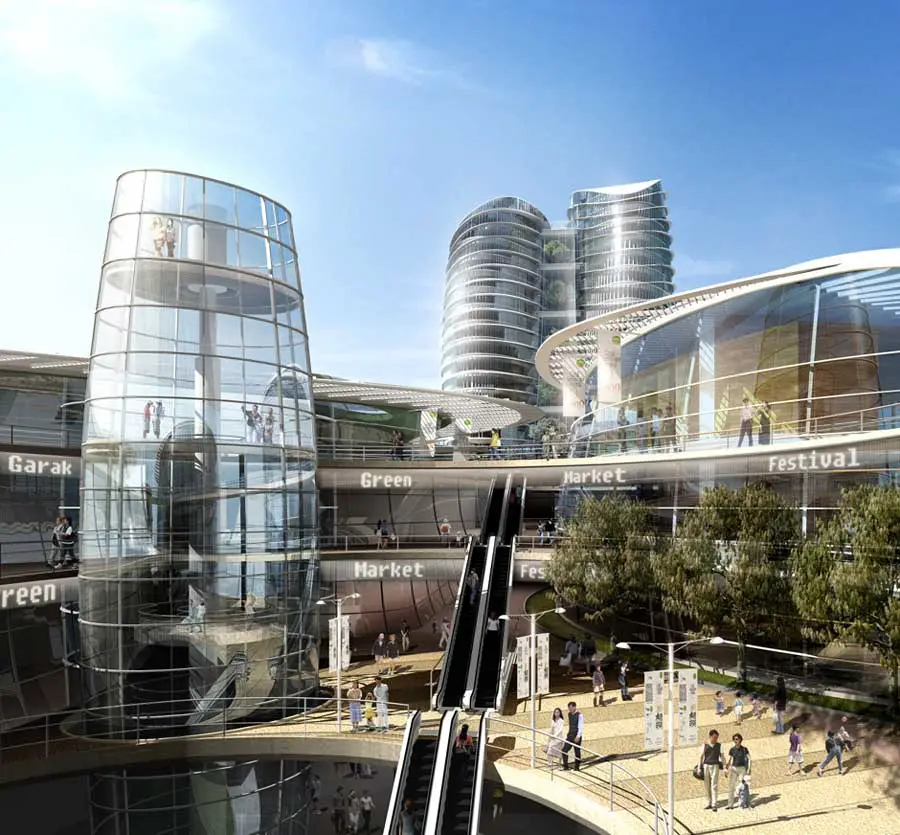

The tower is a vertical symbol of the new Garak market and its form was defined to maximize summer cooling by prevailing wind. Two slightly leaning oval shapes form a central atrium space that can be used for meetings and refreshment zones for the office staffs. The void between the towers corresponds northsouth axis to maximize daylighting and ensures natural ventilation. Vertical louvers will be installed to provide adequate sun screen effect.

Garak Market Redevelopment, Seoul buildings design

The final purpose of Phase I should be to create a spectacle that excites the senses. It should be more than just another shopping plaza, but a destination. As a visitor enters from one plaza into the next the experience should change. Their understanding and relationship to the Phase I should grow as they pass into each new open space. Each moment should be a special experience that causes pause, that makes people want to linger. Phase I should cause children to smile, encourage people to not just enjoy their day and remind to reconnect to the mother Nature through new “culture of food”.

Garak Market Redevelopment Seoul images / information from Samoo
