Brighton College Sports and Sciences Building

New Health Facility in East Sussex, South East England – by OMA / Ellen Van Loon

15 Jan 2020

School of Science and Sports at Brighton College

Architects: OMA / Ellen Van Loon

Location: Brighton, East Sussex, Southern England, UK

Brighton College Sports Sciences Building East Sussex

The School of Science and Sports at Brighton College defies the conventional character of educational buildings – one of endless empty hallways and imposed silence – and instead combines the two departments to create a vibrant building with lively spaces where activities are not necessarily dictated by a school timetable. Observing that processes of learning take place outside as much as inside of the classroom, the design articulates a new idea of educational space bolstering interaction and exchange.

Brighton College Sports Sciences Building East Sussex

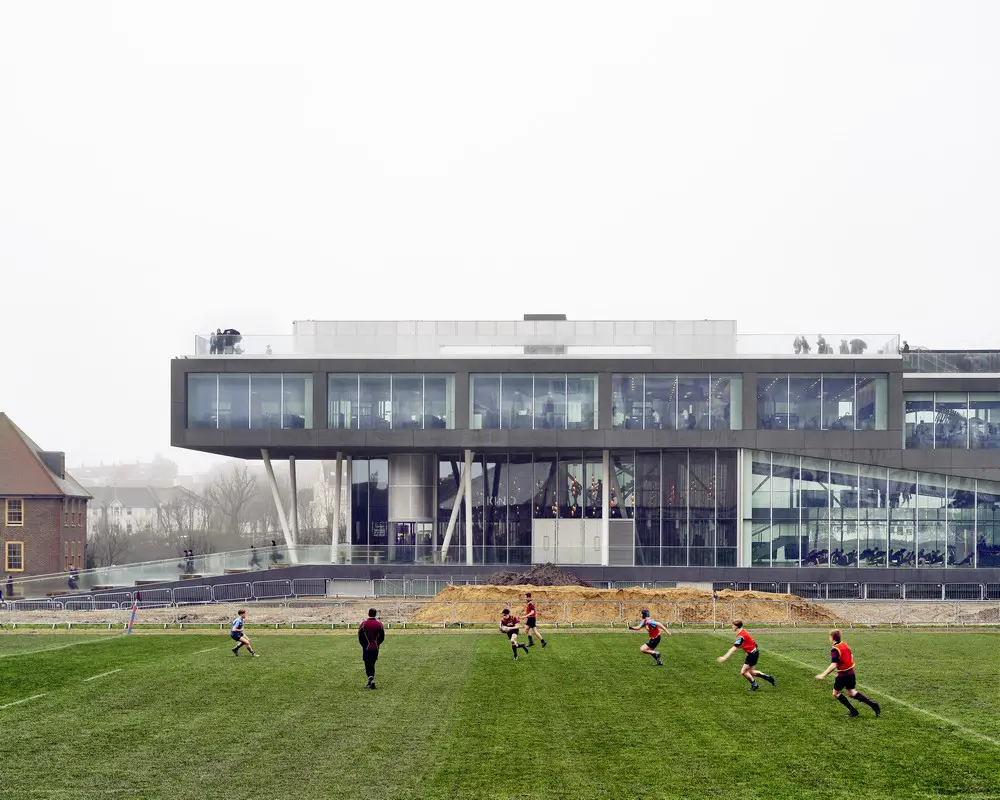

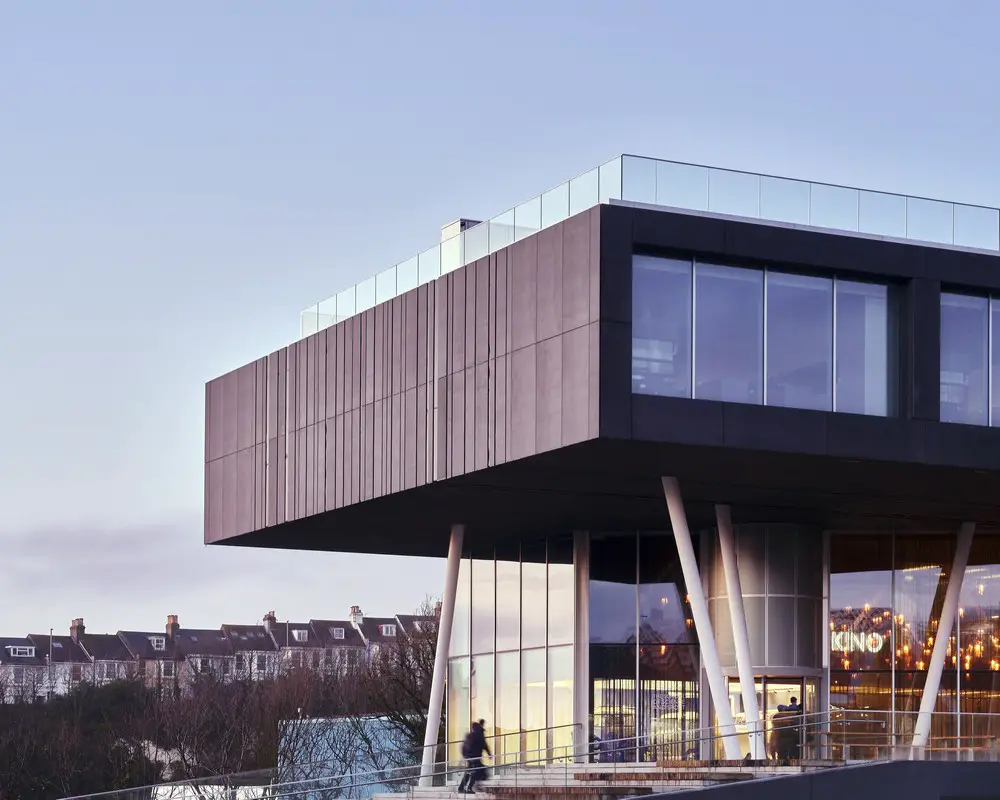

Why isolate the department of Science from the department of Sports? Instead, the two are merged into one linear volume, situated at the edge of the playing field. Primary sporting spaces are on level with the field, and the sports hall opens directly onto it. The Science department, which include classrooms, laboratories and a green house, spans over the sporting spaces like a skeletal bridge. The façades are inspired in part by the regular rhythm of the terraced housing opposite the new building. The rooftop provides a sweeping view of the North Sea.

Brighton College Sports Sciences Building Brighton College Sports Sciences Building

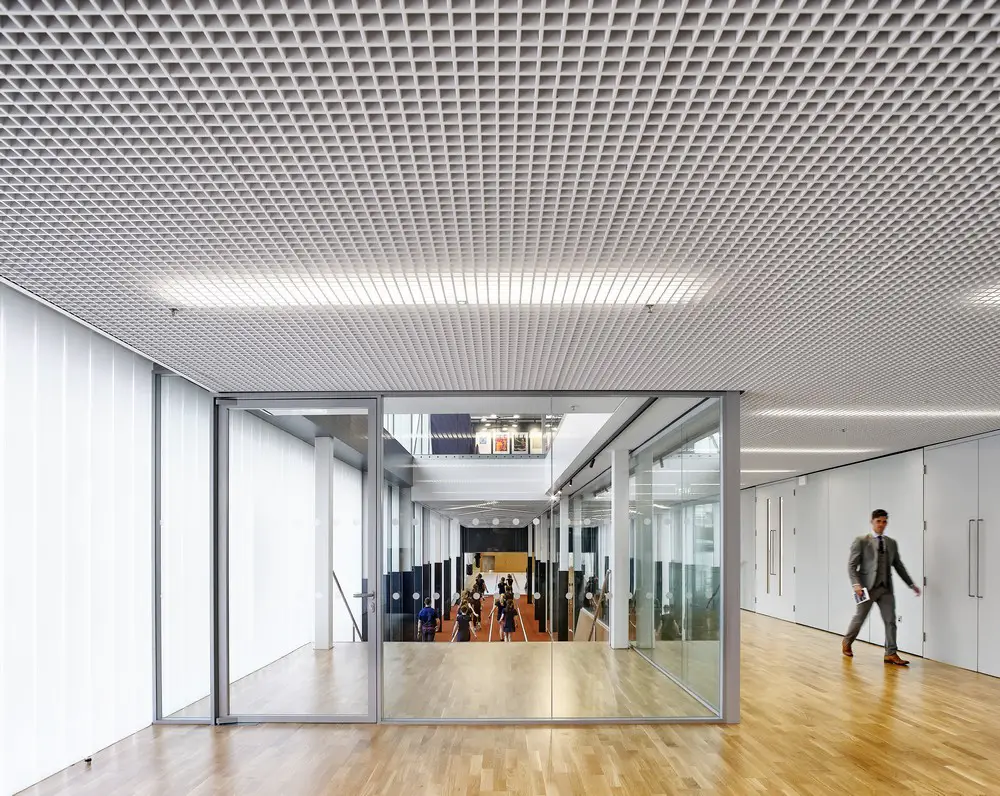

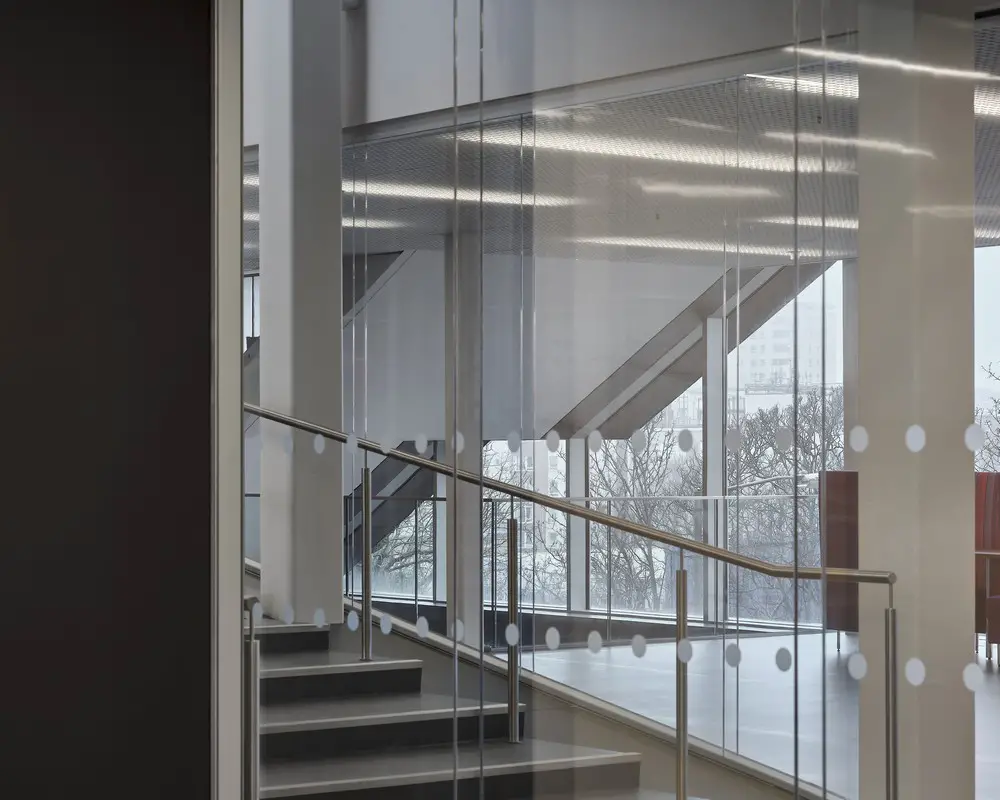

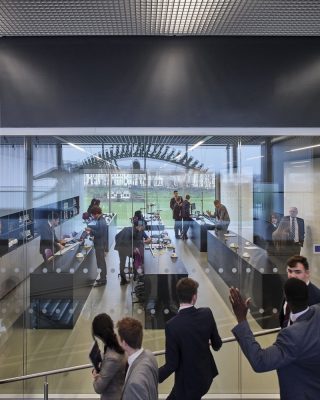

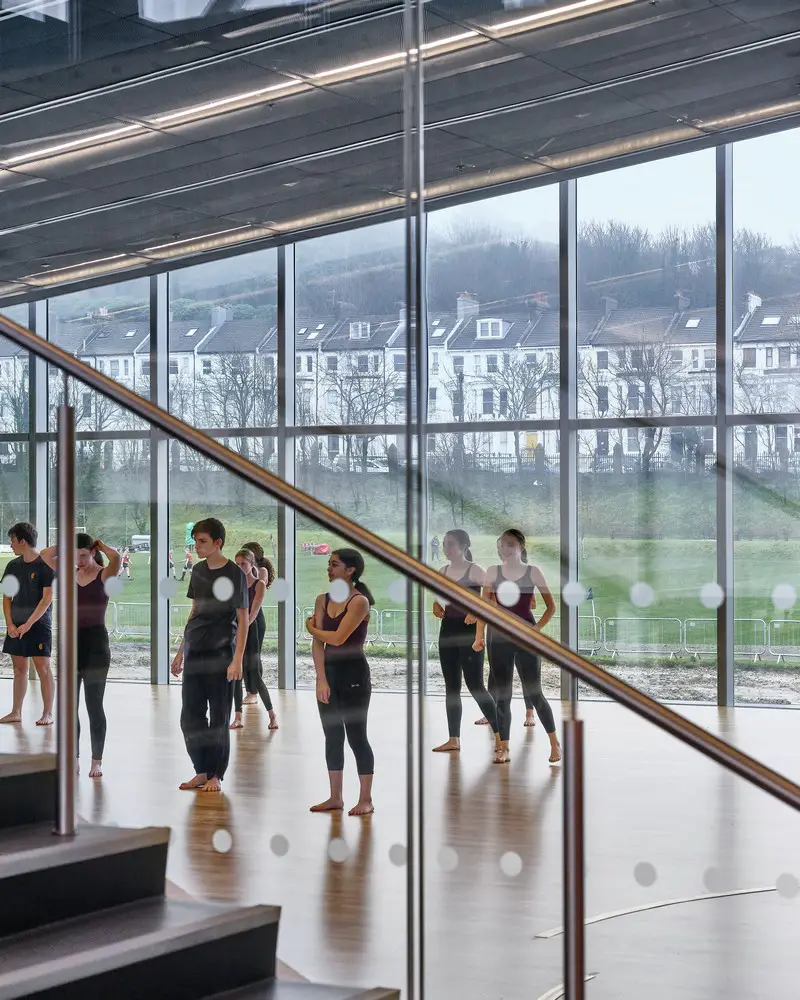

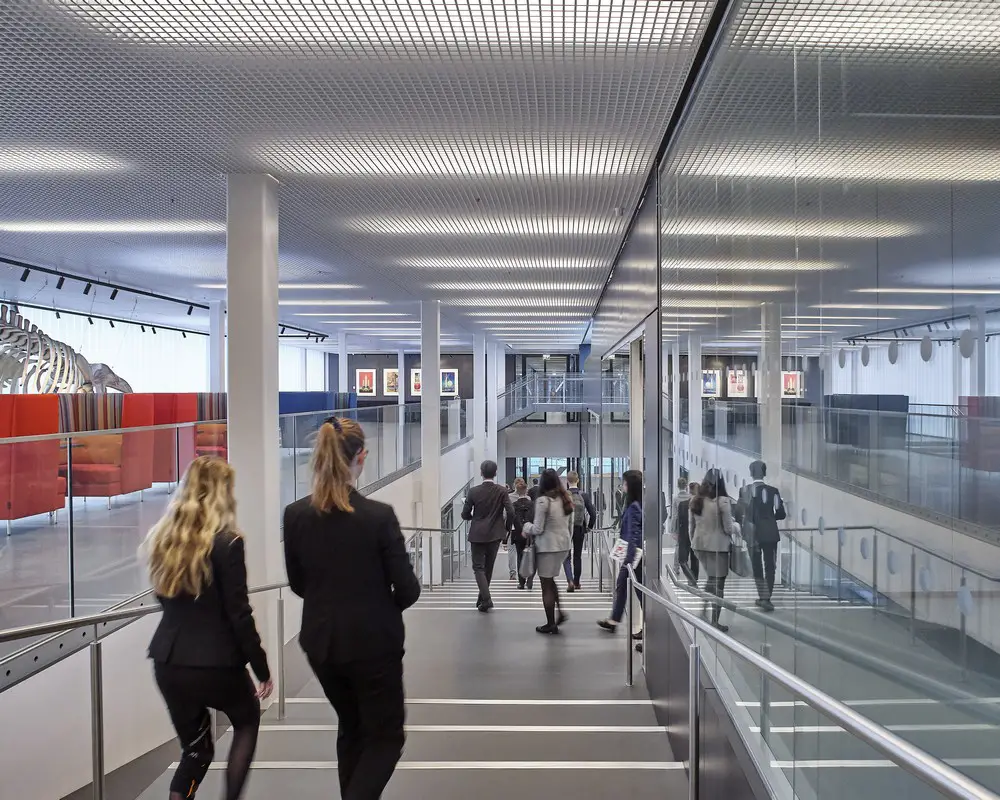

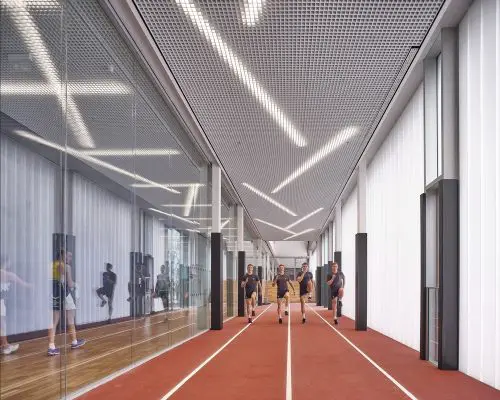

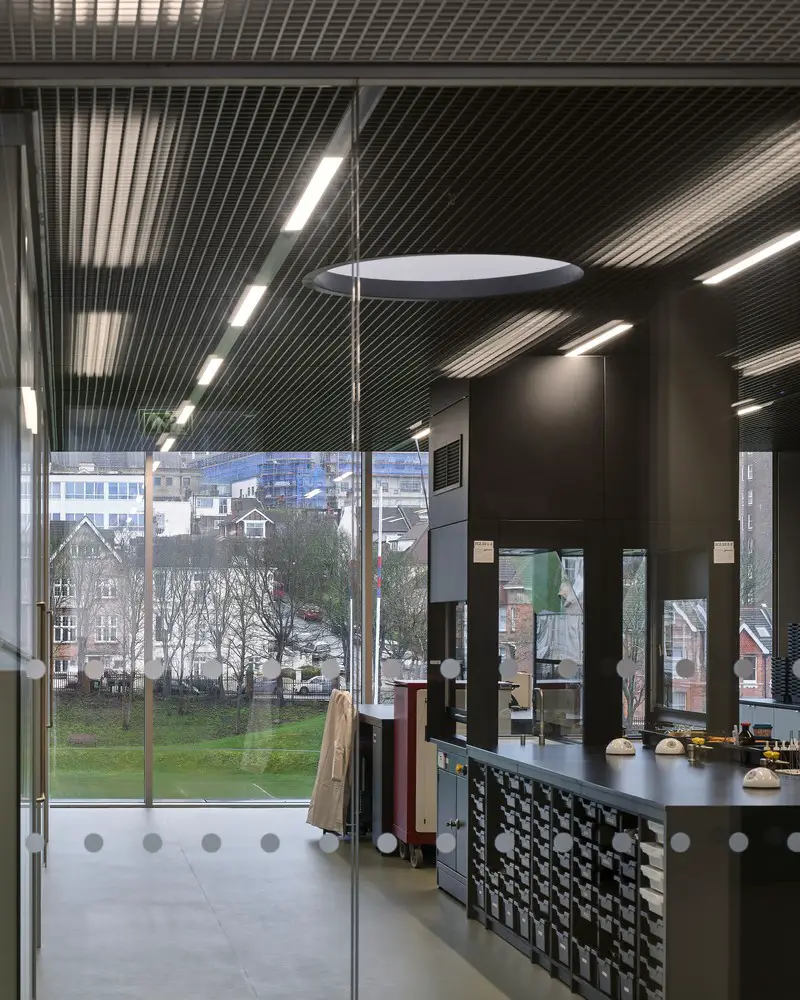

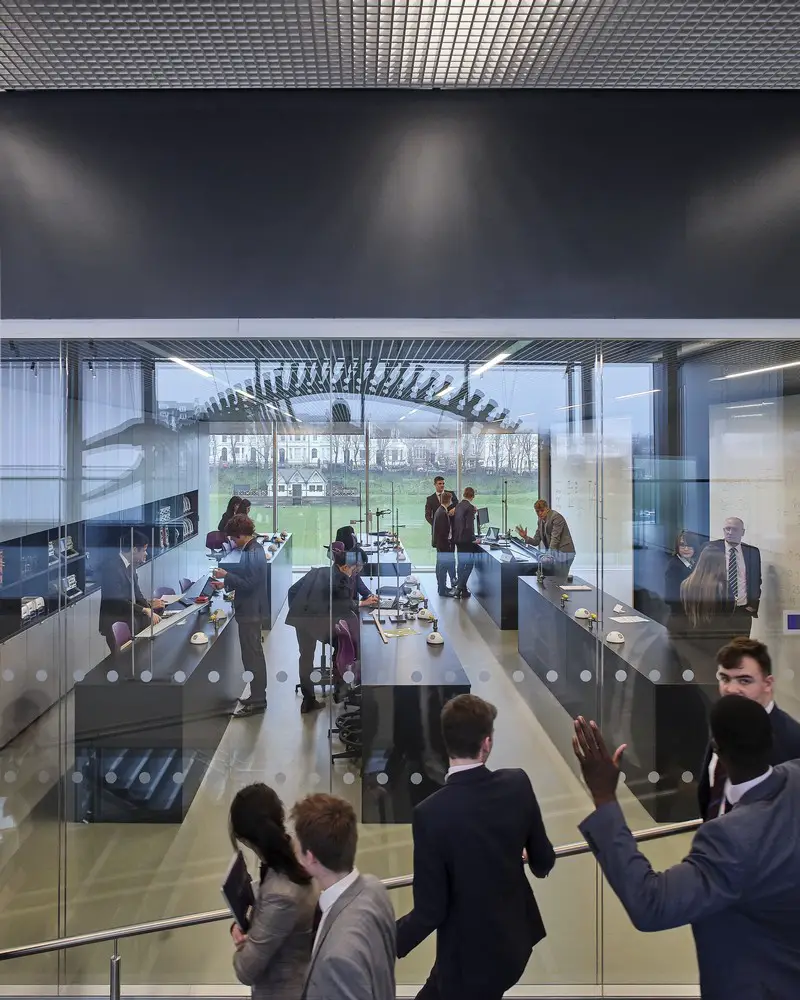

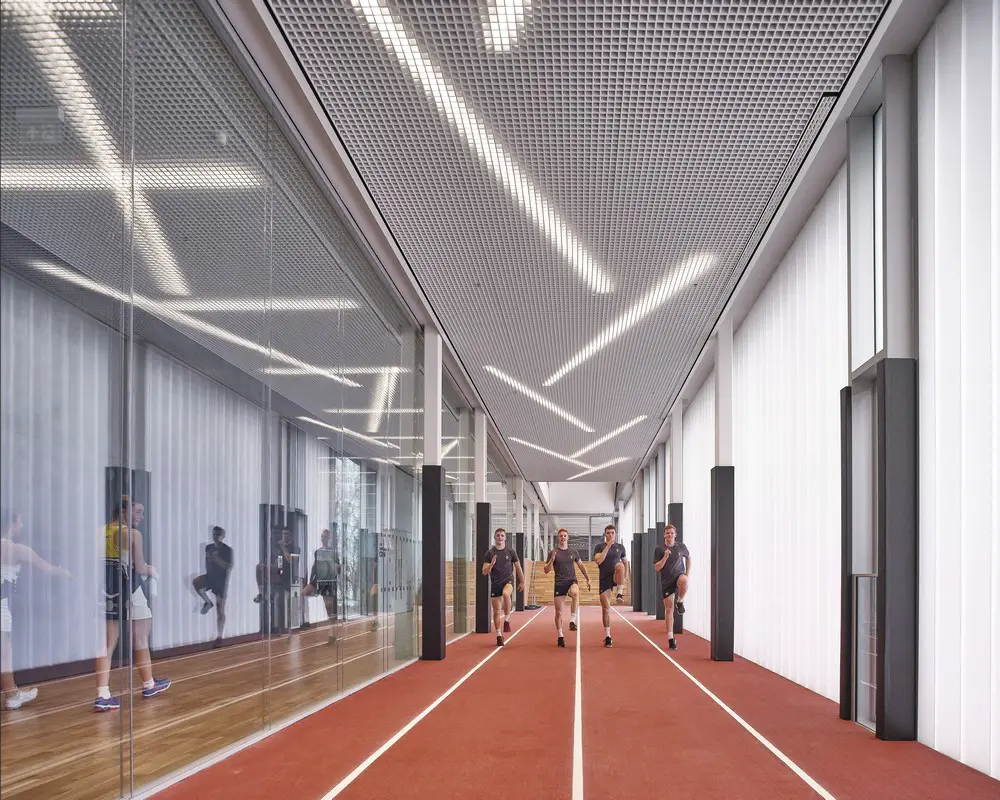

Stimulating social communications between the students was central in the concept: generous and open break-out space outside of the classrooms create room for informal interaction and private studying. Level shifts, grand staircases and glass visually connect the activities taking place in both departments and trigger unexpected exchanges between different disciplines. Individual components of the building are exposed to each other: an indoor running track on the ground floor is visible from upper levels, classrooms have floor to ceiling windows, even fume hoods in the chemistry classrooms are made transparent – enabling people walking down the hallway to witness ongoing experiments.

Brighton College Sports Sciences Building New Health Facility in East Sussex, South East England by OMA / Ellen Van Loon

OMA was awarded the project after a competition organized in 2013, when Brighton College needed to expand the Science School in terms of number of labs, and wanted a state-of-the-art sporting facility to foster talent and physical wellbeing. In the original competition brief the Sports Center and Science Department were presented as two separate projects. After a revised brief in 2013, and a second competition phase in 2014, planning approval was acquired in 2015 and construction started in 2017. The project was realized with a total construction budget of £36,700,000.

Brighton College Sports Sciences Building by OMA

New Health Facility in East Sussex by OMA / Ellen Van Loon

Established in 1845, Brighton College is a private, co-ed boarding and day school in Brighton, England, and over the years has cemented its reputation as one of Britain’s leading schools. The campus is comprised of two areas: a historical quadrangle, composed of Grade II listed buildings designed by Sir Gilbert Scott and Sir Thomas Jackson in the 19th century; and the playing field lined with buildings from the 1970s and 1980s, the site of the new building.

East Sussex Higher Education Building

Brighton College Sports Sciences Building East Sussex

College Sports and Sciences Building Brighton – Building Information

Architects: OMA
Status: Completed, open January 5, 2020
Client: Brighton College
Address: Eastern Rd, Brighton BN2 OAL, East Sussex, United Kingdom

Program: Educational (science class rooms, laboratories, sports facilities, swimming pool)
GFA: 7.425 sm
Timeline: Competition (2013, 2014), Commission (2014), Planning approval (2015), Construction (20172019), Completion (2020)
Budget: £36,700,000

Brighton College Sports Sciences Building

TEAM Partner: Ellen van Loon Project Director: Carol Patterson

Brighton College Sports Sciences Building East Sussex

Competition Team:
2013: Ellen van Loon, Rem Koolhaas, Carol Patterson, Gabriela Bandeira, Jan Barta, Marlies Boterman, Matthew Davis, Emile Estourgie, Alain Fouraux, Mindaugas Glodenis, Airat Khusnutdinov, Can Liu , Hans Larsson, Nikki Mulder, Edward Nicholson, Betty Ng, Francesca Pagliaro, , Tom Shadbolt, Liheng Zhang, Hongchuan Zhao

2014: Ellen van Loon, Carol Patterson Kees van Casteren, Alain Fouraux, Daniel Gonzales, Leonardos Katsaros, Hans Larsson, Ellen van Loon, Francesco Moncada, Martin Murrenhoff, Betty Ng, Vitor Oliveira, Pawel Panfiluk, Jad Semaan, Timur Shabaev, Jonathan Telkamp

Schematic Design Team: Carol Patterson, Marina Cogliani, Cristina Marin de Juan, Dinka Beglerbegovic,

Design Development Team: Carol Patterson, Marina Cogliani, Michalis Hadjistyllis, Mario Rodriguez

Construction Team: Carol Patterson, Isabel da Silva, Marina Cogliani, Tom Pailing, Magdalena Stanescu

Brighton College Sports Sciences Building East Sussex

COLLABORATORS
Services Engineering: Skelley and Couch
Structural Engineering: Fluid Engineering
Landscape: Bradley-Hole Schoenaich
Acoustics: Ramboll
Fire Engineering: The Fire Surgery
Sustainability: Eight Associates
Contractor: McLaren
Employers Representative: Gardiner & Theobald

MEASUREMENTS
Total length of the building: 120m
Main building footprint: 120m x 23m
Running track (indoors): 30m
Running track (outdoors): 50m +18.5m run off space

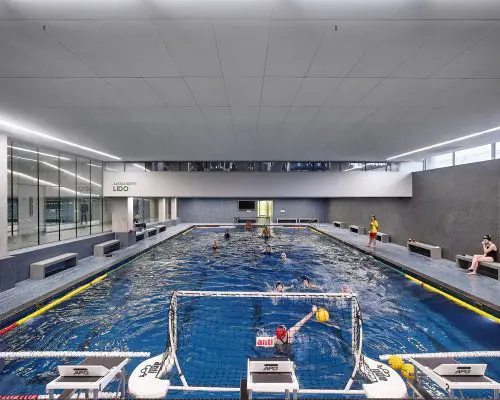

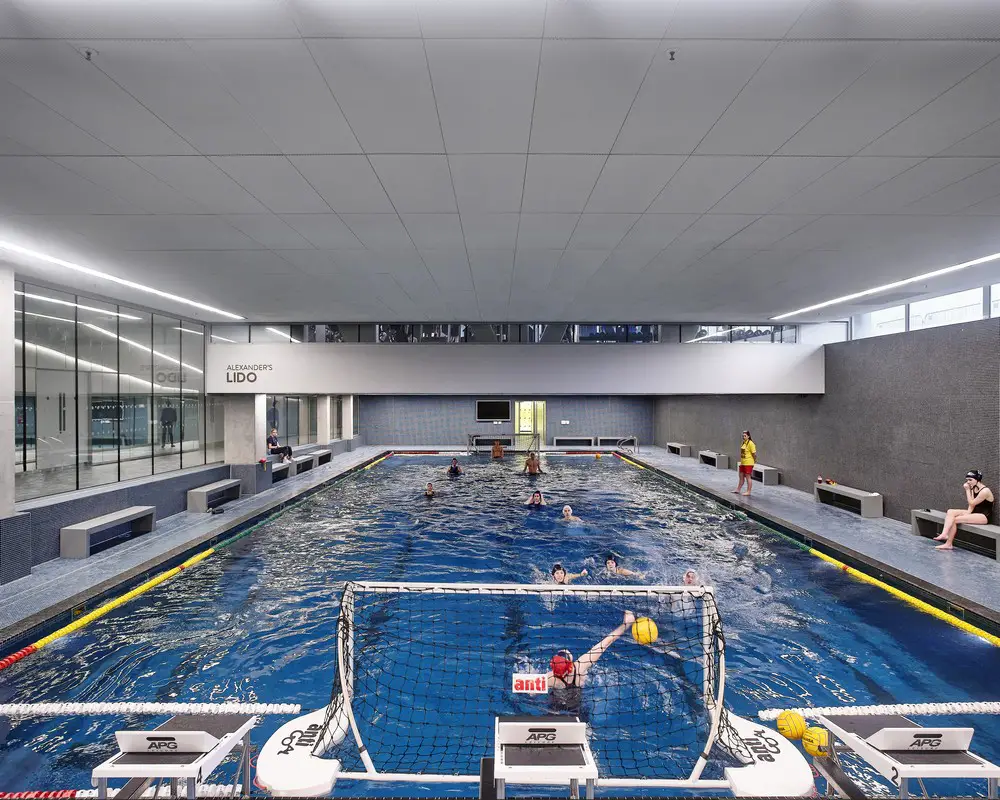

Swimming pool: 5 lane, 25m x 10.5m

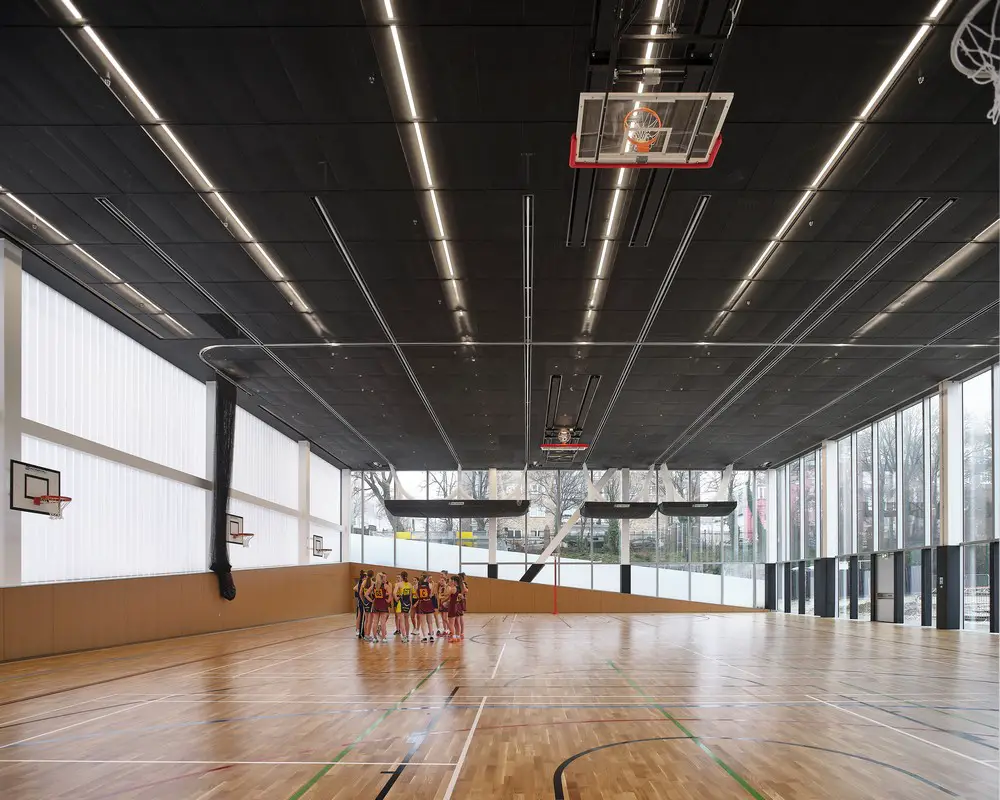

Sports Hall: 35.2m x 22.9m x 7.9m (height)
Typical Lab: 12m x 7.5m x 2.96m (height)
Cinema: 10.5m x 9m x 2.95m
Greenhouse: 7.4m x 7.4m

CONTRACTORS
Reinforced concrete frame (Basement, Ground Floor, Lift Core): Galldris Steel frame (above ground superstructure): Conder Allslade
Precast concrete bridge beam (ground level floor to gyms): Shay Murtagh Composite metal decking(typical above ground floors): Prodeck Fixing / Conder Alslade
External material elements: Alumet

SUSTAINABILITY
U-Value targets (W/M2k): Wall 0.2, Reglit Glazing 1.2, Standard glazing 1.2, Roof 0.14, Floor 0.2
Renewable energy: Ground source heat pump. CHP (combined heat and power).
Ventilation strategy: Passive, naturally ventilated. Mechanical heating/cooling only where required (sports) via ground source heat pump. High ceiling heights promote natural ventilation.
Lightning: Natural light, excellent daylighting to reduce daytime artificial light. Deep reveal for solar shading in summer. Rooflights.
Artificial lighting (lux): Gym/changing room 200, Sports Hall 300/500/750, typical classroom 300
Biodiversity: Sedum roof enhances and reduces water run-off

MATERIALS – EXTERNAL
Skeleton rainscreen cladding: Fibre C GFRC Cladding, liquid black (Supplied by Pura Facades)
Aluminium curtain wall glazing: Natural anodized finish (Supplied by Schuco)
External doors: Natural anodized finish (Supplied by Schuco)
U Channel glass cladding: Toughened, heat soaked tested and low iron, natural anodized frame, security film applied, insulation infill (Supplied by Linit)
Precast concrete cladding (+ wedge steps): Natural anodized finish (Supplied by Creagh Concrete)
Aluminium rainscreen cladding: Supplied by Taylor Maxwell

MATERIALS – ROOF
Sedum: Extensive, used on non accessible areas (Contractor: Briggs Amasco)
Synthetic grass: Tigerturf finesse, used on accessible areas (Contractor: Fieldform)
Composite decking: Anthracite/ebony color (Supplied by Timco Wood)
Metal grating balustrade: Stainless steel, square aperture (Supplied by Elefant Gratings) Glass Balustrade: Glazing channel – Stemcor Architectural EaziFit 1.5kN (Contractor: Bailey fabrications) Running track: Polytan Rekordan (Contractor: Fieldform)

Brighton College Sports Sciences Building East Sussex

MATERIALS – INTERNAL
Typical floor: Concrete screed + resilient layer (+UFH locally)

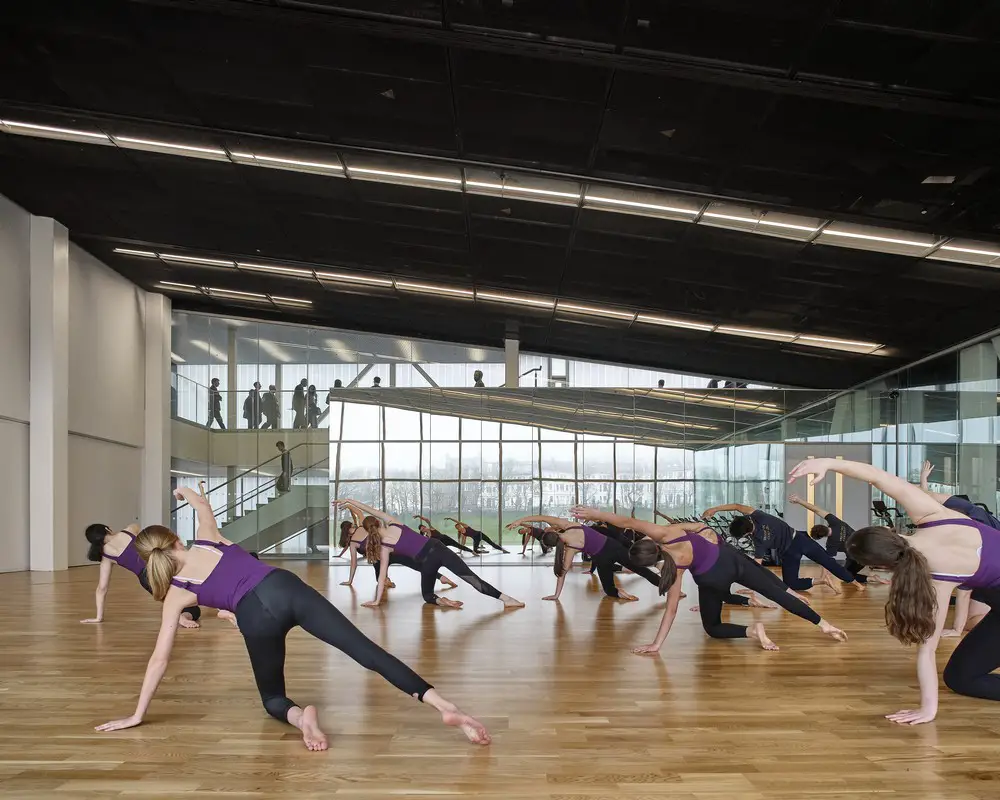

Floor finish sports hall/gym: Timber Oak (Supplied by Dynamic)
Floor finish typical lab + circulation: Linoleum (Supplied by Forbo)
Floor finish swimming pool: Glass Mosaic ceramic tiles (Supplied by Designworks Tiles)
Floor finish changing areas: Mosaic ceramic tiles (Supplied by Togoma)
Floor finish entrance matting: Supplied by Coba Flooring
Typical wall: Gypframe metal stud (Supplied by British Gypsum)

Typical wall glazed/double glazed partition: Fire rated, non fire rated, heat strengthened (Supplid by Planet Partitioning) Wall finish sports hall: Oak/MDF panel (Supplied by Dynamic)
Wall finish gym box: Silver Mirror (Supplied by Sec Carpentry)
Wall finish campus circulation: Polyrey, grey, brosse finish (Supplied by Polyrey)
Wall finish lab/storage: Duropal laminate (Supplied by Duropal)
Ceiling: Hunter Douglas cell 40 metal ceiling (Supplied by Hunter Douglas)
Ceiling sports: Metal Mesh Hunter Douglas (Supplied by Hunter Douglas)
Doors, solid: GE Door
Doors, glazed: Planet Partitioning
Doors, feature pivot: Sec Carpentry + Bailey Fabrications

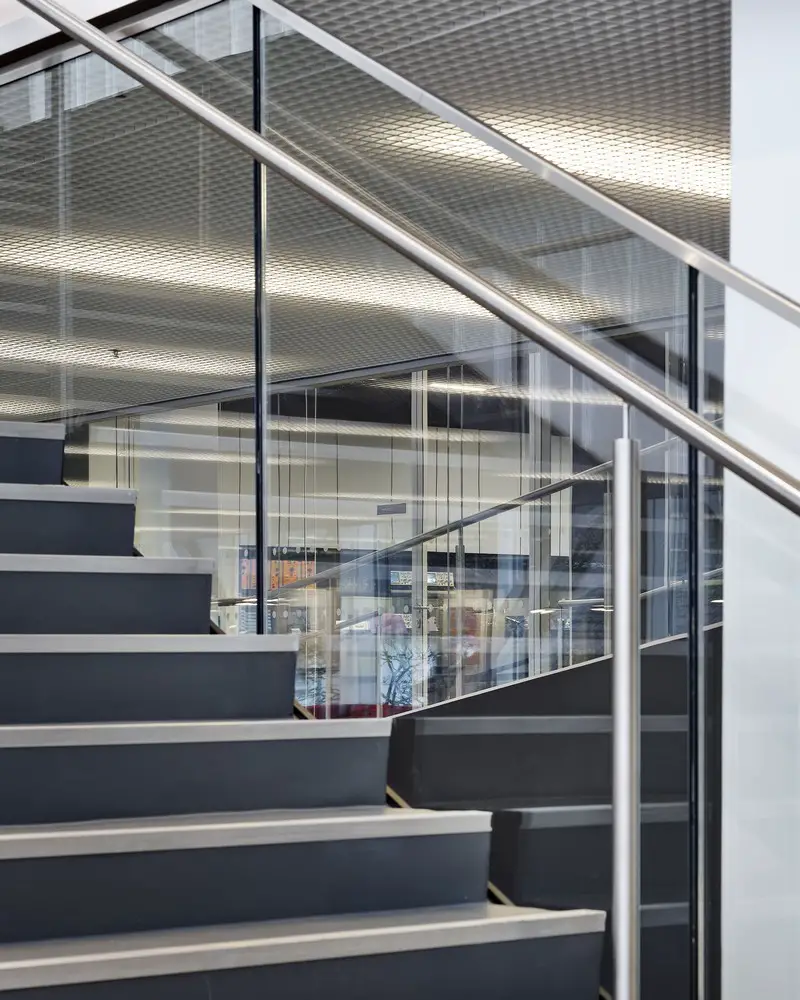

Stairs: Precast Concrete (Supplied by Creagh Concrete)

Brighton College Sports Sciences Building East Sussex

Photograph by Killian O’Sullivan, Copyright OMA

Brighton College Sports and Sciences Building in East Sussex images / information received 150120

Location: Brighton, East Sussex, South East England, UK

Brighton Buildings

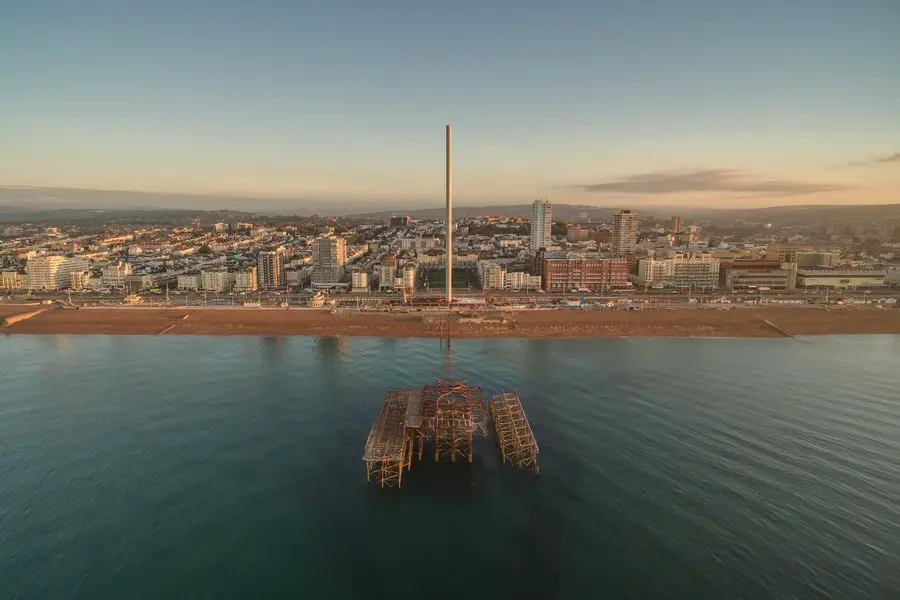

Brighton i360 Tower
Design: marks barfield architects
Brighton i360
image from architects
Brighton i360 Tower

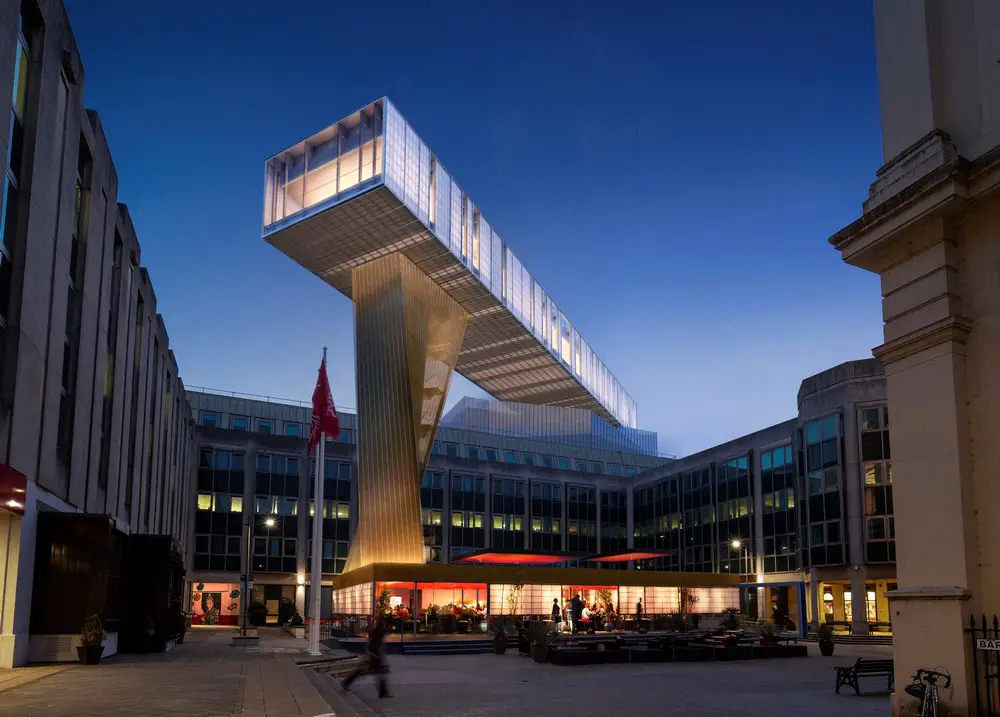

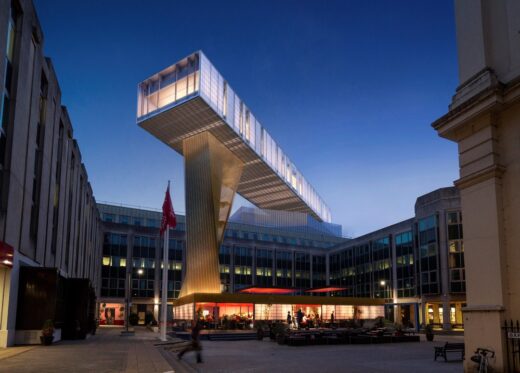

Moshimo Restaurant
