Nile Tower Cairo Skyscraper Building, ZHA Egypt High Rise Project Design Images
Nile Tower Cairo Building
Egyptian Skyscraper Building Development design by Zaha Hadid Architects, England, UK
19 Apr 2012
Design: Zaha Hadid Architects, London, United Kingdom

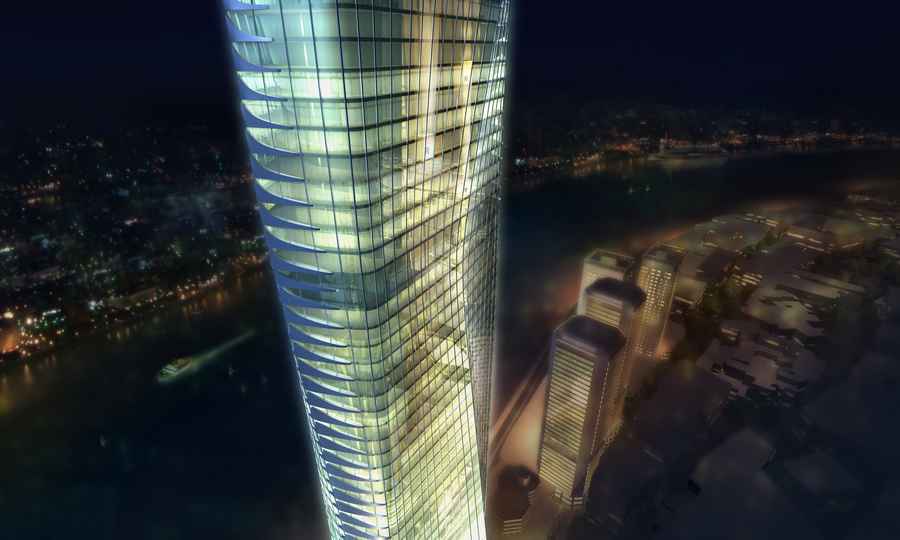

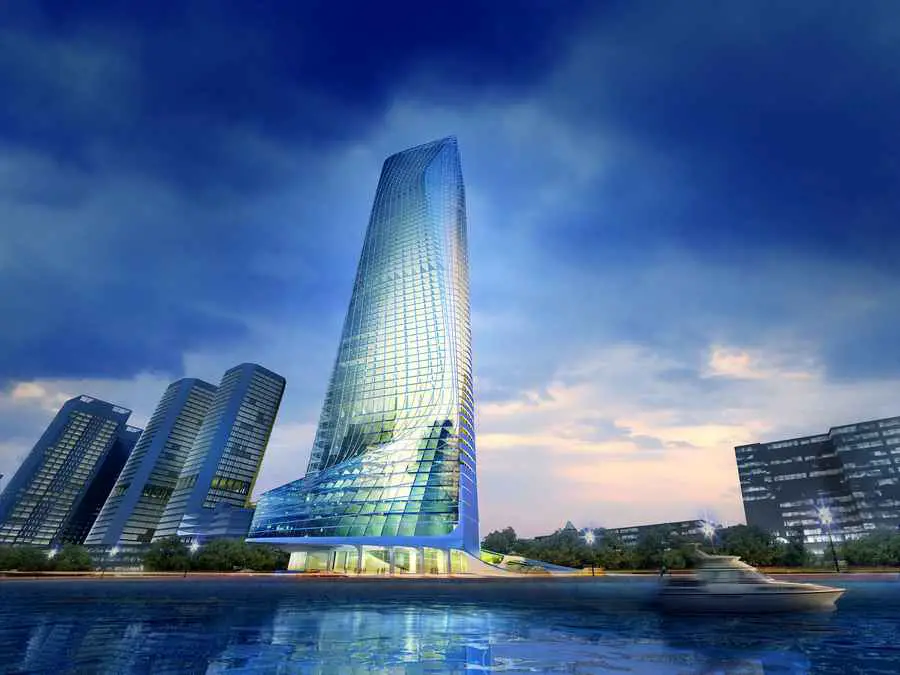

The new Nile Tower is designed as a gracious volume that elegantly borders the Nile River in the heart of Cairo.
image courtesy of architects practice
Nile Tower Cairo Skyscraper Building
The main structural elements of this 70 storey hotel and apartment tower are concrete fin walls that rotate gently over the full height of the tower. The gradual rotation of the fin walls generates a wide selection of orientations for the hotel rooms and apartments. These fin walls are reflected on the external façade, giving the tower its dynamic appearance.

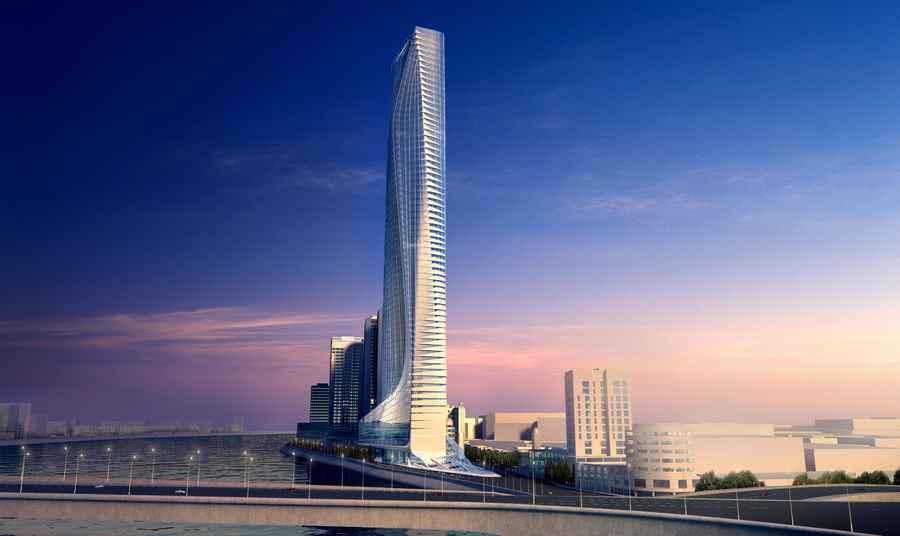

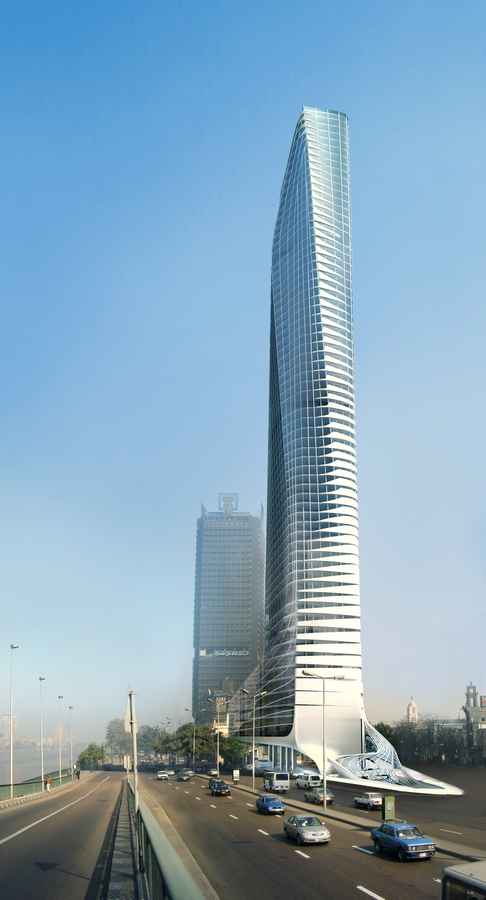

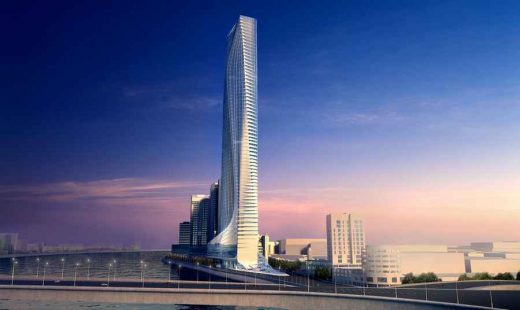

On the west side – overlooking the river – the tower bulges out at the upper floors to maximize the views from hotel rooms and apartments. On the east side the tower is pulled out as a triangle on the lower floors to offer maximum stability. These opposite extensions make the overall tower seemingly lean over towards the Nile.
While enhancing the perspective when looking up from the foot of the tower this geometry also makes the tower seem in motion. This seeming rotation is further enhanced by emphasizing the diagonals running along the north and south facades.

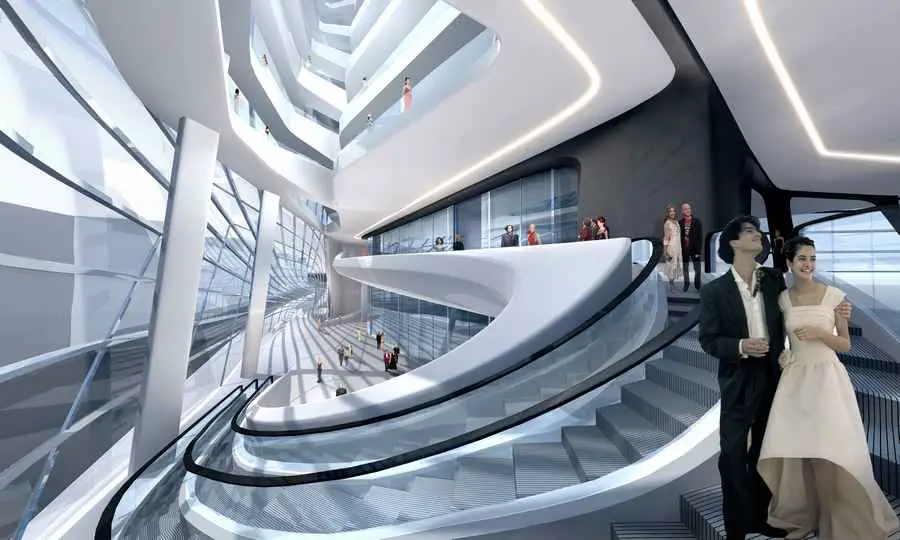

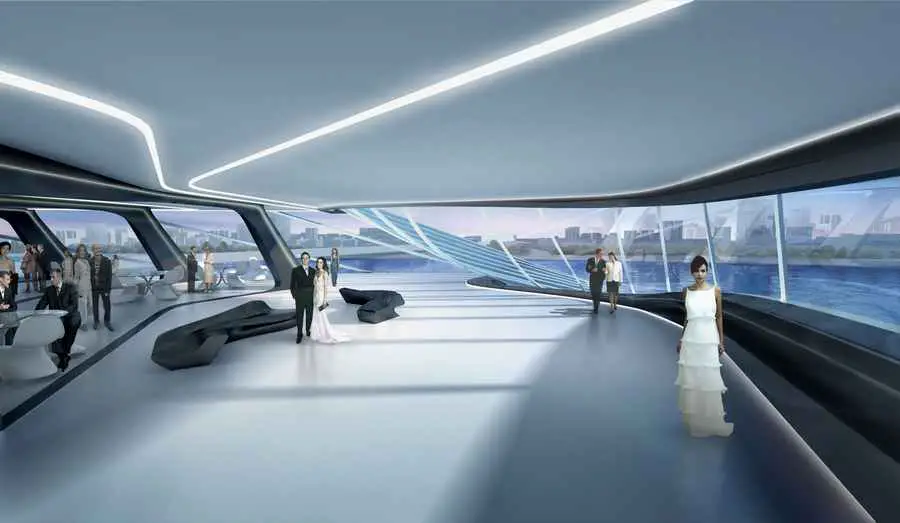

The façade geometry on the west façade culminates at the lower levels in a volume overhanging the road towards the river, housing the common program of the tower.

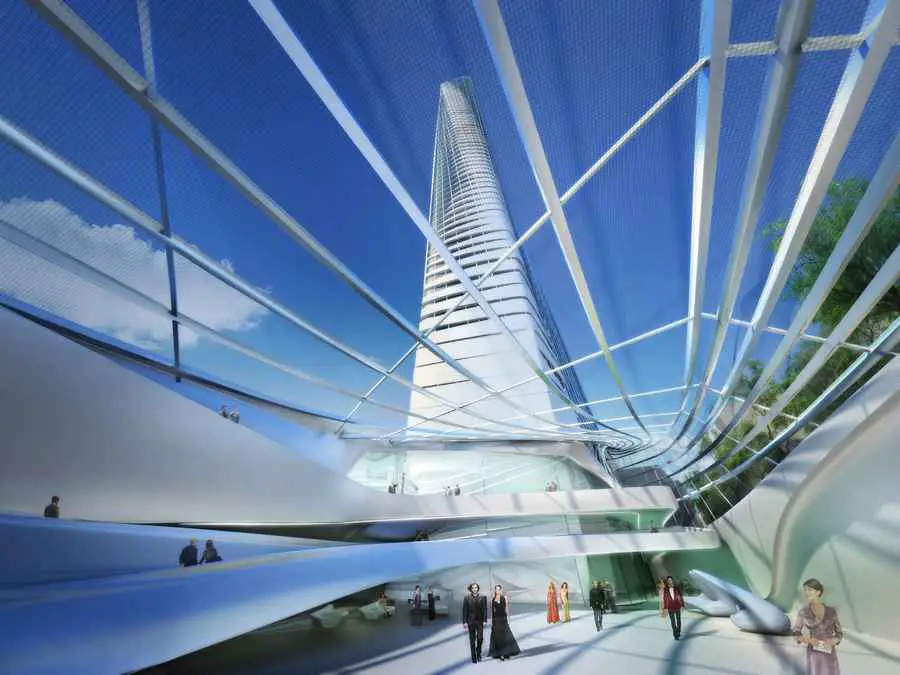

At the foot of the tower, the façade drapes down over the large column free space next to the tower footprint where it forms a continuous glass plaza.
A high quality contribution to the east bank of the Nile, The Nile Tower also forms a valuable addition to the skyline of Cairo.
Nile Tower Cairo – Building Information
Program: Hotel & apartment tower
Client: Living in Interiors
Area: 120,000 sqm
Residential: 60,000 sqm
Hotel: 35,000 sqm
Height: Tower – 300m
Architect: Zaha Hadid Architects
Design: Zaha Hadid with Patrik Schumacher
Project Architect: Joris Pauwels
Project Team: Feng Xu, Paulo Flores, Sharifah Alshalfan, Tariq Khayyat
Cairo Tower images / information from Zaha Hadid Architects
Nile Tower Cairo design : Zaha Hadid
Location: Cairo, Egypt, north east Africa
Egypt Architecture
Contemporary Northeast Africa Architectural Projects
Egyptian Architecture Designs – chronological list
Egyptian Buildings by Zaha Hadid Architects
Stone Towers Cairo
image : Zaha Hadid Architects
Cairo Expo City Competition
image : Zaha Hadid Architects
Major Egyptian Building on e-architect:
Bibliotheca Alexandrina / Alexandria Library
Snohetta Architecture with Hamza Associates, Cairo
image from architects
Alexandria Library Egypt : open international design competition winners
Zaha Hadid Architects Buildings
Building Designs by Zaha Hadid Architects – Selection
Rabat Grand Theatre, Morocco
render from architects office
Rabat Grand Theatre
King Abdullah II House of Culture & Art Building, Jordan
building image from Zaha Hadid
House of Culture & Art Jordan
Guangzhou Opera House, China
The Opus Dubai, UAE
Contemporary Architecture in Egypt – architectural selection below:
Magdi Yacoub Global Heart Centre, Cairo
Architects: Foster + Partners
image courtesy of architecture office
Magdi Yacoub Global Heart Centre Cairo

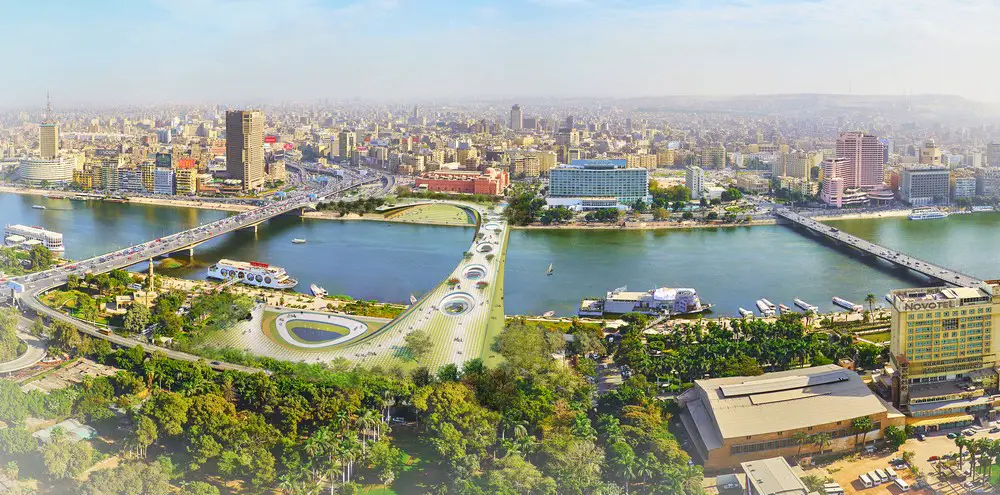

Living Pedestrian Bridge Over The Nile, Cairo
