Dresden Station Redevelopment, Architecture, Architects, Photos, Design, Award

Dresden Station Architecture

Station Building in Saxony, Germany design by Foster + Partners Architects

25 Sep 2007

Dresden Station Building

Dresden Station Redevelopment, Dresden, Germany
Date of renewal: 2006
Architect: Foster + Partners, UK

Dresden Station Building Redevelopment
photograph by Foster + Partners © Nigel Young

Foster + Partners are masters of the one-liner. With some of the practice’s buildings you are left wanting some greater complexity or richness, but in the case of the restoration of the Dresden Hauptbahnhof, one of the most impressive late nineteenth century railway stations, the key move is of an apparent simplicity one which belies a complexity that is both surprising and highly effective.

Dresden Station Building Renewal

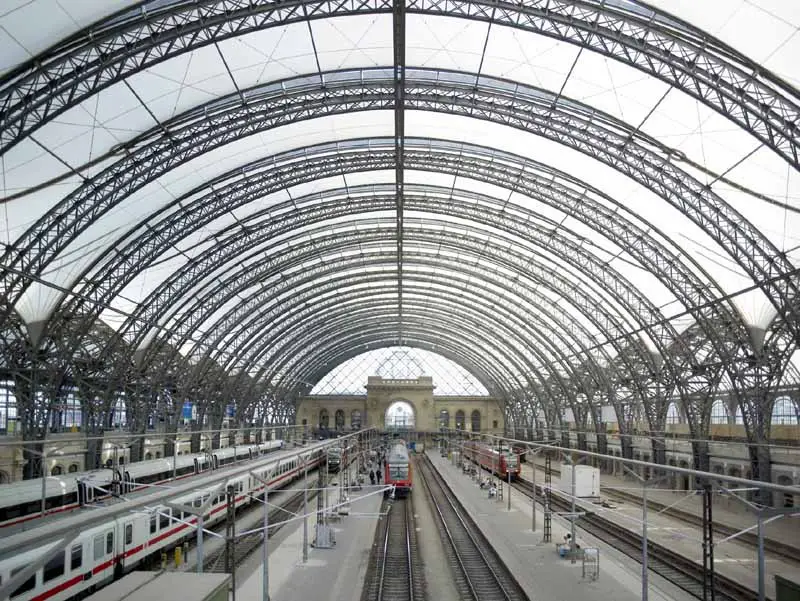

Dresden Station Redevelopment, Dresden, Germany by Foster + Partners © Nigel Young

Although not totally destroyed by allied bombing during the infamous Dresden Raids, the station was badly damaged and suffered further from unsympathetic repair and alterations. It is symbolically appropriate that the new work should have been designed by a British practice.

Foster + Partners won the competition on the strength of their proposal to re-roof the damaged late nineteenth century train shed with a lightweight fabric roof instead of reproducing the heavy timber and glass roof that had existed previously. This allowed a light touch to the repair of the steelwork, as well as providing 13% more natural light. However, it is the aesthetic effect that is chiefly remarkable, both for the fine quality of the diffused light through the white fabric roof and for its formal qualities.

Instead of the parallel linear roofs and gutters of the original roof, the new fabric roof is pulled tightly down into the springing points of the arches in alternate bays, forming a fan vault somewhat reminiscent of that of King’s College Chapel. From above the roof is even more extraordinary, like a tent or a hilly landscape pierced with funnels down which the rainwater disappears.

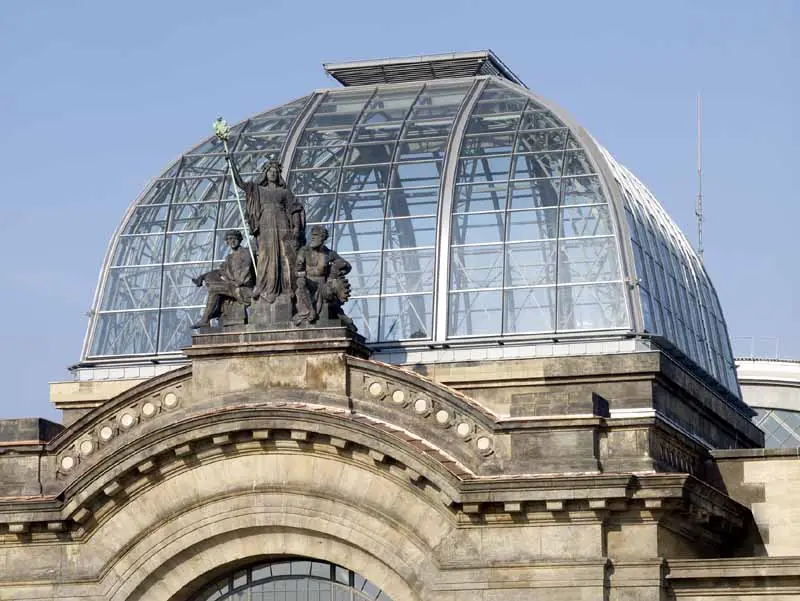

Dresden Station Building roof Foster + Partners

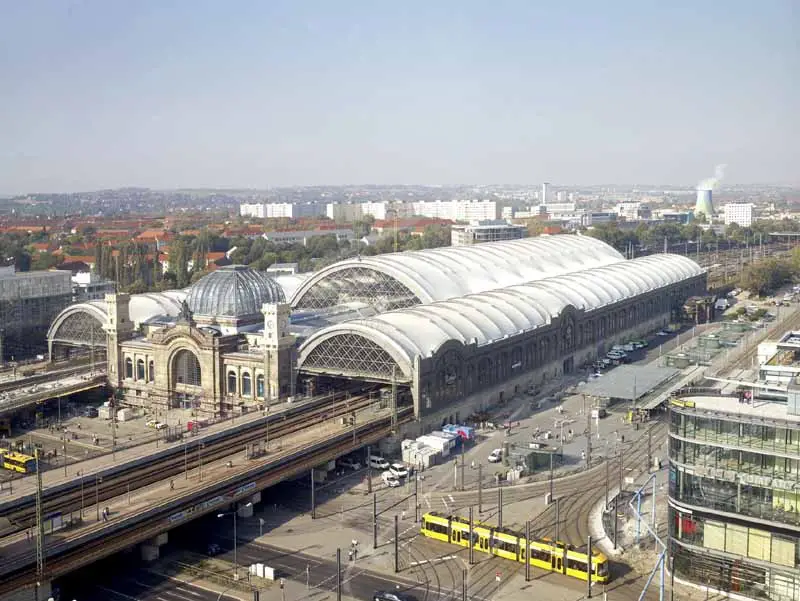

Dresden Station Redevelopment (3), Dresden, Germany by Foster + Partners © Nigel Young

The treatment of the flanking courts, which have been re-glazed and stripped of plaster to reveal the texture of the brick walls are successful. The decisions about the removal of some of the later alterations to the front elevation have also been nicely judged, restoring the essential architectural elements of the masonry to the windows and turrets while omitting the highly ornamental adornments that can be seen on pre-war photographs of the station. The people of Dresden are highly appreciative of the work that has been carried out.

Dresden Station Redevelopment – Building Information

Architect: Foster + Partners
Client: Deutsche Bahn AG
Contractor: Station & Service AG
Structural engineer: Buro Happold, Schmitt Stumpf Frühauf & Partner
Mechanical and electrical engineers: Schmidt Reuter & Partner, Zibell Willner & Partner
QS: BAL GmbH, Schmitt Stumpf Frühauf & Partner
Project management: AYH Homola GmbH & Co. KG, Kaiser Baucontroll
Historic buildings advisor: adb
Lighting consultant: Speirs and Major Associates

Contract Value: £99m
Date of completion: Nov 2006
Gross internal area: 30,000 sqm

Dresden Station Redevelopment images / information – Stirling Prize 2007 Shortlist info from RIBA 2007

Dresden Station Redevelopment Architect : Foster + Partners

Dresden Station redevelopment
Date built: 2006
Design: Foster & Partners

Stirling Prize 2007 Shortlist : Stirling Prize 2007 Shortlist

Dresden Railway Station:
Dresden Railway Station

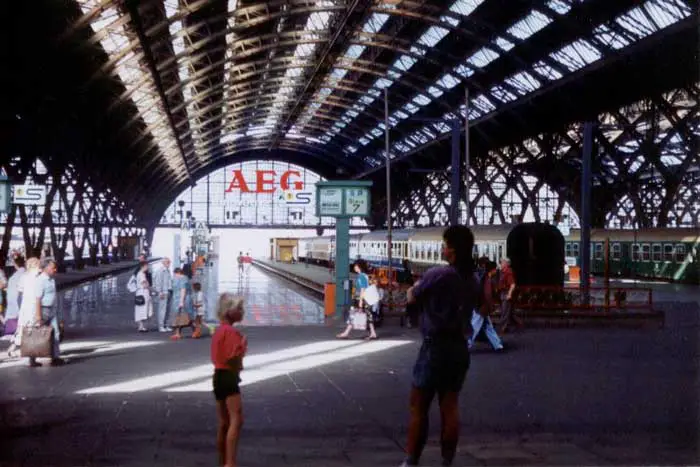

Dresden Station Building Photo © Adrian Welch

Original building by Ernst Giese & Paul Weidner
Date built: 1898
Client: Deutsche Bahn AG

Location: Dresden, Saxony, Germany, western Europe

Dresden Architecture

Dresden Architecture Designs – chronological list

Dresden Militärhistorisches Museum
Daniel Libeskind Architect
Dresden Military History Museum

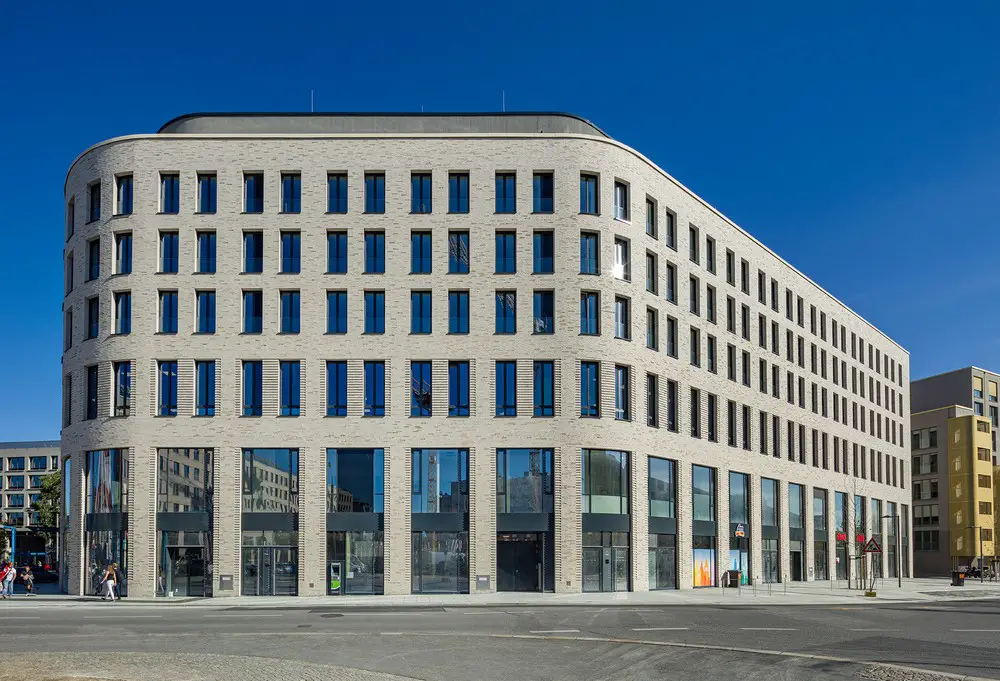

Postplatz Office Building, Postplatz 2/2a /3 /3a, Wallstrasse 2/4, Marienstrasse 1/3
Architects: tchoban voss
Postplatz Office Building Saxony
photo © Florian Selig
Postplatz Office Building
In the city centre at Dresden’s Postplatz, directly opposite the historic Zwinger, a new six-storey solitary building with an additional staggered storey and two basement floors was built.

22 Apr 2020
The Cube Dresden: first carbon concrete building in the World
Architects: HENN
The Cube Dresden Carbon Concrete Building
image courtesy of architects practice
The Cube Dresden
HENN has developed the concept design for the world’s first building made of carbon concrete, The Cube. The 220-m² experimental building combines a laboratory and event rooms, and sets an example of architectural and structural innovation at the Technical University of Dresden (a German “University of Excellence”).
