Rašovka House on the Ještěd Ridge

15 Sep 2022

Architects: atelier SAD

Location: Ještěd Ridge, Czech Republic

Rašovka House Ještěd Ridge Czech Republic

Photos: Boys Play Nice

Rašovka House, Czech Republic

The family house at Rašovka is located on the southern slope of the Ještěd ridge, at an altitude of 600 m above sea level, with a wonderful view of the scenery of the Bohemian Paradise.

Rašovka House Ještěd Ridge Czech Republic

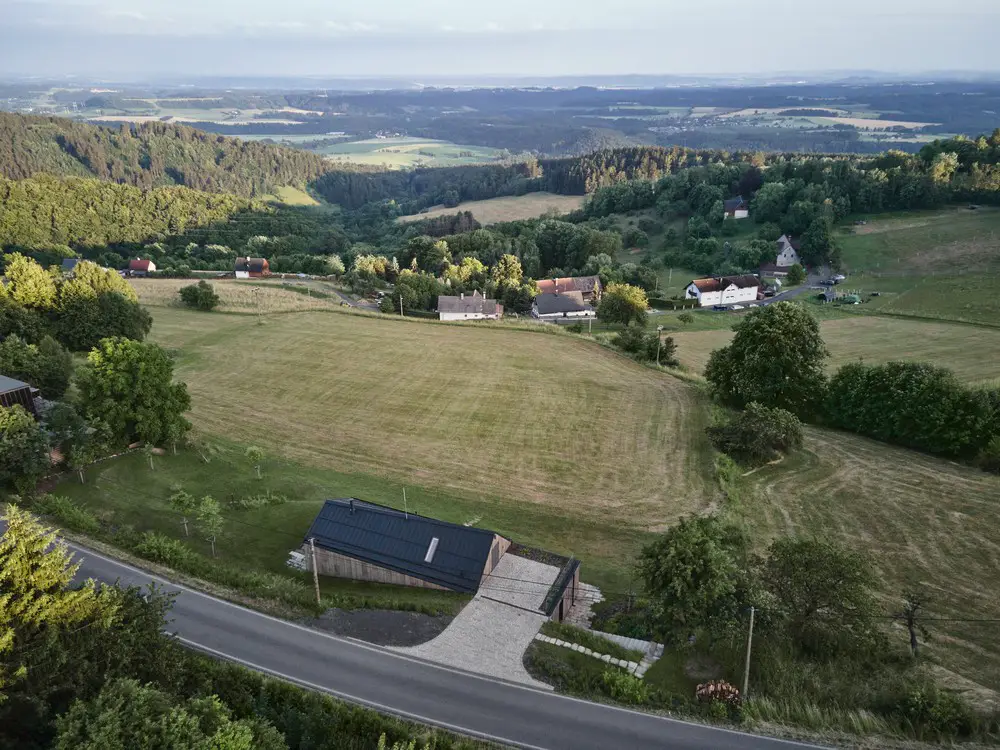

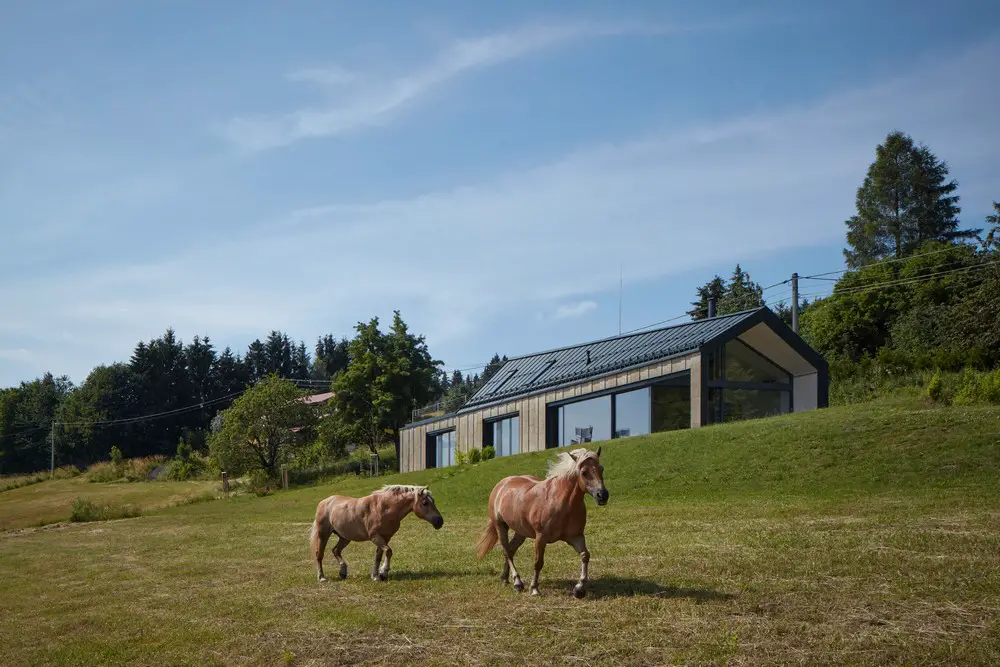

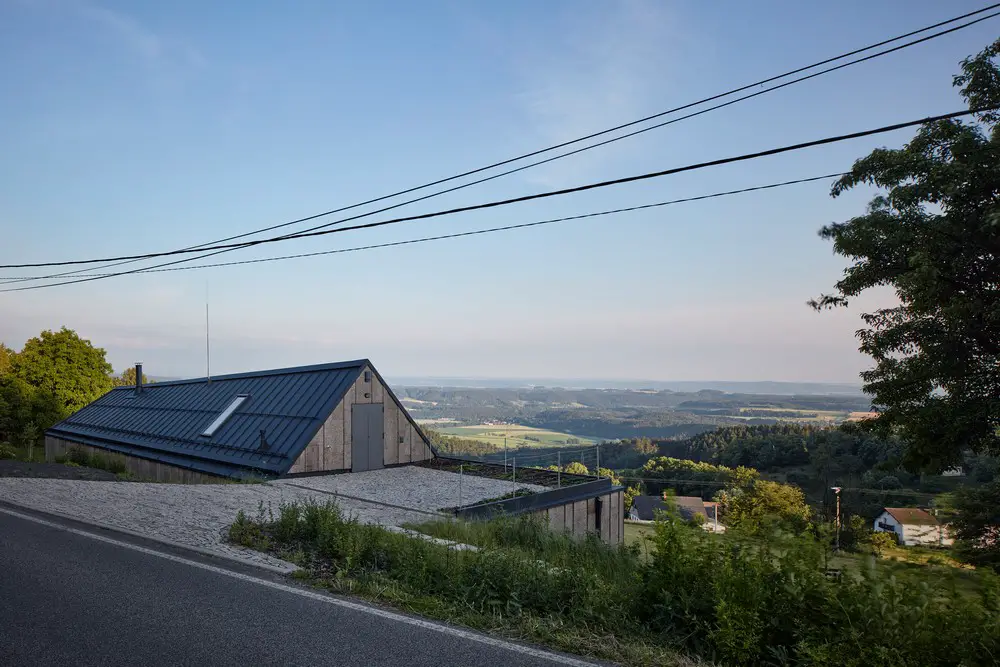

The view and the integration of the interior spaces into the landscape was one of the main motifs driving the house design process. The landscape is open, passable, dominated by flowering, unfenced meadows. The floor plan of the rectangular house of approximately 22.5 x 7 m is oriented along the contour line. Along the northern side of the property, there is a road on top of an embankment to which the house had to be connected. A part of the building’s roof is therefore drive-on, intended for parking vehicles. The ground floor and the main area of the garden are then 4.5 m below road level. A greater part of the building is covered by a saddle roof with a variable pitch ranging from 43° to 30° on the eastern gable. The slender mass of the house cuts diagonally into the steep slope of the road, and the ridge seems to slope down into the garden.

Rašovka House Ještěd Ridge

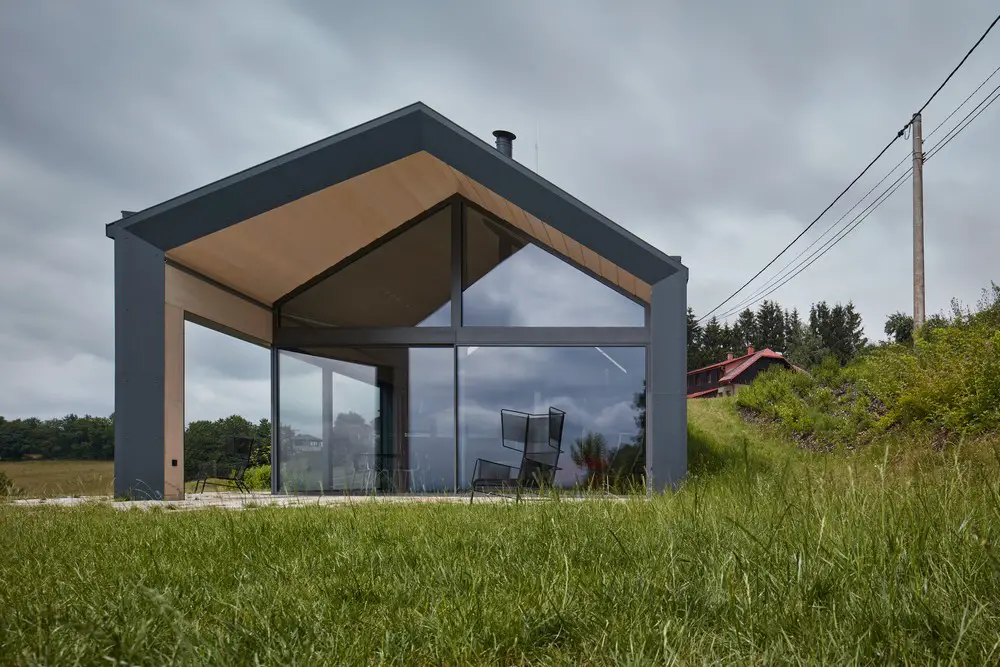

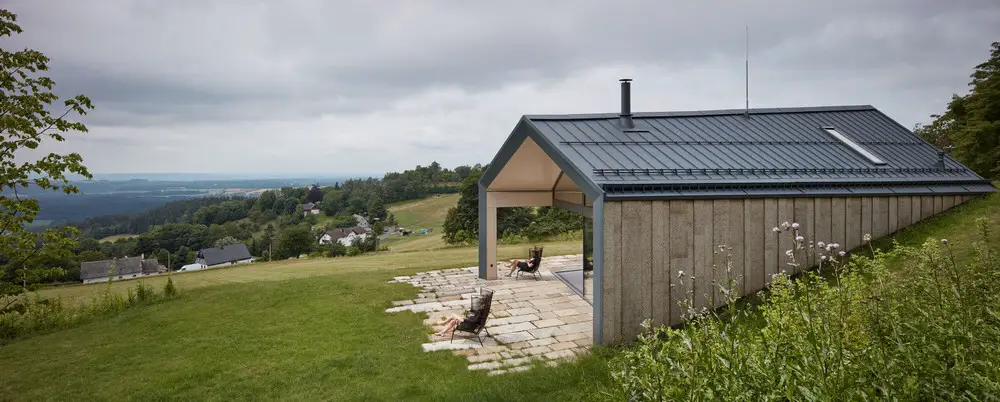

The main entrance is on the west side. Access is through an outdoor staircase along a stone wall overgrown with creepers. The otherwise compact mass of the house is completely open on the eastern gable, and its fully glazed wall steps back from the contour edge at an angle. This maximizes the area of view and creates a roofed terrace.

Rašovka House Ještěd Ridge

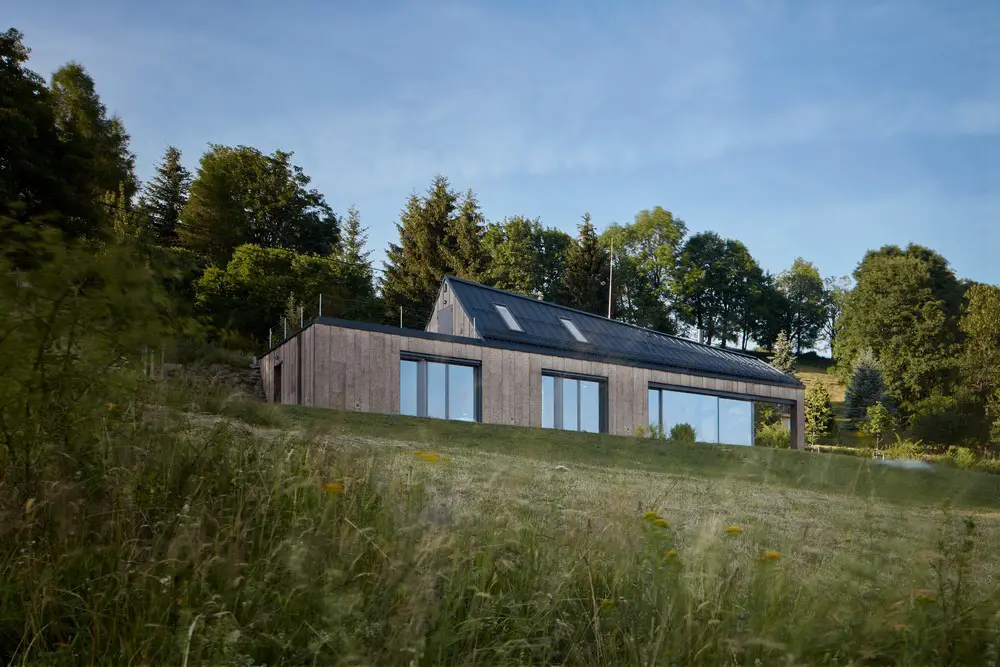

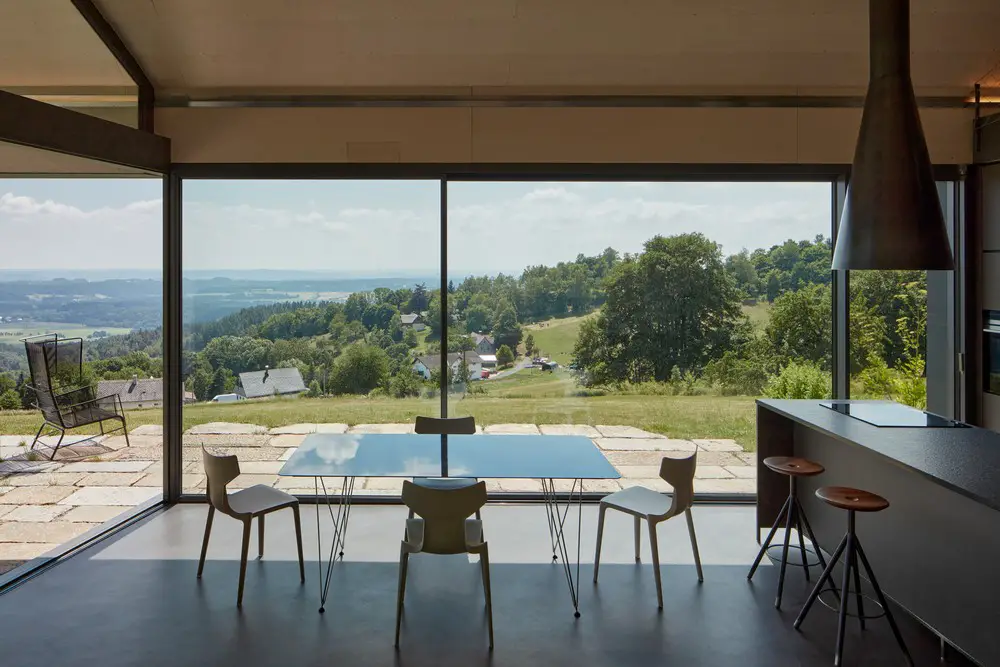

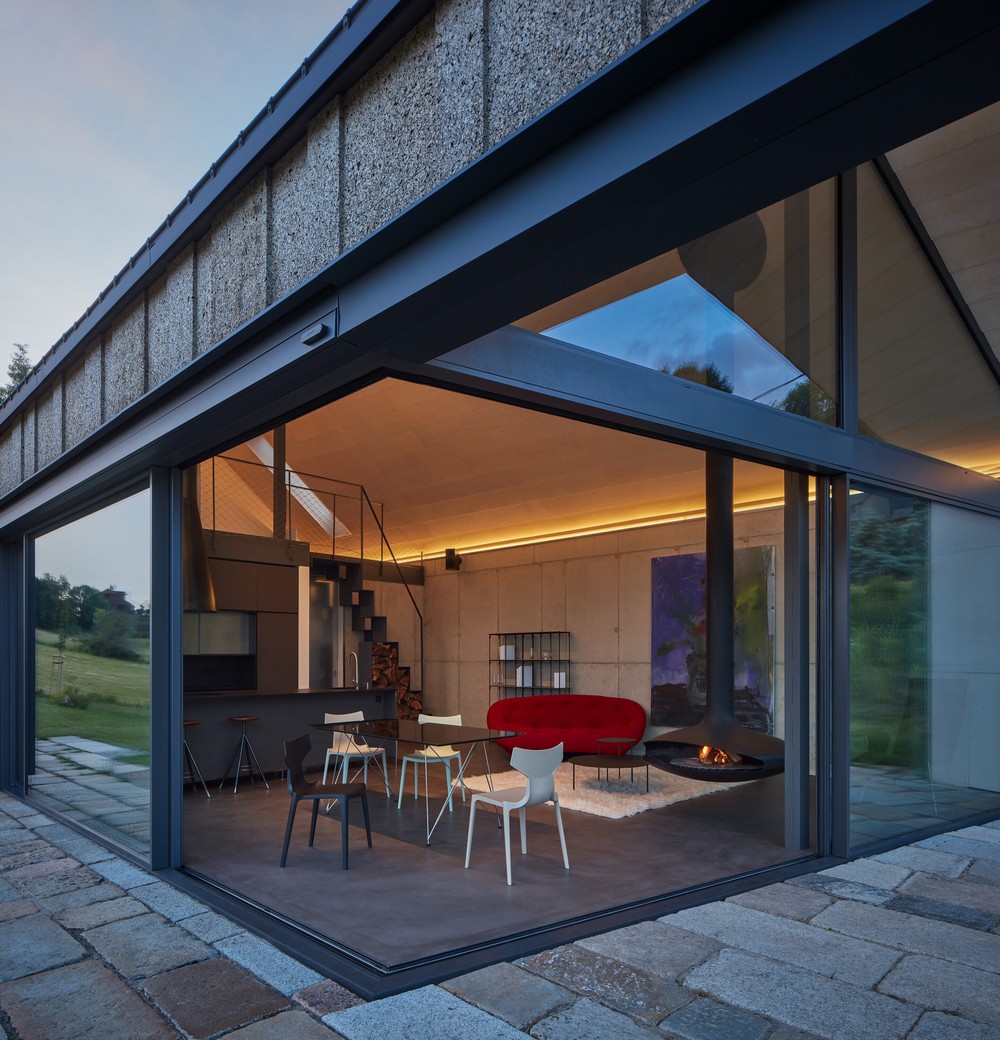

The terrace adjoins the south side, where there is another aperture in the mass of the house spanning the full height of the floor. The glazing meets with the glazing of the east gable at two thirds of the aperture, without a corner column. The corner is formed by sliding portals which can be slid open, whereby the main living space becomes fully connected with the garden through the terrace. All the other living spaces on the ground floor, including the bathroom, also open to the landscape through glazed apertures on the south side.

Rašovka House Ještěd Ridge

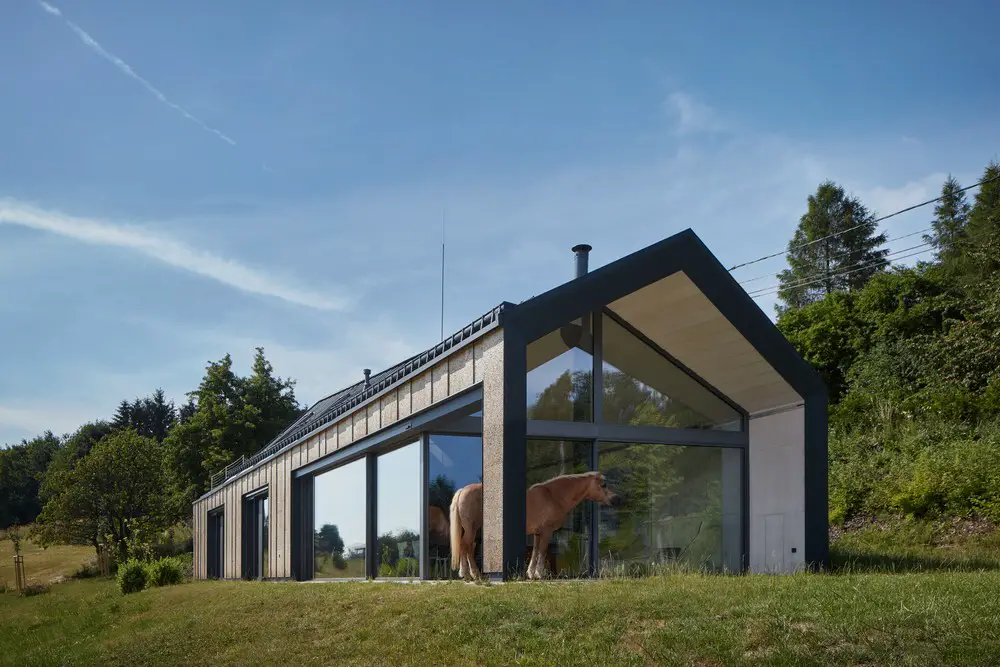

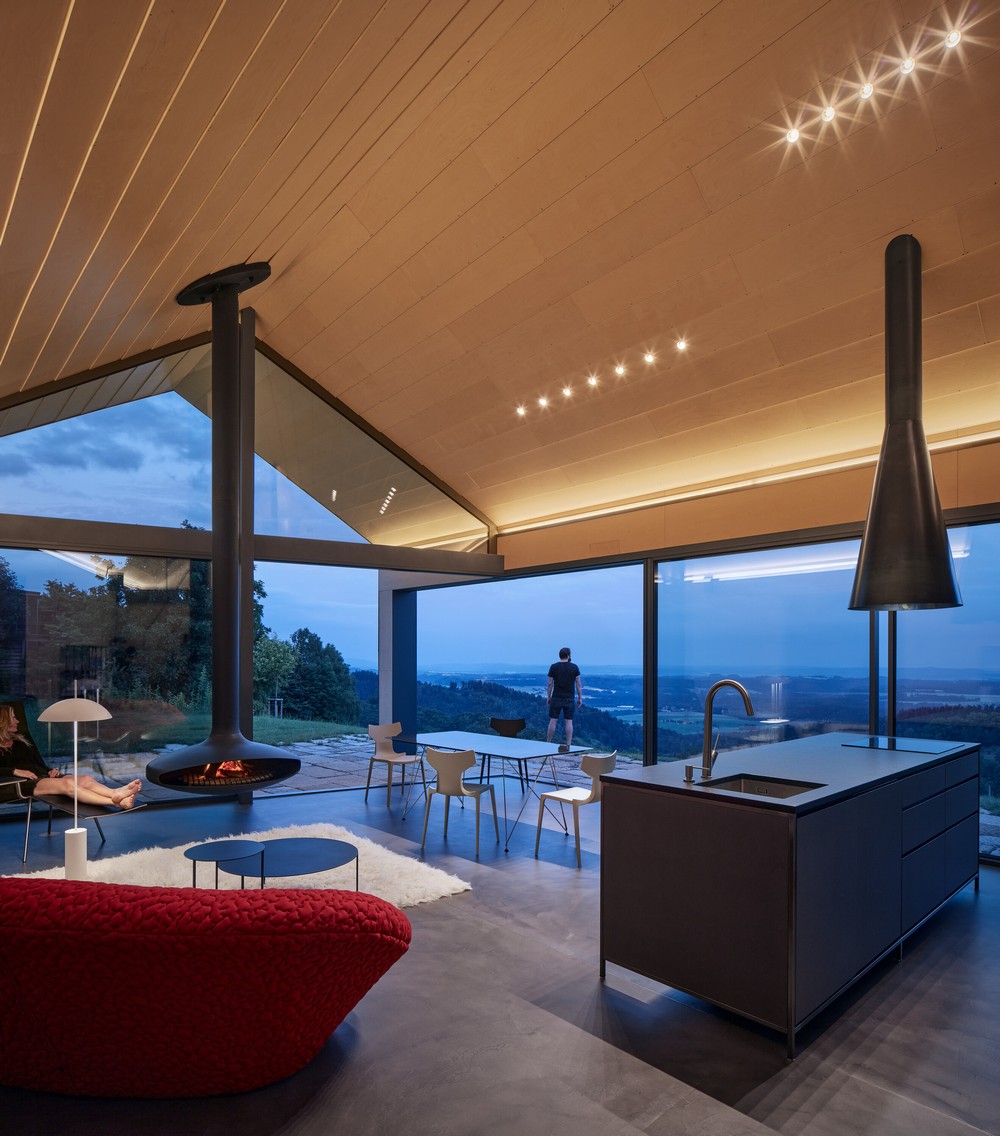

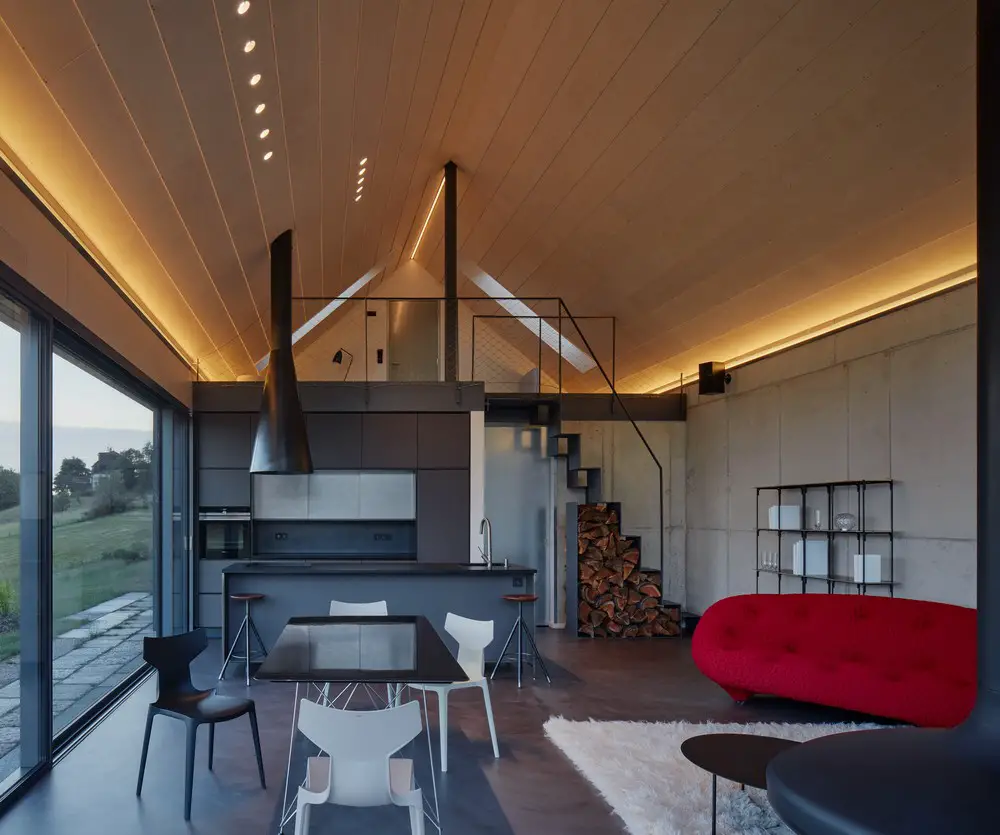

The structured façade consists of boards from Portuguese expanded cork of variable thickness, which alternate in vertical strips. This material has never been used in this way in the Czech Republic until now. The saddle roof is made of folded anthracite-colored, aluminium sheet. The ceilings and perimeter walls were cast from fair-face reinforced concrete, the internal partitions are plastered brick. The roof soffit is lined with bleached birch plywood, a French swivel cast-iron fireplace is suspended from the rafters, being the dominant feature of the interior. The overall simple look of the house is completed by a dark brown-red screed floor. The outdoor pavement is made of old, well-worn, large granite stones. They resemble the original Liberec paving with its specific pink colour. Similarly, the whole of Liberec was once generously paved. This is how the entire project was gradually born – with respect for local traditions, history, materials and the surroundings.

Rašovka House Ještěd Ridge

The investors tell the story of the house as follows: “It all started with the discovery of the last building plot in Rašovka seven years ago. We already knew the place and since we wanted to build as high as possible in the direction of Ještěd mountain, we did not hesitate at all. We have had a lot of other elements in mind for a long time: glass walls, exposed concrete, an austere interior, metal elements, a suspended fireplace, or an open garden without a fence. Friends from the SAD studio shaped Iveta’s original ideas into the design of the house. As the idea of the house was born, we gradually understood that we simply could not make any compromises. That is why the house is faced with cork and there is no column in the glass corner, despite statics and logic. A company with the thematically stylish name Ještědská stavební společnost (Ještěd /mountain/ construction company) undertook the demanding construction, discovered a layer of black coal under the house, and eventually everything went well with the laying of the last granite stone in the pavement.”

Rašovka House Ještěd Ridge

“The interior design of the house with the internal layout of the rooms may have been created earlier than the house itself,” says Iveta Zachariášová, interior designer and co-author of the entire project, especially of the interior. “Thanks to my many years of experience, many things and functional aspects were clear to me from the onset, and we basically only dealt with their alignment with the structure of the house and the opening of the house to the surrounding environment through glass walls. The light, the space, the cleanliness of the interior and the moderate use of colors led me primarily to the Konsepti and Ligne Roset studios, which are the foundation of the interior furnishings.”

The new construction of the house was awarded 3rd place in the housing construction category in the Karel Hubáček Competition Building of the Year in the Liberec Region 2021.

Rašovka House Ještěd Ridge Czech Republic Rašovka House Ještěd Ridge Czech Republic

Rašovka House on the Ještěd Ridge, Czech Republic – Building Information

Studio: atelier SAD – https://www.ateliersad.cz/

Iveta Zachariášová [interior design]
Author Adam Jirkal, Tomáš Kubák [atelier SAD]
Iveta Zachariášová
Contact E-mail [email protected]
[email protected]
Social media www.facebook.com/AtelierSADcz
Studio address atelier SAD, Anenské nám. 211/2, 110 00 Prague 1, Czech Republic
Iveta Zachariášová, Jáchymova 63/3, 110 00 Prague 1, Czech Republic

Project location Na Rašovce 70, 463 12 Šimonovice
Project country Czech Republic

Project year 2016–2019
Completion year 2020
Built-up Area 158 sqm
Gross Floor Area 153 sqm
Plot size 1685 m²
Dimensions 22,4 × 7,1 m / 640 m3

Client Iveta and Jan Zachariáš
Client’s e-mail [email protected]
Client’s website www.ivetazachariasova.cz

Collaborator Construction: Ještědská stavební společnost, www.jss.cz
Landscape architect: Partero, www.partero.cz
Interior construction: MY76, www.my76.cz

Rašovka House Ještěd Ridge Czech Republic

facade – expanded cork
load-bearing walls and ceiling – exposed reinforced concrete
partitions – ceramic bricks
roofing – folded aluminium sheet
paved surfaces – Liberec granite / old paving stones

Products and Brands
expanded cork facade — Amorim\www.amorim.com
roofing Prefalz — Prefa\www.prefa.com
kitchen appliances — Siemens\www.siemens.com
free-standing furniture — Konsepti\www.konsepti.com
free-standing furniture, outdoor armchair Fifty — Ligne Roset\www.ligne-roset.com

Living Room
sofa Ploum — Ligne Roset\www.ligne-roset.com
tables, dining table Carbon, bar chairs, hood — atelier SAD\www.ateliersad.cz
Re-chair, lamp Geen-a — Kartell\www.kartell.com
bookshelves — Konsepti\www.konsepti.cz
leather armchair — DePadova\www.depadova.com
fireplace Gyrofocus — Focus\www.focus-fireplaces.com
painting — Jakub Špaňhel

armchair Togo — Ligne Roset\www.ligne-roset.com
lamp Gräshoppa — Gubi\www.gubi.com

ceramics Happy D.2 — Duravit\www.duravit.cz
bathtub Meisterstück centro duo 2 — Kaldewei\www.kaldewei.cz
battery — Axor\www.axor-design.com
furniture, lamp — atelier SAD\www.ateliersad.cz

Study Room
Earl of wood desk, Adam wood shelf, chair, Al wood table, Q/wood chair, K/wood armchair — Kartell\www.kartell.com

Additional information
The name of the settlement Rašovka is derived from the word rašit (to sprout): In the spring, the snow melts rapidly here due to the southern orientation towards the sun, and nature comes alive and sprouts visibly earlier than in the surrounding area. The local mountain microclimate directly on the Ještěd ridge is characterized by rapid weather changes, frequent winds and precipitation. Deep below the house, there are limestone karst formations filled with water, to which a borehole extends.

About atelier SAD
The studio was founded in 2002. The main representatives had worked as a successful creative team a few years earlier. The first joint venture was Všenory, the completion of a family house. Today, we can recognize their signature style in many award-winning projects – interiors, houses, offices, urban studies, art installations and objects. From gas stations to school classrooms and recording studios, designer furniture and product design. The studio is headed by four prominent personalities – Adam Jirkal, Jerry Koza and the twin brothers Martin and Tomáš Kalhous. They are supported by literally all-capable and above all, reliable collaborators – architects, builders and other related professions. Close cooperation with the implementation company MY76 is key and, in many ways, decisive for SAD. The individual members of SAD are united by the desire to discover new opportunities, create original work and cross the boundaries of disciplines and production processes. Also, curiosity, adventurous nature, joy of experimentation, eye for detail, which always support the whole, so they are never ends in themselves.

BIO – Iveta Zachariašová – interior designer
Interior design is her passion. She approaches projects energetically, with a clear vision, creativity, visual formulation of ideas, comprehensively and with transparent communication. Interior design creates shortcuts between countless possible variations and solutions, sorts and structure space, processes, matter, colors, ideas, life. It in-forms the future space: it gives objects a new, deliberate and improbable form. It dusts off a seemingly mundane reality and relies on a natural approach and cooperation.

Rašovka House Ještěd Ridge

Photographer: BoysPlayNice, [email protected], www.boysplaynice.com
