Rimac Campus, Sveta Nedelja, Croatia, Croatian Commercial Architecture, Building Development
Rimac Campus in Sveta Nedelja
19 Apr 2021
Design: 3LHD architects
Location: Sveta Nedelja, Zagreb County, Croatia
The Rimac Campus is located 16 km from the centre of Zagreb, Croatia’s capital city. It sits in a unique position as it is surrounded by a natural landscape yet still well connected to the highway and airport.

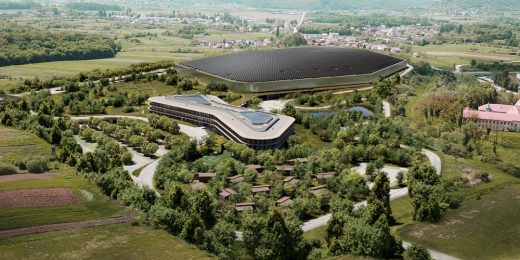

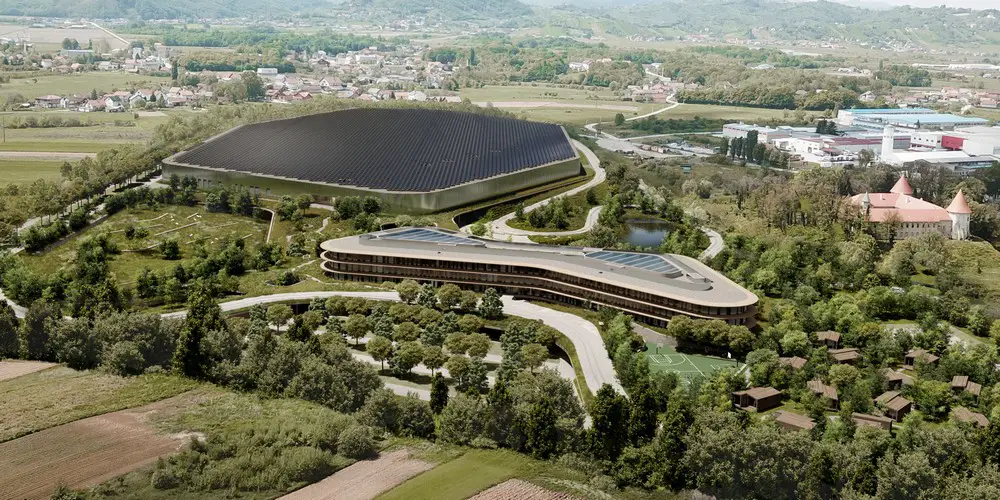

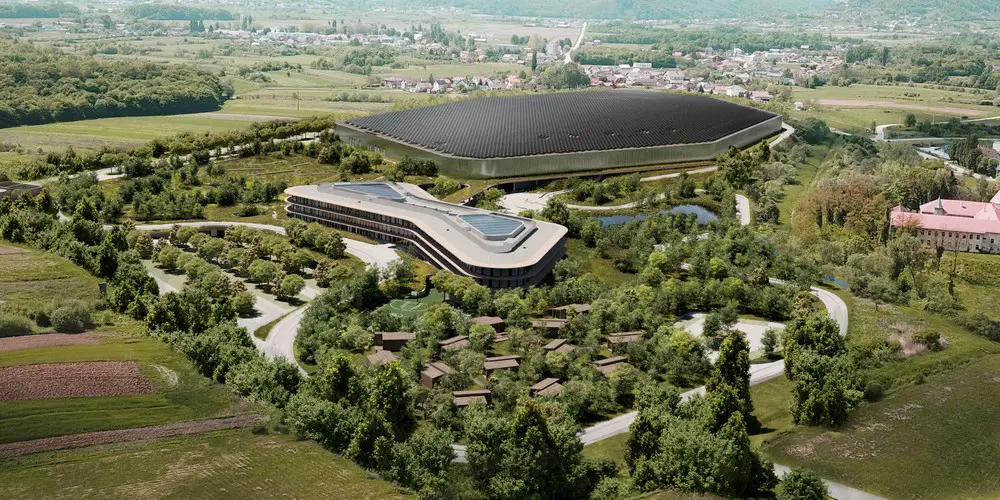

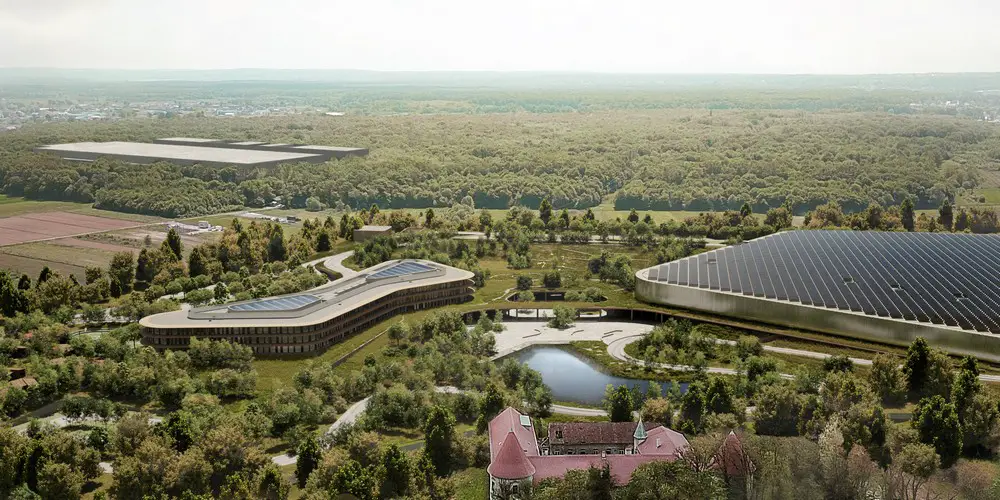

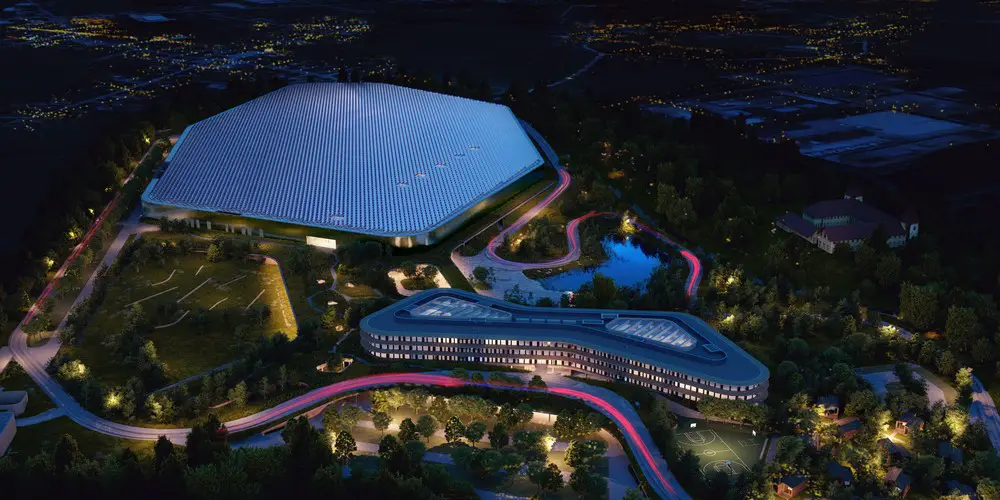

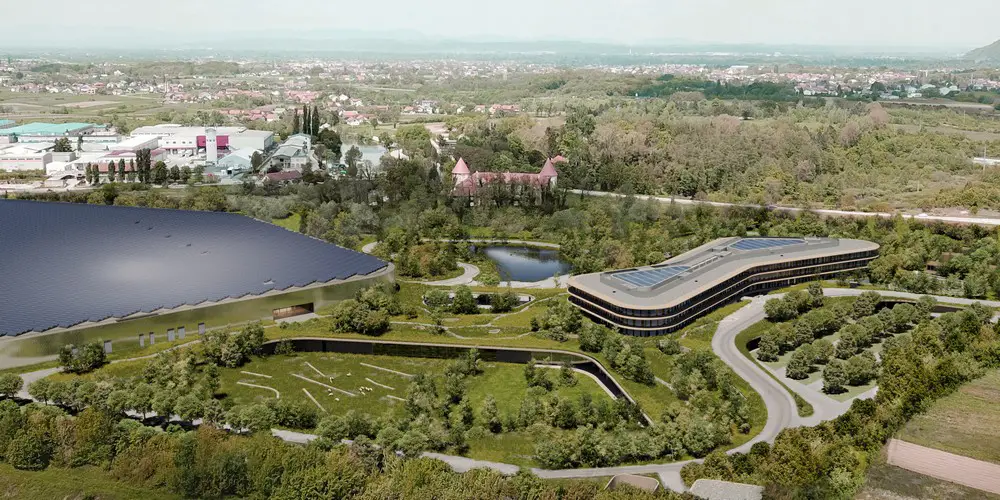

The most prominent building on the north side is Erdody Castle which is perched above the site. The relation to the castle and topography determined the position of future buildings and outdoor spaces. The two new above-ground volumes, fluid in shape, follow the natural topography and house the production facility and the office building (R&D). The third connecting volume is hidden in the landscape and houses a restaurant, kindergarten and utility spaces. Covered with a green roof, it blurs the boundary between the built form and the natural landscape. All buildings of the campus are designed as pavilions, accessible from all sides.
The campus can be accessed from two directions – east and west, giving quick access to logistics teams and employees, while guests are directed towards the main square through carefully designed urban spaces.

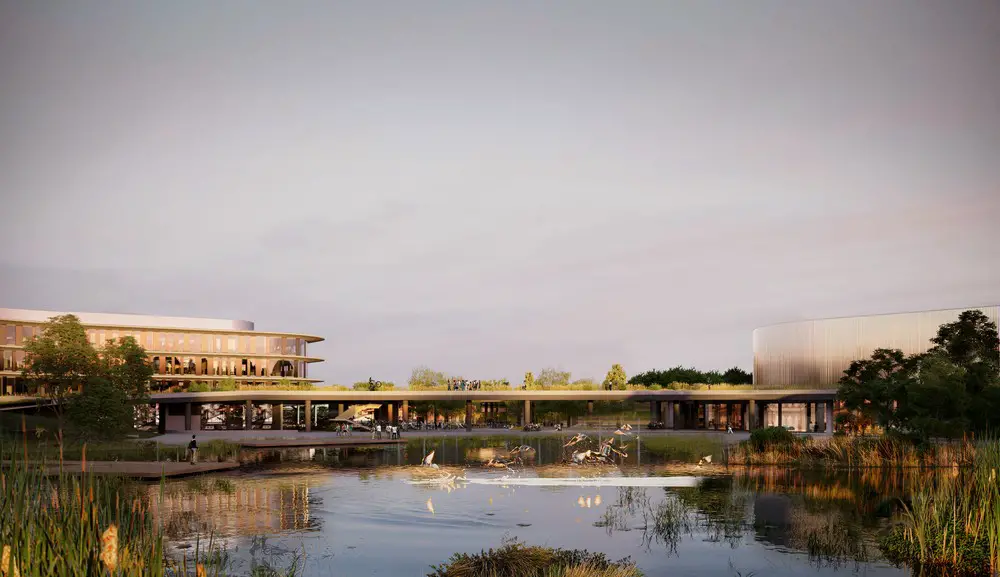

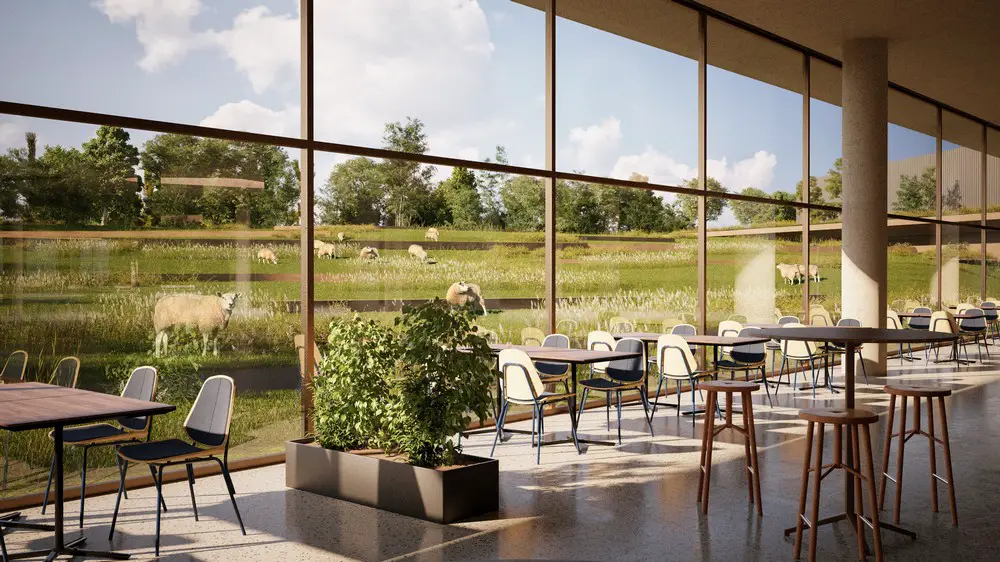

The main square of the campus is a place where everyone is welcome, and an access point for all other facilities on campus. It features great views of the Erdody Castle and an urban wetland, a new habitat for a multitude of species that will foster biodiversity on site. The restaurant, located in the center of the square, gathers employees, clients and visitors around the “same table”, encouraging them to socialize within a family atmosphere. It has views of the square, castle to the north and the sheep meadow in the south allowing employees and visitors to work and stay in a unique and inspiring setting. The restaurant also serves as a link between the production facility and the office building, further emphasizing the accessible and fluid character of the campus.

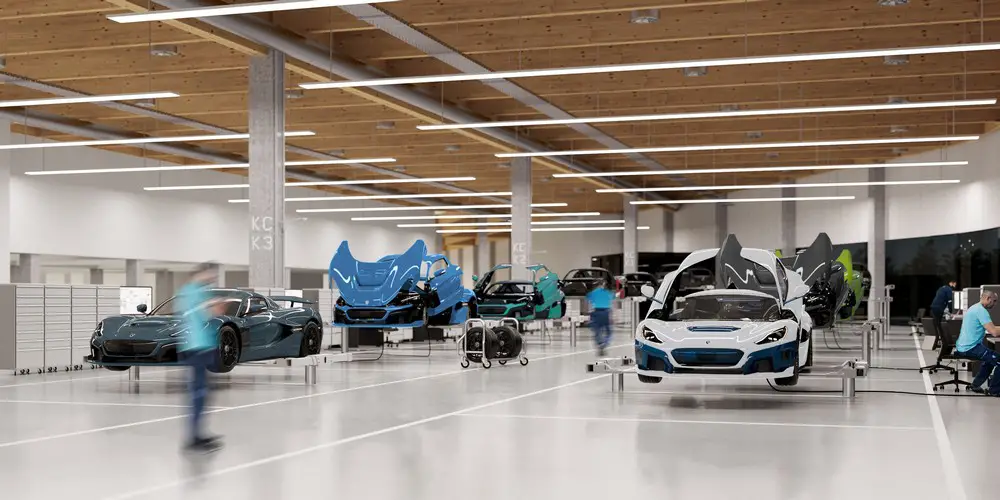

The production facility, the largest volume on the campus, is designed to be as efficient and as adaptable as possible. It enables cutting-edge technology and hypercar production as well as the flexibility for future development and growth of the company.
The museum is linked with the main square, production facility and the restaurant. It is designed as a two-storey volume. As the museum space sits on a slope, a ramp links the different spaces of the exhibition. The ramp navigates visitors through the exhibition. Every curve on the ramp will lead visitors to new insights and discoveries.

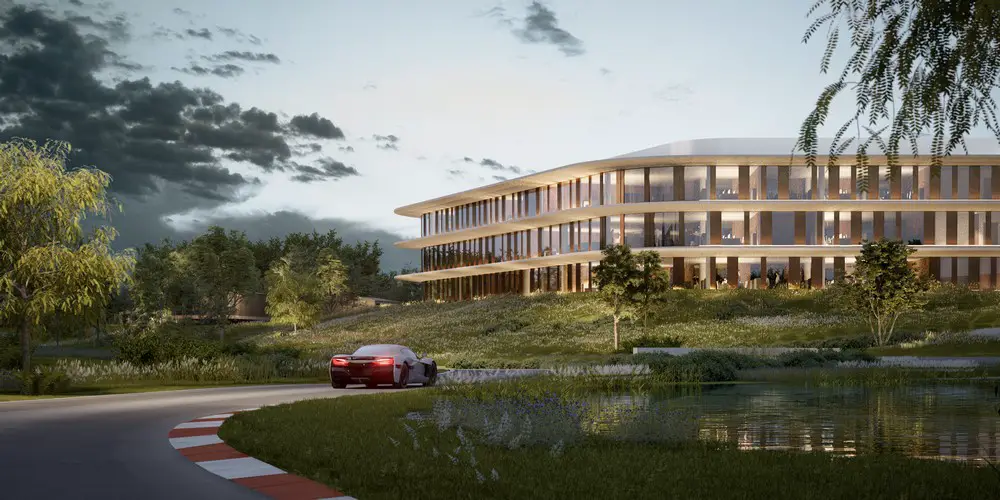

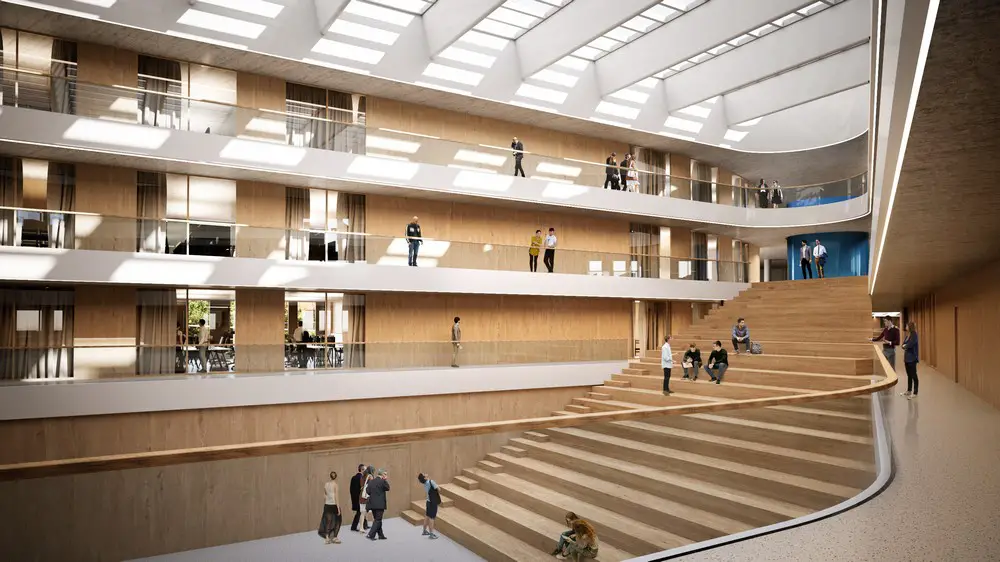

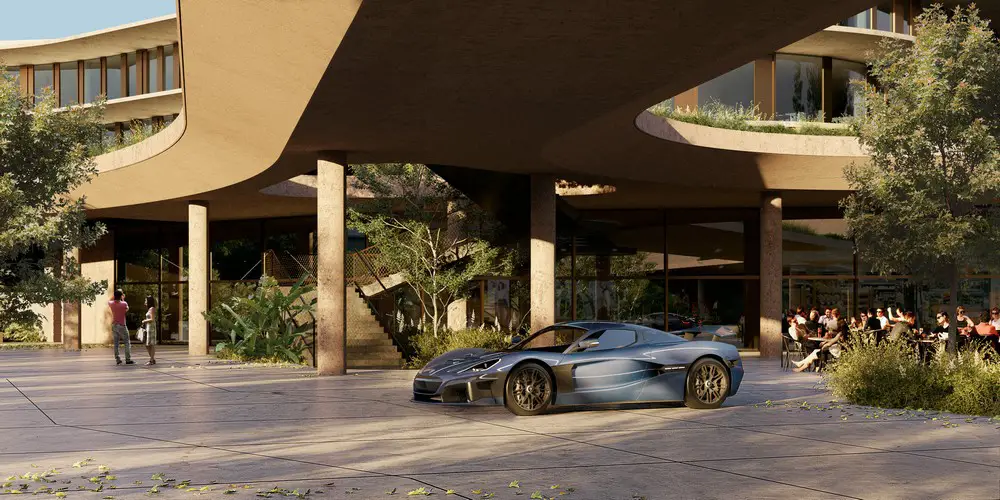

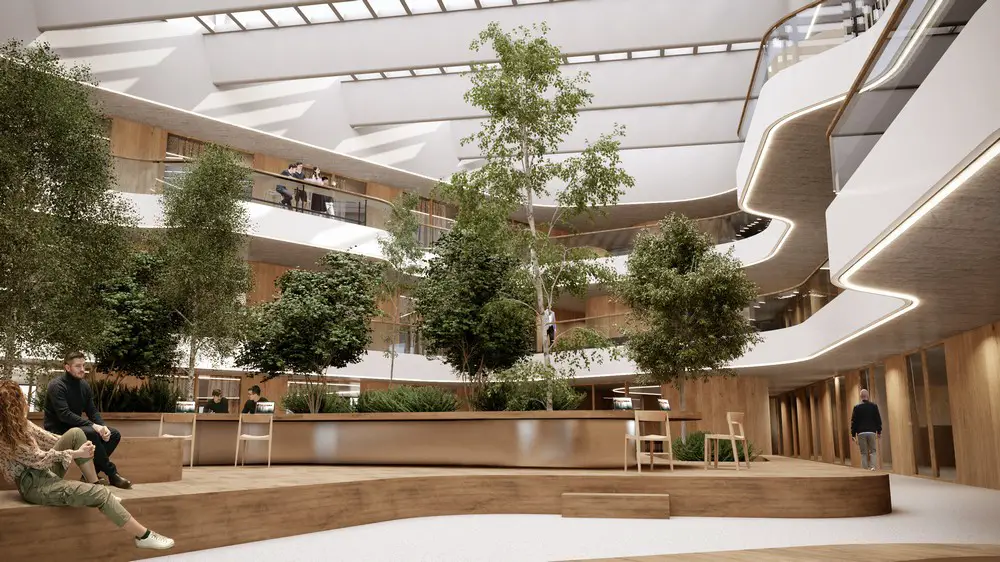

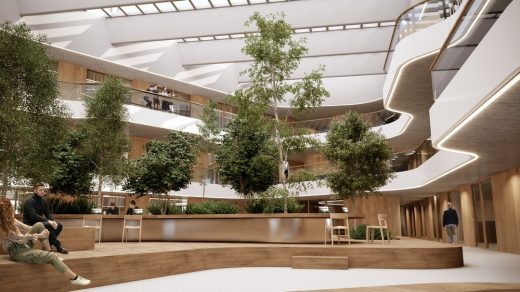

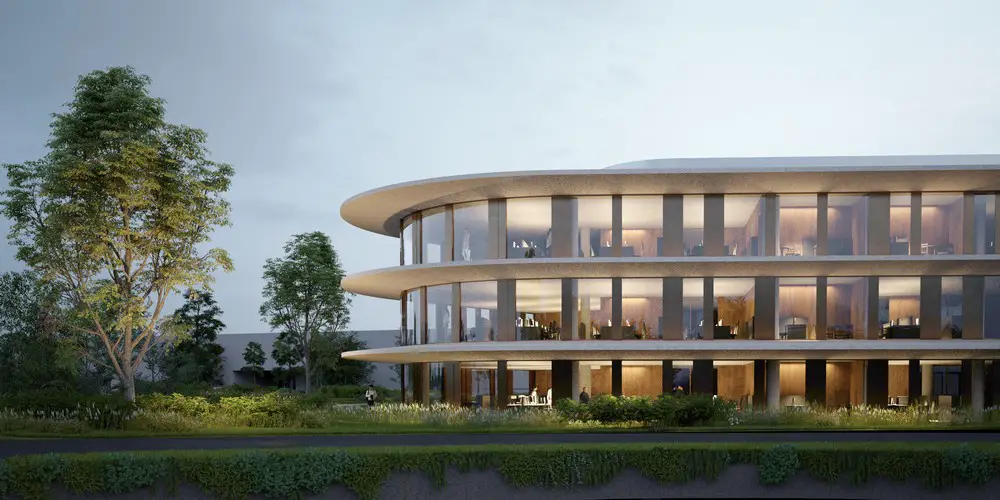

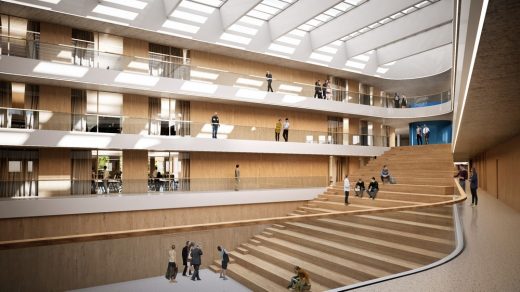

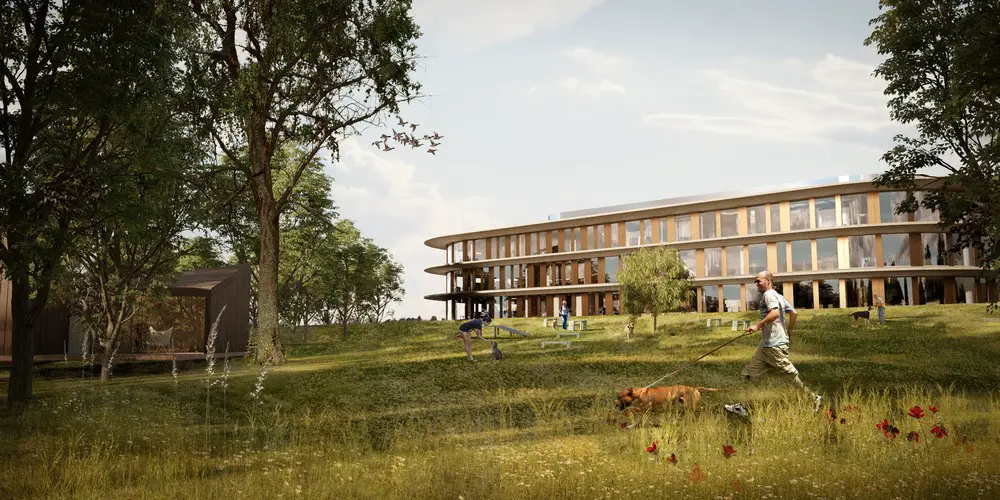

The office building is organized around two closed multi-storey atriums. One features an auditorium – a space for lectures, projections and social events, and the other one is a green oasis primarily intended for independent work and employee relaxation. Atriums are an essential design element, as they provide bilateral workspace lighting. Deep overhangs on the facade bring a lot of daylight into the space without direct exposure to the sun. Flexible workspaces allow users to personalize their own space and create preferred working environments.
The kindergarten building is located on a quieter part of campus, away from noise and traffic. The southern orientation and a multitude of open and semi-open zones make it an ideal environment for play and learning. Children come into contact with the animals present on the campus, and develop motor and social skills through outdoor activities such as gardening and animal care.

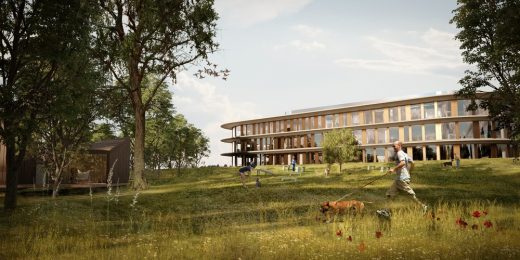

Contact with nature is also made through a dormitory consisting of cabins scattered in the forest. These are temporary residence spaces for employees that still allow them privacy in a picturesque setting. Sports, recreational facilities, and common areas for socializing and team building are located nearby.
The entire campus is surrounded by forest and agricultural land. Plant species intended for planting are primarily indigenous with minimal maintenance requirements and fully adapted to the climatic conditions of the site. Vegetation within the campus also has a functional role: it provides edible fruits, contributes to the ecological features of the space, provides shade, serves as a safety barrier for passage to the roofs and is a noise reduction element.
All campus facilities are connected by a series of pedestrian paths that will allow free circulation for all users on the site. After working hours, the internal road will serve as a testing track for Rimac Automobili. Corners of the road are inspired by the world’s famous race tracks.

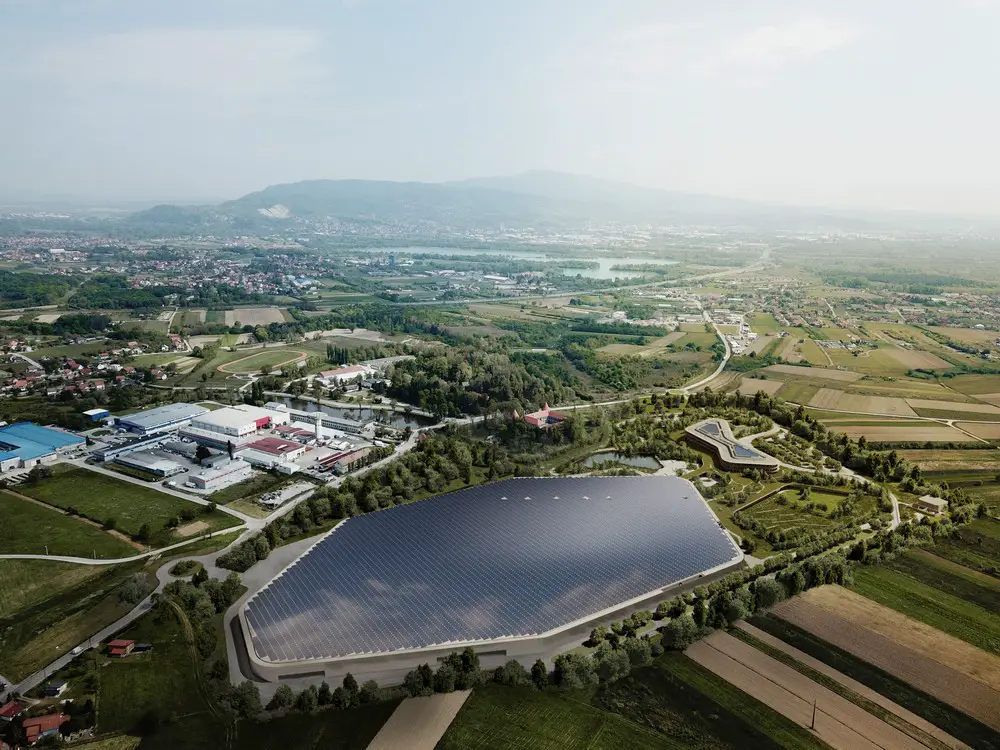

The sustainability concept for the campus combines modern technology and natural energy resources – harnessing energy from renewable resources (photovoltaics on the roof of the production facility) and a geothermal heat pump system (that will use the underground water for heating and cooling and play a significant role in the reduction of CO2 emissions).
By intertwining nature with modern technology, the new and the old – the campus represents harmony and balance.
The project is being developed with the help of VOLUM3 – a collaborative platform 3LHD helped develop in the past few years. VOLUM3 is based on real needs of an architectural office. It was created in response to communication problems that arise during design and construction. It is intended for architects, construction engineers and other stakeholders in construction projects. It makes project management fast and easy – deadlines, tasks and responsibilities of individual project collaborators are clearly managed. All project info is stored in a cloud-based platform, safe and always available. VOLUM3 modules are digital versions of real-life workflows – everything is project related. It does not change the users’ workflow: https://volum3.com/en/
Rimac Campus in Zagreb, Croatia – Building Information
Project start date: 25.03.2019
Project end date: 07.05.2021.
City: Sveta Nedelja
Geolocation: 45°46“26’N, 15°49“2’I
Type: invited international competition
Site area: 197575 sqm
Size: 112980 sqm
Client: Rimac Automobili d.o.o.
Project team: Saša Begović, Tatjana Grozdanić Begović, Marko Dabrović, Paula Kukuljica, Silvije Novak, Nevena Kuzmanić, Luka Cindrić, Andrej Filipović, Duje Katić, Monika Prinčić, Tomislav Soldo, Ida Ister, Dora Kodrić, Mia Kozina, Domagoj Osrečak, Krunoslav Szorsen, Sanja Jasika Lovrić, Tamara Paulina Pavković, Ivana Marić
Collaborators (competition stage 2019):
Building physics: Mateo Biluš
Traffic planning concept: Boris Leović
Structural concept: Ivan Palijan
Energy concept: Damir Žaja
Landscape design concept: Ines Hrdalo, Kaja Šprljan Bušić
Consultants form the Veterinary medicine faculty: Dražen Matičić, Željko Pavičić (Veterinary medicine faculty Zagreb)
Model: Nikola Brlek (Super hands)
Animation: Boris Goreta
Visualizations: Mario Harni, Branimir Turčić
Structural engineering – Studio Arhing (Juraj Pojatina)
Traffic planning and project of manipulative surfaces – C5 Koncept (Boris Leović)
Drainage and hydrant network (internal infrastructure) – Bobanac (Milan Bobanac, Jakov Pažanin)
Drainage and hydrant network (external infrastructure) – APZ Hidria (Petra Sirovec)
Geotechnical design of the lake reservoir – Geotech (Marko Šperanda)
Landscape design, lake project – Studio za krajobraznu arhitekturu, prostorno planiranje, okoliš (Marko Sošić)
Electrical Engineering – Elektroplan (Matej Lijović)
Electrical project of lake technology – Zagrebinspekt
HVAC – BESTPROJEKT
Elevators – PPN Projekt (Rok Pietri)
Sprinkler installation – Apin projekt (Nenad Semenov)
Mechanical project of lake technology – Zagrebinspekt
Special project – kitchen technology – Dekode (Zoran Divjak)
Building physics – AKFZ studio (Mateo Biluš)
Fire protection and safety at work project – Inspekting (Maksim Carević)
Landscape design – Studio za krajobraznu arhitekturu, prostorni planiranje, okoliš (Marko Sošić)
Bill of quantities – Pro Elemento (Dinko Žele)
Project management: Drees&Sommer
Management consulting: Protema
Climate engineering: Transsolar
Visualizations: Mario Harni, Branimir Turčić
Rimac Campus, Zagreb, Croatia images / information received 190421
