Restaurant of Metasequoia Grove in Jiangsu Province

19 July 2022

Architects: GOA

Location: Suzhou, Jiangsu Province, China

Photos © IN BETWEEN

Restaurant of Metasequoia Grove, China

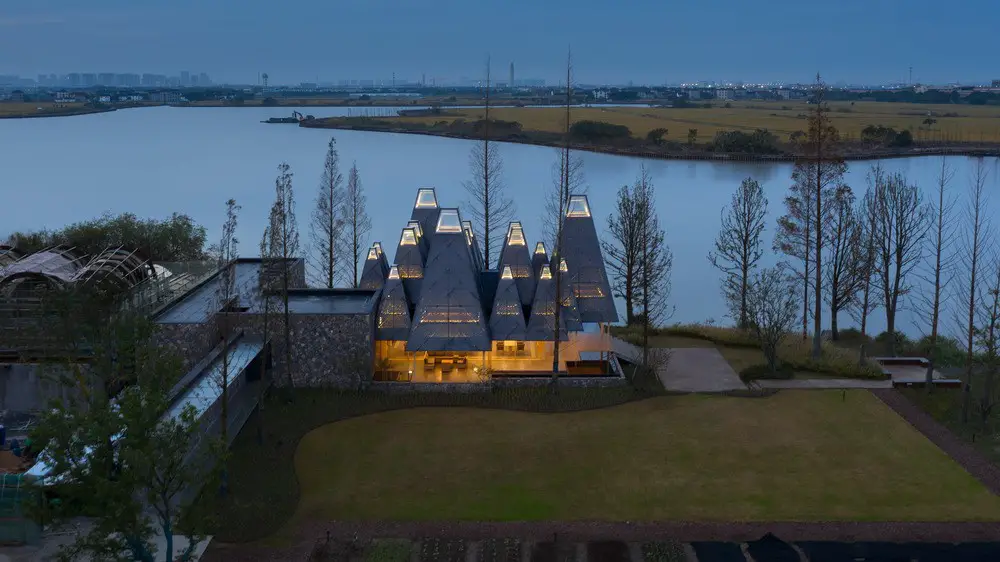

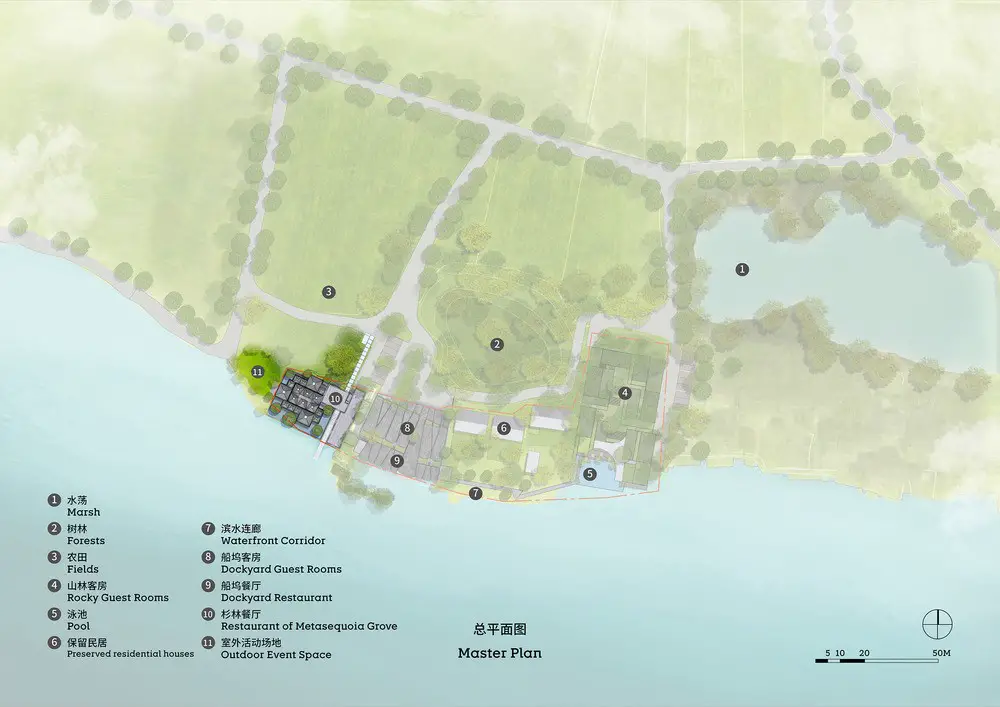

The Restaurant of Metasequoia Grove is located at the west end of Shanwan Village in the countryside of Suzhou, a typical waterside village of the Jiangnan region, situated on the vast swamp plain of Taihu. Being the first constructed phase of a low-rise leisure-led complex development by GOA, the restaurant functions as a dining space for visitors, as well as a small banquet hall for holding a variety of public events. Rather than being just an architectural construction, the project is more of a landscape that immerses into its natural context, eventually becoming part of nature. It delivers joyful moments by the water, and peaceful nature experiences where architecture enables new ways of seeing the landscape.

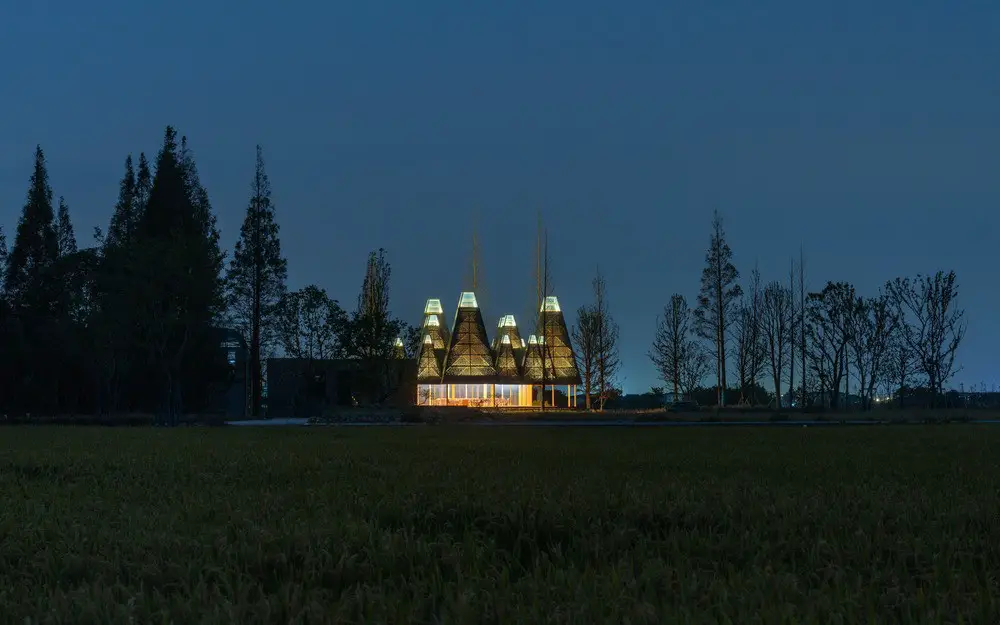

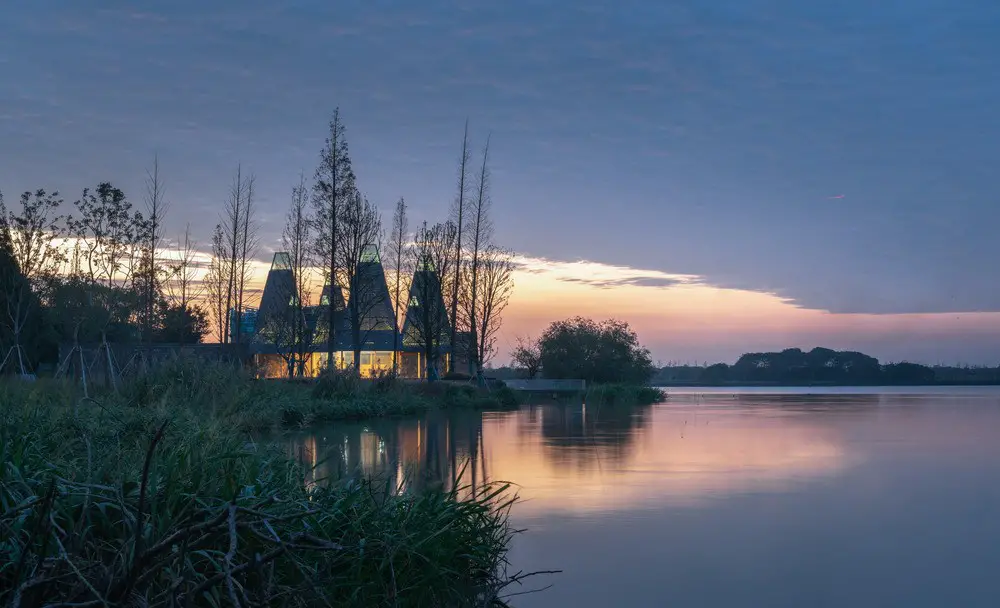

A grove of metasequoia trees onsite, standing by an enormous expanse of water, becomes the only nature skyline in this plain terrain. The forms of the metasequoia trees are abstracted and translated into a purely geometric architectural language, a pyramidal frustum, and are applied to the Restaurant of Metasequoia Grove as a featuring icon and a modular inspiration for the design.

The pyramidal frustum module takes three sizes and forms small-medium-large modular order according to the proportional relation of the square’s side length on the bottom of 2:3:4. Three different scales of modules mix and cluster together, forming a continuous canopy structure that traces an artificial forest profile within nature to simulate the natural substances’ generative process.

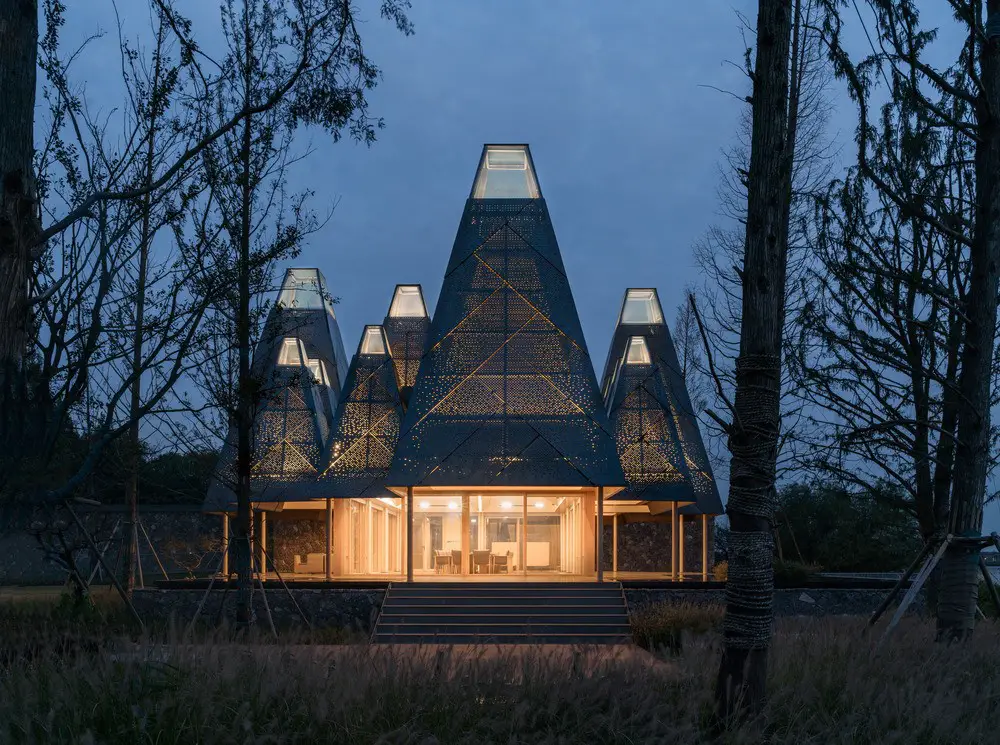

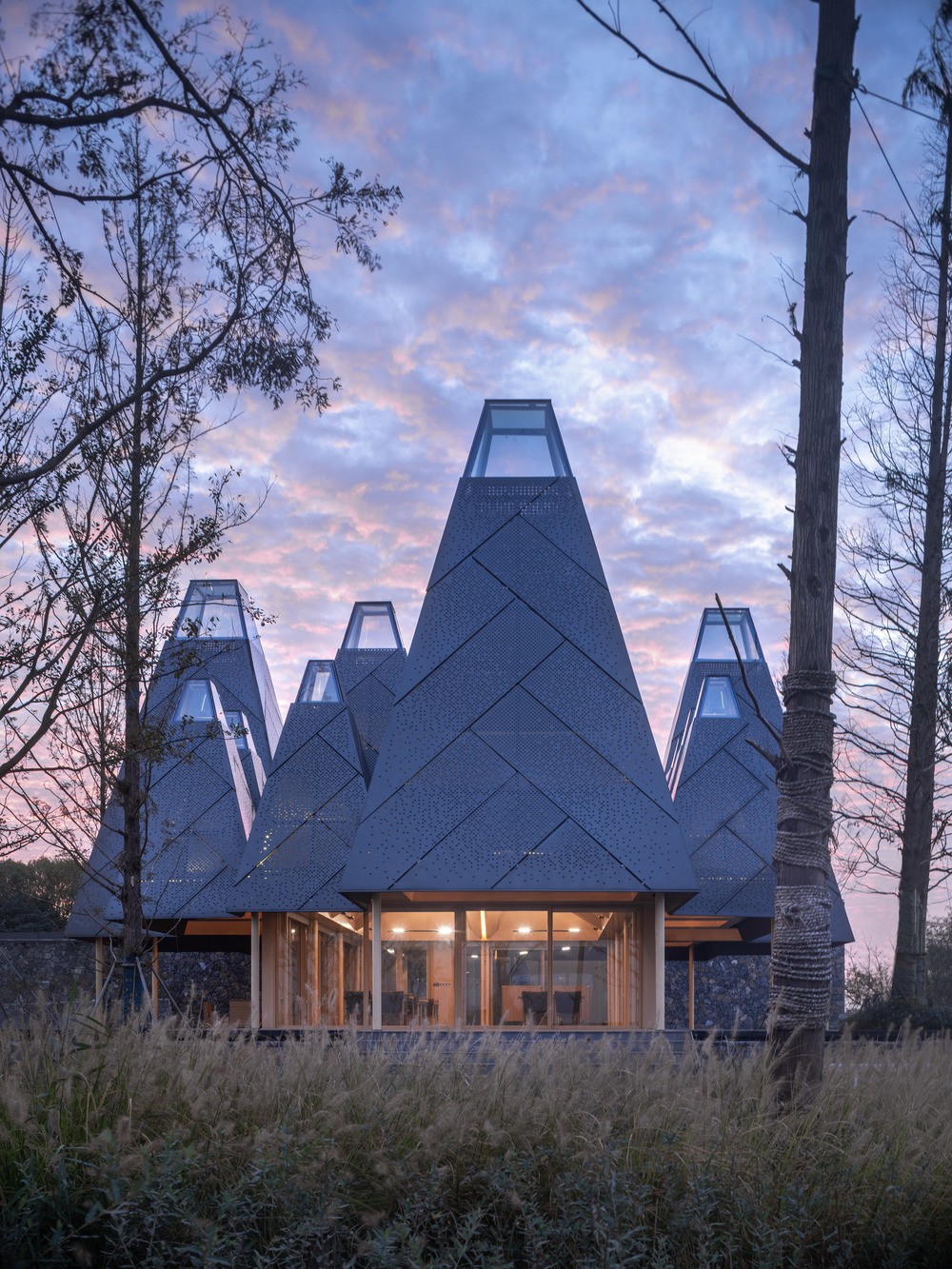

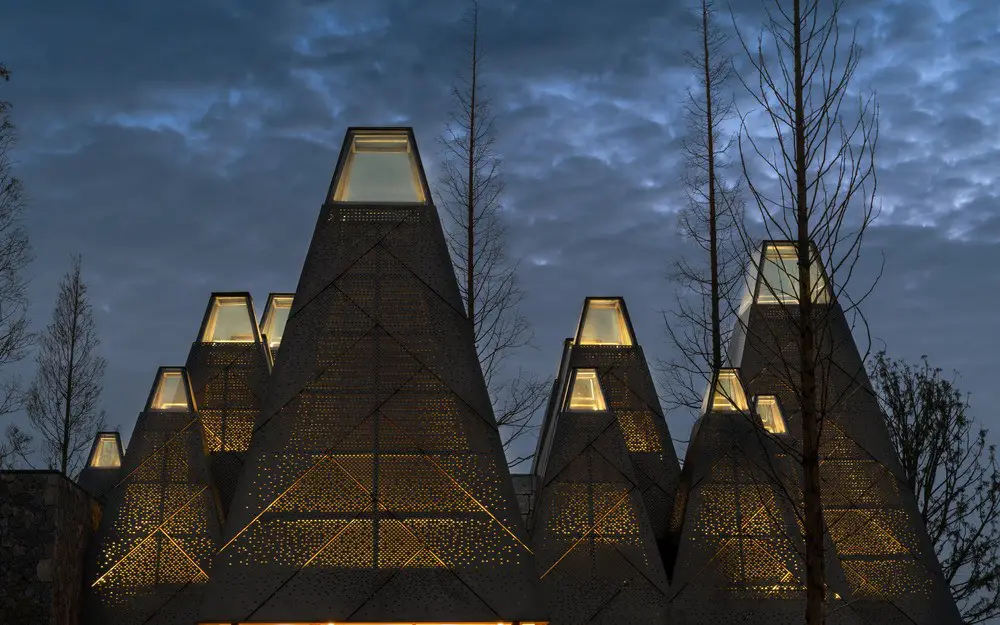

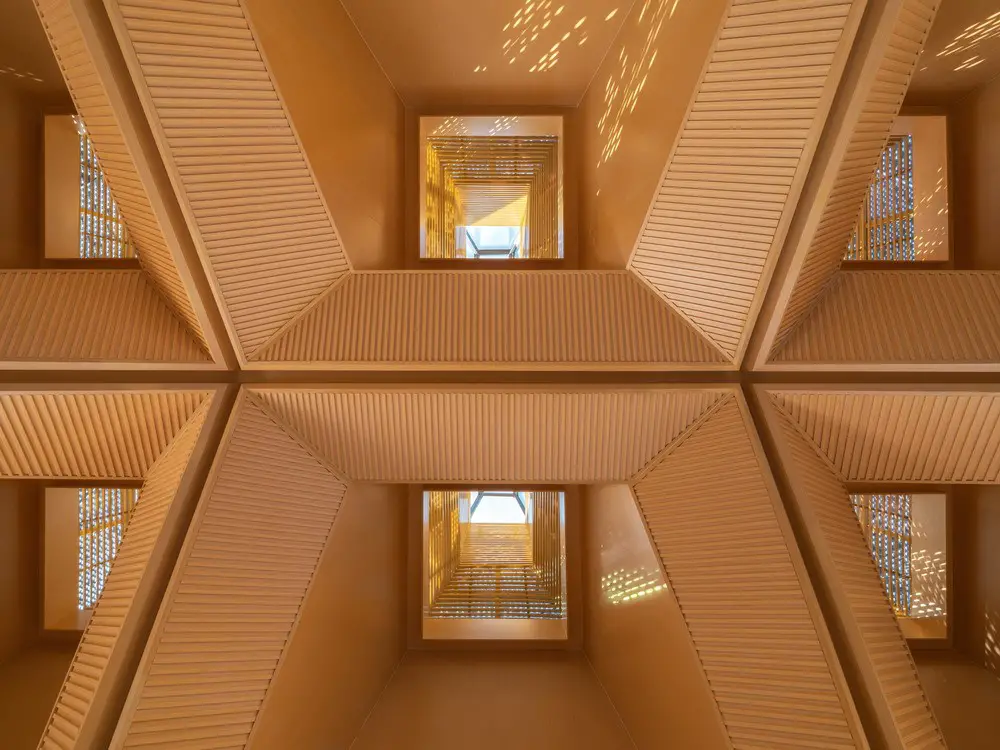

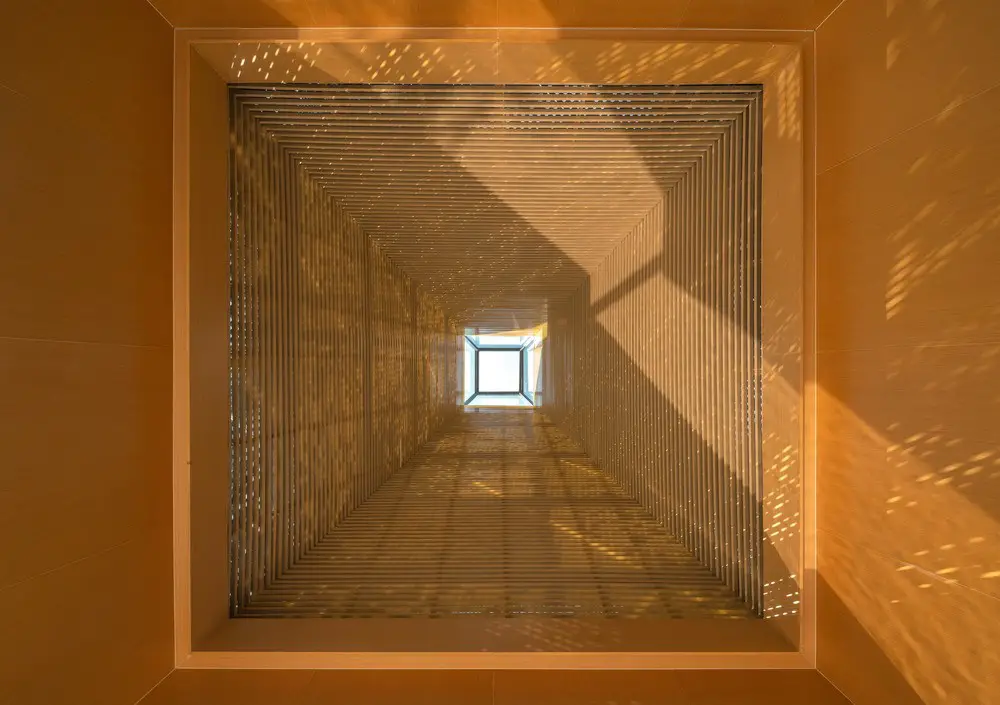

The canopy’s overall height control is under 12m. Each pyramidal frustum module is topped by a skylight that allows natural light to enter the architecture more moderately. The roof system is divided into three layers: customized perforated aluminum panels as the outer layer, textures as the layering crowns of metasequoia trees; glass as the middle layer introducing greater luminosity; and grilled wood panels cover the inner layer. Eaves of the canopy are uniformly lowered to 2.7m, framing a horizontal scroll of wetland scenery that captures the vastness and tranquility in the imagination of a traditional Chinese painting.

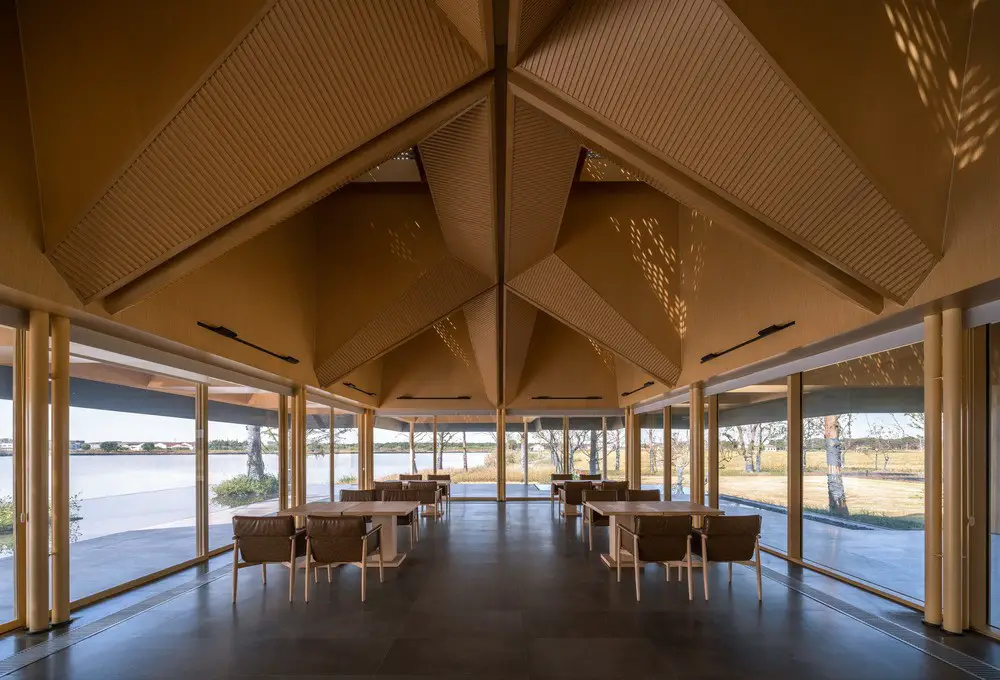

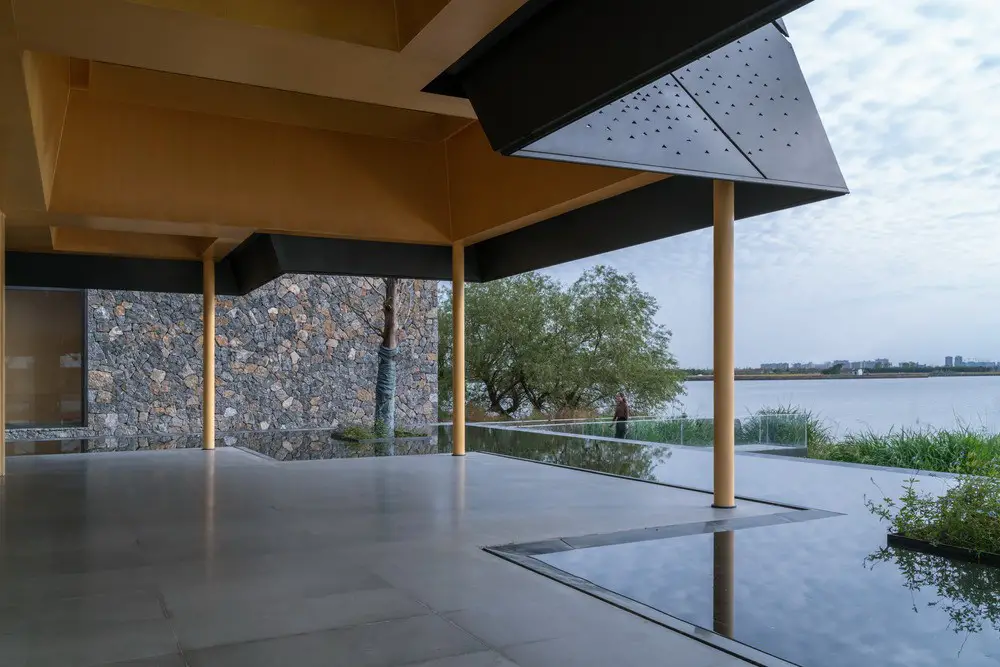

To emphasize the lightness of the canopy, the load-bearing columns of the restaurant are minimized to 10, arranged around the interior edges of the interior space. Each load-bearing column is grouped by a cluster of 3 slender steel columns, each individually with a diameter of 10cm. Only 11 steel columns with a diameter of 15cm are set along the edge of the exterior terrace under the eaves. Each cluster of columns aligns with a corresponding edge of the wooden ceiling structure and window frames, united in color.

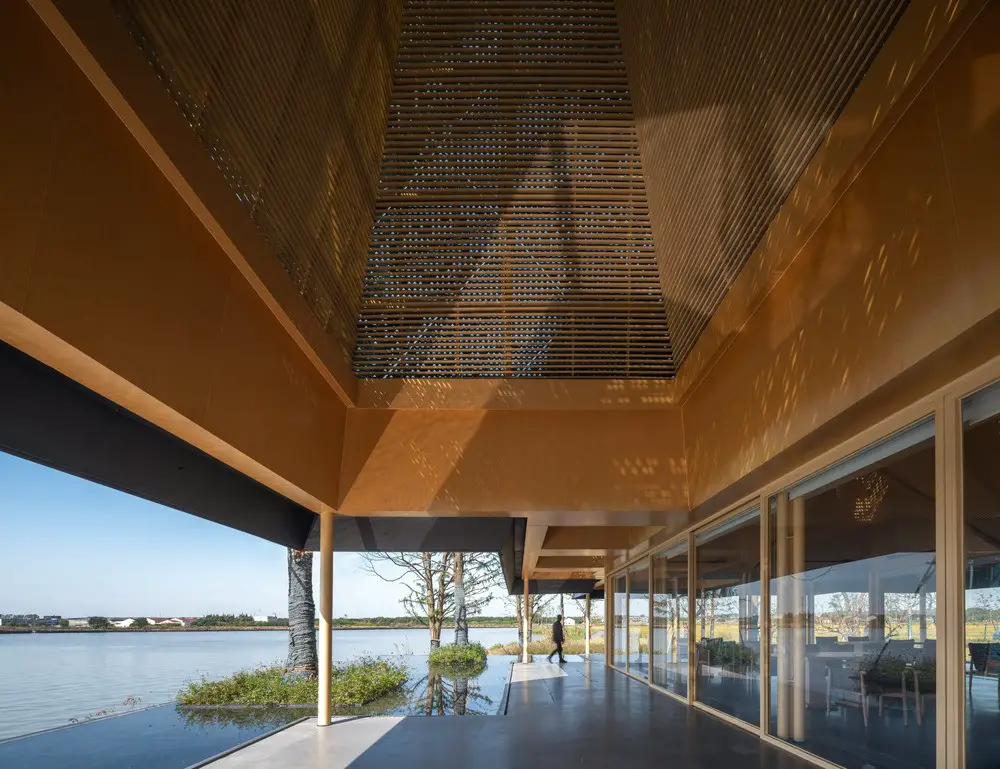

The design also adopts a series of strategies to maximize the transparency between interior and exterior by erasing the boundary. For example, the consistent paving material of the restaurant space to the under-eave terrace allows a sense of space extension connecting with a peripheral infinity waterscape, which integrates with the existing water body to create coherence between the architecture and the natural wetland. Also, customized single-bay floor-to-ceiling windows, with a width of over 2m and narrow frames, enhance the great visual openness of the space.

Restaurant of Metasequoia Grove in Jiangsu Province, China – Building Information

Design: GOA (Group of Architects) – http://www.goa.com.cn/

Project Name: Restaurant of Metasequoia Grove
Location: Suzhou, Jiangsu Province, China
GFA: 416 sqm
Design/Completion Dates: 11/2020 – 12/2021

Client: Bluetown Group
Architect: GOA (Group of Architects)
Landscape Architect: Zhejiang LEON Engineering Consulting
Interior Designer: Shanghai Yishantang Decoration Design
Operation Consultant: Suzhou Bluetown Cultural Tourism

About GOA (Group of Architects)
The Group of Architects (GOA) is one of the most powerful architectural design institutions in China. Practicing for nearly 25 years, GOA has represented the top level of China’s architectural design industry, and is the protagonist of Asian living environment and lifestyle.

The company has assembled a team encompassing a full gamut of professionals in urban planning, architectural design, engineering design, landscape, and interior design, as well as management consulting. In line with the corporate values of “creating more beauty for the city and contributing more values to the society”, GOA endeavors to shape unparalleled spatial experiences for future cities and the public.

Photographer: © IN BETWEEN

Restaurant of Metasequoia Grove, Suzhou images / information received 190722 from GOA
