Heli-stage in Shaoxing

Art & Commercial Building Complex in China design by ATAH

5 Jul 2018

Architects: ATAH

Location: Shaoxing, Zhejiang, China

Heli-stage in Shaoxing, Zhejiang

Heli-Stage in Shaoxing

Heli-stage Shaoxing Building Complex

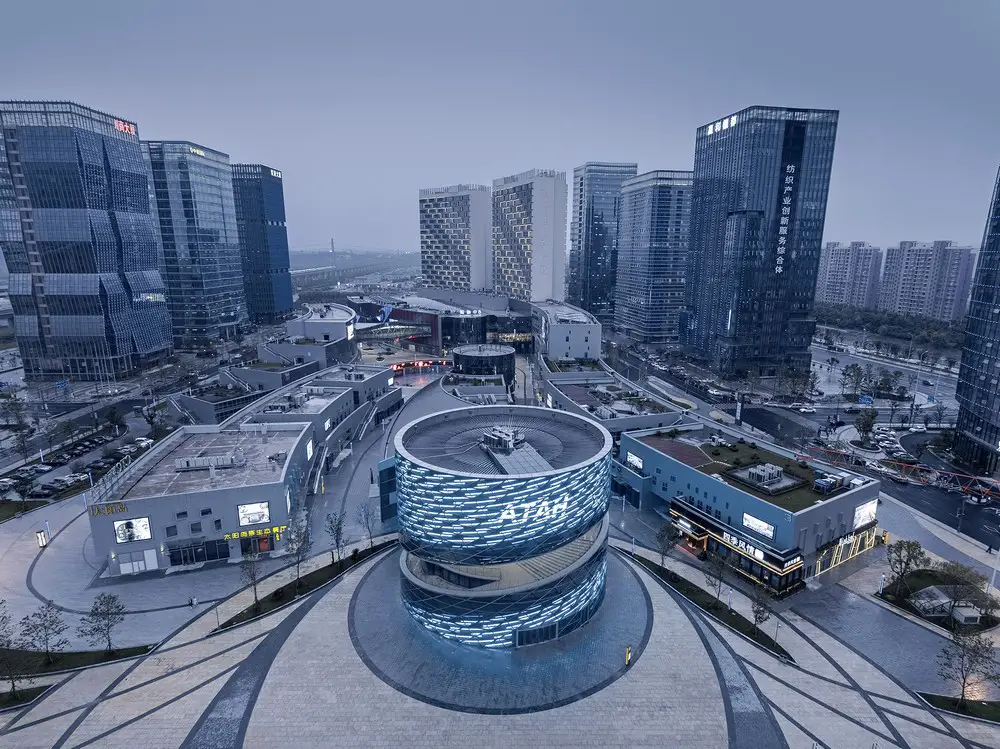

The CTC (China Textile Center) is an art & commercial complex in the Shaoxing, and was officially open in the summer of 2018. The project involves a mix of commercial typologies, and will become the core of the Keqiao Science City in Shaoxing.

Heli-Stage in Shaoxing

The Heli-stage of the CTC is the epicenter of the commercial complex and is correspondingly located at the main project entrance, which is the symbolic center of the entire project. Due to the background of the project, a unique structure with its own design language proposes to fuse the various commercial attractions with an artistic blast.

Heli-Stage in Shaoxing

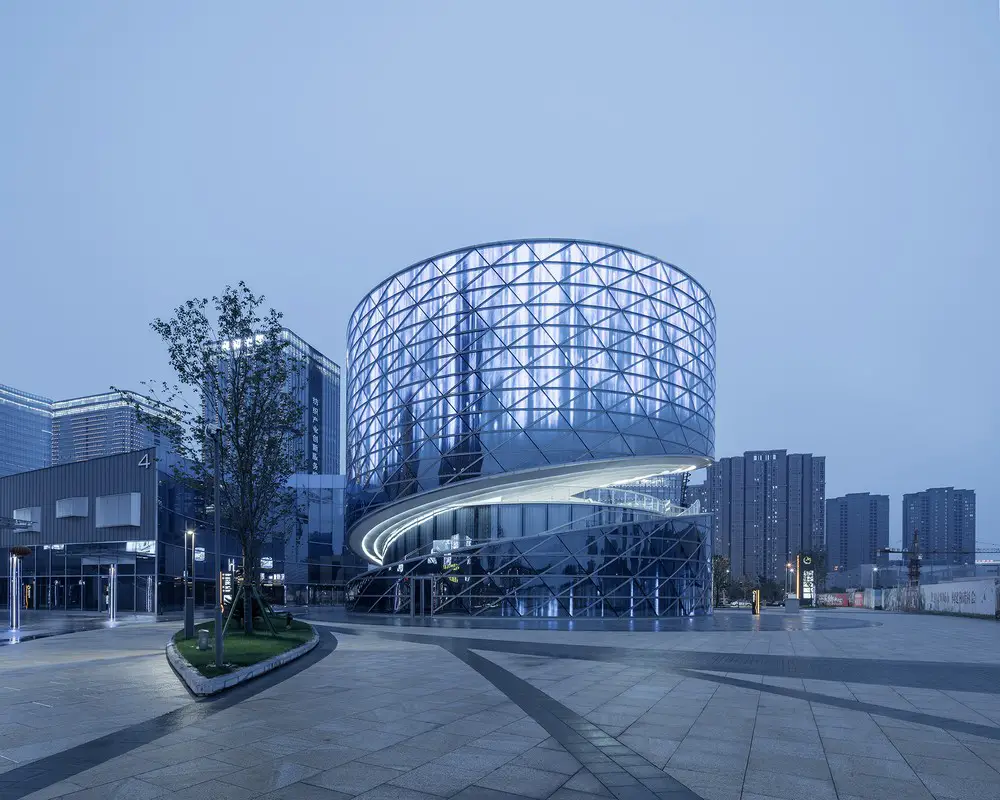

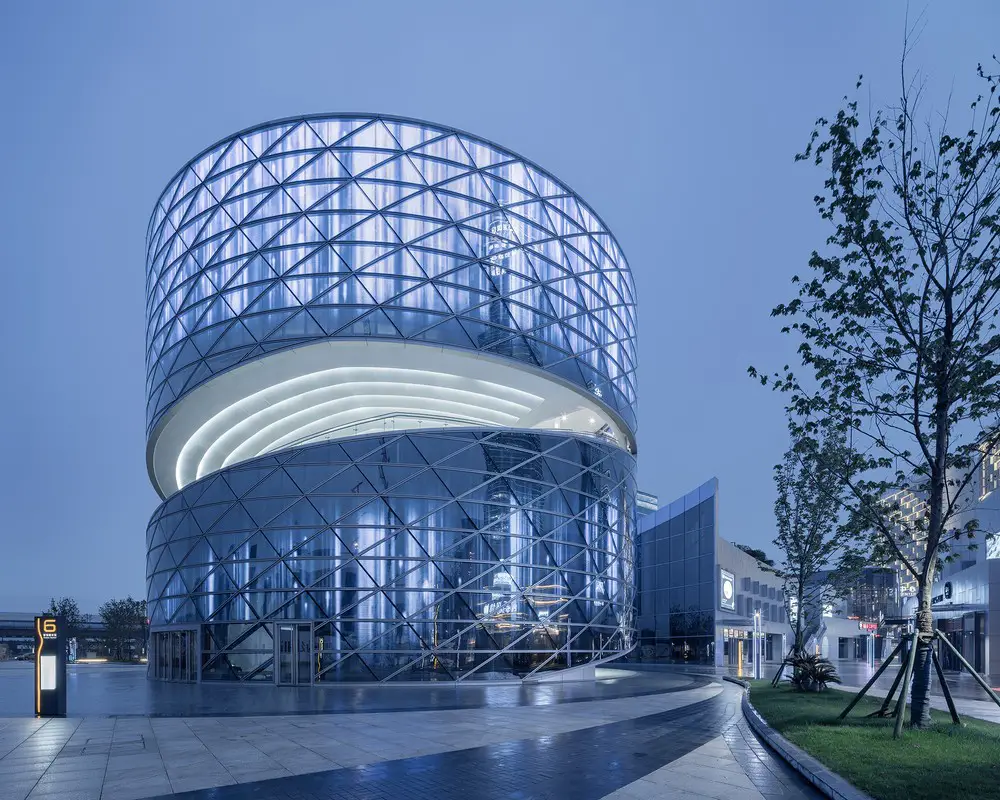

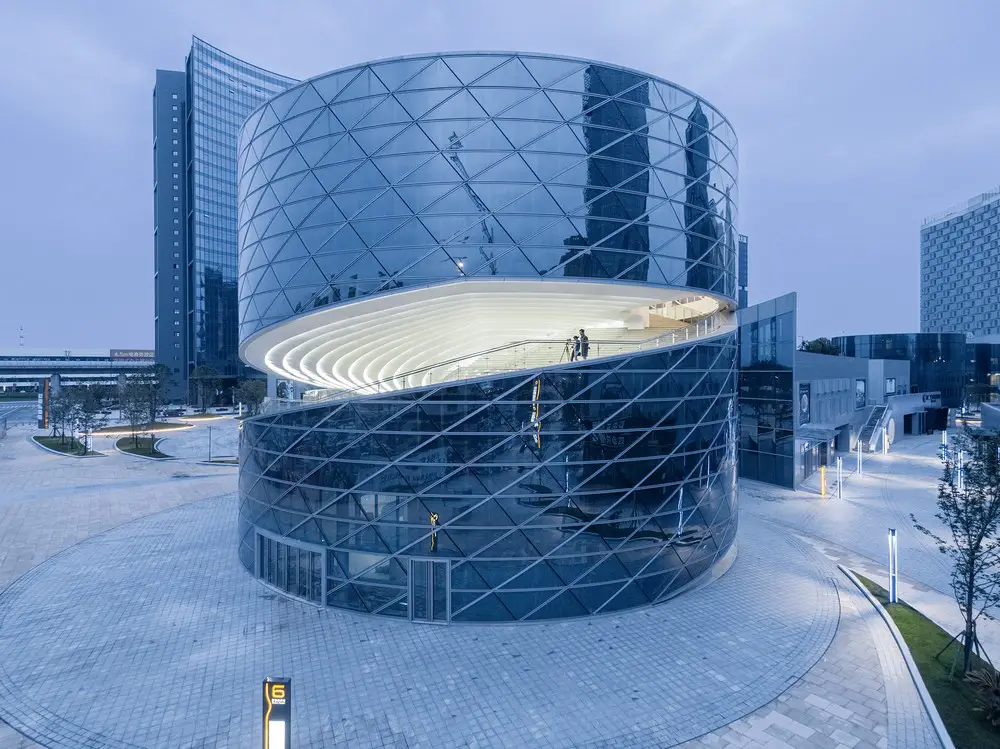

The design concept involves a spiral form, blurring the boundary between floors, therefore connecting the exterior space with the interior, creating a continuous exhibition space. In order to achieve such visual effect, a geometric web fuses onto a helical surface.

Heli-Stage in Shaoxing Heli-Stage in Shaoxing

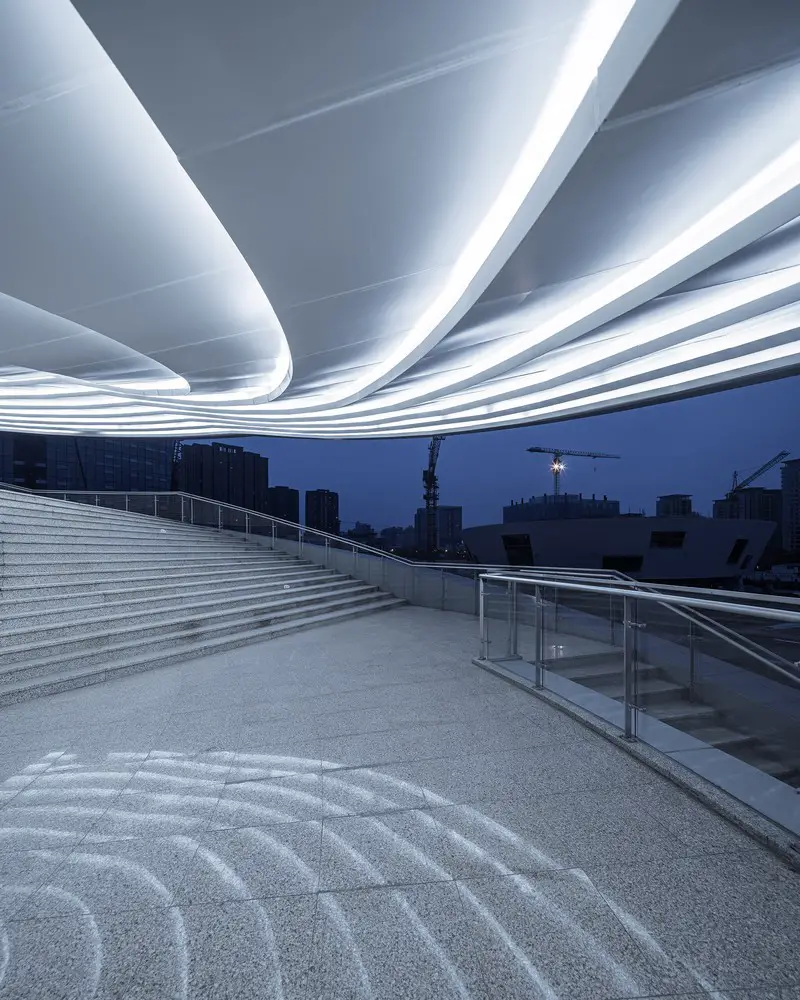

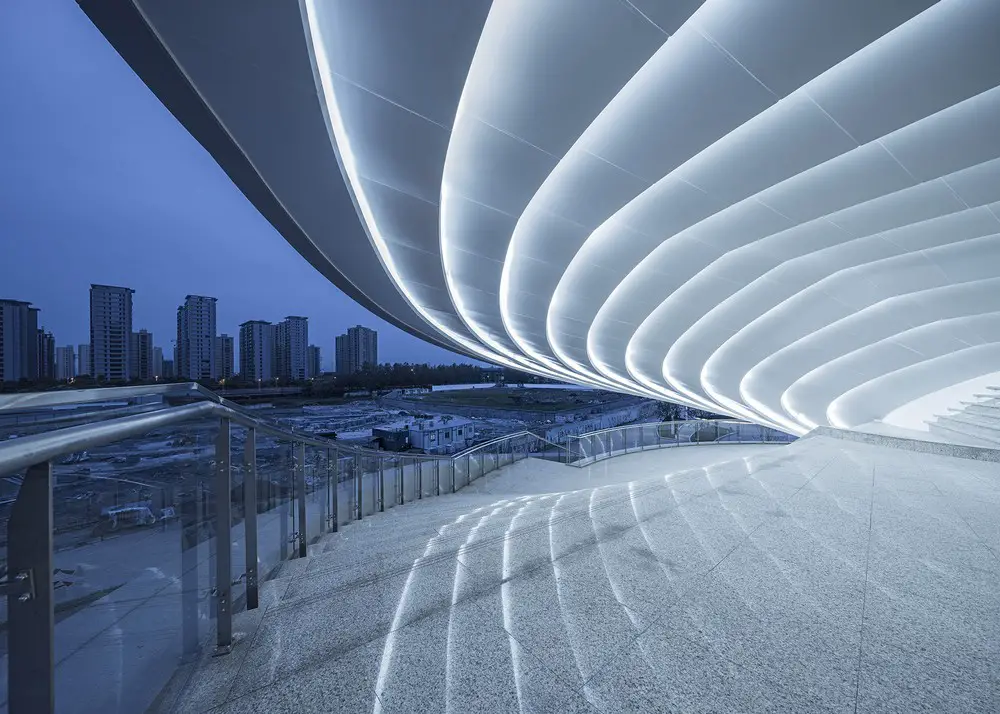

One will shuttle through both indoor and outdoor landscaping via the access staircase without being aware of the transition due to the blurring effect of the floors. During an artistic presentation, performers seem to be walking towards the center of the stage via a slow spinning staircase.

Heli-Stage in Shaoxing Heli-Stage in Shaoxing

Structurally, the design adopts a core-tube relationship:
1. The main structure is the steel core in the center, which houses a central air well, and an elevator.
2. The changing geometry of the staircase from the first to the third floor is directly tangential to the structural steel core, while horizontal steel members overhang to support the spandrel.
3. The space frame, in combination with a suspended cable at the periphery of its own surface creates a column-free space on the horizontal.
4. The leftover spaces within are used to contain building services and equipment.
In summary, the structural design adopts the subversive nature of a Mobius Strip.

Heli-Stage in Shaoxing

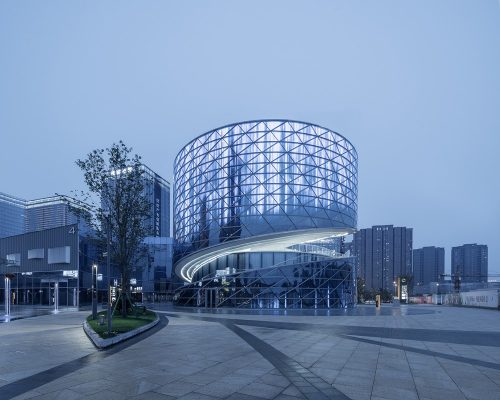

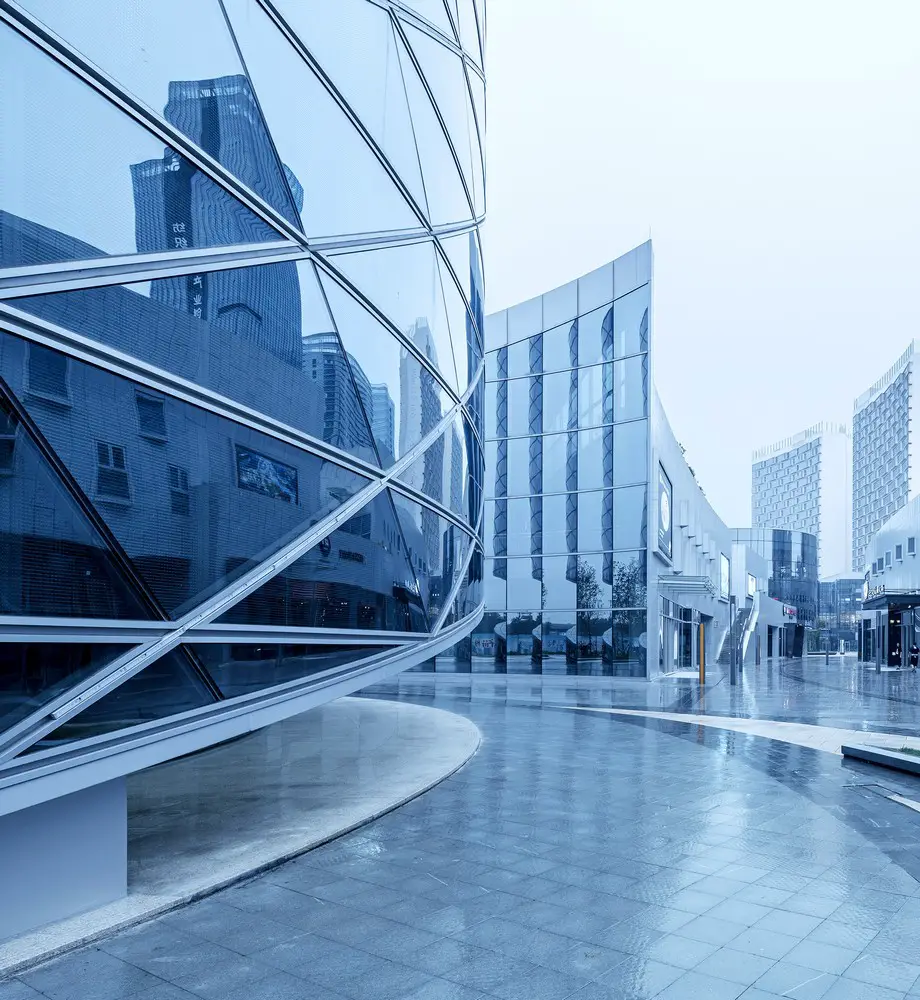

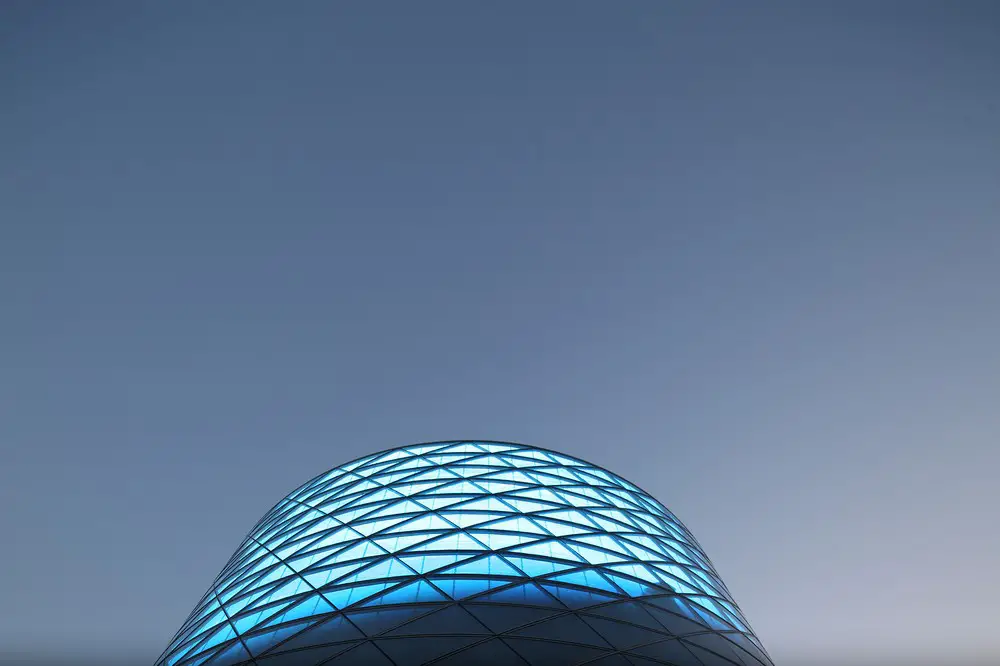

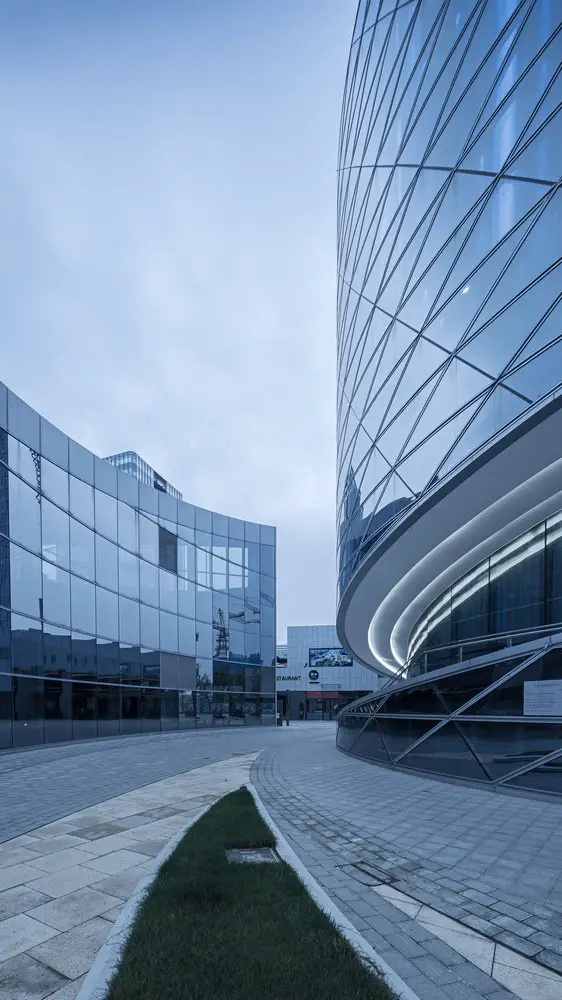

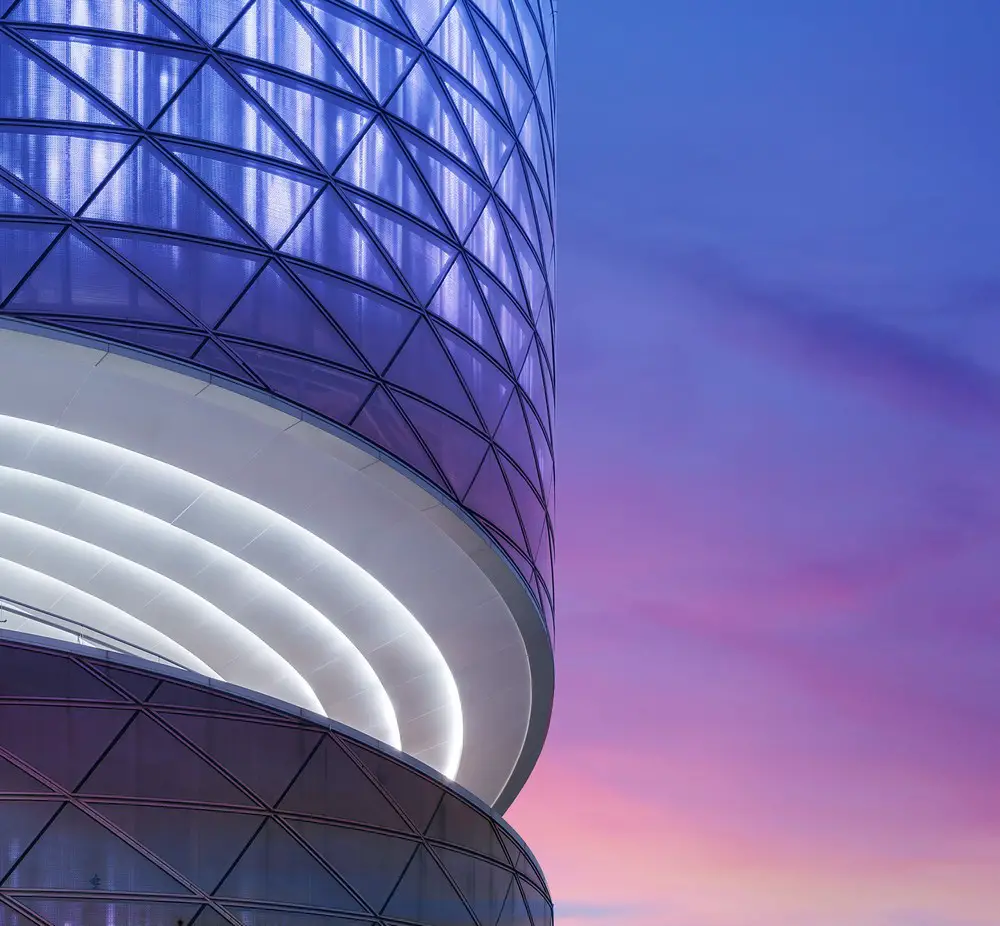

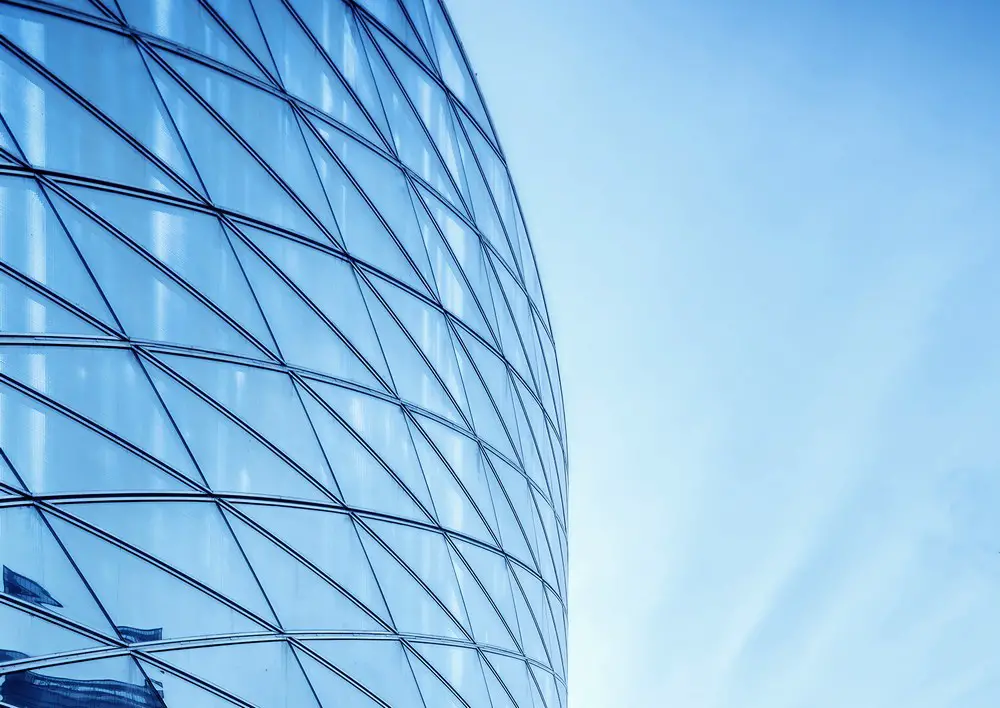

In order to further strengthen the concept of morphology, curved triangular Low-E double glazed units make up the outer curtain wall (3m by 2.3m by 1.6m in size), wrapping its cylindrical facade. The façade within the central void consists of a single modular unit.

Heli-Stage in Shaoxing

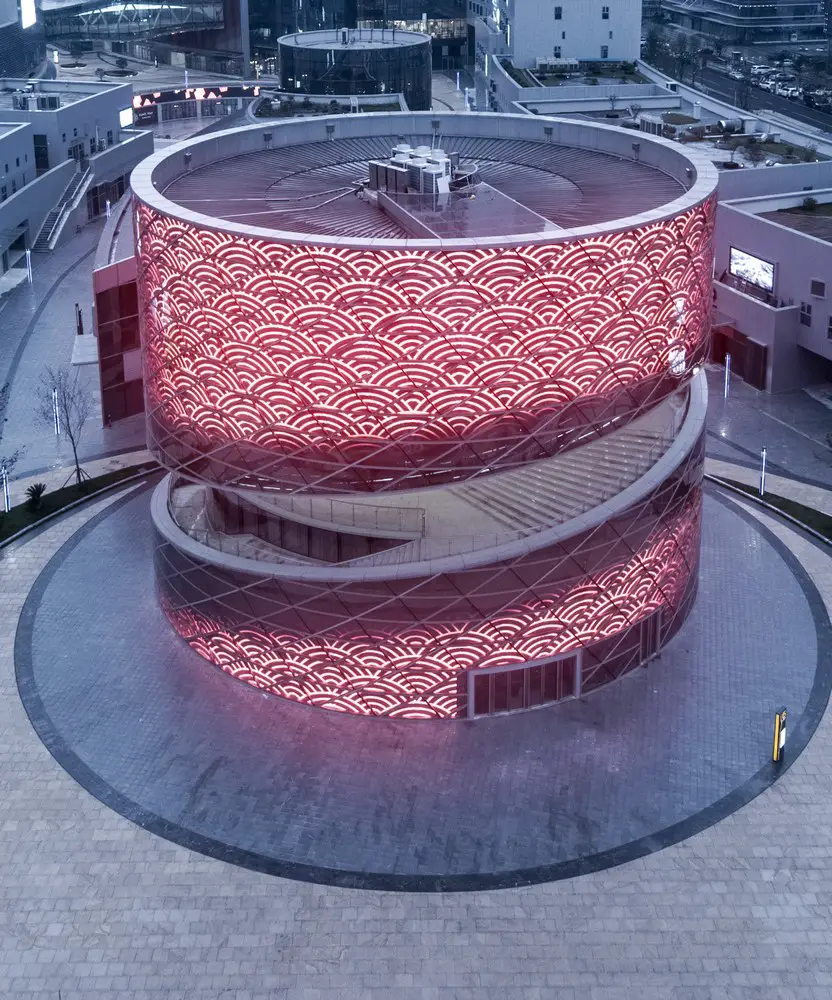

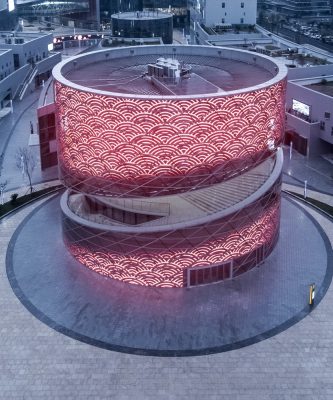

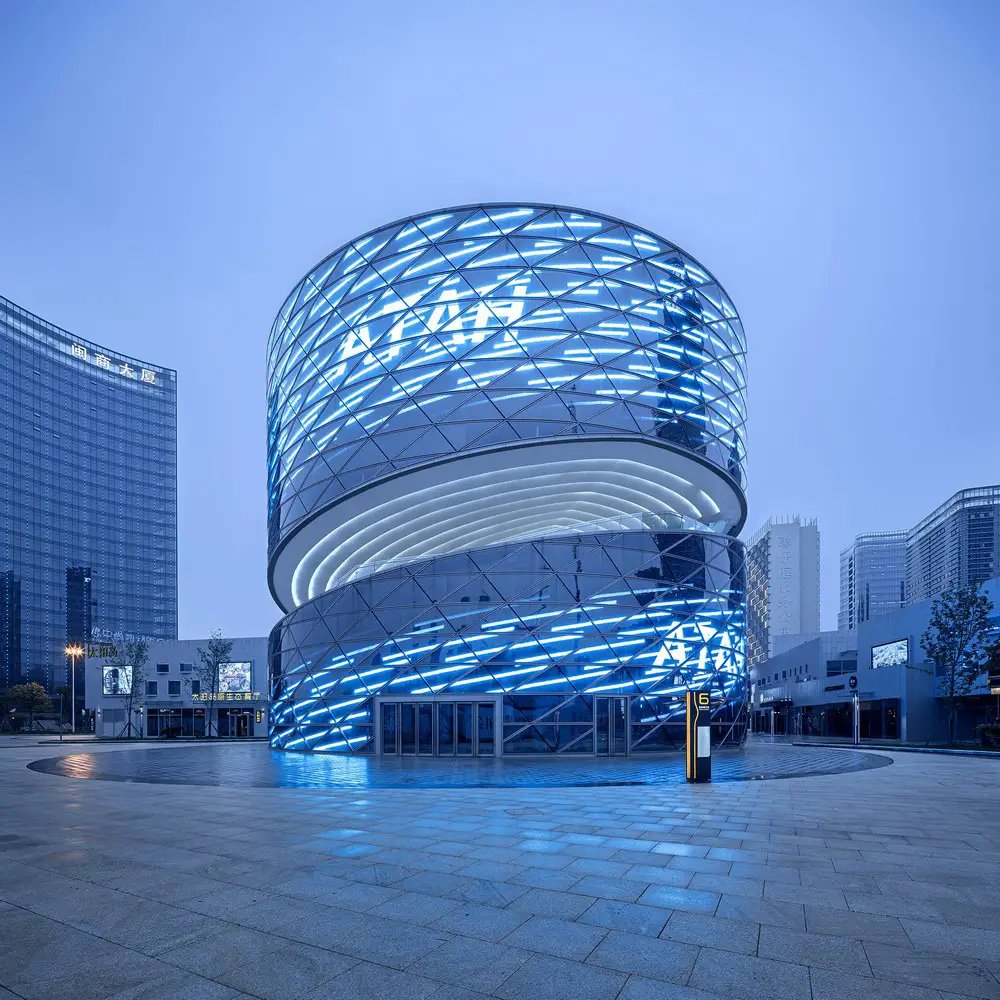

As the project is a transport-orientated design in close proximity to the High-speed Rail, it is easily accessible from other cities. The developer have plans to make the Heli-stage the display nucleus of the entire CTC. As such, a projection wall exhibits features of the project, transforming the center into a shining beacon amongst darkness; and an ice fortress in winter.

Heli-Stage in Shaoxing

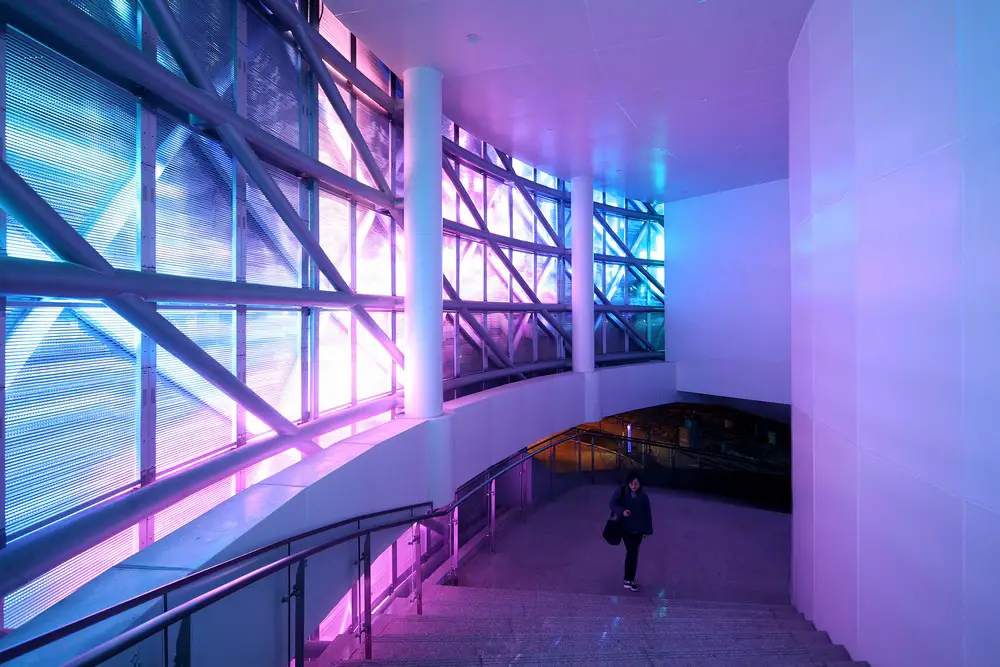

The interior design adopts the concept of weaving, using abstract design elements such as the spinning wheel. Upon entry, visitors immersed into the architectural extravaganza of rotating, diffusing, and interweaving movement, which celebrates the space.

Heli-Stage in Shaoxing

This is accentuated by its interior design, taking cue from the textile production process, as well as the local textile culture in mind. With appropriate planning of both building hardware and software, the project is envisioned to be more sustainable than other new constructs within its era.

Heli-Stage in Shaoxing

Heli-Stage in Shaoxing

Interestingly, as a diversified design studio, we jointly launched a limited edition pendant based on the project in collaboration with a jewelry designer. Popular among clients and fashionistas, the pedant reflects integration of design into life from another perspective.

Heli-Stage in Shaoxing

Heli-Stage in Shaoxing

Heli-stage, Shaoxing – Building Information

Architect: ATAH
Location: Shaoxing, Zhejiang, China
Chief Architect: Guang Xu; Lilas Dandan Wang
Design Team: Ji Zhongxia; He Fan; Zhang Dejun; Yang Zhenqin; Geng Lingxiang
Area: 2400 sqm
Project Year: 2018

Client: Office of CTC Development
Interior Design: ATAH (Concept); Shanghai Kuanchuang (design and construction)
Sign System Design: ATAH (All Phase)
Collaboration: MADA s.p.a.m.
LDI: Tongchuang Engneering Design Co.; Institute of Shanghai Architectural Design and Research Co., Ltd
Curtain Wall Consultant: Baoye Group
Jewelry: iRiffle
English: Sean Lee

Heli-Stage in Shaoxing

Heli-Stage in Shaoxing

Photograph: Shiromio

Heli-stage in Shaoxing images / information received 050718

Location: Shaoxing, Hangzhou Bay, northeastern Zhejiang province,China

New Shaoxing Buildings

Buildings in Shaoxing – selection:

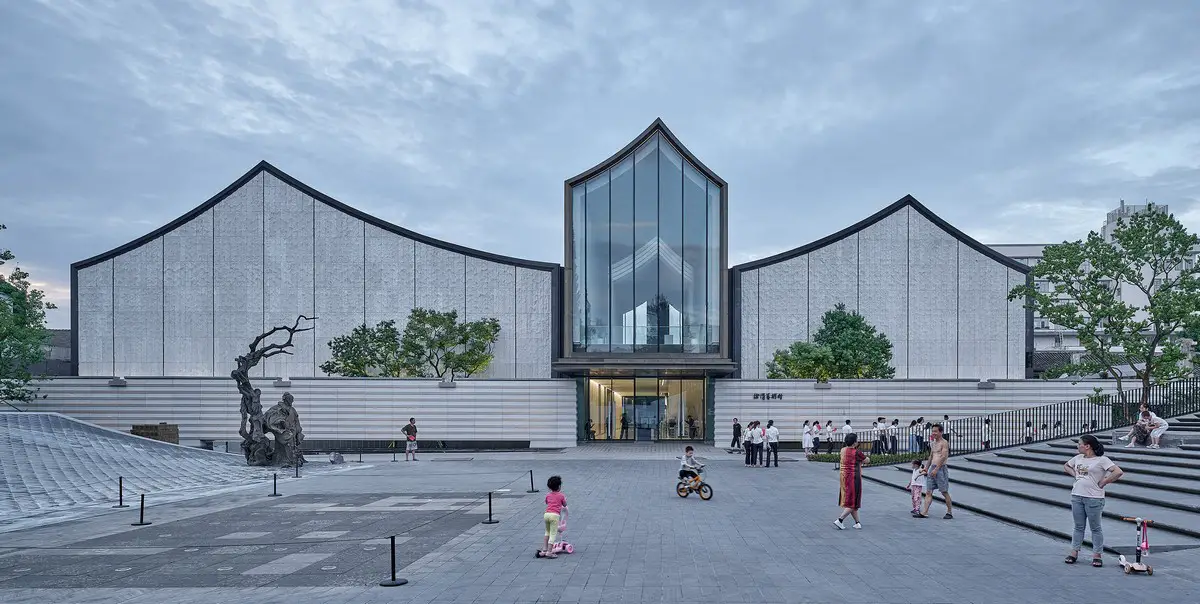

Xu Wei Art Museum
Architects: ACRC, The Architectural Design & Research Institute of Zhejiang University
Xu Wei Art Museum Shaoxing building China
photo : Lei Tantan
Xu Wei Art Museum Shaoxing

Shaoxing Hotel Multi-Purpose Hall, Yuecheng District
Architects: The Architectural Design and Research Institute of Zhejiang University Co., Ltd.
Multi-Purpose Hall of Shaoxing Hotel building
photo : Zhao Qiangg
Shaoxing Hotel Multi-Purpose Hall

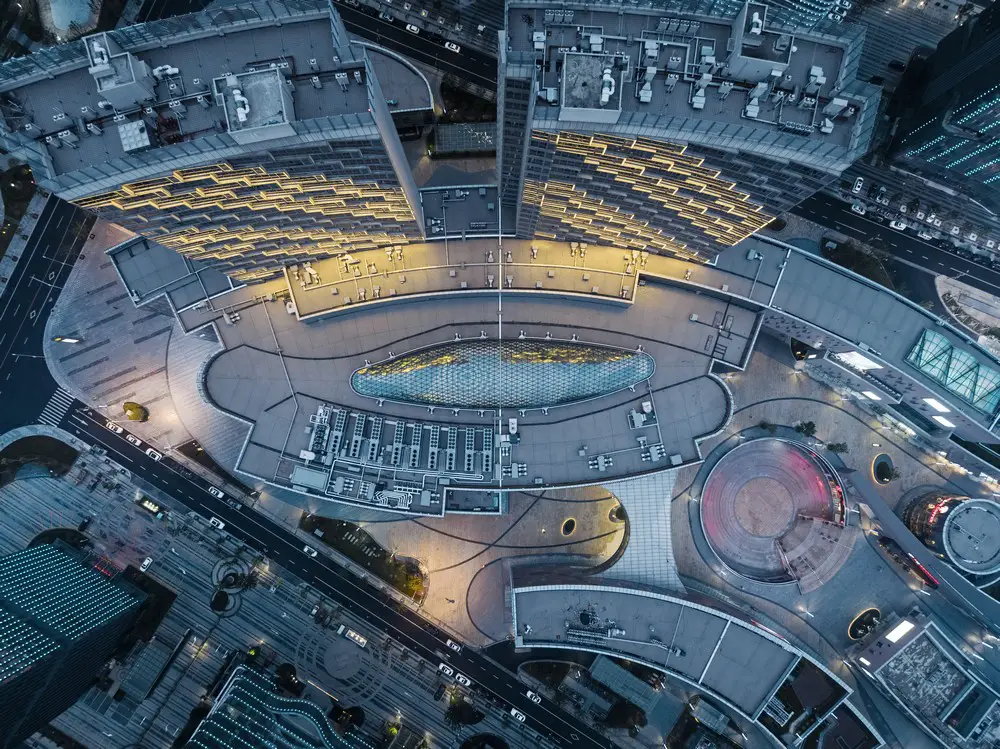

Shaoxing CTC Mall
