Green Residence in Yu Hang

Urban Housing Development in Hangzhou, China, Asia design by Peter Ruge Architekten

4 Dec 2017

Green Residence

Design: Peter Ruge Architekten

Location: Hangzhou, Zheijang Province, P.R. China

Green Residence

The site is located in the east of the city of Hangzhou. The eastern part of the site is divided by a 15m wide water canal.

The concept takes up this specific landscape feature. Flat residential buildings, townhouses and a kindergarten will be placed along this small river. Residential high-rise buildings in combination with commercial ground-floor buildings will be set up along the main streets in North and West.

As a result, a variety of urban spaces will be generated, increasing urban density along the streets dispersing toward the water canal as the structure opens up to the landscape.

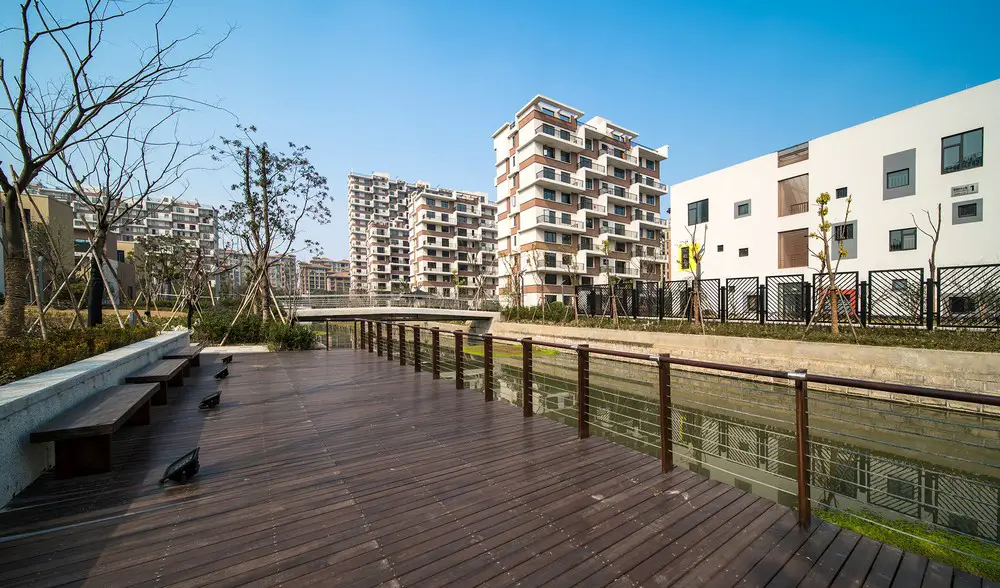

The theme of water is considered also in the landscape design of the new residential district. Spacious rectangular water basins are the main features for the semi-public exterior spaces. These will be interwoven through various squares and green spaces.

The multi-storey residential buildings are designed with different size units, from 85 sqm to 170 sqm. The façade design of circular stepped bands on the north and south façades create balconies and terraces. The variance of these elements assists in the natural ventilation of the building whilst informing the typology of the structure.

Green Residence – Building Information

Client: Hangzhou Jiahe Real Estate GmbH

Architect: Peter Ruge Architekten (until 02/11 Pysall Ruge)
Peter Ruge, Matthias Matschewski, Hyesook Ahn, Olivia Grande, Daniel Dendra

Project partner: DBH Stadtplanungs GmbH, Hangzhou
Prof. Wang Xiaosong, José Maria Cantalapiedra Alonso

Zhejiang Zhongshe Engineering Design Co. LtD

Location: Hangzhou, Zheijang Province, P.R. China
Brief: Design of a new residential district comprised of multi-storey residential buildings, high-rise buildings and townhouses, including retail areas along the main street and a kindergarden
Scope of services Concept, master plan, traffic and landscape planning, design planning including the facade design, consulting for the approval and execution planning

Size Plot: 85.700 sqm, GFA: 189.500 sqm
with circa 1,000 units
underground parking circa 800 cars

Completion: 2017
