Curricular administrative building Lycée María Auxiliadora Linares, Architect, Design, Image
Curricular administrative building Lycée María Auxiliadora, Chile
Linares Building design by Surco Studio Architects
5 Jul 2012
Curricular administrative building Lycée María Auxiliadora, Linares
Design: Surco Studio
Location: Linares, Maule Region, Chilean Central Valley
Curricular administrative building Lycée María Auxiliadora in Chile
The project fits in the reconstruction of a building belonging to Lycée Maria Auxiliadora, which was severely damaged by the earthquake of 27/F. This stood in the opposition corner of the Main Square of Linares, seventh region, in an important position within the city.
picture from architects
The opportunity to rebuild on the same site allowed that along with the building was proposed to reorder an establishment that grew up without an apparent programmatic order according to age; Thus focused on the new building the entire administrative and curriculum, previously scattered program at the College, in addition to rooms of attention of parents and the main entrance to the College, thus replacing a precarious access and a few classrooms, a place with a more public condition under the logic of the place where it is inserted.

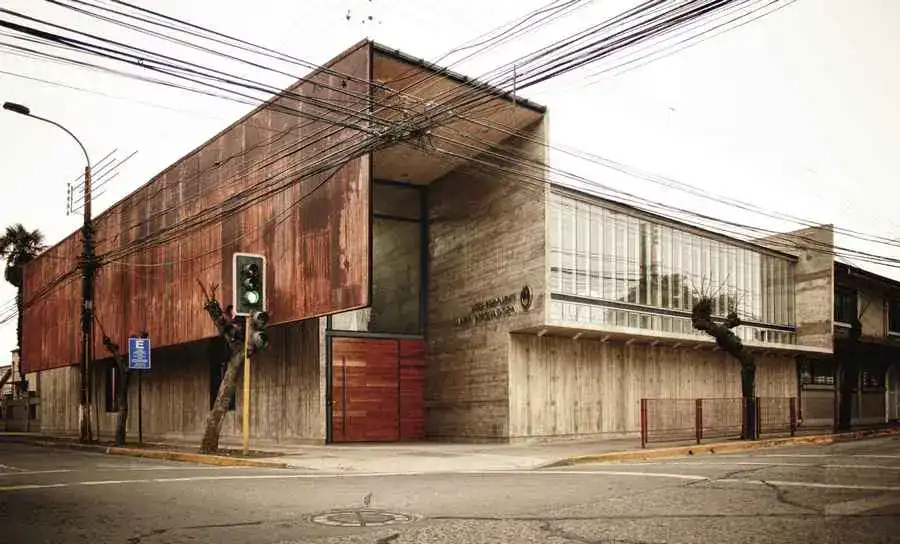

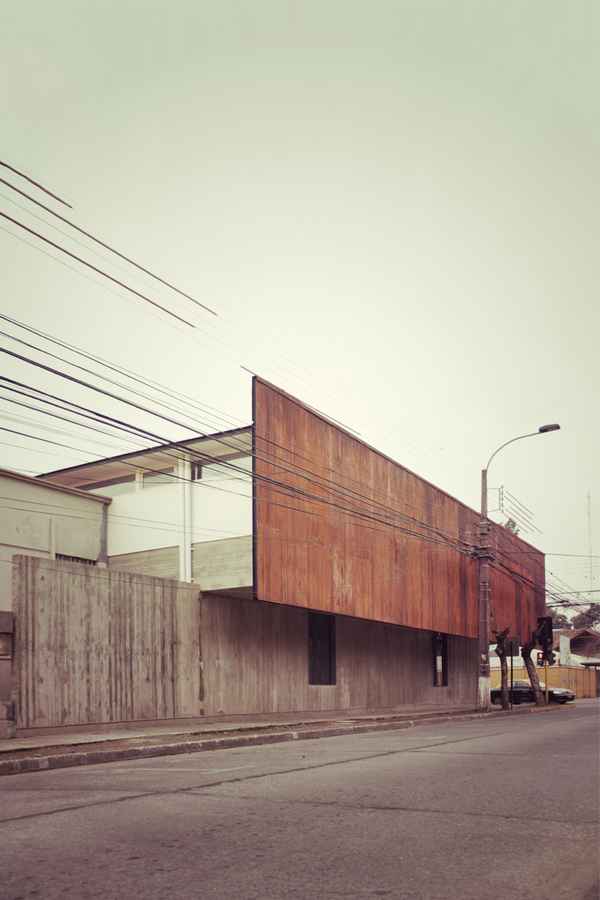

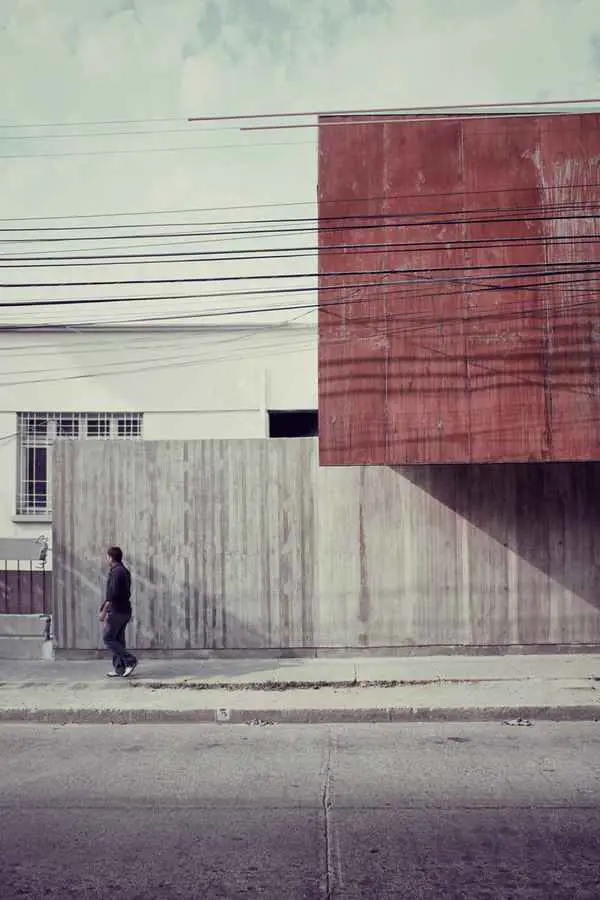

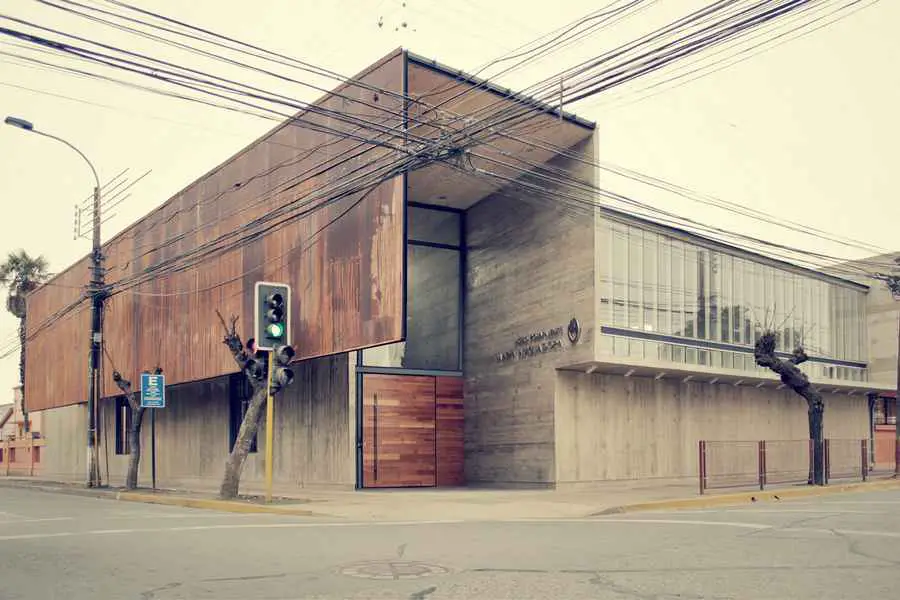

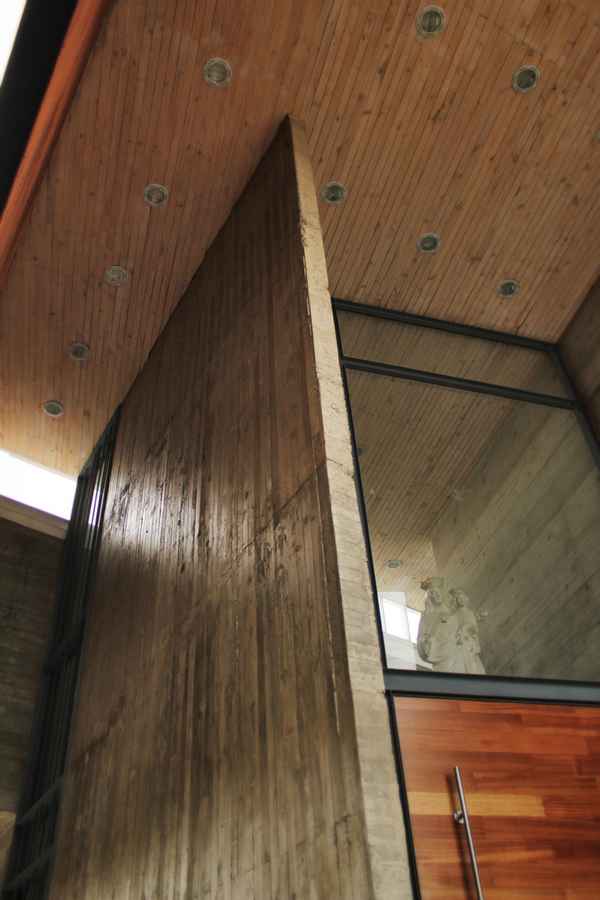

On the other hand the building seeks, through the architecture, take a reading of the next iconic elements that could influence its resolution, where a rusty steel pediment facing the patina of the brick of the city’s Cathedral, and on the opposite axis, a deciduous plant wall accompanied by the greenery of the Main Square. The intersection of both fronts forms access double height that houses an image of the Virgin becoming a sort of urban Grotto.
photos from architects

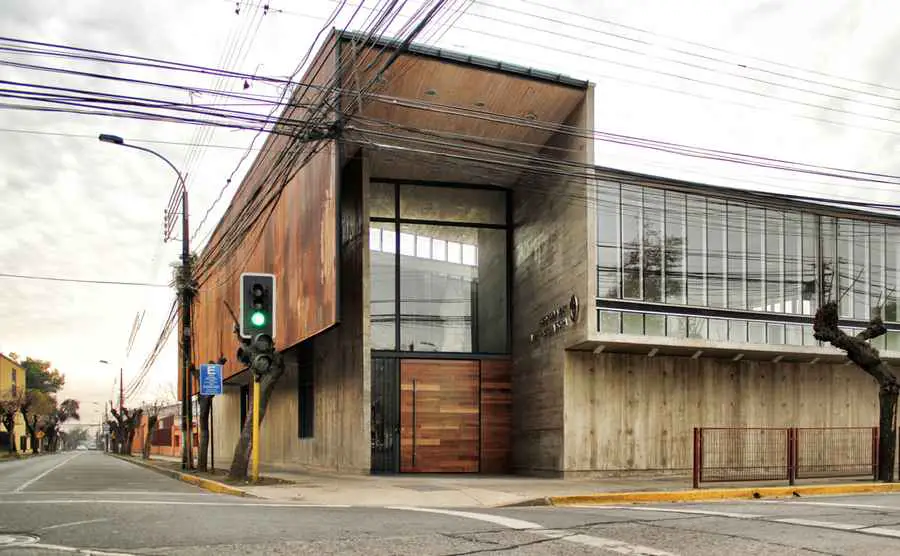

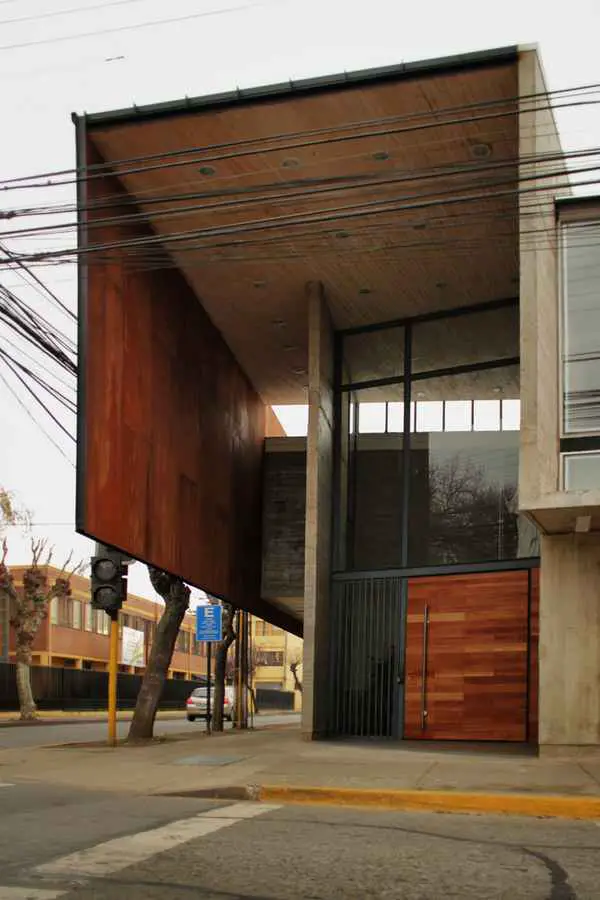

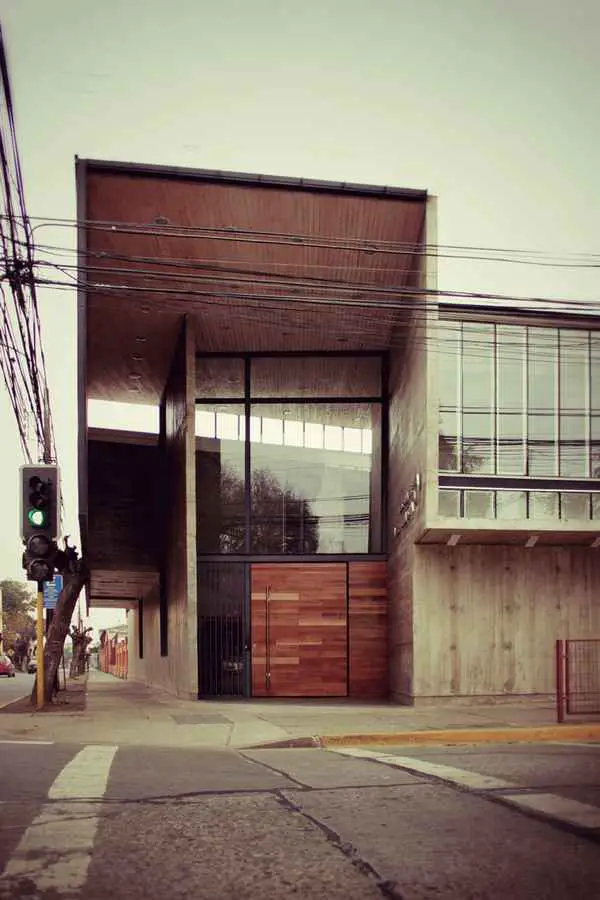

This is how the corner has dematerialized access with eave in double height, welcoming the pedestrian and mediating between the scale of the city and the Lycée. On the other hand it has been looking for to continue with the axes of the existing pavilions hiding, somehow, the trapezoidal layout of the city of Linares, which prevents the search of orthogonality in the vertex.

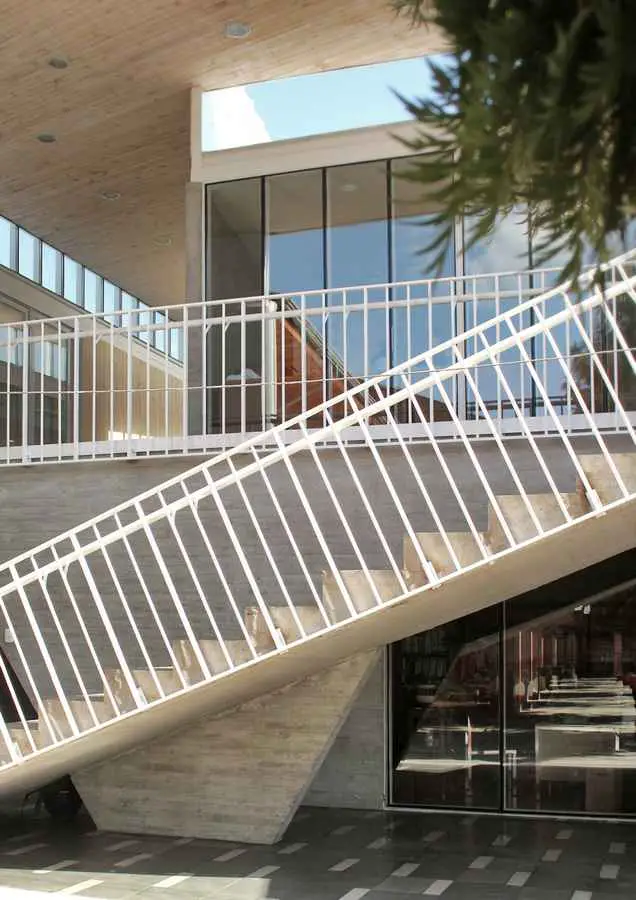

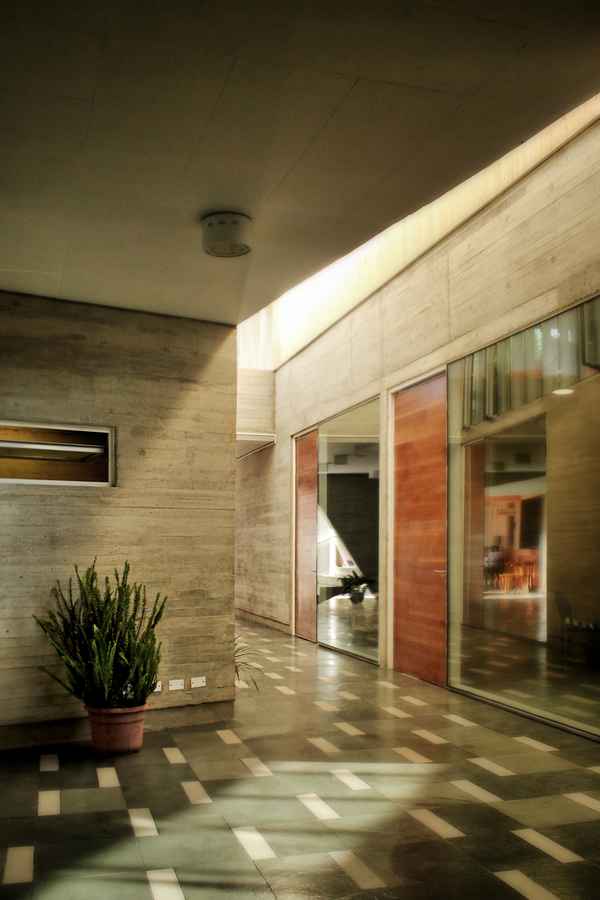

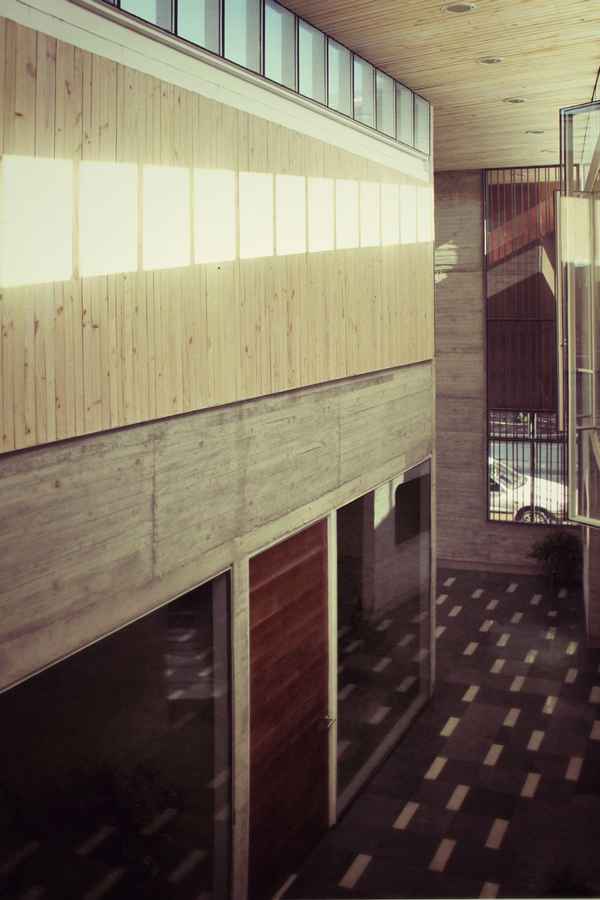

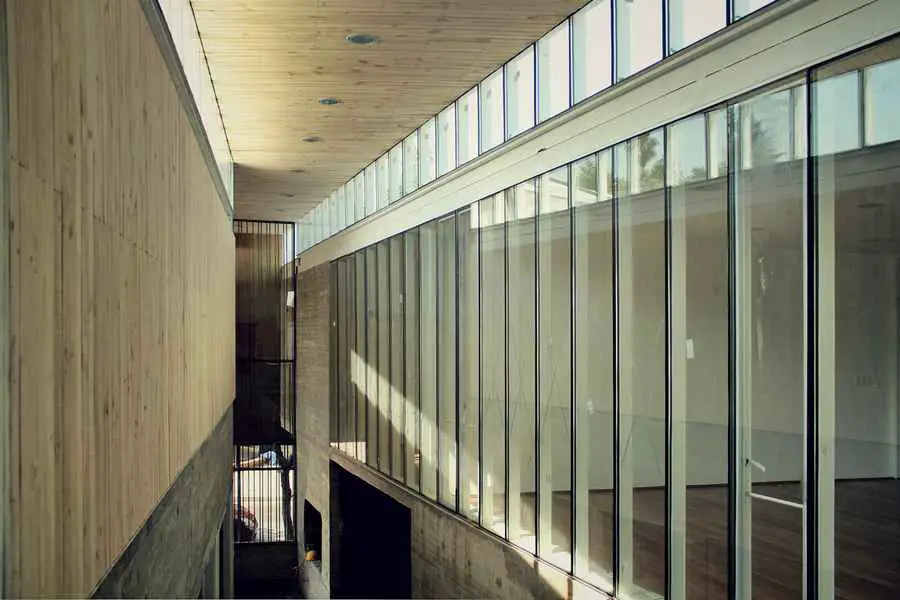

The double-height access to turn penetrates and qualifies the interior of the building, creating multiple views between different levels and campuses, becoming also the prelude to the old chapel.
photos from architects

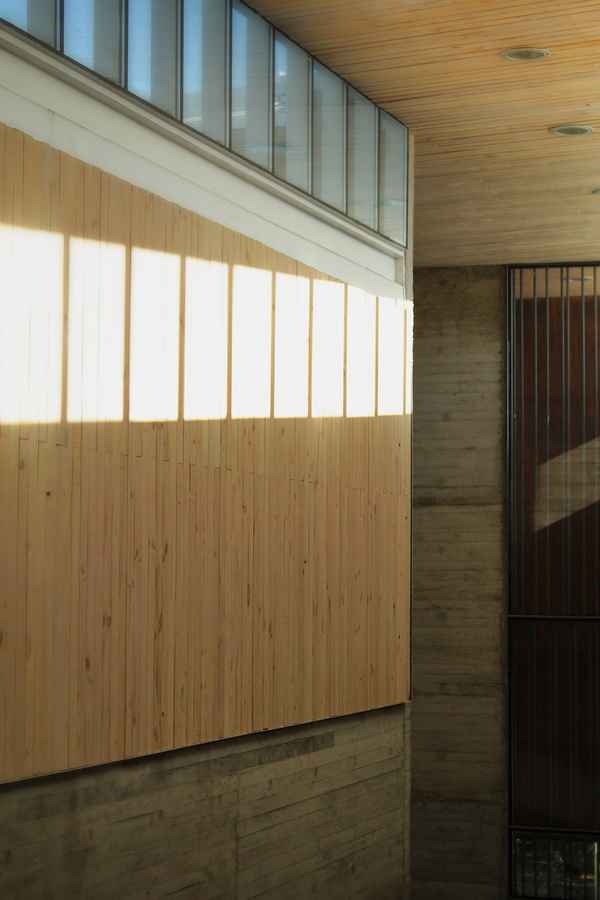

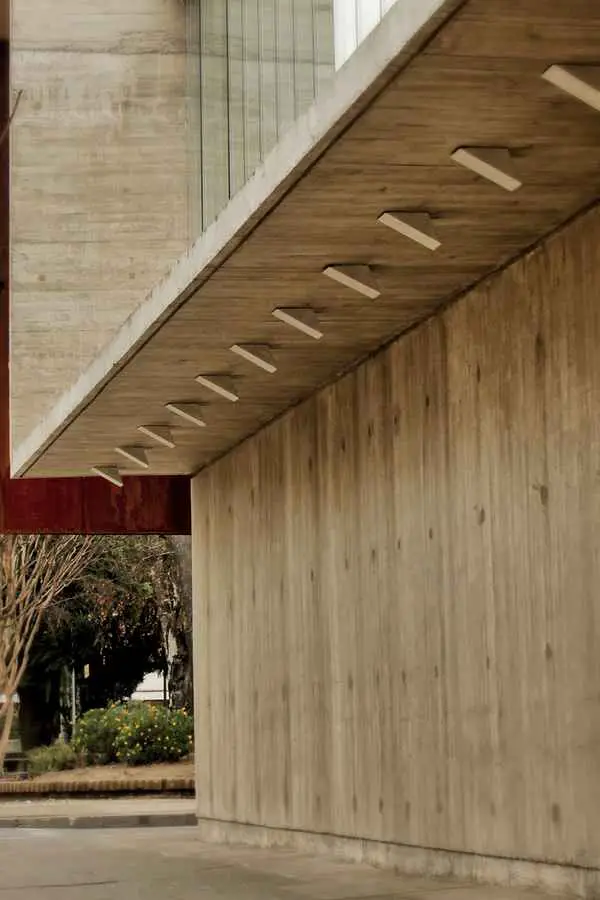

The solution should also fit a budget bounded by government reconstruction funds awarded to the work, which removed completion operations, causing the expressiveness of each stock, concrete, steel and wood, together with the structural design of the building, provide atmosphere to work and thus the final image.
photos from architects
Curricular administrative building Lycée María Auxiliadora – Building Information
Name of the work: Curricular administrative building Lycée María Auxiliadora
Authors: SURco Juan Paulo and Felipe Alarcón Carreño
Localization: O’Higgins and Kurt Möller corner faced square, Linares, in the Maule Region.
Promoter: Welcome to the Reconstruction Plan of the Ministry of education. “Minor repairs 1 plan”
Land area: 367,7 m2
Built surface: 735,4 m2
Year of project: 2011
Year of construction: 2011
Predominant Materials: To view, D.V.H. glass, steel and steel reinforced concrete cutting and radiata pine.
photos from architects
Curricular administrative building Lycée María Auxiliadora images / information from Surco StudioArchitects
