Brasilia Stadium, Brazilian Football Arena, Architecture, Soccer Arena Design Images

Estádio Nacional de Brasília

Brasilia World Cup Stadium Building design by gmp – Architekten von Gerkan, Marg und Partner

12 Jun 2014

Brasilia Stadium : 2014 World Cup Venue

Location: Estádio Nacional de Brasília, Brasilia, Brazil

Design: gmp

Concept and scheme design of roof + esplanade as well as detailed design of esplanade Castro Mello arquitetos with consultancy service provided by gmp and schlaich bergermann and partners Detailed design of roof gmp and schlaich bergermann and partners Design of bowl Castro Mello arquitetos, São Paulo.

Estádio Nacional de Brasília building, Brasil:
Estádio Nacional Brasília

Brasília is the only city dating from the 20th century that has been declared a UNESCO World Heritage Site. With its range of public buildings, the “ideal city” built between 1956 and 1960 is one of the icons of the Moderne style. In this context gmp Architects, in cooperation with schlaich bergermann and partners (sbp), produced the design of the Brasília national stadium for Castro Mello Arquitetos (São Paulo).

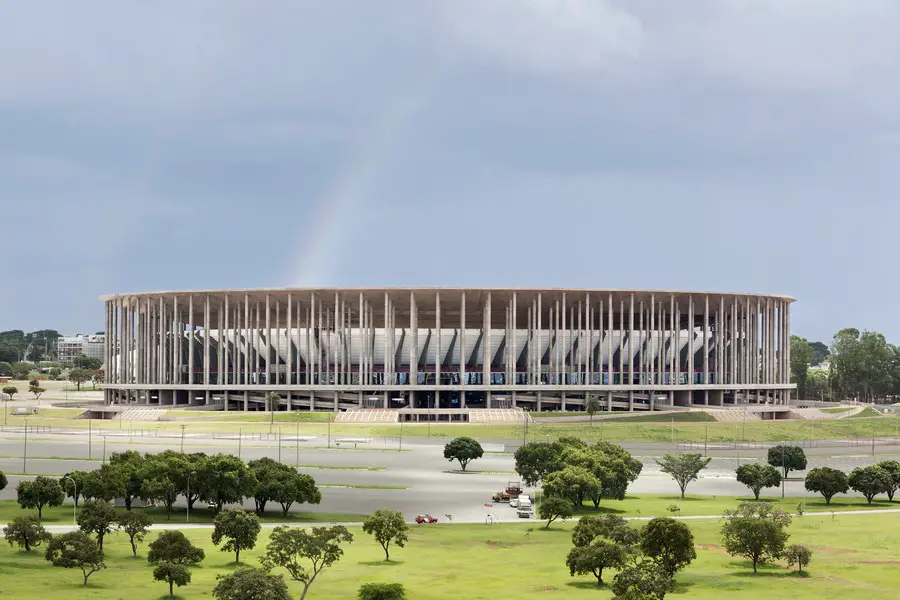

It was constructed in the place of the former Mané Garrincha stadium. Eduardo Castro Mello was responsible for the design of the 72,000-seat bowl; gmp and sbp produced the elevations of the esplanade as a characteristic “forest of columns”, and a double-skin suspension roof.

Estádio Nacional Brasília

The objective of the design was a solution that does justice to the architectural history of the place, with a clear reference to the city’s tradition, and yet has its own distinct contemporary style.

Estádio Nacional Brasília

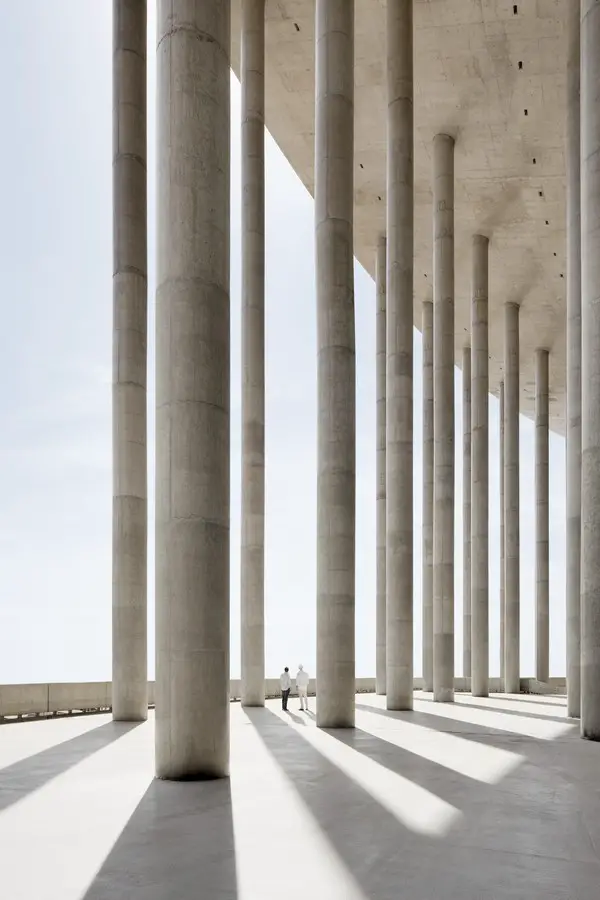

As the city’s largest building, located on Brasília’s central axis, the composition was developed as a monumental building volume which integrates seamlessly into the urban design context. To achieve this, the stadium bowl is surrounded by an esplanade which comprises all access elements and supports the roof on its “forest of columns”.

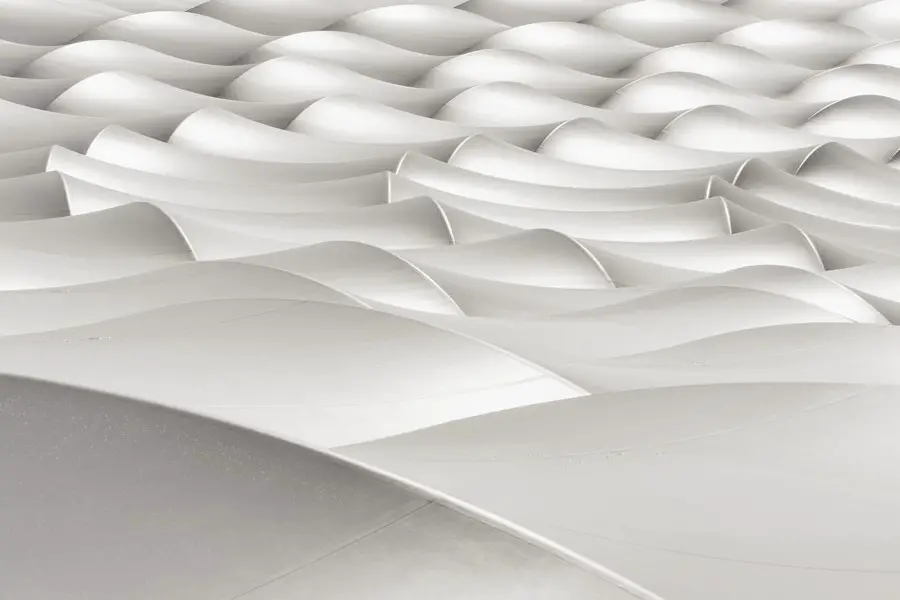

This clear gesture is emphasized by the minimalist, almost archetypal design of the components – the key material being concrete. The circular suspension roof is a doubleskin structure – the upper skin consists of a PTFE-coated glass fiber fabric while the lower membrane is made up of an openmesh, back-lit fabric.

Estádio Nacional Brasília

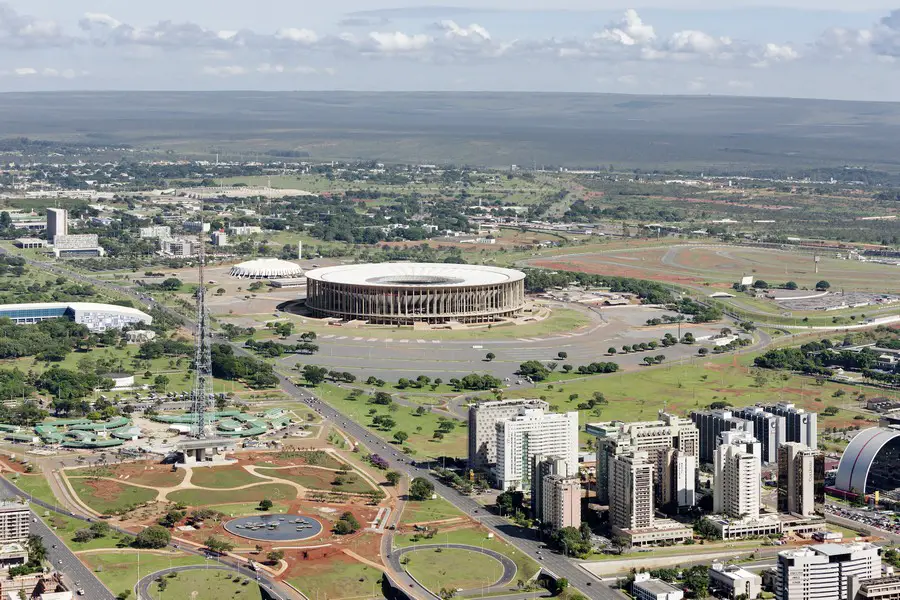

Brasília National Stadium shortly before completion. The city’s largest public building is located directly at the central axis dissecting Brasília’s basic urban layout. The stadium bowl is surrounded by a circular esplanade which contains all access elements and includes a “forest of columns” which supports the roof.

Estádio Nacional Brasília

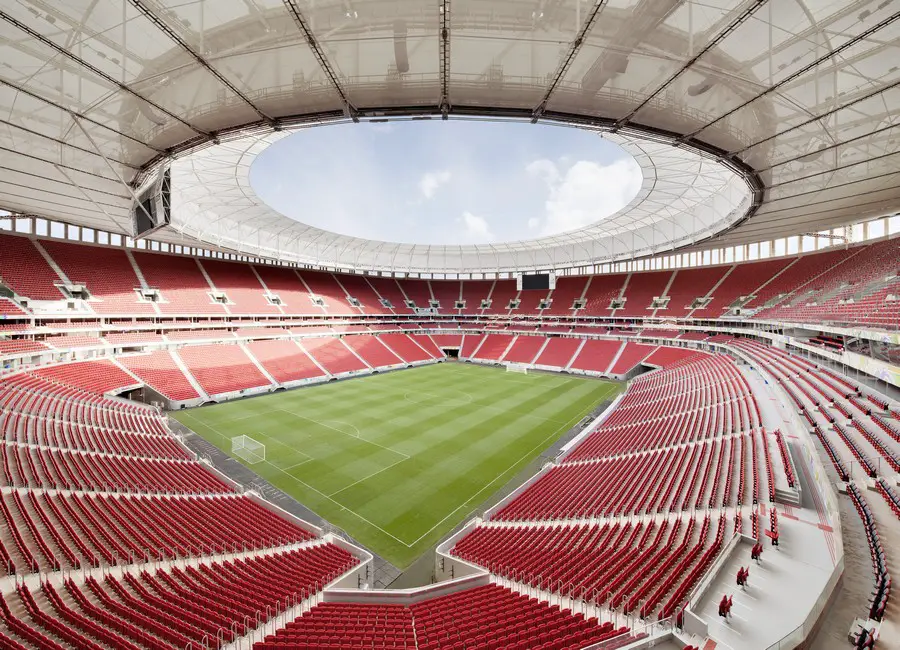

In the stadium bowl designed by Eduardo Castro Mello, the filigree suspended roof construction created by the German stadium designers has a real presence and provides unrestricted views.

Estádio Nacional Brasília

Brasilia Stadium – Building Information

Design: Volkwin Marg and Hubert Nienhoff with Knut Göppert, 2008
Project Manager: Martin Glass
Project Manager, Brazil: Robert Hormes
Director of gmp do Brazil: Ralf Amann

Team members (alphabetical): Ante Bagaric, Holger Betz, Rebecca Bornhauser,
Carsten Borucki, Lena Brögger, Martina Maurer-Brusius, Kacarzyna
Ciruk, Laura Cruz Lima da Silva, Stefanie Eichelmann, Ruthie Gould, Florian
Illenberger, Jochen Köhn, Martin Krebes, Helge Lezius, Tobias Mäscher, Adel
Motamedi, Burkhard Pick, Jutta Rentsch Serpa, Lucia Martinez Rodriguez,
Maryna Samolyuk, Florian Schwarthoff, Sara Taberner Bonastre

In cooperation with: schlaich bergermann and partners, Stuttgart; Castro
Mello arquitetos, São Paulo
Structural design of roof and esplanade: schlaich bergermann and partners
– Knut Göppert with Knut Stockhusen and Miriam Sayeg

Team members (alphabetical):
Andreas Bader, Tiago Carvalho, Arnaud Deillon, Uli Dillmann, Stefan Dziewas, Hansmartin Fritz, Alberto Goosen, Hartmut Grauer, Jochen Gugeler, Andreas Hahn, Achim Holl, Hubert Kunz, Christoph Paech, Jana Pavlovic, Bernd Ruhnke, Tilman Schober, Klaus Straub, Cornelia Striegan, Peter Szerzo, Hiroki Tamai, Augusto Tiezzi, Feridun Tomalak, Chih- Bin Tseng, Gerhard Weinrebe, Rüdiger Weitzmann, Andrzej Winkler, Markus Wöhrbach, Kai Zweigart

Structural design of stadium bowl: Etalp, São Paulo
Services engineering – roof (concept and scheme design): b.i.g. Bechtold
Ingenieurgesellschaft mbH; mha, São Paulo
Light concept – roof (concept and scheme design): Conceptlicht, Taunreut;
Peter Gaspar, São Paulo; mha, São Paulo,
Seats approx.: 72,800
Construction period: 2010–13

Photography: Marcus Bredt

Brasilia Stadium information / images from gmp – Architekten von Gerkan, Marg und Partner

Location: Brasilia, Brazil, South America
