Agora Tech Park, Perini Business Park

Building at Perini Business Park, Joinville, Santa Catarina, Brasil – design by Estúdio Modulo

14 Sep 2019

Agora Tech Park, Perini Business Park, Santa Catarina

Design: Estúdio Módulo Arquitetura

Location: Perini Business Park, Joinville, Santa Catarina, Brazil, South America

Agora Tech Park, Joinville, Brasil

Photos by Nelson Kon

The construction was as swift as that of a shed. The materials also do not differ that much from those employed in any industrial building. However, it is clear that the Ágora Tech Park is nothing alike the triviality of logistic factory buildings recurrently found on the margins of Brazilian highways.

Agora Tech Park, Perini Business Park, Joinville, Santa Catarina building by Estúdio Módulo Arquitetura

Estúdio Modulo has assumed that the Quality of a project does not come from the use of special and expensive materials. The Architects Marcus Vinicius Damon, Guilherme Bravin and Andressa Diniz make use of prefabricated building elements usually present in catalogs of companies in the national construction market. Nor do they conceive of elaborate details designed specifically for the building, the execution of which would require very specialized workmanship or almost handcrafted manufacture on the construction site. Therefore, in the Ágora Tech Park, Estúdio Modulo has set itself against those architects who sometimes have the understanding that their work as “epic”, which every millimeter needs to be drawn.

Agora Tech Park, Perini Business Park

The tectonics in the Ágora Tech Park is embodied with items from the industrial logic of large-scale production. The Authors appropriate this model also in the projectural reasoning based on the creation of systems. Due to this ode to pragmatism, the Joinville building was built between August 2018 and March 2019, the date of its opening. More than the Chinese speed in construction, it has been proved that, from the correct selection and arrangement of prefabricated materials, it is possible to conceive interesting architectural shapes and spaces.

Agora Tech Park, Perini Business Park

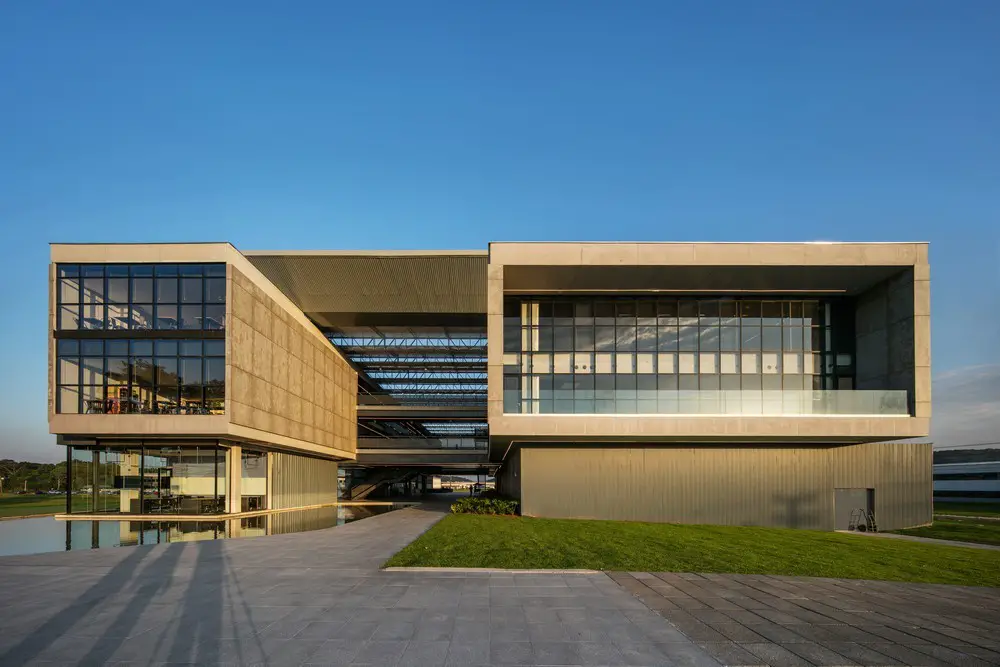

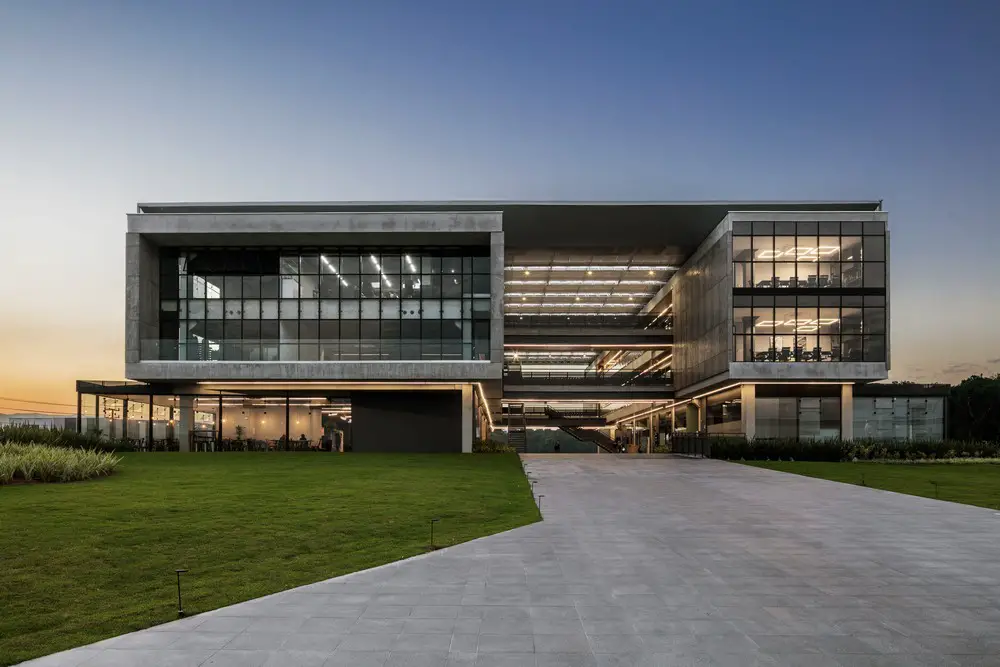

The main facade itself is already didactic as it leads to the discovery of the main axis and the articulator: triple-height central space presents itself to the eyes as a starting portico for the Ágora complex, whose masterplan also is by Estúdio Módulo.

Agora Tech Park, Perini Business Park

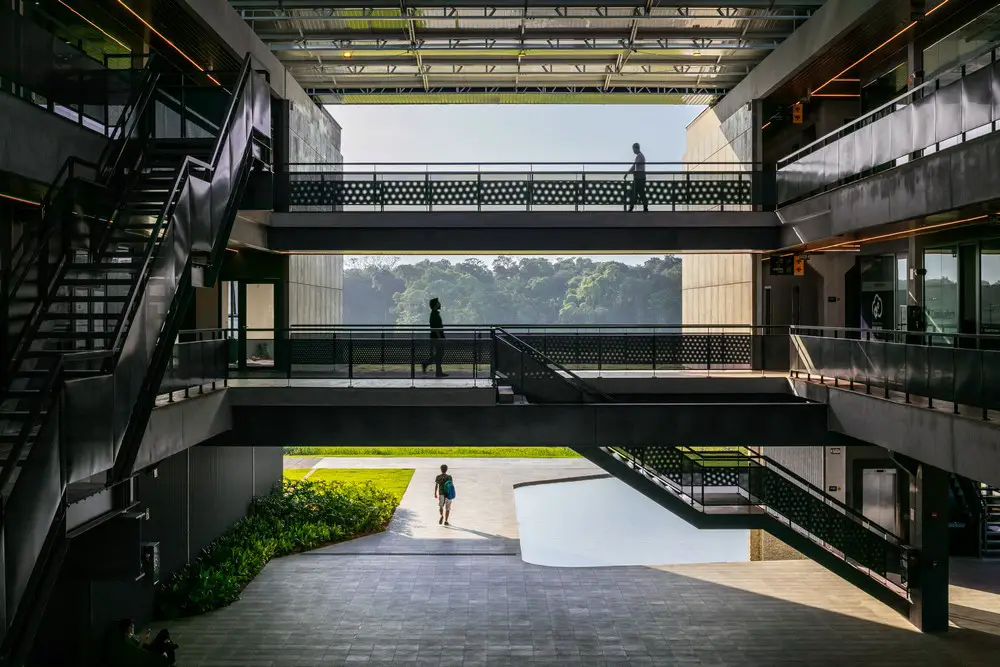

The ragged floor plates 50 meters long esplanade enter the core of the building, impelling the visitor to get in. There are no distinctions on the floor between the inside and the outside, nor are there barriers to access the large, but outdoor, covered space. It is the central void that integrates all floors where all the building activities converge to it. All the functions of access, circulation, being and public gatherings come together – that is, in metonymic relationship, this is an agora in the project. The dimensions of space intersect as a square and the street, but in this aspect the closest analogy would be the 19th Century French and Italian generations – such as Vittorio Emanuelle II of Milan and Umberto I of Naples. Like the paradigmatic constructions, the grandiosity of the Ágora Tech Park central environment gives rise to a certain ceremonial air at the moment of the visitor’s entrance.

Agora Tech Park, Perini Business Park, Joinville, Santa Catarina, Brasil Agora Tech Park, Perini Business Park, Joinville, Santa Catarina building by Estúdio Módulo Arquitetura

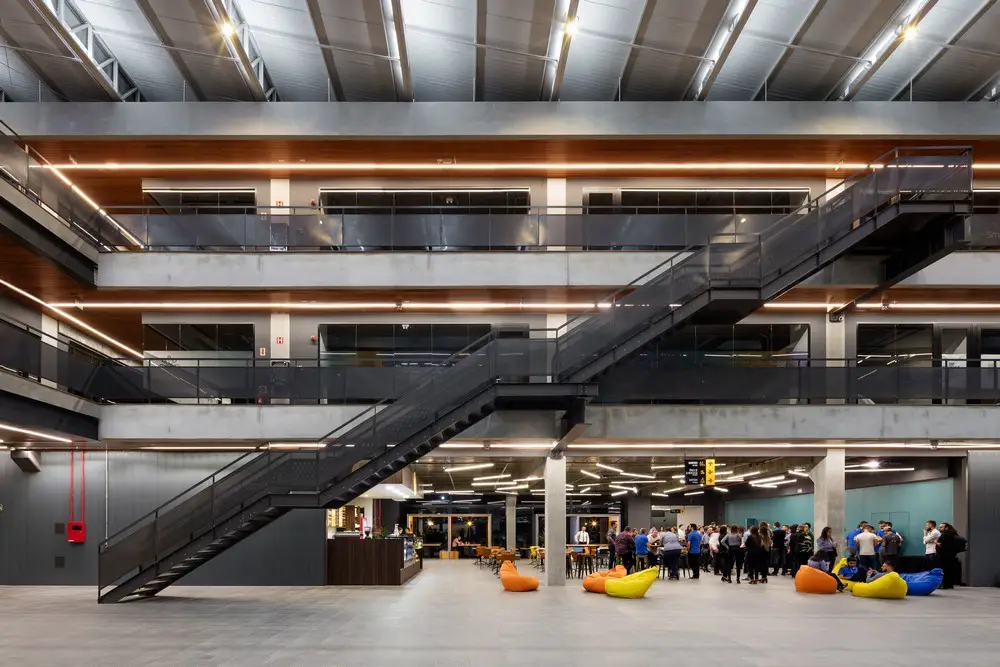

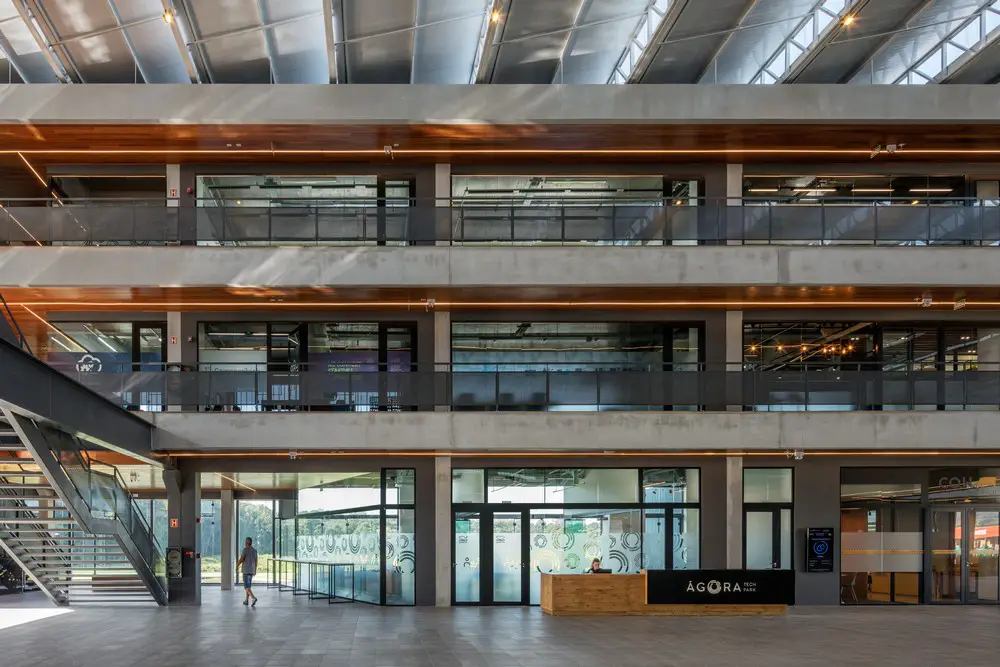

However, such character does not diminish the liveliness of space: it is an environment of confluence of people coming and going. Anyone on their way to the workstation should pass through the core that connects the stairs, the corridors on longitudinal direction, the connecting crosswalks. The latter were interconnected in two building blocks of activity: the smaller is more compartmentalized and full of small spaces such as meeting rooms, pantries, toilets, stairs and elevators; The largest is an office-free floor plan with classroom division and layout independent of structure.

Agora Tech Park, Perini Business Park, Joinville, Santa Catarina, Brasil

While the two upper floors follow full orthogonality, the ground floor contains a plan that combines more diverse and heterogeneous environments. On the larger side, there is the food court and the auditorium. In the square, two restaurants and a cafe are surrounded by dozens of dining tables and seating areas – the room is surrounded by glass which ensures full transparency with the outside. On the other hand, the auditorium has a Elizabethan stage and 200 seats in the audience. The dividers at the back of the room (that is, behind the chairs) are movable and when retracted make the foyer fully integrated into the presentation space. Still on the ground, but on the opposite flank central are the coworking environment, three modular meeting rooms (integrable depending on the occasion) and the administration. The bottom of this sequence of enclosures is marked by the curvilinear contour water mirror, whose pebbles and liquid height make tribute to Mies van der Rohe’s project for the 1929 German Pavilion, in Barcelona.

Agora Tech Park, Perini Business Park, Joinville, Santa Catarina, Brasil

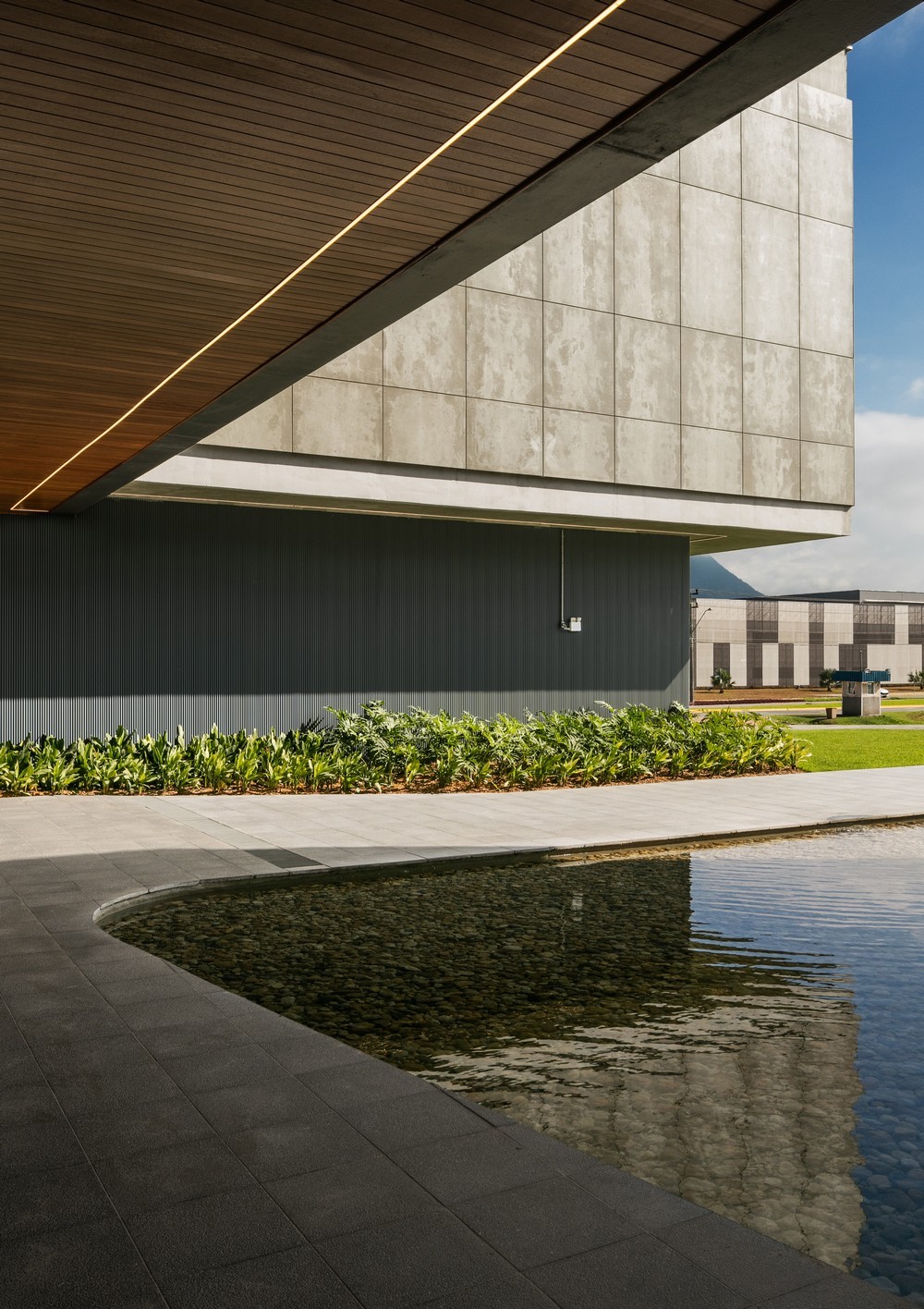

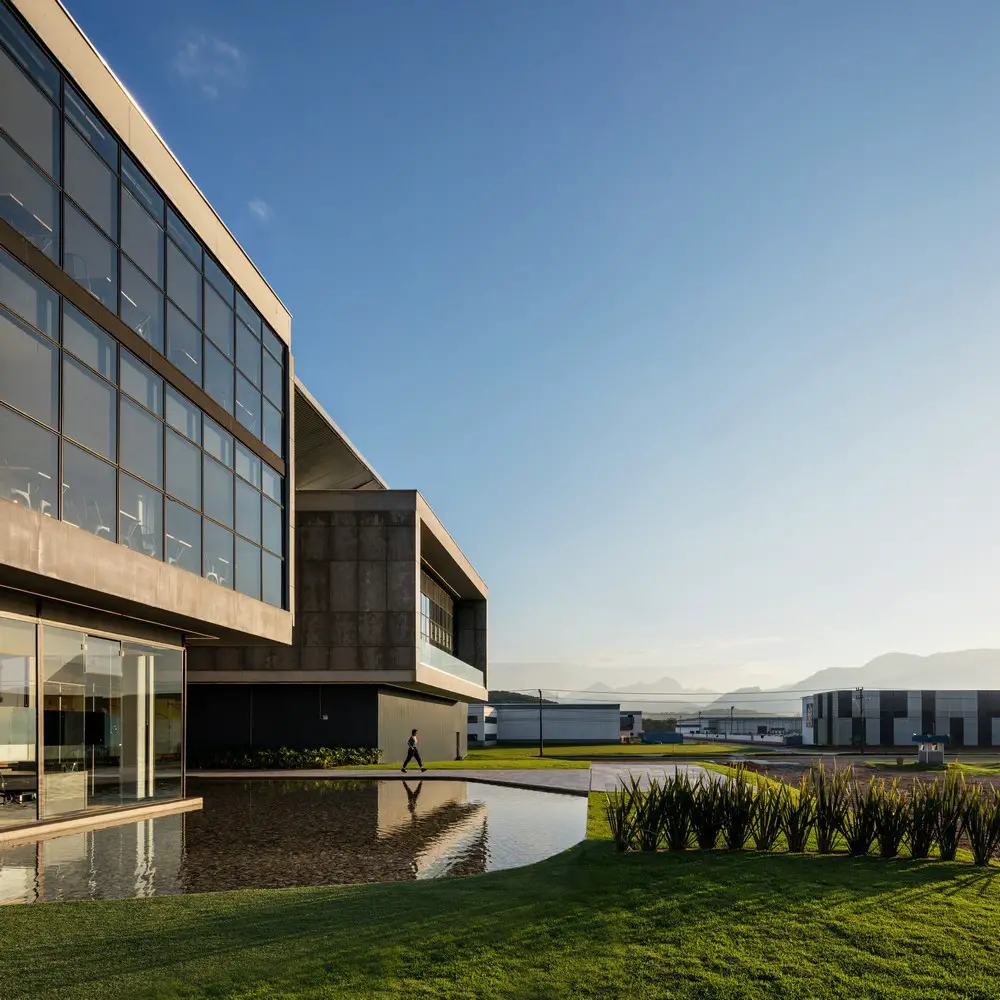

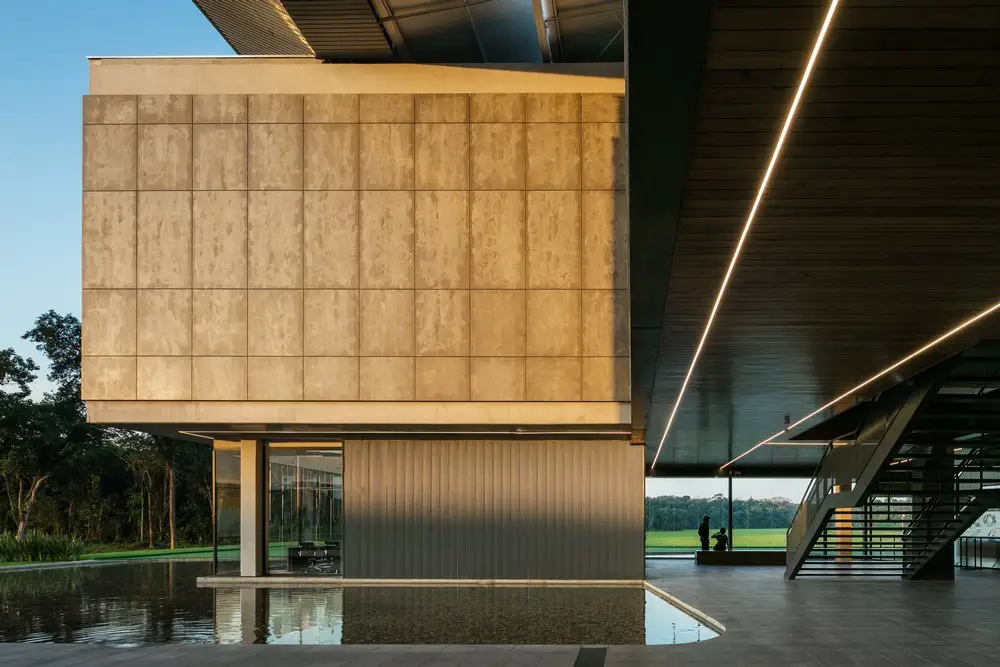

This water plane exacerbates and highlights a feature present throughout the ground floor: at this level, the building expands beyond the perimeter boundaries of the higher floors. In the non-alignment of plans, due emphasis is given to the two higher volumes as part of the coverage plan, without land occupation – which would happen if, for example, pilotis were used. The result is greater formal dynamics with the combination of orthogonality above with the heterogeneity and volumetric expansiveness below.

Agora Tech Park, Perini Business Park, Joinville, Santa Catarina, Brasil

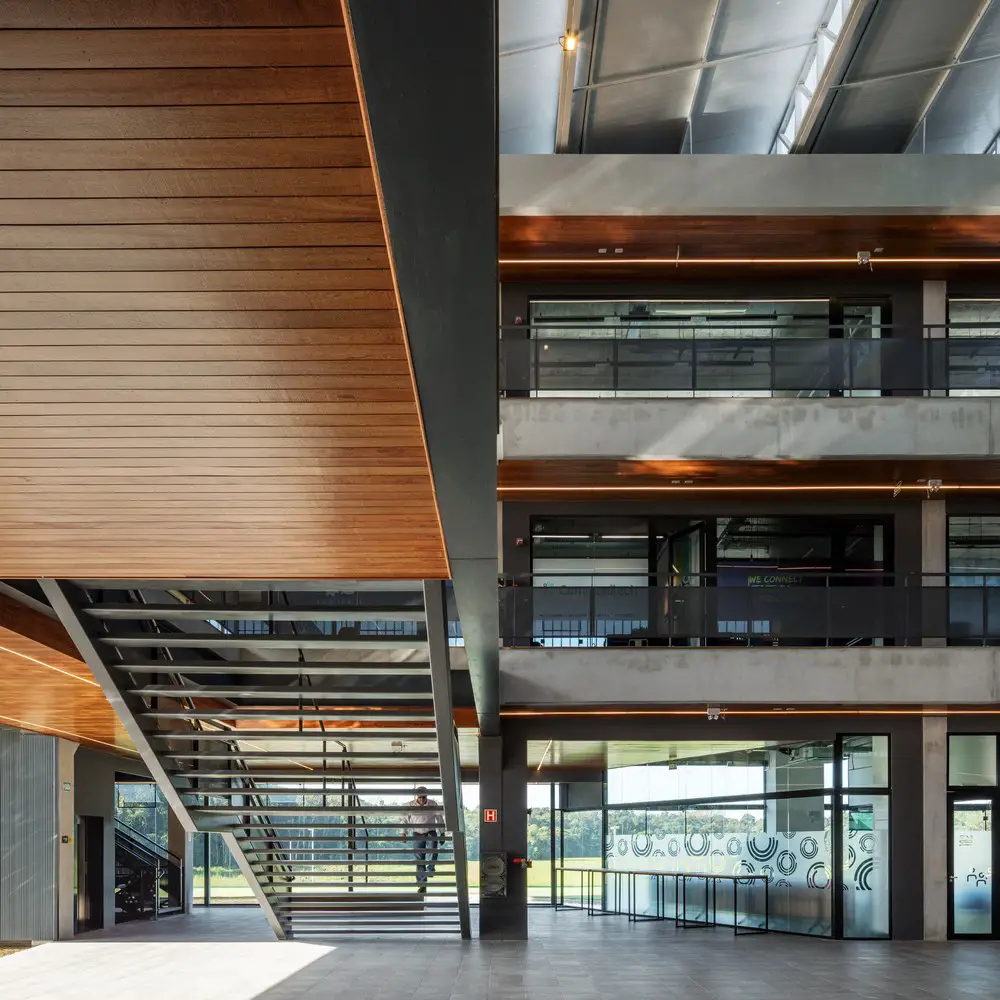

Let us return to the materials evaluation. The primary structure is made up of precast concrete parts – produced by the contracting company itself. In contrast are only the metal structure walkway and stairways in nuclear space.

Agora Tech Park, Perini Business Park, Joinville, Santa Catarina, Brasil

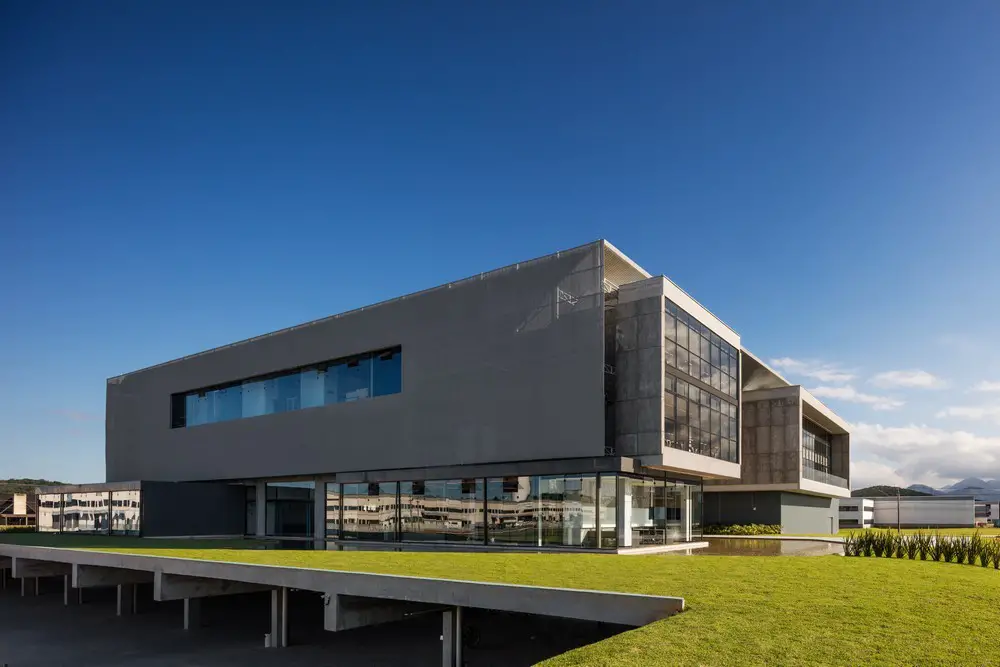

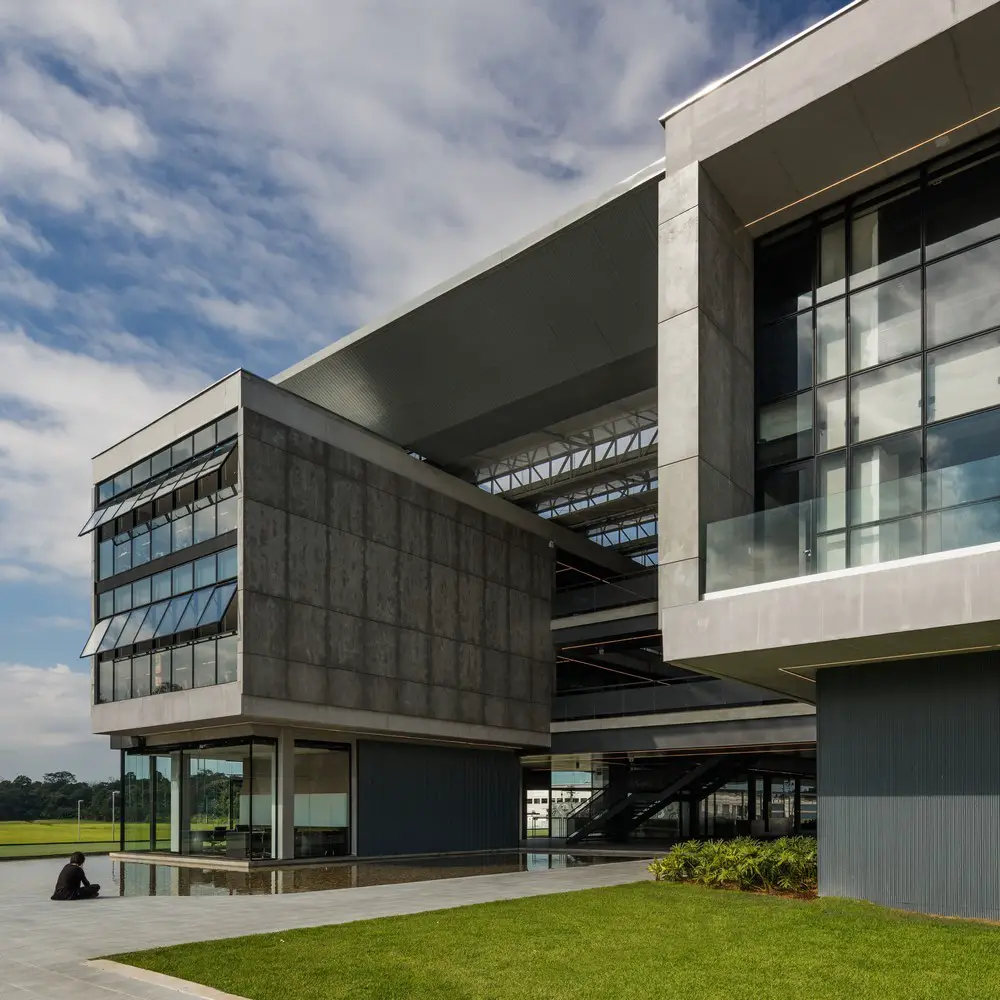

The external closures contain subtle distinctions to highlight the previously noted volumetric differences: on the ground floor, dark gray opaque corrugated tile is used; on the floors above, light gray colored panels (made of cement and wood) are used. Inside, wood is found on floors and ceilings of corridors and walkway to highlight the circulation. A few internal partitions are in graphite-colored Drywall. However, it must be emphasized that, in the relationship with the outside, transparency predominates.

Agora Tech Park, Perini Business Park, Joinville, Santa Catarina building by Estúdio Módulo Arquitetura

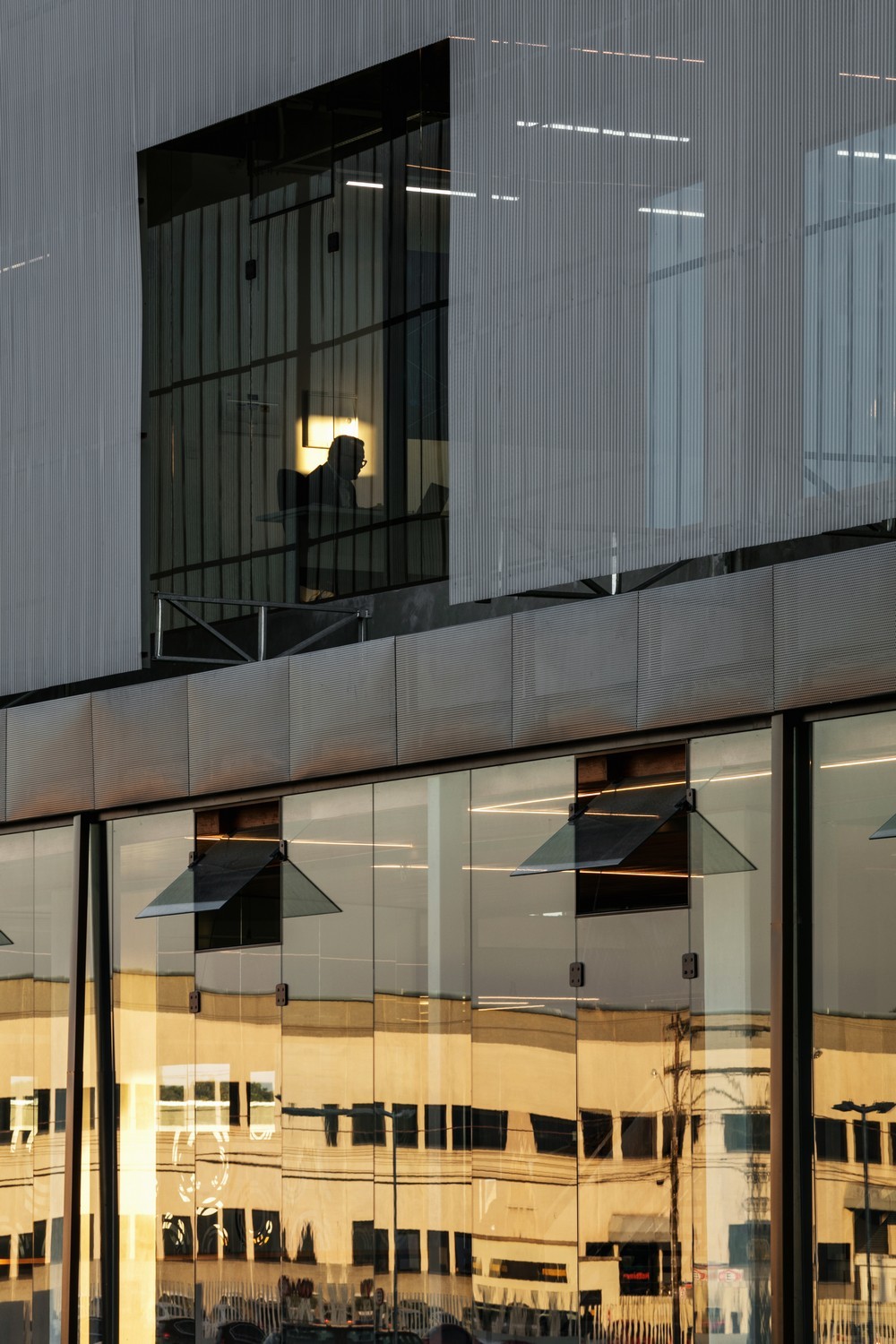

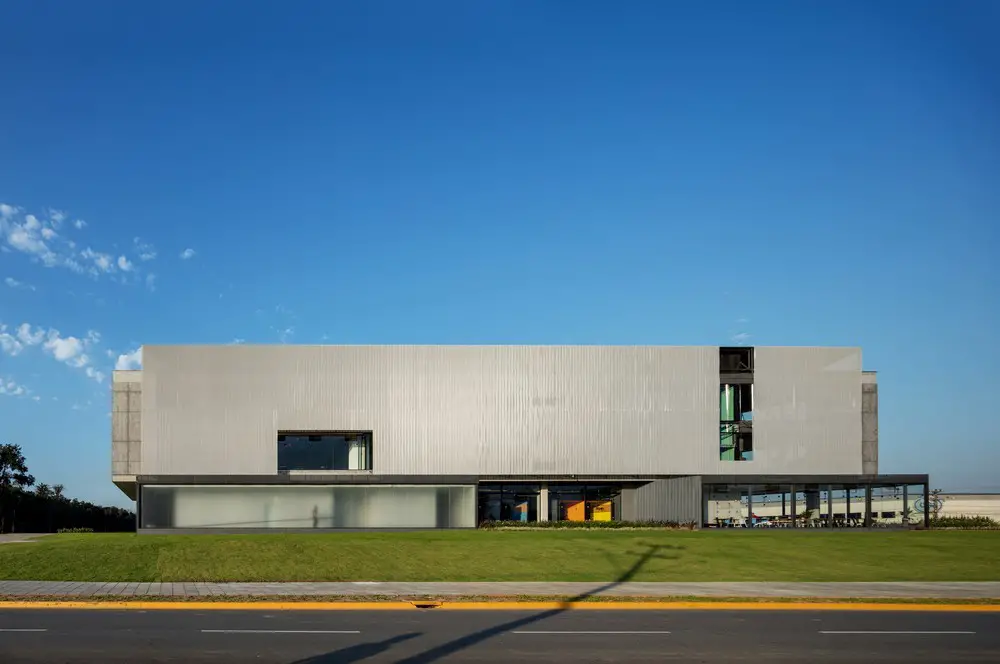

In the main facade the glass structured in dark frames predominates to highlight the modulation. On the other hand, on the side facades, perforated corrugated tile planes mediate between interior and exterior. The technical justification, of course, is the control of sunlight input. However, it should be noted that the perforation rate of the material of this metallic skin does not interfere in the visual relationship with the exterior from the point of view of those sitting at workstations.

This enveloping occurs in a non-integral way: the side planes contain a design with cutouts that mark and hierarchize the internal spaces – the circulation areas with corridors and stairways have literal transparency. Thus, these subtractions externally give the visitor clues as to how the building works internally: behind the skin is the privacy of office areas, while clippings reveal the most public environments.

Agora Tech Park, Perini Business Park, Joinville, Santa Catarina building by Estúdio Módulo Arquitetura

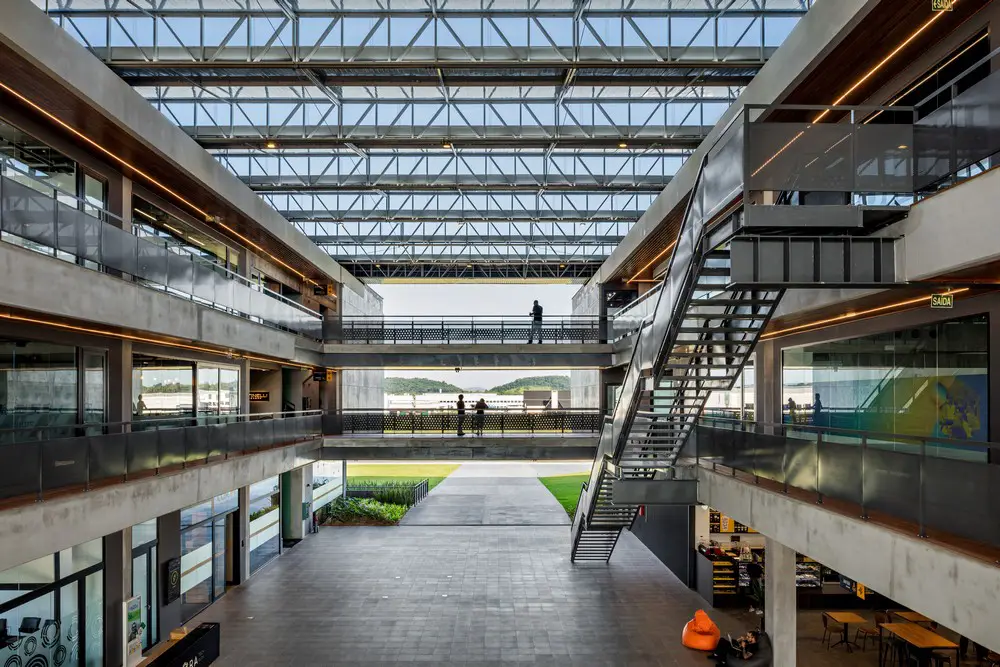

The translucent side faces connects visually through the cover to form a single assembly – a large shelter. The huge Ceiling in of metal structure, which, in the main core of the building, becomes industrial shed with closures in alveolar polycarbonate, to allow natural lightning of the important environment.

Both the central axis and the fenestrations in all facades are thought of as frames of the lush Santa Catarina landscape that surrounds the Ágora Tech Park complex. The core has nature in the background. The movement through the corridors and stairs always has as its focal point in the green context outside. Inner experience in the Ágora is permanently informed by views from the outside, especially to the preserved Atlantic Forest. Being inside the building permanently urges to look at the horizon beyond the realm of architectural design.

Francesco Perrota-Bosch, 2019

Agora Tech Park, Perini Business Park, Joinville, Santa Catarina building by Estúdio Módulo Arquitetura

Agora Tech Park Brasil – Building Information

Resume |Estúdio Modulo
Estúdio Modulo is a collective focused on the production of architecture, urban and graphic design directed by Guilherme Bravin (FAAP, 2012) and Marcus Vinicius Damon (FAU / Mackenzie, 2008). The authors of Agora Tech Park are Marcus Vinicius Damon, Guilherme Bravin and Andressa Diniz (FAU / Mackenzie, 2019).

Technical Sheet | Agora Tech Park
[masterplan]
Construction area: 83,310.0m²
Building area: 74.578,9m²

[building]
Building area: 7,917,8m²

Project year: May-September, 2018
Opening Year: March, 2019

Architectural project:
Estúdio Módulo Arquitetura
[Contest Team]
[authors] Marcus Vinicius Damon, Guilherme Bravin and Andressa Diniz
[contributors] Daniel Korn, Manon Garcia, Raquel Andrade, Alessandra Figueiredo (texts review)
[structure consultant] Eng. Miguel Marata
[Executive Team]
[general coordinator] Marcus Vinicius Damon
[administrative manager] Guilherme Bravin
[collaborators] Andressa Diniz, Fabiana Perazolo, Gabriela Galuppo Parisi (Bim Manager),
Jessica Oliveira, Julia Dell’Acqua, Paula Maxim, Roberta Rosemary.

Complementary designers:
[Landscaping – Partially Performed] Modulo Studio | Alessandra Figueiredo + Marcus
Vinicius Damon
[Concrete and Metal Structure] Beta 2 Engenharia
[Electrical, telecommunications, fire prevention, water and drainage,
waterproofing] VAEA GROUP
[Climatization] Meros & Silva

Construction and Management: Perville Engenharia e Empreendimentos
Memorial: Francesco Perrotta-Bosch
Location: Perini Business Park, Joinville, Santa Catarina

Agora Tech Park, Perini Business Park

Photographer: Nelson Kon

Agora Tech Park, Perini Business Park information / images received 130919

Location: Perini Business Park, Joinville, Santa Catarina, Brasil
