Contemporary Residence in Barcelona, Spain – design by Alventosa Morell Arquitectes
5 Nov 2015
House LLP in Barcelona
Design: Alventosa Morell Arquitectes
Location: Barcelona, Spain
The House LLP building has been designed after the request, of two sisters, for a bioclimatic house where to live together and independent at the same time. So the project focuses on these clients’ needs.
The building plot enjoys views over the Collserola mount, and it is on a uniform and deep pitch, (30%).
After the bioclimatic study of this exact point we decided the strategies of the project, in order to maximise the environmental and thermal performance, and to follow the equivalent demands to a passive house. We improve the comfort of the building by:
• Capture and sun protection.
• Thermal resistance.
• Cross ventilation.

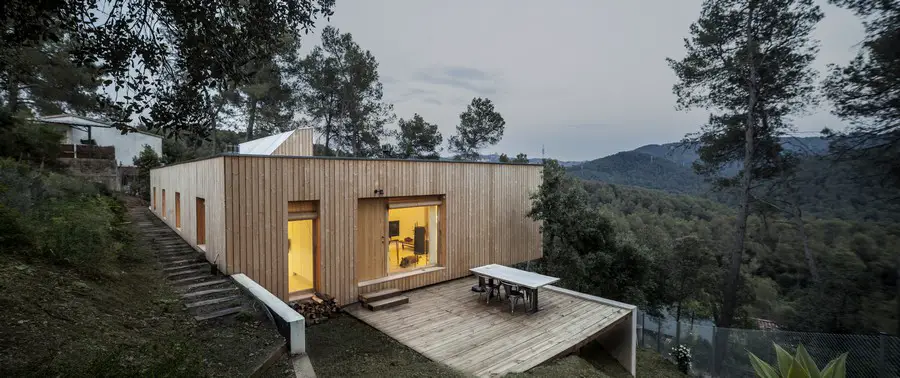

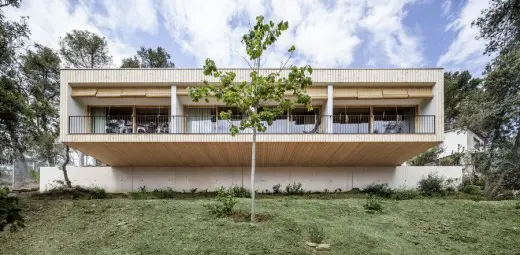

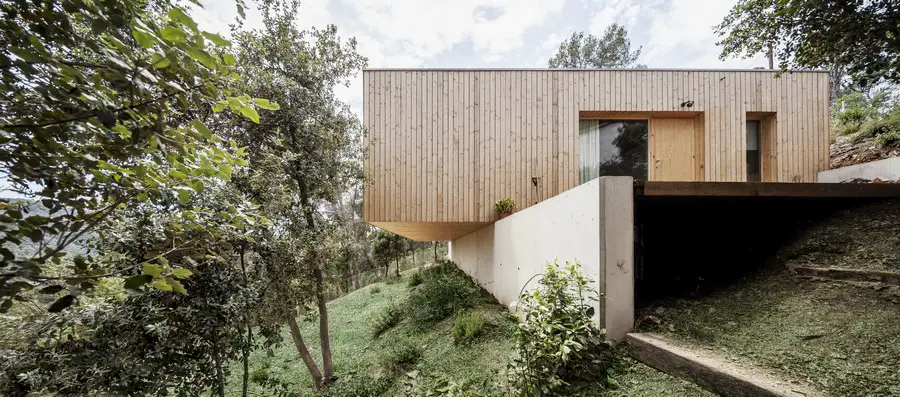

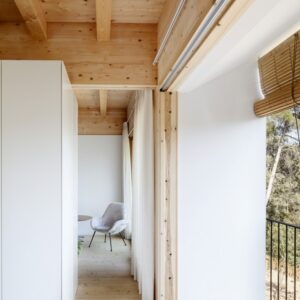

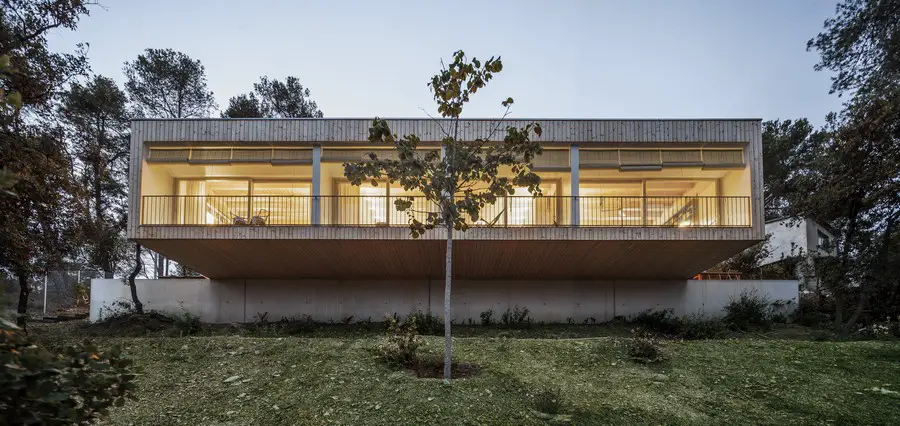

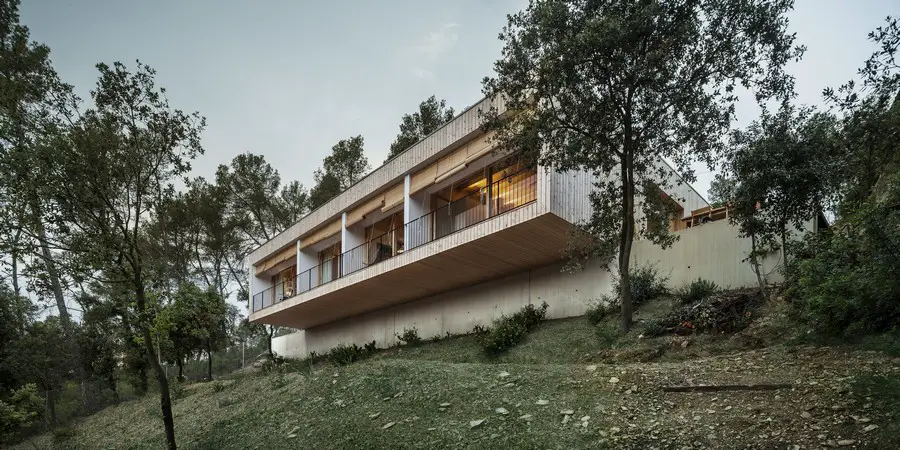

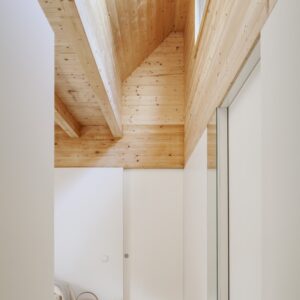

On the other hand, as we did not want to modify the original plot and to better adapt to the topography of the land, our project was founded on only two retaining walls which are parallel with the contour lines. These retaining walls support a lightweight wooden construction. This wooden frame is formed by five wall framings which are perpendicular to the concrete walls. This five framing walls organize the different spaces of the house with the idea that each women could have two rooms, a dining and a sitting room, a bathroom, a kitchen and a terrace to implement the main rooms.

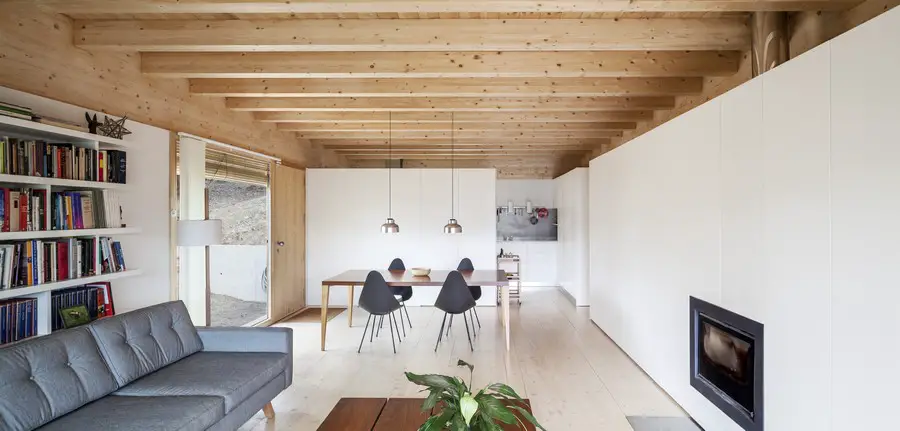

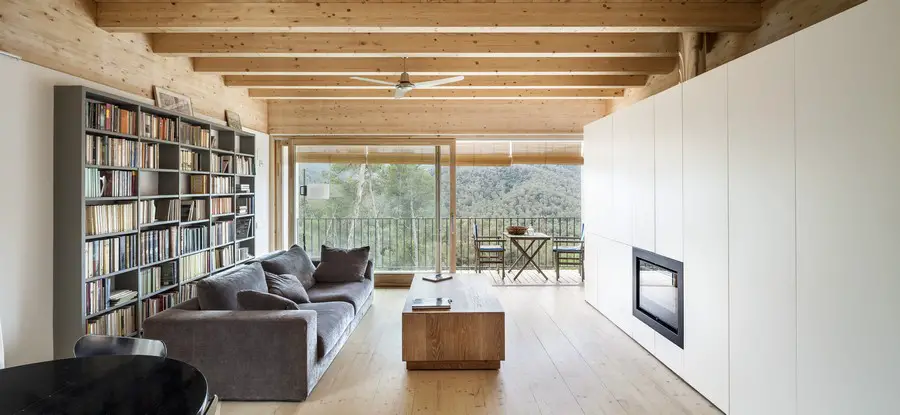

The savings on heating (and air conditioning) have been possible due to the sun protection on the windows, the wooden ventilated façade, the use of a vegetal roof which provides a big thermal resistance and landscape value; and also a design that has paid particular attention to the natural ventilation, especially important in Summer. The demand on heating has been under the limits of a passivhaus (15 Kwh/m2a), and it has been solved with just a fire place for each person. Our final need of heating has been 9 Kwh/m2a.

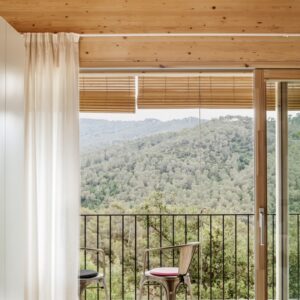

The possibility to enjoy open and transparent spaces facing the Collserola mount landscape, the integration of the building on the site, and the thermal comfort, in addition to the use of healthy and ecologic materials; are the big challenges and values of the project, and the house.
House LLP in Barcelona – Building Information
Design Team: Alventosa Morell Arquitectes (Josep Maria Alventosa, Marc Alventosa i Xavier Morell)
Construction: 08/2014 – 02/2015
Main Builder Company: Nix Profusta
Windows: Soldevila Construccions de Fusta
Carpentry: Soldevila Construccions de Fusta
Marble: Mármoles Ros
Instalations: Eric Madrenas
MetalWork: Serralleria Metcor
Concrete structure: Pedro Royo
Solars Protecction: Disperlux / Aluminis Sabadell
Painter: Fachadas Alamo
Electrical appliances: Smeg
Photography: Adrià Goula Photo
House LLP in Barcelona images / information from Alventosa Morell Arquitectes
