Hardt Hyperloop Amsterdam to Frankfurt, Dutch Architecture Images, European Transport
Hardt Hyperloop by UNStudio
Station of the Future: New Transport Route in Europe design by UNStudio Architects, NL
13 Sep 2018
Design: UNStudio, Architects
Location: Europe
Hyperloop, revolutionising public transport – From Amsterdam to Frankfurt in 53 minutes
UNStudio partners with Hardt Hyperloop and presents its vision for the Station of the Future.
Hardt Hyperloop design by UNStudio

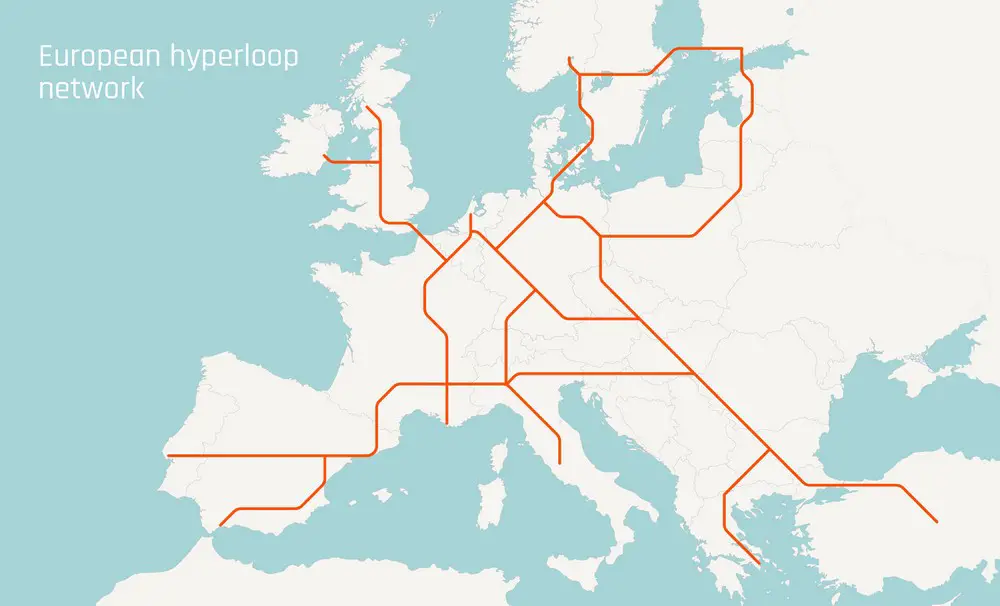

The UNStudio Futures Team (UNSFutures) yesterday presented its vision for the ‘Station of the Future’ at the first edition of HyperSummit, which took place in Utrecht, the Netherlands and was organised by Hardt Hyperloop. The first edition of the HyperSummit was focused on urgency, research and collaboration, with numerous partners speaking about their contribution to the possibilities for realising the European hyperloop.
image © Plompmozes
Special attention was also devoted to the kick-off study of the Hyperloop Implementation Programme (HIP), a study which looks at implementation questions relating to the Amsterdam-Frankfurt project.
Urgency
Global urbanisation, population growth and urgent environmental concerns create infrastructural challenges that cannot be resolved with our current modes of transport. A sustainable alternative to air travel is therefore imperative.
image © Plompmozes
Ben van Berkel, Principal Architect and Founder of UNStudio and UNSense: ‘The hyperloop is not only a realistic and viable alternative to flying, it is going to revolutionise travel. It will provide extremely fast travel times with direct connections between cities, enabling completely new ways of working and spending our leisure time, which in turn will lead to a multitude of economic, environmental and knowledge exchange benefits.’
image © Plompmozes
Lucienne Krosse, Thematic Leader Intelligent Energy Efficient Buildings and Cities, InnoEnergy: ‘The hyperloop uses clean energy and is perfect for commuters between the major European cities. With the exponential growth in air traffic and the related CO2 emissions, it is vitally important that the development of the hyperloop receives an extra boost to accelerate the actual implementation and European rollout.’

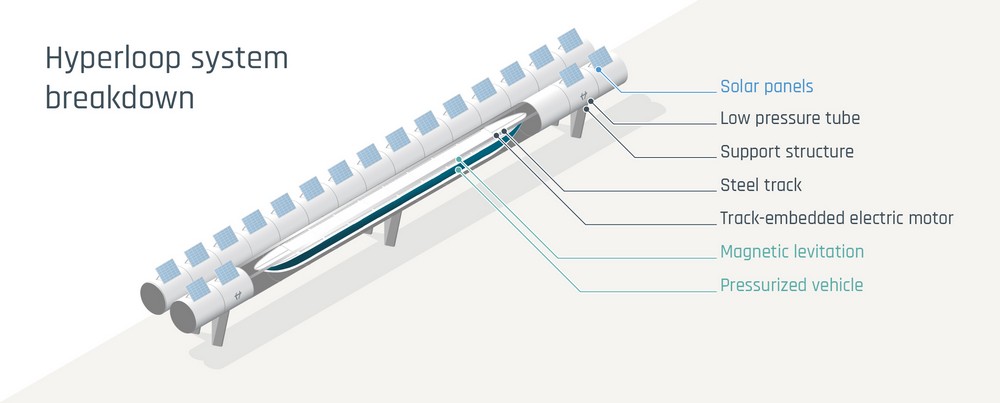

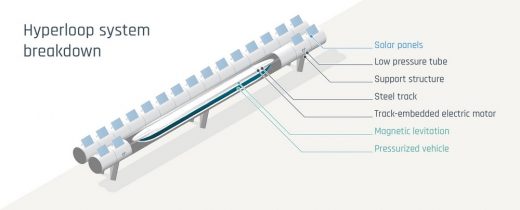

Using technology powered by solar panels, hyperloop will produce no sound or environmental emissions and can provide the necessary energy to power itself. It will be the first ever 100% electric transport system that can safely transport a high volume of passengers from city to city at unprecedented speeds and journey times.
Transfer Hubs – the Stations of the Future
UNStudio’s Futures Team was invited to join the Hardt Hyperloop Implementation Programme in order to create a vision for the urban integration of the hyperloop in cities and towns of different sizes and in different locations within these cities.

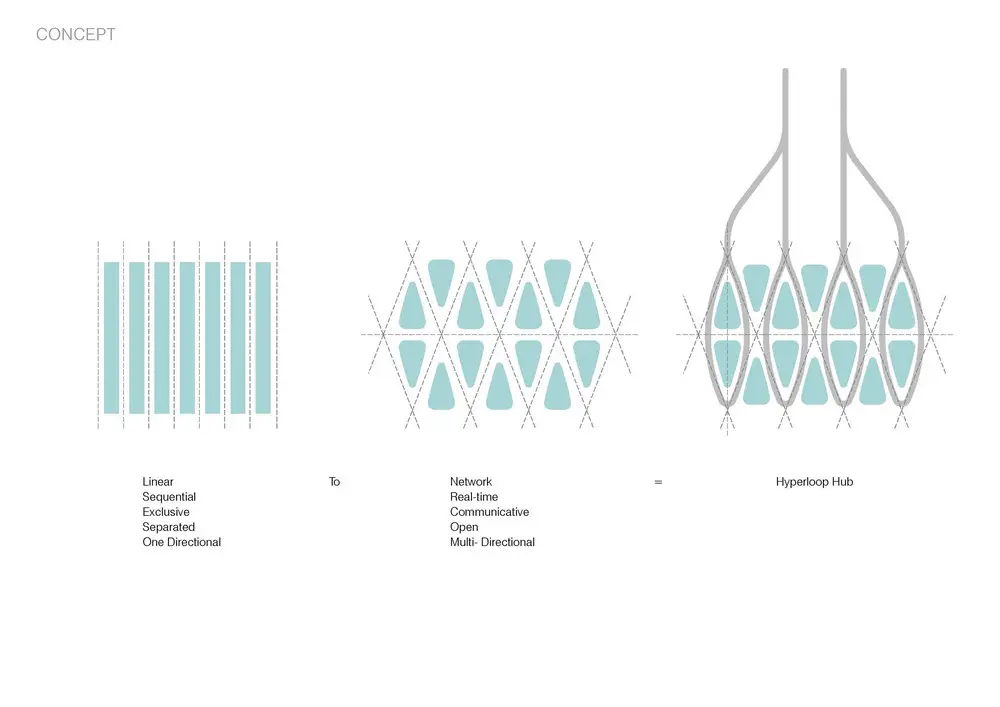

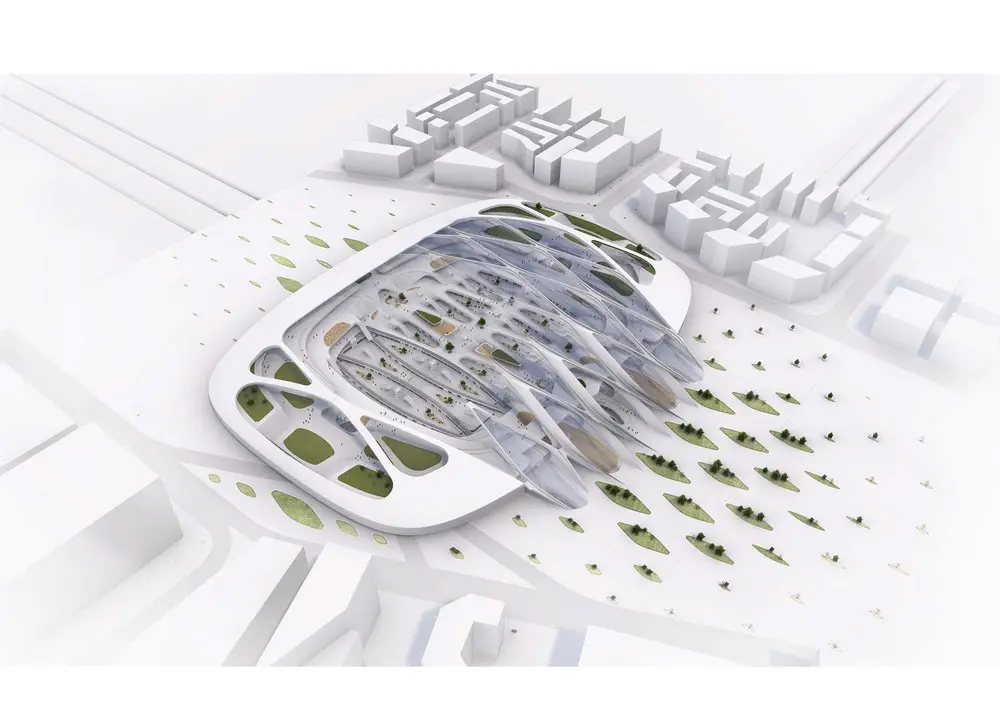

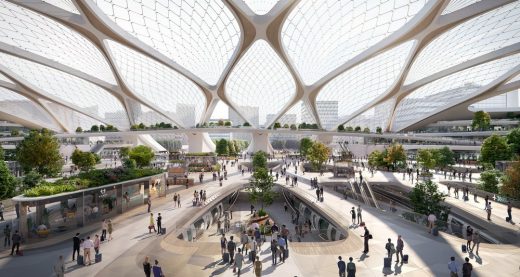

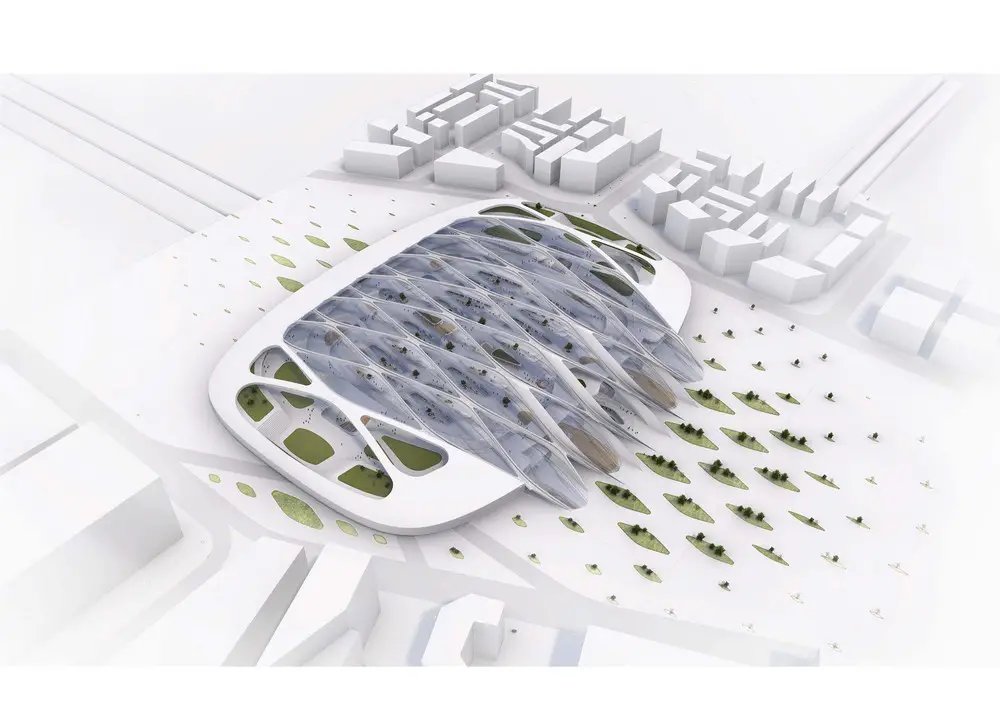

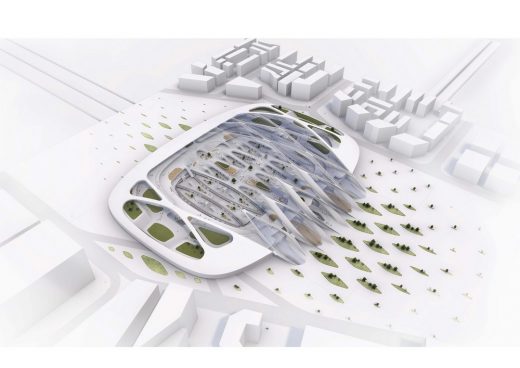

In UNStudio’s vision for the hyperloop transfer hub, which was presented at the HyperSummit yesterday, the station has been envisioned as a series of tessellating components which can adapt to a range of possible contexts: city-centre, edge of city or adjoining an existing infrastructure hub, such as an airport. Existing cities mean existing parameters, and UNStudio envisages a symbiotic relationship with its local environment: an integrated piece of an urban composition.

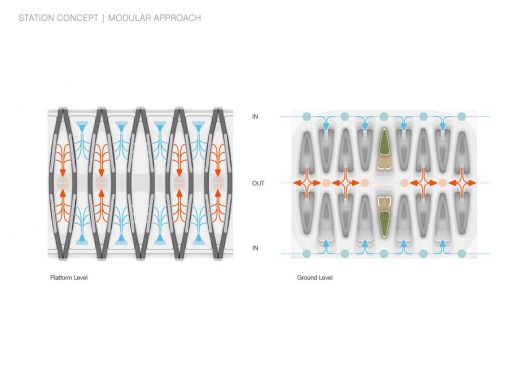

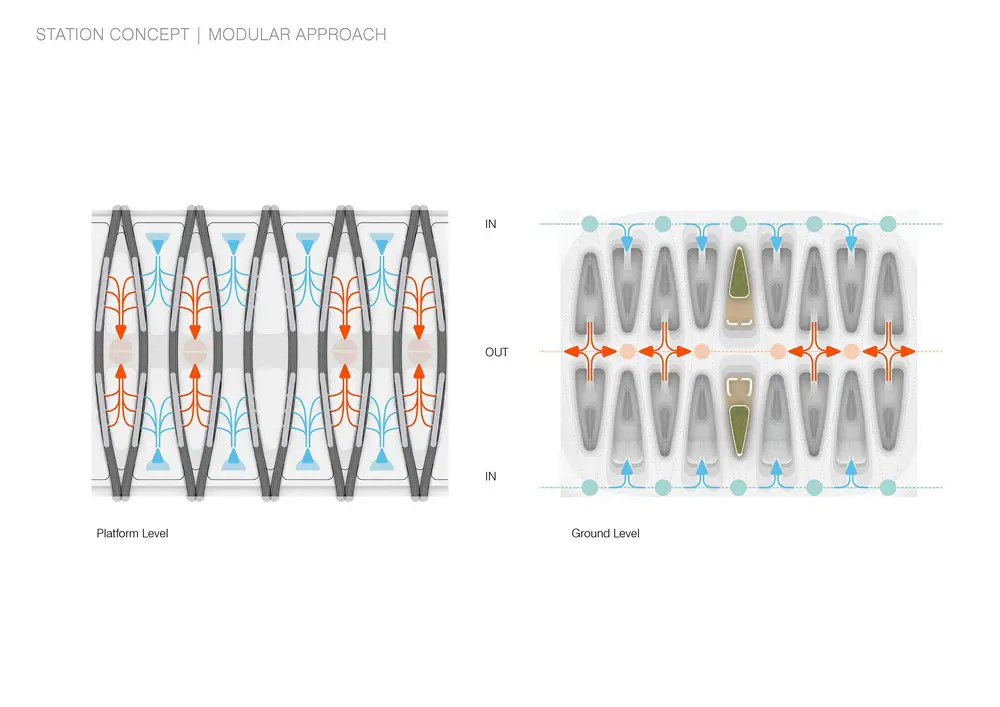

Modularity and connectivity at all scales

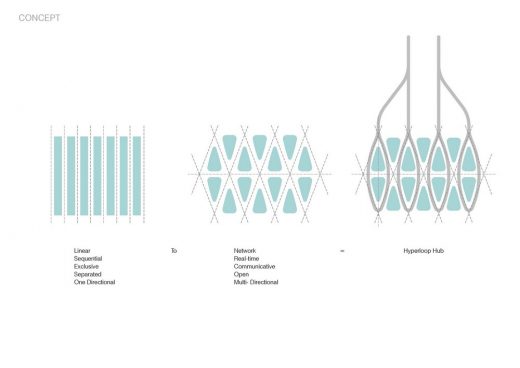

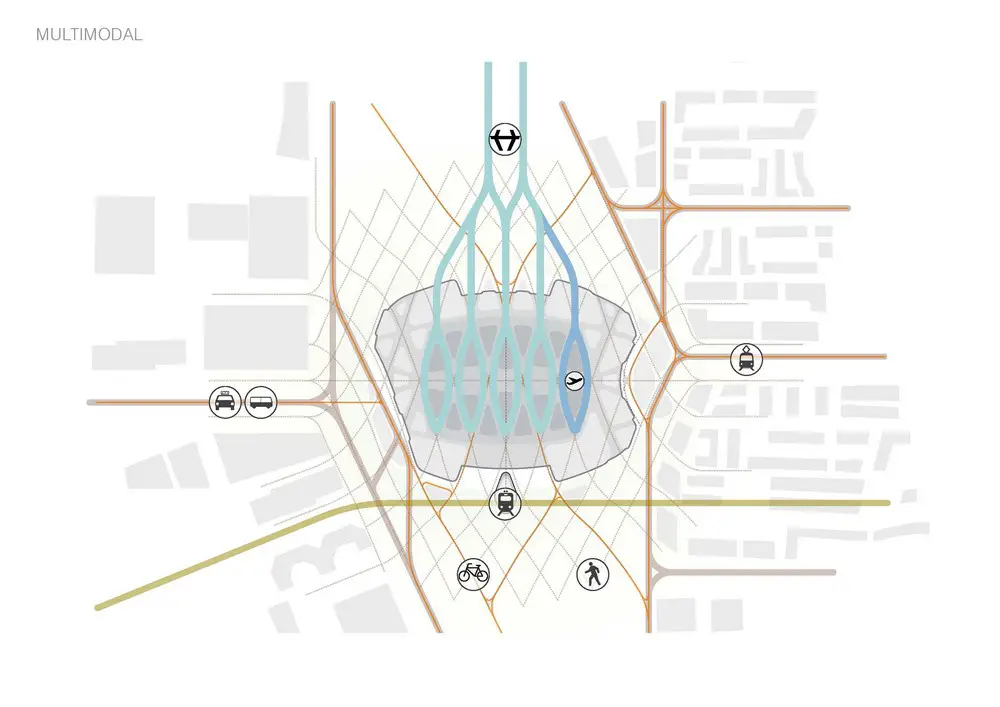

Commitment to connected modularity is at the core of the hyperloop system. It’s what makes the system scalable, adaptable and resilient; able to adapt its service in real time, according to demand throughout the day. The route itself will be modular: comprised of both a super-high-speed network and more regional networks, which will connect urban areas and important hubs (such as ports and airports) to the ultra-high-speed network.

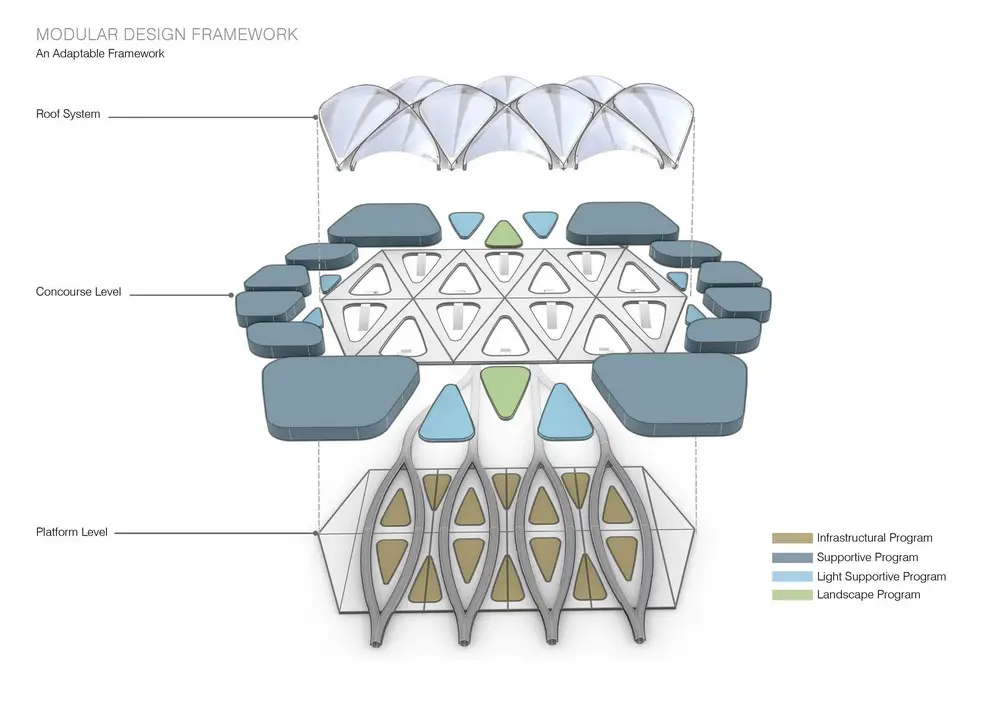

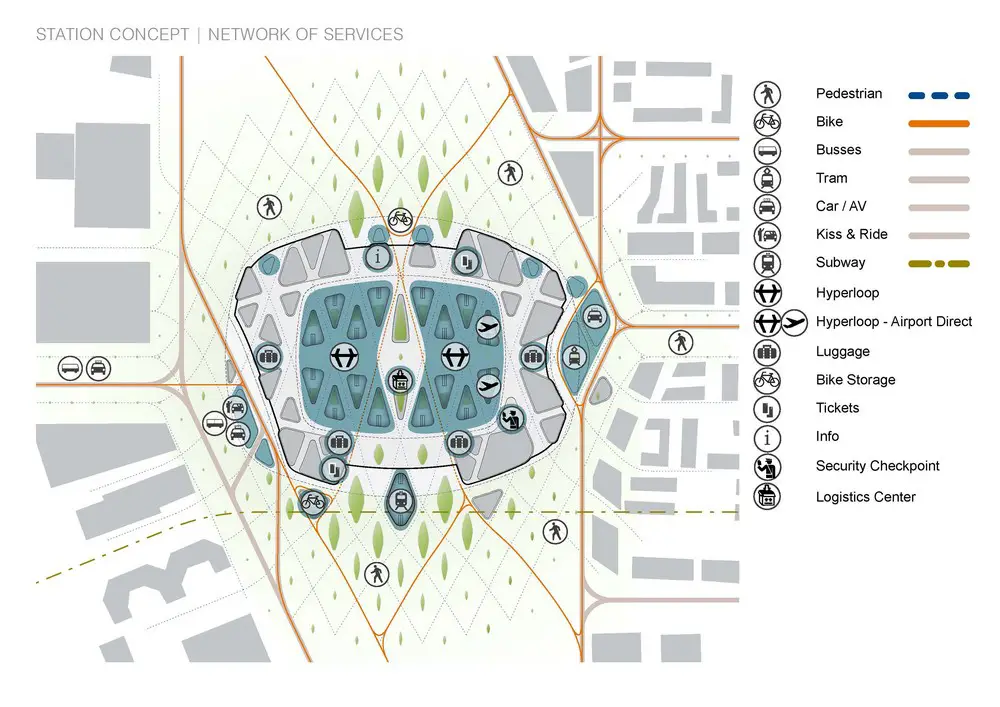

This modular thinking extends throughout the system, from tracks to vehicles and also forms the basis of UNStudio’s vision for the hyperloop stations. From platforms to functional spaces and to the roof which extends out over the transfer hubs, a modular design framework organises and connects all parts.

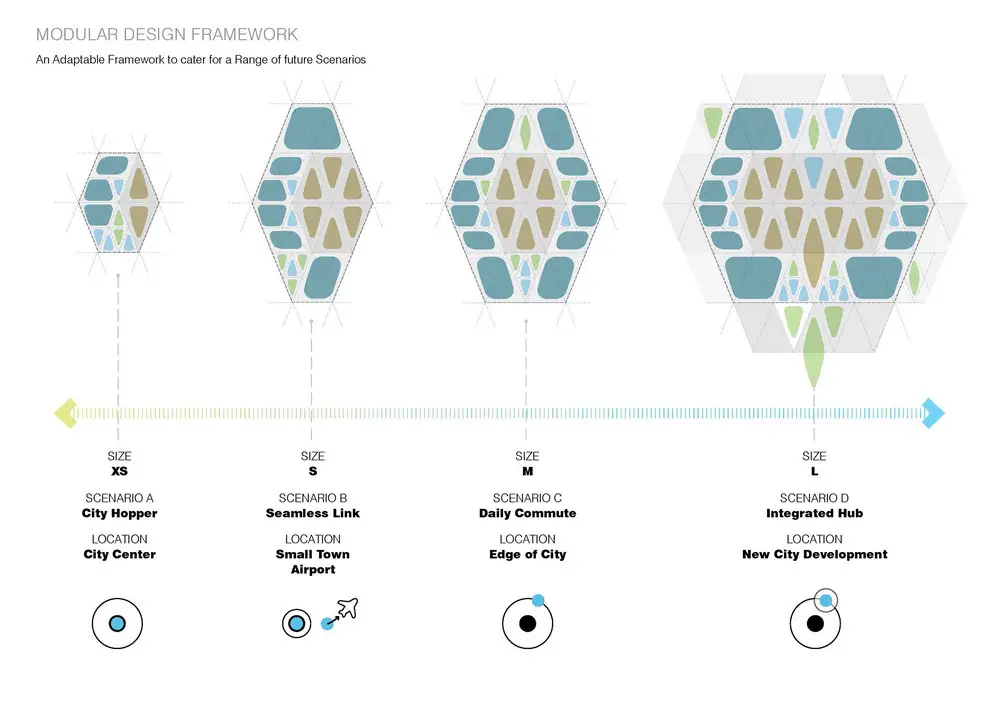

The modular system upon which the design is based enables the station to adapt to existing conditions, blending into the existing built fabric. It also allows us to integrate above and underground, growing modules up to meet a dense inner city neighbourhood, or down to blend with a more low-rise setting.

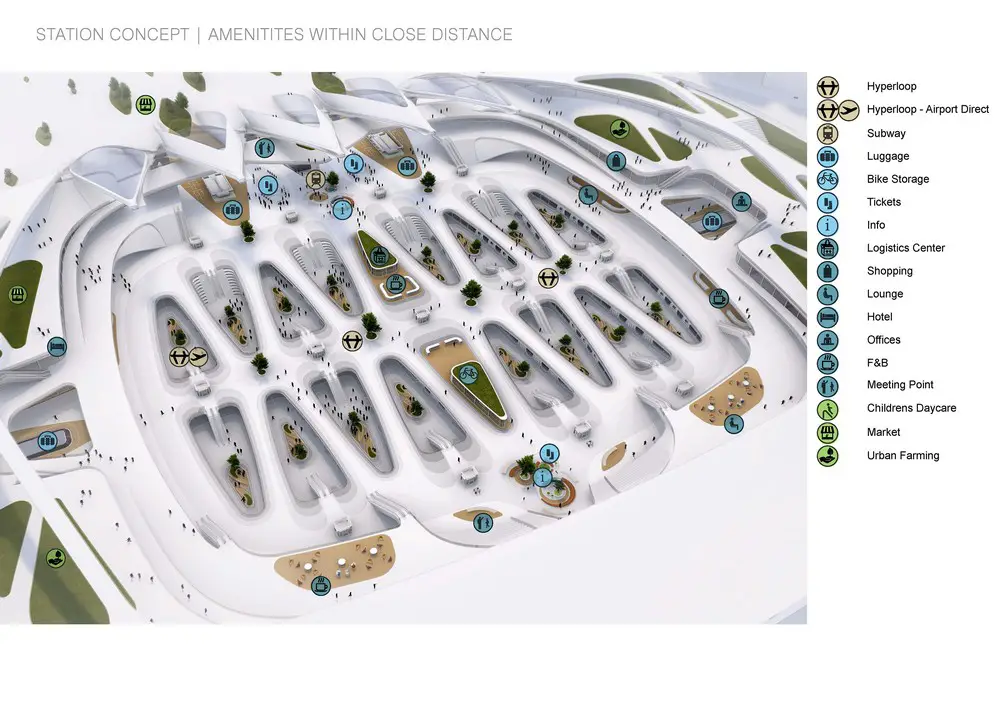

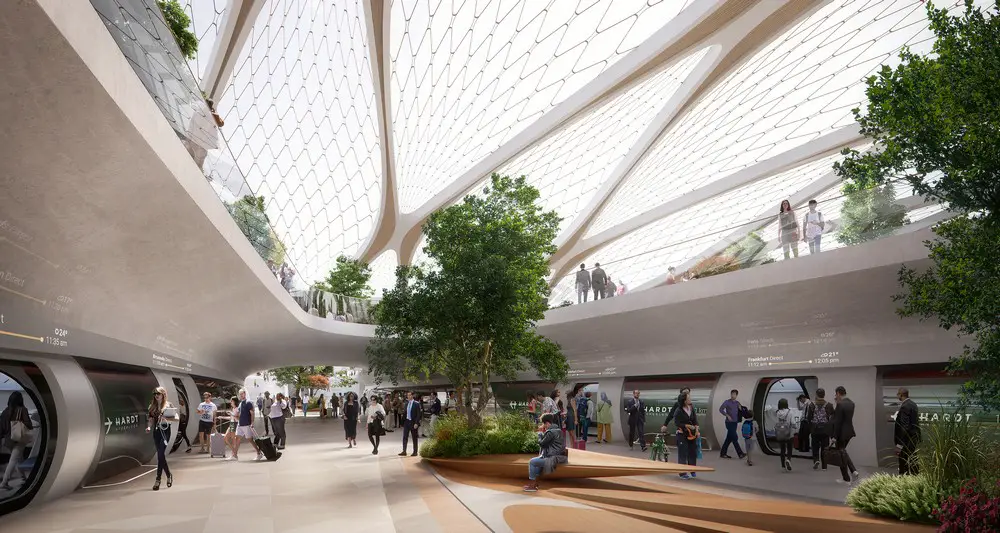

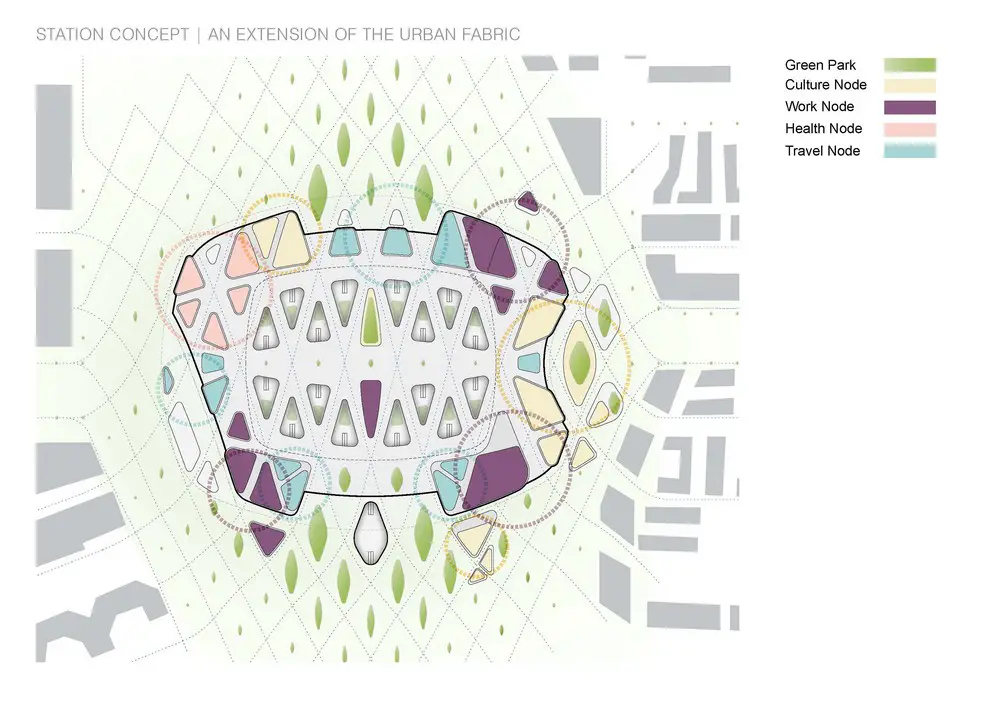

Once inside the station, the speed of the hyperloop vehicles allows platforms to be curved rather than orthogonal, bringing an inviting organic form to soften the geometry of the module. Each module can hold a different function, from the purely pragmatic luggage check-in or bicycle dock, to daycare for busy parents or small biophilic pocket parks for kids and adults alike.
In this way the modular strategy allows the functional and the activity-based elements to overlap and interrelate, creating spaces to meet, explore and play.
A station powering a region
Ben van Berkel: ‘In the very near future, buildings will function as batteries, providing energy not only for their own immediate needs, but also for surrounding public amenities and transportation modes.’

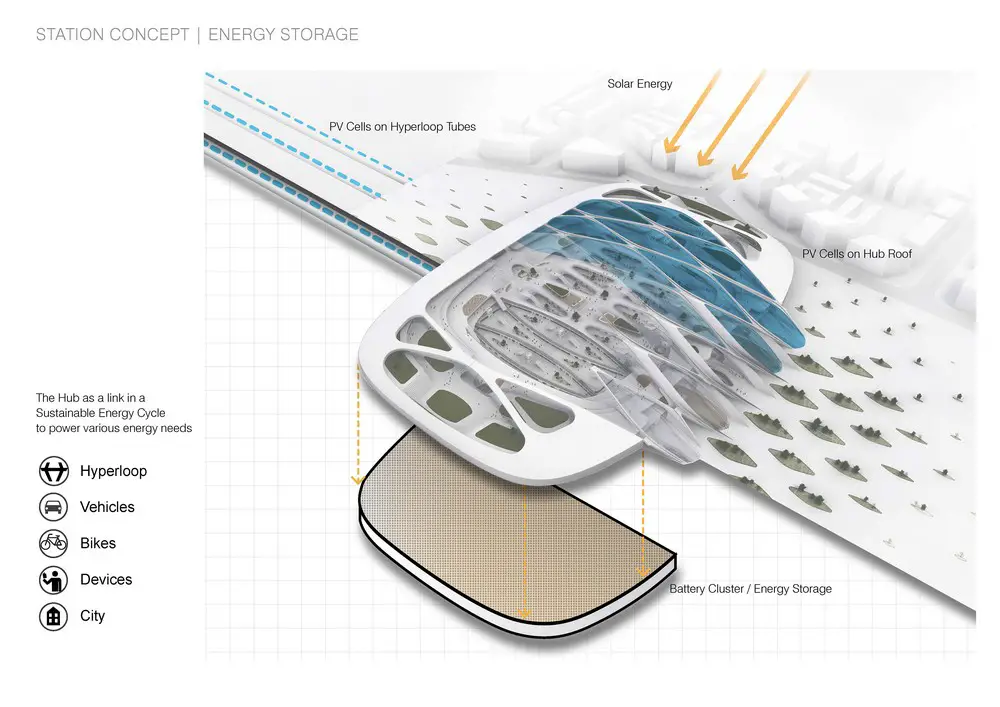

What if each hyperloop station acted as a battery for solar energy produced, not only by the station itself, but also along the network? UNStudio believes that this could bring about a shift away from dependency on centralised power plants and towards energy storage that connects to local micro-grids.
Surplus energy produced at the transfer hubs and along hyperloop’s tubes would power the autonomous vehicles, buses and bicycles which passengers can switch to in order to complete their journey. The station then becomes a battery which regulates the highs and lows of the solar-powered system, as well as regulating its internal environment through high-performance materials which respond to changing heat, light and humidity levels within.
Unlocking new functions through speed
The hyperloop offers to fulfil a dual purpose, for the fast transport of humans and goods alike, but the speed of hyperloop is what it’s all about – at speeds between 600 and 1000 km/h – it can travel at the same speed as airplanes but deliver passengers to the heart of our cities and connect them immediately to further forms of sustainable transport.
The speed of hyperloop offers to radically reimagine knowledge transfer, establishing a network of mobile learning spaces which connect up established institutions, drawing them closer toward one another. Spaces of work will also naturally coalesce around hyperloop stations, as hubs become natural meeting spaces for busy workers.
From a produce perspective, hyperloop could be the catalyst required to shift from a centralised system of industrial production to the hyper-local economies promised by digital infrastructure. By collapsing distances we can start to close the supply chain between production and consumption, using real-time feedback to ensure production matches consumer needs exactly.
Speed of delivery also means bringing super-fresh, high quality food, picked or caught the very same day, right into the city-centre, creating the base for daily markets to emerge. We can also envisage benefits in medicine – the transportation of grown organs or bio based transplants where time is a crucial factor in saving the life of someone in need.
Hyperloop Implementation Programme (HIP)
During the HyperSummit special attention was also devoted to the kick-off study of the Hyperloop Implementation Programme (HIP), a program of Hardt Hyperloop. During this kick-off study, the hyperloop company from Delft, together with leading parties, looked at implementation questions relating to the Amsterdam-Frankfurt project.
Stefan Marges, HIP Project Manager: ‘We constantly ask ourselves what impact the implementation of the hyperloop has on the environment, our social life and the economy.’

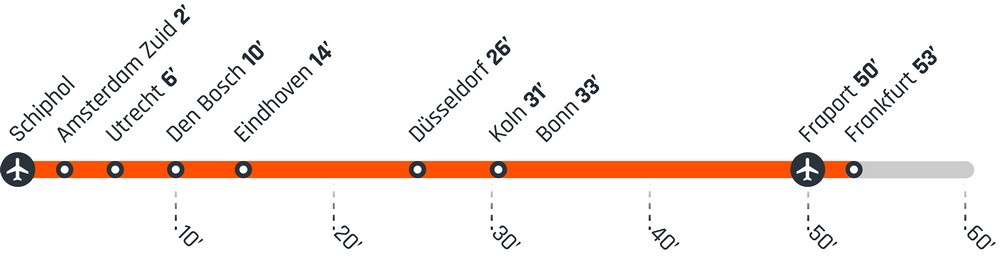

The research showed, among other things, that a route between Amsterdam and Frankfurt is 450 kilometres long, and with seven intermediate stations the journey takes about 50 minutes. This is in contrast to the four hours you lose when regular transport is used.
With this route alone, more than 4.3 million inhabitants could be served, and on an annual basis, the hyperloop could carry more than 48 million passengers. The hyperloop would offer a sustainable alternative for the approximately 2 million aircraft passengers on an annual basis, saving 83,690 tonnes of CO2 emissions per year.
About UNSFutures
The UNSFutures Team develops plausible and provocative future scenarios that help us predict how technological, social, political and economic factors will affect how users relate to the built environment. Multidisciplinary collaborations with experts in other fields foster the development of products and concepts that provide new insights into architecture, its processes, materials and organisation.
About Hardt
Hardt is a European technology company that specialises in hyperloop. Hardt believes it is our duty to improve the lives of current and future generations by creating technologies that challenge time and distance and remove physical boundaries. They envision a world where you can go and be with everyone and everything you care about. A world where distance does not matter.
To make this possible, Hardt is developing smart, convenient and sustainable transportation through the hyperloop, which is supported by many international public and private organisations.
UNStudio team: Ben van Berkel with Ren Yee, Arjan Dingste and Alice Haugh, Jan Sobotka
Advisors: Labscape
Visuals: Plompmozes
Hardt Hyperloop by UNStudio images / information received 130918
Location: Amsterdam, The Netherlands
Amsterdam Building News
Major New Dutch Buildings
Amsterdam Architectural Designs : links
Architecture Tours Amsterdam by e-architect
Amsterdam Architecture – contemporary building information
Amsterdam Buildings – historic building information
Hyperloop Designs

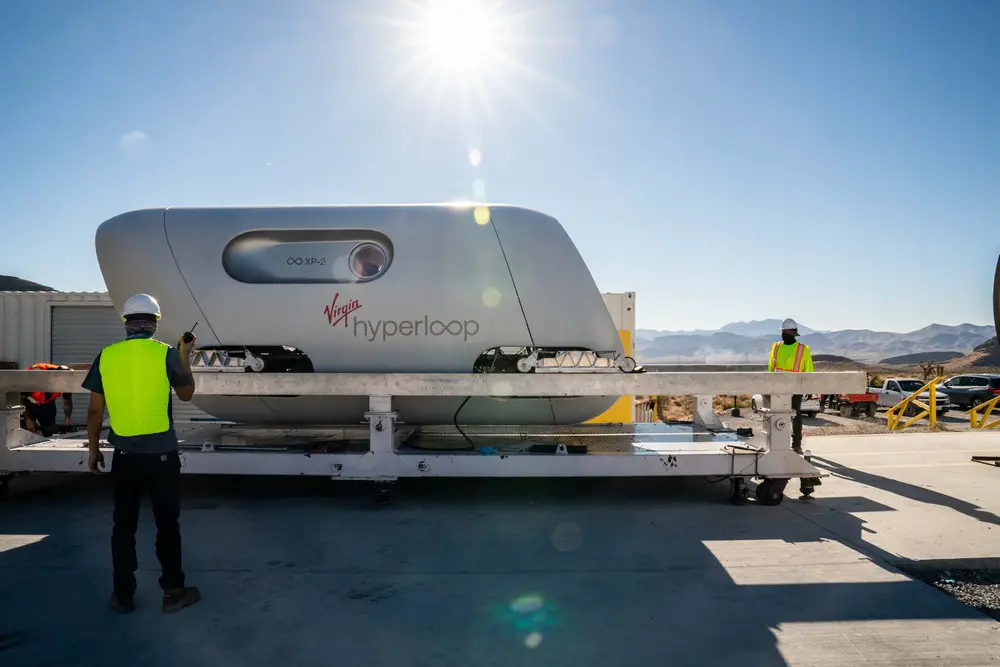

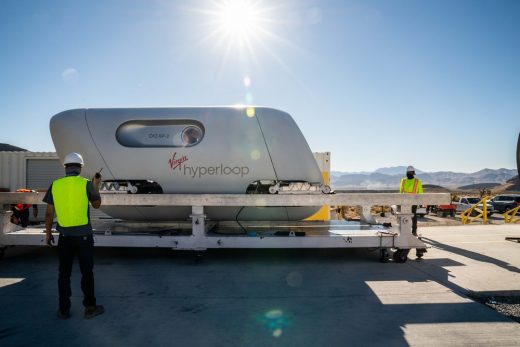

Virgin Hyperloop Pegasus Pod – tested in Las Vegas, Nevada, USA
