Maggie’s Cardiff Building Photos, Welsh Healthcare Architecture Project, Dow Jones Architects
Maggie’s Cardiff Building Award
14 Sep 2021
Maggie’s Cardiff
Design: Dow Jones Architects
photo © Anthony Coleman
Maggie’s Cardiff
Jury Report
Maggie’s Cardiff is the 19th completed Maggie’s Centre and adds to the pantheon of architects that have made these buildings a vital part of the contemporary British architectural scene.
The Velindre cancer care centre in the north-west suburb of Cardiff is the usual depressing hospital landscape, surrounded by a sea of parking. But of course, the inhospitable medical setting was the very reason that the late Maggie Keswick Jencks set out to counter in providing a place where those having to face the diagnosis of cancer can find an oasis of hope and support. ‘If you look after the carers, the carers can really look after the patients – you create a virtuous circle’, said Charles Jencks.
photo © Anthony Coleman

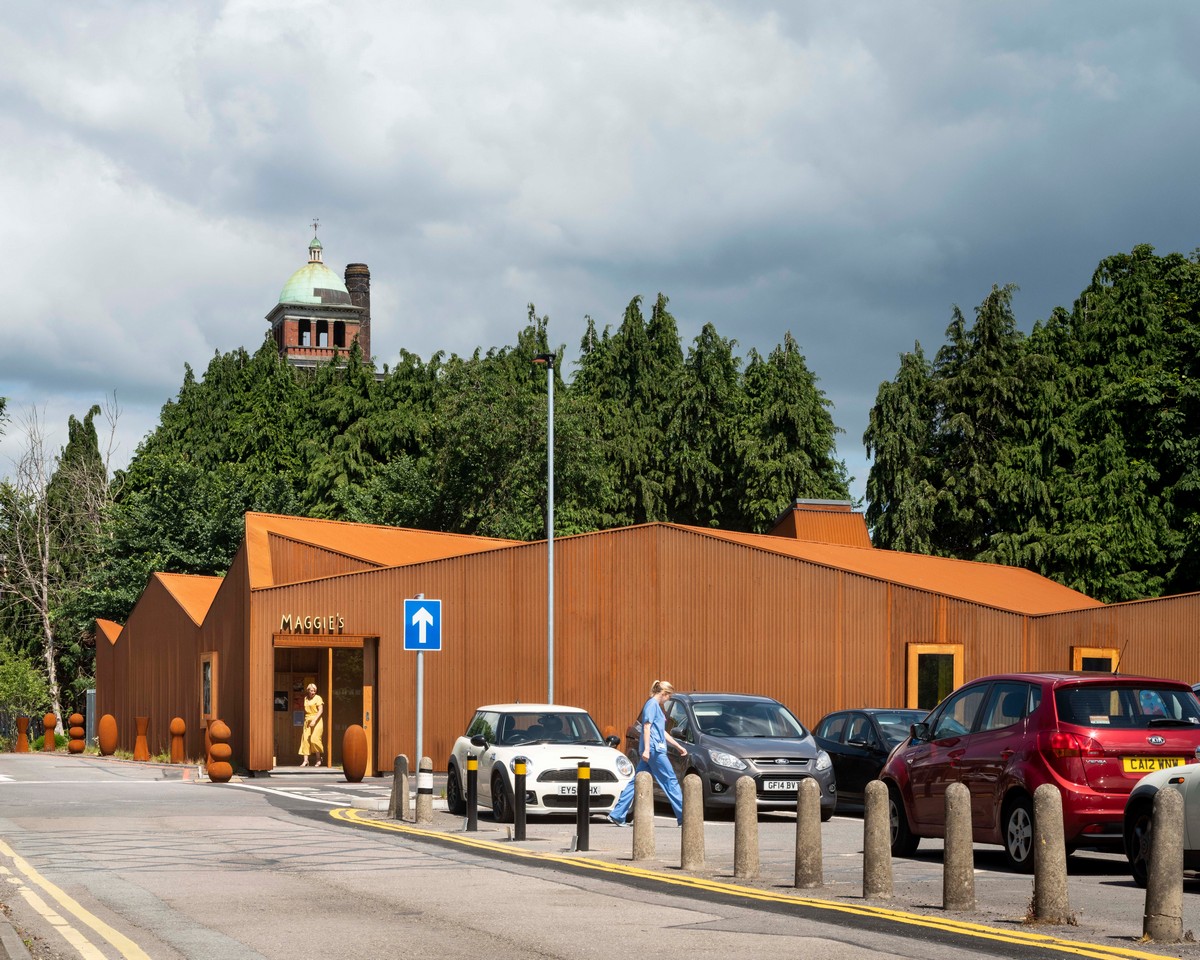

This building occupies an awkward triangular plot at the back of a car park. On first sight it is at once striking and surprisingly diminutive – but with its orange carapace formed of rusty corrugated sheeting, it stands out from the bleak surroundings. The architects talk about the form reflecting the silhouette of the Welsh hills and the repetitive gables of Valley towns, and the colour referencing the region’s red sandstone or the autumnal colour of bracken on the nearby hills, or the industrial buildings of the Valleys – the vibrant colour zings off the evergreen tree canopy that sits behind the building, offering a perfect backdrop in a sea of drabness.
The building adopts the roughly triangular site, leaving a strip of space to the rear and the trees so the resultant plan form is then given order by a serrated 45 degree pitched roofs that runs perpendicular to the rear wall. When the roof pitches meet the angled perimeter walls, the gable profile is formed by the meeting of the geometries to great effect.
The entrance sits on the southern corner of the plot and offers an open portal. Once within, a small courtyard embraces the visitor, and an immediate transition occurs from the institutional to the domestic – from the hostile to the familiar.
photo © Anthony Coleman

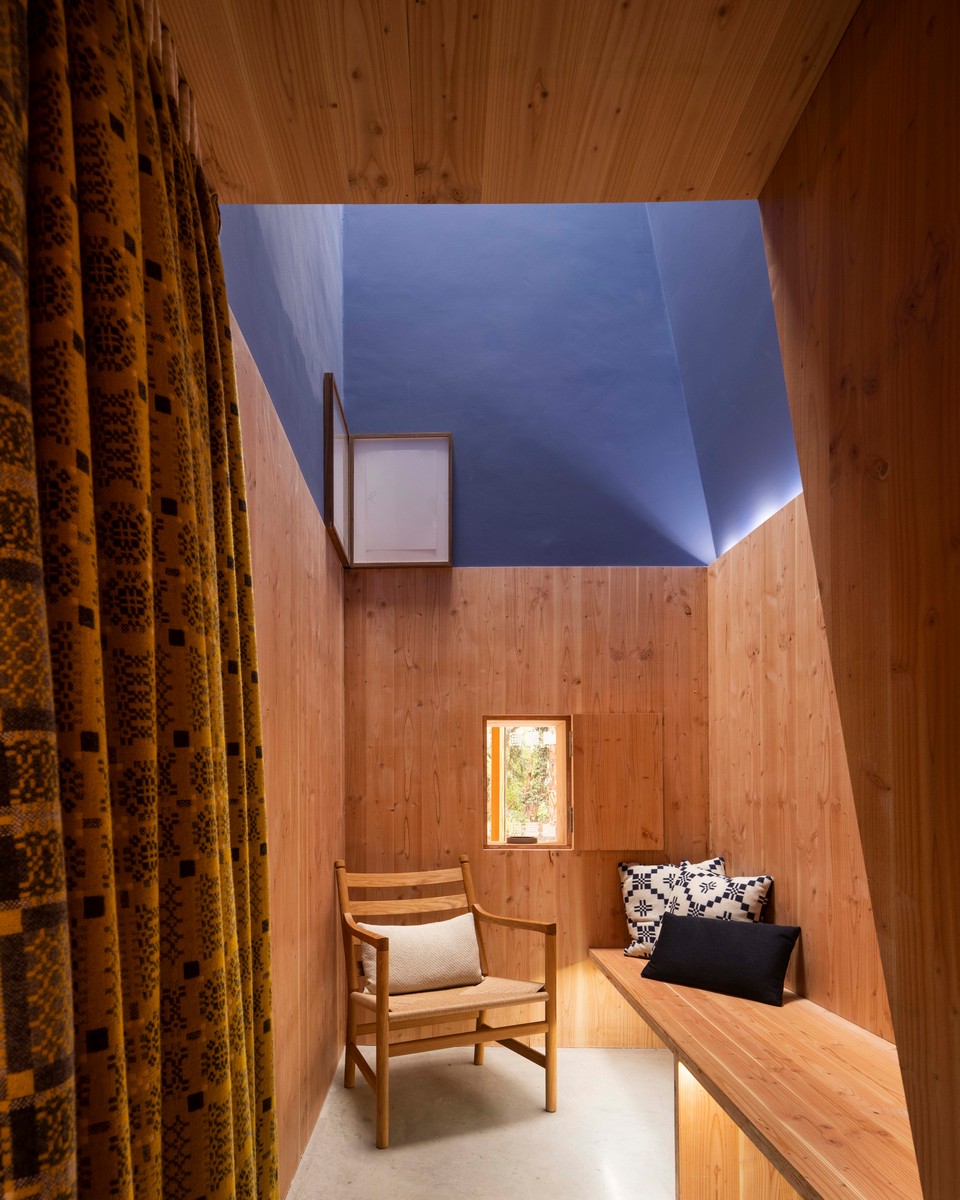

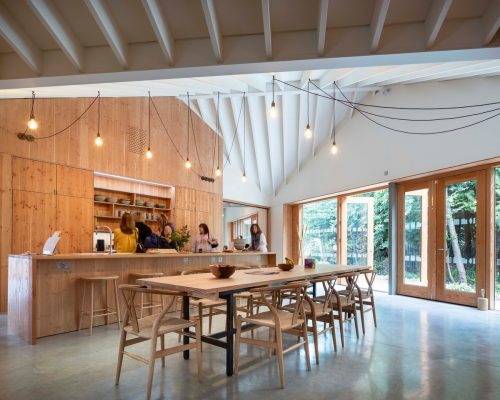

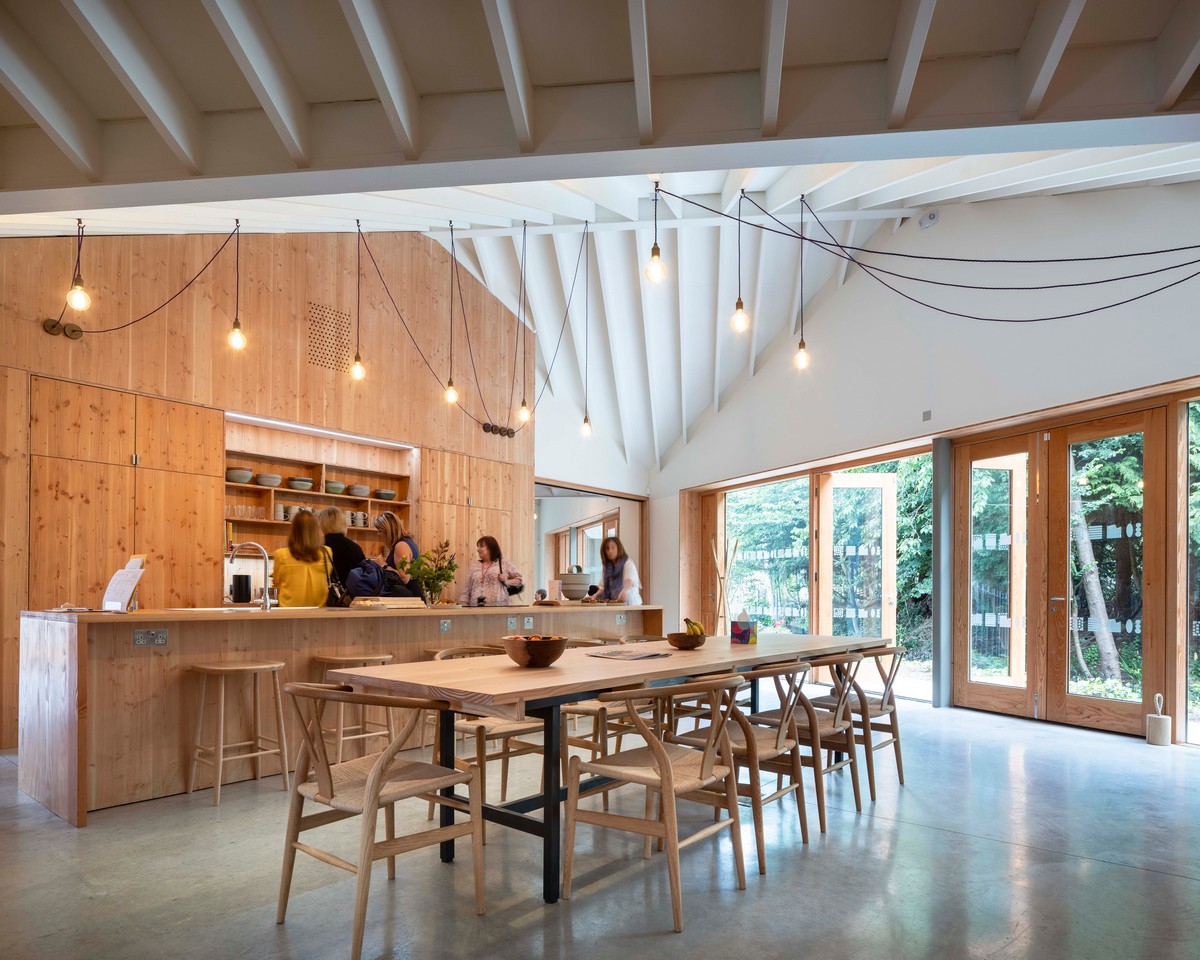

The mostly open plan is given order by three ‘freestanding’ timber elements; one containing toilets; another acting as a storage unit of the reception; and a third at the heart of the building is a ‘cwtch’ – a tall, intimate space lit from above inspired by the big chimneys of the Welsh vernacular. These elements sub-divide the space and takes you directly to the central kitchen and dining area common to all Maggie’s centres, offering a recognisable and safe place where we all know how to behave – making a cup of tea or perching on a chair for a chat.
Above the exposed raftered roofs play out their geometry and seem like waves washing over the plan. Apart from the three timber elements which are strictly orthogonal, no other space has square walls as the angular geometry of the plan prevail, so the sense of informality is further enhanced.
The back of the building opens up with two very wide glazed screens to the wall of trees and the polished concrete flooring slides out through glazed doors to provide seating space.
The architects also infuse the building with art – including bollards originally from a scheme in Peckham by Antony Gormley that were recast and stand as rusty sentinels, guarding the public sides of the building.
photo © Anthony Coleman
Hospital authority constraints did not allow PVs and a gas boiler was used for primary heating, but the building compensates by using a highly insulted pre-fabricated timber frame system that follows Passivhaus principles, minimising cold bridging, maximising air tightness and exceeding thermal Building Regulations standards.
The building is about 25% smaller than most Maggie’s and less than half of the average cost – it seems that due to complex NHS land deals, a new Maggie’s will be built on the adjoining hospital site in the 2030s, so this beautiful little building will have to be repurposed – it would be perfect as a kindergarten.
Infused with ideas of Welsh vernacular, art, and a deep concern for materiality, it creates truly restorative and poetic spaces as an antidote to the shadow of cancer.
This is a distinguished addition to the Maggie’s legacy. Through the architect’s skills, it benefits from the much-reduced budget and tight site.
photo © Anthony Coleman
Maggie’s Cardiff, Wales – Building Information
RIBA region: Wales
Architect practice: Dow Jones Architects
Date of completion: June 2019
Client company name: Maggie’s Cancer Care
Project city/town: Cardiff
Internal area: 240.00 m²
Contractor company name: Knox and Wells
Consultants:
Structural Engineers: Momentum
Environmental / M&E Engineers: Mott MacDonald
Quantity Surveyor / Cost Consultant: RPA Cardiff
Project Management: Maggie’s
Landscape Design: Cleve West
Art Curation: Mike Tooby
Awards:
• RIBA Regional Award
• RIBA National Award
• Stephen Lawrence Prize 2021 Shortlist
Stephen Lawrence Prize 2021 Shortlist
Maggie’s Cardiff Building, Wales, images / information received from RIBA 140921
Location: Cardiff, South Wales, UK
