Sardinera House in Alicante, Mediterranean Property, Jávea Home, Spanish Seaview Residence

Sardinera House in Alicante

Contemporary Residence in Jávea, southern Spain design by Ramon Esteve architect

updated 9 Aug 2016 ; 12 May 2015

Sardinera House in Jávea, Alicante

Alicante Waterfront Property

Design: Ramon Esteve, architects

Location: Jávea, Alicante, Spain

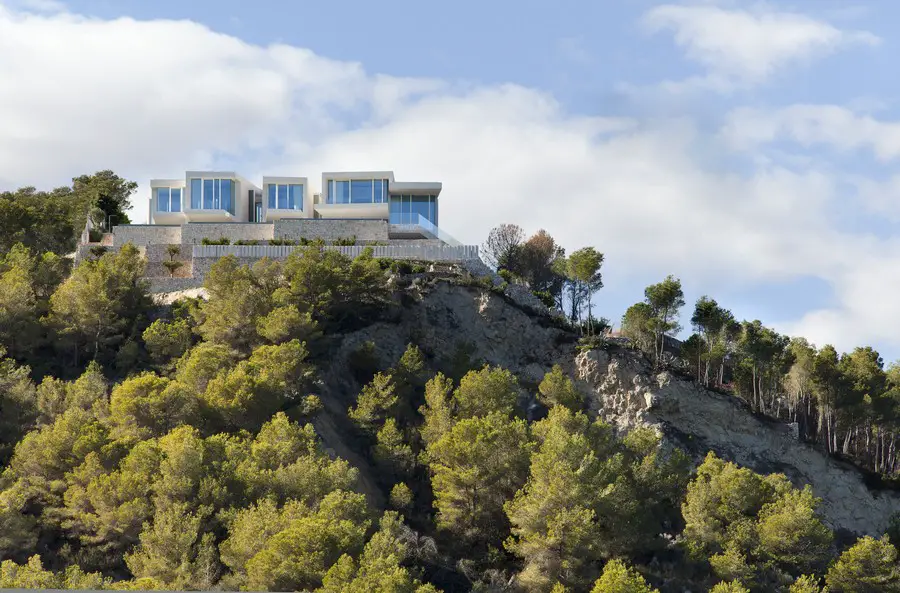

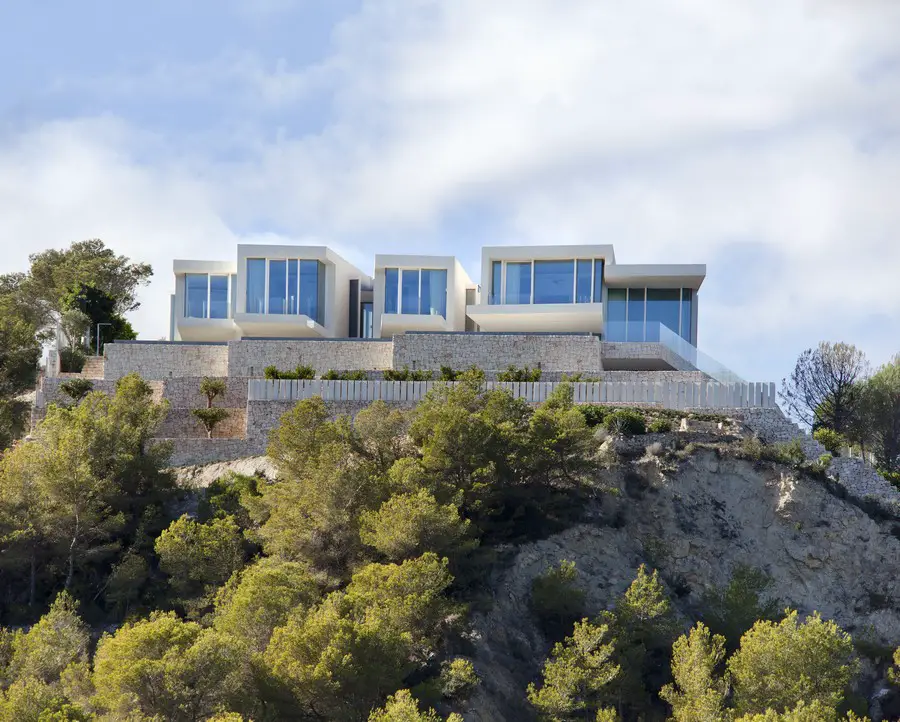

Located in a setting of great beauty and valuable landscape, in front of the Mediterranean Sea, between El Portixol and Cala Blanca, the Sardinera House lays on the top of a hillside, lined by a headland entering the sea on a bay of turquoise waters.

Sardinera House

Unique Location
“The original idea for the design was based on enjoying and enhancing the panoramic views of the setting, by creating a relaxing contemplative environment that allows enjoying the experience provided by the place.”

Massiveness & Lightness

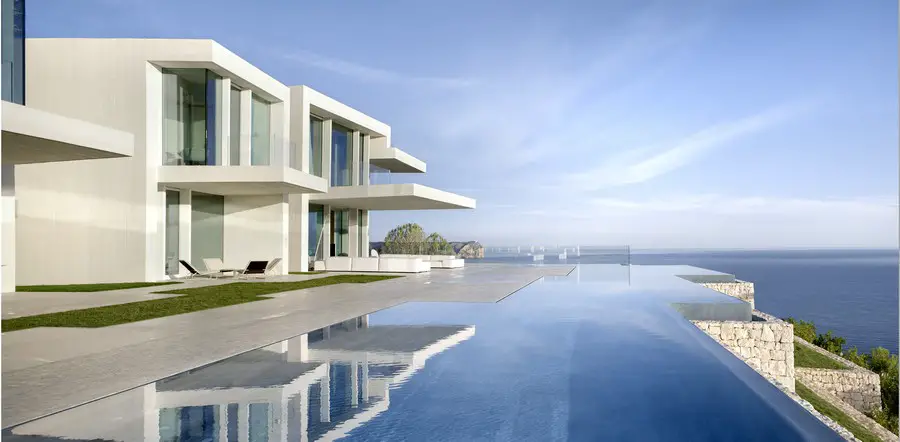

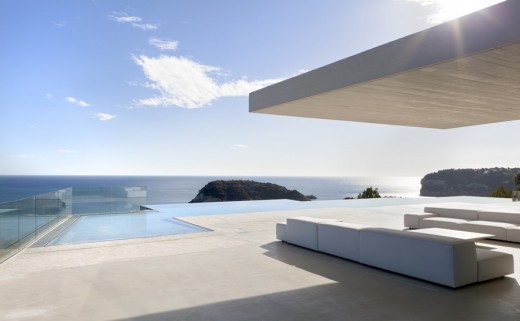

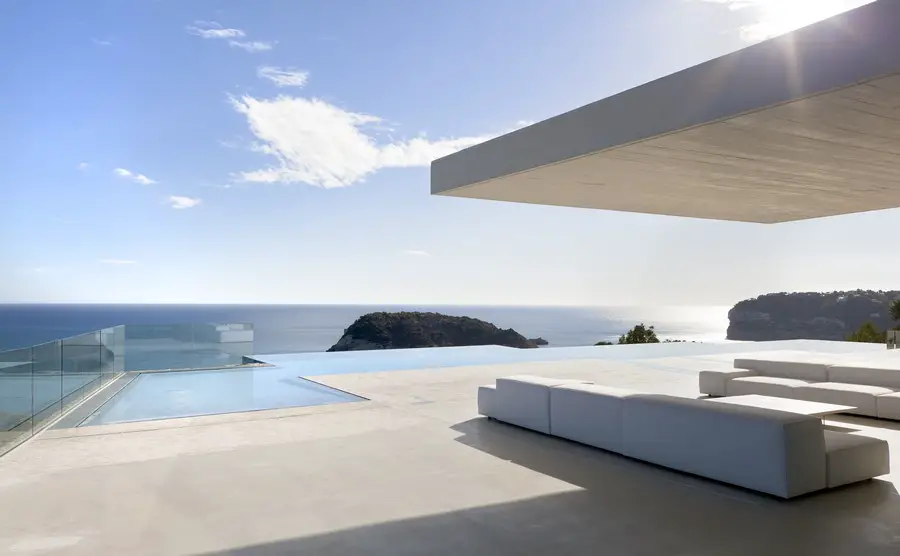

A set of concrete walls exhibited facing different directions, compressing and expanding the views and generating several images. The vertical surfaces are limited horizontally by long cantilevers that extend towards the sea, thus creating verandas that enclose the large terrace. Because of their constructive system, these cantilever don’t lean on the walls, but fit in between them, thus increasing the visual tension and generating paradoxical sensations of massiveness and weightlessness. “The views outwards are framed between the architectural surfaces and the pool surface, outlined on the horizon.”

Sardinera House

Two Sides-One House

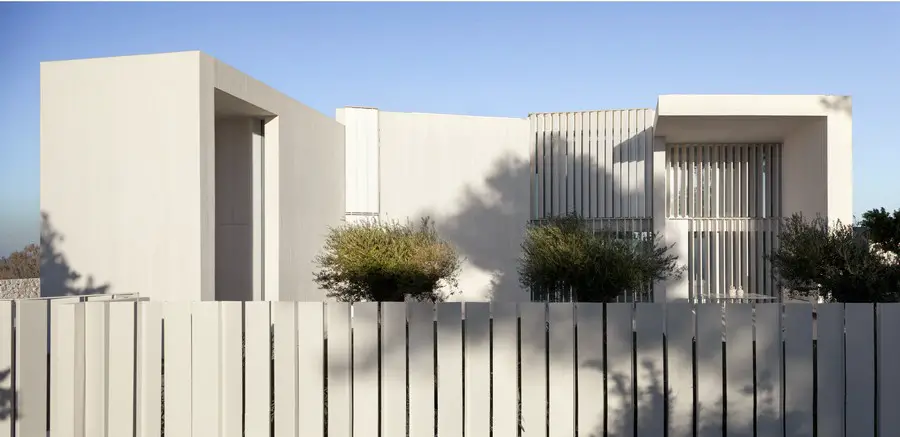

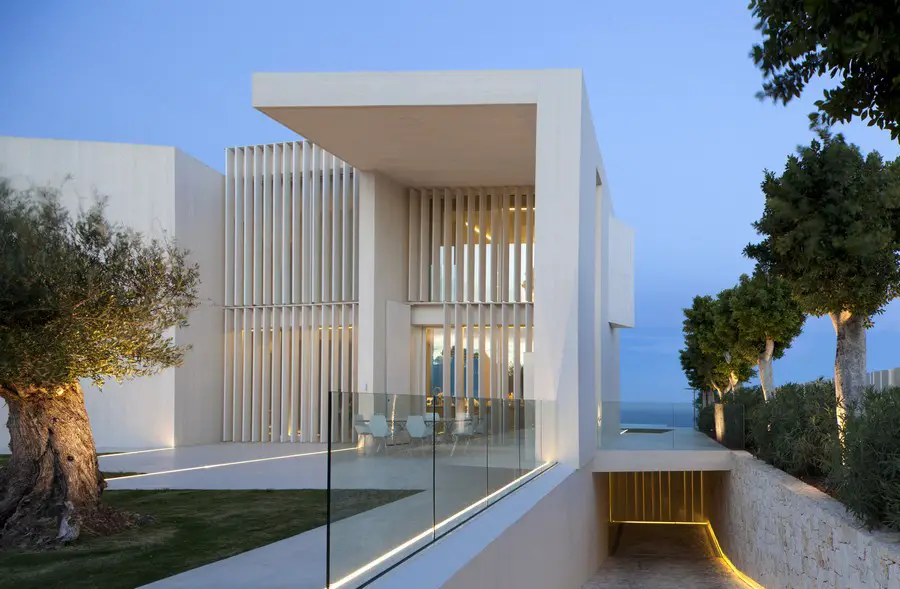

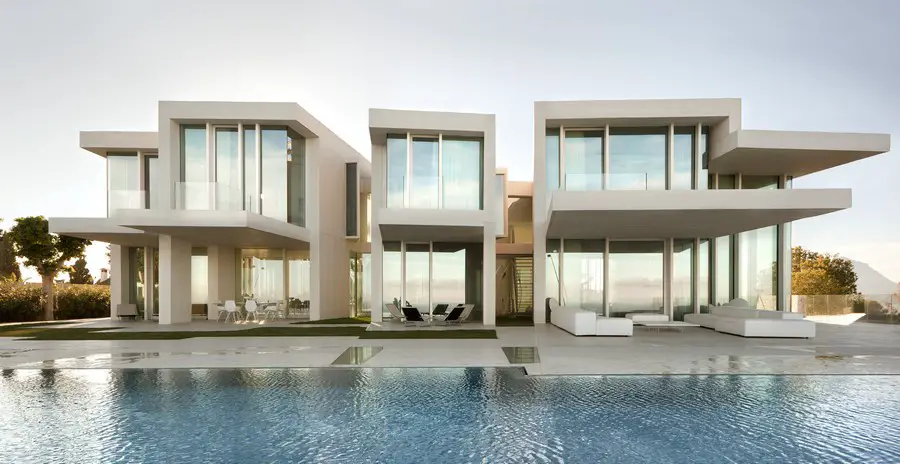

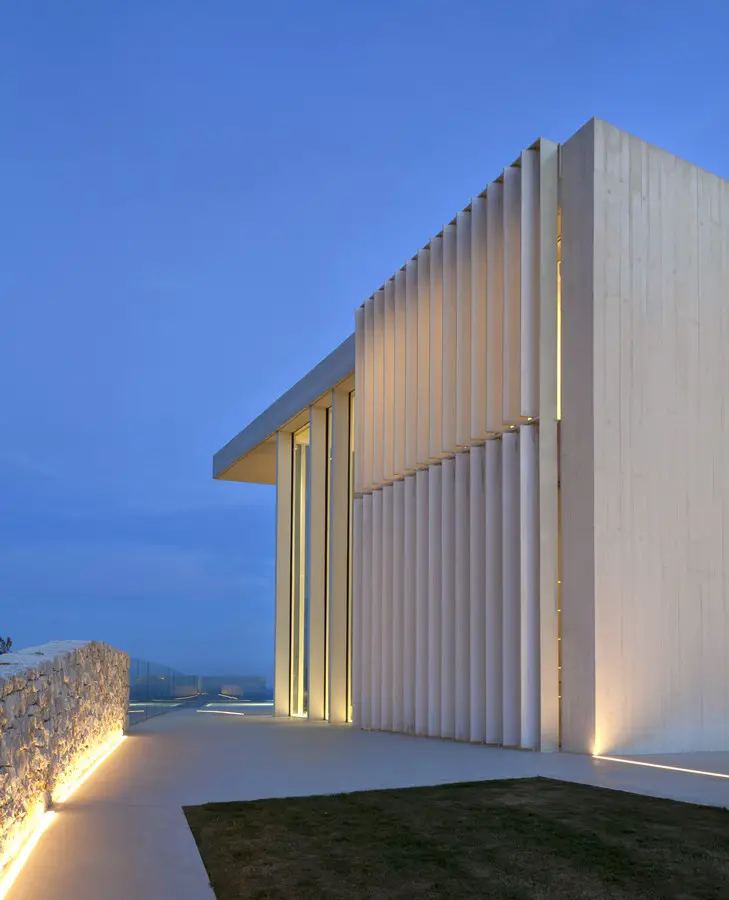

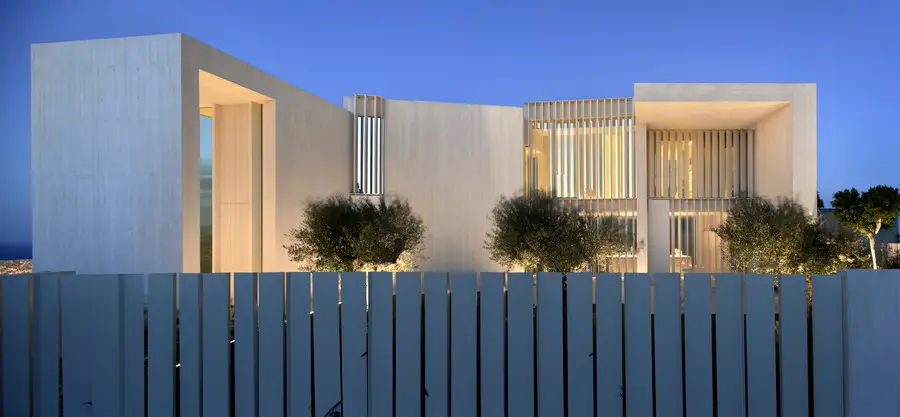

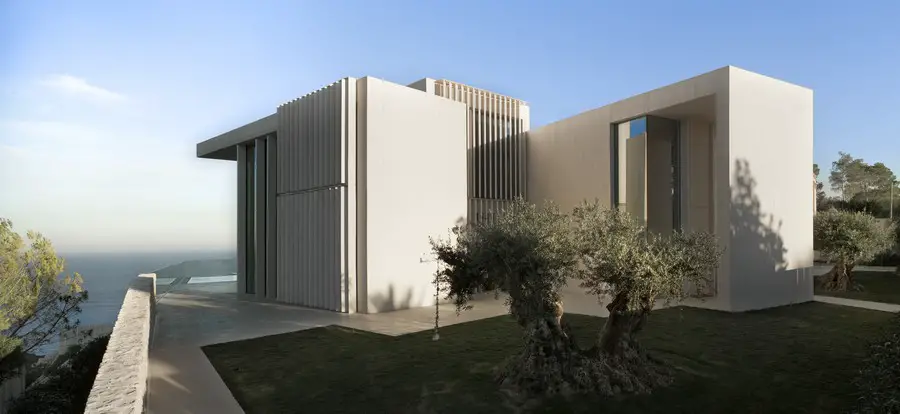

The longitudinal façades of the house are opposite. The entrance façade, hermetical and opaque, is protected by an automatic system of adjustable shutters made of whitened Accoya wood. It protects the façade from the sun exposition and, at the same time, limits the viewing from the street. On the contrary, the East façade is much more permeable and transparent. The concrete vertical surfaces are sealed with large glass panes, protected by cantilevers and twisting curtains that bring an ethereal Mediterranean atmosphere.

Tectonic Character
“The house has a strong tectonic character because of its expressive materials. The texture of the white concrete poured into the white timber have achieved such a resemblance that they sometimes seem the same, as it becomes apparent in the lateral windows.”

Sardinera House

The White Element

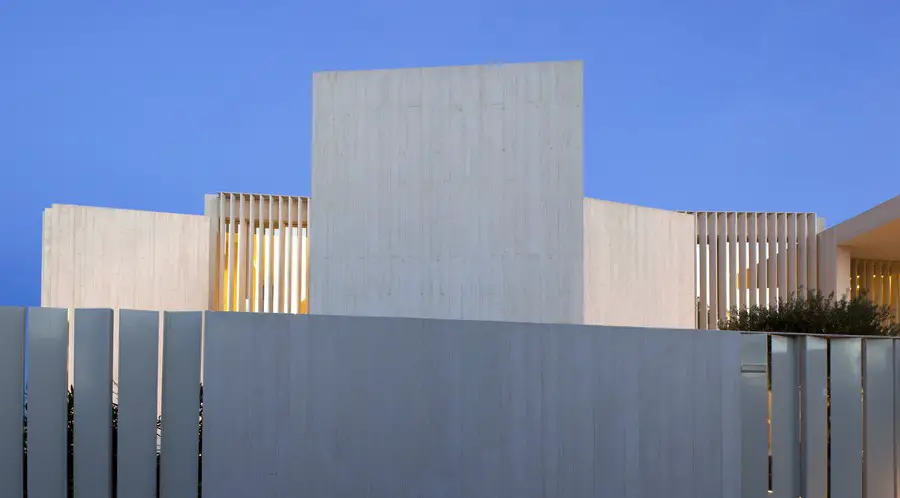

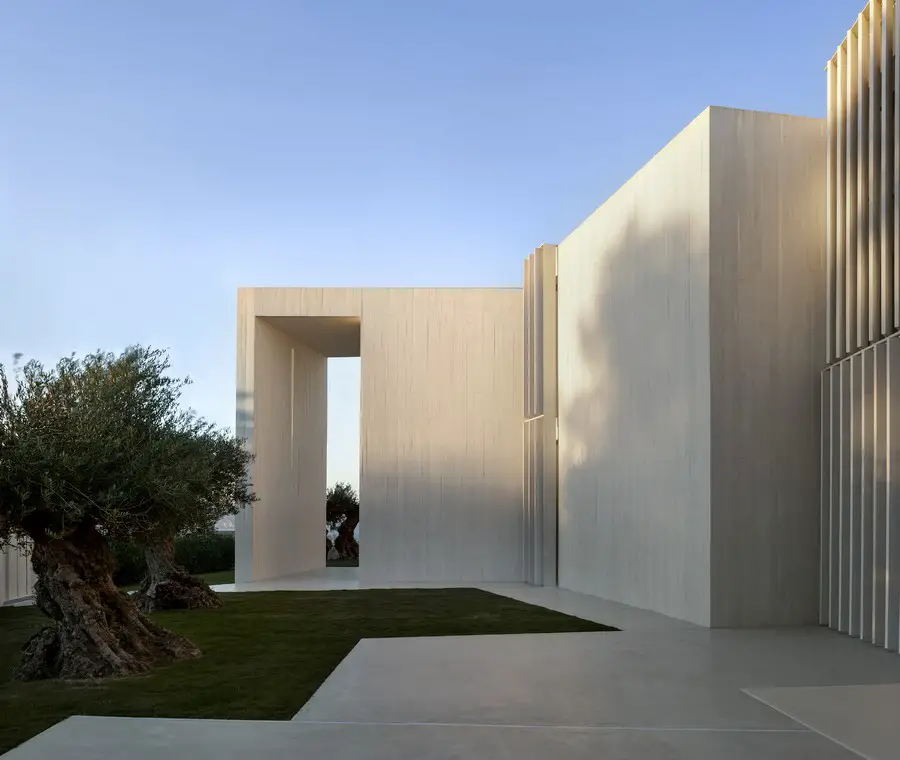

The texture produced by the print of the timber formwork is noticeable on the concrete surface, thus establishing a common language with the white-shaded timber used in blinds, ceilings, party walls and furniture. A white hue covers all the element, which are different just because of its material, generating subtle changes of texture. The local stone masonry walls build a base for the white concrete volumes to stand on and also link the building to the landscape.

Sardinera House

Visible Process
“The house reflects the construction process. All structural parts are made of exposed concrete, while the enclosure is made of timber and glass.”

Level With a Sea Front
There is an access through a double-height volume with side walls aiming the view at the sea and offering the visitor a first contact with the horizon. The day rooms are on the ground floor, as part of a fluid set articulated by the white concrete walls. Some vegetation is introduced in the in-between spaces, bringing the garden into the house. Each room opens towards the horizon through its own veranda.

Sardinera House

Framing The View
The living room takes on a role and a unique dimension, a corner of glass of six meters in height frame the best views of the sea. Throughout the whole house are generated multiple spaces from which to contemplate it, so much as from each one of their inner rooms all the way to the exterior spaces. “The living room has a main role and a singular feature, a glass corner framing the best views of the sea”

Sardinera House

Opening The Corners
Each volume on the first floor hosts a bedroom. Instead of allowing frontal views framed by the walls, the glass corners offer much more interesting panoramic views. Each room has a small glass balcony, similar to a bay window, set back of the boundary of the cantilever, to enhance the visual importance of the horizontal surfaces.

Sardinera House

A Functional Sculpture
“The staircase has been developed as a sculptural element. The sea is visible through its translucent glass steps. This transparency also allows the natural light to reach the basement. At night, the steps light up as a lamp. The banister is a sloping surface that follows the same idea than the architectural walls.

Sardinera House

The Water Connection

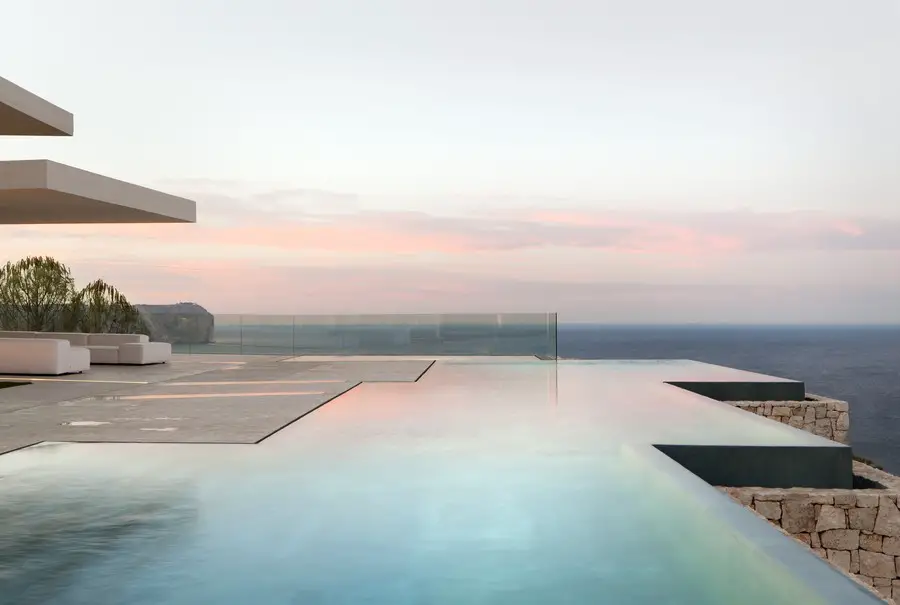

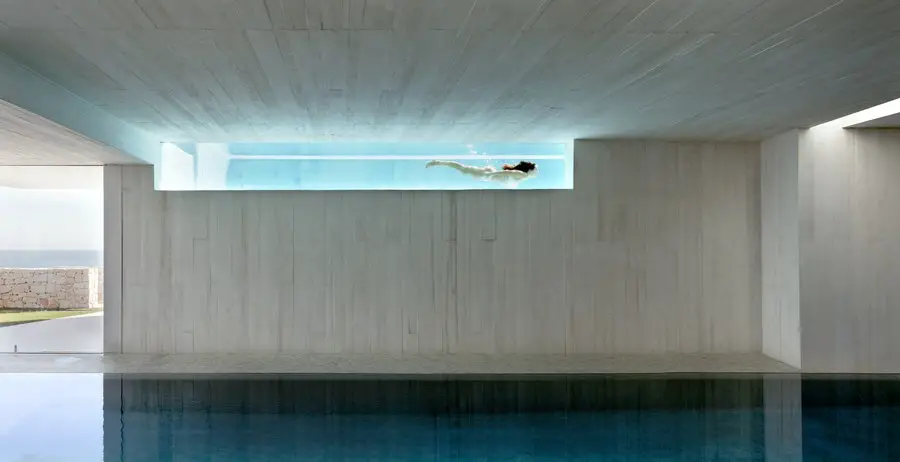

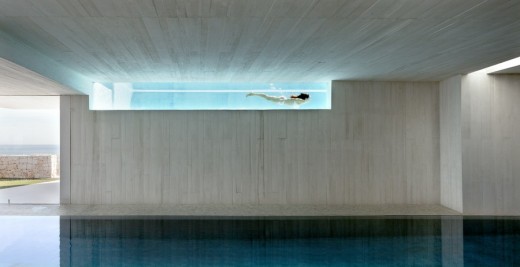

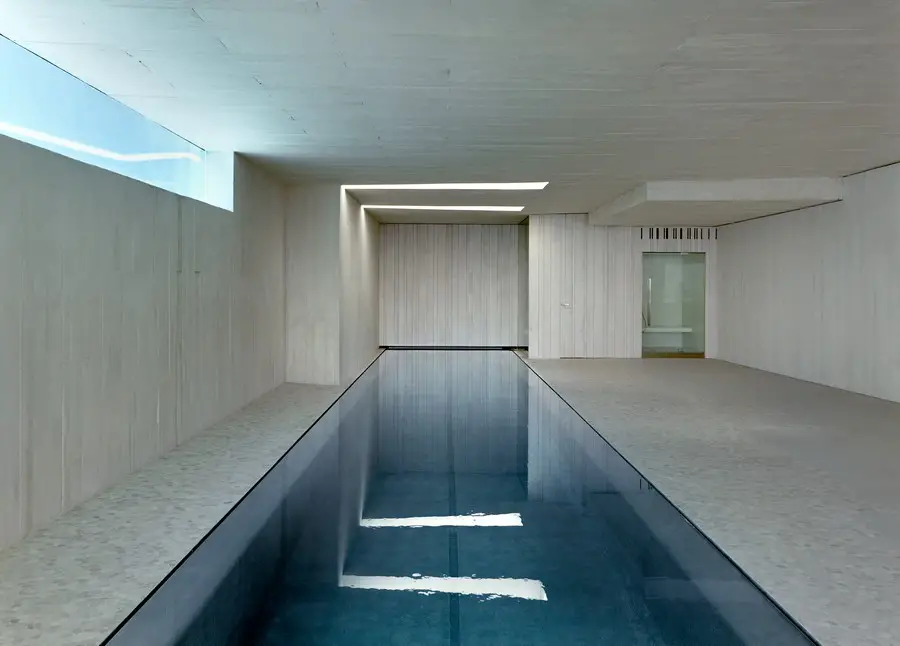

On the basement floor, besides service and parking areas, there are some guest bedrooms, a gym and an indoor pool, with a sauna and a dressing room. “The indoor and outdoor pools are on different floors but linked by a longitudinal window. Through it, the water of the outdoor pool casts shadows over the indoor pool.”

Sardinera House

Interaction With The Mediterranean

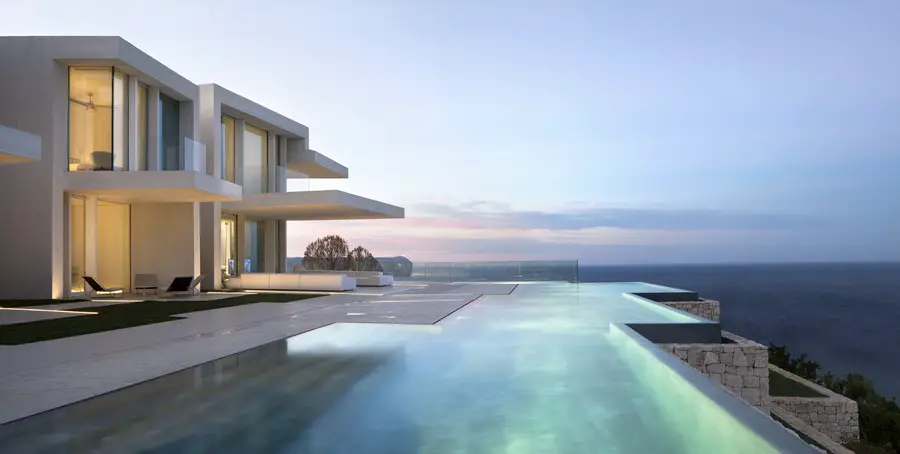

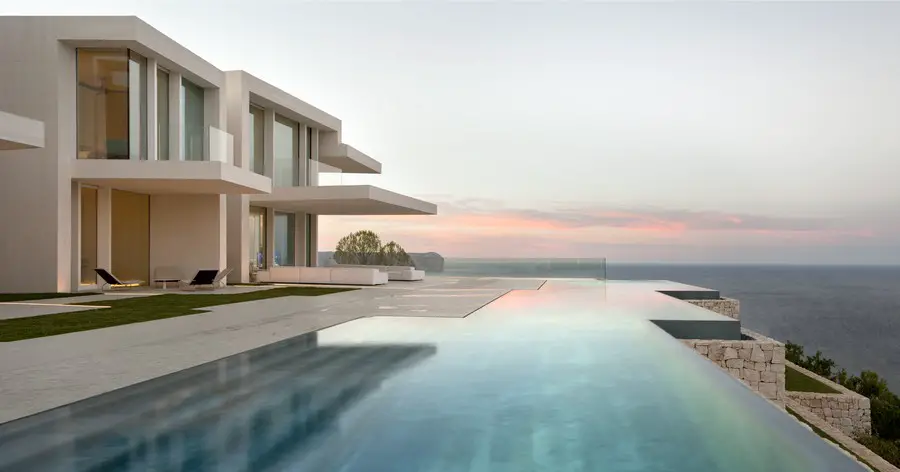

The outdoor space has been designed as an extension of the indoor space. The lines that define the building are drawn beyond the walls, marking the patterns of the vegetation, the pavement, the pool and the outdoor lighting. The garden displays several zones with very different features. Each outdoor zone is singular but belongs to the same concept of a homogeneous indigenous Mediterranean garden.

The flat and sunny entrance area, contains some olive trees with big twisted trunks that give personality and elegance to the access. The sloping area recreates the typical terraces of the hillsides by the sea. Pine trees, citrus trees and herbal plants are displayed on these different levels, contained by masonry walls that links the garden to the basement of the house.

Sardinera House

“It results in a house with several spaces where the sea can be contemplated, from each of its indoor rooms or outdoor areas.”

Sardinera House

Ad Hoc Design
The interior design has been totally made by Ramón Esteve studio. The pavement is made of off-white polished concrete, continuous both inside and outside. All the timber is whitened Accoya wood.

The large hanging benches in the bathrooms are made of natural stone. The pool vases are also made of polished concrete in different tones. There is a lounge area by both swimming pools, defined by its flat cobblestone pavement.

Sardinera House

Building With Light
All the lights in the house are adjustable LED integrated in the architecture. Outdoors, the lines of lighting draw the same direction than the walls of the house.

Sardinera House

Beautiful and Efficient
The housing has been designed by sustainable criteria and has obtained the energy certification A.

Situated on one of the decks is a system of vacuum tubes that, using accumulators, heat the interior hot water and of the swimming pools. This solution is complemented with a heat pump that is powered by a system of wells of geothermal energy. The housing is oriented to the east-west to ensure sustainable use of natural currents of air and sunlight. The eastern facade is protected by a few large cantilever beams, while the west facade has an enclosure formed by adjustable and steerable motor driven planks that in summer use as protection from sunlight while allowing the passage of the breezes and in winter it is opens by capturing the sun.

Sardinera House

The house is oriented east-west to ensure the exploitation of the natural currents of air and sunlight. The east façade is protected by overhangs, while the west façade has an enclosure formed by a blade motorized steerable and adjustable, which protect in the summer of sunlight allowing for the passage of the breezes, in winter it is open by capturing the sun.

Sardinera House

In the large glass surfaces has been provided a double coating with thermal and acoustic insulation with solar control. In addition, the housing presents a wraparound of ten centimeters of extruded polystyrene, high density, which ensures a high thermal insulation.

Under the outdoor swimming pool has been prepared an underground tank of 100,000 liters, where the rainwater is channeled subsequently for the use of irrigation. The groundcover vegetation of the garden is watered by exudation. The species used in the landscaping are native to providing a high level of integration in the environment and rational behavior of the species, with a consistent and controlled consumption of water resources.

The entire House is administered through a system of home automation management, from the air conditioning, lighting, irrigation, in such a way that the energy consumption of the housing is managed optimally.

Sardinera House

Sardinera House in Jávea – Building Information

Architect: Ramon Esteve
Collaborating Architects: Anna Bosca, Estefanía Pérez, Víctor Ruiz, María Martí
Collaborators: Tudi Soriano, Natalia Fonseca
Technical Architect: Emilio Pérez
Constructor: Construcciones Francés
Project Manager: Gonzalo Llin
Project: 2013
Completion date: 2014
Built Surface: 1285sqm
Photographer: Mariela Apollonio, Ramón Esteve
Production and audiovisual: Alfonso Calza

Construction type: Structure and Shell made of exposed reinforcement white concrete

Constructive materials:

Exposed reinforcement
White concrete
Accoya Wood joinery designed by Ramon Esteve
Galvanized Steel columns
White coated designed by Ramon Esteve
Smooth cement floors for interior and exterior
Whitened accoya timber for interior cladding

Photography © Mariela Apollonio
