Barloworld Head Office, South African Commercial Premises, HQ Building project, Photos

Barloworld Head Office in Tshwane, South Africa

Contemporary South African Office Building in South Africa – design by Nsika Architecture & Design

25 Nov 2019

Barloworld Automotive and Logistics Head Office

Design: Nsika Architecture & Design

Location: Centurion, Tshwane, South Africa

Barloworld Head Office South Africa

5-Star Certification for new Barloworld Automotive and Logistics Head Office in Centurion

Barloworld Automotive and Logistics Head Office, the first building to be completed in the mixed-use Irene Link precinct in Centurion, has recently been awarded a 5-Star Green Star SA Design Rating v1.1.

Owned by Abland in partnership with Giflo Developments and SOM, Irene Link is a 75,000sqm precinct located along the N1 highway. The development vision includes a 12,000sqm retail and lifestyle centre, which is scheduled to open at the end of 2020.

Barloworld Head Office South Africa

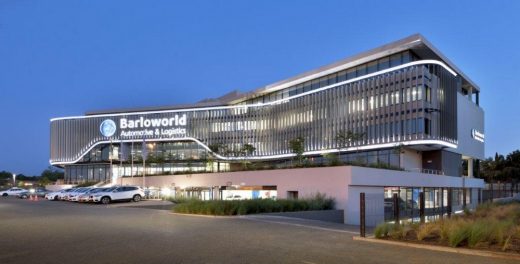

The sculptural, contemporary building, which is designed to accommodate 380 staff members over four floors, rests on a podium formed by two naturally ventilated basements. In contrast to Barloworld’s previous offices, the building design incorporates a flexible, open plan work environment that allows for ease of churn, which is in synergy with the company’s intention of being future-focused and fit-for-purpose.

Barloworld Head Office South Africa

A viable implementation strategy
“Resource efficiency was a major consideration for both the owners and tenant,” says Simon van Helsdingen, Property Development Manager at Abland. “During the past three years, the Centurion and Irene areas have experienced regular water interruptions. And, in keeping with best green building practice worldwide, passive energy design and energy efficient mechanical systems were required from the outset. The inclusion of sustainability features meant that we could target a 5-Star rating during the design process, as opposed to the initially anticipated 4-Star rating.”

Barloworld Head Office South Africa

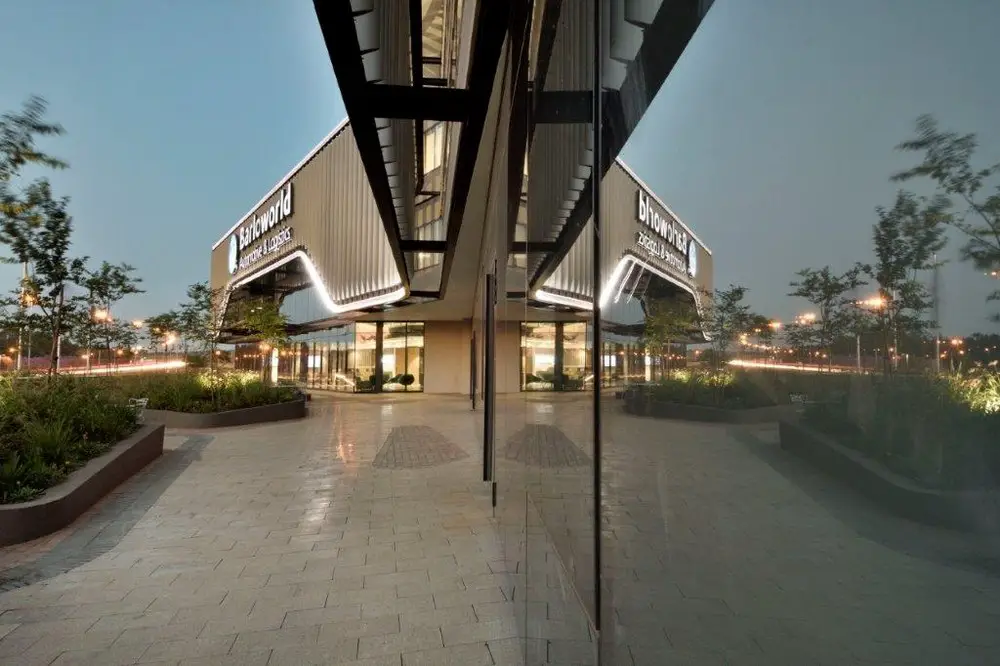

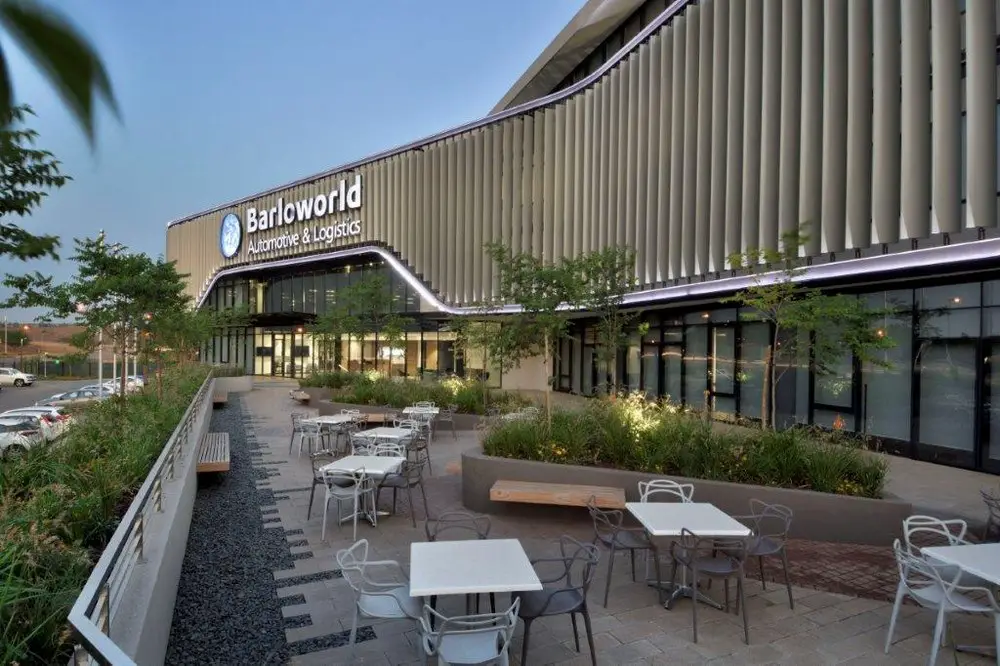

The 5,860sqm building accommodates meeting rooms, a gym, a coffee shop and cyclist facilities for staff and visitors, among other amenities and is enclosed in a highly transparent envelope that gives access to views over the surrounding urban context.

P.W. Hattingh, project architect at Nsika Architecture & Design, says, “From the inception of the project the design team and developers were like-minded that this project would try to achieve a high level of energy efficiency that will benefit the end-user. Best practice principals such as effective building envelope design, efficient energy use and good indoor environmental quality, were paired with commercially effective design and a viable implementation strategy.”

Barloworld Head Office South Africa

Carefully considered façade design

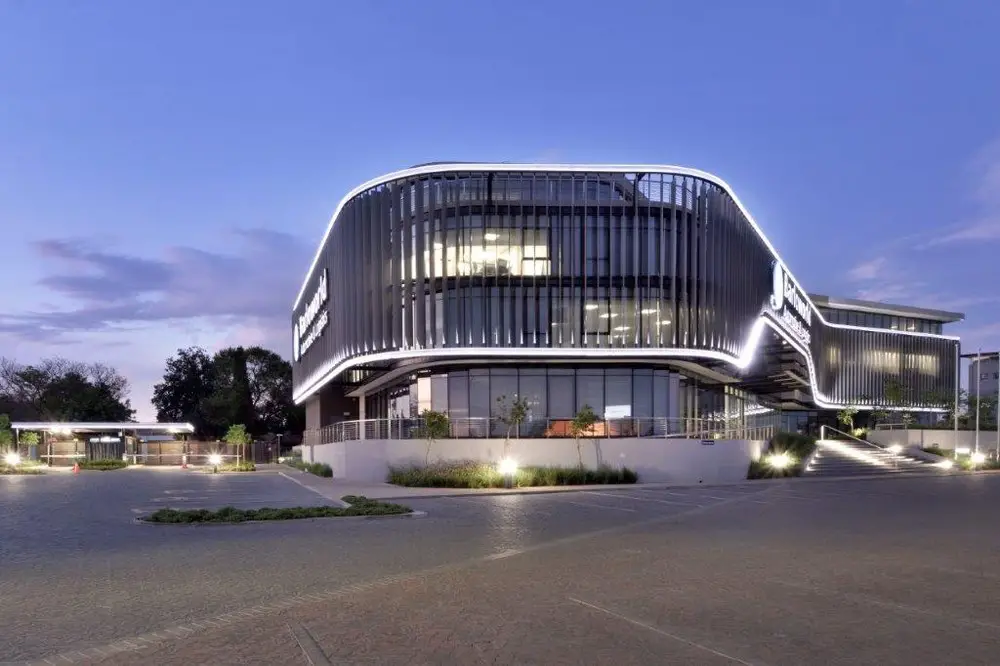

The concept focused on creating a simple floor plate form allowing for a high rentable ratio efficiency so that resources could be channelled into a strongly aesthetic envelope. “The superstructure, as well as the choice of façade system and glazing type, were major design consideration,” Hattingh explains. “The idea was to create a permeable glass envelope that would sit lightly on a naturally ventilated basement.

Time was spent to optimize the structural design in relation to the building material weight, and to create a good glazed-to- solid façade ratio. This allowed for a market-related structural design on very difficult soil conditions while also achieving optimal natural internal lighting quality with ample external views.”

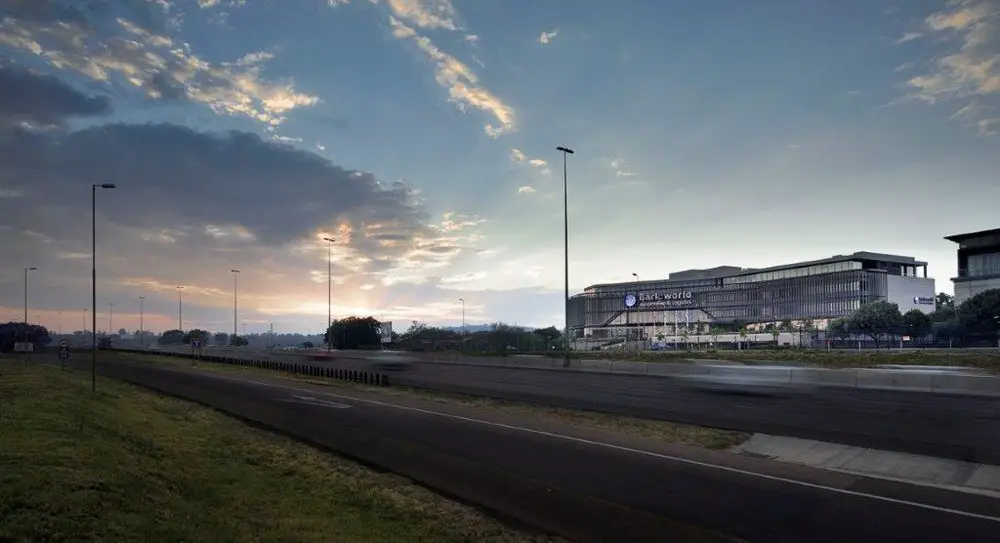

Both the northern and western facades are double-glazed, to improve internal thermal conditions and address acoustic challenges arising from the adjacent highway. With a ratio of more than 80:20 between glass and solid façades, several shading design options were investigated.

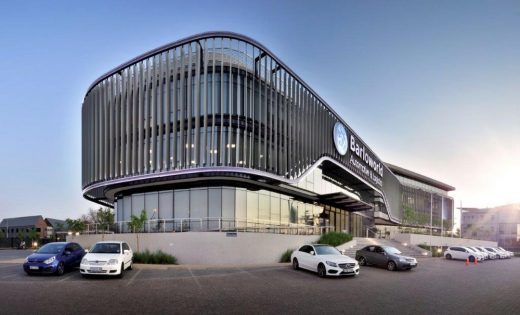

A vertical aerofoil louvre fin structure was chosen to wrap around 42% of the building’s eastern and northern envelope. The louvres act as a ‘permeable jacket’ to keep the building cool in summer and warm in winter. This is achieved by optimizing the aerofoil fin spacing and angle of the fins for each façade orientation.

Resource efficient systems
Due to the recent water interruptions, it was decided from the outset to minimise water use in the building and to provide effective and safe back-up water supply. Dash Coville, Sustainable Building Consultant at Solid Green, explains, “The building makes use of water efficient sanitaryware fittings as well as water-wise landscaping and irrigation to support the water consumption reduction strategy.

A rainwater storage and filtration system was also introduced into the building. The system collects rainwater from the roof and purifies it to a potable level for use throughout the building. These initiatives have led to a major reduction in municipal potable water consumption.”

In terms of energy efficiencies, a large 120kW photovoltaic system was designed by Barloworld Power. The system is expected to reduce the building’s annual energy consumption by 200MWh. In addition, 100% of the building’s light fittings are LED, which are connected to motion sensors.

A Thermal Energy Storage (TES) system, which enables a levelling out and reduction of the building’s peak energy demand, has also been incorporated into the building’s design. This is achieved by ‘charging’ thermal storage tanks containing glycol-water during off-peak periods when electricity is cheaper and the country’s energy demand is low.

During normal operating conditions, the charged TES tanks then supply additional cooling energy to the building, reducing the municipal energy demand. This process reduces the designed HVAC system’s full load by up to 50%.

Energy and water sub-metering have been employed, which will enable the building to be effectively managed and the outcomes of the implemented sustainable initiatives realised. The meters are connected to a system which presents live data on a visual display, which is located in the reception area of the building and supplies real-time consumption information to building users and visitors.

A benchmark for Irene Link
The Barloworld Automotive and Logistics Head Office development responds well to its context in terms of climate, urban fabric and service provision. In doing so, it sets a high standard for future buildings in the precinct and contributes to driving best-practice principals in the commercial building sector.

Barloworld Head Office South Africa

Barloworld Head Office, South Africa – Building Information

Architect: Nsika Architecture & Design

Developer: Abland (Pty) Ltd
Owner: Abland (Pty) Ltd, Giflo Developments and SOM
Accredited Professional: Solid Green Consulting
Electrical Engineer: Taemane Consulting Engineers
Fire Engineer: Ronald Koekemoer & Associates Fire Protection Engineering Consultants
Mechanical Engineer: C3 Engineering
Quantity Surveyors: Quanticost
Structural Engineers: DG Consulting Engineers
Sustainable Building Consultant: Solid Green Consulting
Wet Services: GK Pereira Consulting
Main Contractor: WBHO
Project Manager: Abland (Pty) Ltd
Landscape Management Company: Insite Landscape Architects

About Solid Green Consulting
Solid Green Consulting has tailored its services offerings to meet the needs of its clients, taking into account best building practices, the long-term financial and operational benefits of going green, and the increasing demand for systems that benefit occupant health and productivity. Ideally starting from initiation and design, these service offerings extend right through to construction, operation and maintenance of the project.

Solid Green is specialised and experienced in both Green Star SA and LEED green building certification, offering certification for offices, residential projects, retail centres, existing buildings, interiors, and public and education (PEB) buildings. All team members are Green Star SA Accredited Professionals (GSSAAP), with key team members also holding LEED AP, EDGE AP and WELL AP accreditations.

Barloworld Head Office South Africa

Photography: Michael Schmucker for Abland

Barloworld Head Office in Tshwane, South Africa images / information received 251119

Location: Centurion, Tshwane, South Africa
