Ljubljana Airport, Slovenia : ATCC Building
Airport Traffic Control Centre, Slovenia design by SADAR + VUGA, Arhitekti
6 Dec 2013
ATCC Airport Ljubljana
Air Traffic Control Center (ATCC) Slovenia, Airport Ljubljana
Design: SADAR + VUGA
New Air Traffic Control Center at the Ljubljana airport, comprising air control center with 24/7 amenities and office premises, is a highly demanding and complex object due to the nature of the institution it hosts. It is designed to enable safety and high operational activity as well as consistent comfort for visitors and staff 24 hours a day all year around.

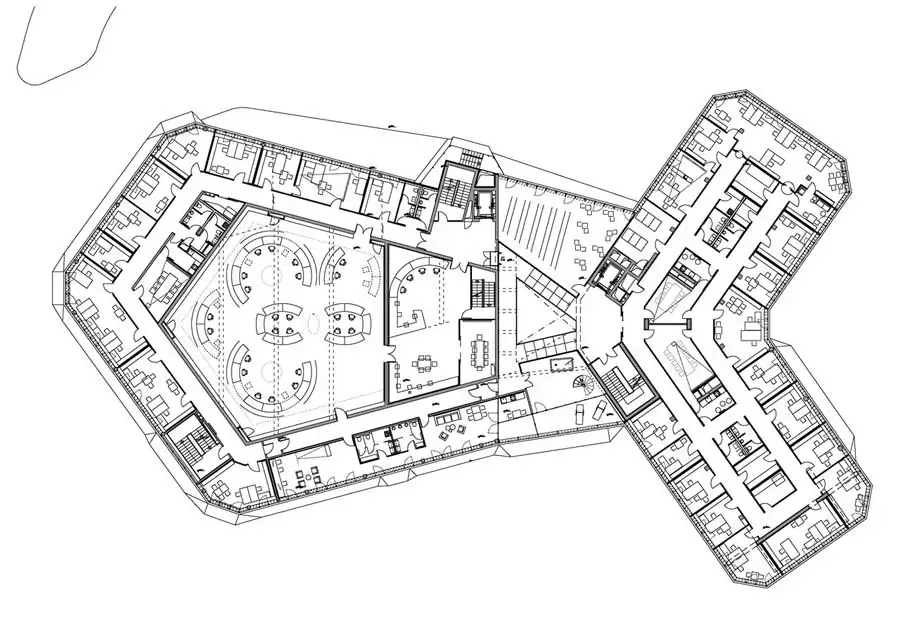

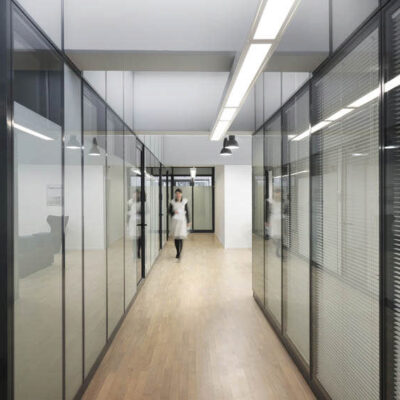

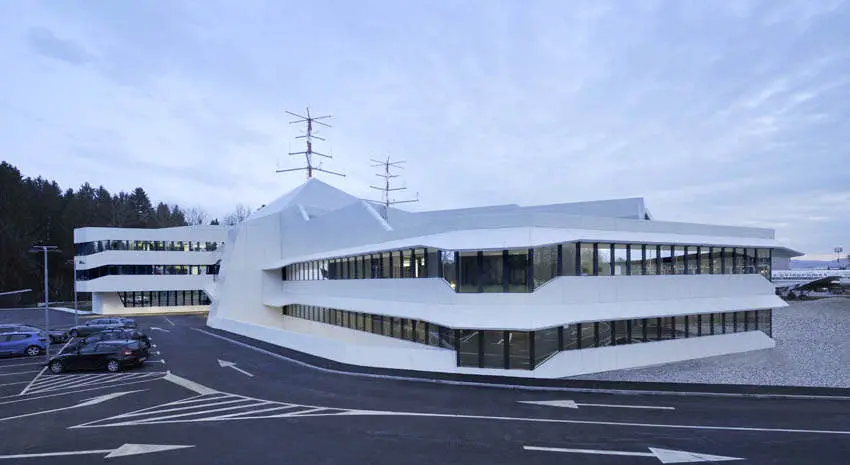

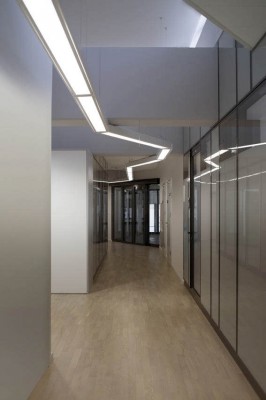

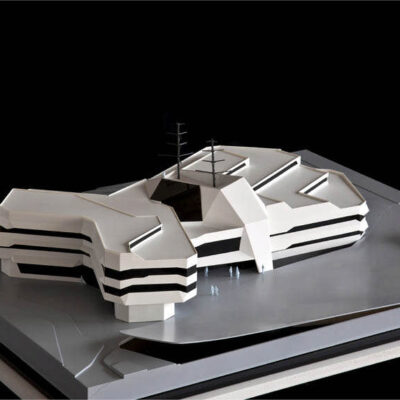

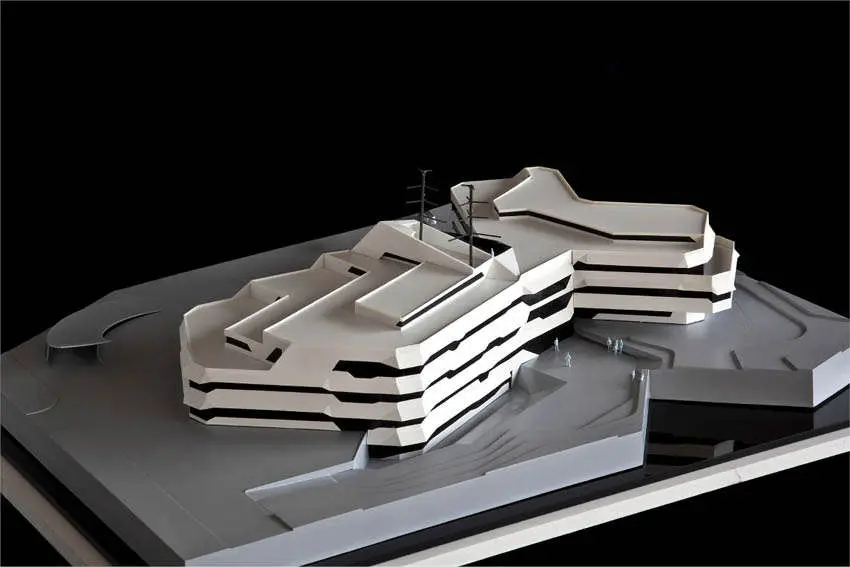

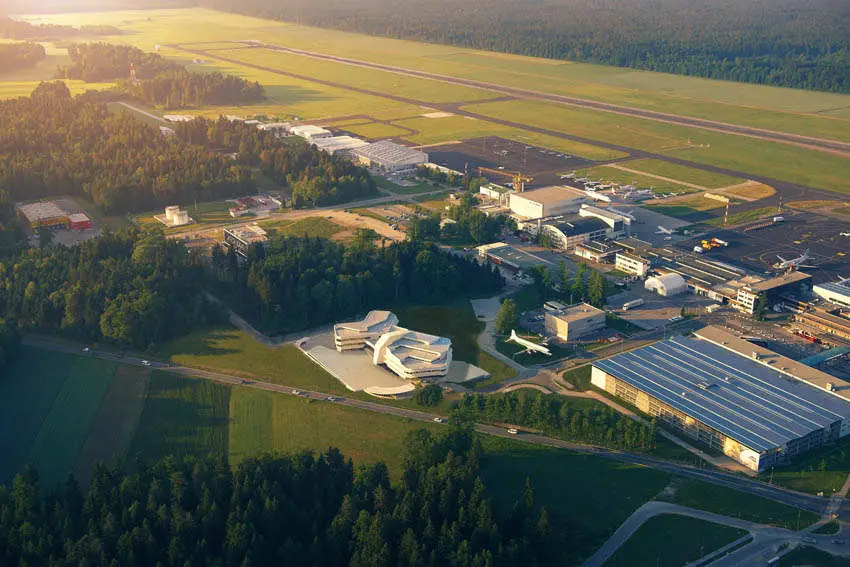

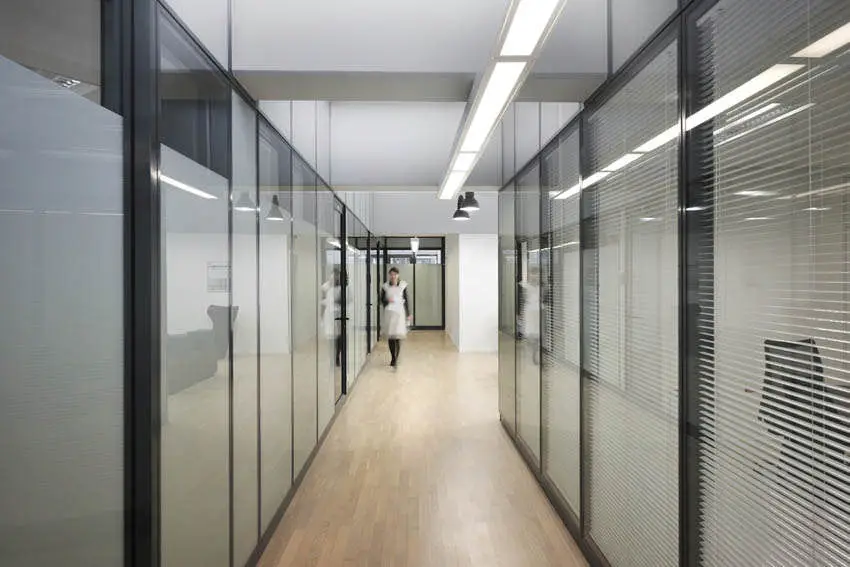

The building is located in the middle of the plot, at the north there is a parking platform and at the south high vegetation of the garden. Within, the object is organized by five levels of security zones with access control at each passage. The further one moves from the rim that holds administrative and rest areas towards the centre of the object, the greater the security level of the areas. The compact design serves to enhance the operational efficiency of the object, paths are short and manageable. The clear division into a pentagonal head (control center) and two wings (offices and public program) provides easy orientation within. They are connected by a central multi-leveled area with an entrance lobby, restaurant, conference room and gym. The vertical hall is a place for meeting, informal socializing and communication.

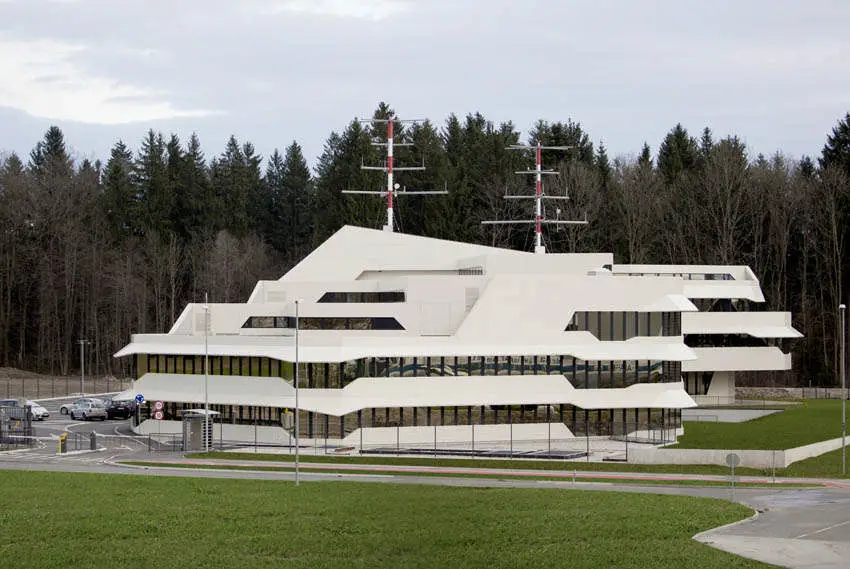

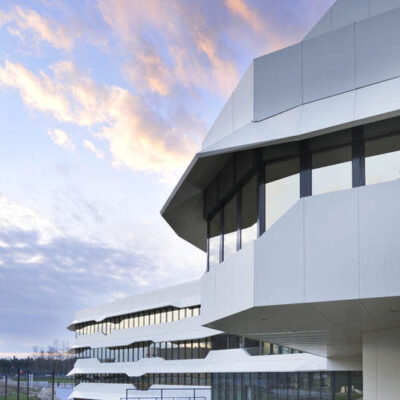

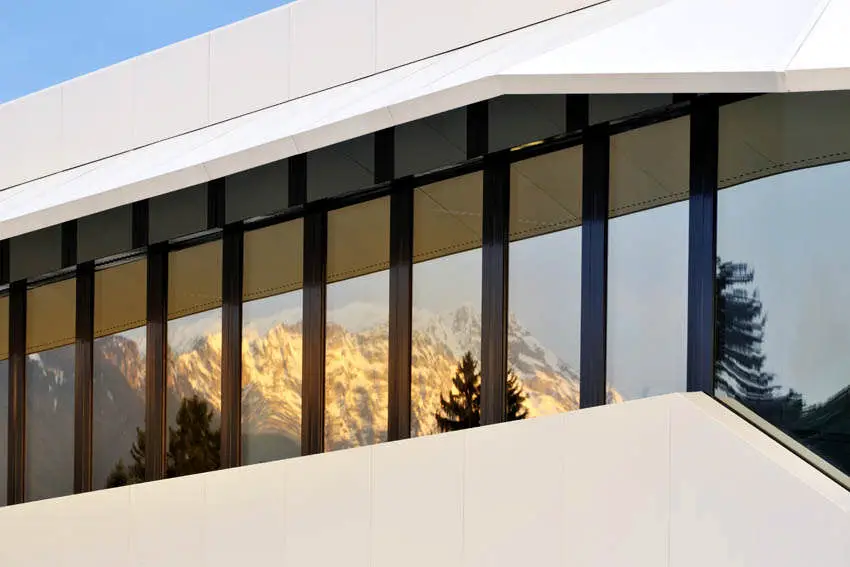

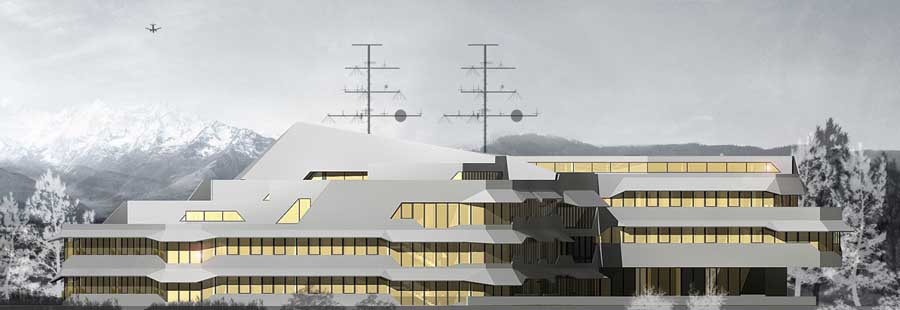

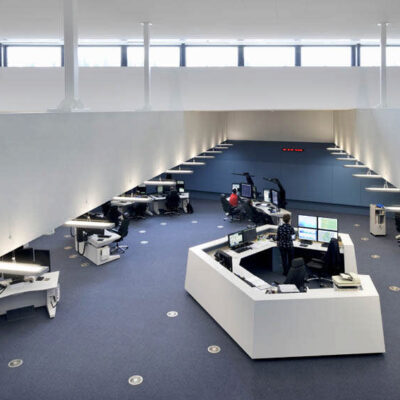

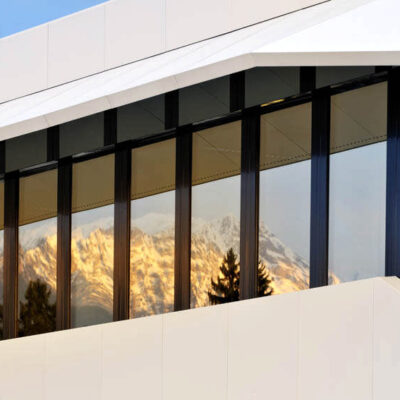

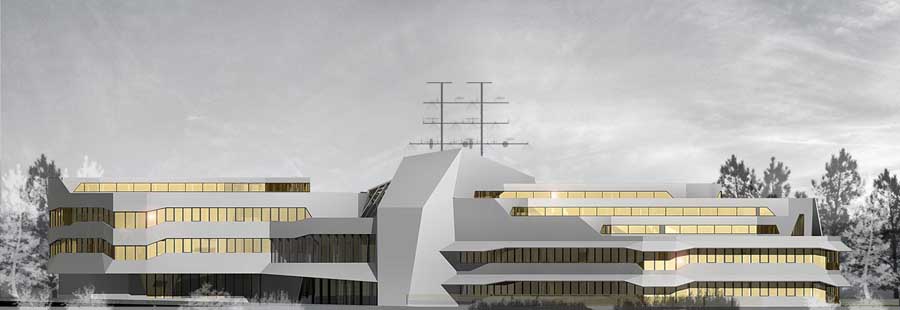

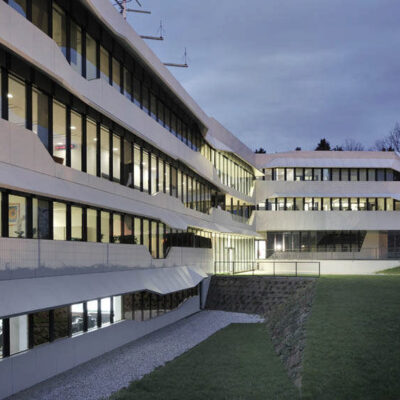

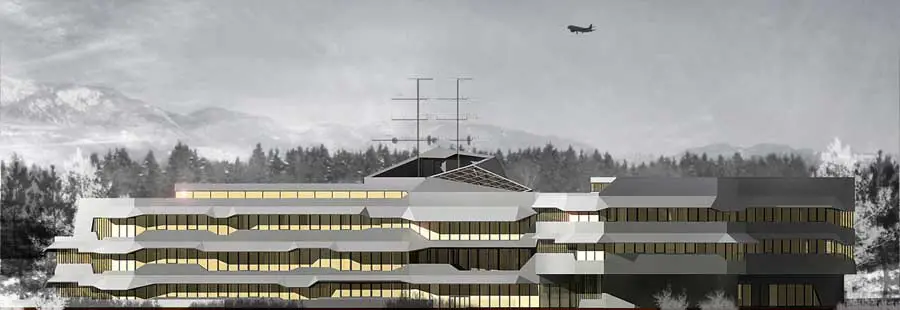

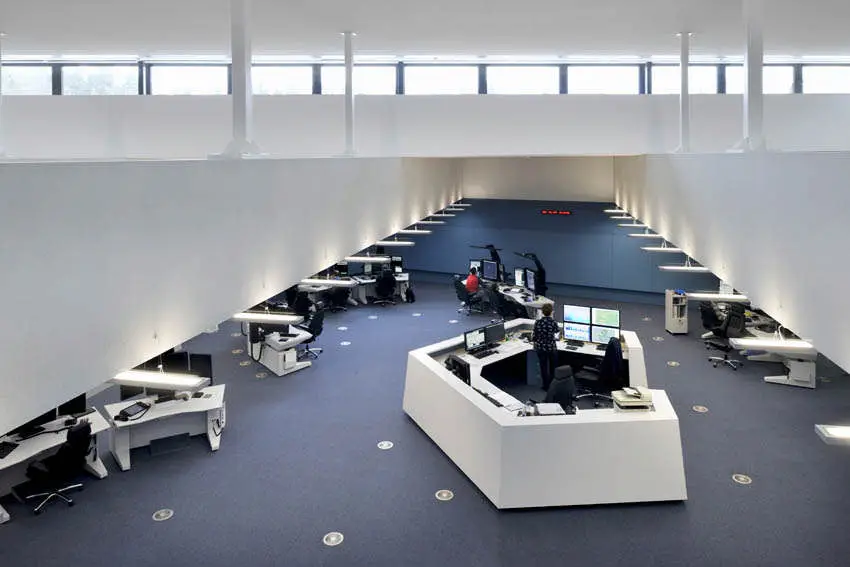

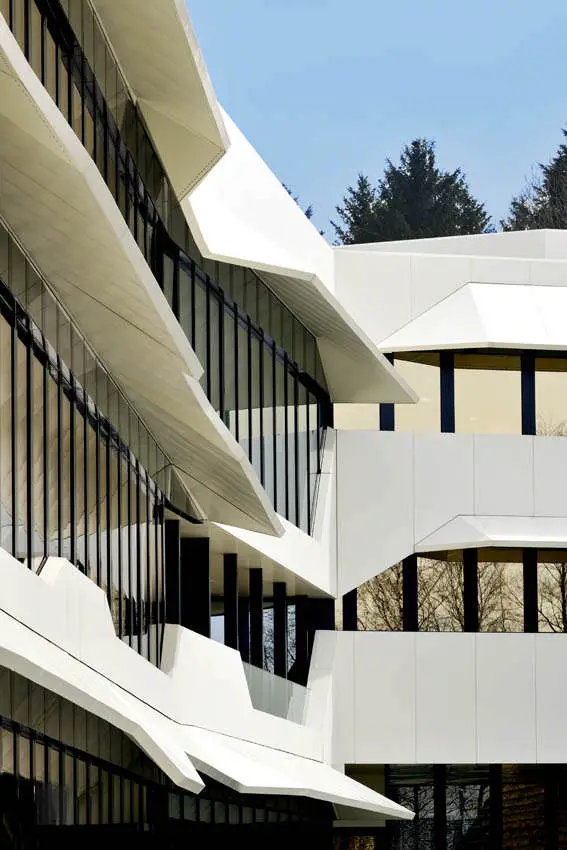

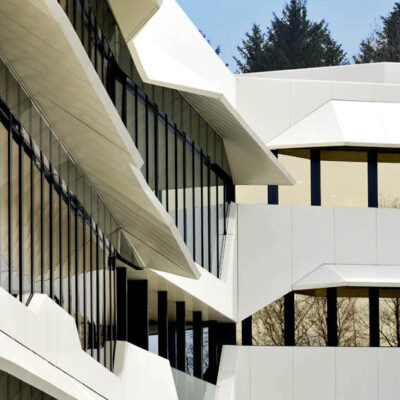

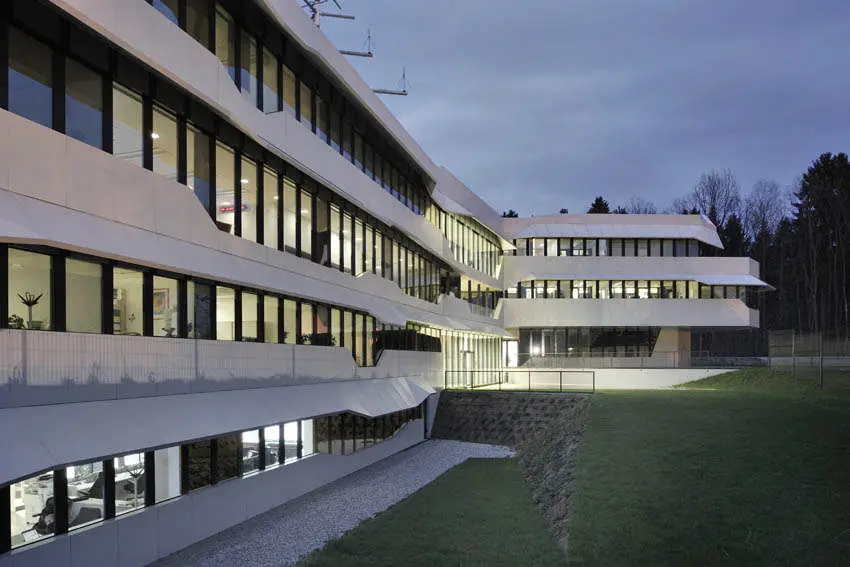

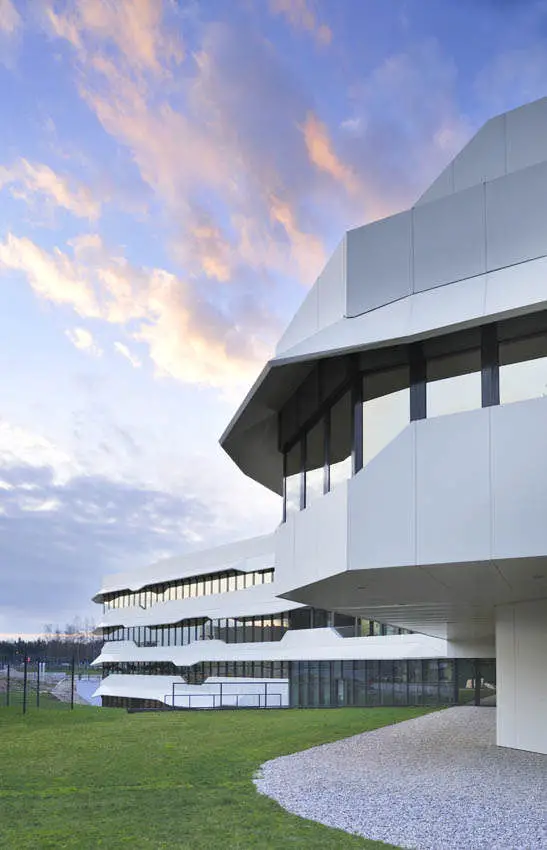

The Center appears as a monolithic shell, opening towards outside only when necessary. The building is wrapped in belts of glazing and combined aluminium parapets and brise-soleils that regulate the intensity of heat and light transmission to the interior. The angle and the size of the brise-soleil are determined by the layout of the windows and the intensity of solar radiation related to it. The height of the parapet is determined by the interior of individual areas and the related wish for greater or lesser openings for views. The windows are made of bronze reflective glass mirroring the mountains in the surrounding. The beige and bronze colour coding of the façade visually reflects the building’s character of security and protection. The roof is rising in terraces, thus continuing the play of blinds and parapets on the facade, providing daylight to the interior areas, especially to the control room in the pentagonal core of the object.
ATCC has been officially opened in May this year and since then awarded the ICONIC AWARD 2013 winner by the German Design Council, GOLDEN PENCIL 2013 for the excellent realization in the field of architecture and nominated for PIRANESI AWARD 2013.
Andreas Ruby, Quote form the Golden jury report about the excellent realization of ATCC:
“With their air traffic control centre building, Sadar+Vuga have achieved something incredible. They have managed to make a typology visible that normally does not register on the radar of our architectural culture. This structure wants you to look at it, and it looks at you: its meandering banded windows are crowned by obliquely cantilevering sunshade panels that read like eyelids. Inside, the porosity of the facade pays off in generously lit interiors, which yields another exotism – daylight in a control building.

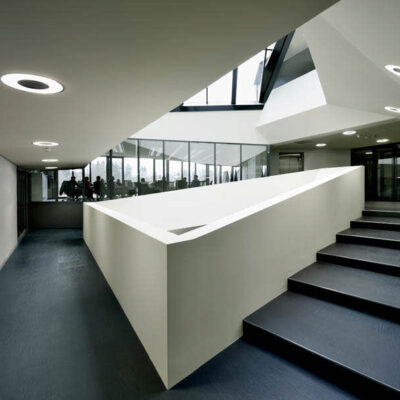

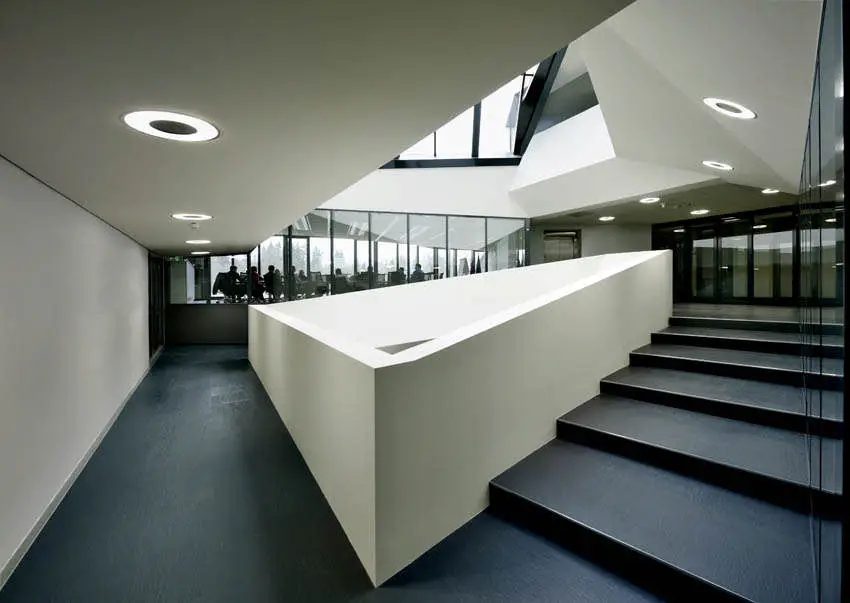

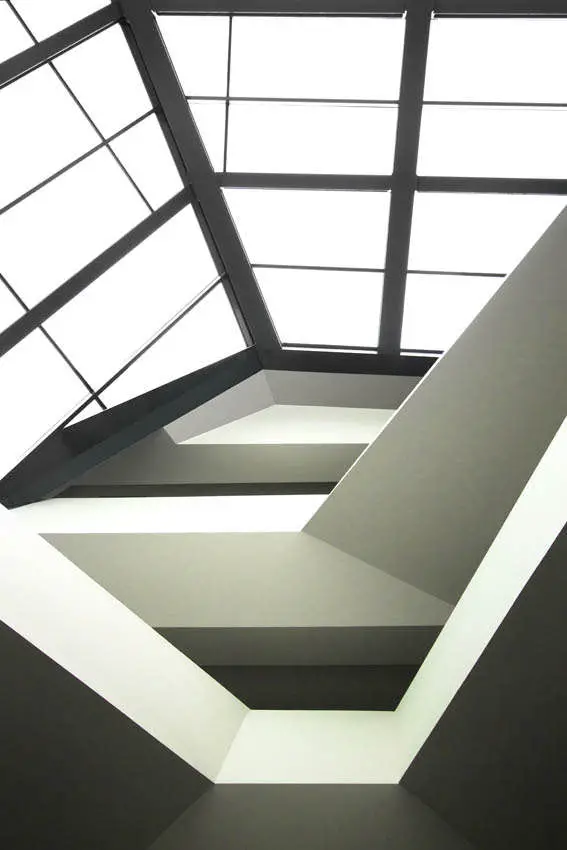

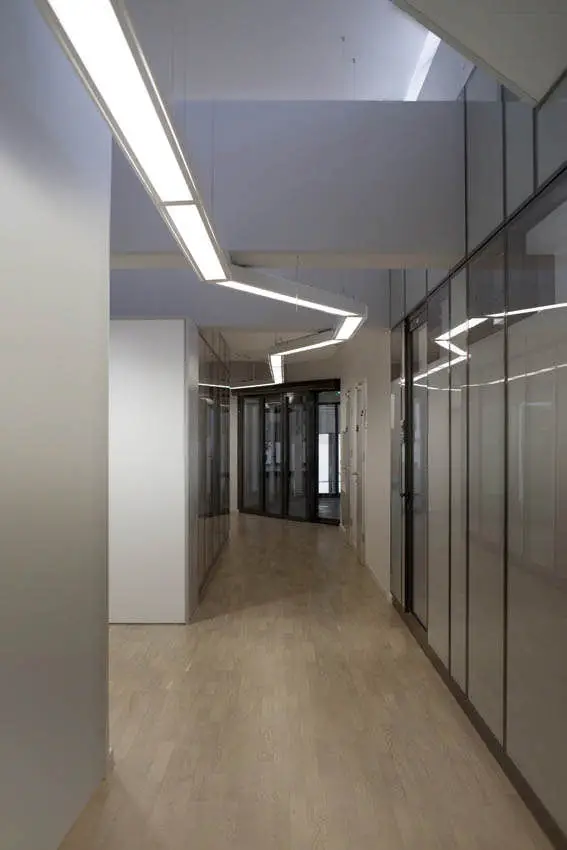

The atrium is a carefully sculpted well of light that you would expect in a cultural institution or high standard office building, and stands emblematic as an architectural strategy to overwrite the usual misery of this typology with an abundance of tectonic care and sensual consideration. This investment in design is no boutique-fetish, but acknowledges the exceptional kind of work of those who work there.
Now, from the inside, you also understand the rationale for the design of windows and sunshades. The size of the window strip corresponds to the hierarchical importance of the program behind it. Thanks to this “primitive parametricism” (Boštjan Vuga) the design of the building never slides off into arbitrariness and formalism, which you can better witness on site than from photographs. The building uses its form not as an end, but as a means to transform the conventions of its typology. It wants to restore cultural value and dignity to a type of building all too often treated as junk or inconsequential space. One could easily (mis)take it for a cultural or public building, but that’s exactly the effect the architects worked to generate with their design: to make us reconsider the role of such buildings for our cities and endow them with a greater mission and ambition.”photos : SADAR + VUGA
Air Traffic Control Center Slovenia – Building Information
Source: Public tender, selected project
Client: Slovenia Control, Slovenian Air Navigation Services, Ltd.
Site: Airport Ljubljana, Slovenia
Site area: 7,996 m2
Building area: 2,350 m2
Stories: Basement + ground floor + 3 stories
Structure: Reinforced concrete
Cladding: Glass, aluminum panels
Areas: ATTC 7,186 m2, garage 3,195 m2
Program: Air traffic control center, offices, congress hall, restaurant, fitness
Architect: SADAR + VUGA (Jurij Sadar, Boštjan Vuga, Špela Štern, Tomaž Krištof, Miha Čebulj,
Landscape architecture: LANDSCAPE
Structural engineering: ELEA iC(Angelo Žigon, Andrej Pogačnik, Marijeta Gogala)
Mechanical engineering: CELARC
Electrical engineering: ELSING
Fire engineering: LOZEJ
Traffic: ELEA iC
Site engineering: ELEA iC
Slovenia Airport Traffic Control Centre images + Information from SADAR + VUGA
ATCC, Ljubljana, Slovenia
Design: Sadar Vuga Arhitekti, Slovenia
Ljubljana Airport Architecture
Formula: Matrix Enfolder, Vertical Hall
Source: public tender, selected project
Client: Slovenian Air Navigation Services, Ltd.
Address/Site: Airport Brnik, Slovenia
Site area: 7996 m2
Building area: 2350 m2
Storeys: basement + ground floor + 2
Structure: reinforced concrete
Cladding: glass, alu-panels
ATTC: 7.445 m2
Garage: 3.075 m2
Architect: SVA (Jurij Sadar, Boštjan Vuga, Tomaž Krištof, Aleksandar Lalic, Miha Cebulj, Špela Štern)
The centre is conceived so as to provide security and enable high operativeness, 24-hour work comfort as well as comfort for the employees and visitors to the Centre. Furthermore, the Centre is designed according to all strict requirements of safety, operation and efficient functioning, but it is also envisaged as a special, memorable and symbolic building of the arrival in Slovenia.

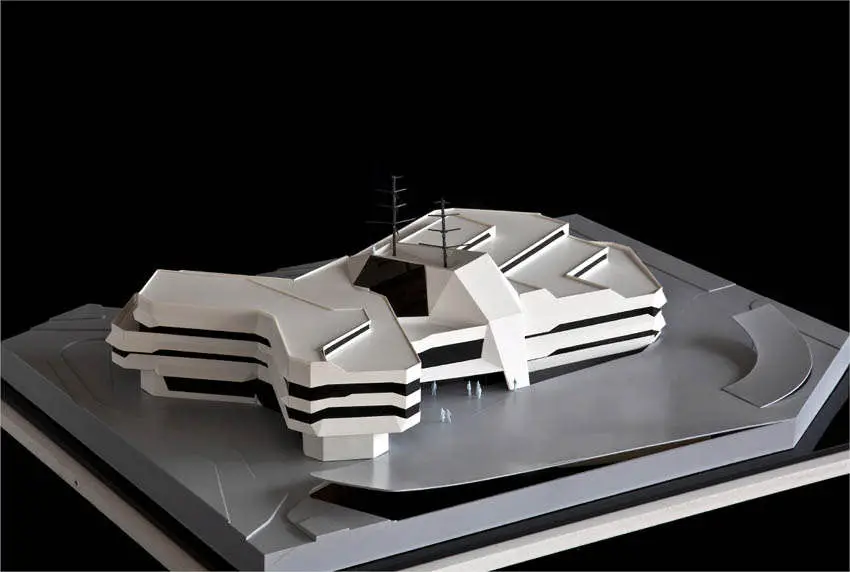

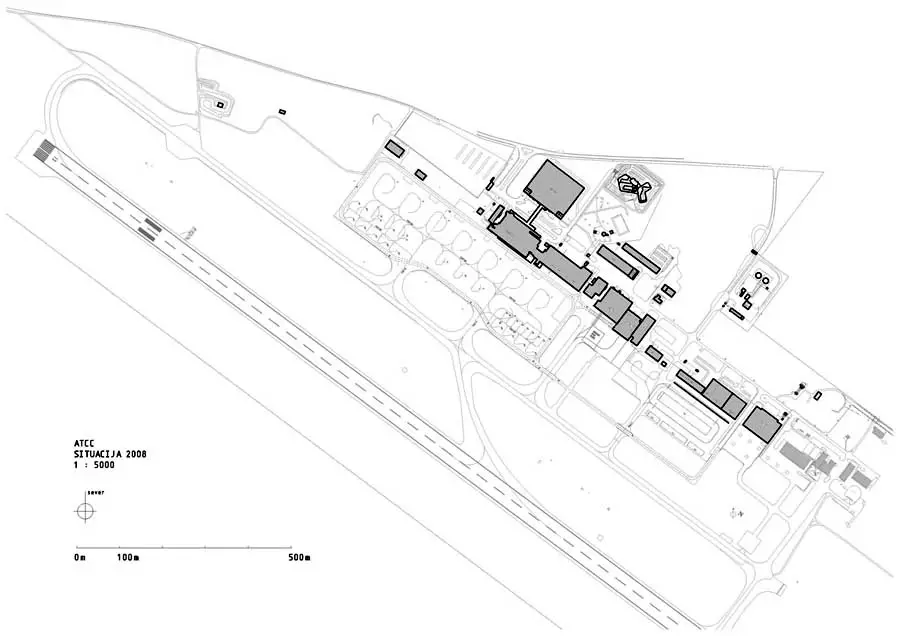

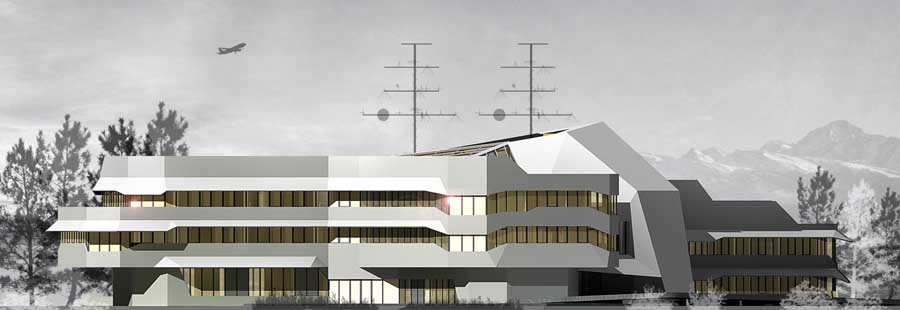

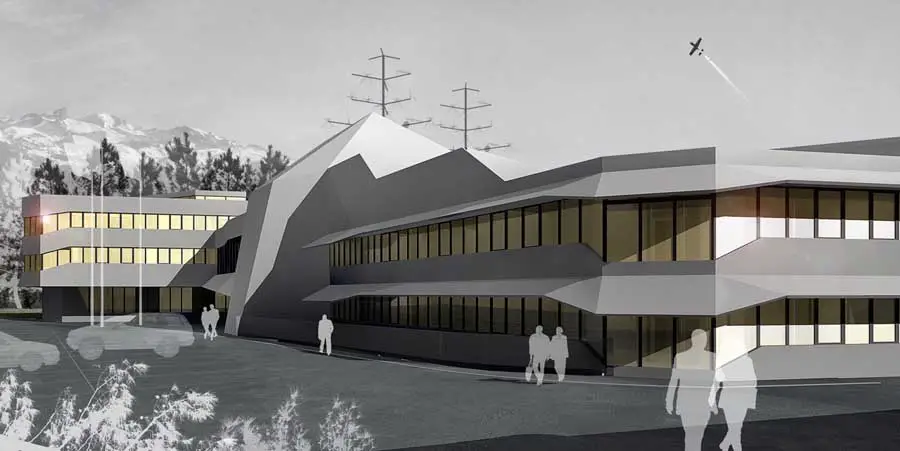

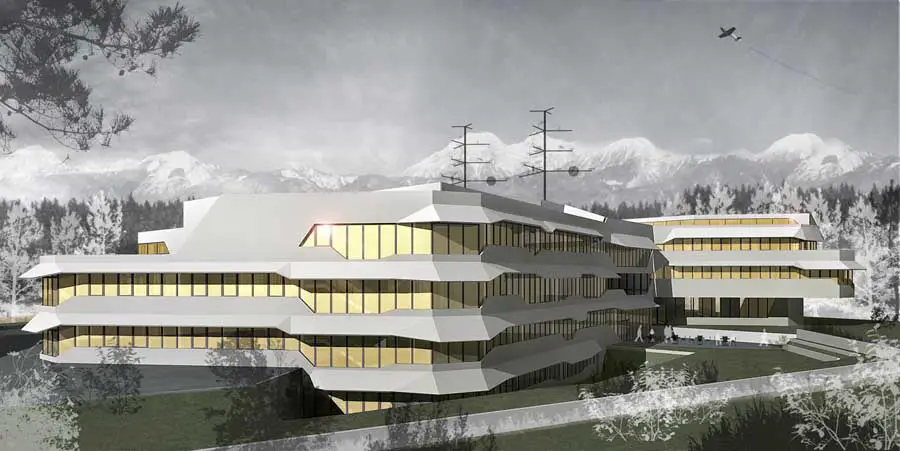

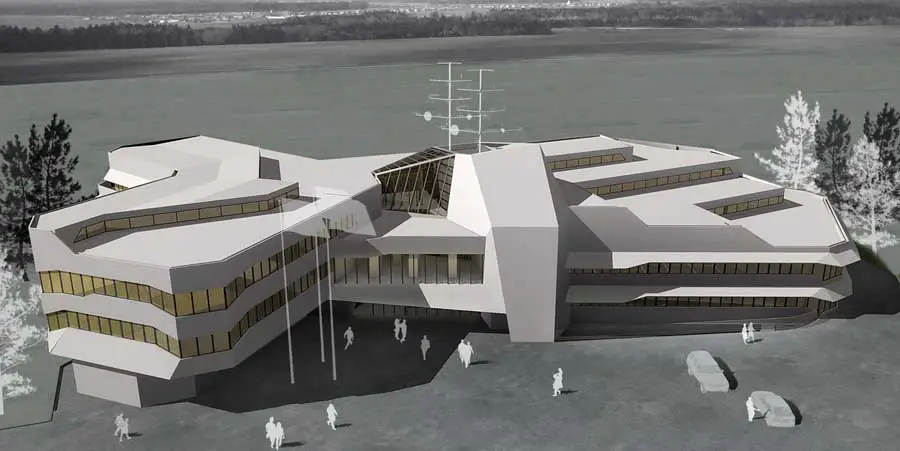

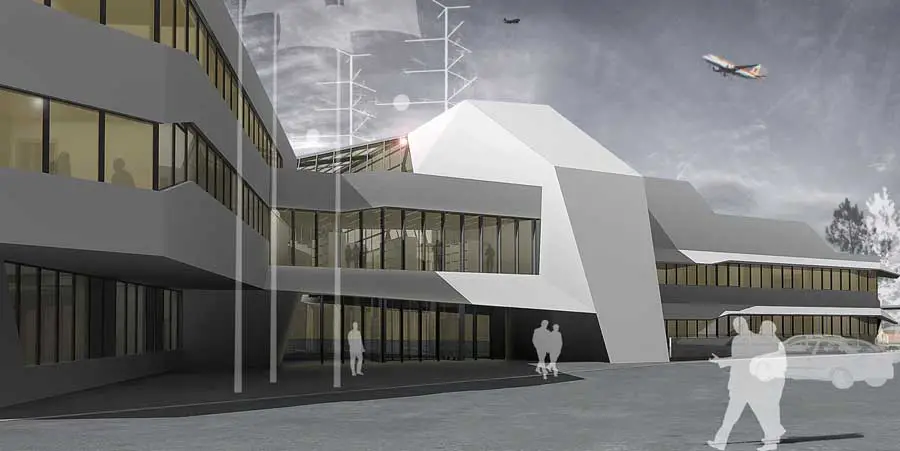

The Centre is designed as a compact shell that uncloses where natural lighting is needed in the interior. The compact building with a pentagonal ‘head’ of the Centre, which is tied to two administration ‘wings’ by the vertical hall in the central area of the Centre, is situated, for safety reasons, in the centre of a plot along the central boulevard of the future Airport City.

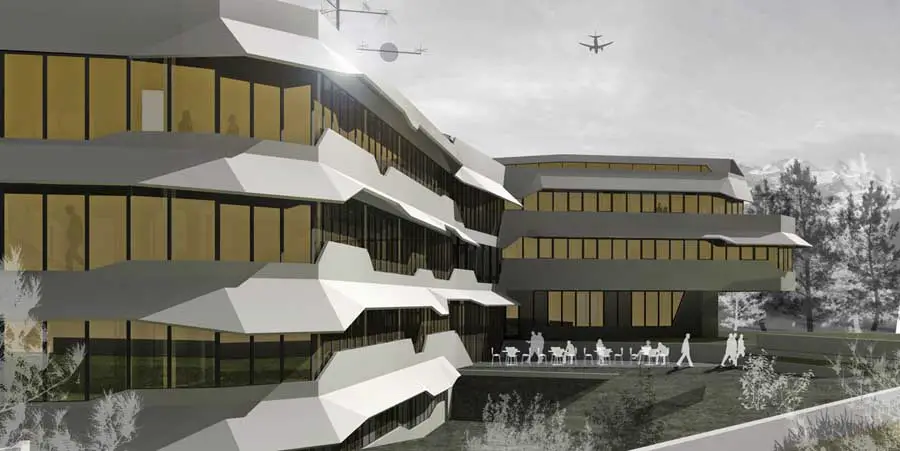

The Centre is separated from the edge of the plot in the north by a parking platform and in the south by the tall greenery of the Centre’s garden. The Centre’s interior is organized into zones of various safety degrees. The more we move from the perimeter with administration offices and resting areas towards the free centre of the building, the higher the safety level.
Slovenia Airport Traffic Control Centre images + Information from Sadar Vuga Arhitekti 070109
