8 Octavia in San Francisco Residences

8 Octavia, Contemporary Gateway Building, 101 Freeway San Francisco Homes, Architecture Images

8 Octavia in San Francisco

101 Freeway Residences in San Francisco, California: Property in Western USA – design by Stanley Saitowitz | Natoma Architects

Jun 29, 2017

8 Octavia

Design: Stanley Saitowitz | Natoma Architects

Location: San Francisco, CA, USA

8 Octavia

8 Octavia

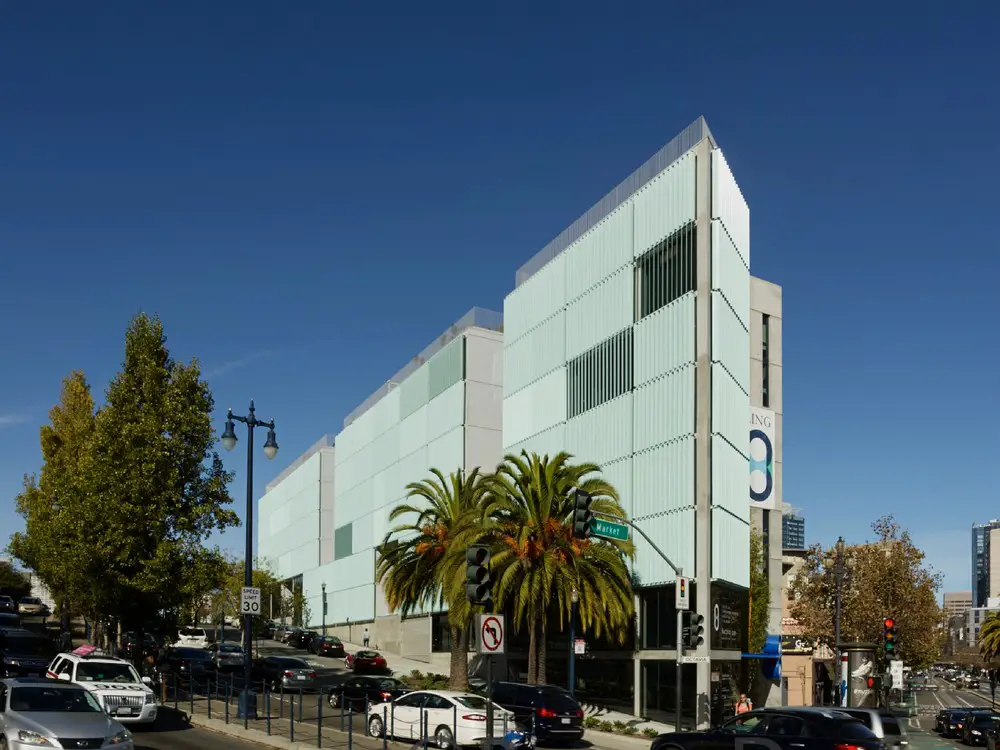

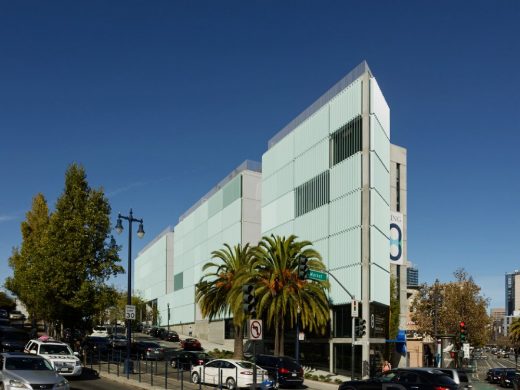

8 Octavia is a gateway building, announcing the new San Francisco at the entry from the 101 Freeway. Each occupant can operate louvers on the building’s façade, constantly changing the image of the building.

8 Octavia

Units are clustered around vertical courts and modeled on lofts with optimal free space, achieved by services being compressed along common thick walls or in floating pods, creating freedom for the residents.

8 Octavia

8 Octavia

Urban Context

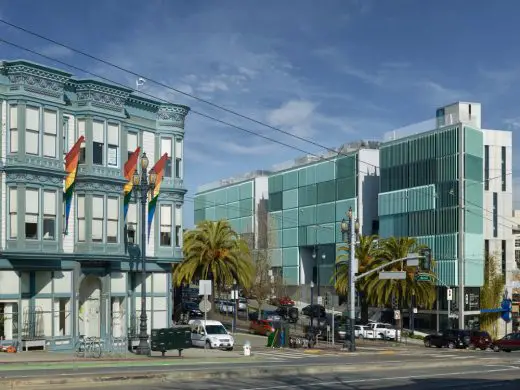

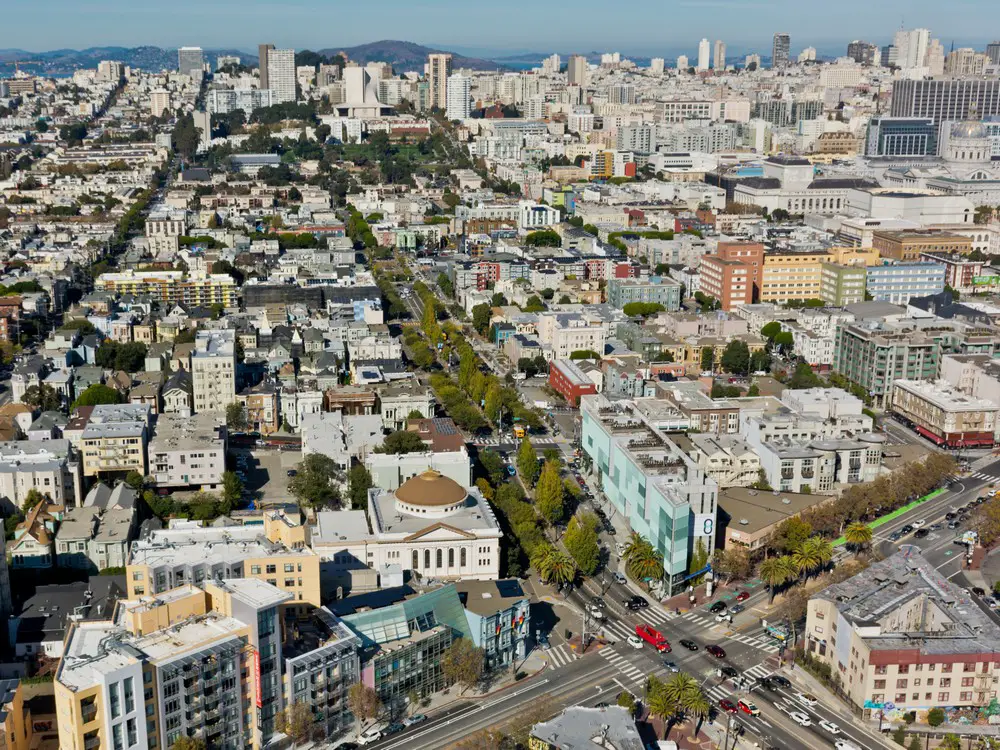

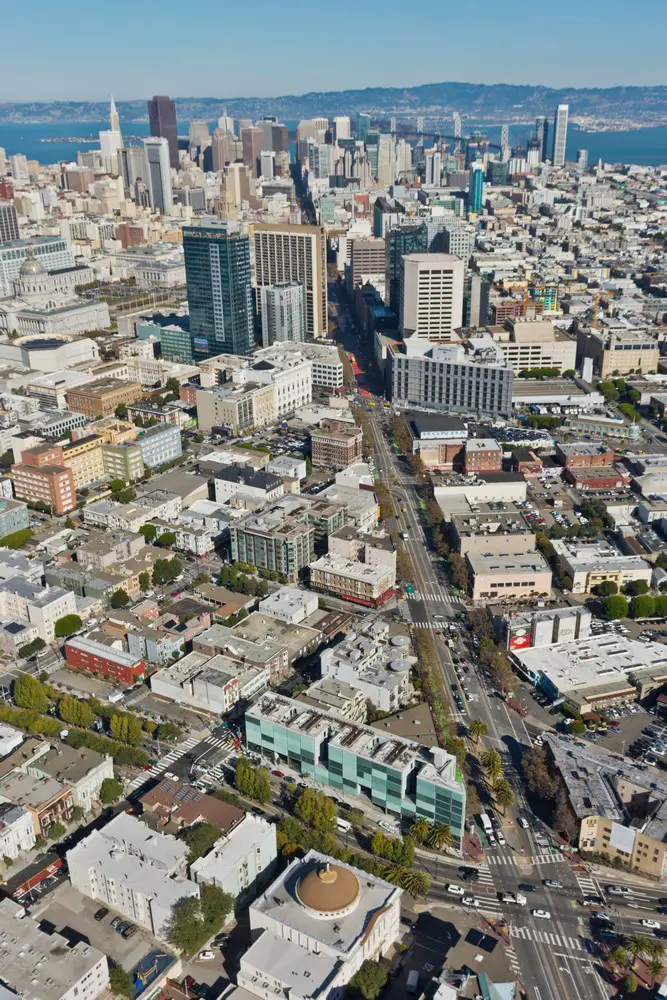

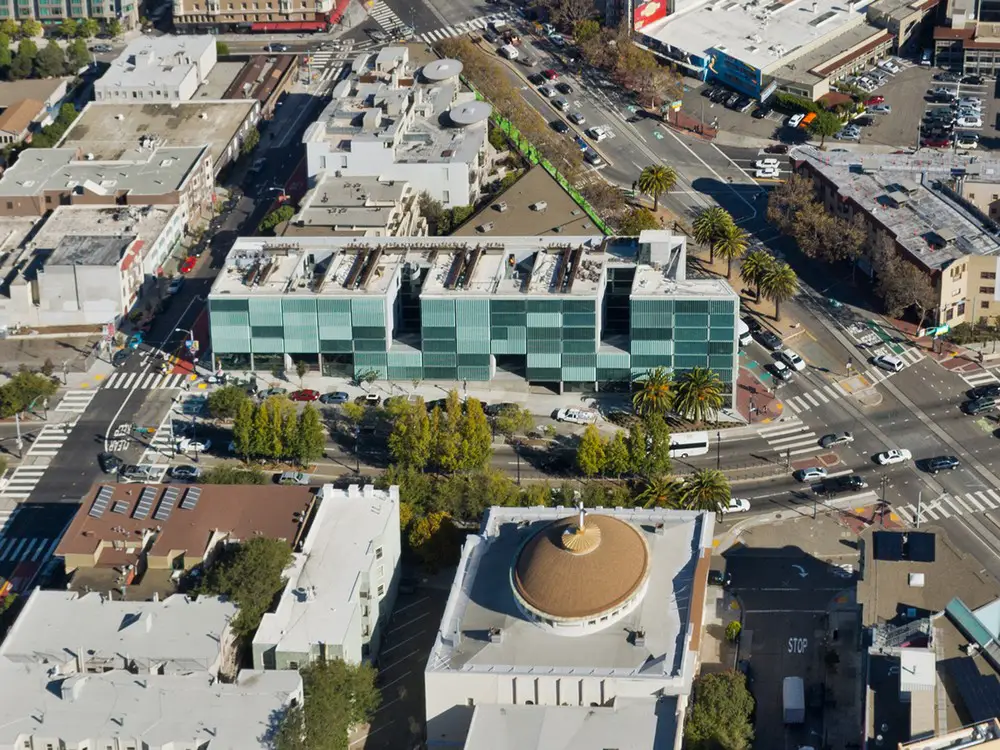

The site is where the elevated 101 Freeway connects to the surface streets at Market and becomes Octavia Boulevard – the entrance to north/west sector of San Francisco. The First Baptist Church with its classical façade and strong cornice is one pylon of this entrance. Mirroring this mass, on the other side of Octavia Boulevard, 8 Octavia completes the gateway. This entry is seen as an opportunity to present our new city, one that folds tradition and innovation.

8 Octavia

8 Octavia

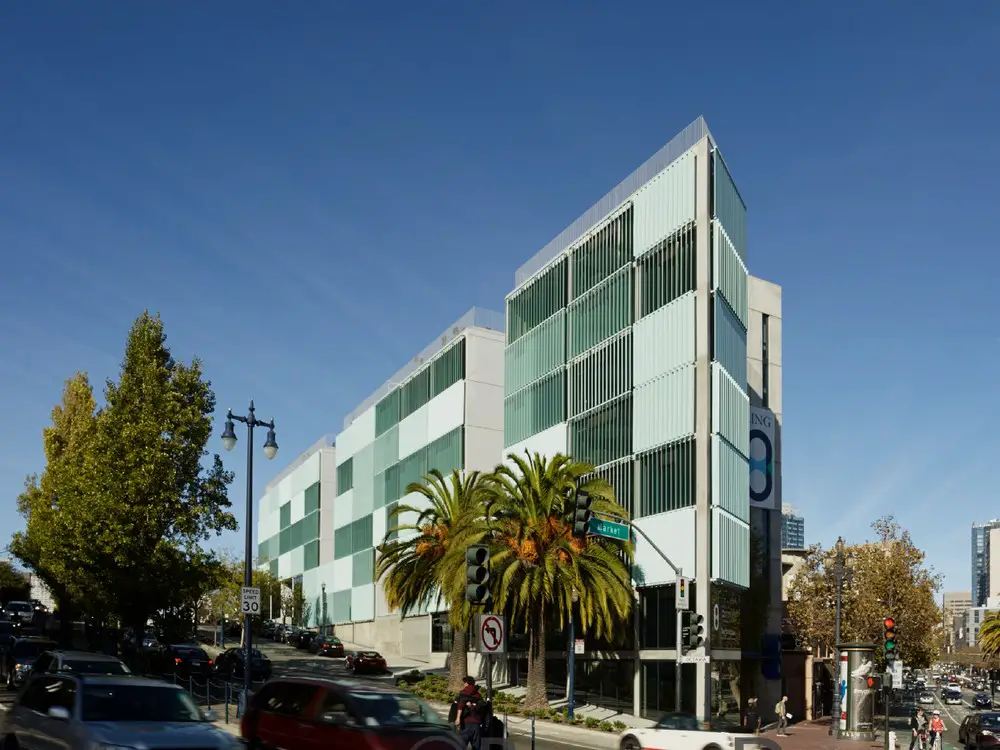

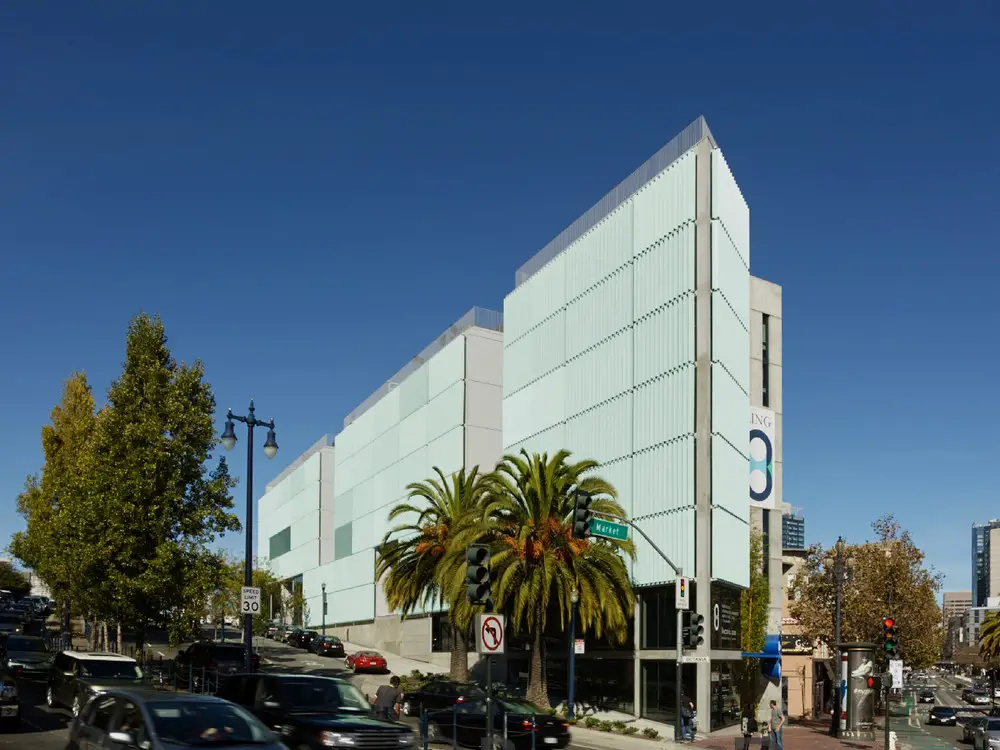

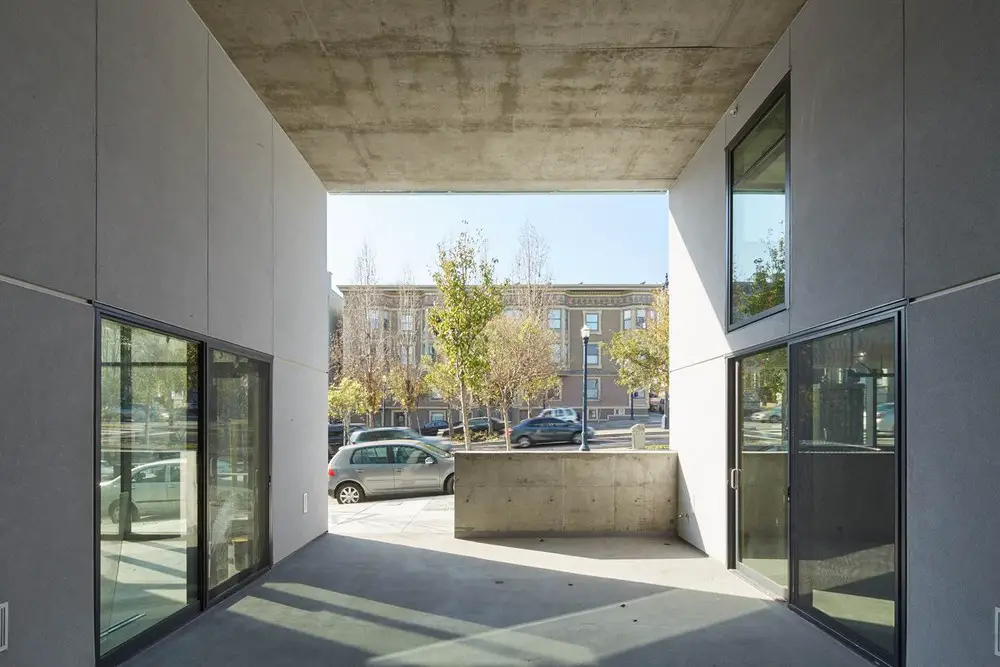

The long thin mass of building floats above the street to make public commercial space at both ends.

8 Octavia

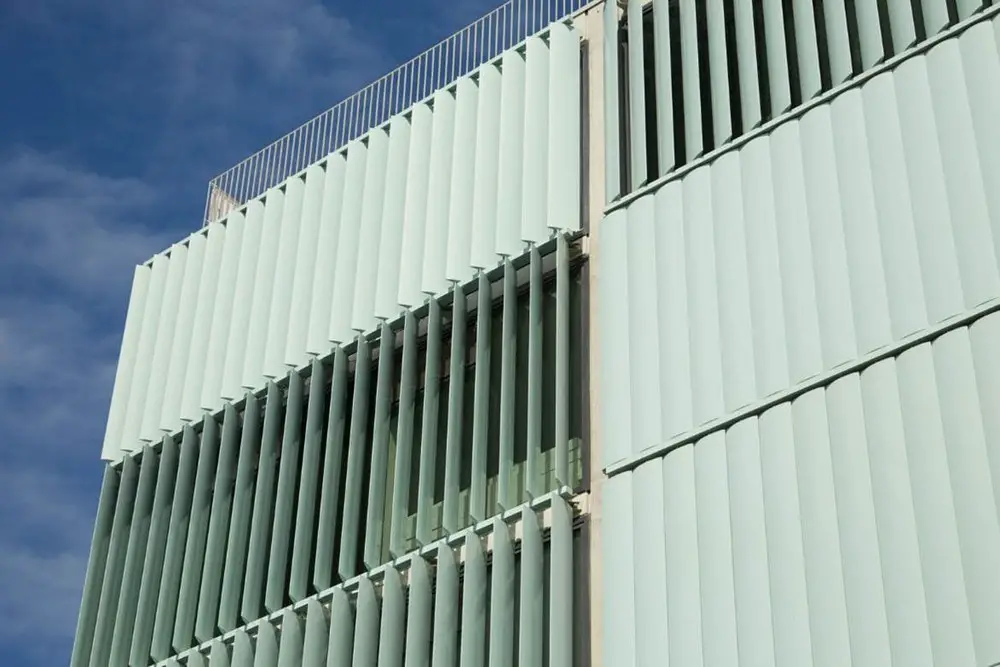

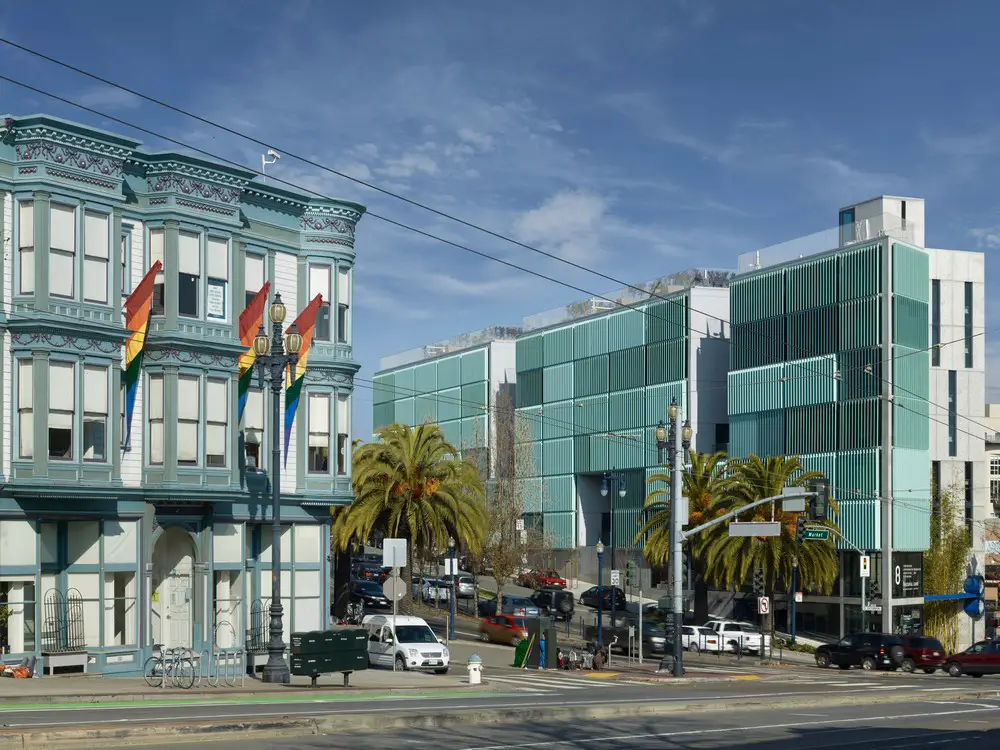

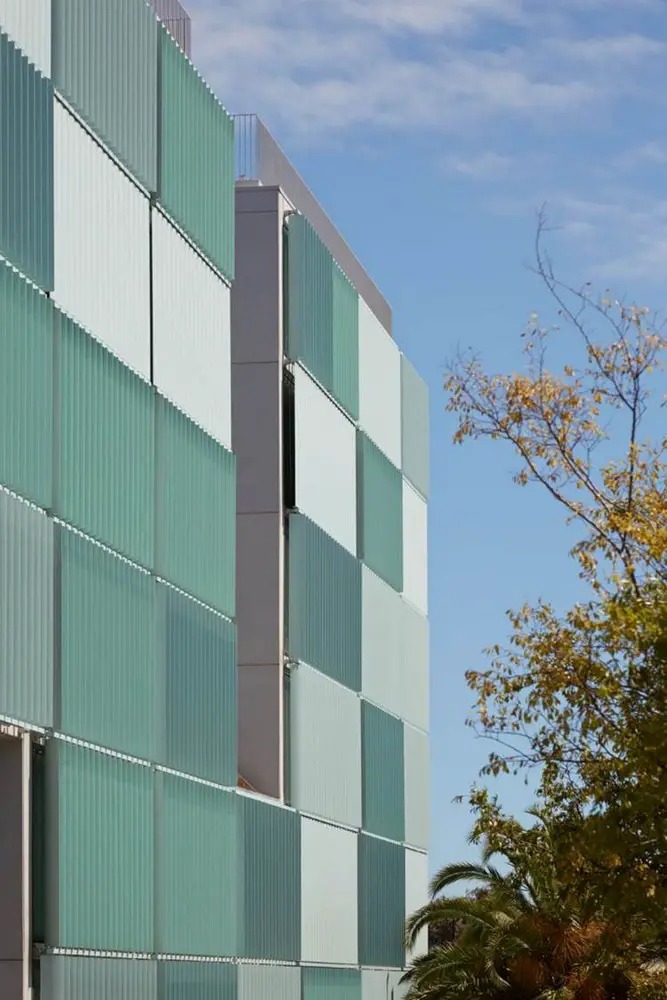

Traditional San Francisco street facades are pretty, with delicate vertical articulation, but now buildings also have other work to do. They need to protect and temper us with as little energy and resources as possible. Skins of building have to be alive, breathing and changing with the time of day and seasons, responding to the variation in climatic conditions to adjust the interiors. On this predominantly western façade, each occupant can modulate the sunlight and sound in their unit, controlling the temperature and re-drawing the exterior elevation as they do, displaying their occupancy to the city outside as a constantly changing billboard.

8 Octavia 8 Octavia

Building Community

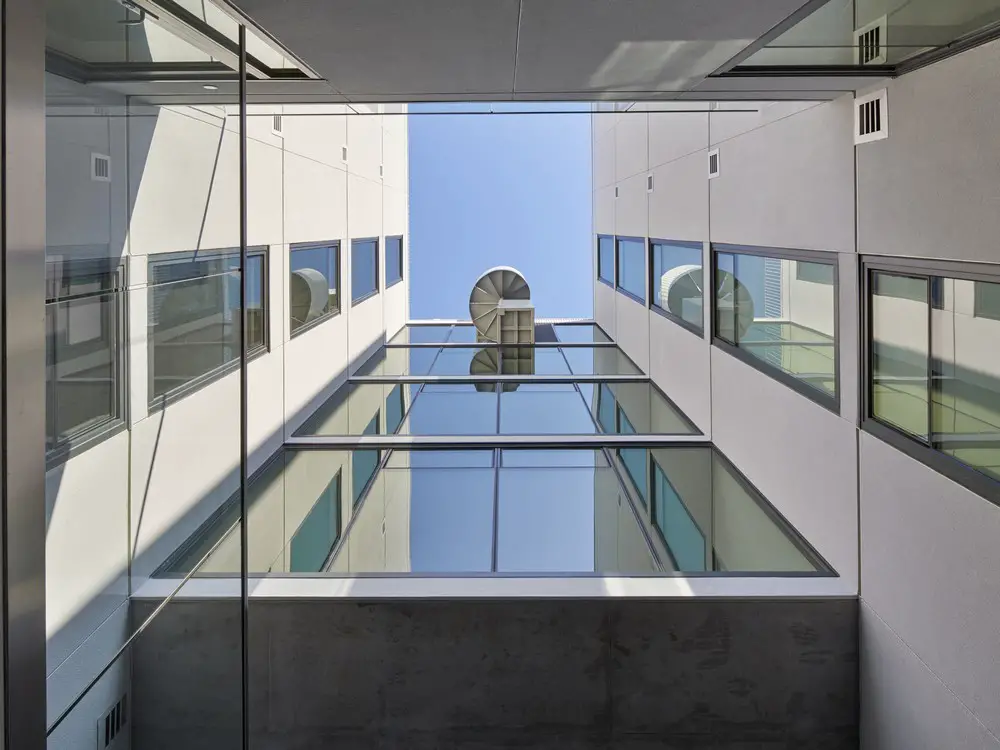

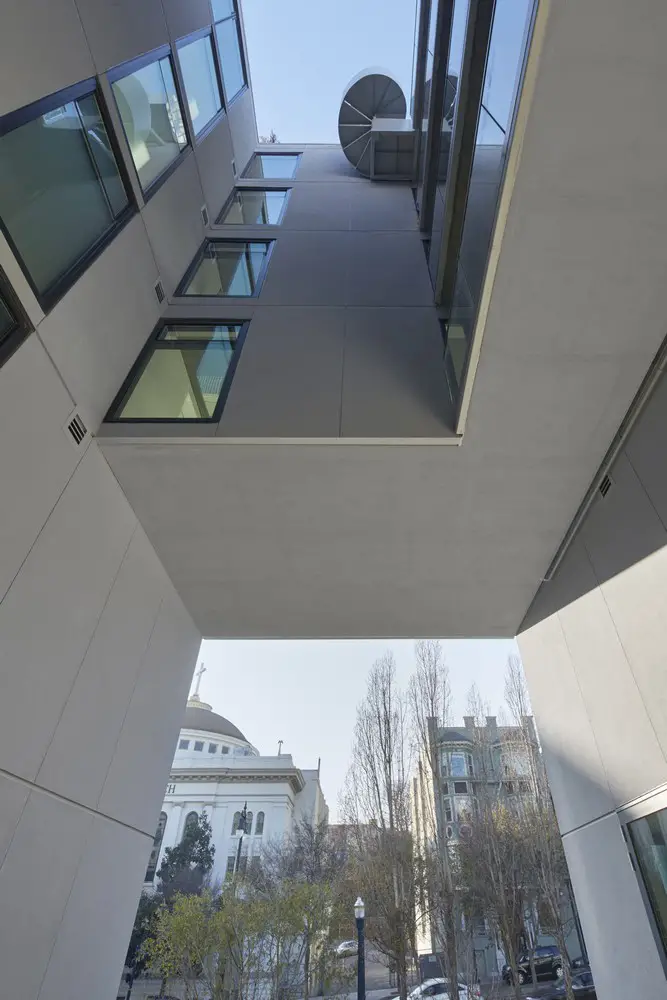

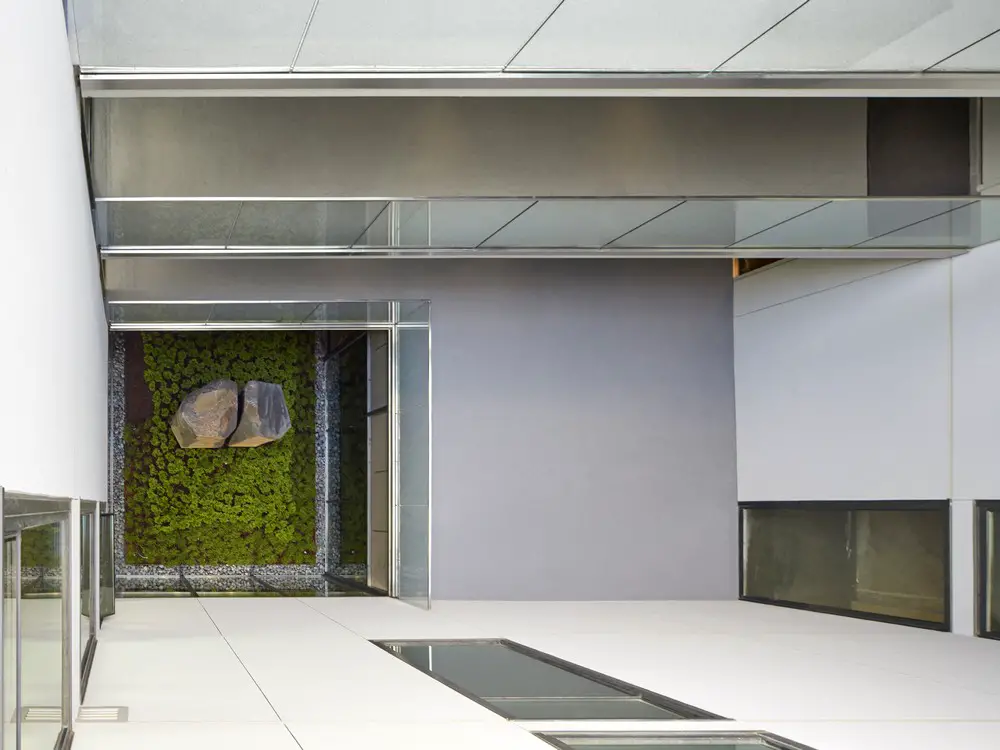

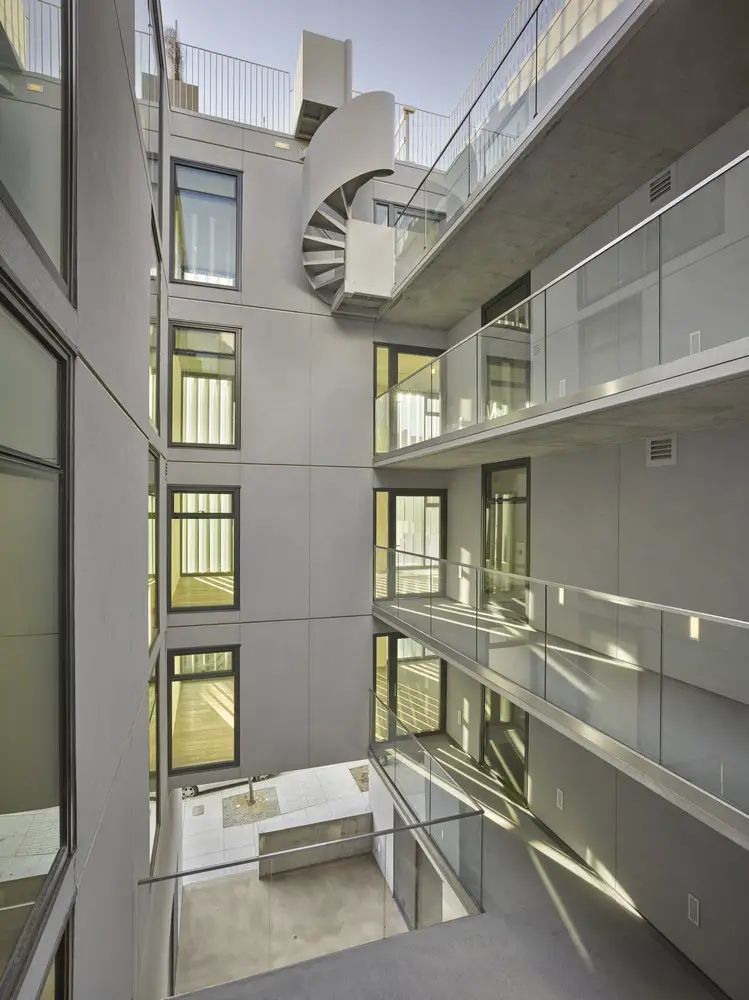

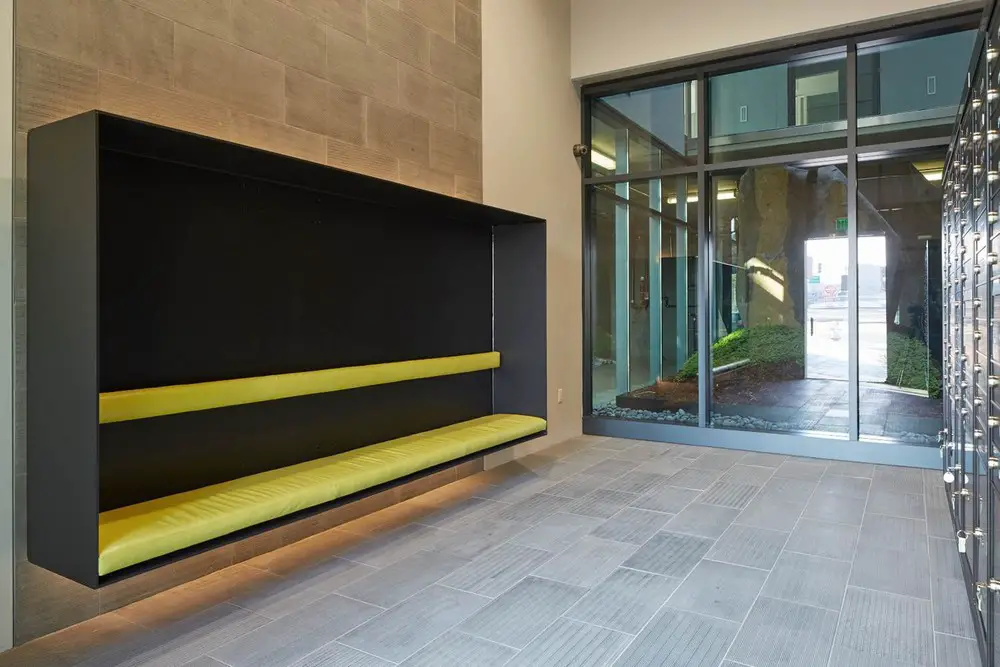

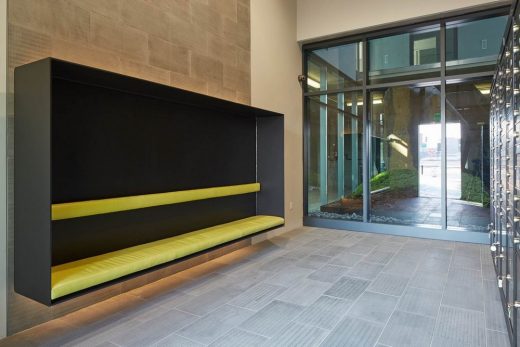

To create serenity on this busy boulevard, vertical rear yards are carved into the long mass, slices that weave through the building articulating the façade in proportion to surrounding buildings. The required ‘rear yard’ open space is divided into four parts to optimize the benefits of openness. These slices expand the girth of exterior wall, increasing the opportunities for interior light. Residences are entered via bridges through these common courts. Instead of a corridor, one arrives at home through a shared courtyard which creates opportunities for interaction and connection.

8 Octavia

8 Octavia

8 Octavia

The Urban House

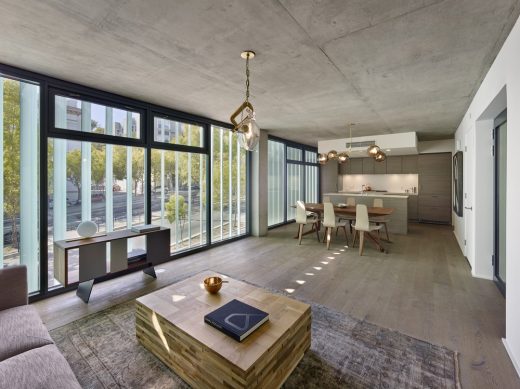

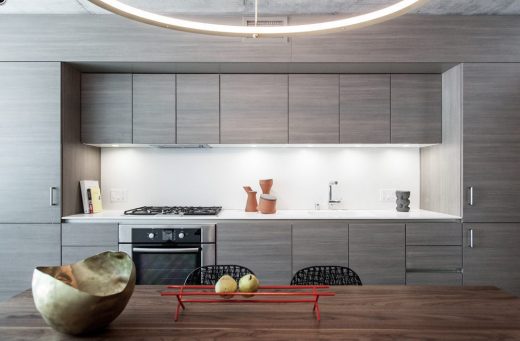

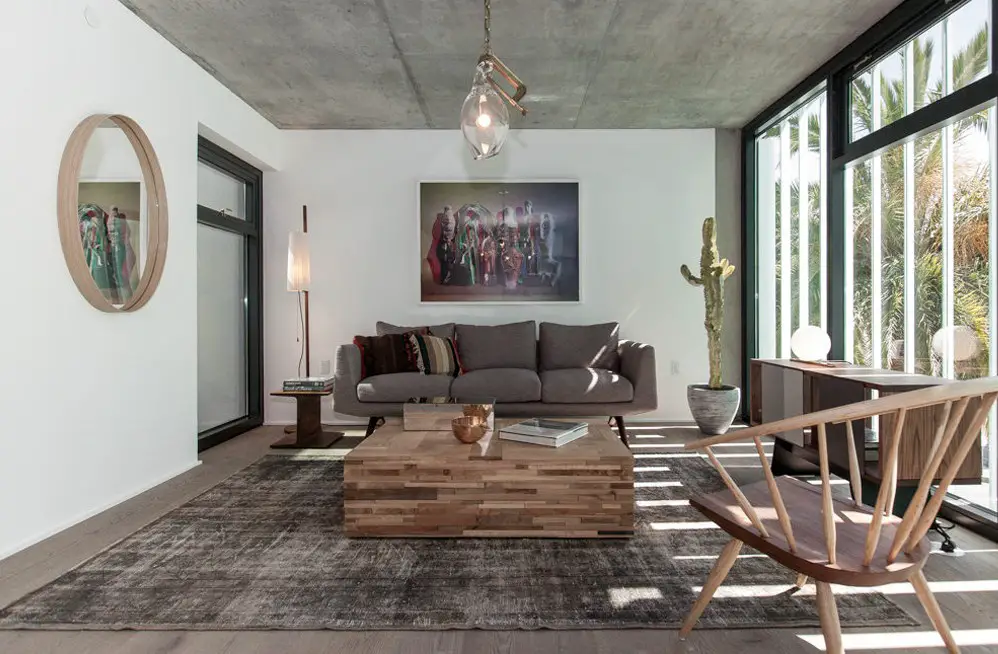

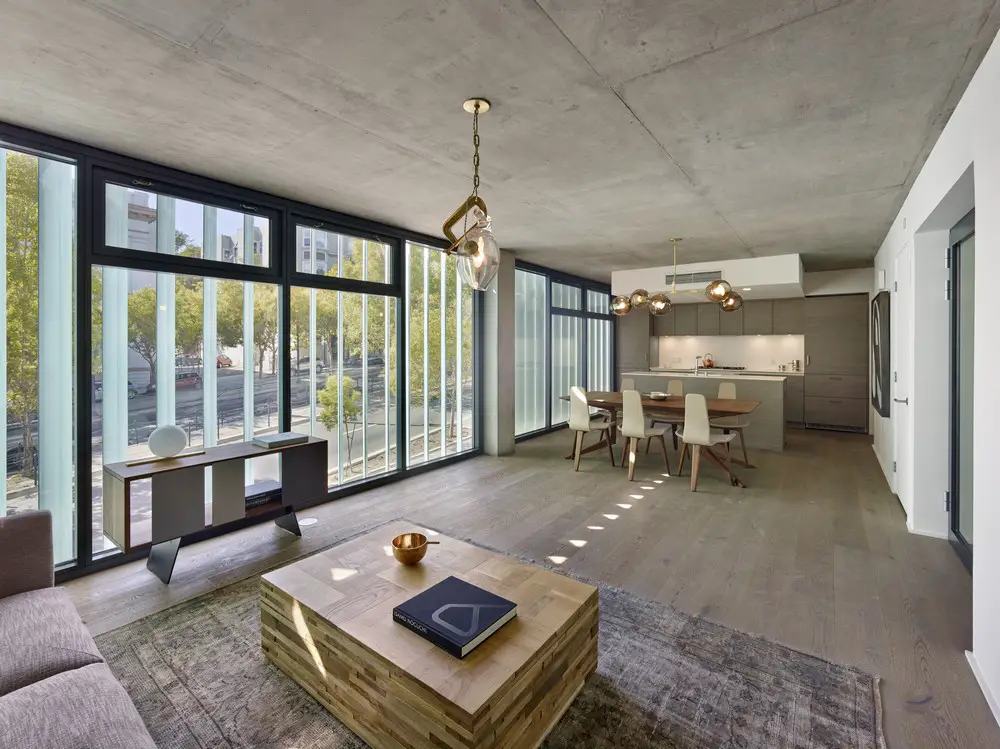

San Francisco pioneered the new loft as an alternative to the apartment. Lofts provide occupants freedom to construct their own home by the arrangement of furniture in an open plan with minimum walls and constraints. We have based these dwellings on this type. Services are compressed along common thick walls, or in floating pods, highly rationalized, systematic, and rigorously stacked for economies. This achieves parallel goals of compression facilitating openness; and rationality achieving economy.

8 Octavia

8 Octavia

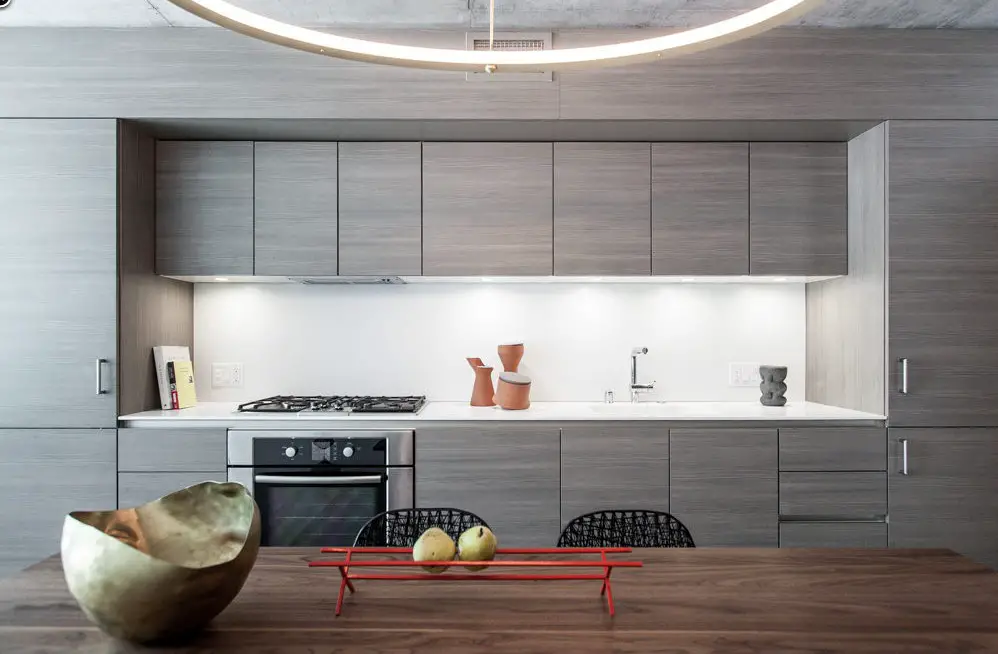

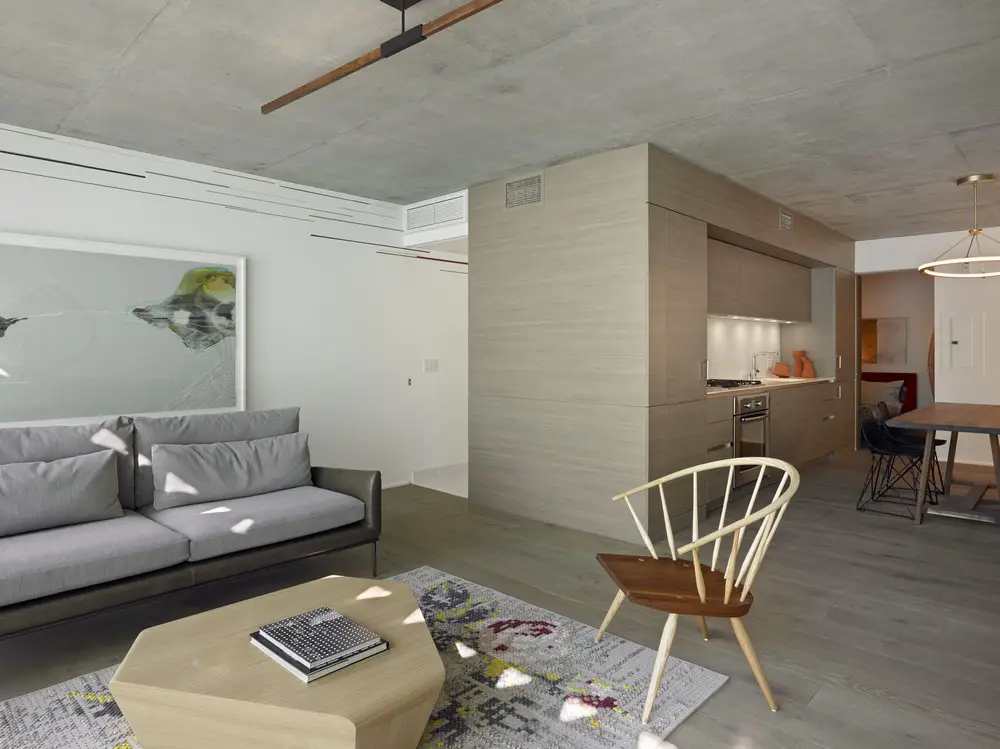

The units are composed of a kit of parts. The one is a two-bedroom L-shaped courtyard house, arranged around the vertical voids. The other type is an I-shaped single bedroom unit with generous open space and an efficient pod containing all the services and mechanisms of domestic life floating in the space. At the top of the building L’s and I’s are combined into U’s to form 3 bedroom penthouse units which have private roof terraces accessed with spiral stairs.

8 Octavia

8 Octavia

8 Octavia

8 Octavia

Our goal is to put design within reach with spaces which engender freedom for the occupants, agglomerate around communal courts, and make a memorable urban object that is proudly present and marks this important locus in the city.

8 Octavia 8 Octavia

8 Octavia in San Francisco – Building Information

Location: San Francisco, CA, USA
Area: 71,000 SF
Occupancy: Residential, Retail
Construction: Type I
Timeline of work: Entitlement 18 months, Construction 16 months, Completed in 2014
Client: DDG/DM Development
Consultants:
a. Structural and Civil: KPFF Consulting Engineers
b. Landscape: Marta Fry Landscape
c. Waterproofing: SGH Engineers
d. Acoustic : Wilson, Ihrig & Associates

8 Octavia

Photography: Bruce Damonte
