Black Pearl House in Rotterdam

Building Restoration Development, The Netherlands design by Studio Rolf.fr i.p.w. Zecc Architecten

12 Oct 2016

Black Pearl House in the Netherlands

Design: Studio Rolf.fr i.p.w. Zecc Architecten

Location: Pompstraat 44, 3082 Rotterdam, The Netherlands

Black Pearl House

Black Pearl House

Social context
This house takes part of a program of the congregation Rotterdam who wanted to revitalize disadvantaged neighbourhoods by selling metier houses to private persons. These homes have in common that they are neglected the last few years and have to be refreshed. The buildings usually consist of several small apartments, one per layer.

The purpose of the municipality by selling the buildings is to attract inhabitants with more carrying-capacity. Condition of sale is that the property will be restored within a specified period and will transformed into one house. This causes less, but larger houses. This is the opposite trend to what happens in many inner cities where larger houses are divided into several small apartments.

Black Pearl House

Black Pearl House

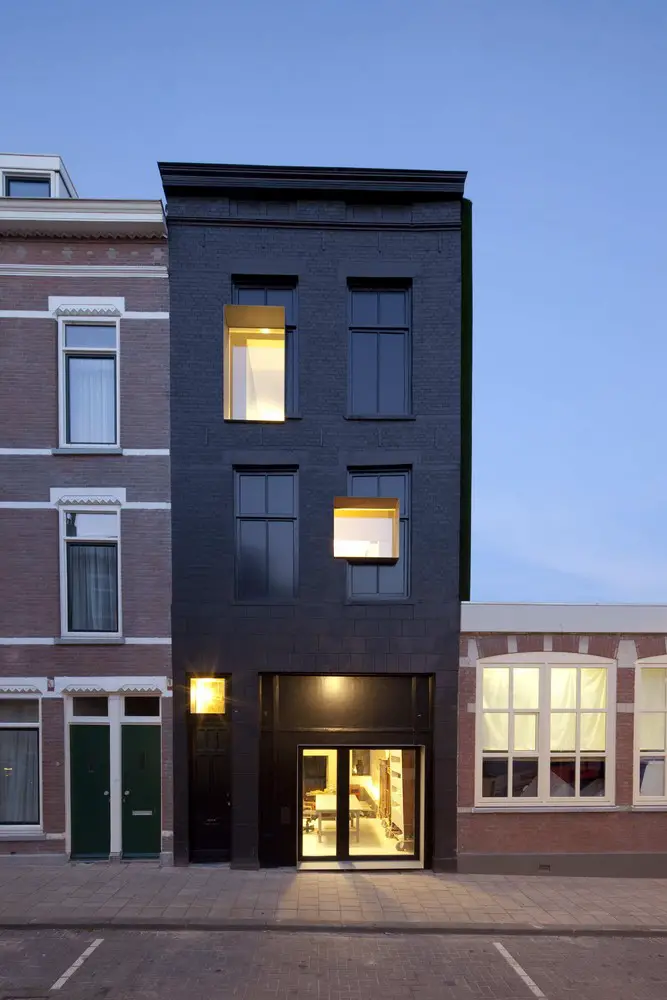

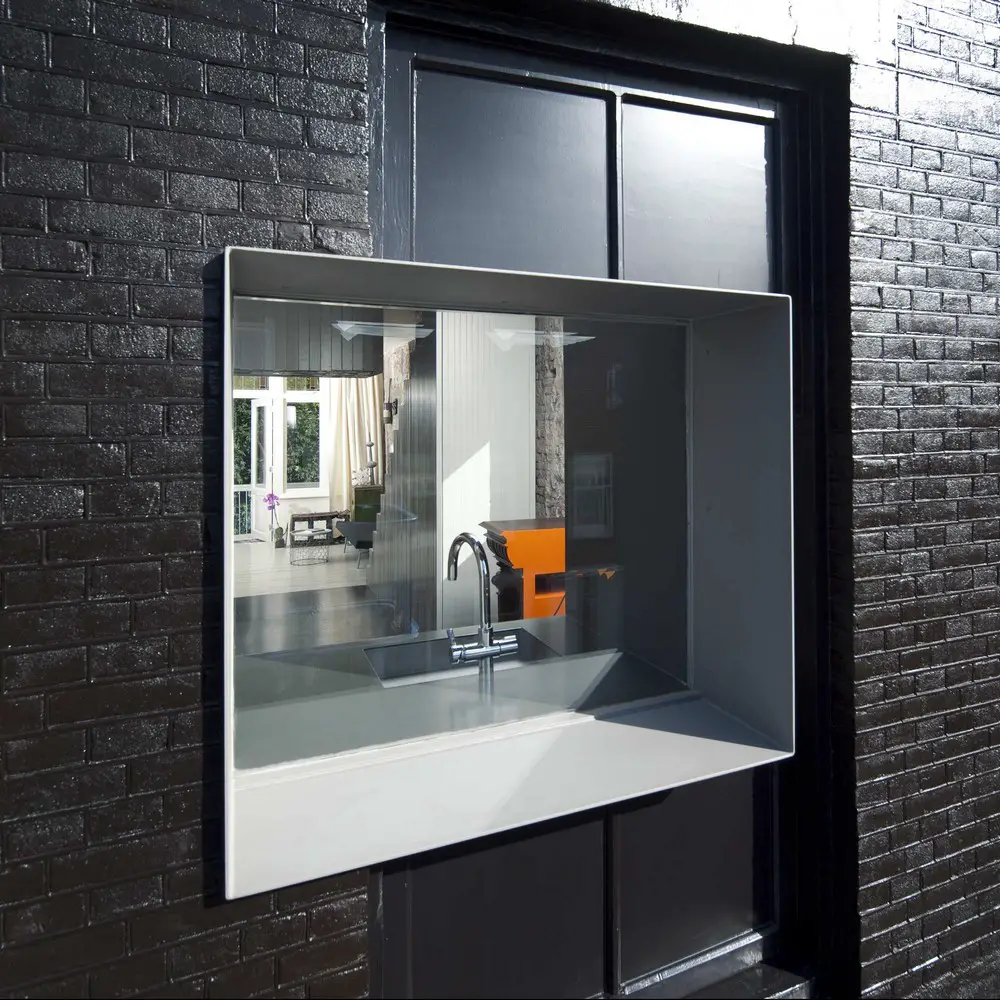

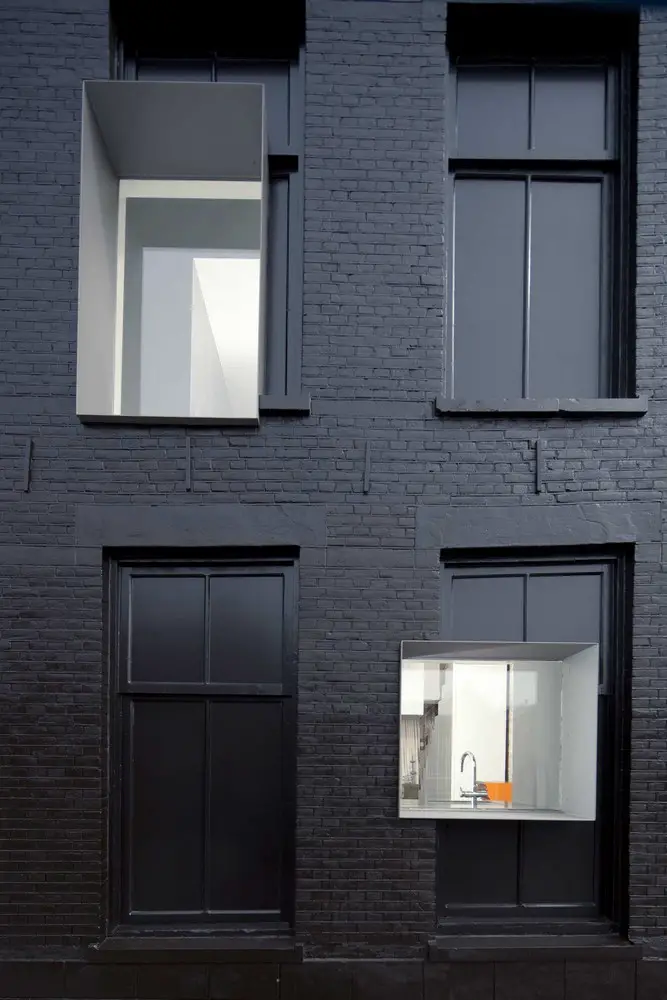

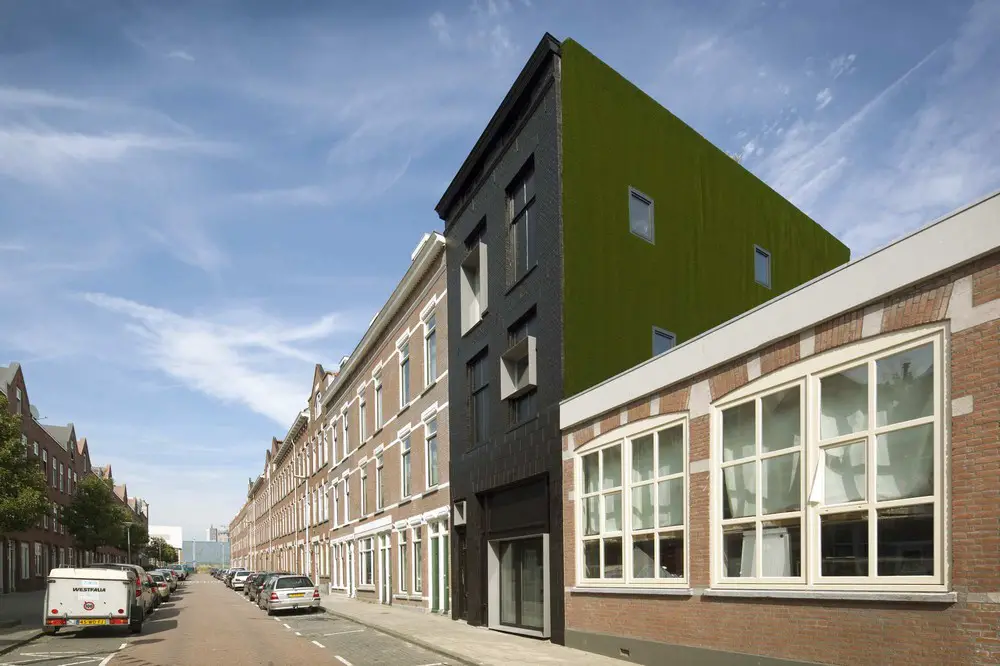

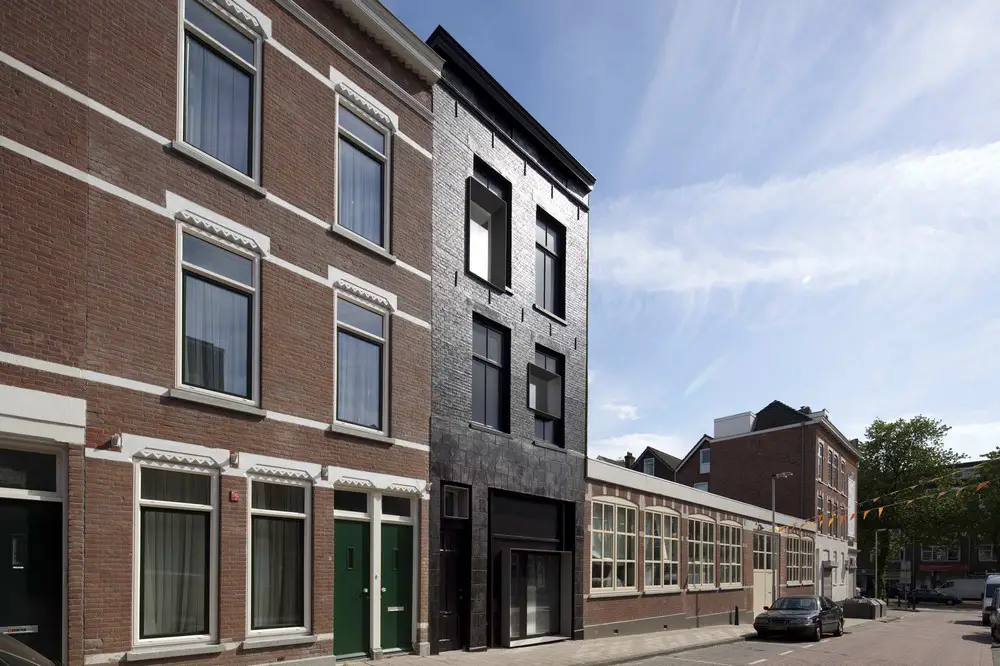

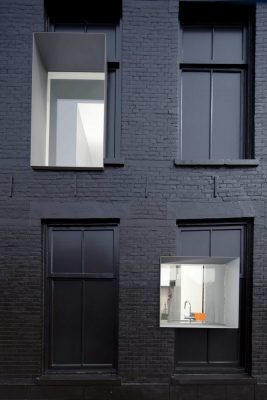

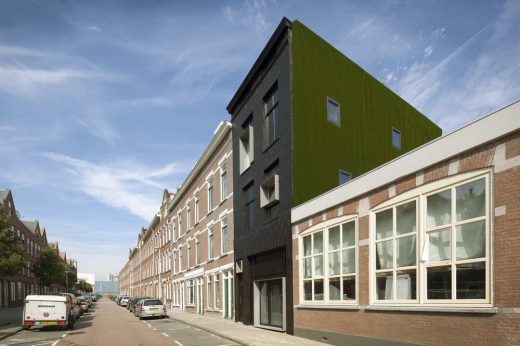

The renovation of the Rotterdam ‘metier house’ is turned into an architectural spectacle, where was experimented with time and space. The 100 years old facade of a dwelling in a closed housing unit, is totally painted black. Both masonry, frames and “windows” are covered with a shiny black oil. This creates a kind of ‘shadow’ of the original facade. In some places the new transparent windows pierce through the historical facade.

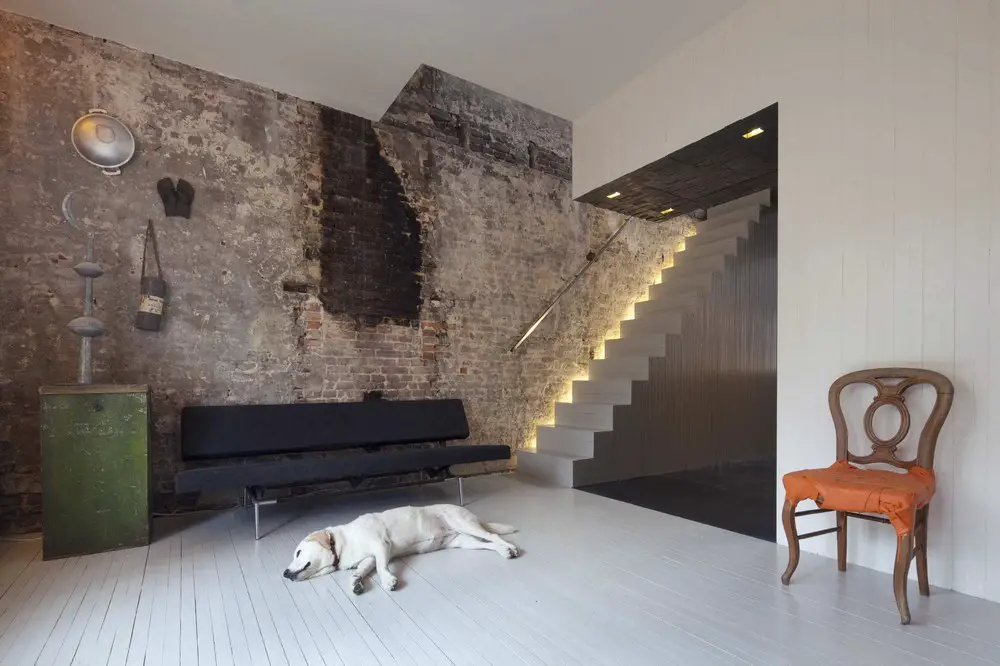

The new windows announce a time with a very different way of living. This creates a relationship between the original facade and the new interpretation which become readable. All floors and small rooms behind the old windows run into one spatially contiguous entity. Just like in the façade, also in the interior the traces of the past remained visible. On the building walls an old banister and holes of removed floor joists reveal the original layout of the dwelling. The new house in the 100 year old cover has a completely different planning.

Black Pearl House Black Pearl House

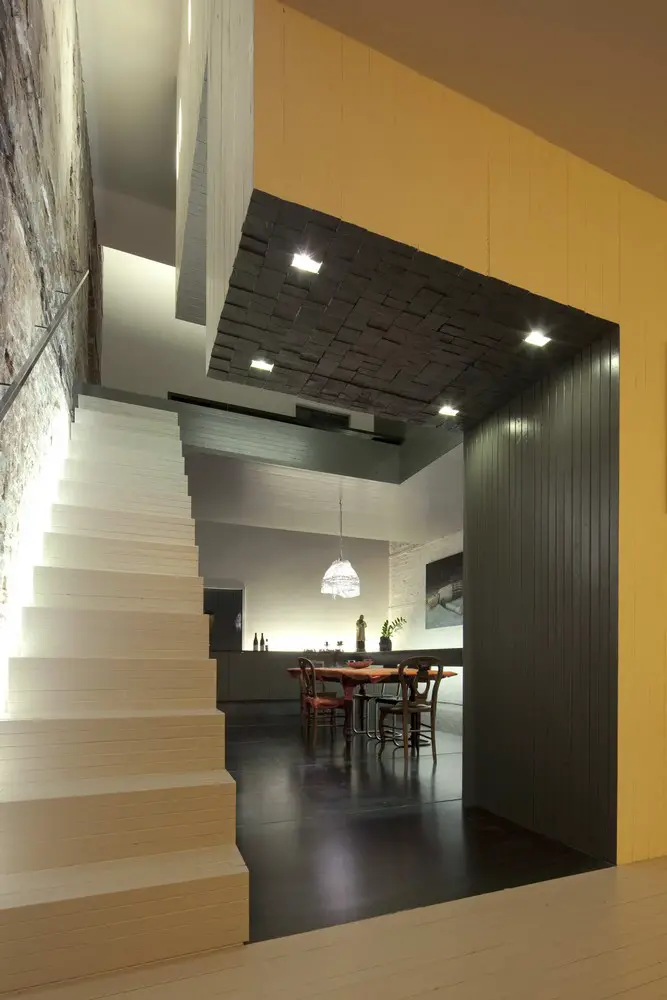

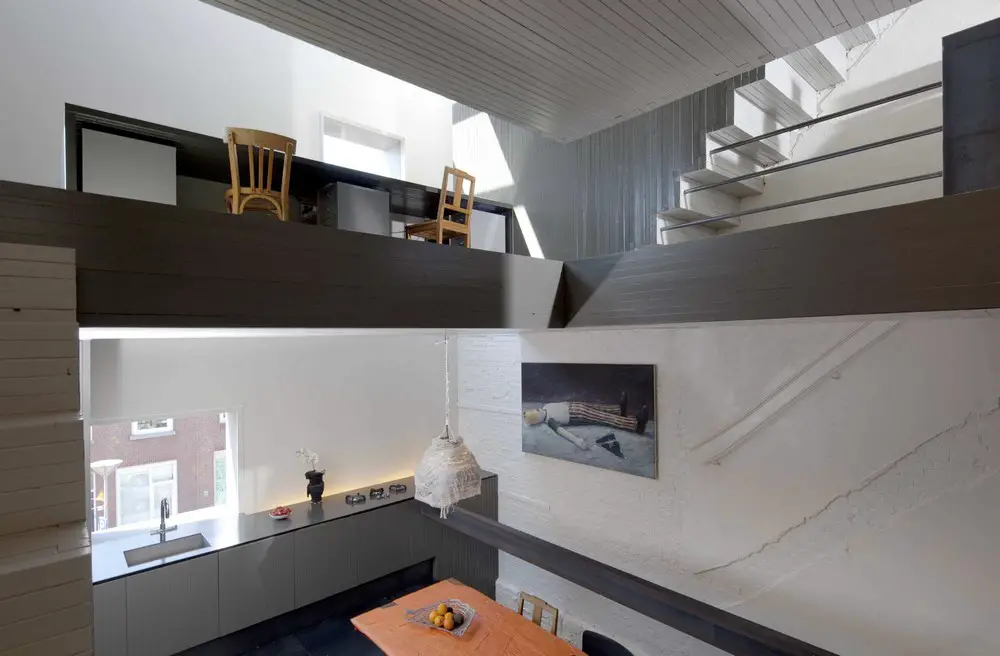

The traditional layout of floors and walls, which compose the rooms are missing. Instead a series of small wooden slats compose a huge sculptural element. By this is a continuous space is left between the four walls of the historic building. This creates living spaces, which are connected by voids, large stairwells and long sightlines. All redundant banisters, railings and doors are left out, causing a high degree of spatial abstraction.

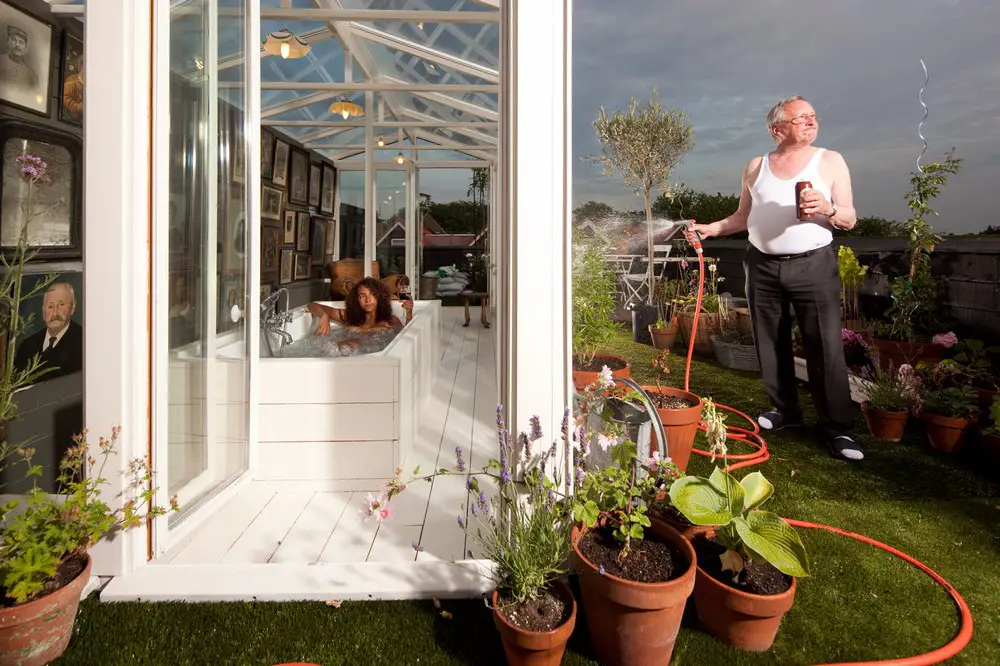

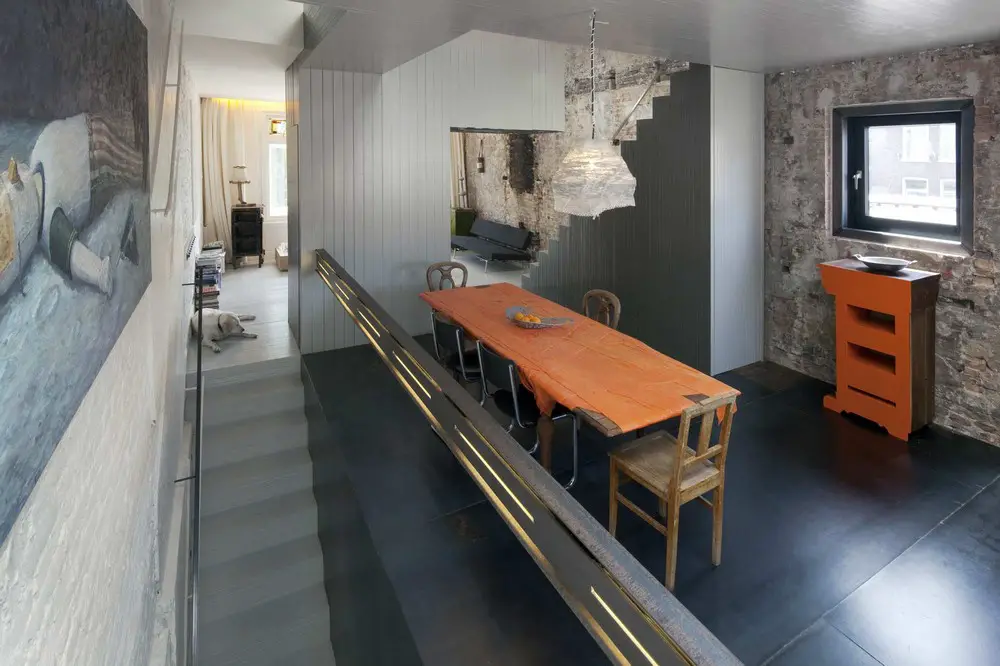

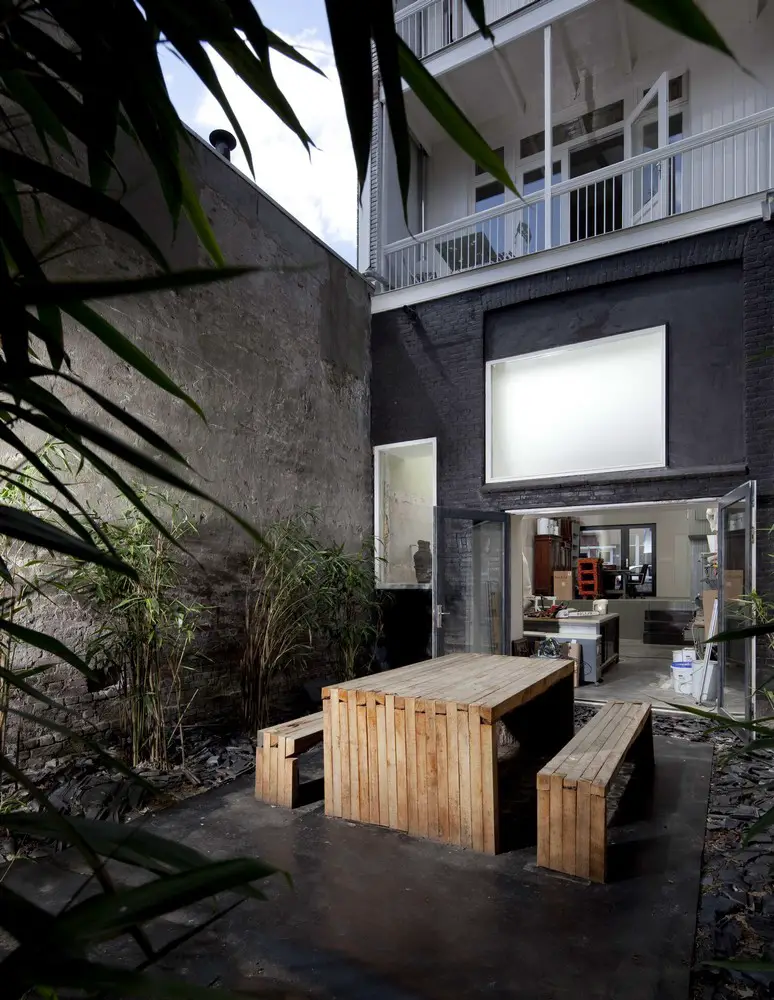

Floors, walls, stairs and ceilings blend together and seem to recall an “Escher-like” impossibility. Yet this metier house (that has been empty for nearly 30 years) is far from uninhabitable. In the lower part of the house a large workroom is placed connected to the ‘roof tiles-bamboo garden’. Above is a series of semi-open living functions: living, eating, cooking, study, sleeping and a bathroom / closet. The old roof tiles are removed in the upper part (re-used in the garden) and a new greenhouse is placed with a hot tub with a stunning view.

Black Pearl House

New interpretation: three worlds The existing building is used as a box to build a completely new house in it. All walls and floors of the house were demolished which created a space of 5 meters wide, 10 meters long and 11 meters high. In and up this box three different “worlds” are stacked: the studio, the house and the roof garden.

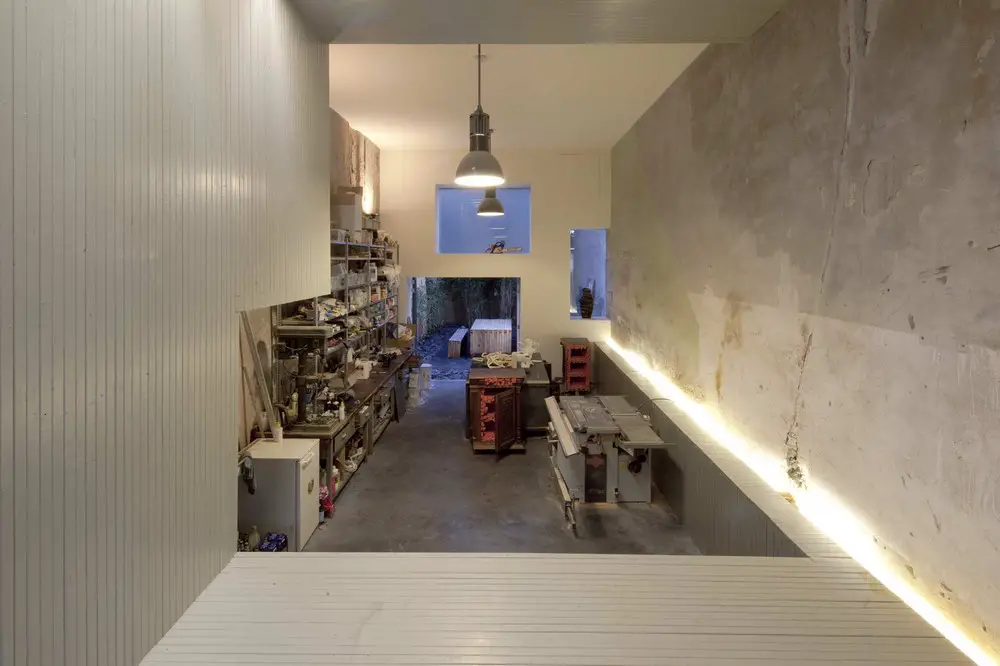

On the ground floor, the 5 meters high studio is built. This studio space is kept as open as possible. This is achieved by organizing the necessary facilities along the walls as much as possible, in one continuous element. The living area is placed above the studio with a height of 6 meters.

In this space, a sculpture is build which divides space into several areas without creating closed rooms. The object is designed and situated in a way that in several places views arise which emphasize the entire length, width and height of the place. The design is concentrated on the residual spaces between the object and the existing walls.

Black Pearl House

Black Pearl House

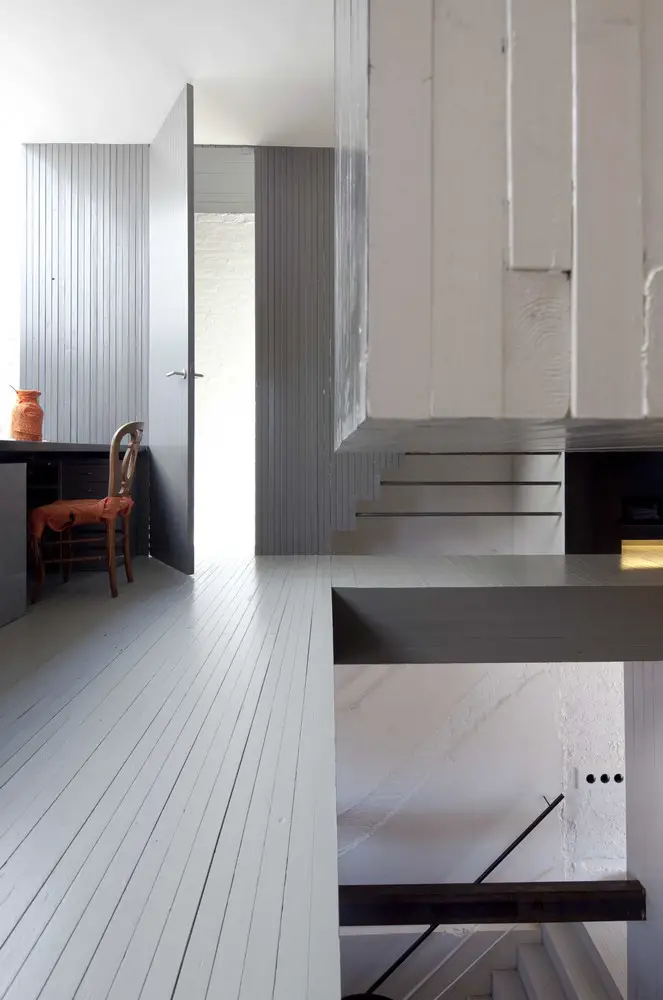

Materialization sculpture The sculpture is entirely composed of screwed bars together which forms both construction and finish. This construction method creates a great freedom of form. A large part of the object hangs with these bars on the roof floor so that support becomes superfluous.

Black Pearl House Black Pearl House

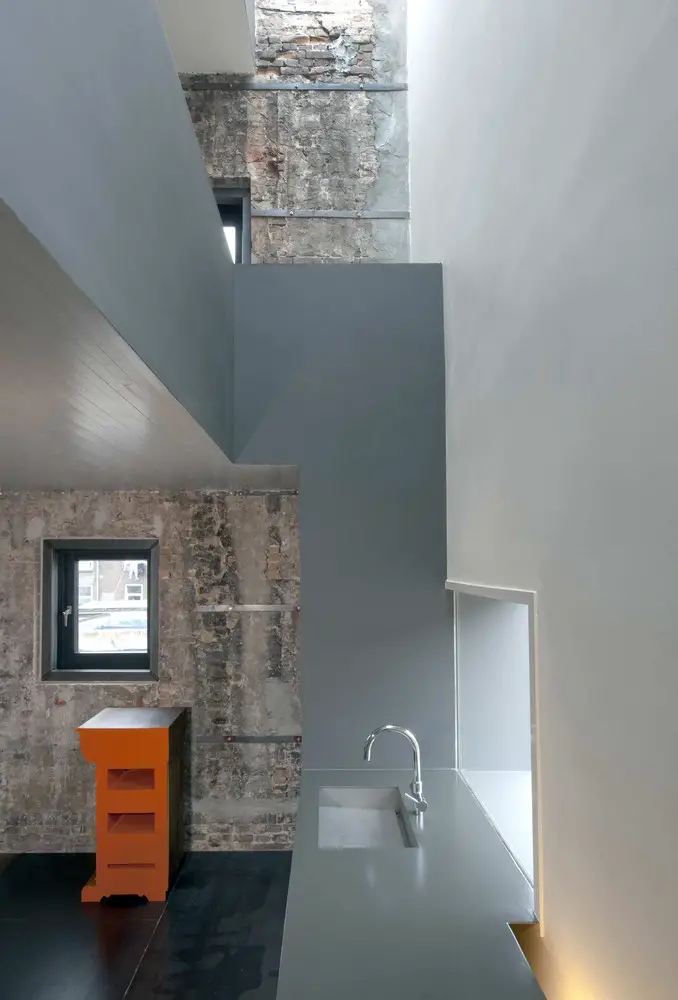

Colour use In the house, five colours are used: black, white and three greyscales. An existing side wall is totally painted white. The traces of construction, including the old railings and pipes are all painted white. The other building wall is left untreated. The different faces of the object are painted in three greyscales. These shades are aligned to the space they enclose. By this method, the space between the object and the existing box are strengthened.

Black Pearl House

Black Pearl House

Rotterdam South accommodates with this new metier house a black pearl…

Black Pearl House Black Pearl House

Black Pearl House – Building Information

title: Black pearl Rotterdam South
facade design: Studio Rolf.fr i.p.w Zecc Architecten
interior design: Studio Rolf.fr
program: house and studio
period: 2008-2010

Location: Pompstraat 44, 3082 Rotterdam, The Netherlands

Date preliminary design: January 2008
Start construction activity: December 2008
Acceptance: September 2010
Floor area: 170 sqm

ARCHITECT
Design facade: Studio Rolf.fr i.s.m. Zecc architecten
Design interior: Studio Rolf.fr
Project architects: Rolf (Studio Rolf.fr), Yffi van den Berg & Marnix van der Meer

Website: Rolf.fr

Website: Zecc Architects

INVOLVED PARTIES
Contractor: Eugene Schenkels
Interior constructor: De Bouwflip
Furniture design: Studio Rolf.fr

SPECIAL MATERIAL
Walls: Houten balkjes tegen elkaar geschoefd
Floors: Houten balklagen
Furniture: Meubels van Studio Rolf.fr
Lighting: Standaard tl armaturen als indirecte verlichting

Black Pearl House

Photography: Frank Hanswijk

Black Pearl House in Rotterdam images / information received 121016
