The Three Cusps Chalet in Braga

Building Refurbishment in Portugal design by Tiago do Vale Arquitectos

25 Oct 2016

Design: Tiago do Vale Arquitectos

Location: Braga, Portugal

The Three Cusps Chalet

The Three Cusps Chalet

The Three Cusps Chalet, Braga

Recent winner in the American Architecture Prize, the Three Cusps Chalet is a very peculiar building, documenting this region’s history and diaspora, and combining typical 19th century Portuguese architecture and urban design with an unexpected alpine influence. This influence was brought by an historic wave of rich Portuguese returning from Brazil in the eighteen hundreds (significantly influenced by central-europeans building Brazil’s second industrial revolution).

The Three Cusps Chalet The Three Cusps Chalet

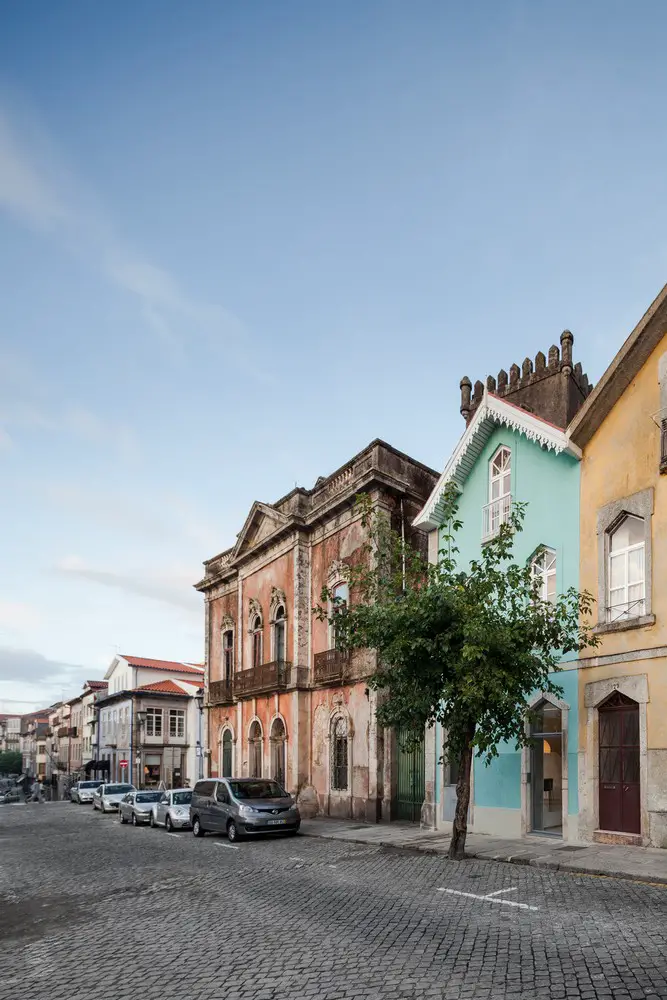

Conceived as an annex serving the small palace by its side and siting at the heart of both the roman and medieval walls of Braga, this is a particularly sunny building with two fronts, one facing the street at West and another one facing a delightful, qualified block interior plaza at East, enjoying natural light all day long.

The Three Cusps Chalet

The building’s identity had been lost in 120 years of small unqualified interventions, over-compartmenting it, closing it to the street and to the light.

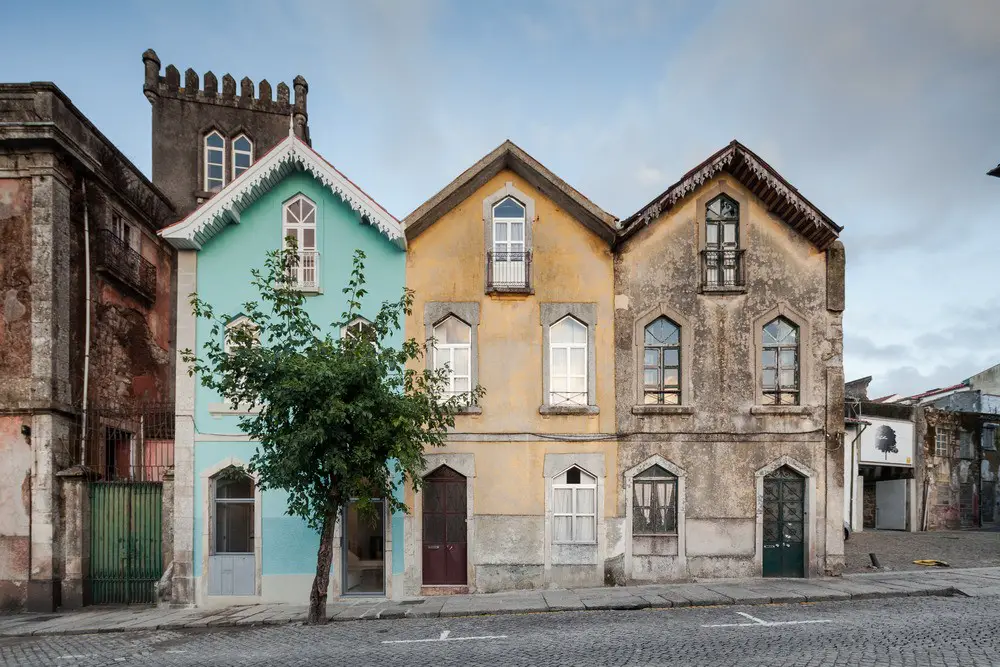

Its façade was equally adulterated: modern aluminum window frames and exterior shade head boxes changed the openings’ stereotomy, the building’s scale and detail, and disrupted the original sense of the street.

Braga property by Tiago do Vale Arquitectos

The goal of this design was to clarify the building’s spaces and functions, returning it to its original image, constructive techniques and (mainly habitational) program, while simultaneously making it fit for today’s way of living, giving it back to the city and potentially constituting a model for future rehabilitation projects in the neighborhood.

Braga building refurbishment design by Tiago do Vale Arquitectos

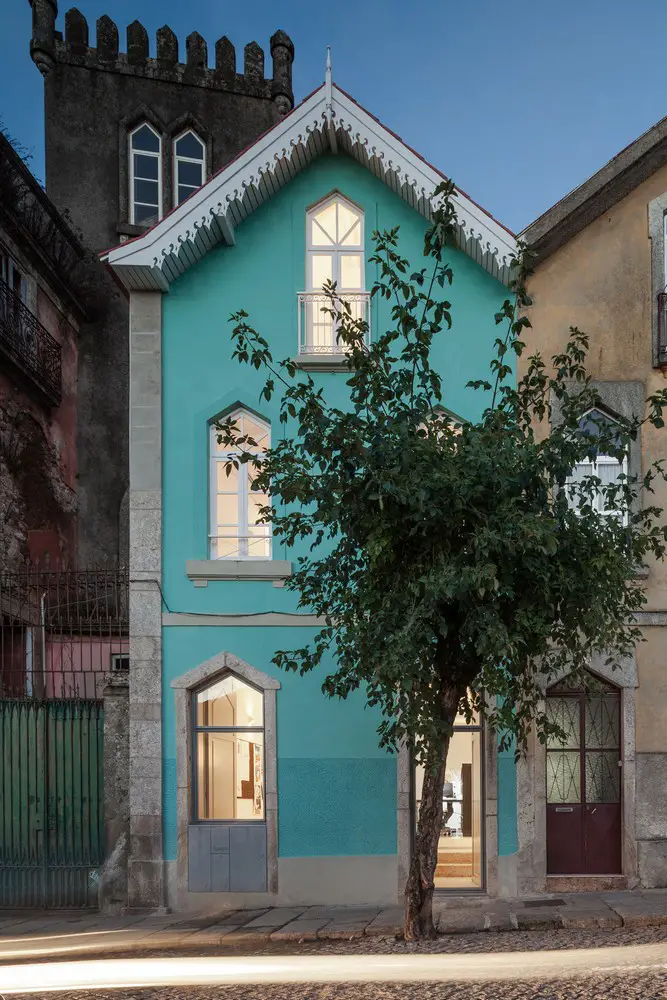

The façade was restored to its original glory, reinstating the original wooden window frames and preserving the delightfully decorated eave.

The interior recuperated the original spatial and functional distribution, wooden floors and ceiling structures and the original staircase, while introducing Portuguese Estremoz marble on the wet areas and ground-floor.

Braga building refurbishment design

The program asked for the cohabitation of a work studio and a home program.

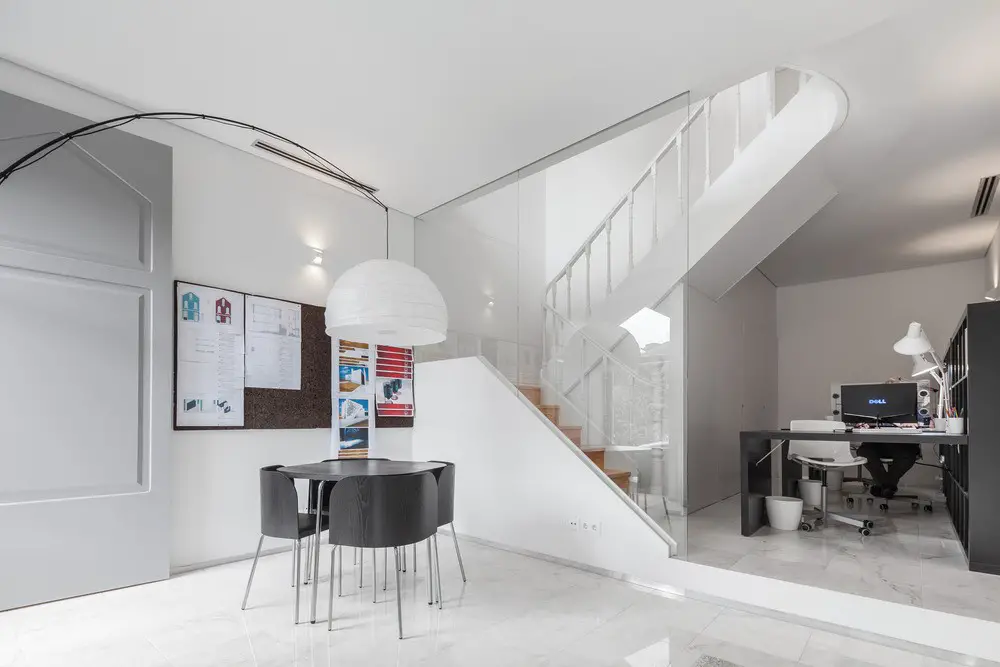

A 1,5 m height difference between the street and the block’s interior plaza allowed to place the working area on the ground level, turning it westward and relating it to the street. This façade is bathed with the afternoon light.

The Three Cusps Chalet

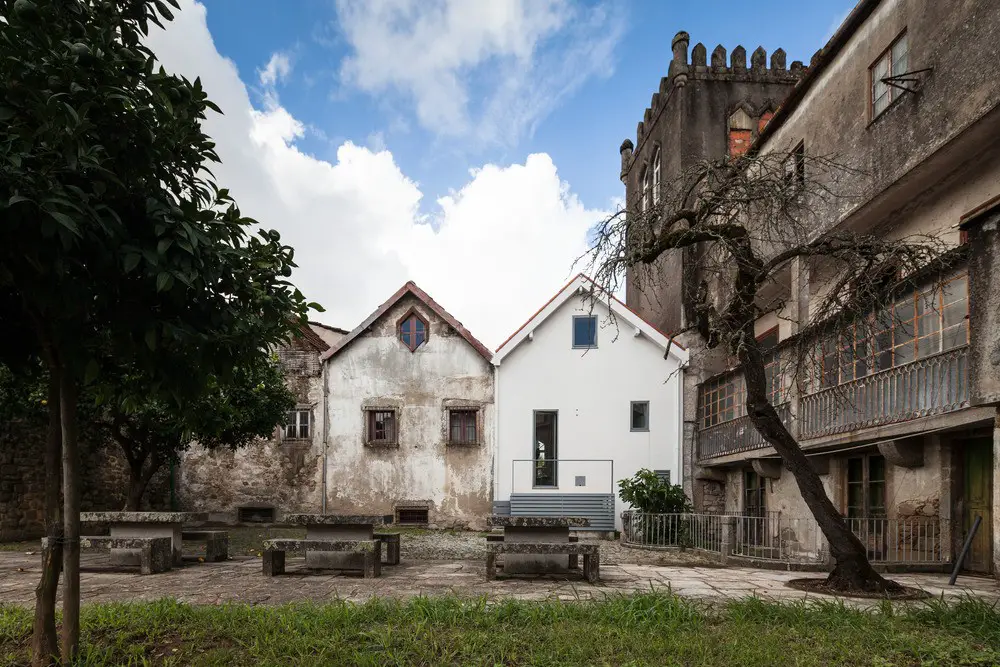

The domestic program relates with the interior plaza and the morning light. The interior plaza is punctuated by several orange trees: these provide a delicious shadow during the summer and display a beautiful show during winter, covered with bright fruits.

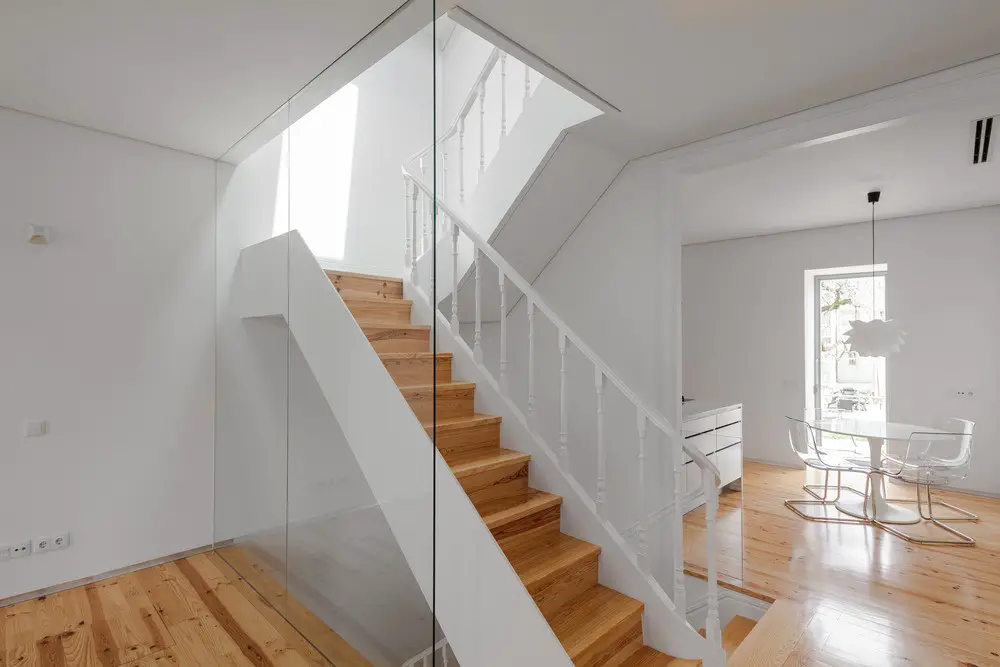

Given the reduced area of the building, the original strategy of hierarchizing spaces by floor was followed. The stairs are narrower with each flight of steps, informing the changing nature of the spaces it connects.

The staircase geometry efficiently filters the visual relations between both programs while still allowing for natural light to seep down from the upper levels.

The Three Cusps Chalet

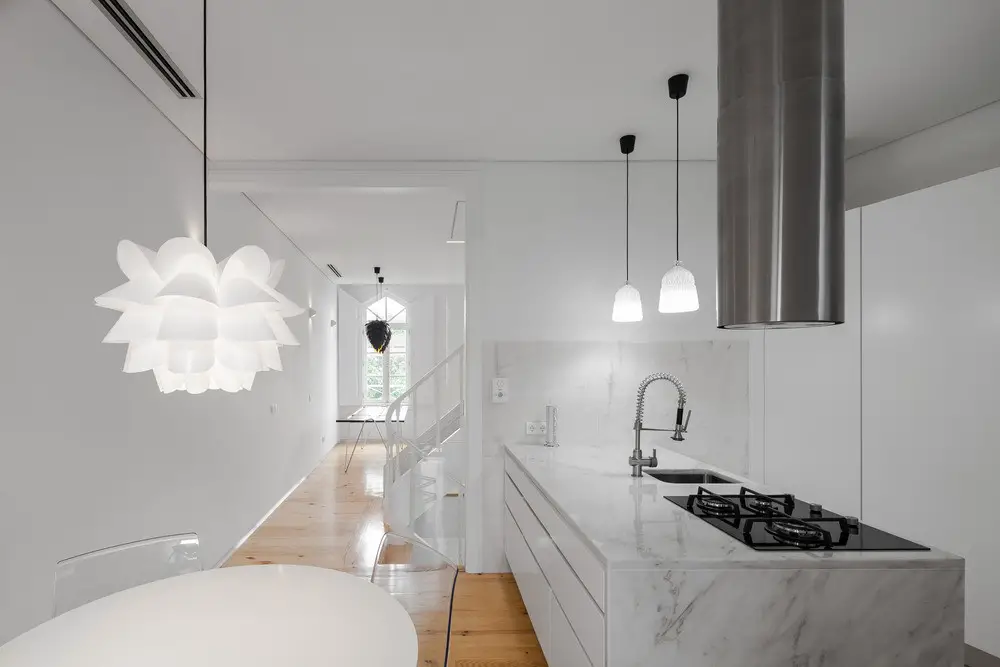

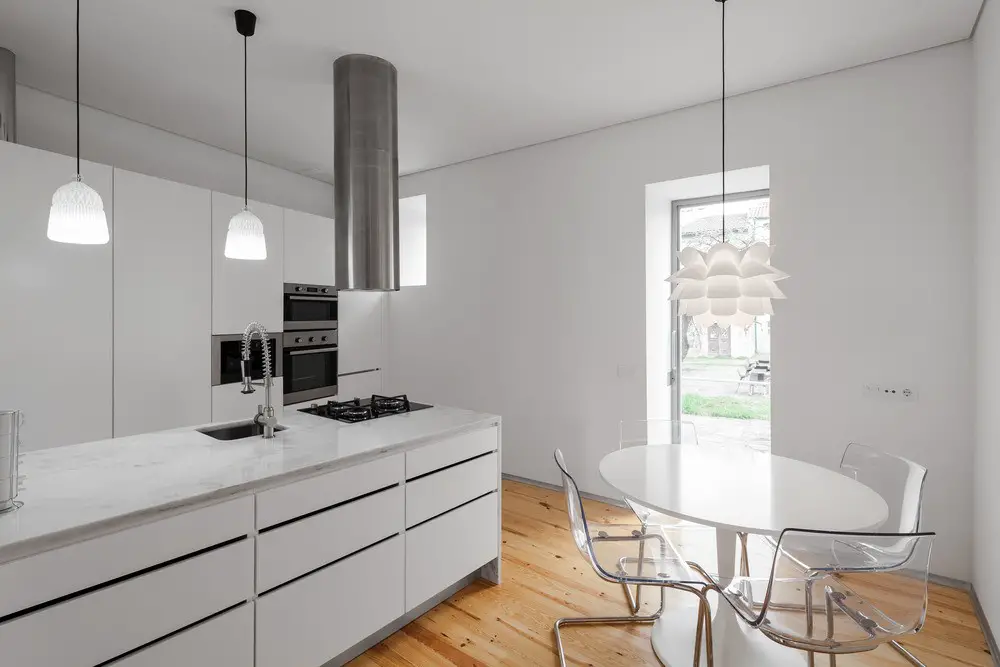

The first floor was kept for the social program of the house. Refusing the natural tendency for compartmentalizing, the staircase was allowed to define the perimeters of the kitchen and living room, creating an open floor with natural light all day long. Light enters from the kitchen in the morning, from the staircase’s skylight and from the living room in the afternoon.

The Three Cusps Chalet

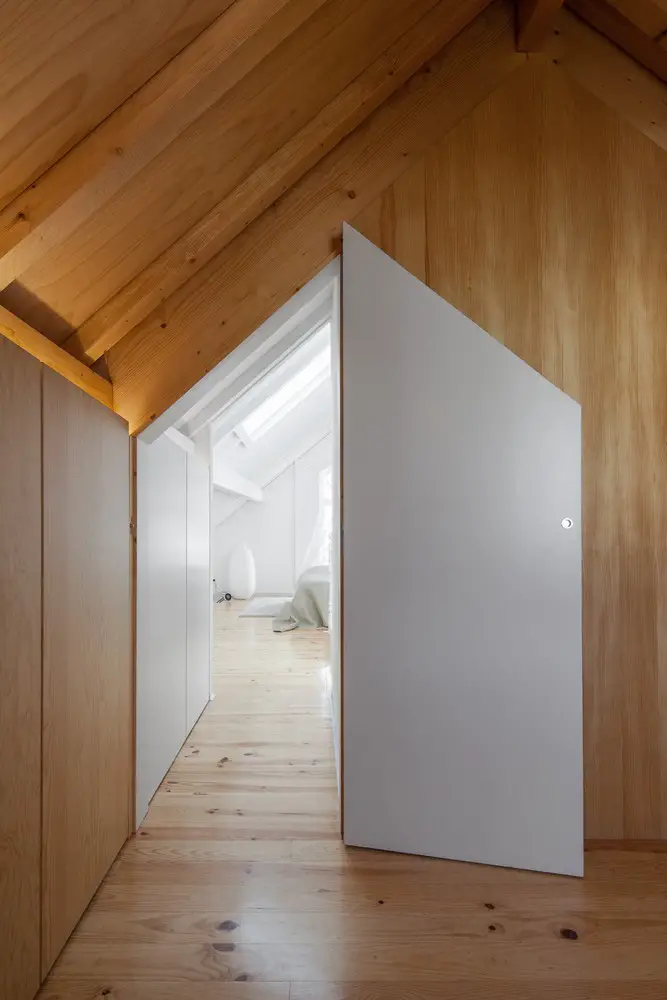

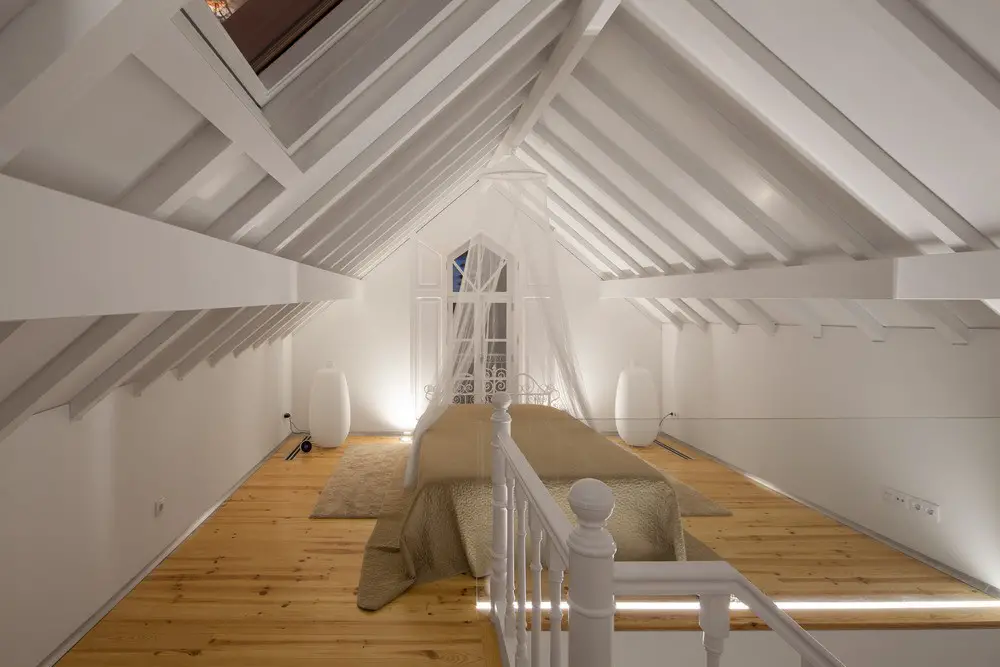

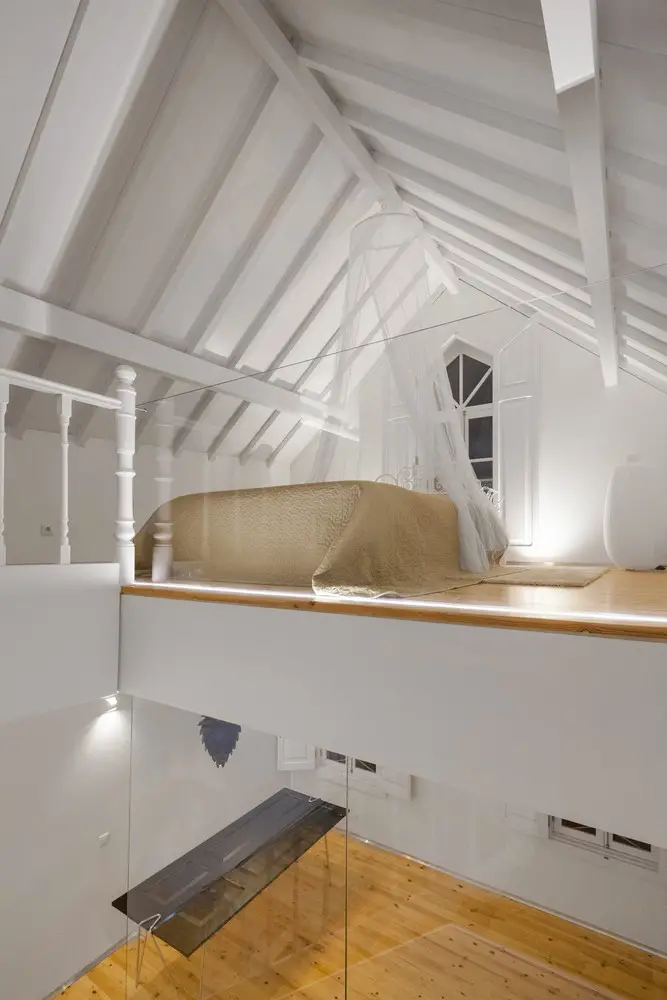

Climbing the last narrow flight of stairs we reach the sleeping quarters where the protagonist is the roof, whose structure was kept apparent, though painted white. On the other side of the staircase there’s a clothing room, backed by a bathroom.

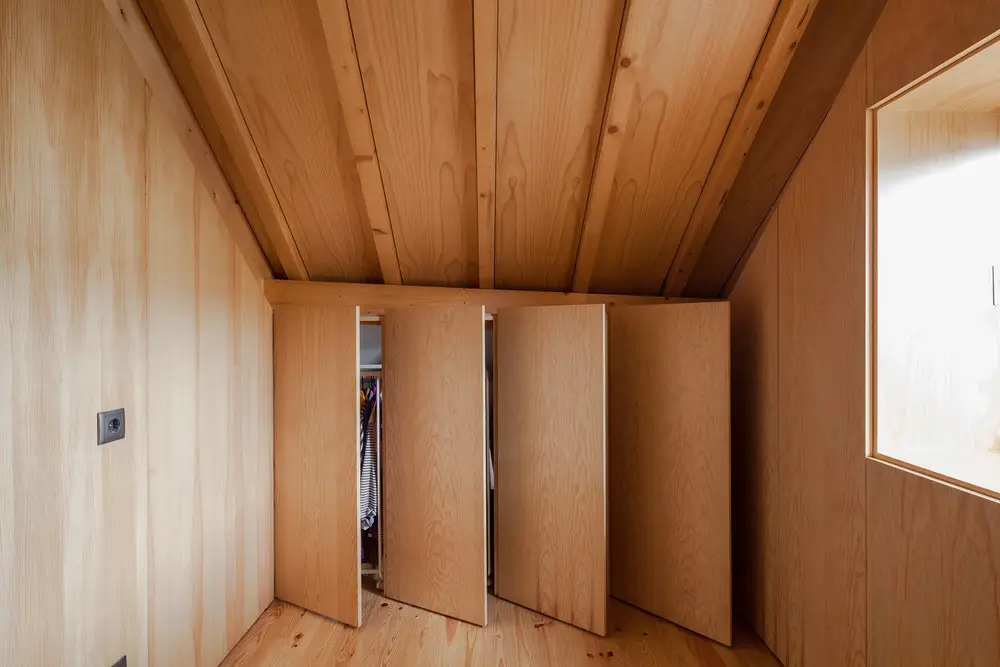

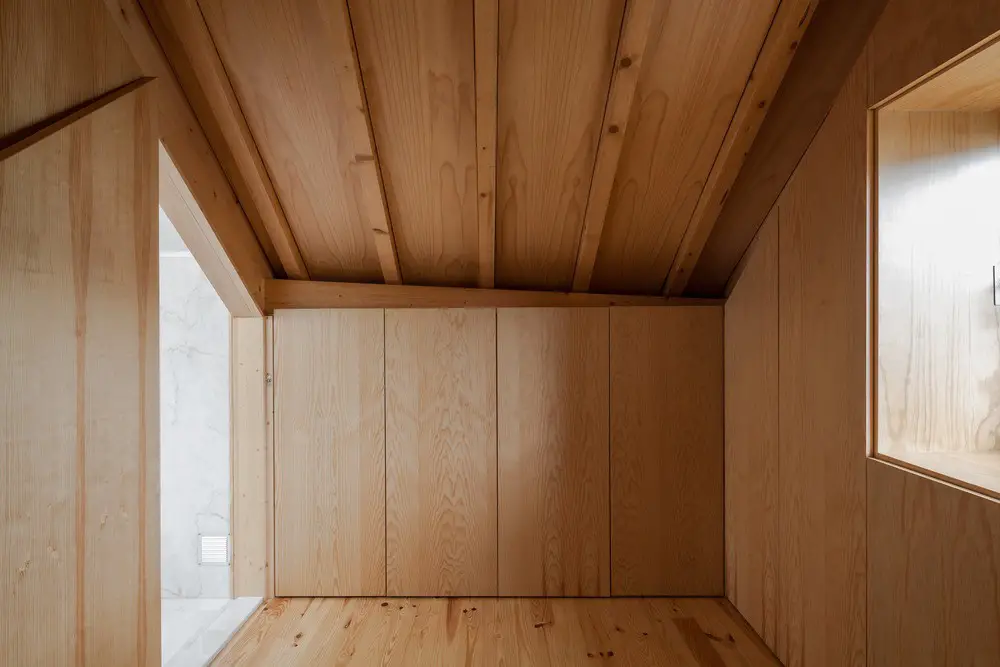

The white color is methodically repeated on walls, ceilings, carpentry and marble. The clothing room is the surprise at the top of the building. Both the floor and roof structure appear in their natural colors, surrounded by closet doors constructed in the same material. It reads as a small wooden box, a counterpoint to the home’s white box and to the marble box of the bathroom.

The Three Cusps Chalet

The Three Cusps Chalet

Quotations – Tiago do Vale
“At it most basic, our option was to reclaim the original intent and conditions of the building but with the (fundamental) subtlety of providing an added something beyond a blind restoration. Something that could return the building to a function, to a use (whereby people could inhabit it and live a life of genuine quality), to present day, to the street, to the city, and with enough flexibility to keep it going for an extra 120 years.

This is a delicate matter, though, as function, use, people, streets, cities are all things that relentlessly, unforgivingly, keep changing the way they relate with their built surroundings.”

The Three Cusps Chalet

About the Architect
Curator of the “Mesturas II, International Architecture Encounters Galicia-Portugal” in 2016 (Portugal).
Curator of the “Mesturas, International Architecture Encounters Galicia-Portugal” in 2015 (Spain).
Curator of the “urban Dialogues, International Architecture Congress” in 2014 (Portugal).

Published throughout the world, Tiago do Vale gives lectures on architecture, urban planning and rehabilitation.

His work has been exhibited both in Portugal and abroad.

Bronze Winner in the American Architecture Prize 2016
Winner in the 2015 A+ Awards
Winner of the Professor Joaquim Veríssimo Serrão Award 2015 of the Portuguese History Academy (collaboration)
Selected for the National Award for Wood Architecture 2015
Winner in the 2014 Building of the Year Awards
First Honorable Mention IHRU 2014 Award
Shortlisted for the National Urban Rehabilitation Award 2014
Shortlisted for the Construir Awards 2014
Shortlisted for the Rehabilitation in Construction Awards 2014

The Three Cusps Chalet

Photography: Joao Morgado

The Three Cusps Chalet in Braga images / information received 251016
