Ghana Embassy Paris Building Renewal, Villa Saïd France, Parisian Renovation Interior Photos, French Architecture

Ghana Embassy Paris Building Redevelopment

16 February 2022

Réhabiliatation of the Ghana Embassy, Paris, France

Design: Serero Architectes

Location: 8 Villa Saïd, 75116 Paris, France

Refurbishment of an historic 16th arrondissement property

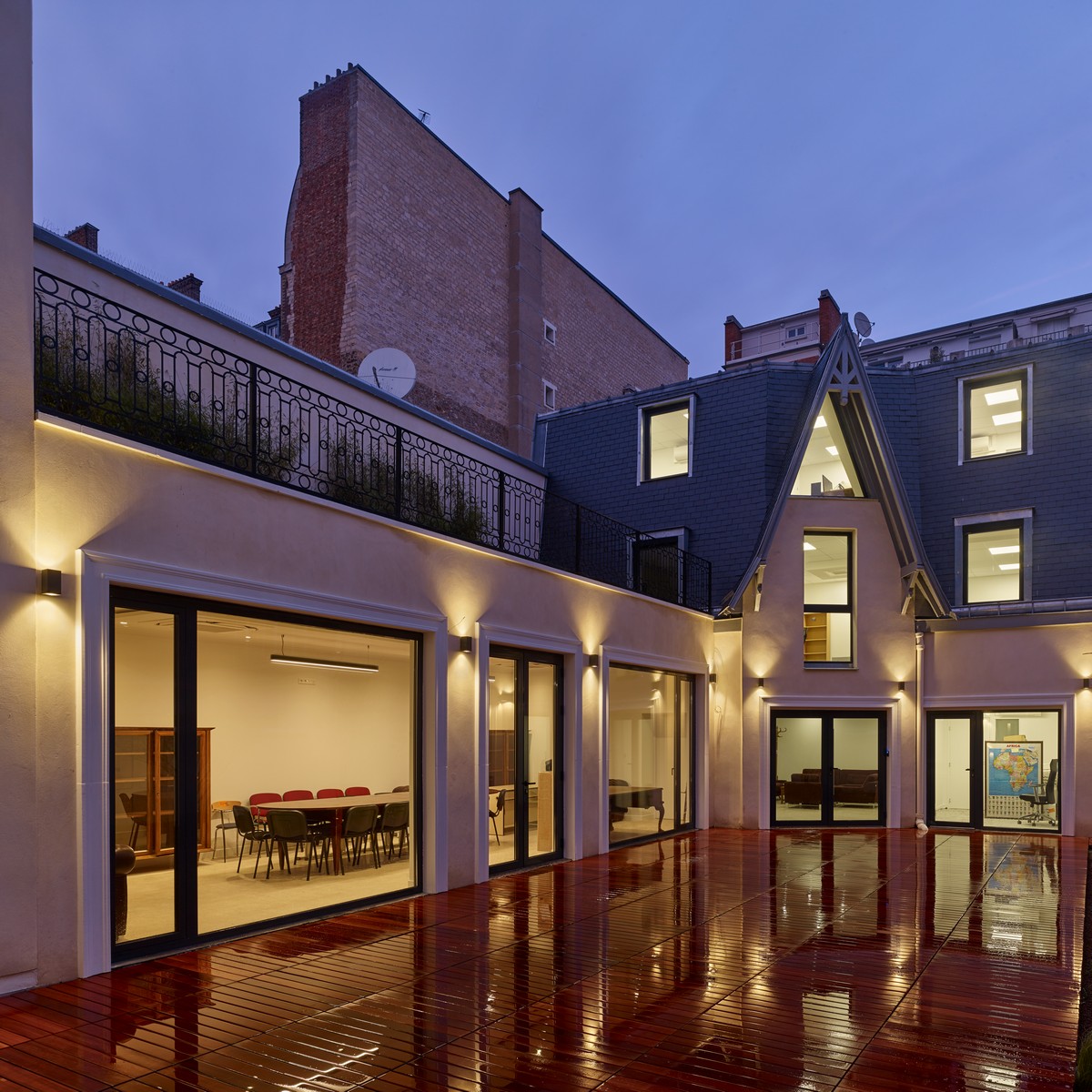

Ghana Embassy Paris Building Renewal

Photos © Didier Boy de la Tour

Ghana Embassy Paris Building Renewal News

REHABILITATION OF THE GHANA EMBASSY IN PARIS

The project for the Embassy of Ghana in Paris by Serero Architectes is based on a double paradox : creating transparency on an interior garden while preserving strict confidentiality of the workspaces, and digging the entire basement of this mansion in order to clear a large parking lot under the building.
Transparency and confidentiality, heritage preservation and resumption of foundations are the themes that have strongly marked the project.

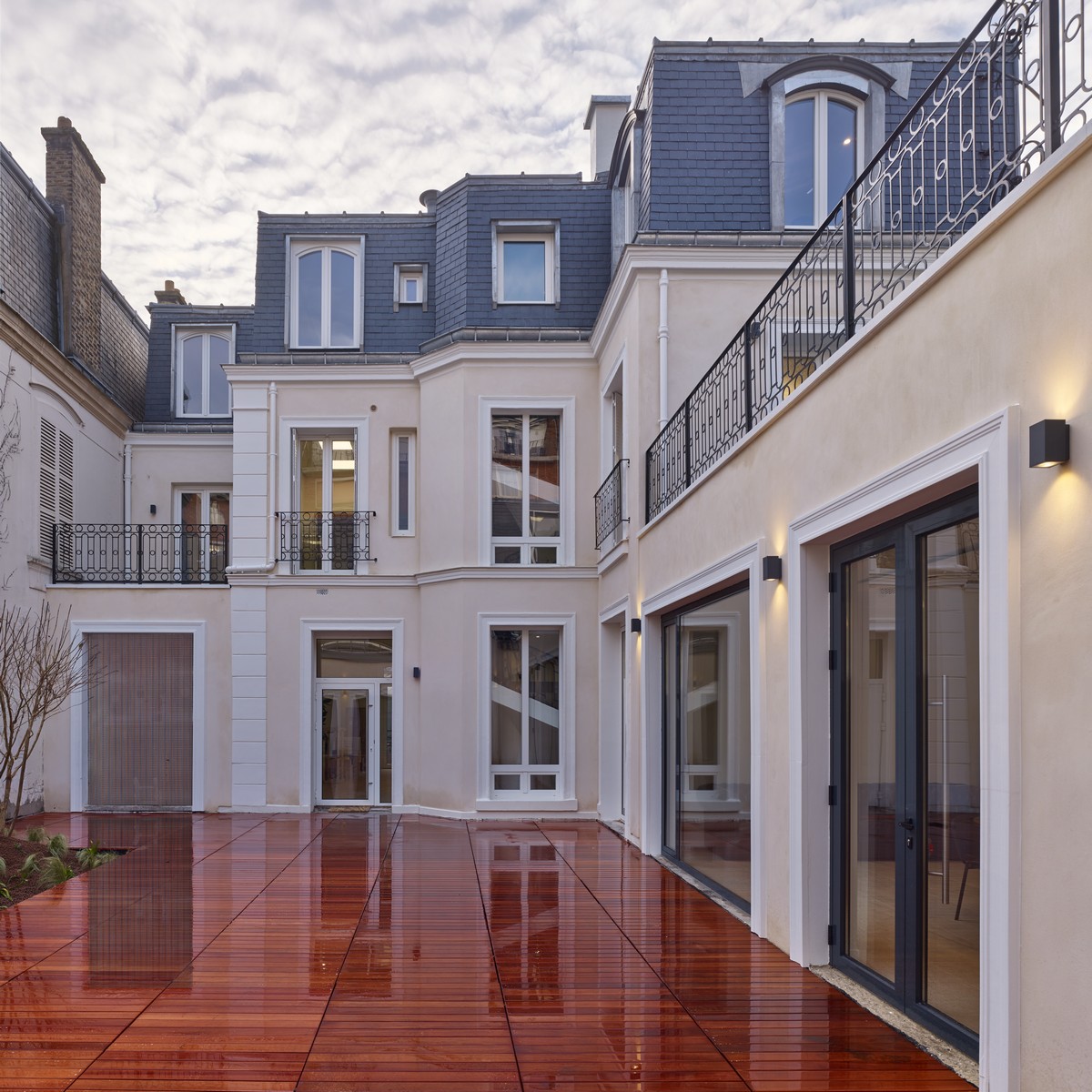

Ghana Embassy Paris Building Renewal

BUILDING IN HERITAGE CONTEXT

At the heart of a private villa in Paris 16th arrondissement, which notably housed the XIXth century writer Anatole France, Villa Saïd is a unique place of calm and greenery, where mansions and lush villas are juxtaposed. How to carry out, in this context, heavy structural re covery work under this landmark mansion for the creation of a large underground car park?

The 600 m2 building spreads over 3 levels, was dilapidated, and needed to be upgraded to disabled (PMR) standards and security control.
With more than 300m3 of soil evacuated, the buildings were suspended on 4 steel poles and new foundations were created under the existing foundations.

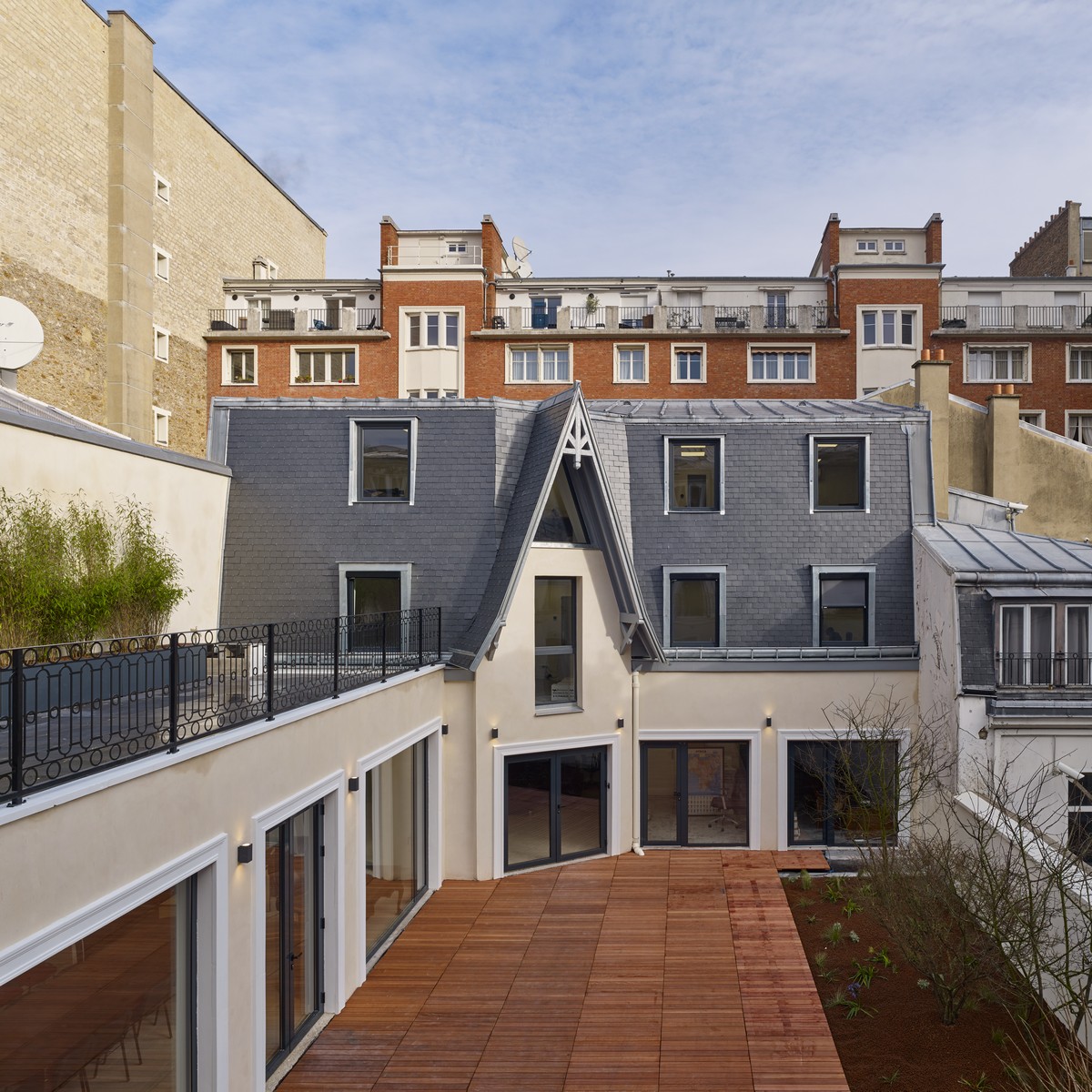

Villa Saïd Paris Property Renovation

The project is located in the ABF zone (Archi tectes des Bâtiments de France) of Paris regulating plan. The Serero Architects team was chosen for its ability to work on a landmark building and its ability to manage a complex construction site on a heritage site

STRUCTURAL REINFORCEMENT

The courtyard building, damaged by an underground rainwater gullying, had to be reinforced and stabilized by a reinforcement of structure.
Following the study of our structural engineers, our companions dug under the wall to be consolidated, to a depth of 2.50m and a width of 3m, hung steels beams by chemical sealing to the existing wall and made a formwork for a new concrete beam. The operation was repeated, alternating concrete passes every 6 meters.

Ghana Embassy Paris Building Renewal

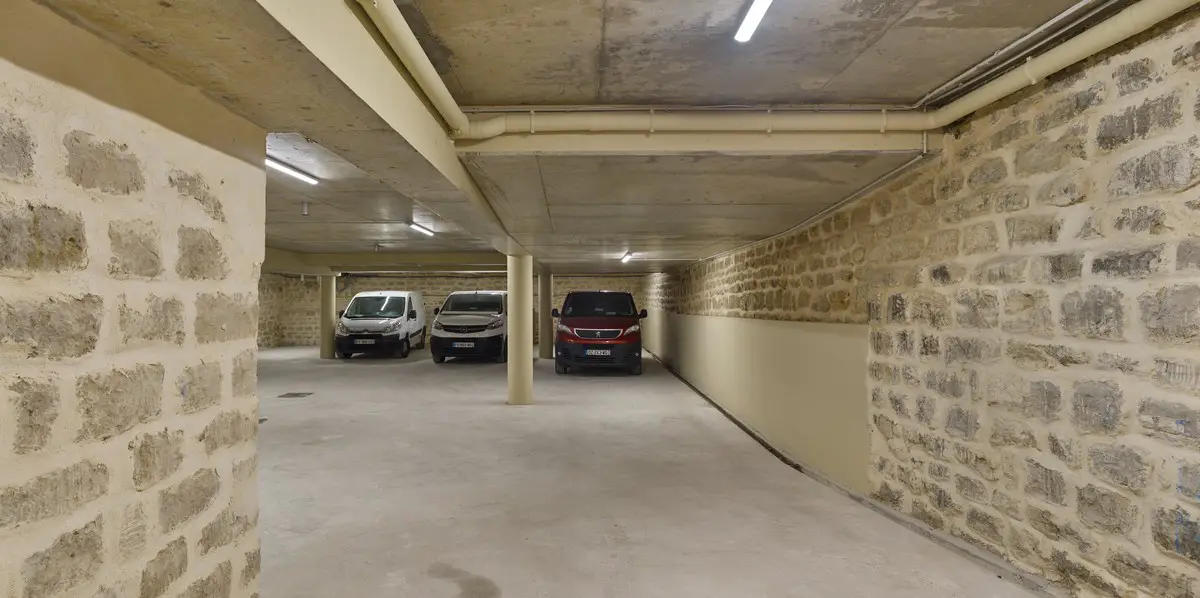

CREATION OF AN UNDERGROUND PARKING

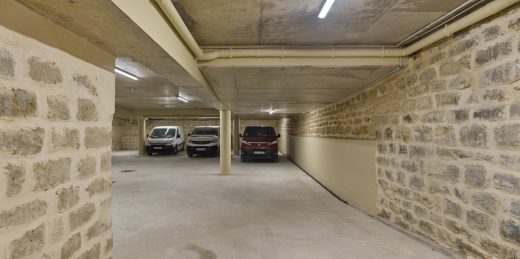

This structural change was also necessary for the creation of an underground car park, making it possible to solve parking shortages in this narrow private street, with the creation of 12 parking places for diplomatic vehicles, and access control.

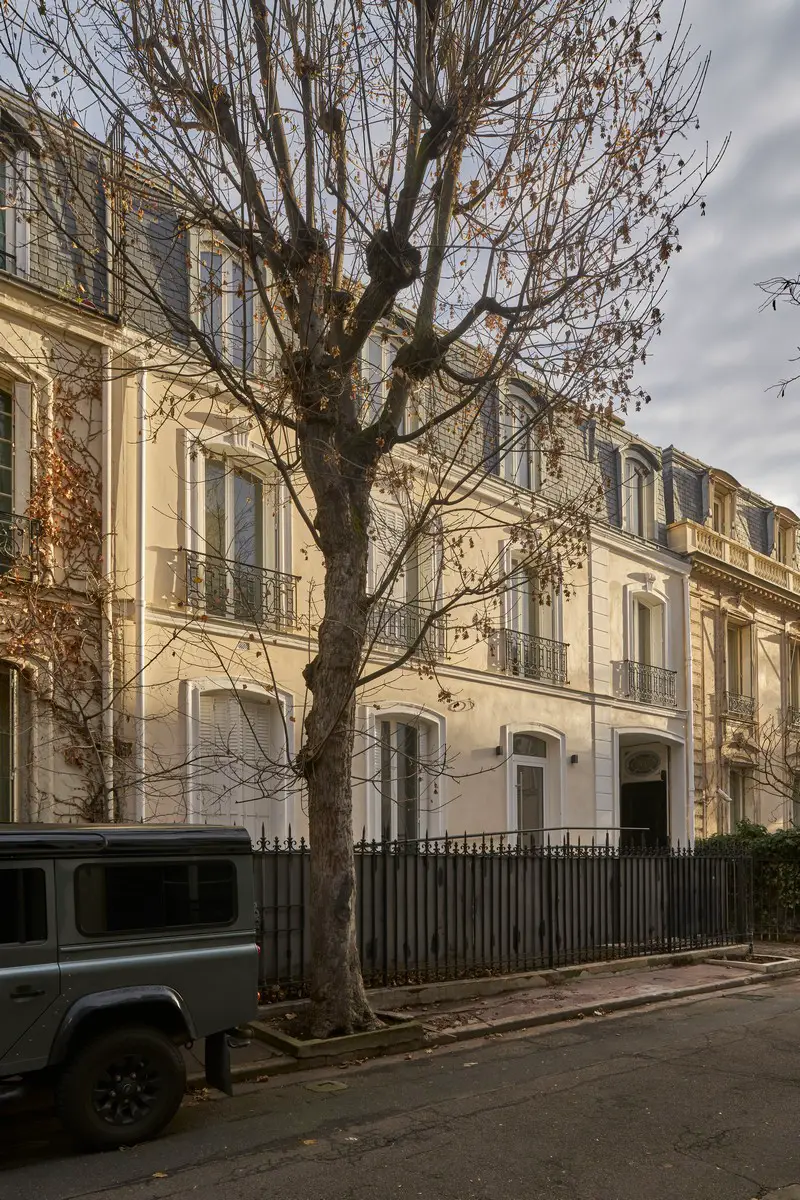

Villa Saïd Paris Property street facade

PUBLIC ACCESSIBILITY

Work to bring accessibility standards to the building was also carried out, with the creation of an access ramp at the main entrance, the creation of an elevator over the entire height of the building, doors widening, and the removal of all steps and thresholds at courtyard level.

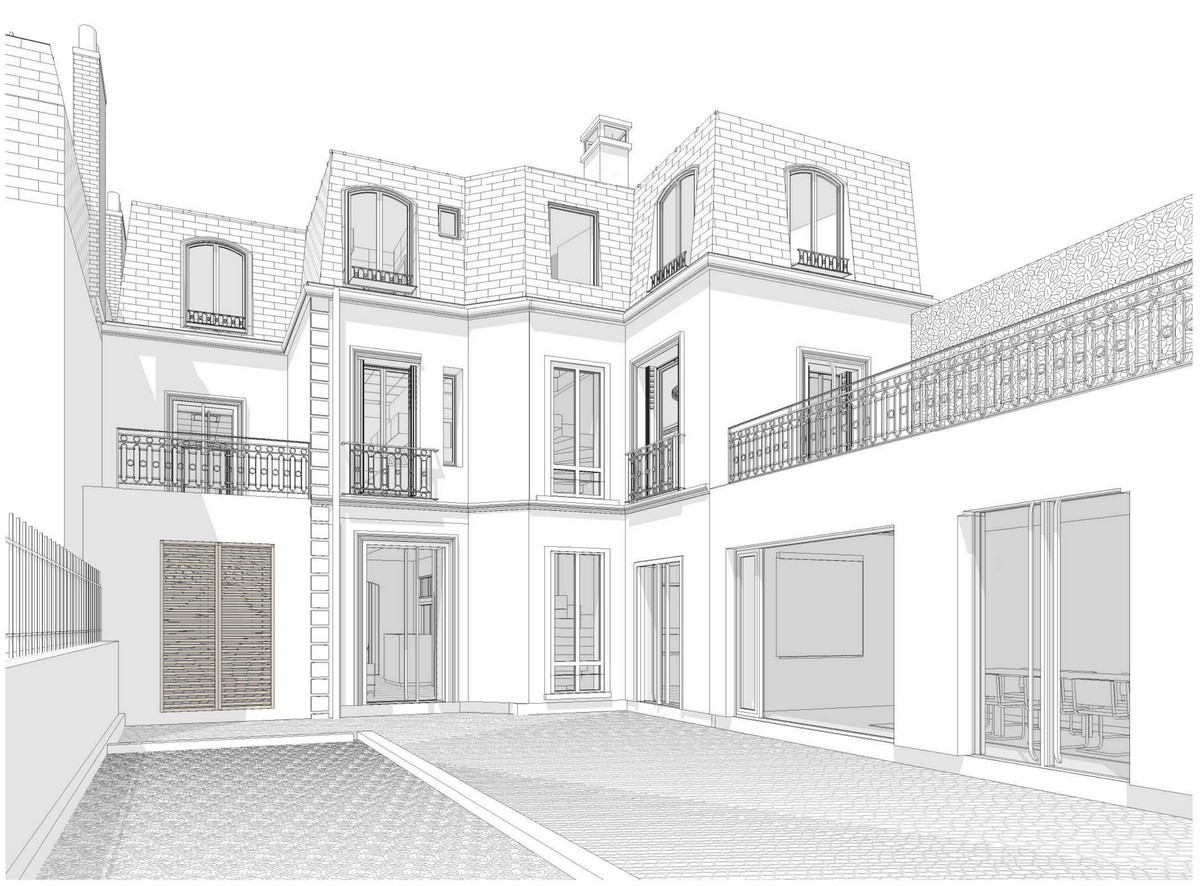

Villa Saïd Paris property refurbishment drawing

ENERGETIC PERFORMANCE

In order to achieve a building objective of very low energy consumption, several elements have been put in place: Efficient insulation of the facades (interior and exterior, according to the classification of facades), and of the building’s attic, a reversible heat-pump with adjustable AC unit by office, double flow ventilation and centralized energy management systems.

To respect historical facades, the building insulation was made from the inside, the joinery was replaced, the mansard-roof is completely redesigned to ensure its waterproofing and insulating performance.

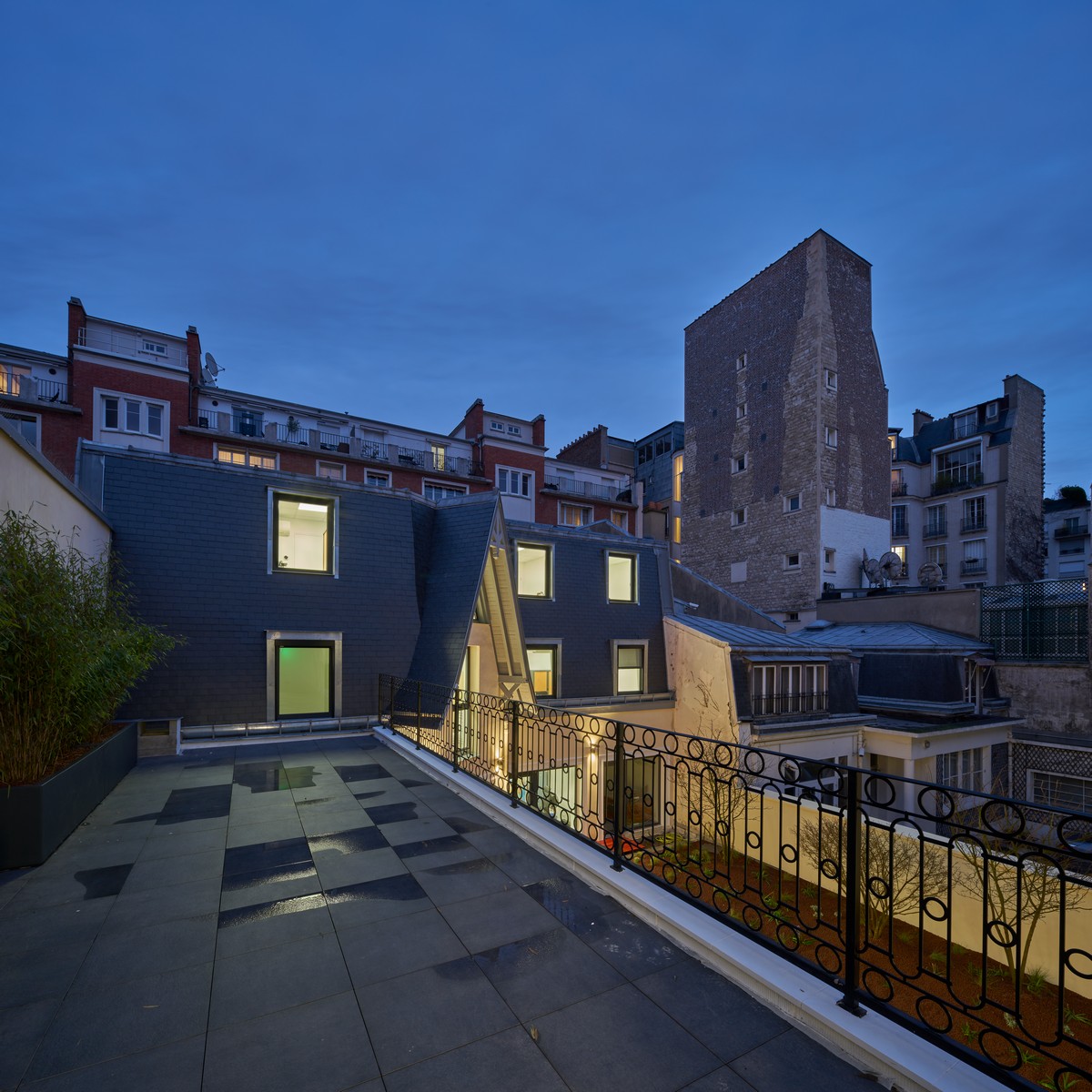

Ghana Embassy Paris Building Renewal, Villa Saïd France

SEPARATE OFFICE PLATFORMS

The building’s internal organization is completely redesigned to offer better reception conditions to the public and for diplomatic work. A set of glass walls and sandblasted glazing has been deployed in the project for an architecture of transparency and confidentiality. The reception lobby is redesigned, to improve the flow management of people and to create a new meeting and video conference space.

The organization of offices is also rethought to meet new workspaces (flexibility of teams, collaborative work, high-performance acoustic treatment, tea room and cafeteria on all floors.)

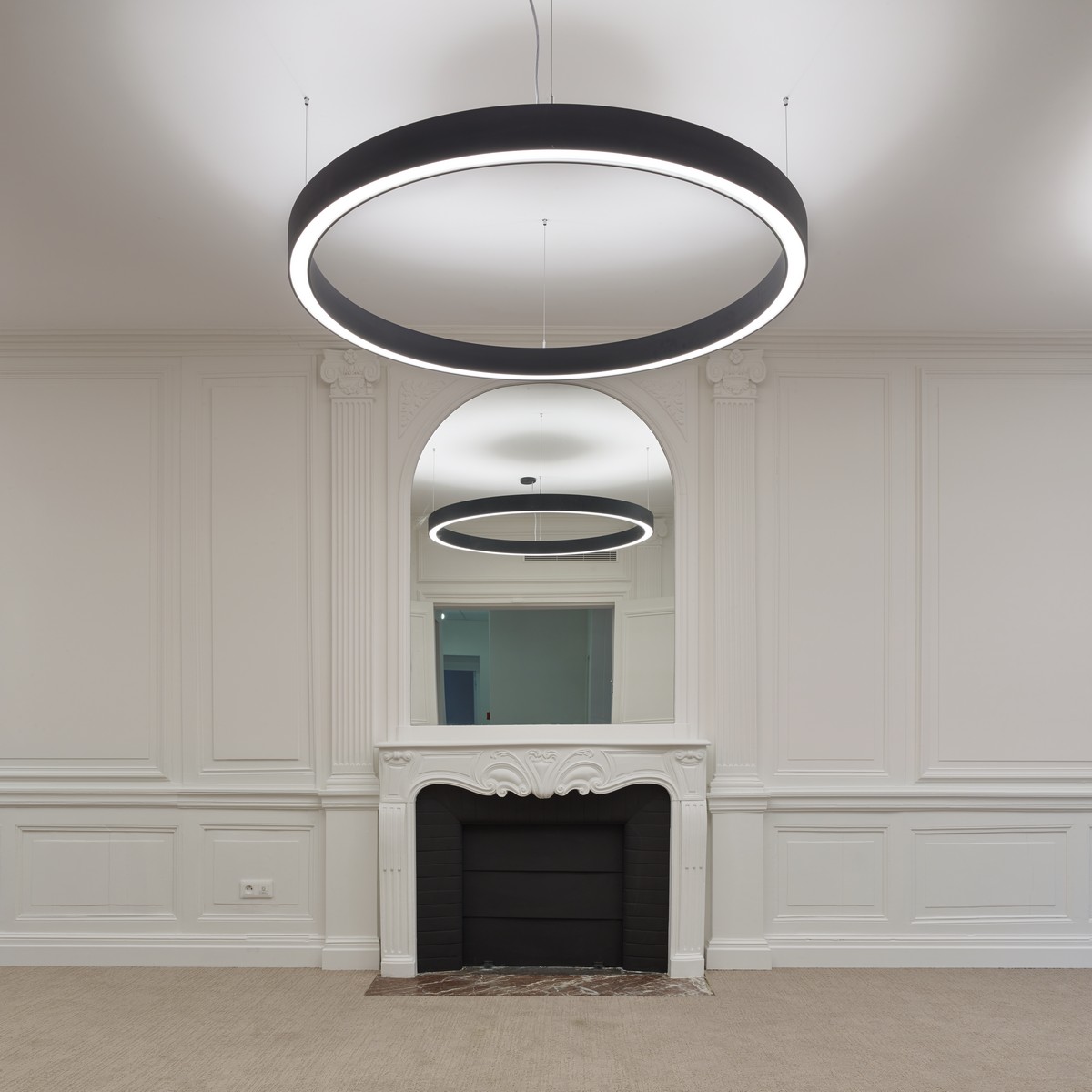

Villa Saïd Paris Ghana Embassy Building Renewal, France

A TURNKEY PROJECT

At the request of the client based outside of France, the Serero Architects team took on the role of general contractor (GC) to deliver a turnkey project. The commitment of the architectural team made it possible to guarantee the construction deadline and the project’s budget in a particularly complex context (limited access by private road, diplomatic residents, the Covid 19 crisis). Daily monitoring of the project and delivery logistics and material supply coordination by the architects was greeted by the client.

Ghana Embassy Paris Building Renewal, France – Building Information

Address: 8 Villa Saïd, 75116 Paris, France
Client: Ghana Embassy
Project management, Lead architect, furnishing assignment, interior design, structural and environnemental studies: Serero Architectes – https://serero.com
Acoustics: Pasquini
Program: Construction of the Climat Planète research center consisting of research laboratories, a virtualization room, data center and auditorium
Surface area: 600 m² (2,000 sq ft)
Calendar: 2019 – 2022

Villa Saïd Paris Ghana Embassy France

Companies:

Structure : ALTI
Roofing : LIEBALLE COUVERTURE
Facade : PEINTINEX
Painting : PLURIBATIMENT
Elevator : OTIS
Road and utilities : SATP
Landscape : EN VERT

Photo credits © Didier Boy de la Tour

Serero Architectes

Ghana Embassy Paris Building Renewal images / information received 160222 from Serero Architectes
