Azzate Building, Italian Commercial Development, Residential Project Italy

Building in Azzate : Varese Development

Varese Architecture, Italy – design by Park Associati, architects

9 May 2012

Azzate Building

Design: Park Associati

Location: Azzate, Varese, north west of Milan, Italy

Residential / Commercial building in Azzate (Va)

The site for this scheme lies in an open landscape that is visible from a local countryside environmental route and has a strong relationship with a hilly wooded area behind it. The new Azzate housing development on via Piave has been carefully studied in terms of form and volume to create the best possible views, using geometries and perspective axes that enable it to be successfully integrated into its green surroundings.

Building in Azzate Building in Azzate Building in Azzate Building in Azzate

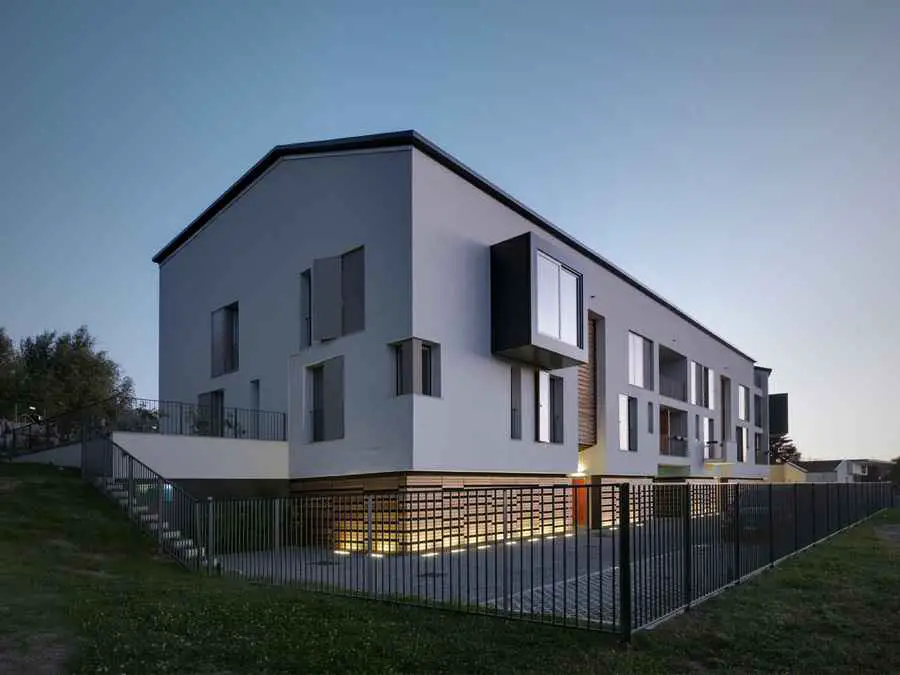

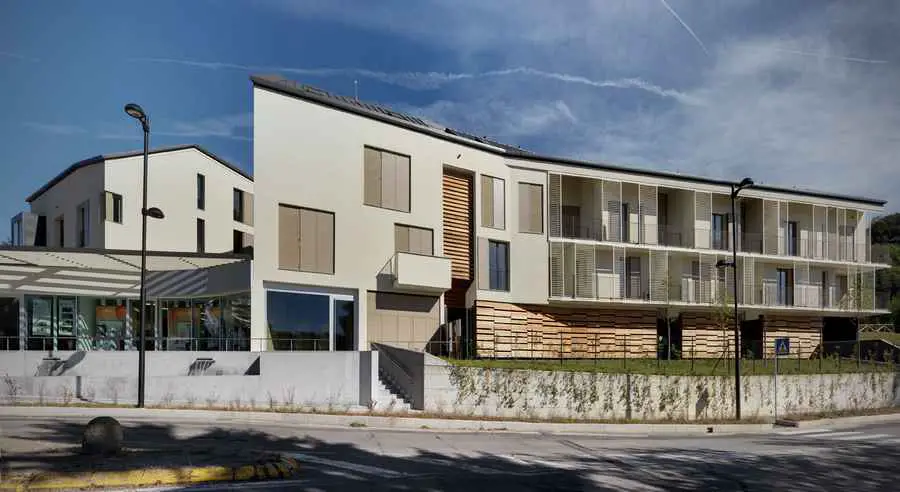

In terms of composition, the approach chosen combines traditional elements such as the double-pitched roof with an irregular pattern of openings on the facades. The two main blocks, with asymmetric pitched roofs in sheet aluminium, are on two storeys (the second houses duplex units only), differentiated by the colours and cladding materials used for the lower ground storey, as well as by the use of different street elevations, dictated by the differing orientation and optimal control of solar factors.

Building in Azzate Building in Azzate Building in Azzate Building in Azzate

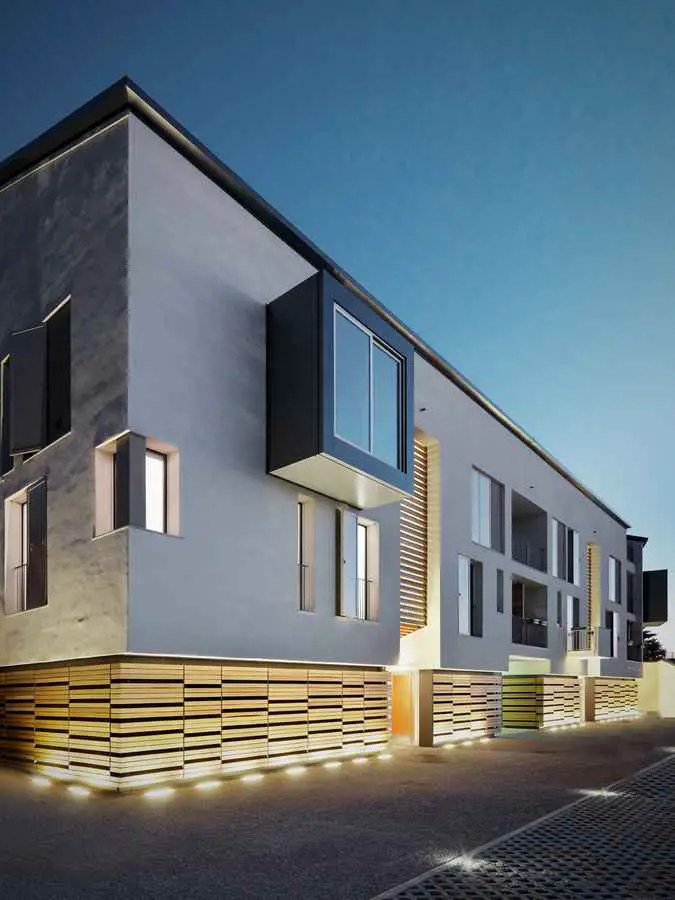

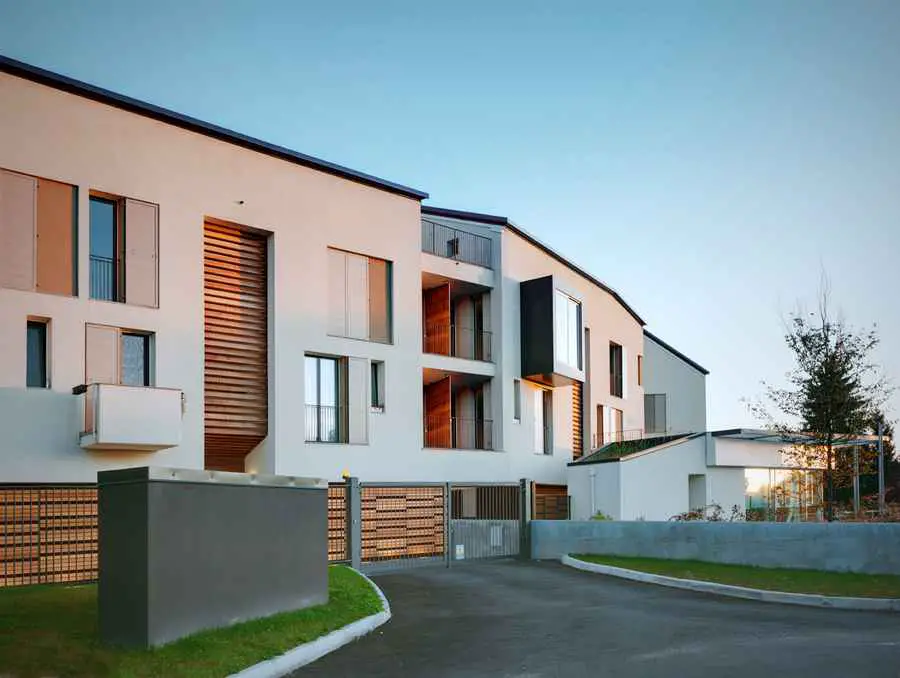

The block to the north has a street elevation with an irregular rhythm that is characterised by the presence of balconies and large projecting windows.

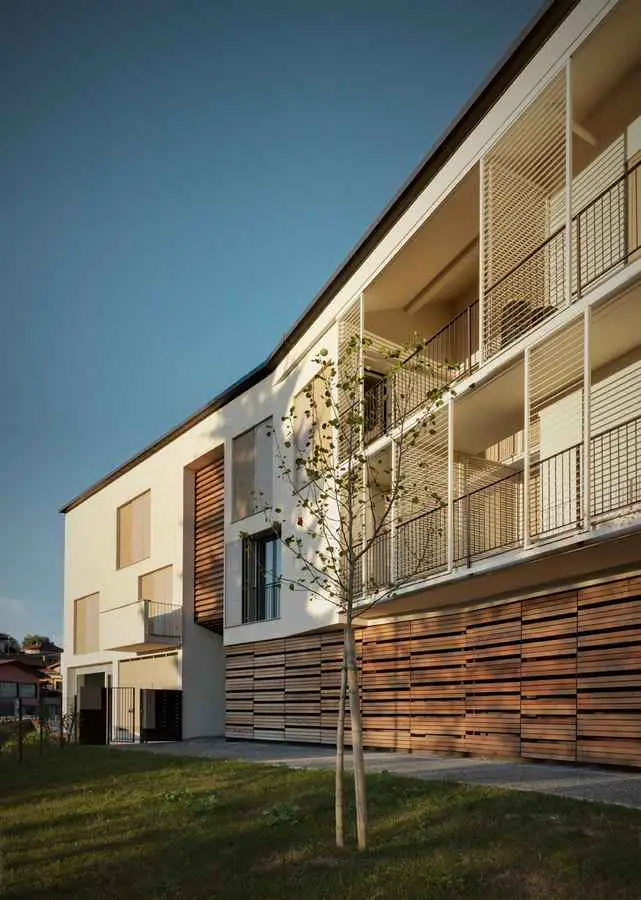

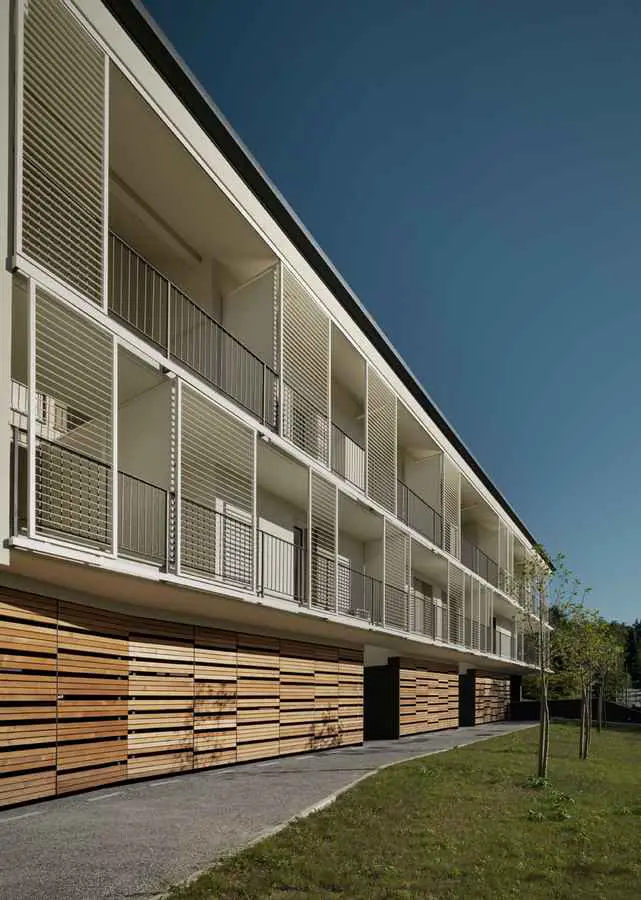

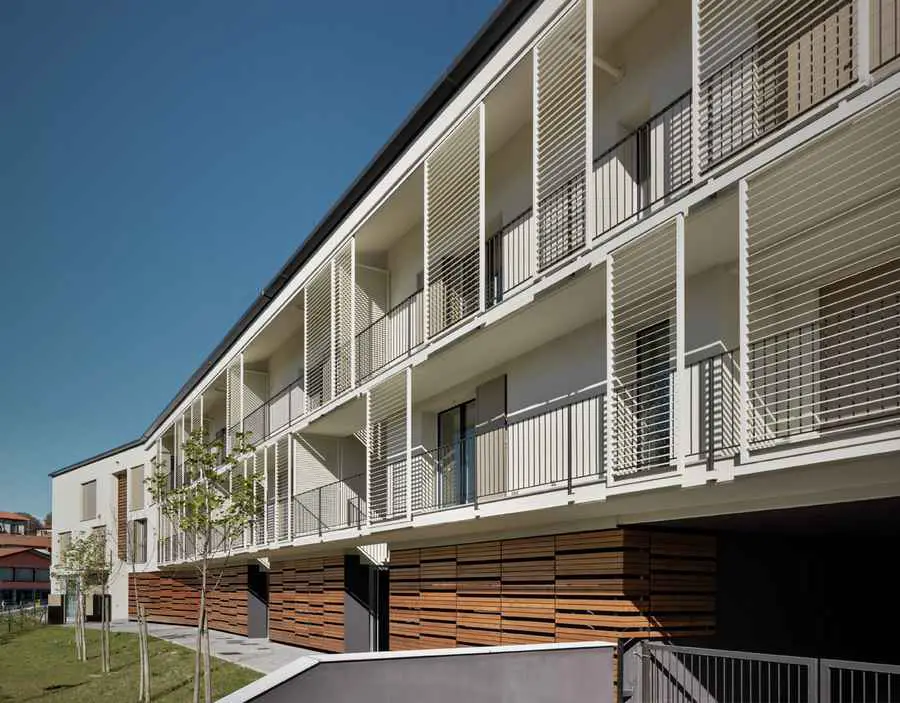

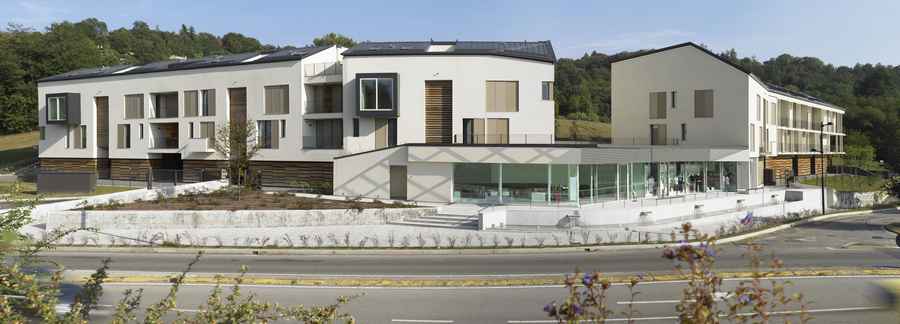

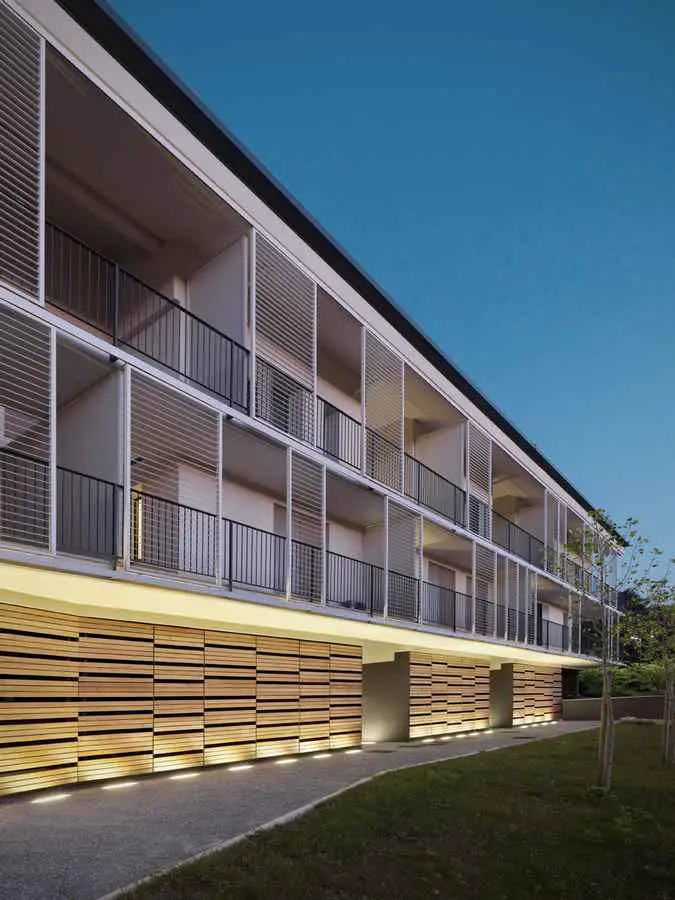

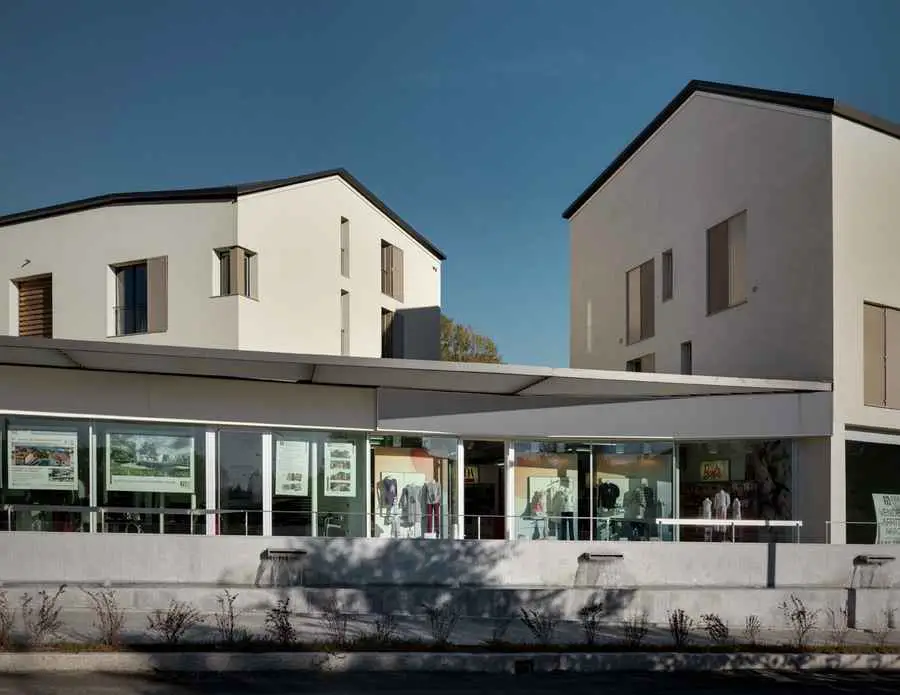

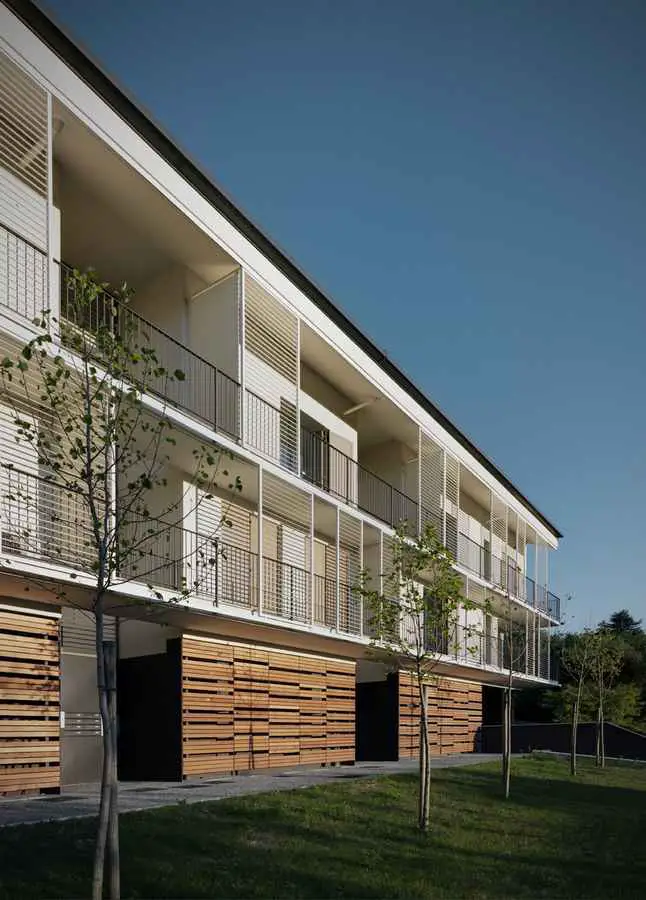

The block to the south has an elevation composed mainly of west-facing balconies, with moving sunscreen panels for controlling the light entering inside the building. The lower storey is made up of three parts; the central area, between the two residential blocks, houses a number of commercial activities that look onto a piazza that is raised up with respect to street level and characterised by the presence of a water feature, a reference to the nearby spring, while the two side wings have parking areas for the houses that are completely screened by panels of timber planks.

Building in Azzate Building in Azzate Building in Azzate Building in Azzate

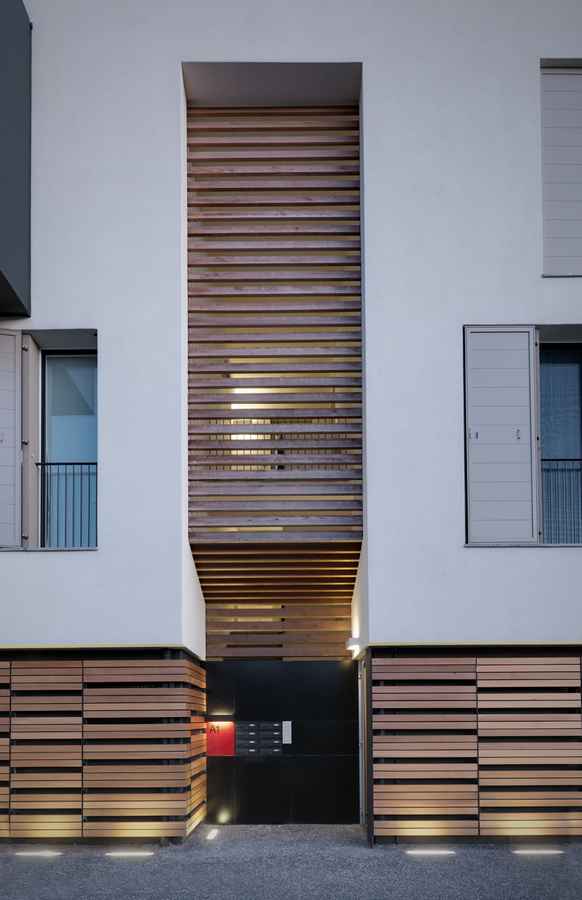

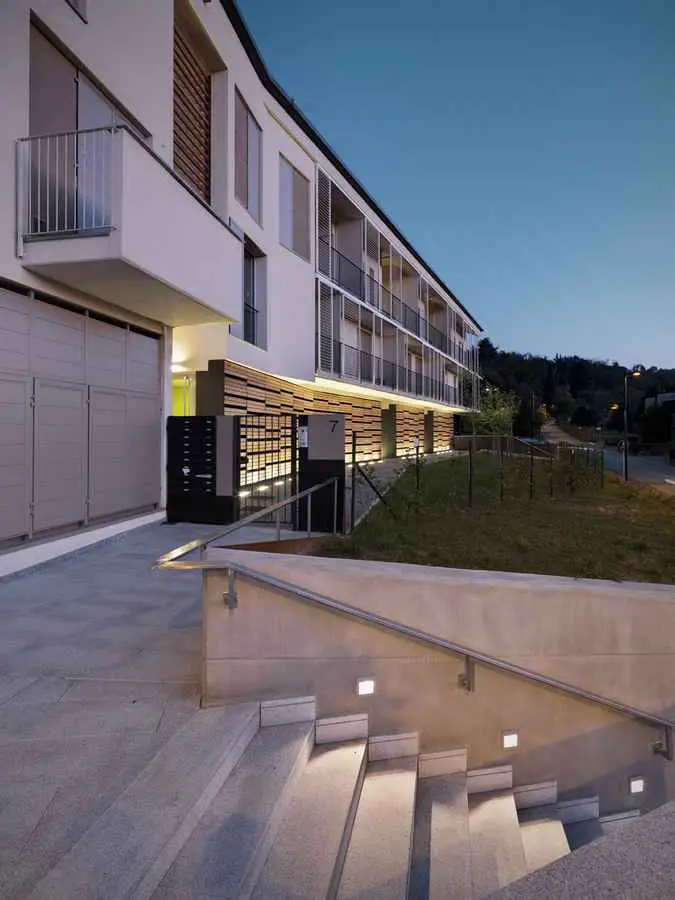

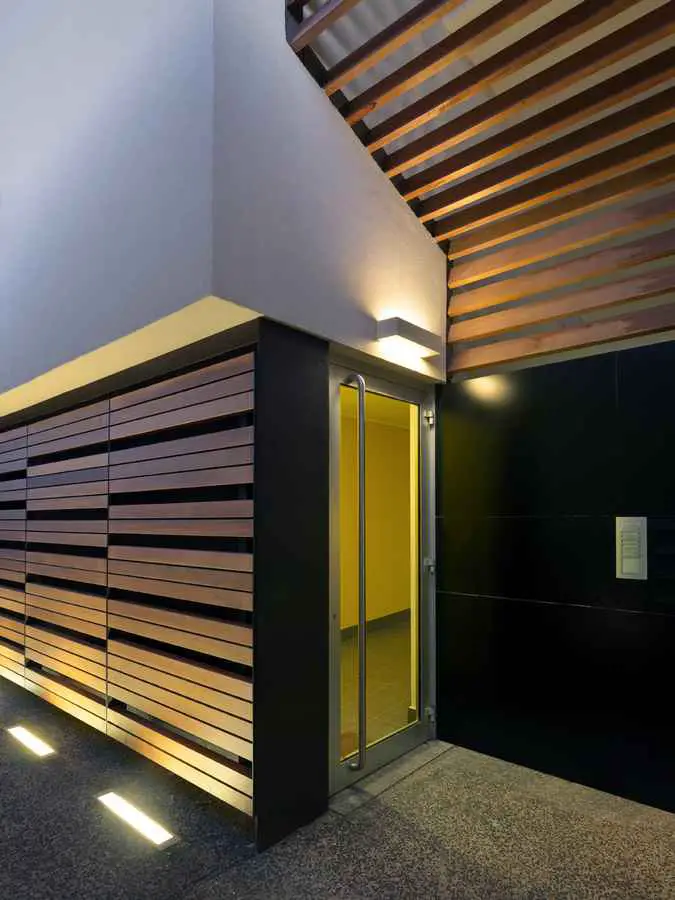

The number of materials used has been limited to a choice of three main ones: render for the surface of the walls, aluminium for the roofs, screening elements along the balconies and systems for screening the windows and larch for cladding the lower level. Larch planks have been used for form a screen to the stairwells, thereby controlling the light and ensuring privacy for these communal areas with respect to the street.

Building in Azzate Building in Azzate Building in Azzate Building in Azzate
images from architects

Building in Azzate – Building Information

Architecture: Park Associati (Filippo Pagliani, Michele Rossi)
Design team: Danilo Annoscia, Andrea Dalpasso, Marinella Ferrari, Marco Neri, Pietro Pezzani, Paolo Uboldi

Building Contractor: Albini & Castelli, Induno Olona (VA)
Electrical engineers: S.I.G.I.E., Varese
Service engineers: Zanzi & Fornasieri, Comerio (VA)
Structural engineers: Ing. Eugenio De Amici
Timber doors and windows: Italserramenti, Chiari, (BS)
Aluminium doors and windows: Euroser F.lli Rota S.r.l., Villa D’Almé, (BG)
Timber cladding: Merlo S.r.l., Orbassano (TO)

Site Area : 8.935 mq
Overall residential floorspace (excluding attic floor) : 2.700 mq
Overall commercial floorspace : 667 mq
Parking area for residents : 1.470 mq
External parking area : 1.083 mq

Photographs: Andrea Martiradonna, Leo Torri

Building in Azzate images / information from Park Associati
