Villanueva de la Cañada, Madrid Housing

Villanueva de la Cañada Madrid, Avenida de La Rioja, New Spanish Housing Photos

Villanueva de la Cañada : New Madrid Housing

New Residential Building in Spain – design by Aranguren & Gallegos Arquitectos

26 Jul 2011

Villanueva de la Cañada

Design: Aranguren & Gallegos Arquitectos

VILLANUEVA DE LA CAÑADA DWELLINGS

112+143 DWELLINGS IN PLOTS 301+356 ALONG THE AVENIDA DE LA RIOJA. VILLANUEVA DE LA CAÑADA. MADRID

Villanueva de la Cañada Housing

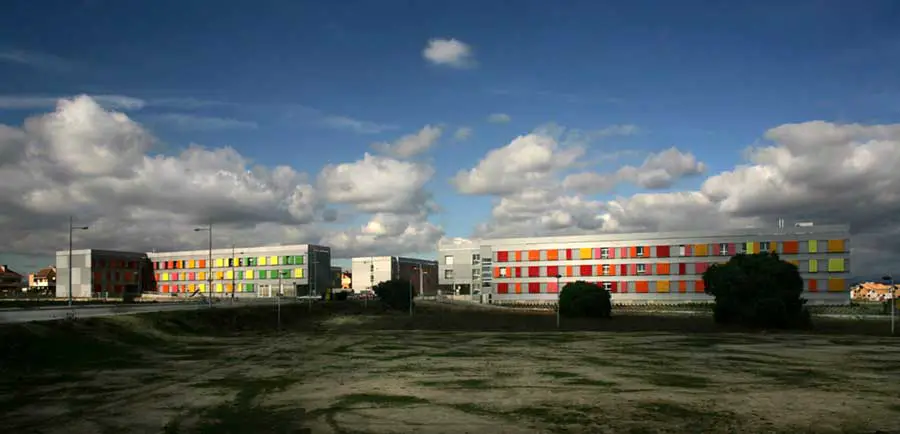

The intention is to break up the monolithic nature of the large volume permitted, splitting the large block into four swastika-shaped blocks perfectly joined at their ends by means of wide window galleries. These galleries are linked to the four communications nuclei and their respective entrance halls, found on each of the corners of the large block.

Villanueva de la Cañada Villanueva de la Cañada Avenida de La Rioja Housing Avenida de La Rioja Homes

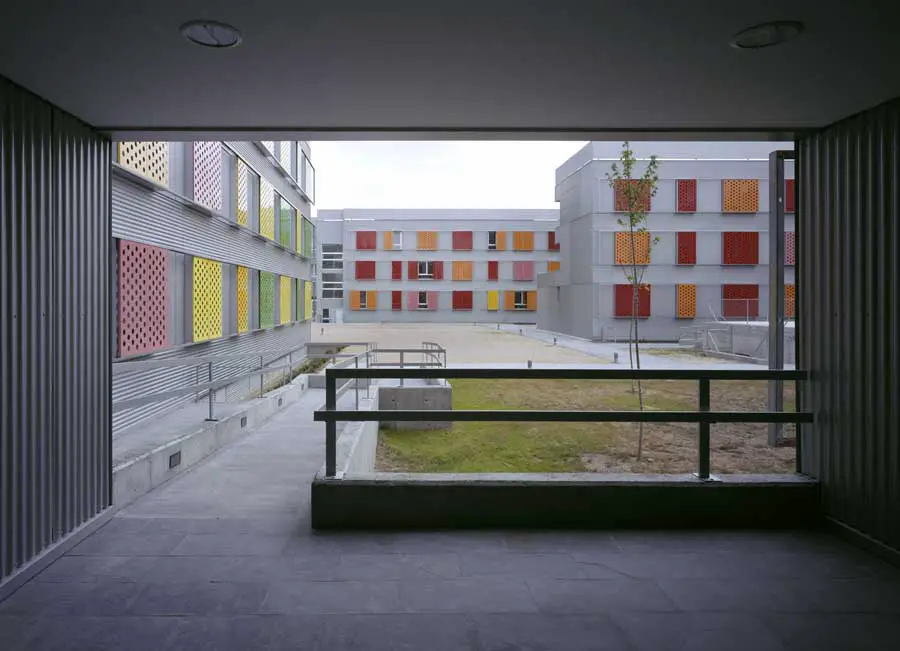

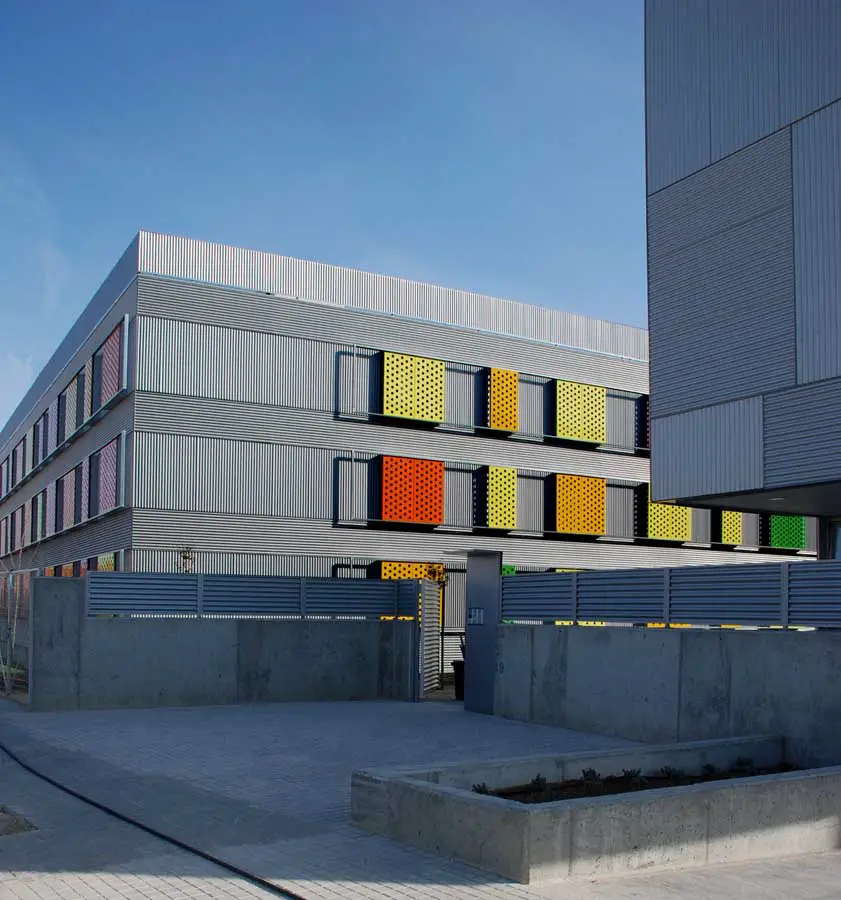

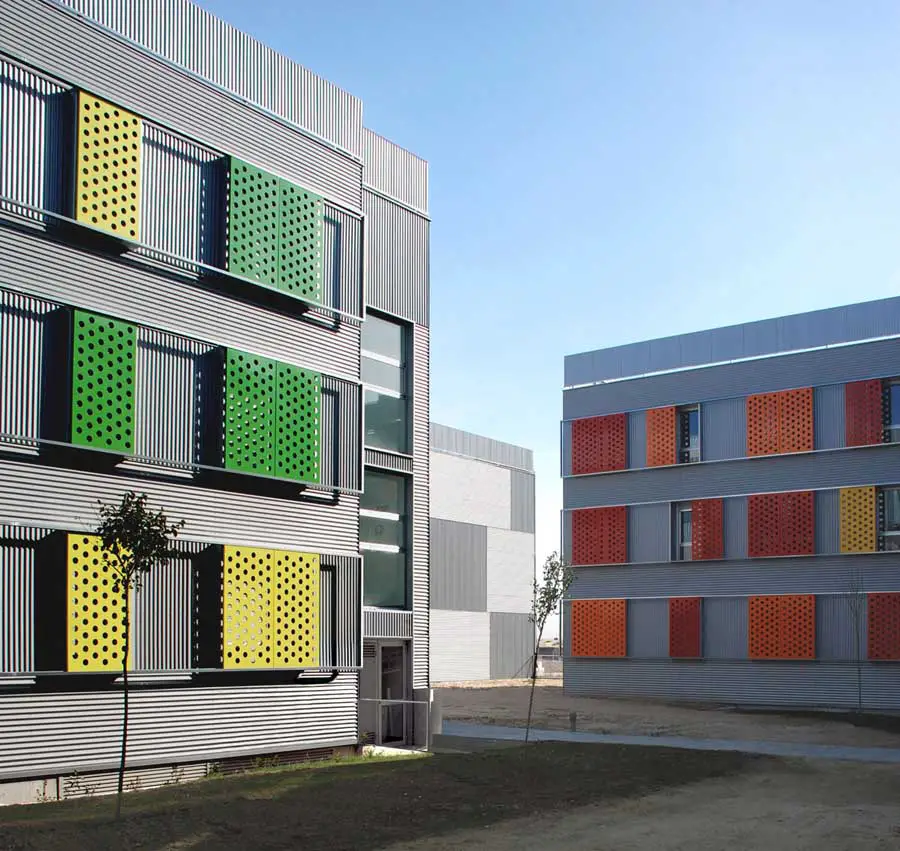

photos : Hisao Suzuki

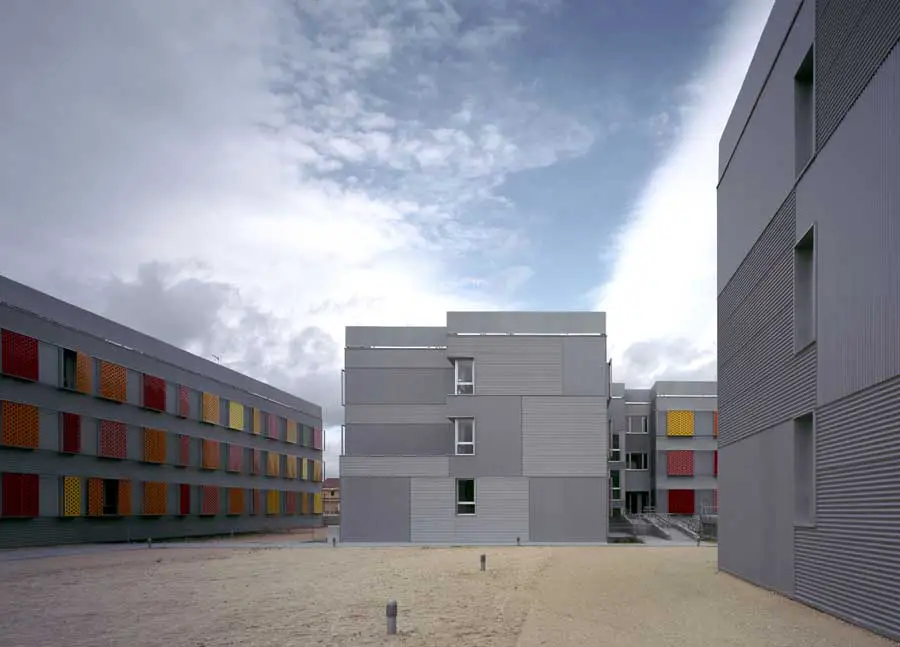

The volumes of the galleries, together with the lift and stair shafts rise one floor above the volume permitted causing a very emphatic movement in the attics. The material of these lighter bodies is differentiated with metal and glass from the volumes containing the dwellings, built with light grey concrete prefabricates.

Due to the wide range of orientation possibilities offered, the windows are levelled by two single gaps, one square measuring 1.80 x 1.80 m for living rooms and large bedrooms, and the other measuring 0.90 x 1.80 m for small bedrooms.

Villanueva de la Cañada Villanueva de la Cañada by Aranguren & Gallegos Arquitectos New Residential Building in Spain by Aranguren & Gallegos Arquitectos

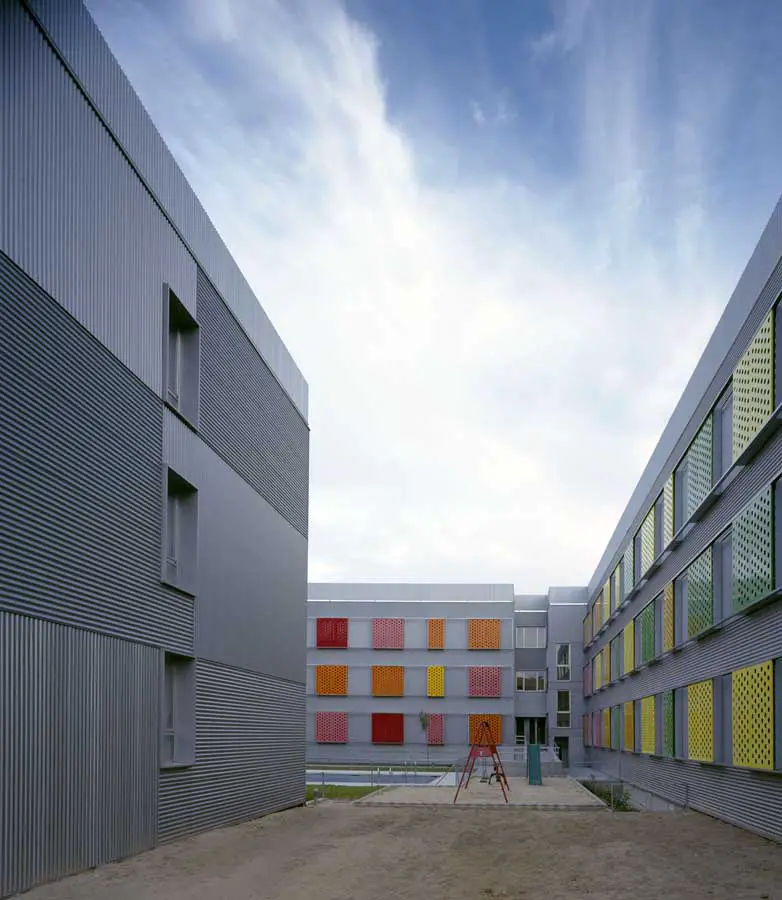

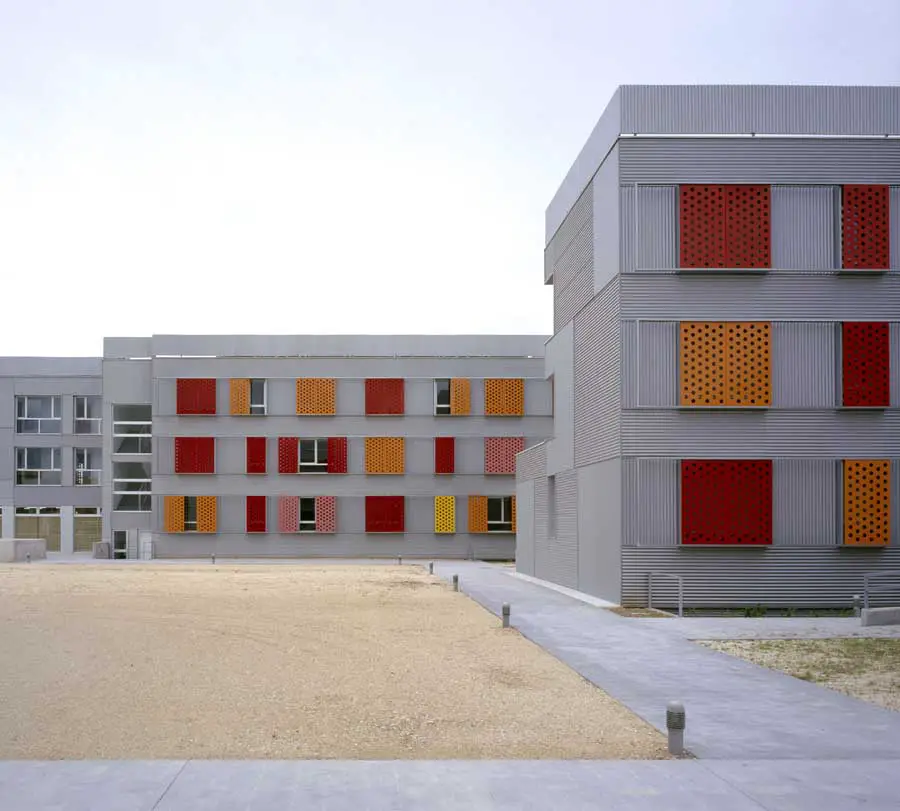

photos : Hisao Suzuki

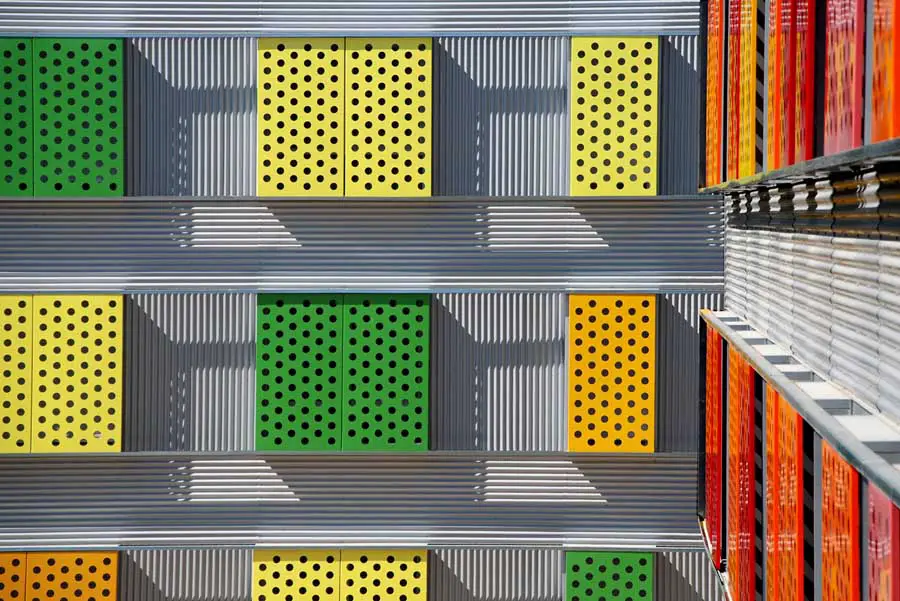

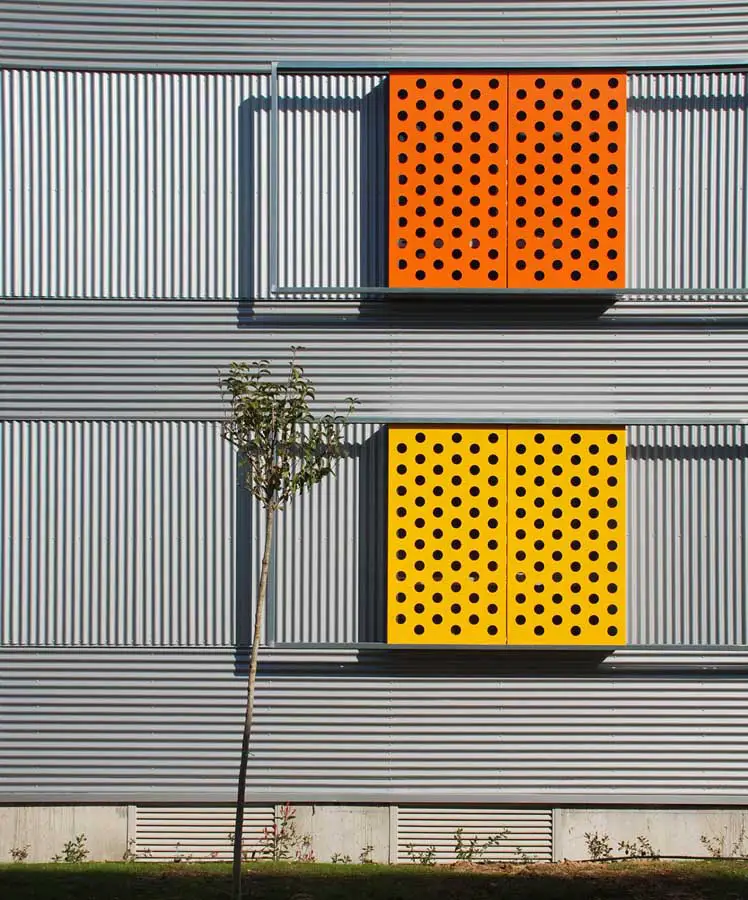

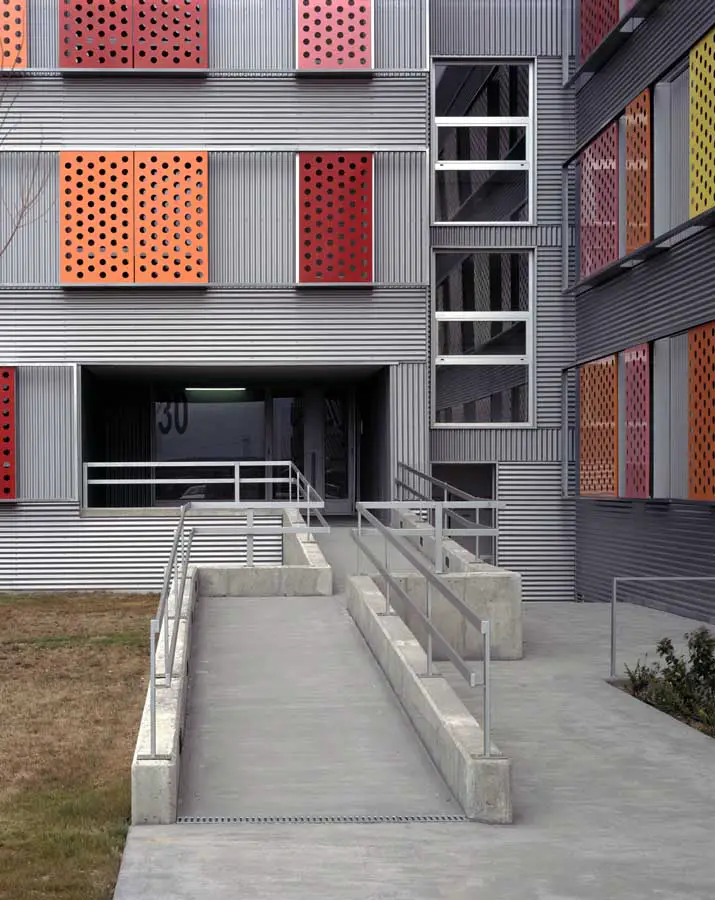

All window gaps have a plate portal suspended 35 cm over the façade and one or two Venetian blinds over this portal causing, on the one hand, a chamber of shade in front of the window and, on the other, providing a mobile situation lifting these blinds, providing weightlessness and movement to the large volume, while helping to order the irregular sequence of window gaps that appear in this way due to the different room sizes, preventing a modular series of windows.

Duplex type dwellings directly accessible from the street and the garage, via a private patio, are developed on the ground and first floors along street 3 and that for pedestrians, with these dwellings causing the portico plinth effect sought in the project.

The base of the building (with a slab going down from the first floor) is built with dark, slate plating cutting the vertical effect of 7 storeys, in favour of a certain horizontality.

Villanueva de la Cañada Madrid New Madrid Residential Building by Aranguren & Gallegos Arquitectos

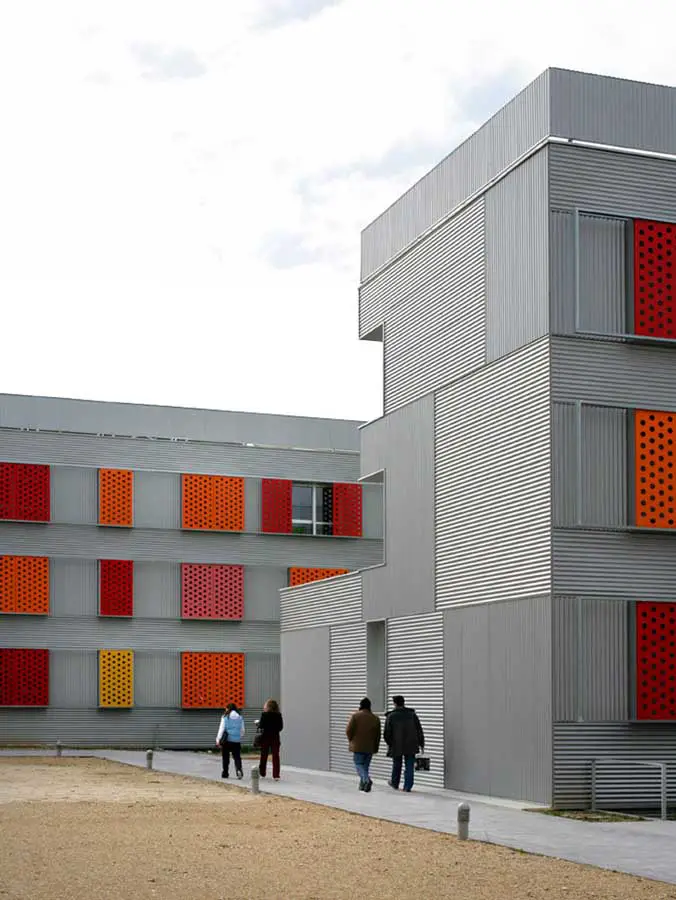

photos : Carlos Lozano

Description of the Dwellings

Being a building with such a deep centreline (14.50 m.) and being part of a real estate programme for small dwellings, we are forced to propose homes with a single orientation, either towards the street or the patio. Larger dwellings, such as the duplex on the ground and first floors, and the attics, have a double orientation.

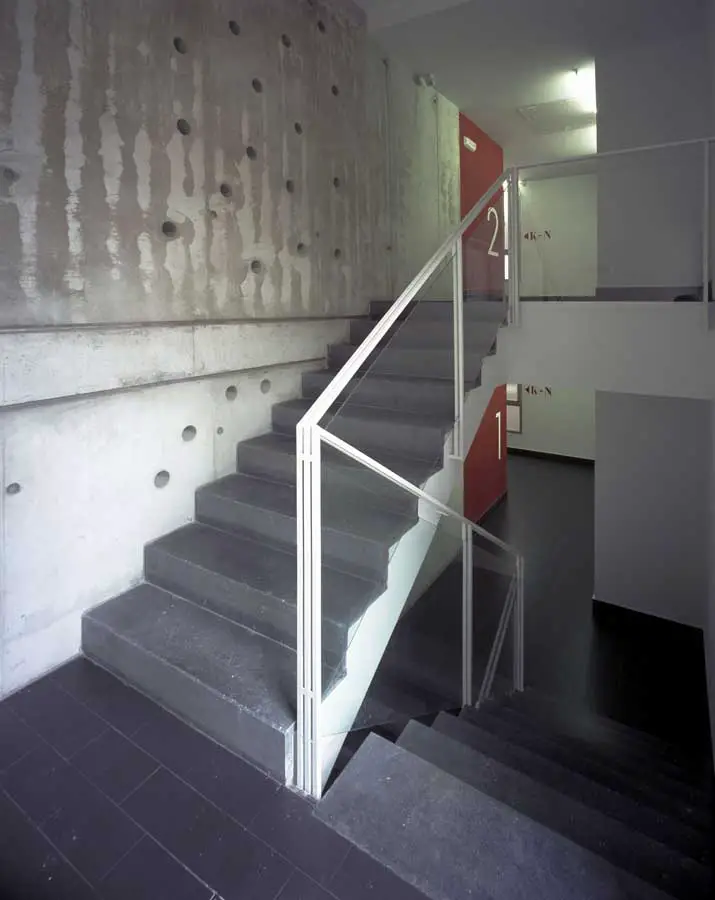

With only four nuclei, access is provided to 182 dwellings. The nuclei are spacious and well lit since the window galleries are included in the waiting areas for lifts and the stairs.

New Spanish Residential Building design by Aranguren & Gallegos Arquitectos Spanish Residential Building design New Residential Building Madrid Villanueva de la Cañada Madrid Villanueva de la Cañada Madrid
images from Aranguren & Gallegos Arquitectos

Villanueva de la Cañada Madrid – Building Information

PROYECT: VILLANUEVA DE LA CAÑADA DWELLINGS. 112+143 DWELLINGS IN PLOTS 301+356 ALONG THE AVENIDA DE LA RIOJA. VILLANUEVA DE LA CAÑADA. MADRID
LOCATION: C/ AVENIDA DE LA RIOJA. VILLANUEVA DE LA CAÑADA. MADRID
CLIENT: UTE ANDRIA-FERCLER
CONSTRUCTOR: DRAGADOS SA
ARCHITECTS: ARANGUREN & GALLEGOS ARQUITECTOS SL C/ OTERO Y DELAGE 118, 28035 MADRID
AUTHORS: MARIA JOSÉ ARANGUREN LÓPEZ ; JOSÉ GONZÁLEZ GALLEGOS

COLLABORATORS:
Architects: ARTURO ALBERQUILLA RODRÍGUEZ, PABLO ARANGUREN LÓPEZ, SIMÓN FRANCÉS MARTÍNEZ, BLANCA JUANES JUANES, ROBERTO ORTIZ DE LANDÁZURI MONAGAS, JOSÉ ANTONIO RODRÍGUEZ CASAS
Technical architect: JACOBO ARENAL FRÍAS
Structure: OTEP
Installations: VALLADARES INGENIERIA
Photographer: Hisao Suzuki ; Carlos Lozano

Photographer:

Hisao Suzuki
Mona Tellier – Administration
HISAO SUZUKI photography
Torrent del Fondo, 8, 08338 Premia de Dalt (Barcelona) Spain
tel: +34-93-752-1559 hisao.suzuki(at)teleline.es / hisao.suzuki(at)nuaa-image.com

Villanueva de la Cañada images / information from Aranguren & Gallegos Arquitectos

Location: Villanueva de la Cañada, Madrid, Spain
