Wood Lane Station, London Underground Building, Project, Photo, News, Design, Image

Wood Lane Station London

Underground Development in Hammersmith building design by Ian Ritchie Architects, UK

11 Jun 2009

Wood Lane Station

Location: Northwest London, England, UK

Design: Ian Ritchie Architects

Prime Minister’s Better Public Building Award Finalist 2009

Address: 104 A219, Hammersmith, Greater London W12

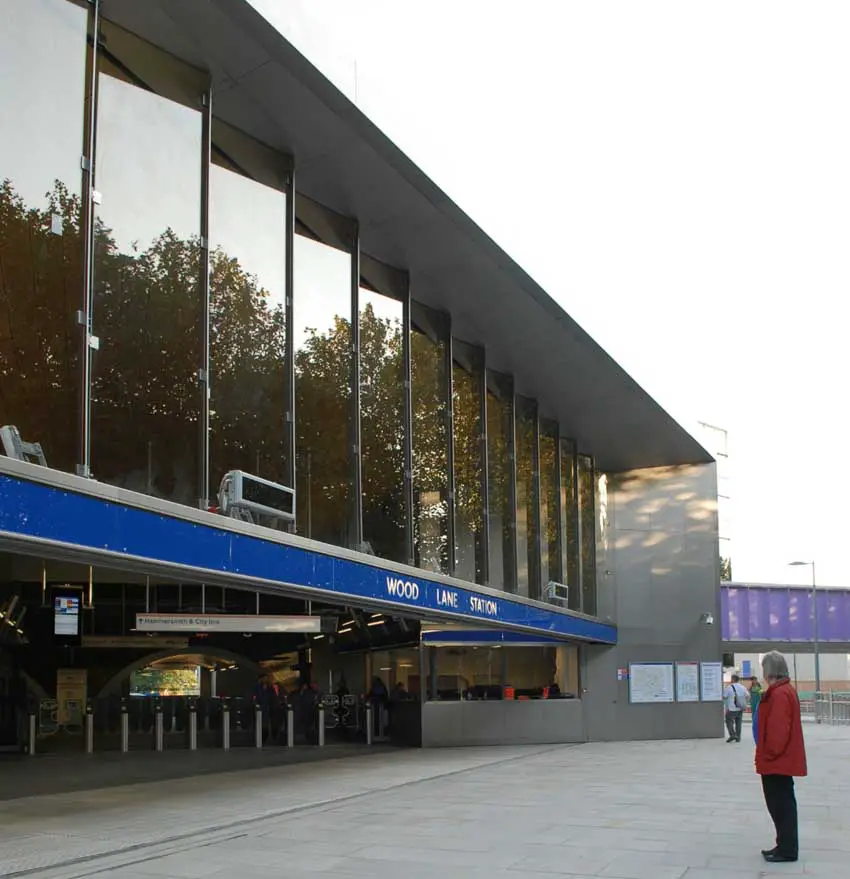

Wood Lane Station Wood Lane Underground Station Wood Lane Underground Station
photos © Jocelyne Van Den Bossche

Wood Lane Station
Wood Lane Station is the first tube station to be built on an existing line in 70 years. It is the result of a major partnership between London Underground and Westfield, delivered as part of the integrated transport strategy for Westfield.

It was a complex project, in terms of procurement, design, construction, safety and adherence to numerous building regulations. The result is an elegant two-storey steel and glass structure, including a suspended 25 metre glass screen façade to Wood Lane. Night-time illumination lends a theatrical quality, both inside and outside the station.

The site was extremely tight, located above existing Central Line cuttings and tunnels and enclosed by a 19th century brick viaduct carrying the Hammersmith and City Line. These lines continued to operate, meaning construction had to take place at night, with most elements prefabricated or preassembled.

The Wood Lane station provides step-free access to the trains. Two 21-person lifts serve each platform, with Braille, audio and visual information. Heat recovery systems and other energy conservation initiatives have been used, a relatively new step for transport infrastructure.

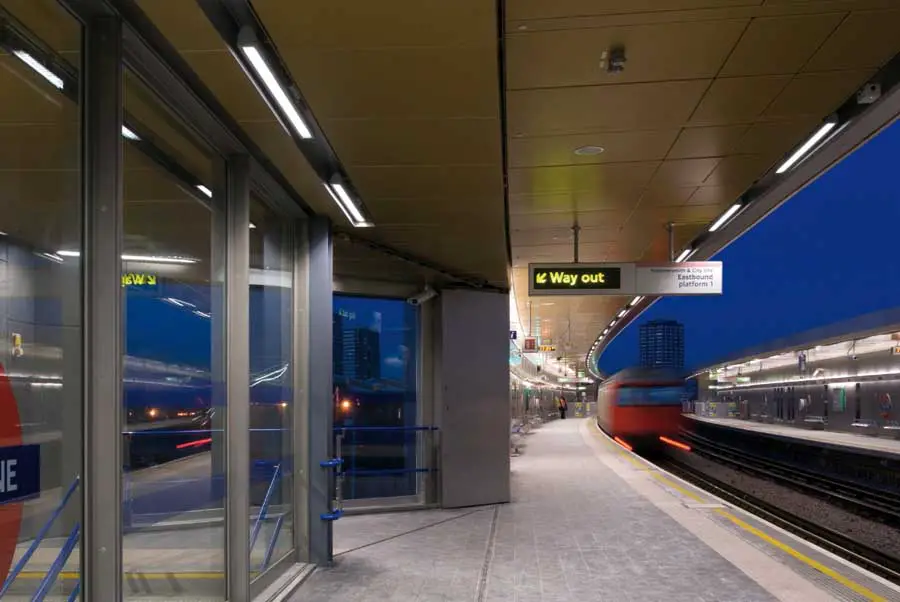

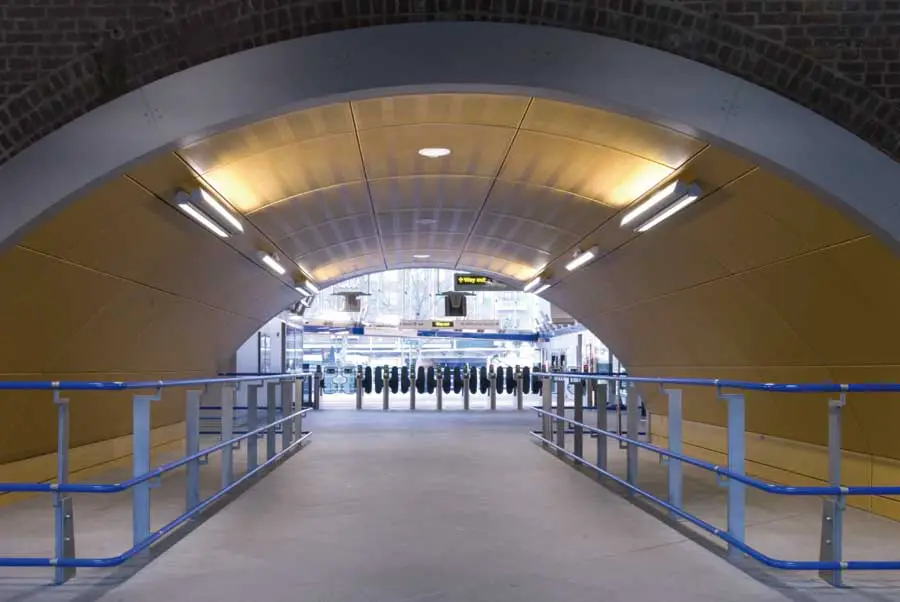

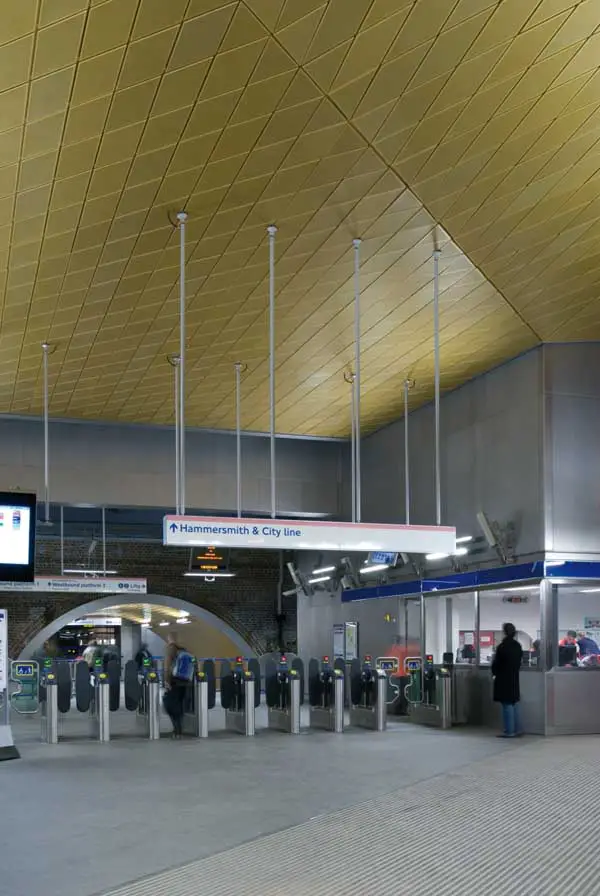

Wood Lane Underground Station Wood Lane Underground Station Wood Lane Underground Station
photos © Jocelyne Van Den Bossche

The station provides excellent facilities for current passengers and staff, as well as looking ahead to future developments and infrastructure upgrades.

Judges’ comment
“Creating infrastructure for the new Westfield shopping centre resulted in major construction challenges that were successfully met.”

Wood Lane Station London Information from CABE

Wood Lane Station London – Building Information

Client: London Underground in partnership with Westfield
Principal designer: Ian Ritchie Architects
Principal engineer: Waterman Civils Ltd
Principal contractor: Costain

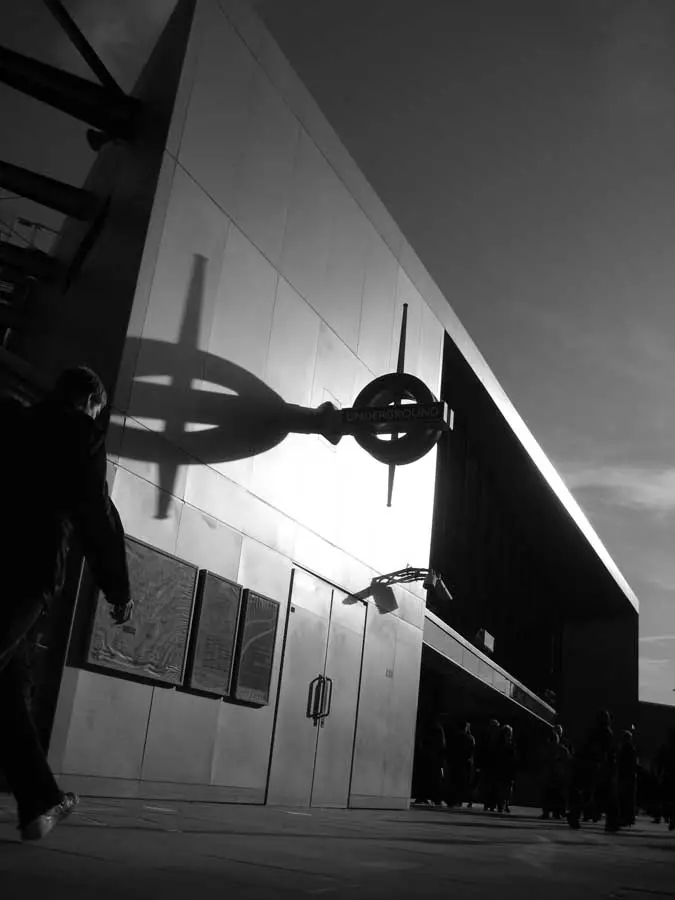

Wood Lane Station London
photo : Mark Bagguley © Ian Ritchie Architects

Wood Lane Underground Station
photo © Nick Weall

Wood Lane Underground Station design : Ian Ritchie Architect, UK

Location: 104 A219, Hammersmith, Greater London W12

London, England, UK
