Küppersmühle Museum Building, MKM Duisburg Photos, Herzog & de Meuron Architecture Design

Küppersmühle Museum, Germany

MKM Duisburg: German Museum building design by Herzog & de Meuron Architects

Updated 23 Sep 2021 + 3 Feb 2010

Design: Herzog & de Meuron, Switzerland

Location: Duisburg, Germany

Küppersmühle Museum Duisburg Building Germany

Photos © Simon Menges

Museum Küppersmühle Extension

A grain mill was erected in 1860 on the site of the present Museum Küppersmühle by industrialist Wilhelm Vedder, one of the founding fathers of Duisburg’s Inner Harbour. In 1900 the first mill using the most up-to-date technology went into operation in the Inner Harbour, which became known as the ‘bread basket of the Ruhr district’, and in 1908 the earlier buildings were replaced by the three-part structure now housing the museum.

Küppersmühle Museum Duisburg Building Germany

The business was taken over in 1912 by the Werner & Nicola works, who added a boiler house with chimney. The adjoining steel silos were constructed in the 1930s. In 1969 the company merged with the Küppers works of Homberg, which gave its name to the mill and the museum. The mill closed down in 1972.

Küppersmühle Museum Duisburg Building Germany

The Museum Küppersmühle (MKM), a project by Herzog & de Meuron dating from 1999, was the first milestone in the transformation of the Inner Harbour into an attractive focus of urban life. As a museum, the former mill, with its historic brick elevations, became the centre of a new, high-grade, multi-use inner-city location. Since 1999 the Küppersmühle has housed an art museum, run by the Stiftung für Kunst und Kultur e.V. (a registered cultural association in Bonn), that contains one of the finest collections of German art from the 1950s to the present.

Küppersmühle Museum Duisburg Building Germany Küppersmühle Museum Duisburg Building Germany

The Ströher Collection
The MKM Museum Küppersmühle presents key works and groups of works from the Ströher Collection, one of the most extensive private collections of German post-war art – to date on 2,500 sqm of exhibition space. With over 2,000 works, the collection comprises central positions of art development in Germany, from the immediate post-war period to the present. The focus is on painting, but the collection also includes sculpture and photography.

Over time, a desire for a building capable of housing all the works of art and displaying them in a manner worthy of a collection that includes many artists whose major significance is recognized internationally, among them Georg Baselitz, K. O. Götz, Jörg Immendorff, Anselm Kiefer, Sigmar Polke, Gerhard
Richter, Fred Thieler and Rosemarie Trockel.

Küppersmühle Museum Duisburg Building Germany

Extension project
An extension to accommodate the collection was to be erected in 2008 on top of the silo towers. Faulty work by the steel-working company involved, and the company’s subsequent insolvency, meant that the steel-frame construction could not be installed. Construction work ceased and the project was abandoned owing to financing problems encountered by the client, the real estate company GEBAG. The building complex became the property of the Ströhers.

The extension project was activated in 2013, with the Ströher family as clients. A feasibility study undertaken by Herzog & de Meuron explored the potential of the site under current conditions. The resulting project constitutes a radical new start. The original idea of an illuminated cube balanced on the silo towers and visible from afar has been jettisoned. Instead, we propose to erect a building whose dimensions and materials accord with the sequence of historic brick structures lining the dockside. The new structure thus completes the existing museum complex in a visually appropriate way and forms a suitable conclusion to the row of buildings along the dock. At first glance it might seem as though the new building had always been there.

Küppersmühle Museum Duisburg Building Germany

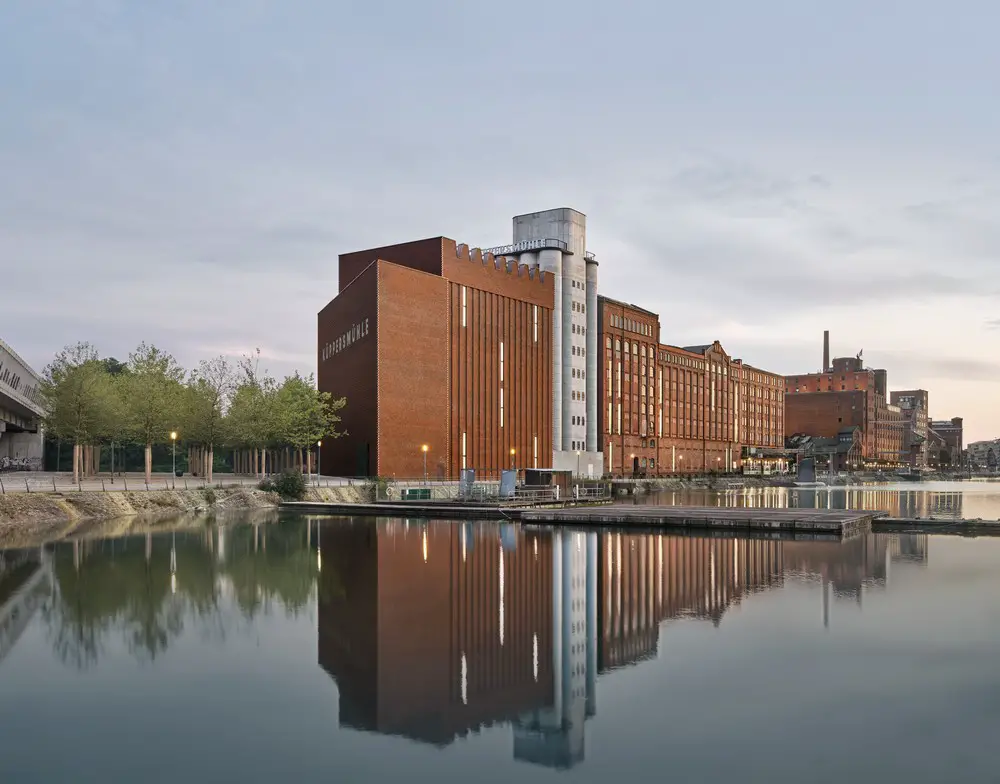

The new structure consists of three parts with a height of approximately 33.5, 30.5 and 27.5 metres respectively. In terms of mass, height and materials they take their cue from the existing buildings, continuing them and rounding them off to form a harmonious whole. Two parts contain the exhibition areas, the third provides access and houses utilities and art handling facilities. With five levels, one below ground, floor space amounts to some 4,900 square metres, in addition to exhibition areas of roughly 2,500 square metres.

Massing was crucially influenced by a ban on building within forty metres of the autobahn. Optimum use is made of the available area. The arrangement of the exhibition structures – the tallest of the three parts and the smaller one adjoining it – echoes the course of the building-free zone, while one elevation of the third part runs along its boundary. The additively composed parts remain distinctly legible. At its tallest point (the uppermost level of the larger exhibition component), the new structure is related in height to the main existing building.

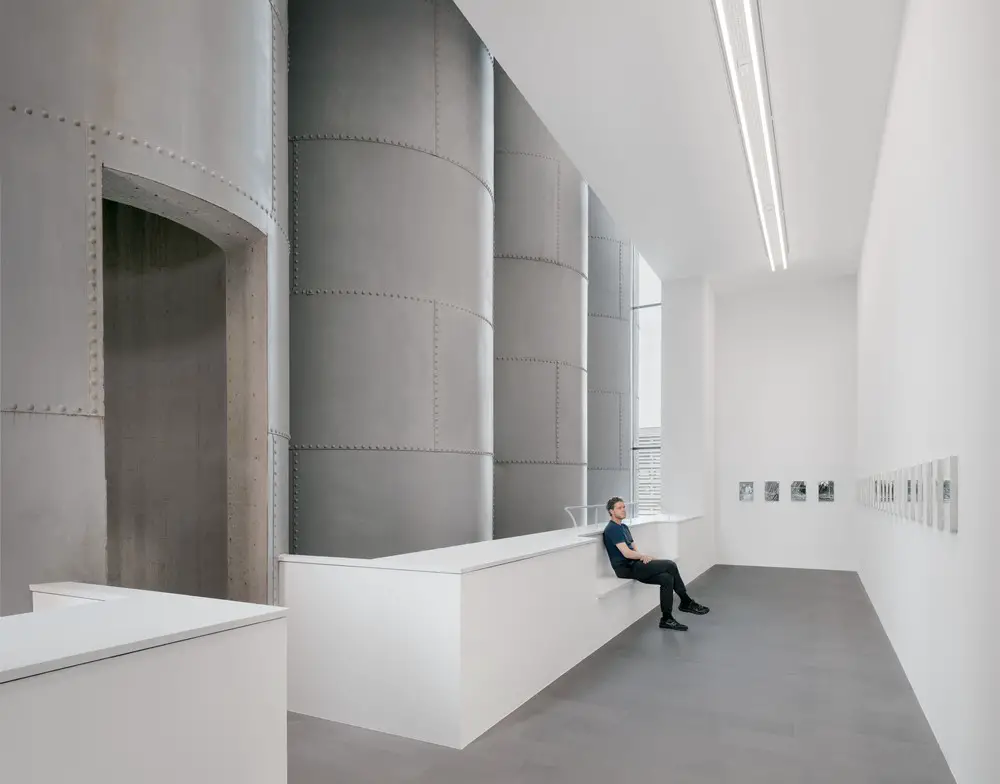

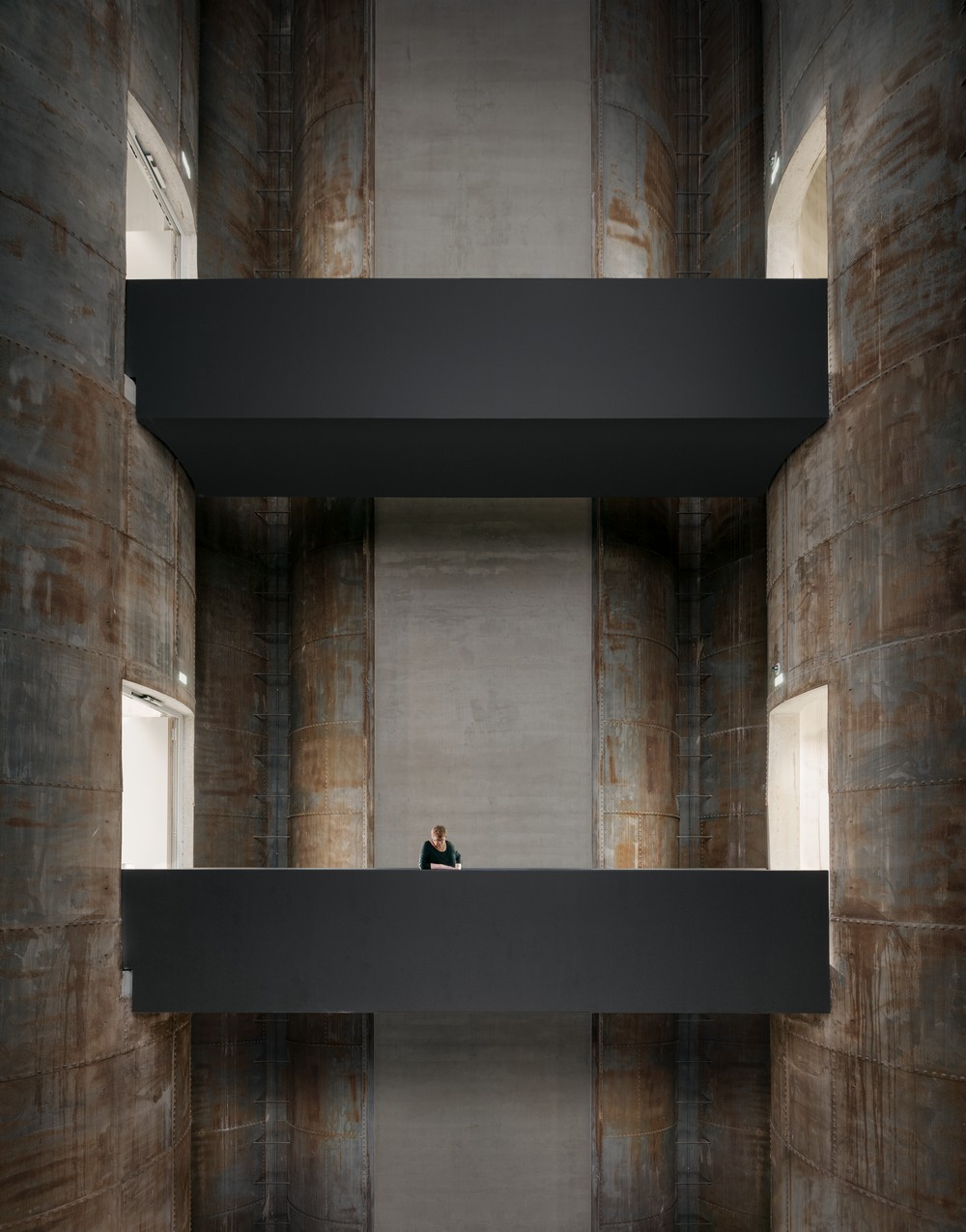

The extension is to be linked directly to the existing exhibition spaces by bridges through the silos at the first and second upper levels, facilitating uninterrupted visitor access throughout the museum. Similarly, the height of the new exhibition areas takes its cue from the existing galleries. The silos will not only be converted into elements connecting the old with the new; they will also house distinctive exhibition spaces. Their original materials are to be retained, however, because the silos are an indispensable ‘sculptural’ component of the Küppersmühle as an industrial monument. Long reduced to this historical and aesthetic aspect, they acquire a new function through refurbishment as access links and display areas. Six inner silos had already been removed. Now, with the ground-floor ceiling opened up and the insertion of the bridges, the entire space will be visible to visitors. In addition, the silos can be seen from some of the exhibition areas.

Küppersmühle Museum Duisburg Building Germany

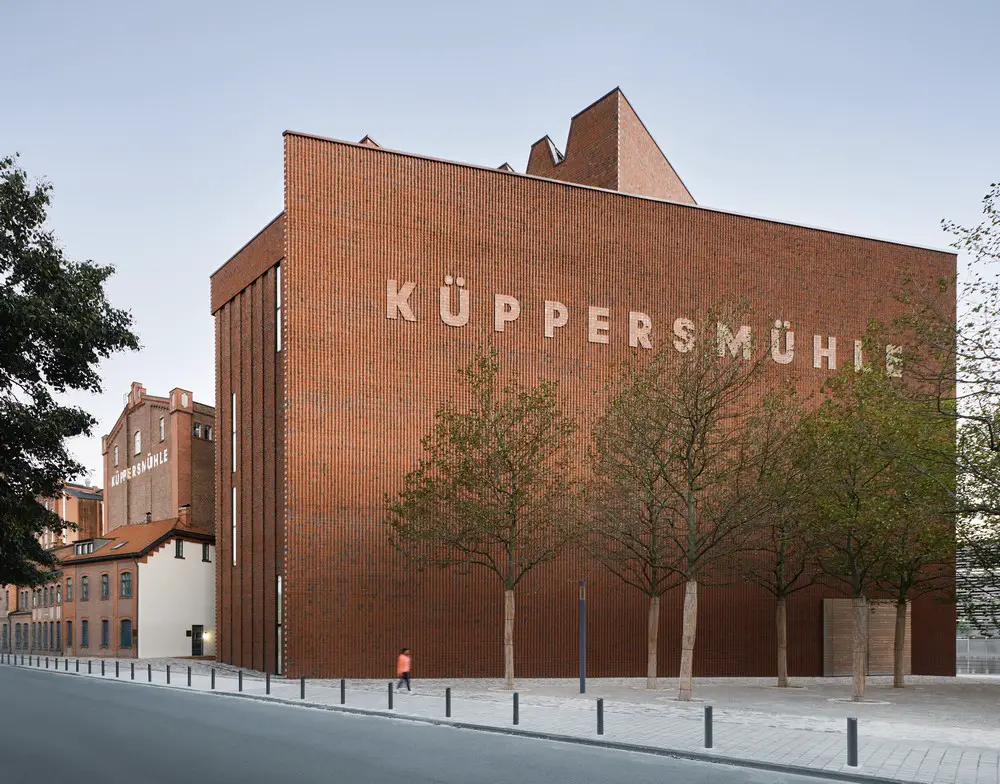

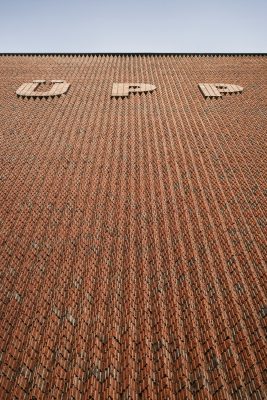

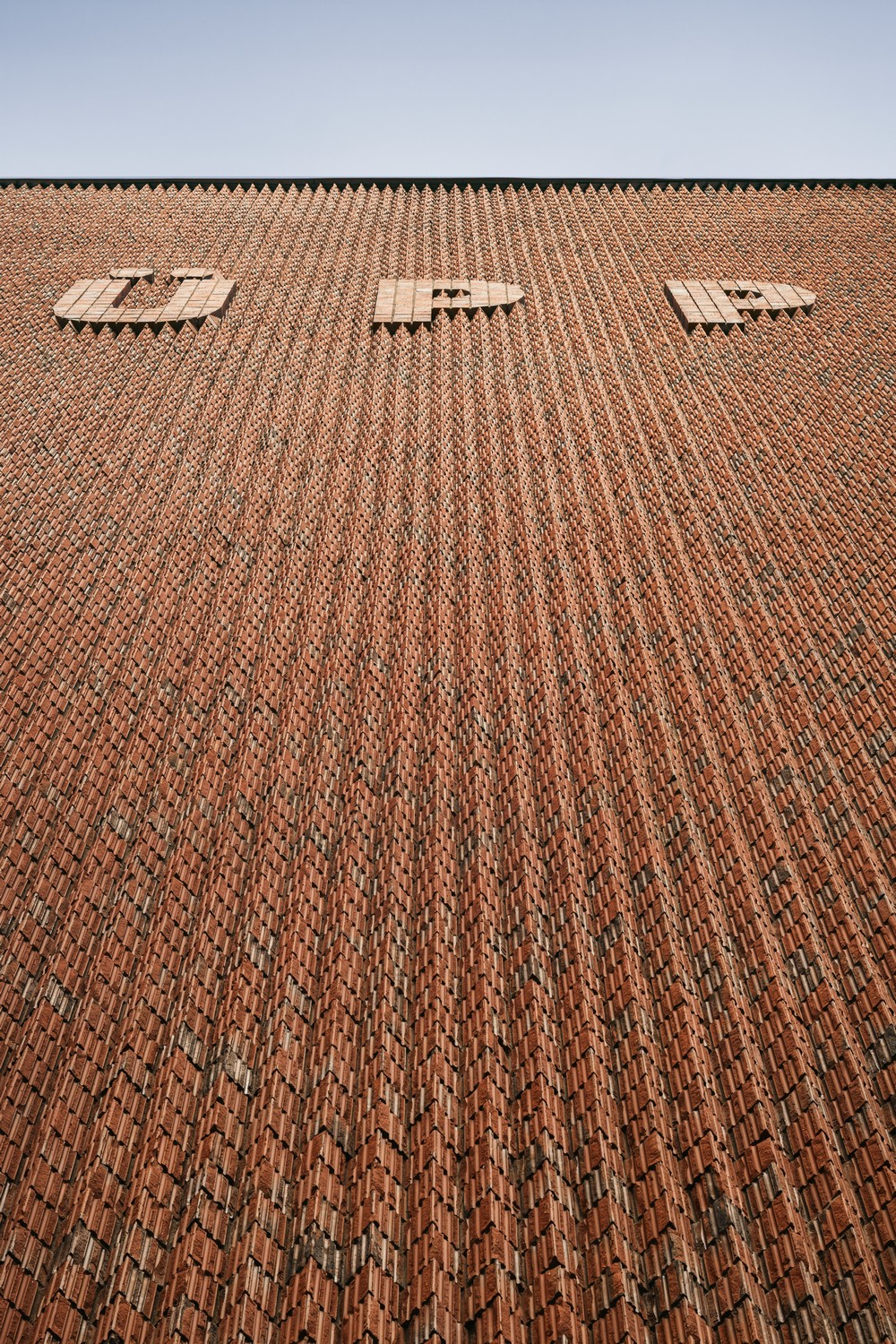

As in the existing galleries, windows in the elevations facing the dock and Philosophenweg offer varied and striking views of the site and its surroundings. The material of the elevations echoes the brick of the existing buildings.

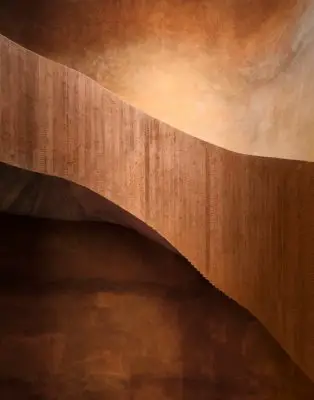

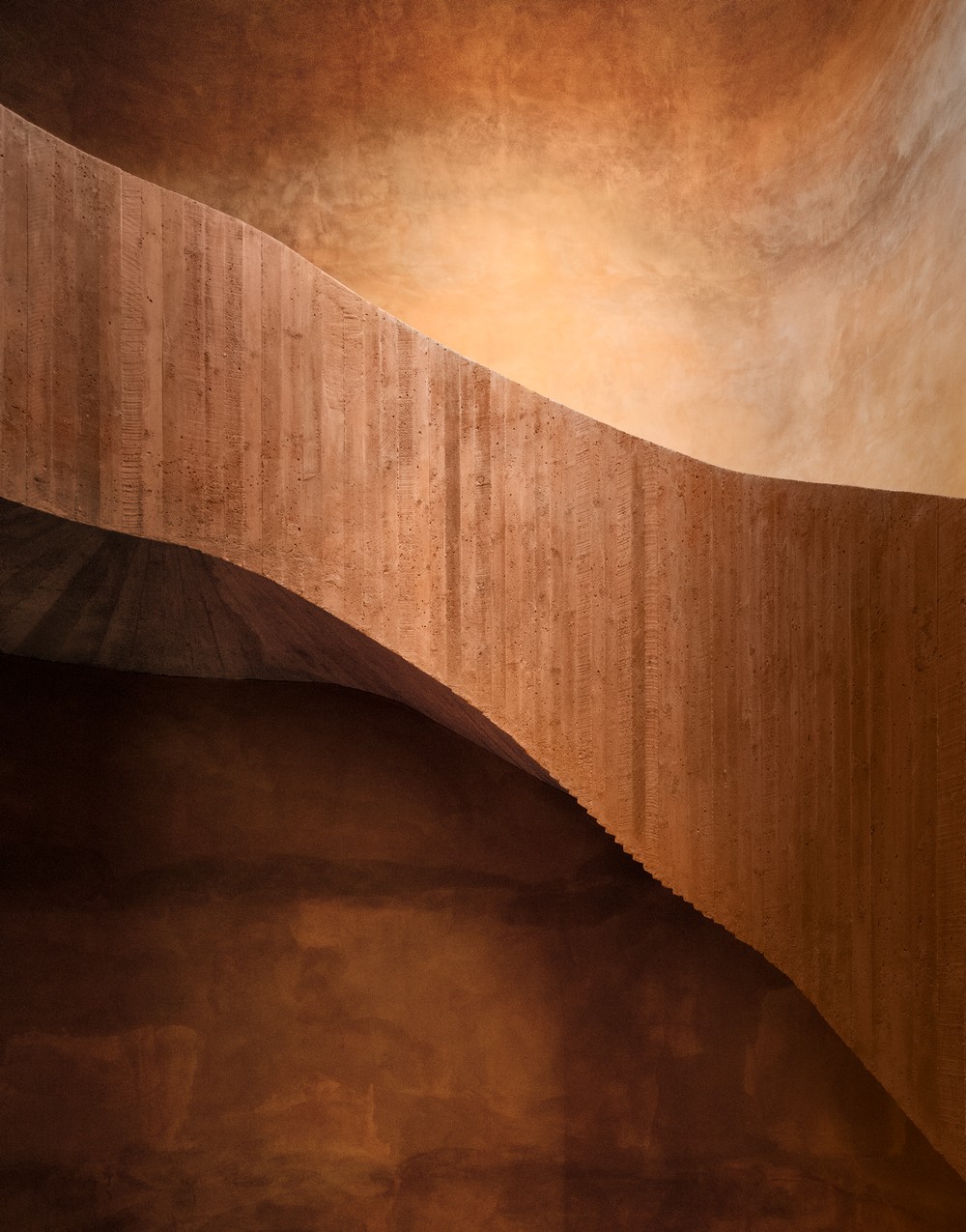

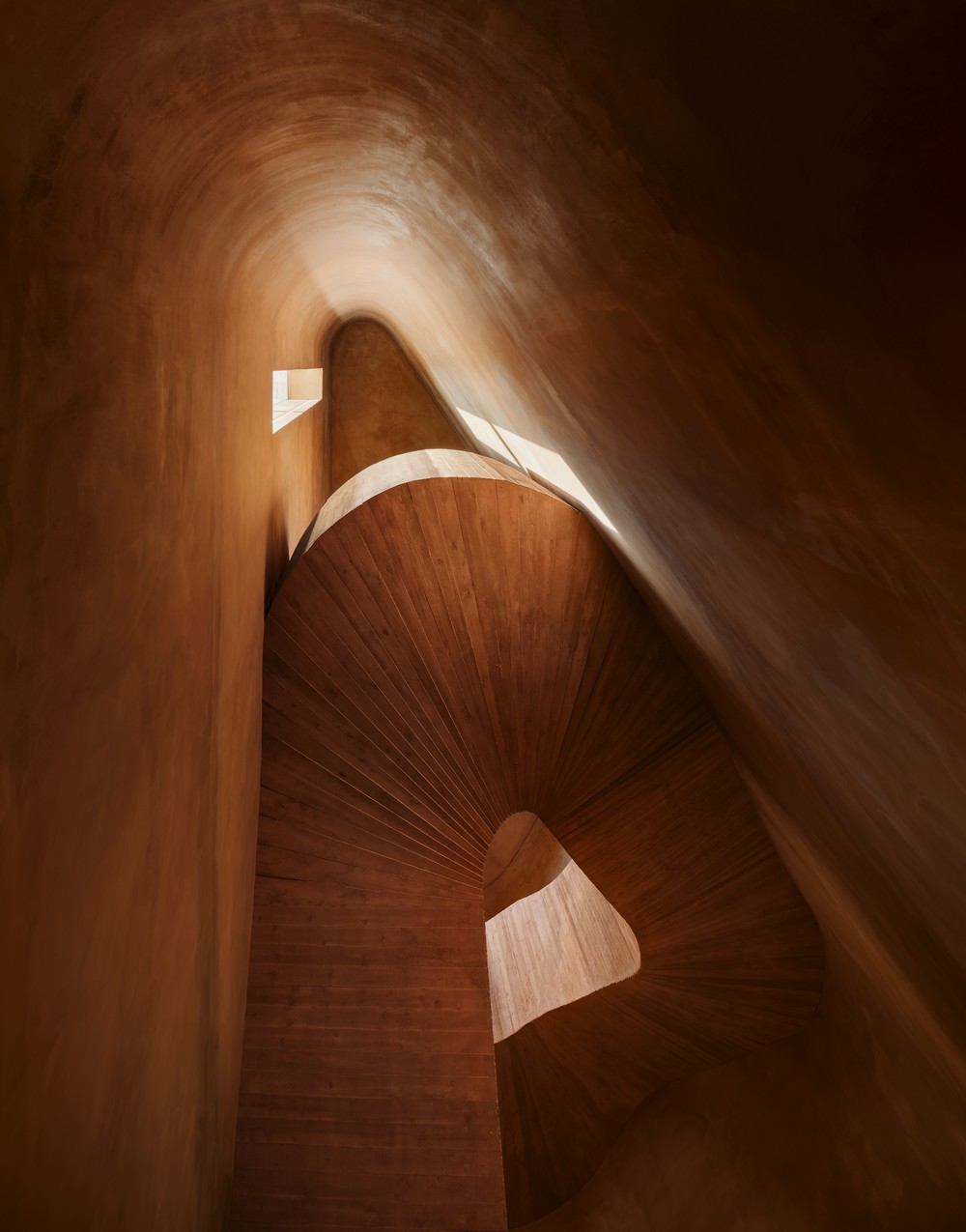

A staircase permits continuous visitor circulation and the arrangement of all the exhibits in a consecutive sequence. In conception and spatial context the staircase is related to that featured in the museum project of 1999.

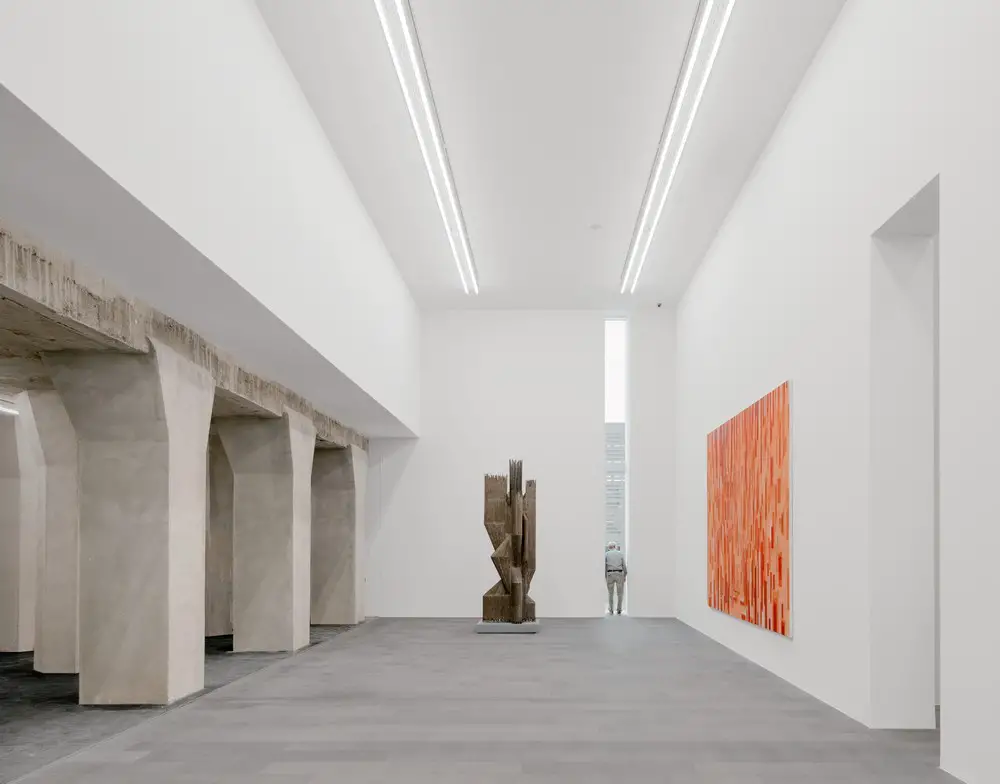

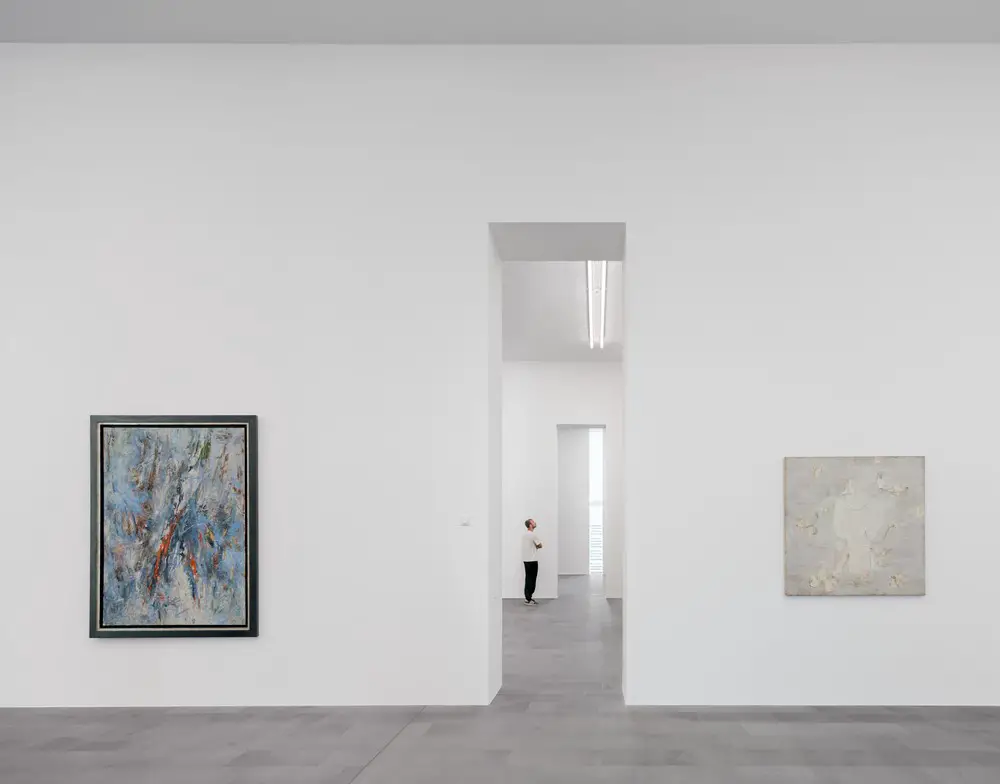

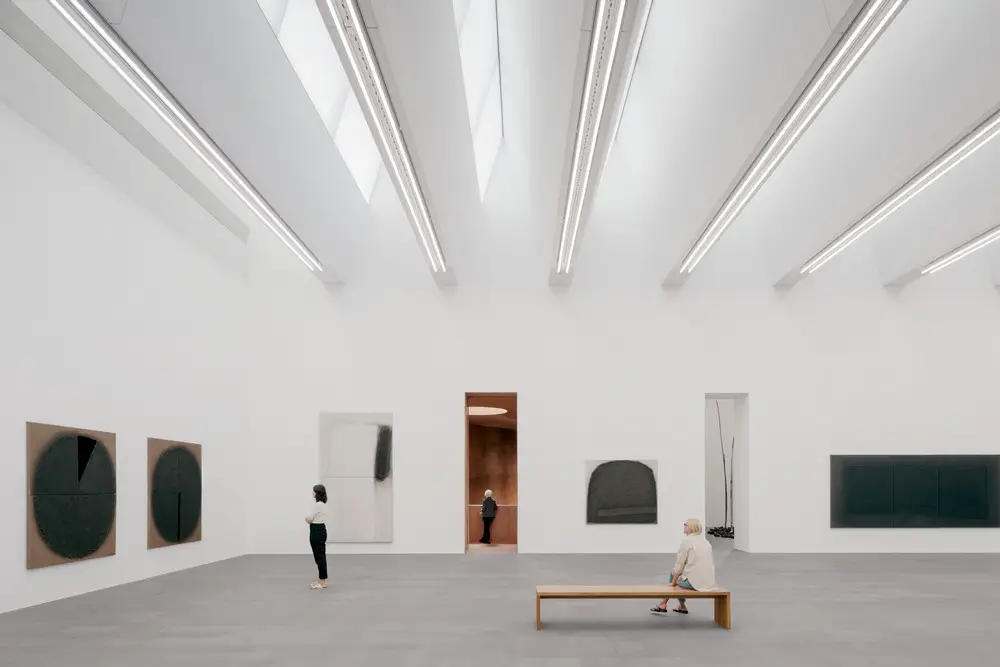

The new exhibition areas echo the overall additive character of the Küppersmühle as a typical industrial facility of the nineteenth and twentieth centuries. In their architecture and interior design, the galleries echo the existing exhibition spaces. The uppermost display area, which is not directly accessible from the existing building, consists of a visible shed construction with top-lighting. All exhibition levels have a spatial arrangement facilitating flexible multiple use.

The silos are to be fitted out with a superstructure, as they were originally, in the 1930s. Featuring a viewing platform accessible from the dockside promenade, the superstructure will grant the silos yet another new function.

Project 2013-2021
Client: City of Duisburg

Küppersmühle Museum Duisburg Building Germany Küppersmühle Museum Duisburg Building Germany

Photography © Simon Menges

Conversion of industrial building into museum for Grothe Collection

Partner in Charge: Pierre de Meuron

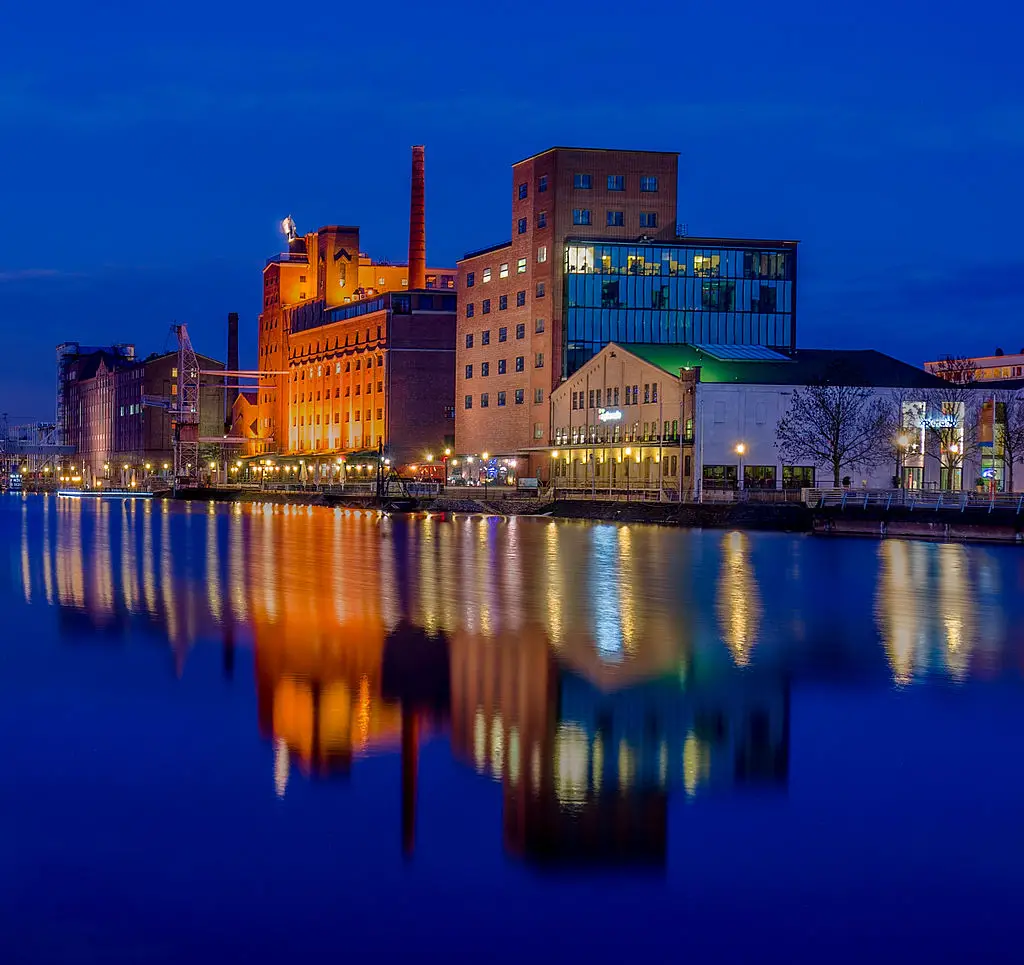

Innenhafen Duisburg Werhahmühle Küppersmühle, blaue stunde:
Küppersmühle Museum, Duisburg, Germany by Herzog & de Meuron Architects
photo : Tuxyso / Wikimedia Commons

The Küppersmühle – original building
Date built: 1908-16
Design: Kiefer Brothers & Joseph Weiss

Brickwork building within Duisburg masterplan by Foster & Partners

Contact Details

Address: Philosophenweg 49 47051 Duisburg, Germany

Phone: 0203 301948-11

Küppersmühle Museum architects – Herzog & de Meuron

Based in a former warehouse, the MKM was opened in April 1999. The building was redesigned by the Swiss architects Herzog & de Meuron, using a masterplan devised by Norman Foster. After gutting the original industrial building an exhibition space of 3,600 m² was created across three storeys. With 6-meter high ceilings, grey Turkish basalt natural daylight is provided by the ceiling-high window slits. The building is served by an external staircase attached to the original building.

Location: Philosophenweg 49, 47051 Duisburg, Germany, western Europe
