Rammed Earth Winery in Châteauneuf-du-Pape, France
23 August 2023
Architects: JSPA Design
Location: Châteauneuf-du-Pape, Southeastern France
Images by JSPA Design
Rammed Earth Winery – Châteauneuf-du-Pape building
JSPA Design presents Rammed Earth Winery in Châteauneuf-du-Pape, a multi-faceted project in a predominantly rural and agricultural area of Châteauneuf-du-Pape, France. The goal of the project was to create a wine cellar, extend an existing winery to increase its production capacity, create a shop, and develop new public event spaces.
“The design process was guided by the idea of producing a clear reading between the existing architecture and the new extension while creating a coherent whole in terms of scale and architectural form and typology,” explains Johan Sarvan, Founder of JSPA Design in Beijing.

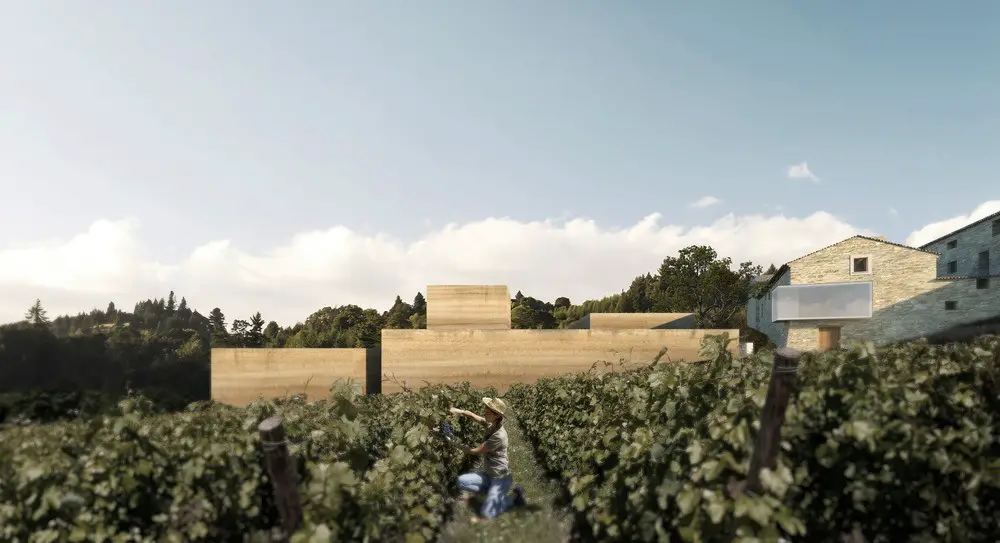

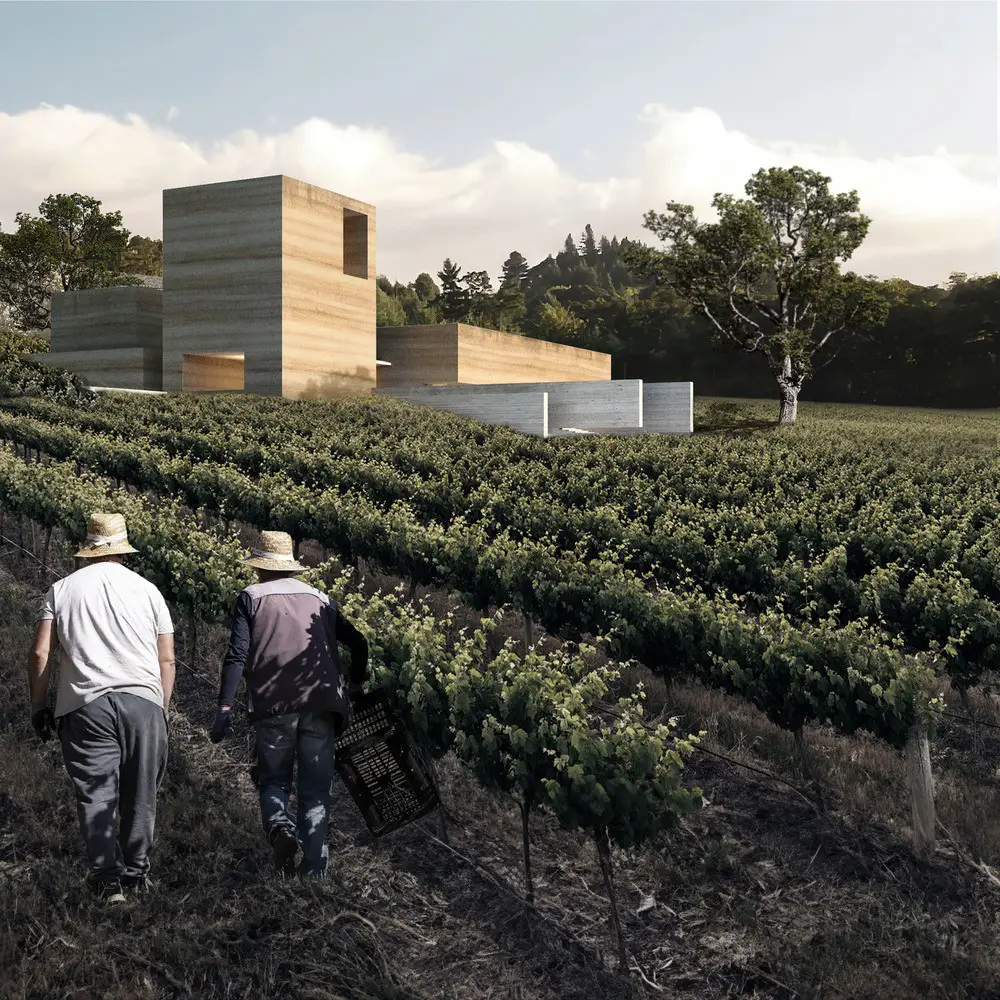

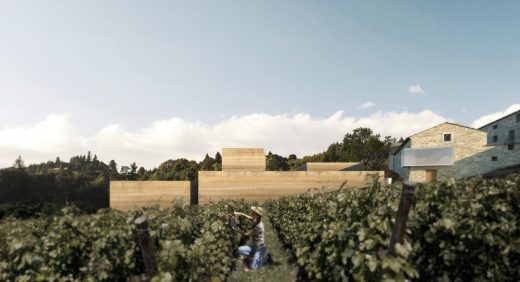

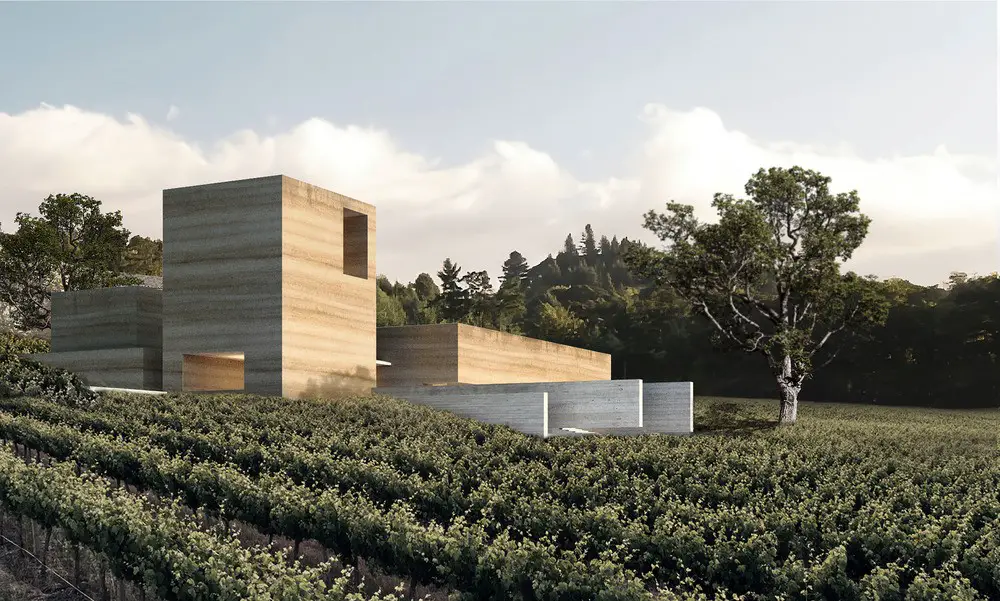

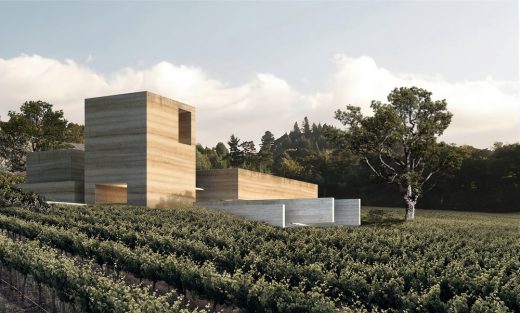

The compacted earth walls, a traditional material, but with a resolutely contemporary style, allow the building to integrate perfectly into the landscape and reinforce the feeling of connection with the site. The material also offers very good thermal and acoustic insulation properties.

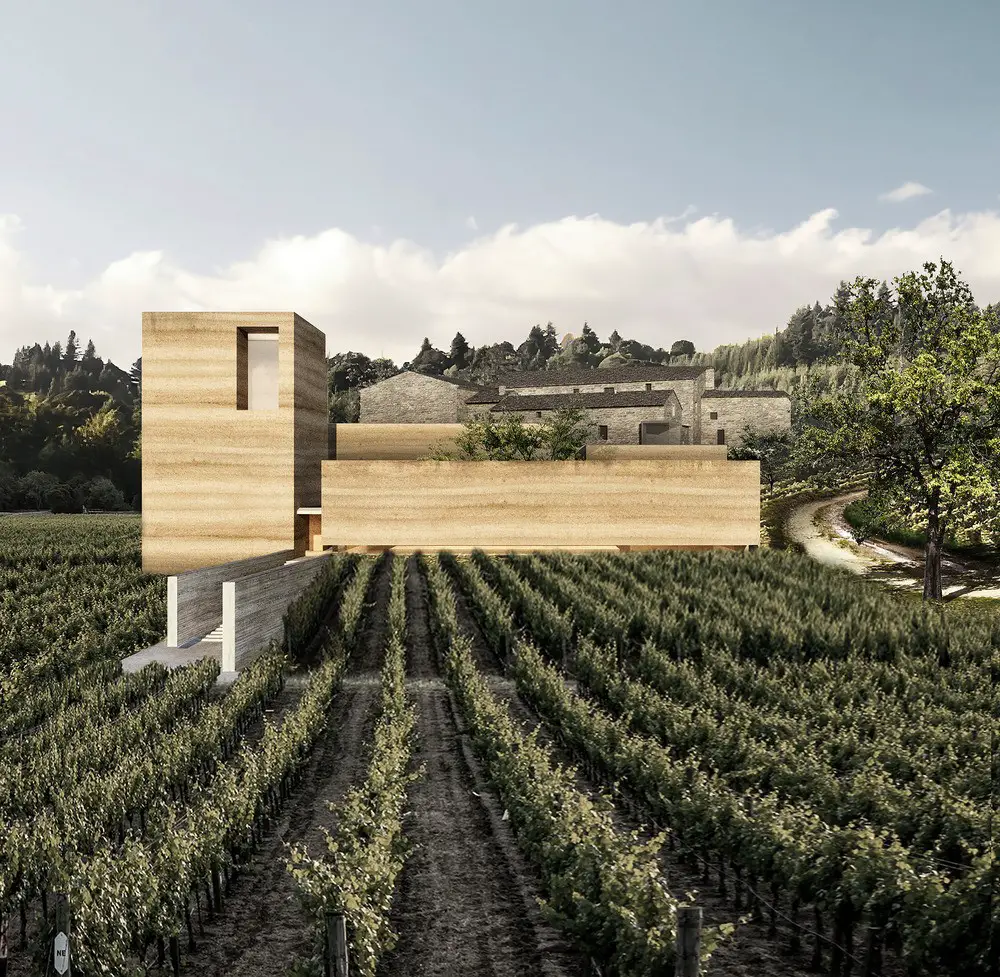

The various functions of the program are divided into four distinct volumes which revolve around a central patio. This fragmented architecture creates a coherent scale with the surrounding typologies, allowing the project to further integrate into the village. The connection between the old and the new is only ensured by an underground link, which makes it possible to juxtapose the existing and the new without them coming into contact with each other.

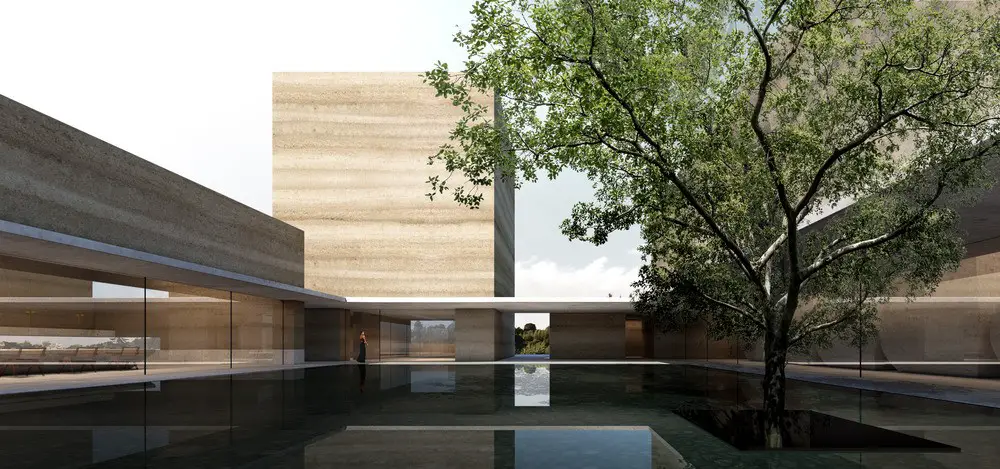

Water circulation in the building was also one of the drivers of the project. Cantilevered structures direct rainwater absorbed by the green roofs to a central patio pool where it is collected. Narrow slits at the contours of the patio allow excess water to drain to the underground wine cellar, reaching the lower level where a cistern eventually collects it for future use. Through natural evaporation, the water tank provides the level of humidity required for proper conservation of the wine throughout the year.

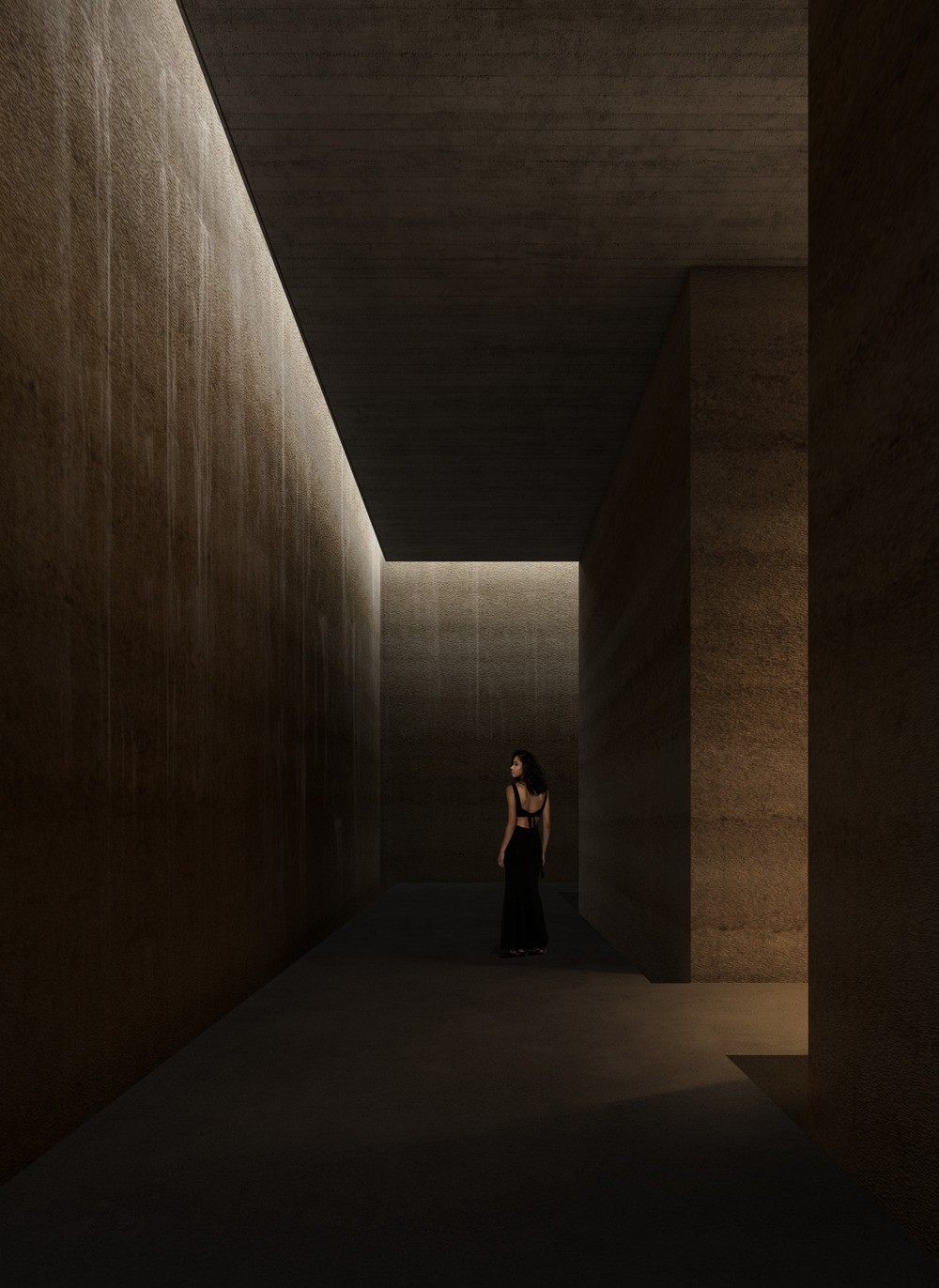

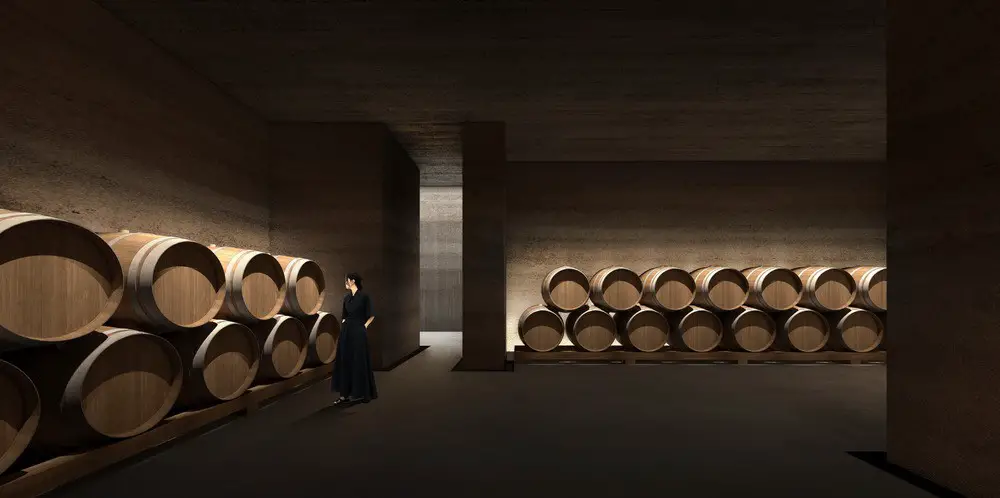

The atmosphere of the space is an important aspect that was carefully considered, and the wine cellar itself is located underground to benefit from a consistent temperature. The cellar is illuminated by weak natural light entering through fine openings in the slab, generating sequences of shadow and light that create a sense of depth and mystery.
“When visitors step into the cellar, they are transported into a world of sensory experiences, where the sights, sounds, and aromas of winemaking combine to create an immersive experience,” says Florent Buis, partner at JSPA Design.
Rammed Earth Winery, Châteauneuf-du-Pape, France – Building Information
Client: Les Terres Blanches
Status: Concept design
Construction date: Beginning 2024
Construction area: 3,400 sqm
Architecture design: JSPA Design
Interior design: JSPA Design
Landscape architecture: JSPA Design
About JSPA Design
Based in Beijing since 2009, JSPA Design is a French agency engaged in architecture, interior, landscape, and furniture projects. Adopting contemporary design methods freed from the idea of style, they focus their talents on creating sensory architecture, working on light and shadow, space and materiality.
The exploration of architectural form and typology, in particular through the reinterpretation of local materials, allows the firm to deliver eminently contemporary projects that remain deeply rooted in their sites.
The dialogue between nature and architecture is an important factor in their work. The design process allows experimentation on how architecture can coexist with its environment, and even how nature can sometimes impose itself on architecture and enter the building.
From general design to detailing, to site supervision, the JSPA team is fully committed to monitoring and ensuring quality throughout the design process, through to completion.
Renders by JSPA Design
