New Headquarters Lille Métropole Habitat

Northeast French Office Building: HQ design by Dietmar Feichtinger Architectes

5 Dec 2015

Headquarters LMH

Design: Dietmar Feichtinger Architectes

Projet Tourcoing_siège LMH

Location: north east France

The new headquarters for the social housing organization in the metropolitan area of Lille, LMH, is located on the boulevard Gambetta in Tourcoing, a major road connecting Lille and its surrounding communities.

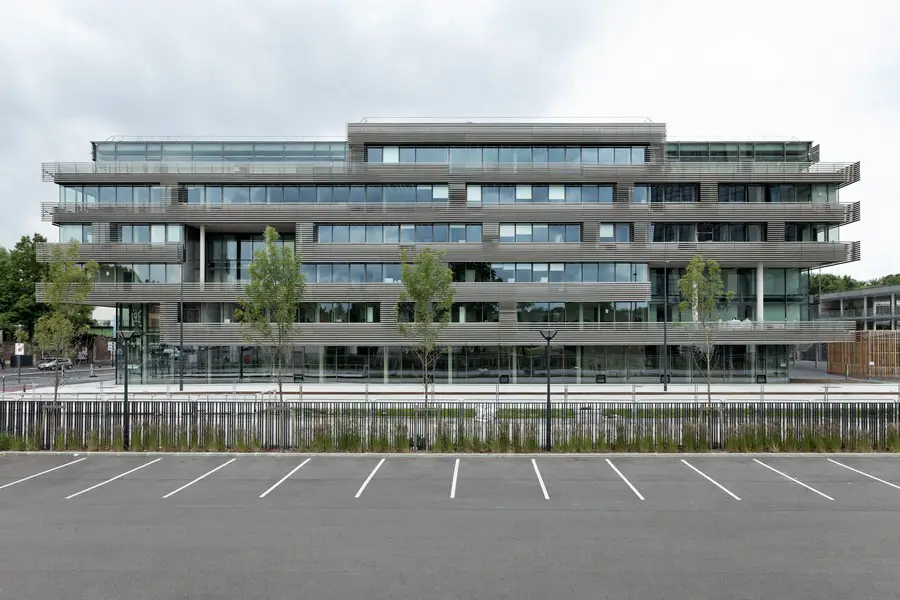

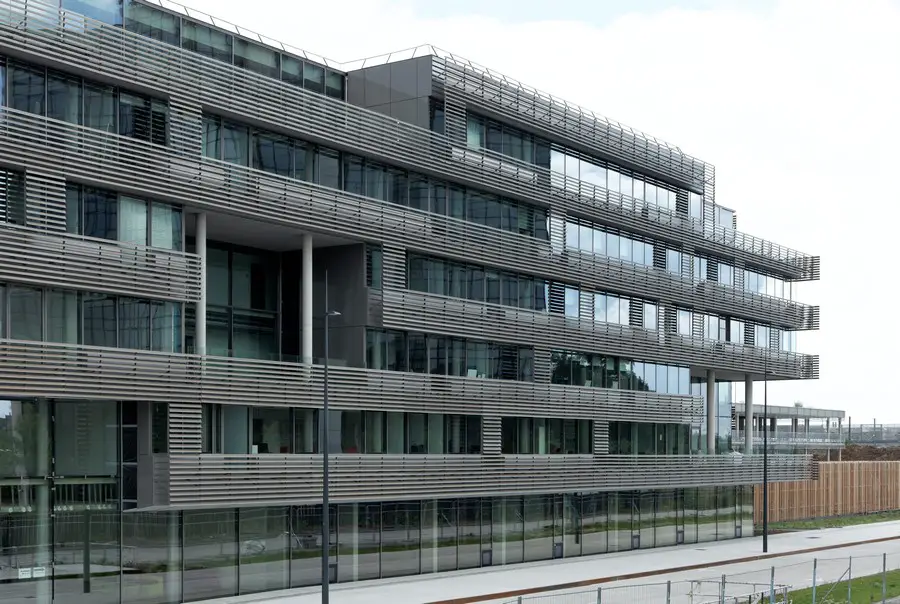

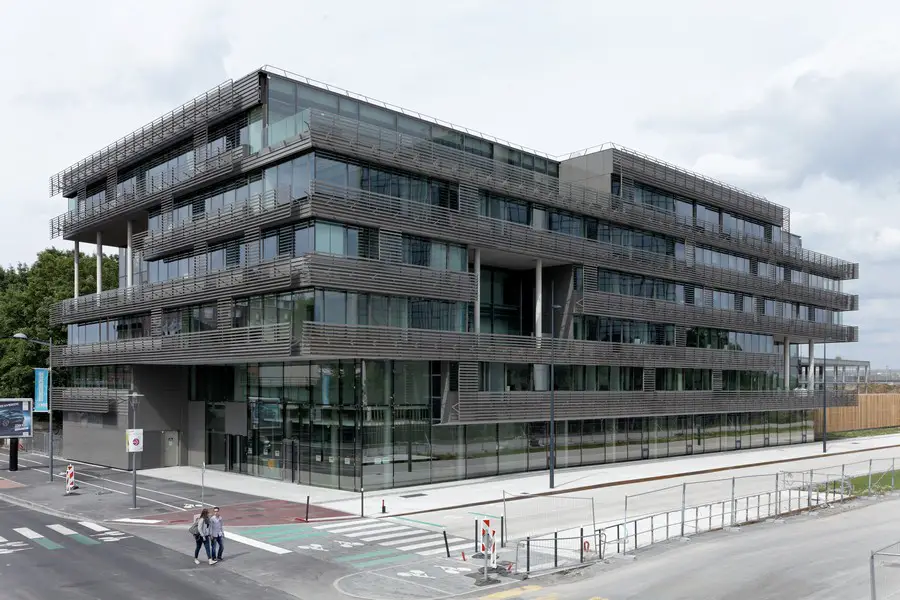

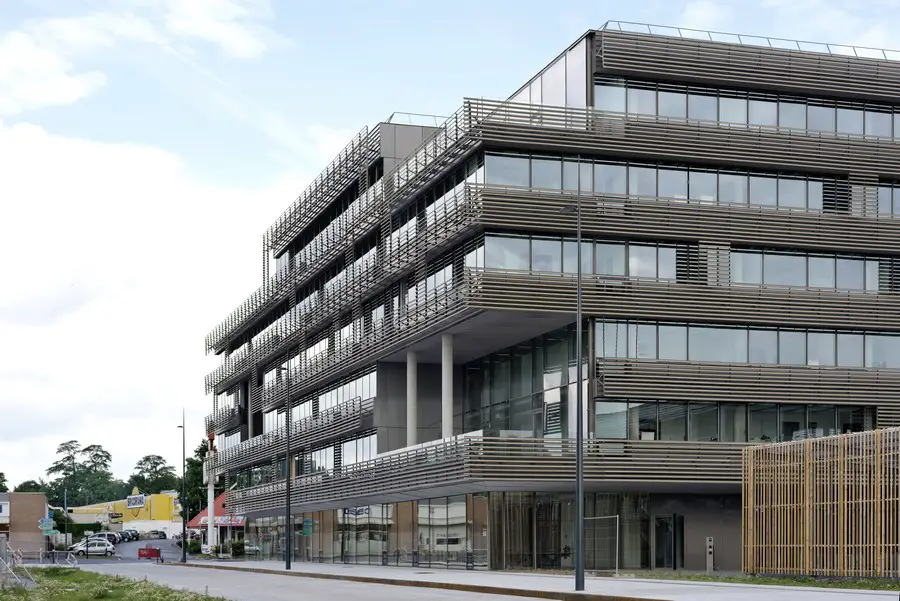

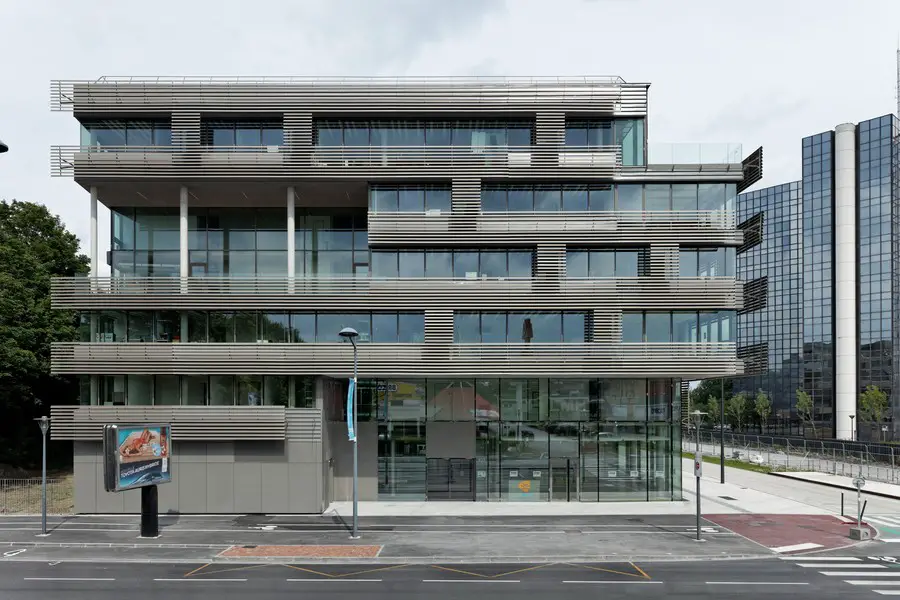

The new building for LMH affirms its presence in the urban context by its dimension but the architectural expression is searching for lightness and transparency and avoids any monumentality.

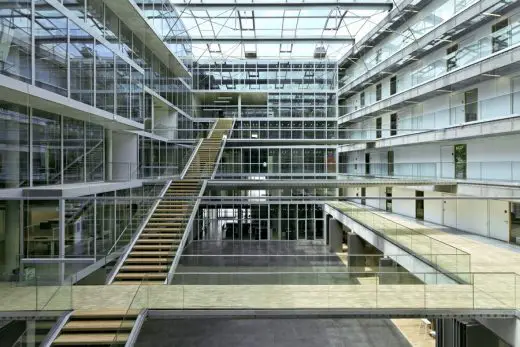

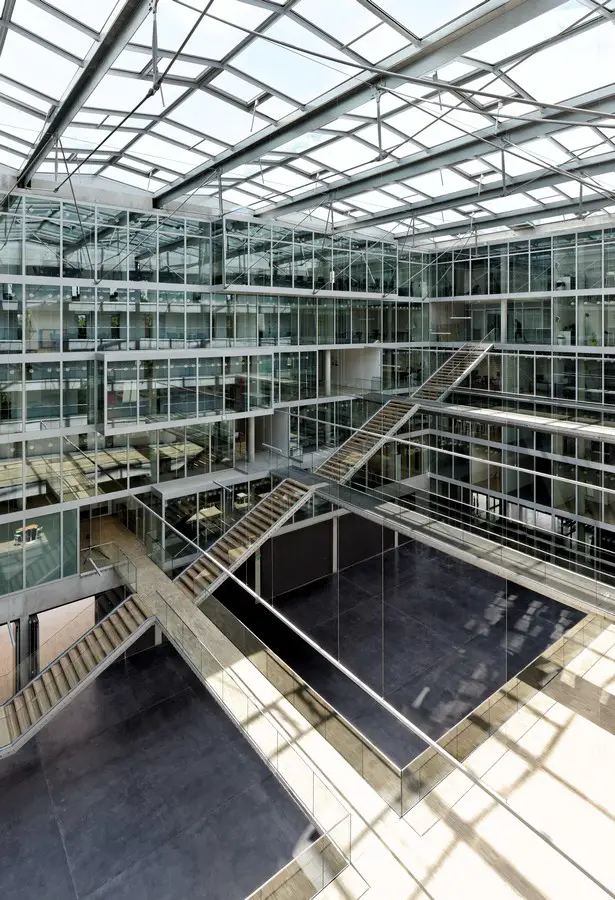

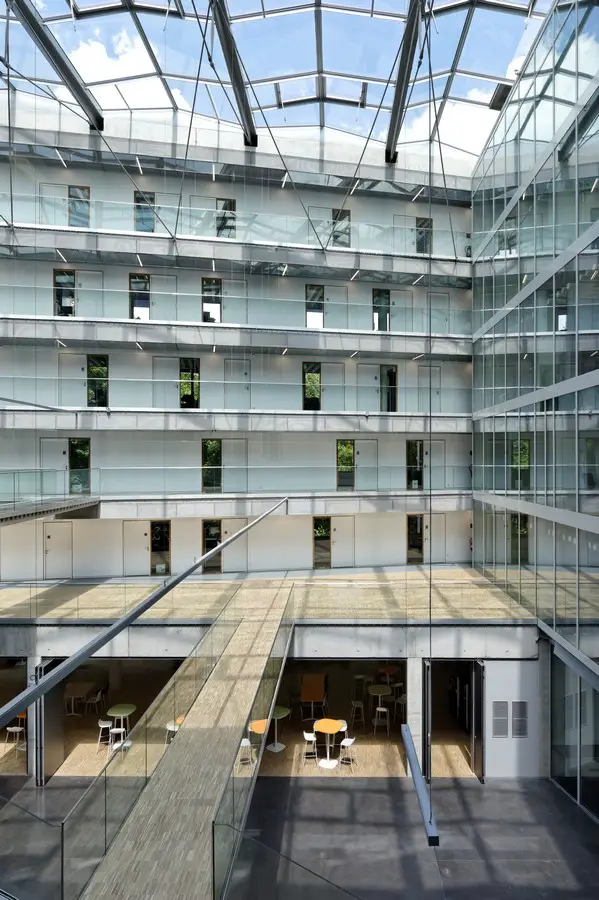

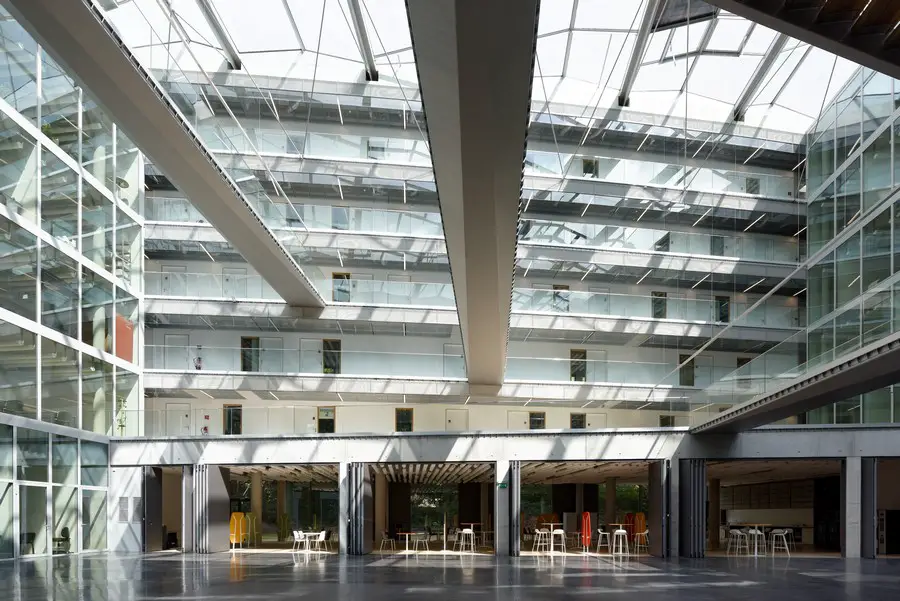

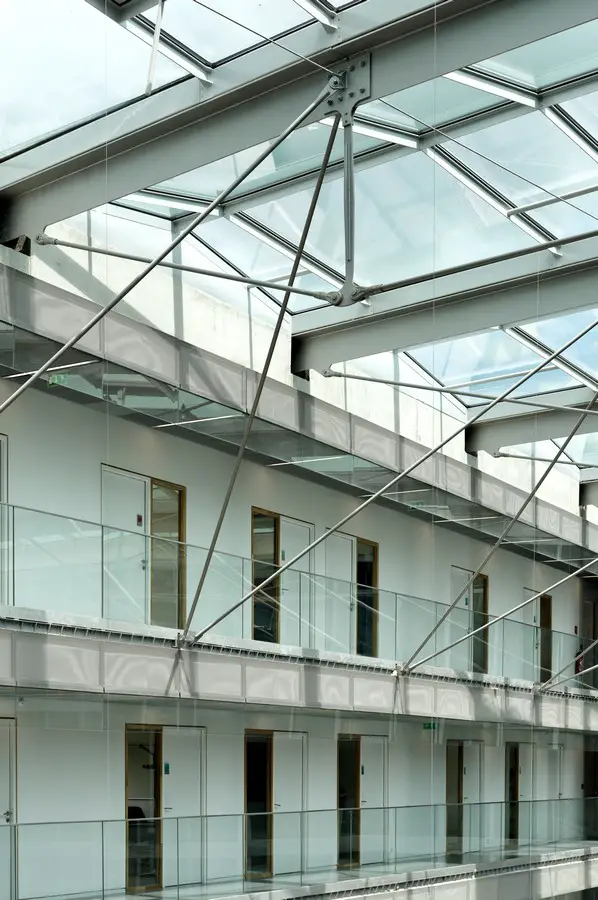

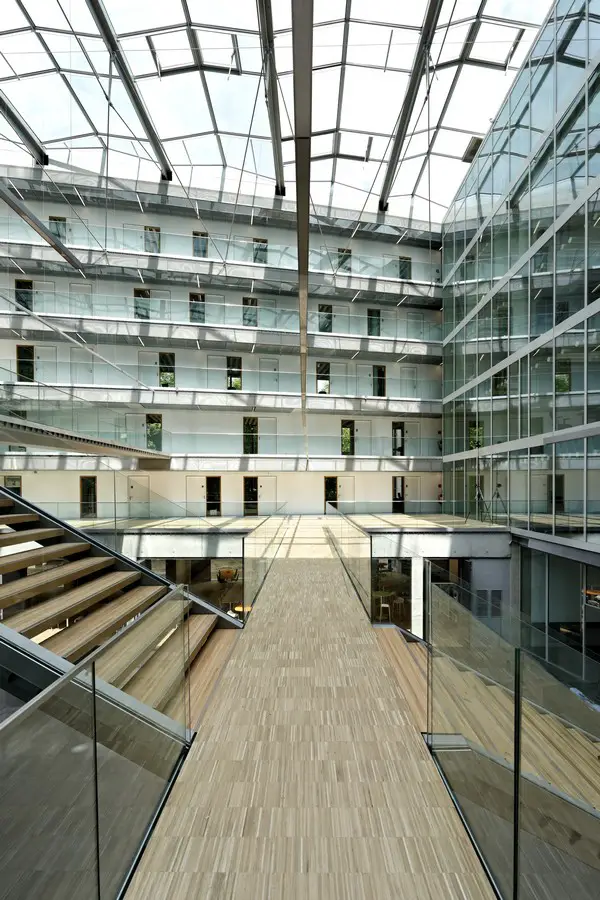

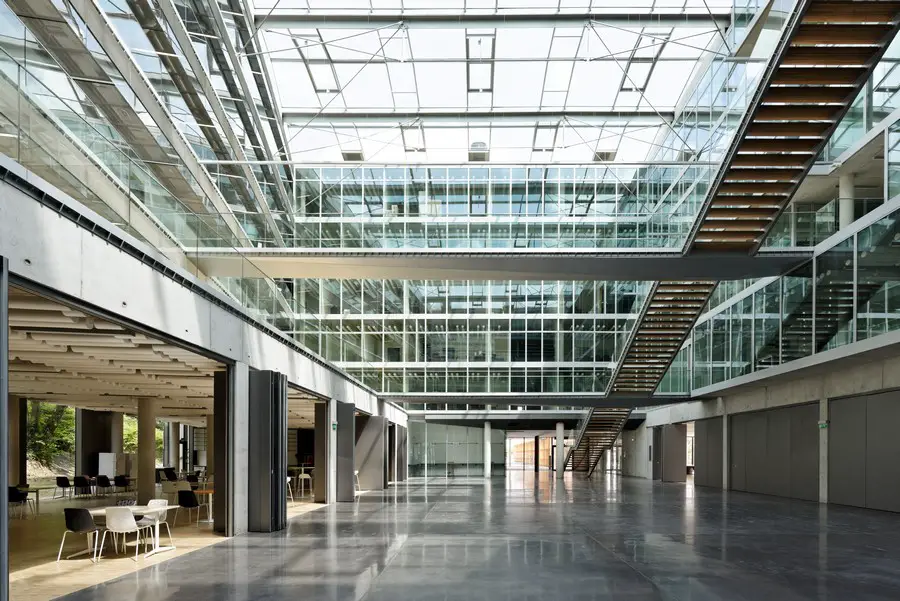

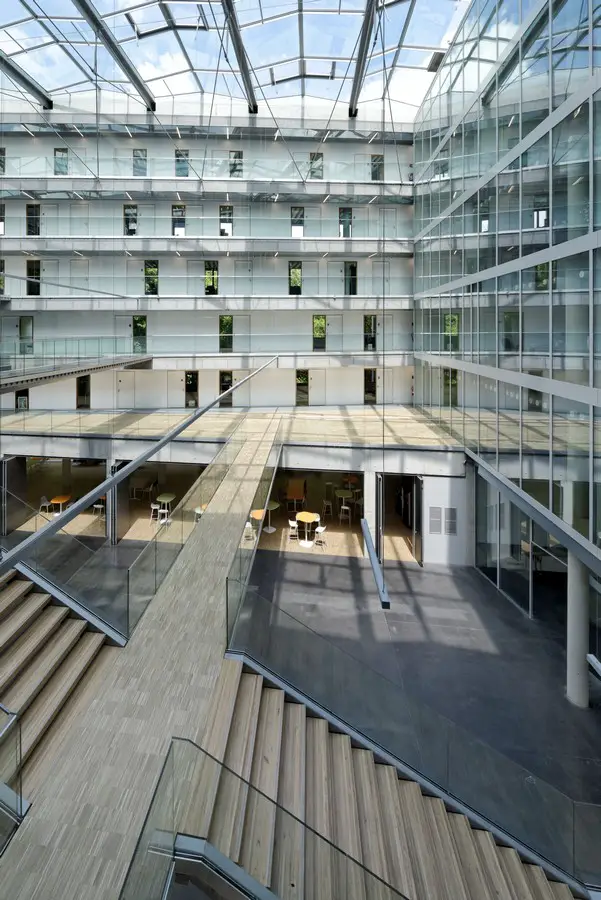

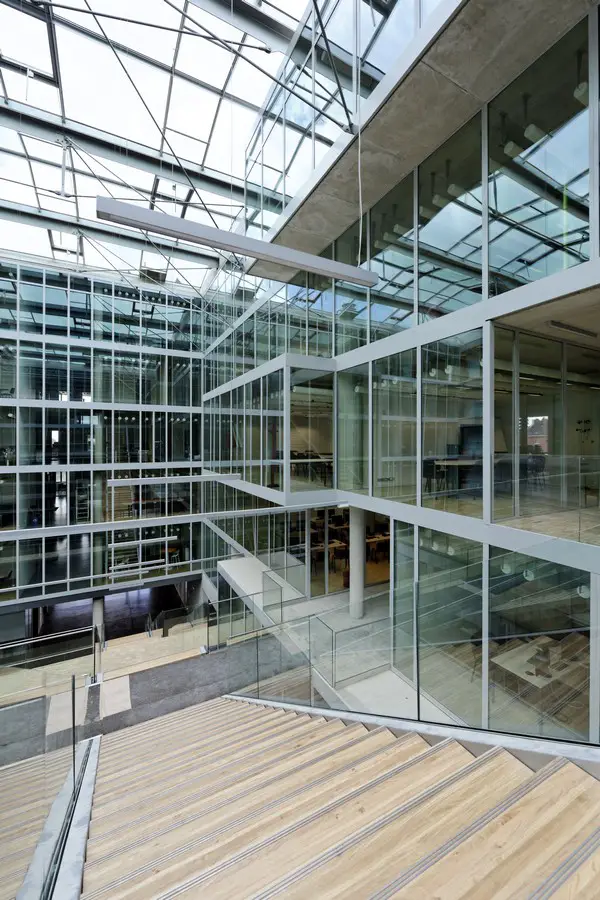

An open central space forms the core of the building. This inner court, protected by a glass roof, includes an open, central and light stairway.

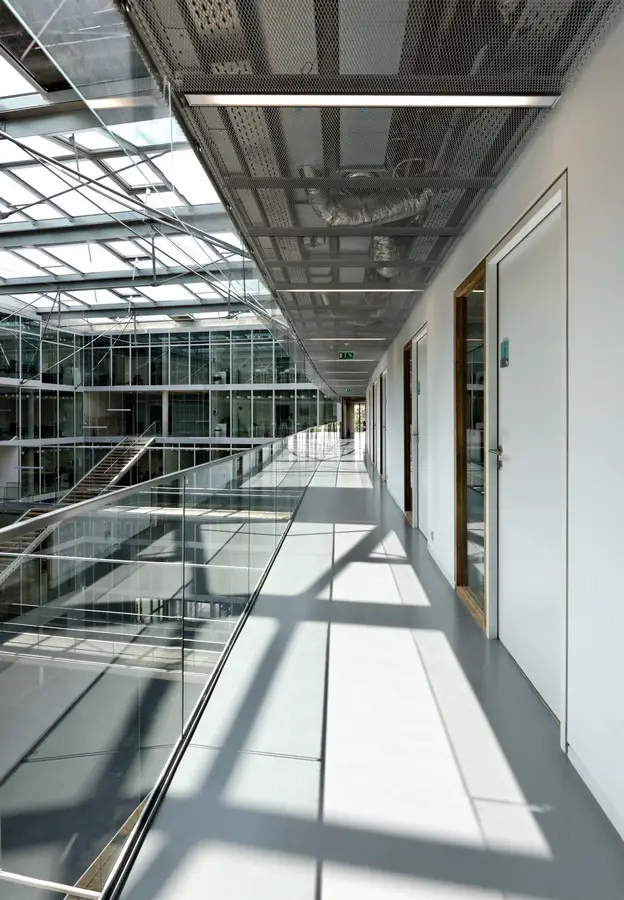

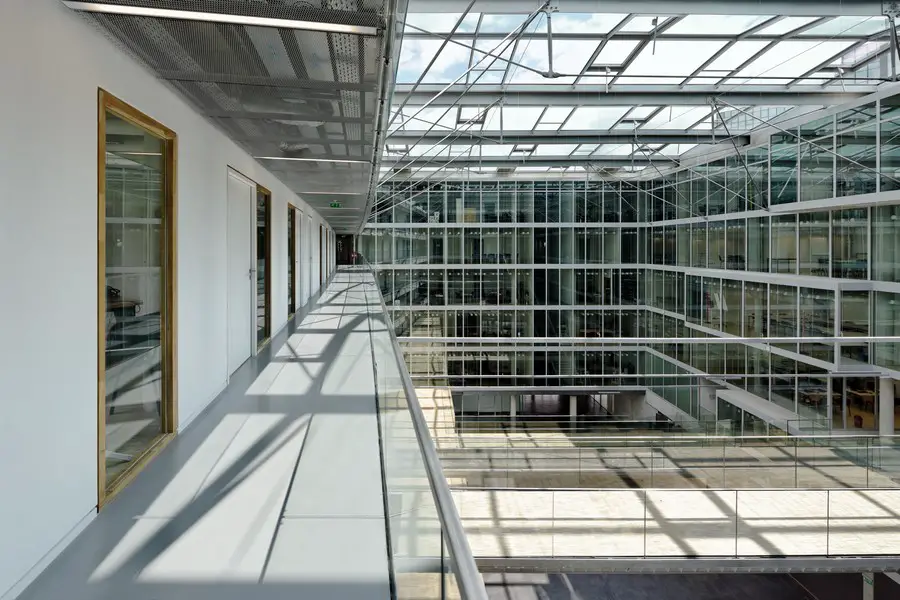

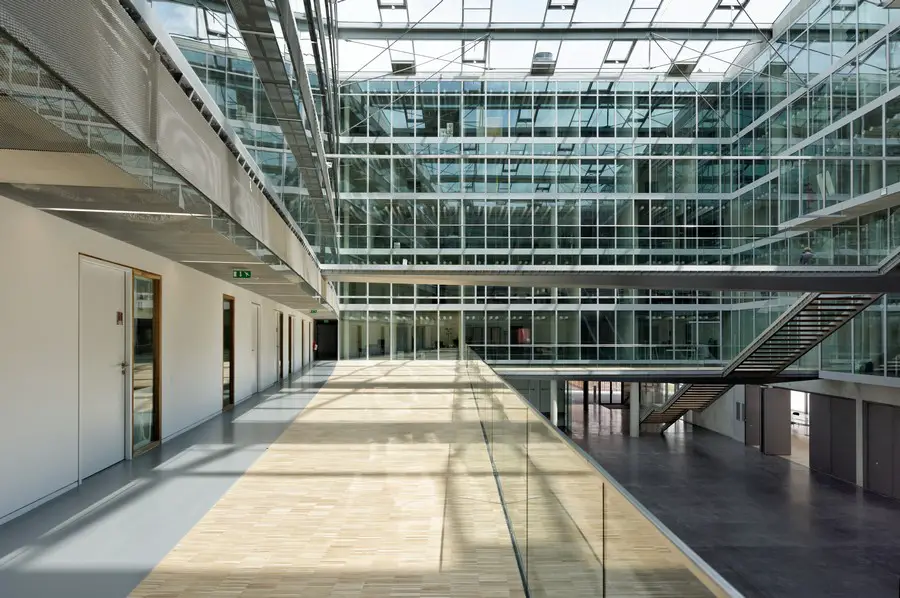

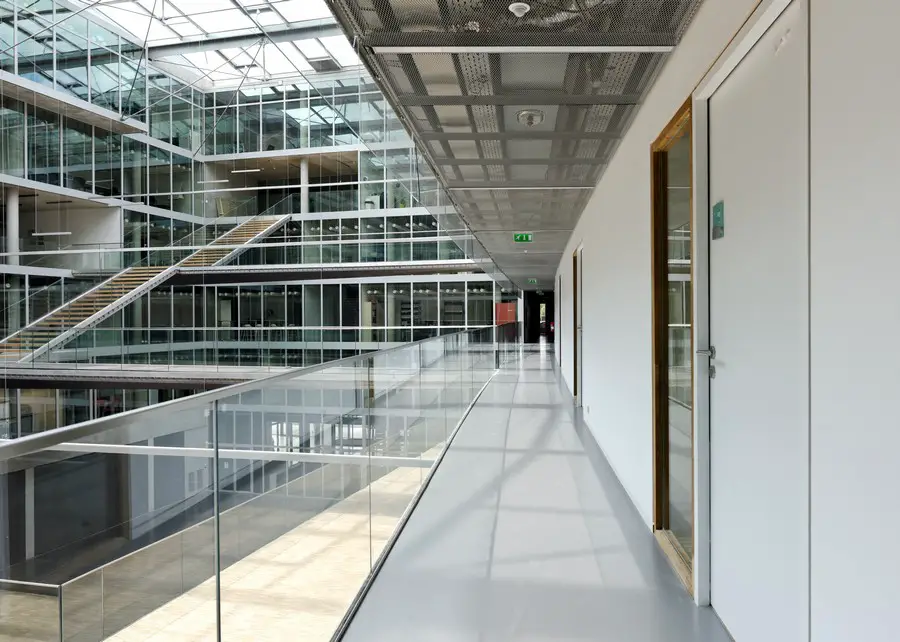

Steel bridges connect the offices on 3 levels and allow an easy horizontal and vertical circulation and communication in the building. Its generous dimension is unexpected. It provides the space for informal meetings.

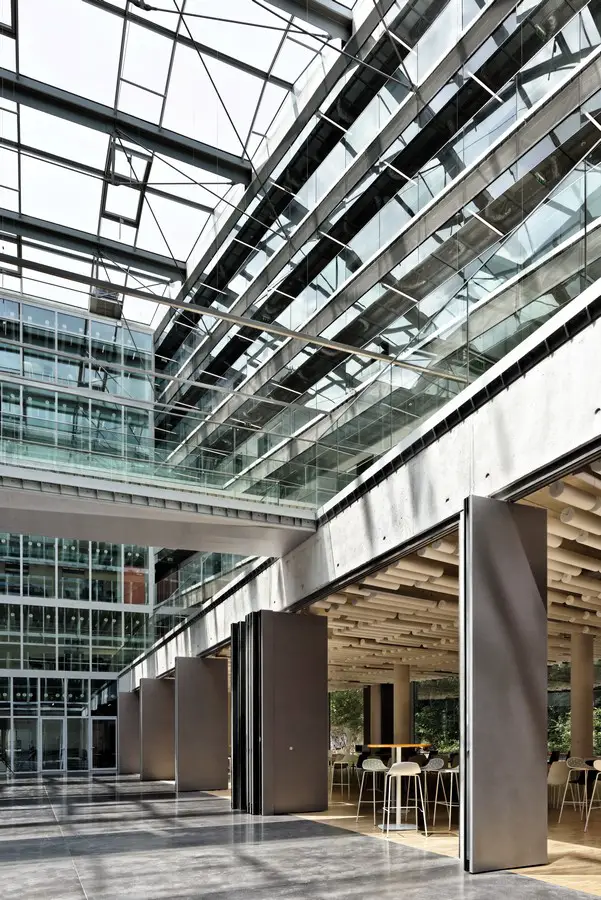

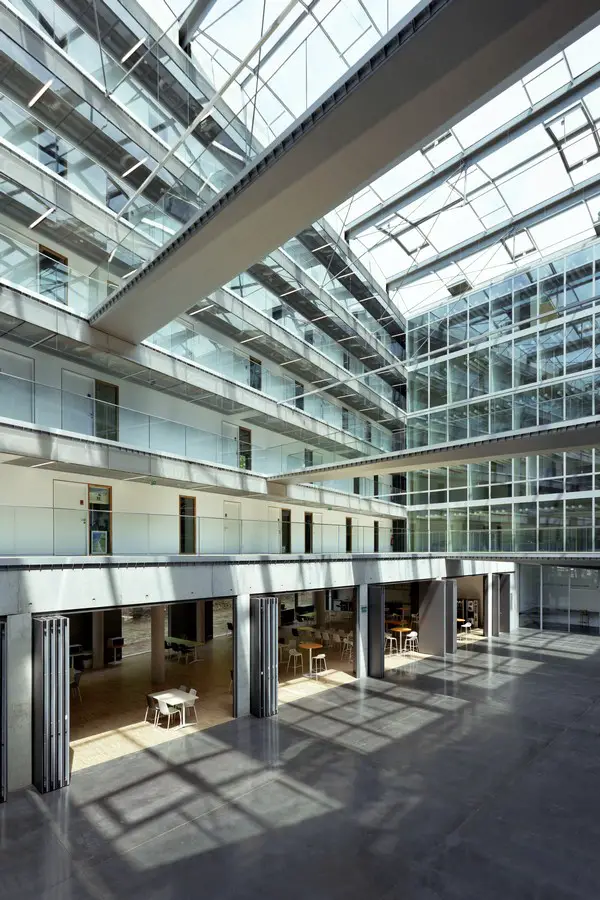

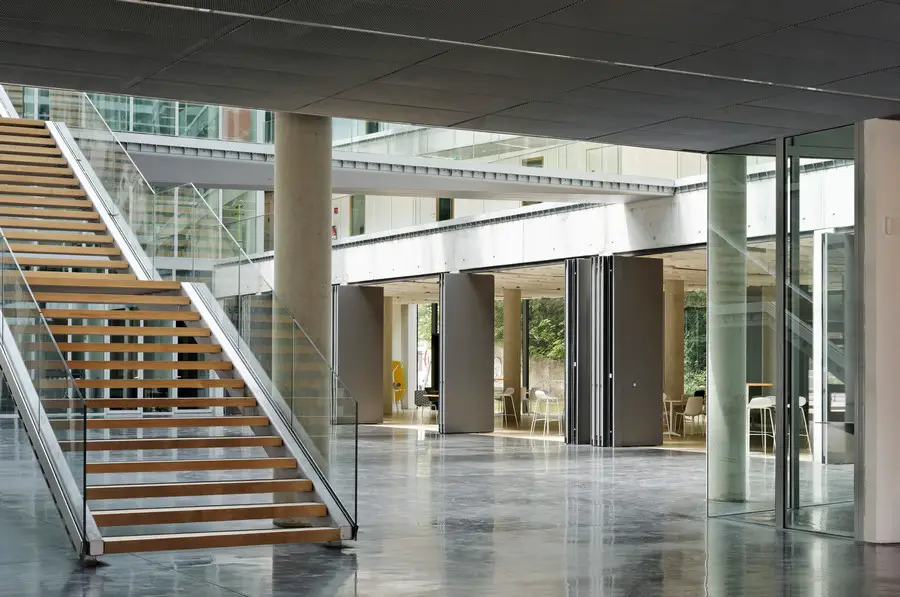

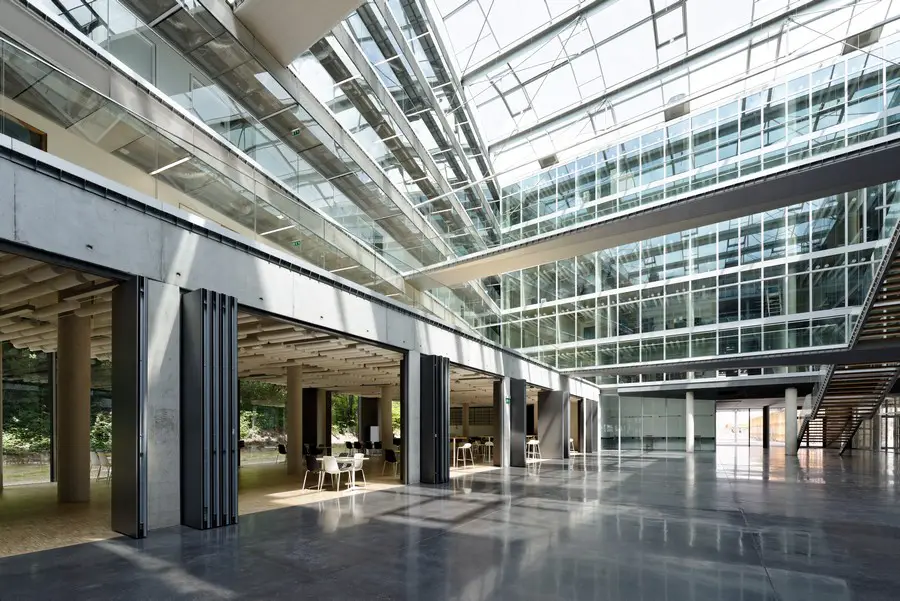

On the ground floor, the restaurant area in the north and the meeting area for seminaries in the south, complete the central space. Mobile panels allow dividing these parts in several working areas for multiple use, exhibitions and events.

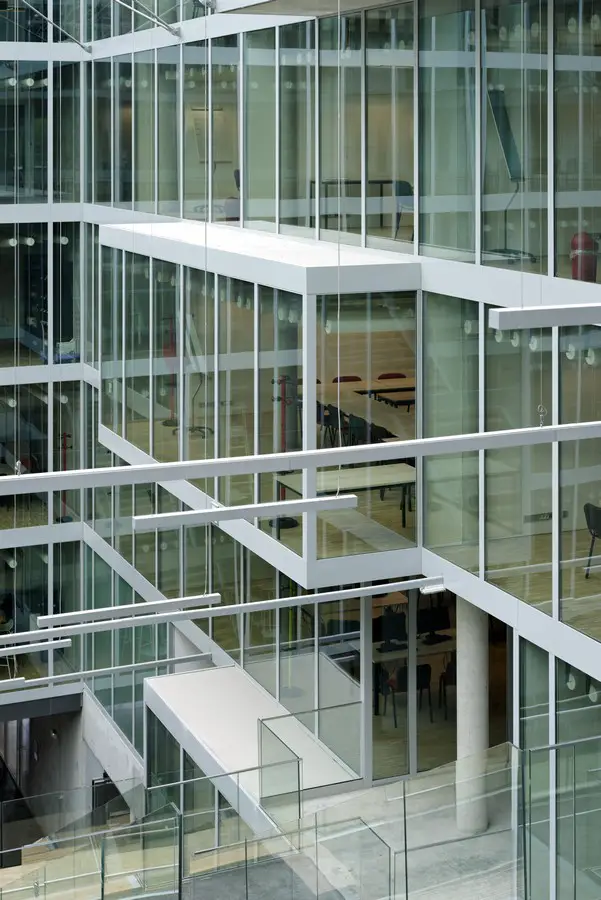

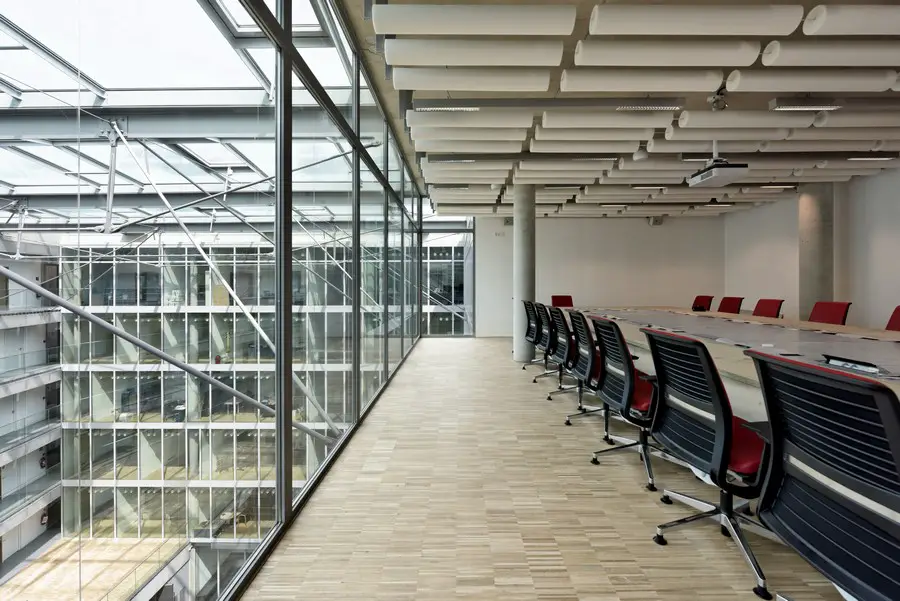

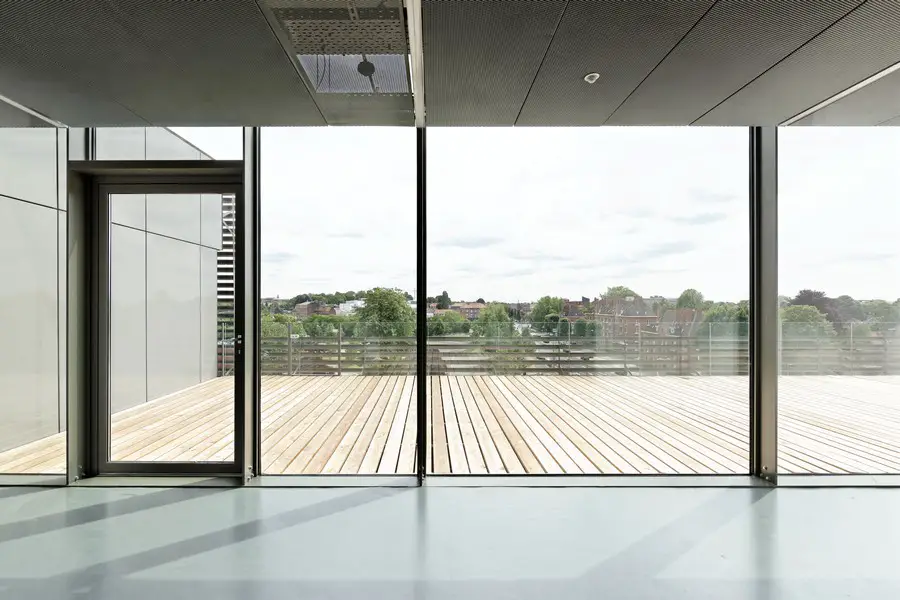

On the office levels meeting rooms and recreation areas animate the inner façade providing bow windows into the court. Large wooden indoor and outdoor terraces complete the building on each level.

photos : David Boureau

New Headquarters Lille Métropole Habitat – Building Information

Project: Construction du Nouveaux siège de Lille Métropole Habitat (Tourcoing)

Address: 425, boulevard Gambetta, Tourcoing

Client/Address: OPH LILLE METROPOLE HABITAT, 1, rue Edouard Herriot, B.P. 429, 59021, Lille Cedex

Architect: DFA | Dietmar Feichtinger Architectes, Architect Dipl.-Ing. Dietmar Feichtinger, mandataire, 80, rue Edouard Vaillant 93100 Montreuil

Team competition: Stephan Schwarz, Ulli Gabriel, Philip Knauer, Arne Speiser, Claire Bodenez, Lucie Holopirkova

Team planning: Yann Viénot, Claudia Valdes Tellez, Lucie Holopirkova, Inga Laseviciute, Gerhard Pfeiler, Elisabeth Lara, Manuel Guinart, Laura Lipensky

Team site work: Camille Duperche, Marcus Himmel, Claudia Valdes Tellez

photographs : David Boureau

Engineers: Bureau d’études TCE :

GRONTMIJ | ISATEG
ZI de Kergonan
5, rue de Kervezennec
29200 BREST
02 98 30 67 92

Bureau d’étude acoustique:
ITAC
5, rue Menou
44000 NANTES
02 40 14 01 95

Bureau de contrôle:
PREVENTEC
77, boulevard Gambetta
59100 ROUBAIX
03 20 42 10 10

Coordination SPS:
ELYFEC
157, rue Emile Zola
80450 CAMON
03 20 64 10 70

Other Planners: FP Collin, économiste

Contractors – 6 macro lots :

Macro lot 1 : Gros œuvre étendu
RABOT DUTILLEUL CONSTRUCTION
10, avenue de Flandre
59443 WASQUEHAL Cedex
03 20 81 53 53

Macro lot 2 : Clos couvert
SAM+
Parc d’activités de la Becquerelle
4, avenue Saint Pierre
59118 WAMBRECHIES
03 28 36 56 70

Macro lot 3: Finitions
STAMI
4, rue de la Plaine
59115 LEERS
03 20 36 25 48

Macro lot 4: Electricité
SPIE
Parc scientifiques de la Haute Borne
10, rue de l’Harmonie
59665 VILLENEUVE D’ASCQ Cedex
03 28 55 00 64

Macro lot 5: Chaffage ventilation plomberie
COFELY AXIMA
Allée de l’Innovation
Parc Vendôme CRT n°1
59810 LESQUIN
03 28 55 16 50

Macro lot 6: Ascenseurs
ORONA OUEST NORD
135, allée Hélène Boucher
59118 WAMBRECHIES
03 20 45 98 74

Site area: Surface terrain 8 260 m²
Floor area: SHON : 10 910 m²
Built-up area: ~4500m²

SDP SHON bâtiment bureaux : 10 910 m²
SHON locaux bureaux : 8 260 m²
SHOB bureaux : 10 500 m² SHOB Parking 9 500 m² dont 5 000m² en sous-sol
SUB bureaux : 10 068,33 m²

SDP bureaux : 7 300 m²

Dimensions passerelles :
Largeur = 1.40 m
Longueur : 15.46 m au R+1, 17.75 m au R+2 et 17.85 m au R+3

Cubage: ~60 000m3

Size and main features, programme:

– Siège LMH | Sitz der Sozialwohnbaugenossenschaft Lille (LMH)
– Atrium entièrement vitré | Atrium Gebäude
– Bâtiment à basse consommation energetique | Niedrig Energie
– Parking silo avec possibilité de transformation en bureaux
Parksilo mit Möglichkeit der Umnutzung in weiteres Bürogebaude
– 289 postes de travail et 181 locaux bureaux
289 Arbeitsplätze bei 181 Büroeinheiten
-15 salles de réunion + 1 salle du conseil d’administration
15 Besprechungsräume + 1 Raum Verwaltungsrat
-1 salle de pause à chaque étage
1 Aufenthaltszimmer pro Stock

Time Schedule:

Competition: 12 | 2010 ; Jury le 24 janvier 2011 ; Décision du Conseil d’Administration 7 février 2011
Start of planning: 03 | 2011
Start of construction: 11 | 2012
Completion: 05 | 2015

Building costs: 25 M€ HT
Cost per m2:
Bureaux Ratio = 1 550 €HT/m²
Parking Ratio = 650 €HT/m²

HQE:
Certification NF Bâtiments Tertiaires – Démarche HQE
Label de performance énergétique BBC Effinergie
Le bâtiment tend vers la performance passive

Cibles traitées :
TP:01|04|05|08|10
P:02|05|07|09|13
B:03|06|11|12|14

New Headquarters Lille Métropole Habitatimages / information from Dietmar Feichtinger Architectes

Dietmar Feichtinger Architectes

Location: 425, boulevard Gambetta, Tourcoing, France
