Brackenhurst House, Low Energy Home

Low Energy New Home in Hampshire, Southern England design by Pad Studio architects

page updated 6 Jan 2017 with new photos ; 1 Jul 2015

Architect: Pad Studio

Location: Sway, Hampshire, UK

Brackenhurst House in Hampshire

Idyllically located, Brackenhurst is a low energy new home located within a heavily conserved and protected area on a 1.75 acre New Forest plot surrounded by natural ancient woodland and meadows. The owners are both keen sailors and passionate environmentalist purchased the plot in 2011 having falling in love with the coastal location.

Brackenhurst House

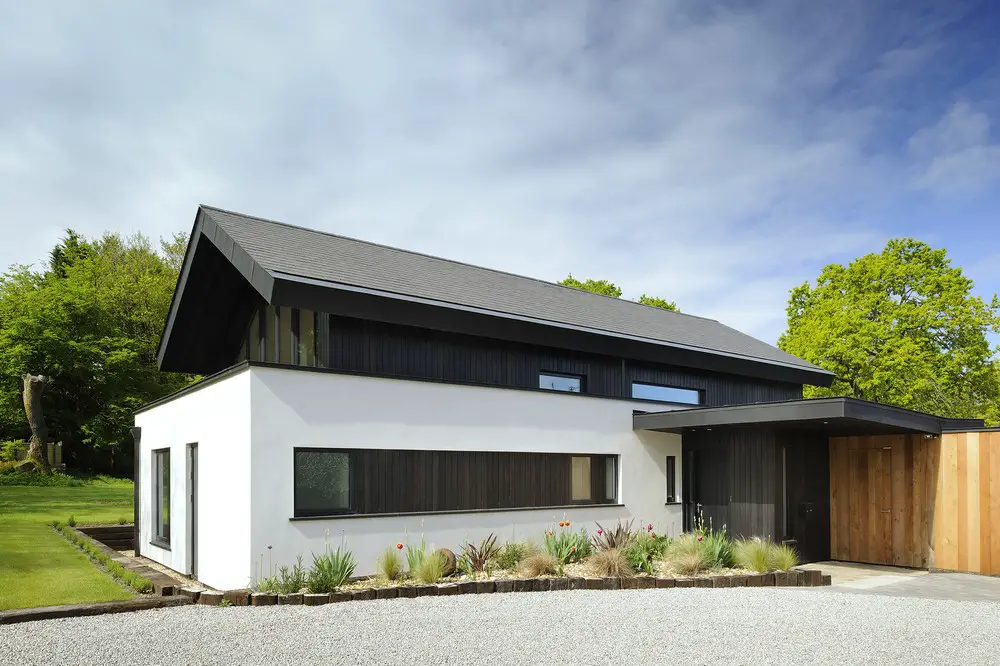

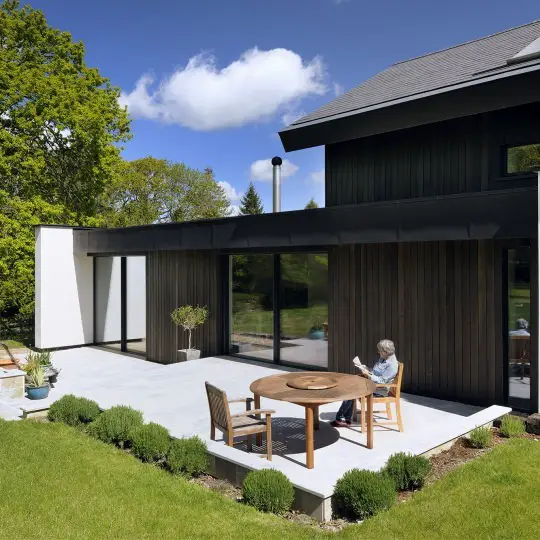

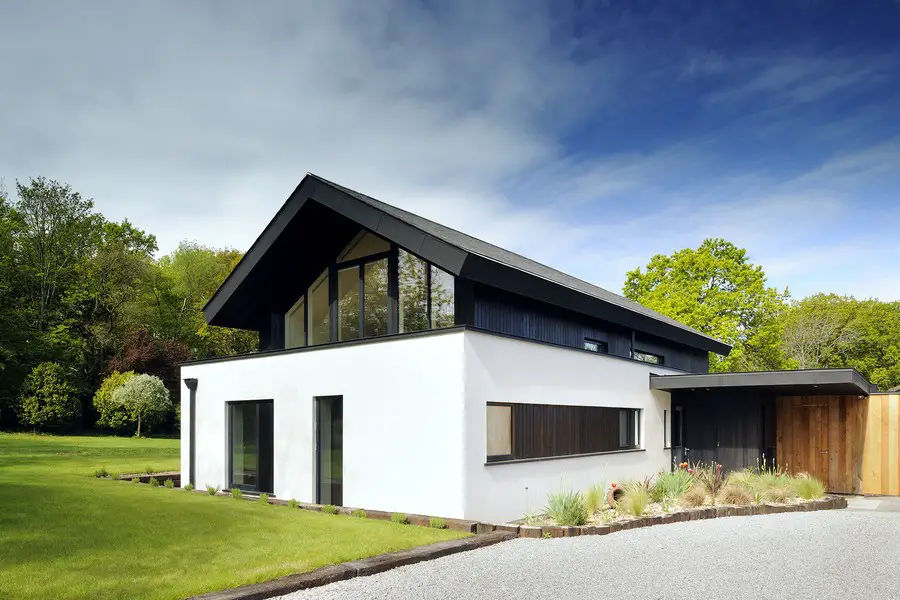

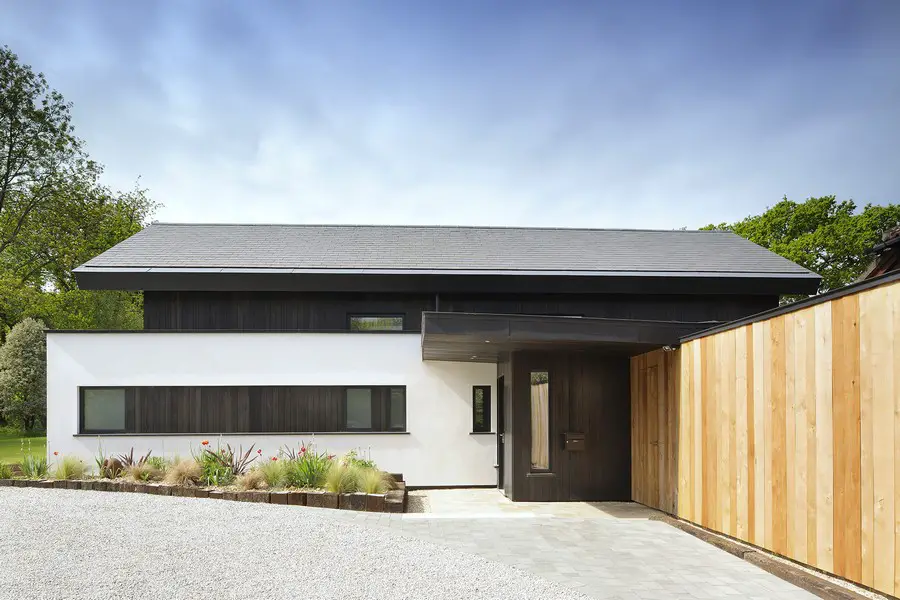

This is a home that sits humbly within its New Forest setting and is firmly rooted to its site. A heavy wrapping wall protects, shelters and grounds whilst contrasting with the dark timber box inserted within. The lime rendered wall which references the use of cob construction locally is eroded to the south to reveal the dark stained local Douglas Fir timber inner layer which is in turn pulled apart to allow a more open connection with the south facing garden. Windows in the fortress like garden wall read as punched holes – depth is achieved as the timber construction and natural insulation result in a wall build-up of real substance.

Brackenhurst House

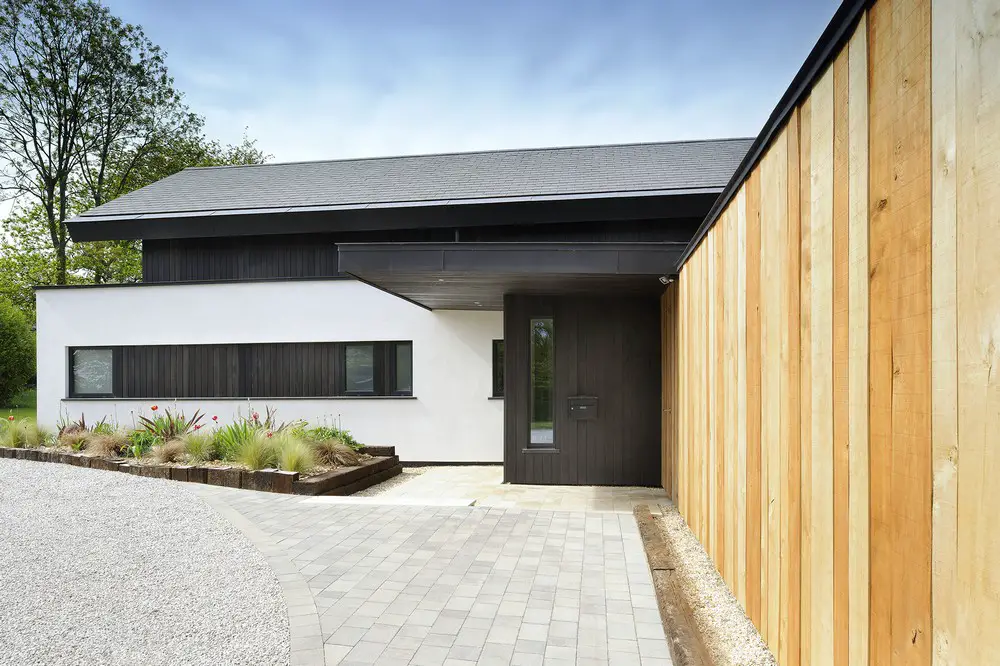

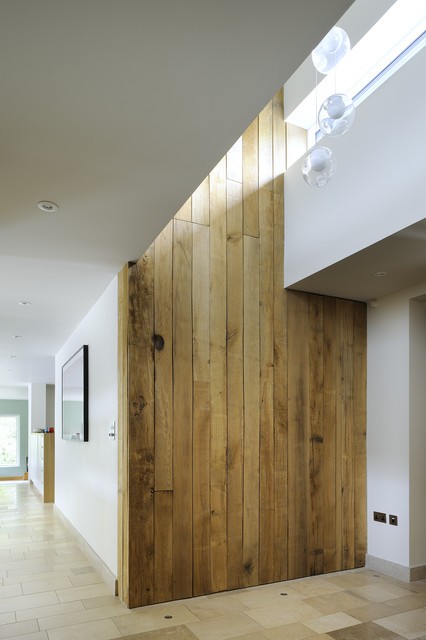

A reclaimed timber spine wall slices through the building reaching out and connecting into the landscape. The main staircase is cantilevered from the wall and wrapped around it. In addition to providing natural textures and colours the wall welcomes on arrival whilst also screening an existing stable block (now used to house the biomass heating system).

Brackenhurst House Hampshire

The client, who kept an online blog of the construction process throughout the build, required a lifetime home which demanded little or no energy to run, and could be capable of being removed completely from the grid, if required. They also wished for the house to draw on the local vernacular of the surrounding barns and farm buildings, and for the house to be modest and rooted firmly in its location and site.

Low Energy New Home in Hampshire by Pad Studio architects

Environmental/Sustainability Approach:

Local materials were sourced for use throughout, the mileage of each was tracked for CSH compliance, and the house was built using local craftsmen and labour. The clients lived on site in a caravan throughout construction, helping with the build.

Hampshire Low Energy New Home design by Pad Studio architects

The project is designed and constructed on a tight budget with a Passivhaus philosophy. This was one of the first homes within the New Forest & Hampshire to achieve pre-construction PassivHaus compliance.

Low Energy New Home in Southern England

Heavily insulated I-joist walls filled with recycled paper (Warmcell) provide u-values of 0.09 to walls and roof. Details were developed to minimize thermal bridging and maintain an air tightness below 1 m3/hr/ m2 @ 50Pa.

Hampshire Low Energy New Home in England

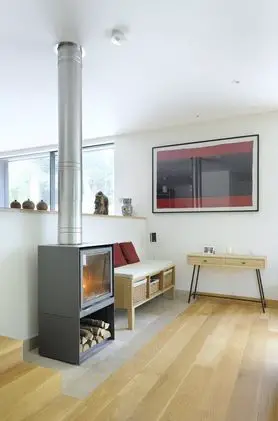

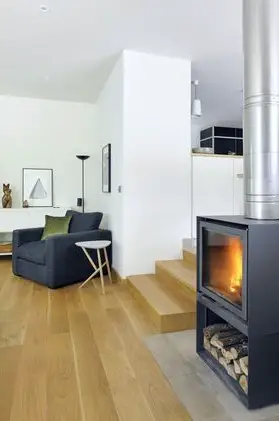

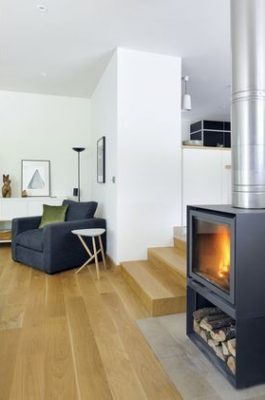

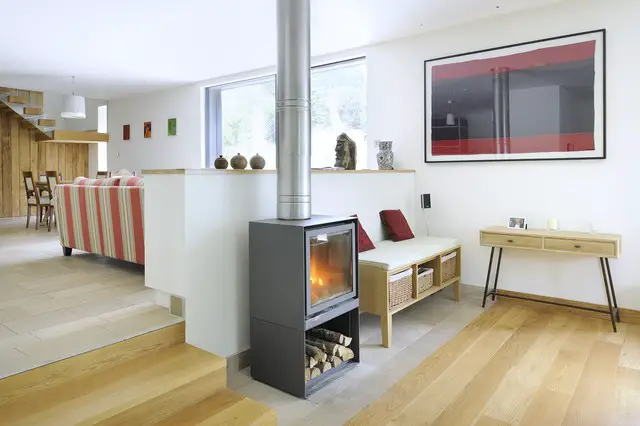

The house was installed with a wood-burning stove in the open plan living/dining space and with the heat of the occupant this is sufficient to heat the house via an MVHR system which re-distributes warm air. The building has rainwater harvesting which is used to flush wc’s and wash clothing.

Brackenhurst House in Hampshire

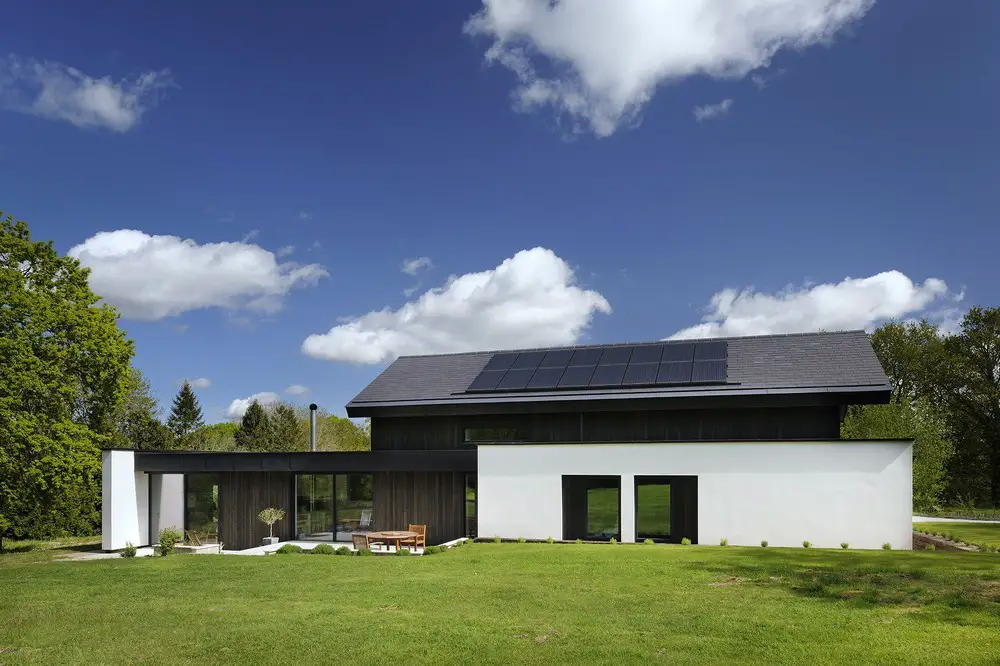

A natural reed bed is utilized for waste treatment, 3.8kw of solar PVs provide meet electrical requirements feeding back to the Grid at time of surplus, and a biomass pellet boiler is used for hot water requirements and to provide stand-by heating on the rare occasion it is required (when the building is not fully occupied).

Brackenhurst House in Hampshire

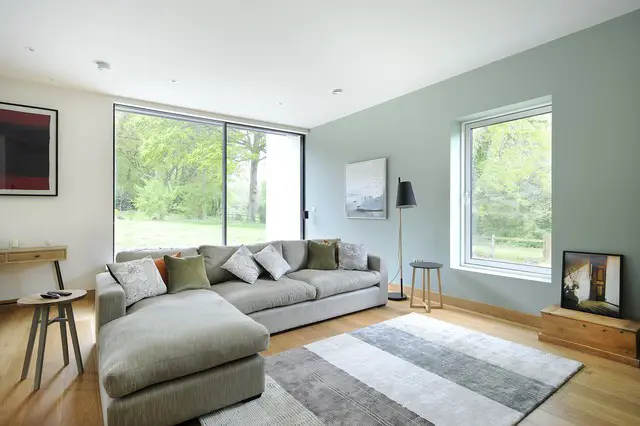

Materials were carefully selected to minimise the amount of toxic chemicals. Triple glazed windows and sliding doors were carefully selected to minimise heat loss and the contractor, client and architect all attended a hands-on workshop on airtight construction to ensure good standards were achieved on site.

Brackenhurst House in Hampshire Brackenhurst House in Hampshire

Brackenhurst House – Building Information

Completion Date: September 2014
Floor Area: 264sqm

PHPP (pre-planning compliance) CSH level 4, level 5 for credit ENE 1

U-values: Walls: 0.9 W/m2K Roof: 1.2W/m2K Floor: 1.2W/m2K Windows: 0.8W/m2K
Air tightness: 0.98 m3/hr/ m2 @ 50Pa

Brackenhurst House in Hampshire

Project Team:
Architects: PAD studio
Project Team: Wendy Perring & Natalie Skeete
Contractor: KJ Kilford Building Services Ltd
Environmental: Greenbox Associates
Structural Engineers: Andrew Waring Associates

Other Consultants: Aqua Plumbing & Heating. Meridian Electrical

Brackenhurst House in Hampshire
Key Suppliers:
Windows: Protec; Skyframe
Flooring: Lordrite Timber Flooring: Purbeck
Roofing: Welsh Slate by Penrhyn Quarry
Structure: I Joists
Insulation: Warmcell
Render: Lime Render by
Stove: Stuv
Joinery: The Joinery Barn
Sedum Roof: Io Contracts

Brackenhurst House in Hampshire

Brackenhurst House in Hampshire images / information from Pad Studio

Location: Sway, Hampshire, southern England, United Kingdom

Hampshire Homes

Hampshire Architecture

Hampshire Property – selection below:

Malone House, Warsash
Design: Adam Knibb Architects
Malone House Warsash Hampshire
photo : Martin Gardner
Malone House, Warsash

Claywood House
Architects: Ayre Chamberlain Gaunt (ACG)
Claywood House Hampshire low-carbon home
photo : Andy Matthews
Claywood House Hampshire low-carbon home

Hampshire Building Designs

Hampshire Architecture Designs – selection

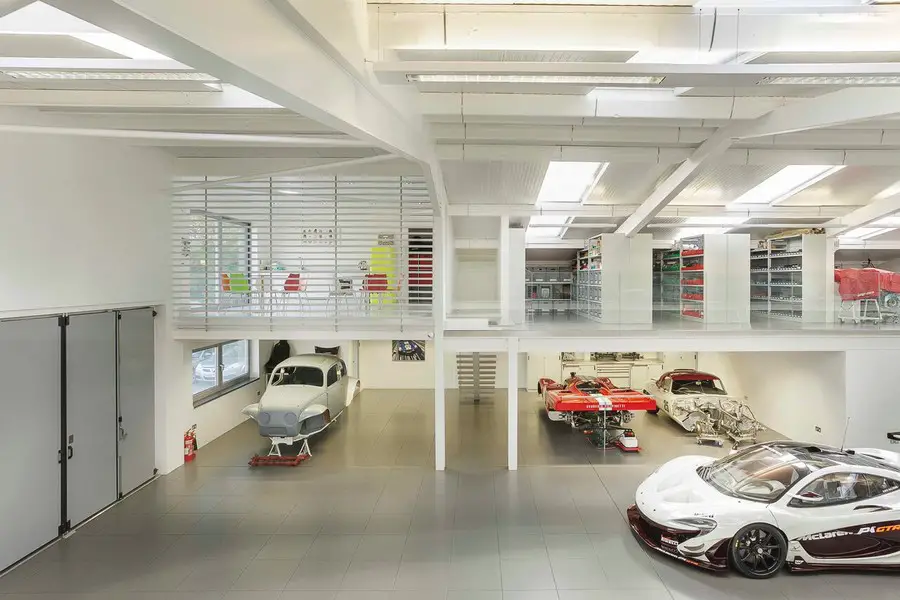

Supercar Workshop
