Bodmin Jail Redevelopment, Cornish Hotel Architecture, Cornwall Visitor Attractio Building News, Images

Bodmin Jail Redevelopment in Cornwall

Visitor Attraction southwest England design by Twelve Architects and Masterplanners, UK

24 Jan 2017

Design: Twelve Architects and Masterplanners

Location: Berrycoombe Road, Bodmin PL31 2NR, England

Twelve submits planning application for Bodmin Jail redevelopment

Bodmin Jail Redevelopment

Bodmin Jail Redevelopment Cornwall News

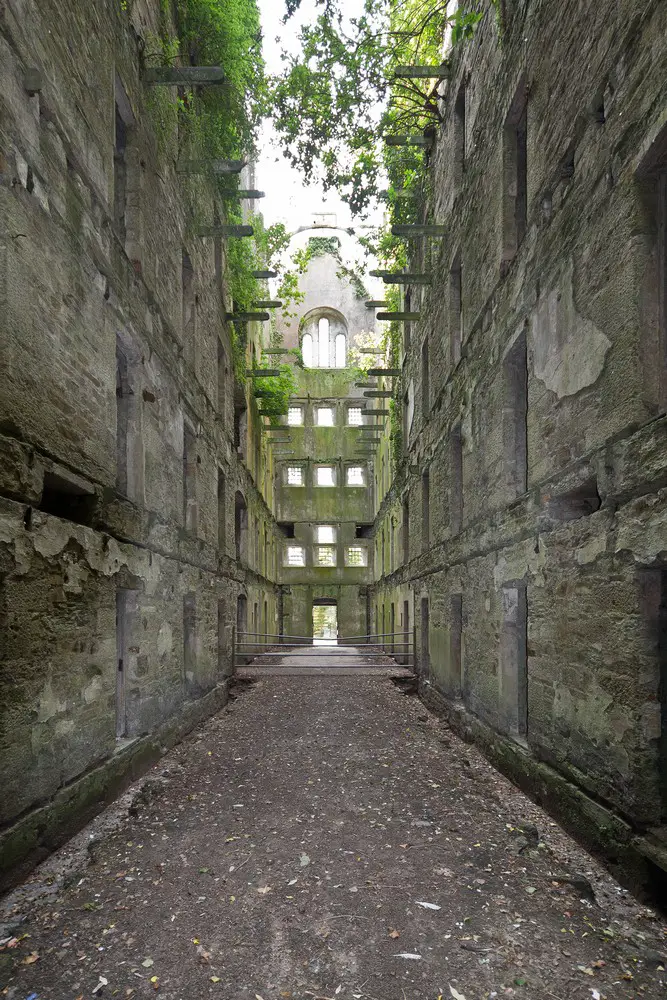

The jail currently operates as an attraction and venue, but many of the buildings are in a ruinous state, limiting its potential. Twelve Architects, working with a team including Sarner International, Montagu Evans, Arup, Turner & Townsend and Astute Fire, has devised proposals to create a state-of-the-art visitor experience and teaching and learning resource; an upgraded venue for private hire; and a 63-bedroom hotel.

Bodmin Jail Redevelopment

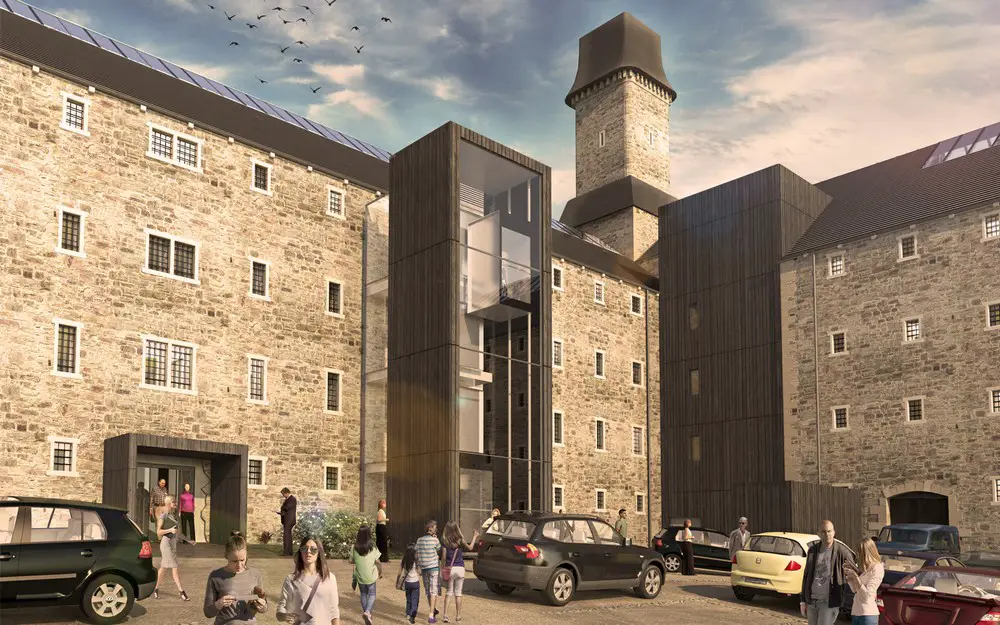

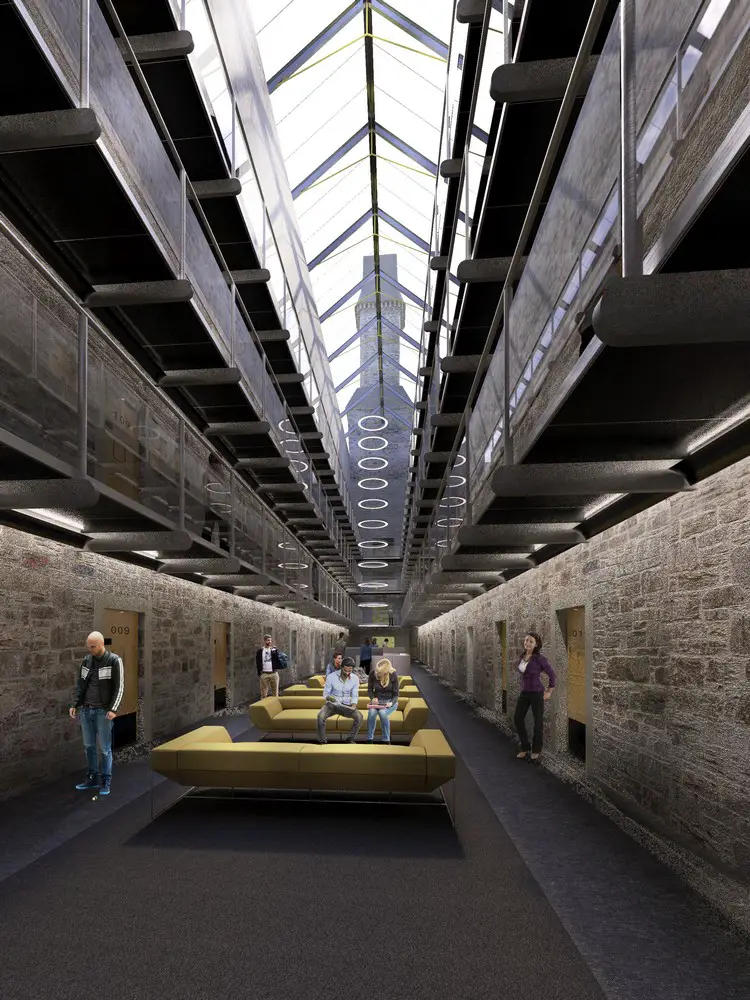

Complete refurbishment of the two wings of derelict cell blocks will house hotel accommodation above part of the museum. A glazed rooflight running the complete length of both wings will create a central atrium for the hotel and will enable the magical, naturally lit quality of the ruin to be retained. A new external lift and core, both clad in charred timber, will improve circulation and servicing to the Grade II listed building. Working with the existing structure, each ensuite bedroom will be formed from three cells and interiors will feature colours and textures inspired by the aged, weathered stone.

Bodmin Jail Redevelopment

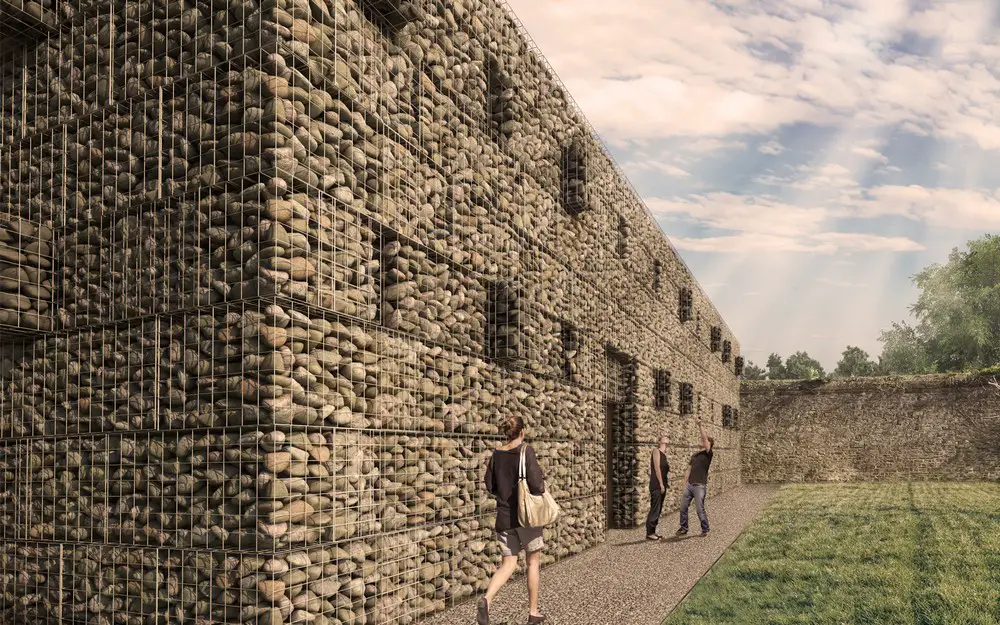

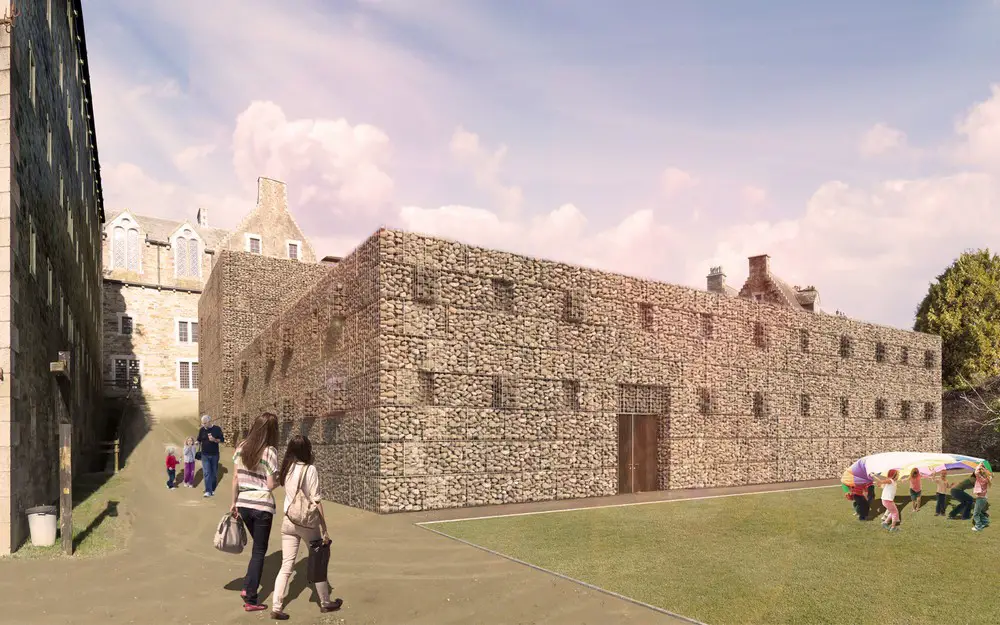

Under the proposals, a new 1200m2 building will house the ‘Dark Walk’ attraction, a sequence of themed rooms containing scenic sets, films and projections to immerse visitors in the history of the area and allow them to share the experience of inmates of Bodmin Jail during the 18th and 19th centuries. This will be clad using stone gabions: a mesh of stainless steel cages containing hand-laid stones from a quarry situated on the same rock seam as was used for the original building. Across the building, a pattern of gabions sitting forward and back of the facades, break up the massing and echo the fenestration of the jail building.

Bodmin Jail Redevelopment

The existing Governor’s Hall will remain as the main venue and restaurant space which will be refurbished and upgraded.

Bodmin Jail Redevelopment

Matt Cartwright, Twelve Architects’ Founding Director commented:

“We are pleased by the positive reaction of the local community to the proposed scheme during the consultation process. This project will be important to Bodmin, bringing an important part of its heritage back to life and providing facilities for local people as well as for visitors. We’re looking forward to taking the project forward.”

Bodmin Jail Redevelopment Bodmin Jail Redevelopment

The planning application was submitted in early January with work planned to start on site in early 2018.

Bodmin Jail Redevelopment in Cornwall images / information received 240117

Location: Berrycoombe Road, Bodmin PL31 2NR, Cornwall, south west England, UK
