Triangular House
Residence in Puerto Cayo, Ecuador, South America – design by WE architecture
17 Jan 2011
Triangular House Ecuador
Design: WE architecture
Puerto Cayo
The generous climate and beautiful surroundings of Puerto Cayo represents a unique possibility of developing a future settlement which will attract residents from not only Ecuador but other countries as well.
We have tried to develop a house that joins some of the characteristics from both colonial and original housing in Ecuador.
The colonial
One of the big qualities of the colonial style architecture of South America is the principle of organizing the houses around a patio. This becomes the heart of the building from where you orient yourself but as well a place which has significant importance for how you perceive the house.
The original
On the other hand the traditional architecture in almost all countries with tropical climates is recognized through its pitched roofs, its use of wood and pillars raising the house for both natural ventilation and protection against animals and insects.

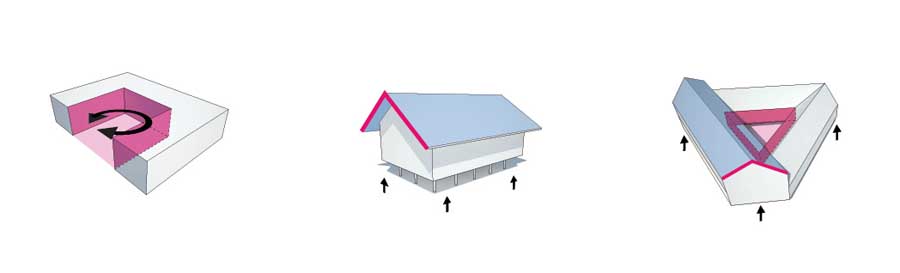

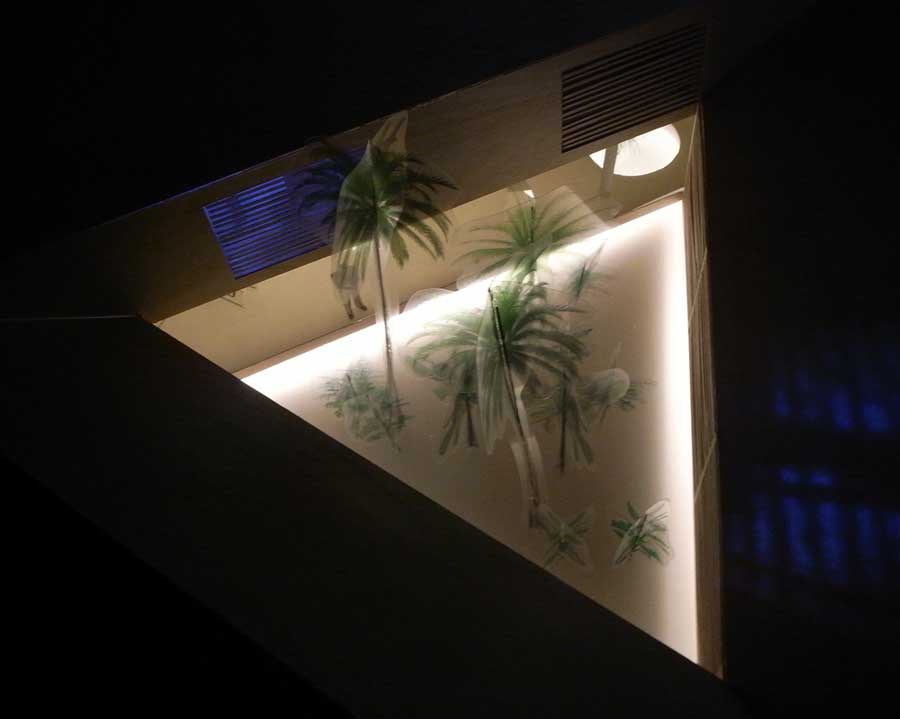

The house seeks to join these two building styles into a contemporary house. A house which is organized around a triangulated green patio always giving you the sense of being close to nature and at the same time allowing for natural ventilation for the indoor spaces and a constant air flow through the covered terrace.

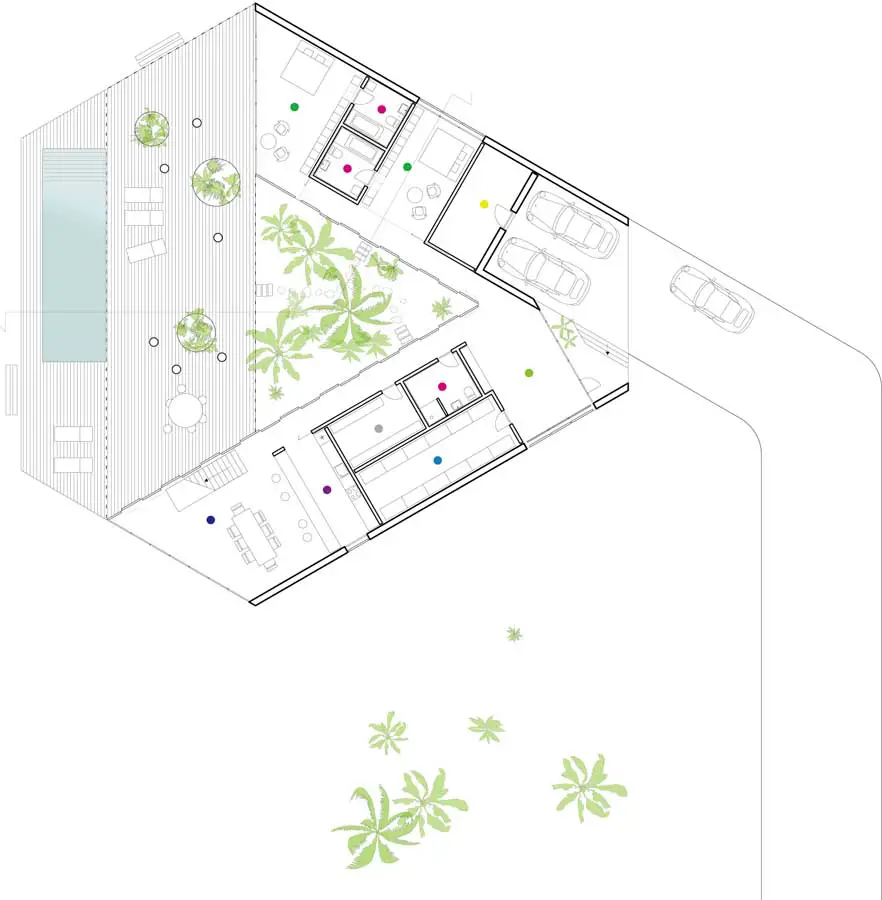

Overall layout

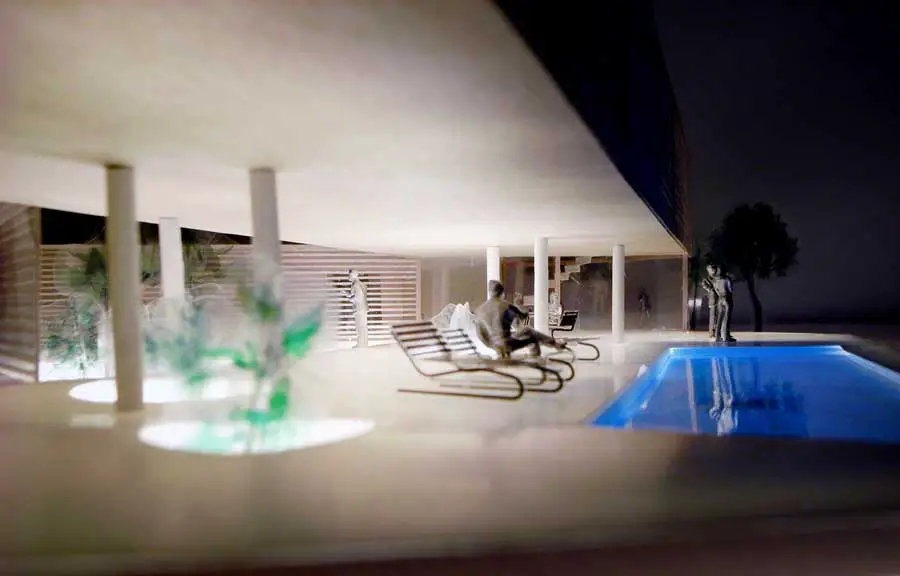

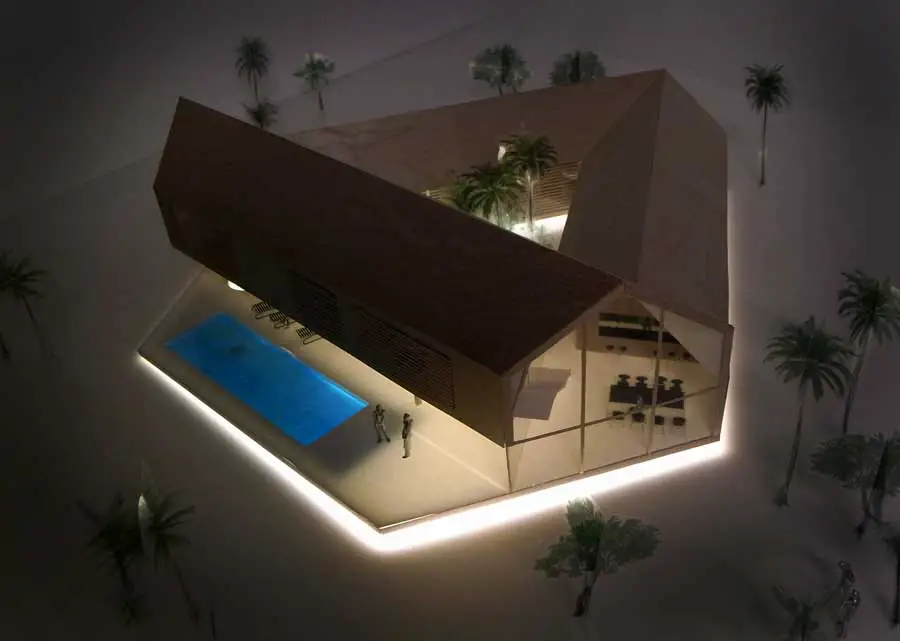

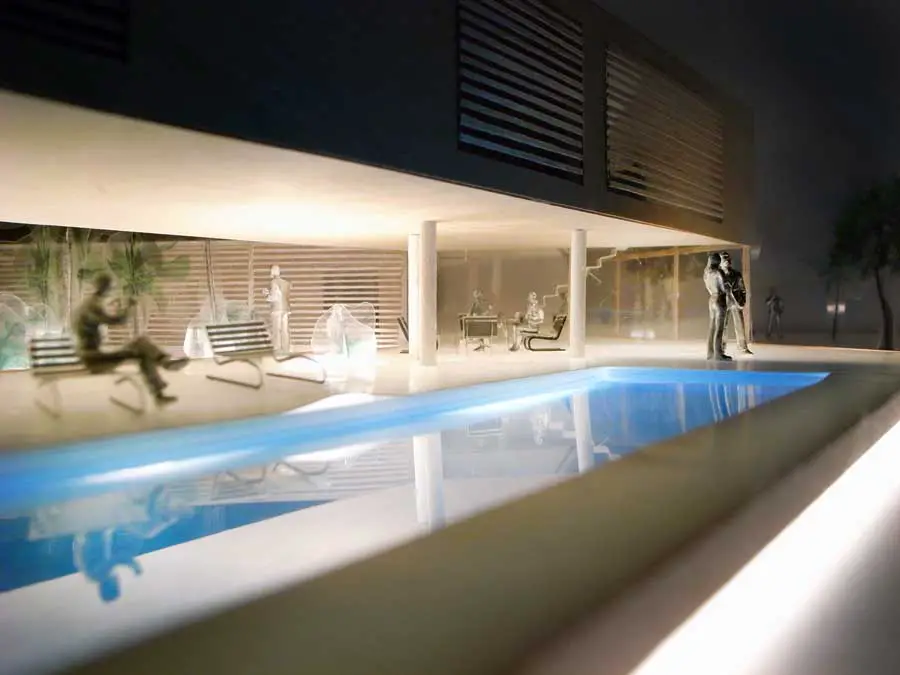

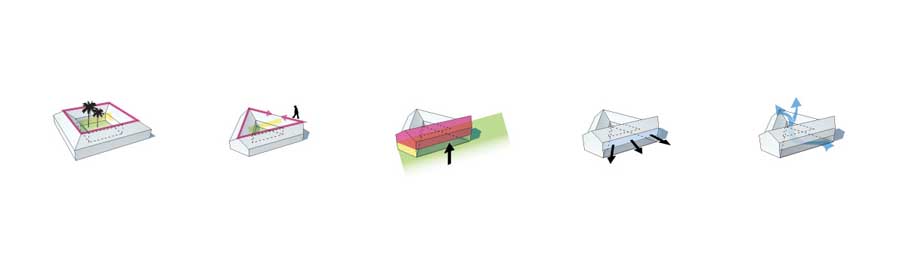

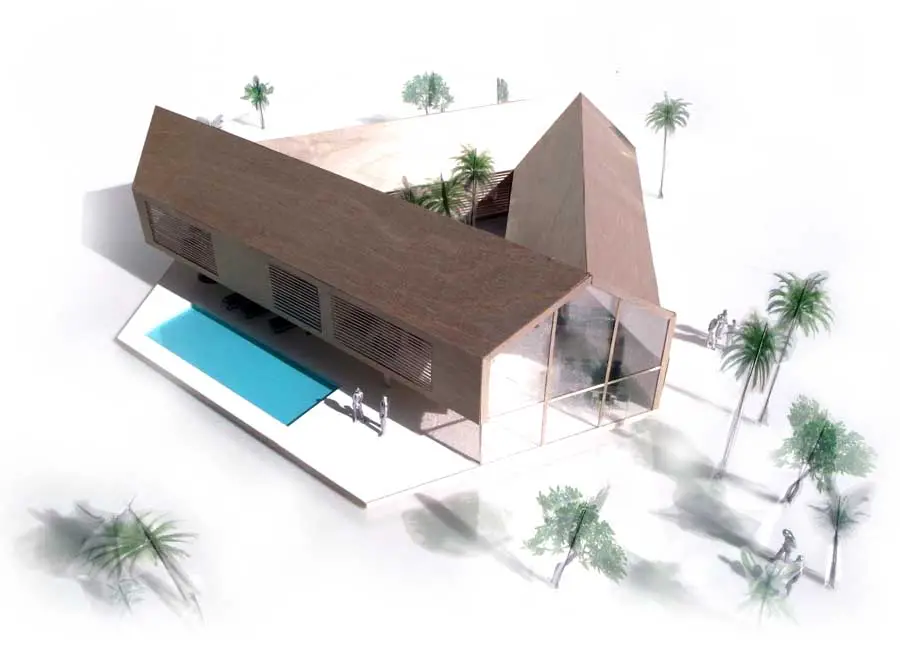

The starting point of the project was to create a house around a patio as we know it from a lot of colonial style housing. By triangulating the house we minimized the distances from 1 function to another, creating 3 connected pitched roof blocks. Raising the west facing block to the second storey allows for magnificent views over the pacific and creates a large covered terrace with the patio on one side and the surroundings to the other, securing a constant airflow through the terrace.
We propose to place the house centrally on the site reusing parts of the existing banana plantation to help creating a natural green separation between the parcels.
Organization and flexibility

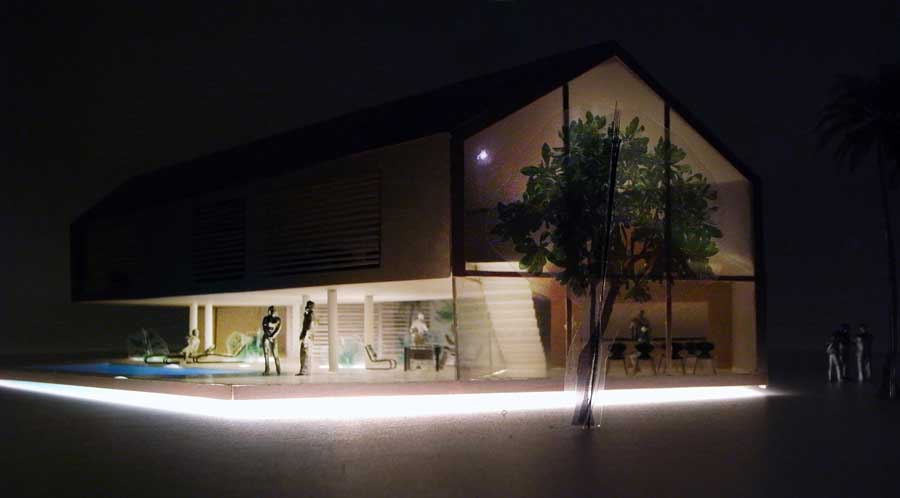

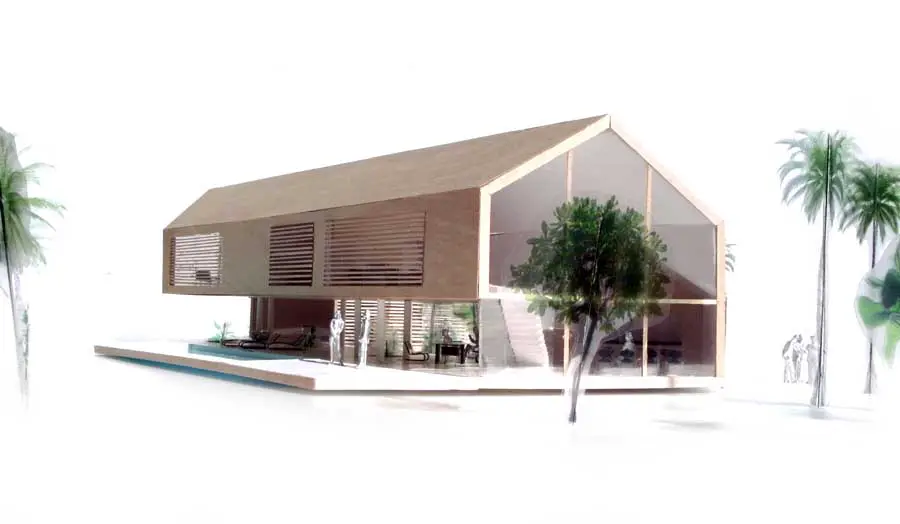

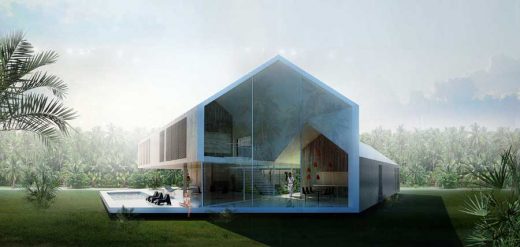

We have chosen to organize the house so the dining room is placed in a double high space with possibility of having the kitchen opening up towards it. This makes it possible to have informal cooking session using the kitchen counter facing the dining room as a bar but as well closing of the kitchen space to allow for people working in the kitchen without being noticed. The main window of the dining area is south facing allowing it to be uncovered in order to give the feeling of being sitting dining in nature.

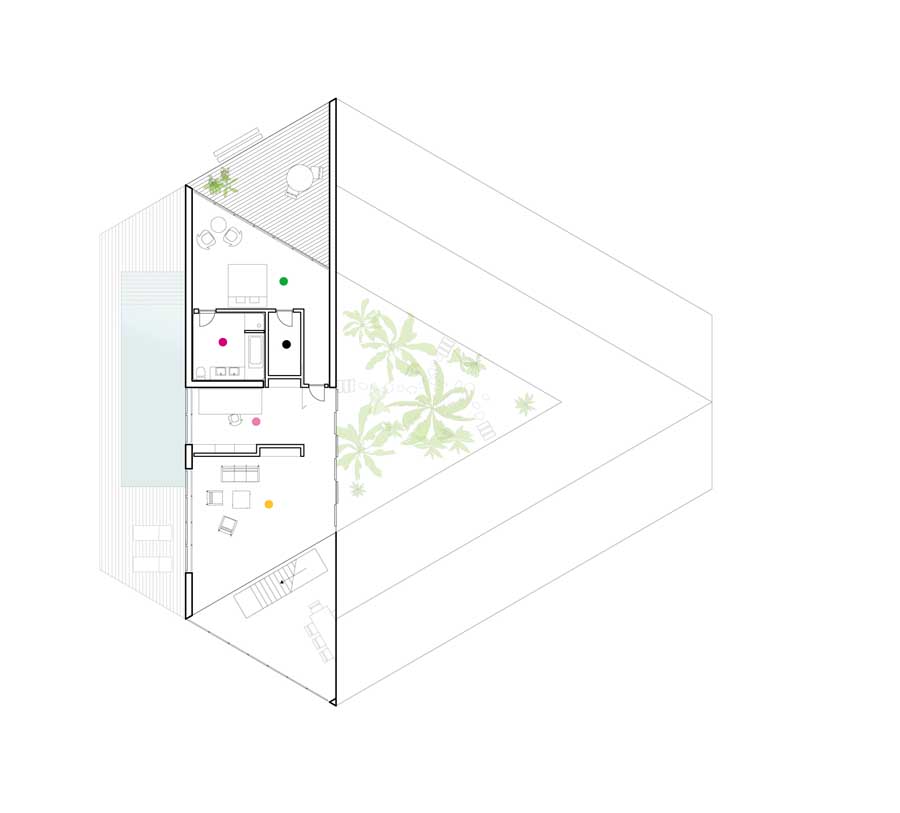

Placing the living room on the second floor, gives splendid views over the pacific, while overlooking the dining room. This makes both the living and the dining areas seem larger than they are.

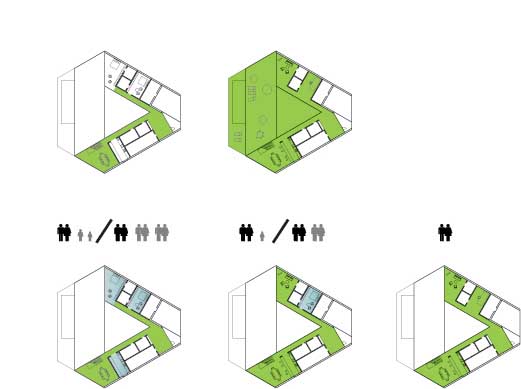

While the master bedroom is placed on the second floor to give the best views, we propose to organize the two other bedrooms on the ground floor as multipurpose rooms. By introducing large sliding doors ,between the ground floor bedrooms and the hallway, parts of the corridor can be integrated as part the rooms. As an addition these rooms can serve as an extra working space television room etc. This assures an optimal use of the spaces no matter how many residents the house is having.
Natural ventilation
The rooms facing the interior courtyard has the possibility of cross ventilating by opening the windows on both sides while ie. the bedrooms has the possibility of cross ventilating through a shaft in the ceiling. Louvres opens vertically unobstructed views without being bothered by the sun the louvre systems in front of the windows opens vertically creating shade for the glass avoiding overheating.
Materials and constructive principles
The house is a simple concrete frame structure placed on concrete decks. the frames are covered with local hardwood on the facade while having traditional plaster wall towards the interior. The materiality of the house softens up the hard geometry and makes the house blend softly into the surrounding nature.
Triangular House Ecuador – Building Information
Name: TRIANGULAR HOUSE
Assignment: Invited competition
Type: Summer Housing Project
Clients: Puerto Cayo, Orascom Development
Size: 300 sqm
Place: Puerto Cayo, Ecuador
Year: 2010
Status: Idea
Team: Marc Jay, Julie Schmidt-Nielsen, Hermanus Neikamp, Nora Fossum, Søren Thiesen, Cassandra Nakashima, Katarzyna Nycz, Jorge Cortes De Castro, Lena Rasmussen
WE Architecture
The Office
WE Architecture, founded in 2008, is a young innovating architecture office, based in Copenhagen, Denmark.
Our capability spans from architecture, urban strategies, tangible design and utopian ideas.
WE believes that the best result emerge through teamwork and transdisciplinary networks. That is why WE Architecture work across continents as well as across professional borders to enter complex conditions with the best insight and precision.
We create proposals that merge through creative translation of all the information we all get from contexts, conditions and programs.
WE Architecture strive to push innovative architecture forward to improve the condition of the world. No less.
Triangular House Ecuador images / information from WE Architecture
