Xintiandi Factory Hangzhou, China : Building

Hangzhou Factory – design by Peter Ruge Architekten

23 Jun 2011

Xintiandi Factory Hangzhou


Design: Peter Ruge Architekten

Project Description

Renovation and reconstruction of an old factory into a high quality hotel and office building in Hangzhou.

The site is the historical Hangzhou Machine factory, the building concept aims to create a harmony of the sites inherent industrial character with a modern interior aesthetic.

Xintiandi Factory Xintiandi Factory Hangzhou Xintiandi Factory Hangzhou
images from Peter Ruge Architekten

The Xintiandi old factory will be renovated into a high quality building with a combination of functions including offices, retail, hotel and multi-purpose area.

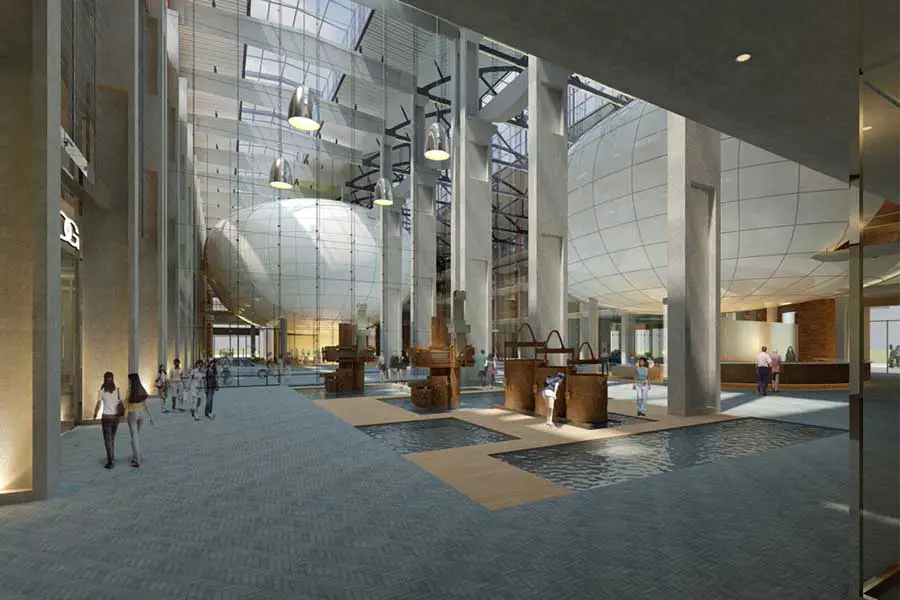

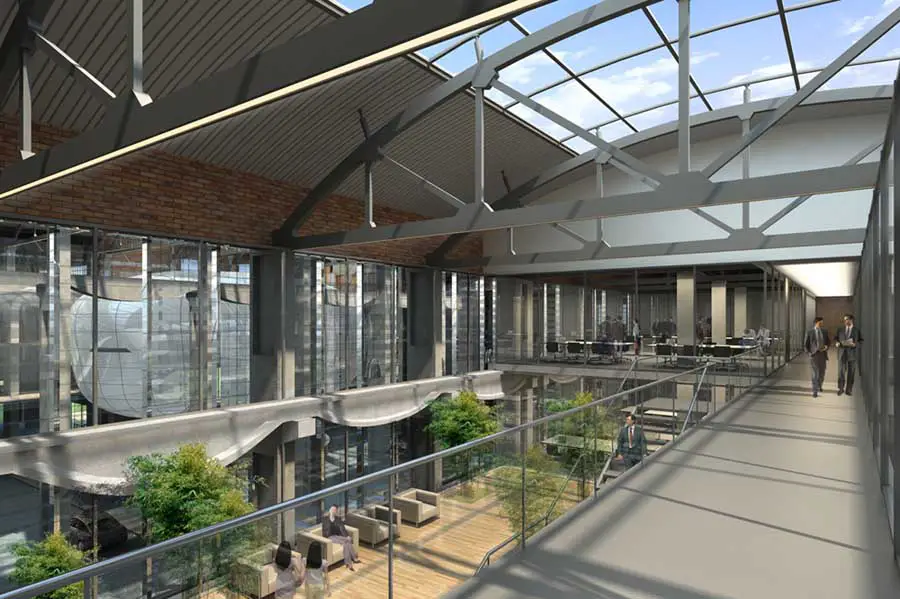

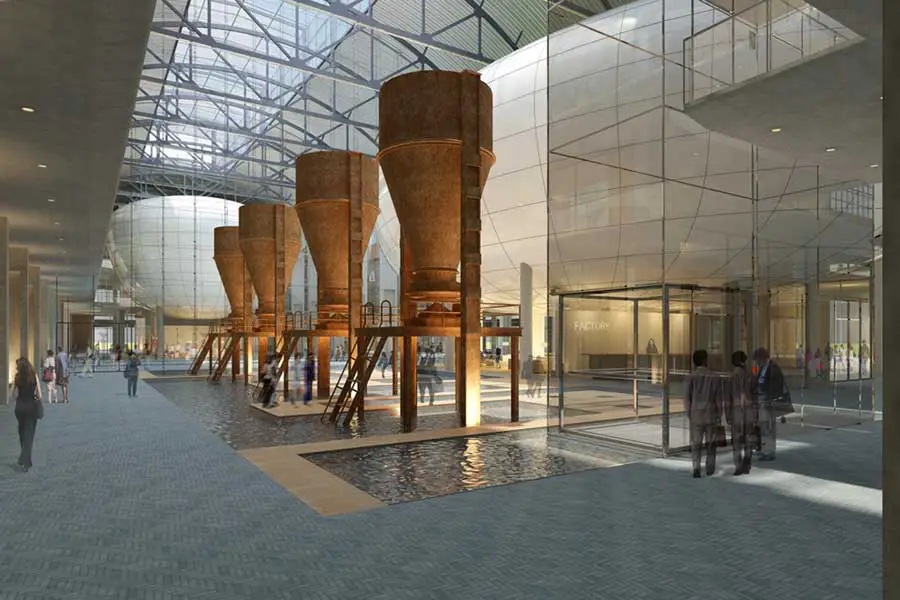

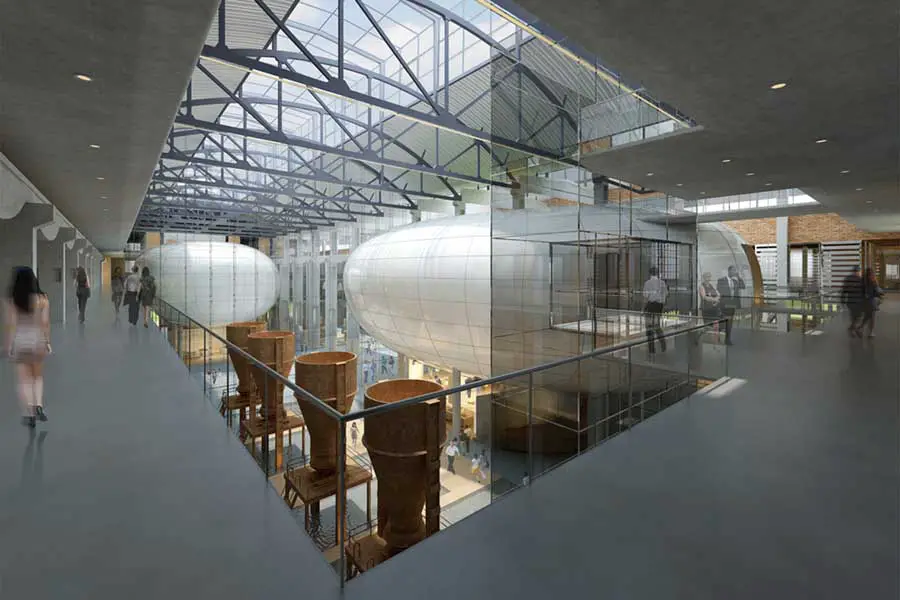

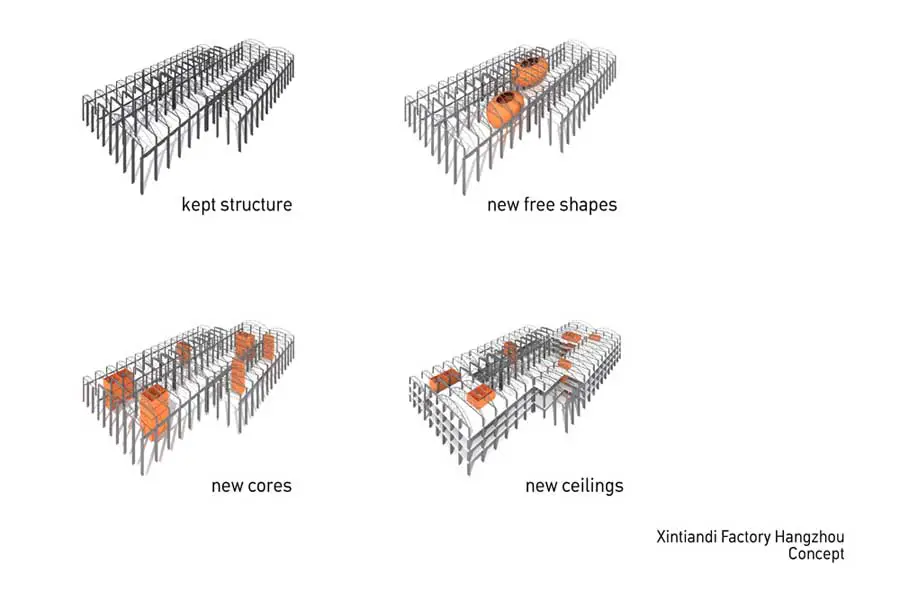

It plays a most important role in our design proposal to maintain the existing industrial structure and characteristics as much as possible. In order to accomplish the transition of the interior structure all the new spaces distributed across the four floors are organized along the exterior elevation, while in the central area of the architecture, a capacious space is retained. The length of the space is equal to the existing fabric on the horizontal level. In elevation it extends throughout all the floors. The beautiful steel roof frame structure will be retained and encased by a new glass roof, flooding the space with natural light and forming a connection between the buildings interior and exterior.

Xintiandi Factory Hangzhou Xintiandi Factory Hangzhou Xintiandi Factory Hangzhou
images from Peter Ruge Architekten

The energy of the architecture and its surroundings will flow through the capacious lobby in an undulated way and exert positive influence on the architecture.

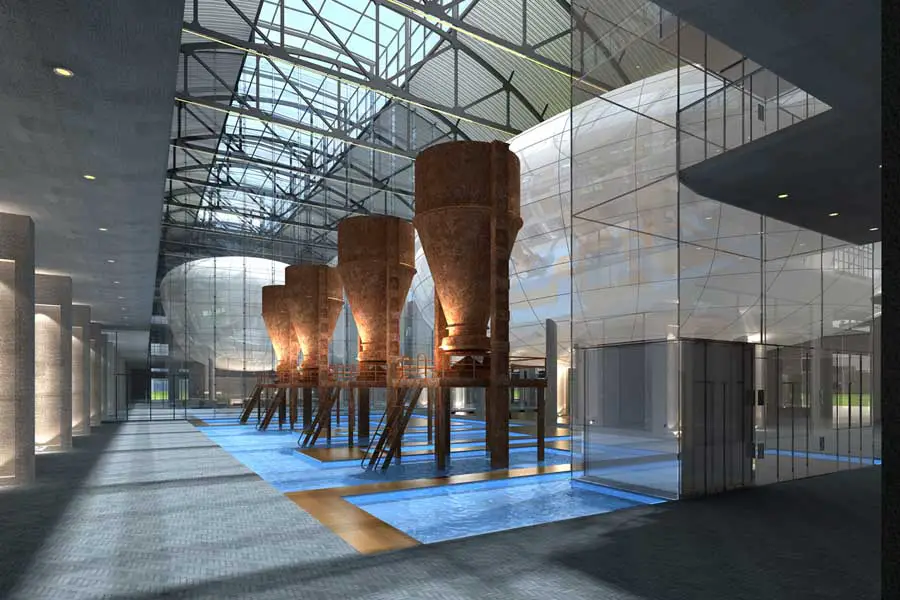

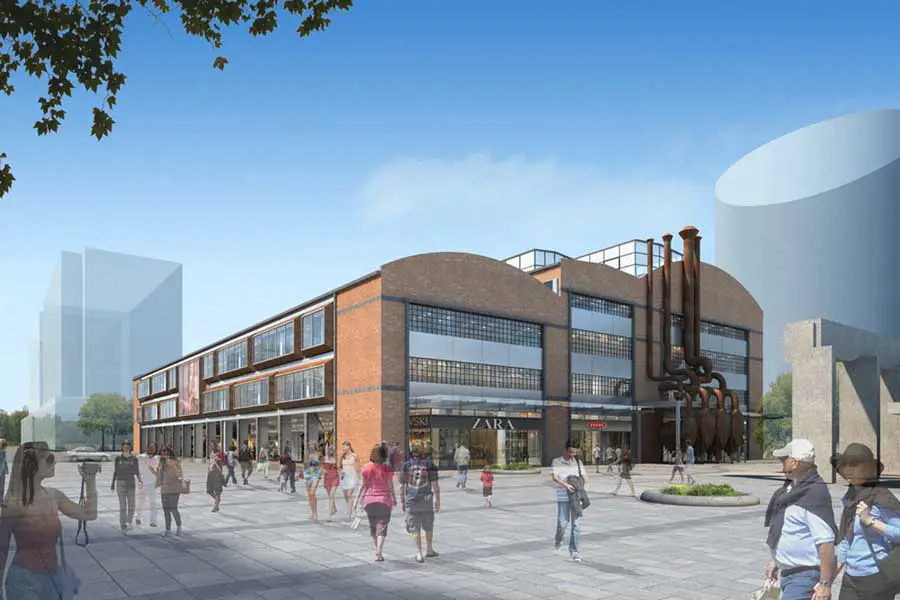

The existing concrete facade and window to the south and north sides will be completely removed. The protruding steel-frame structure extends 1 meter beyond the existing skin. The form of the building will conserve the structure of the foundries old steel funnel. The regular structure of the steel frame echoes the horizontal and vertical grids of the architecture. Consecutively, the protruding parts of the steel-frame structure on all floors highlights the wall new connection of the existing brick walls.

Xintiandi Factory Hangzhou Xintiandi Factory Hangzhou Xintiandi Factory Hangzhou
images from Peter Ruge Architekten

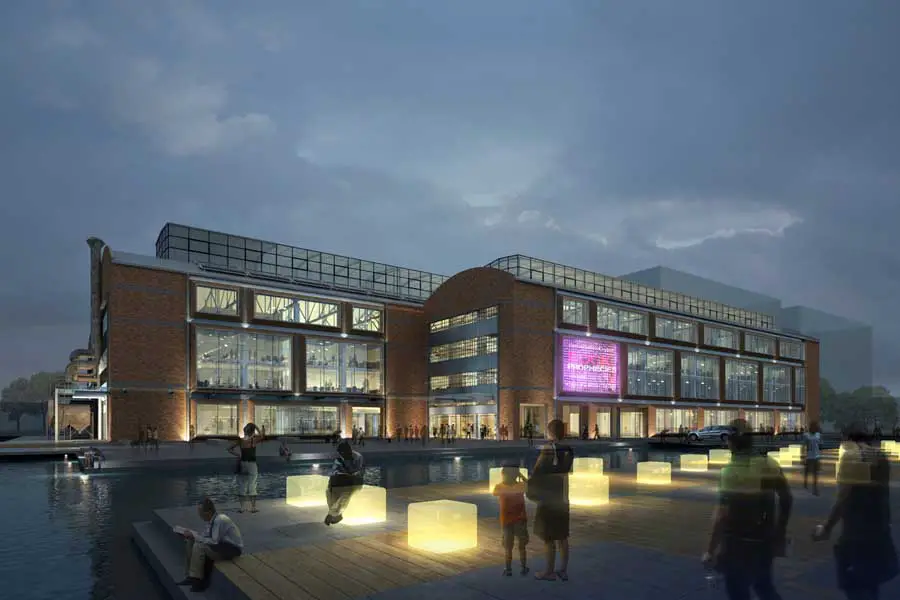

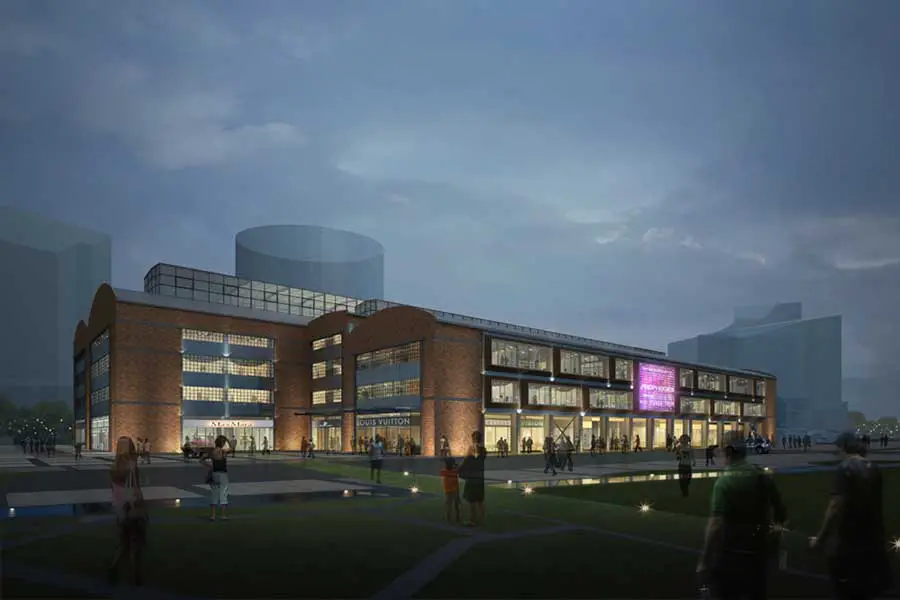

These steel-frame structures are creating a double curtain wall facade. The outside layer is constructed of fall-protection glass with air seams, and the inside layer is a flexible sliding door with insulation glass. A two-storey tall outer elevation steel- frame structure and a LED multimedia display screen can be viewed from the roads near the south and north elevations.

The design of this new facade will not only demonstrate the harmony between modern and historical industrial structures, but also establish a unique architectural language that considers both past and present.

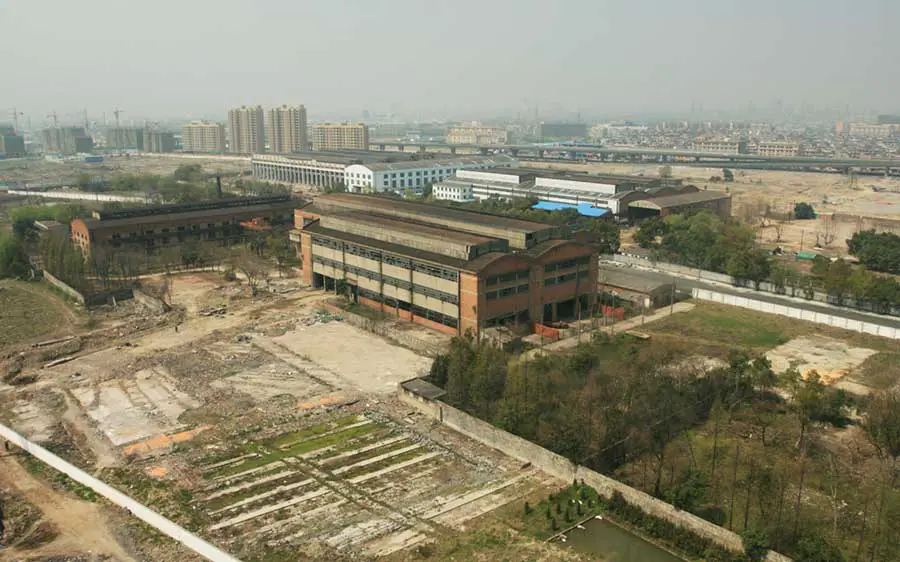

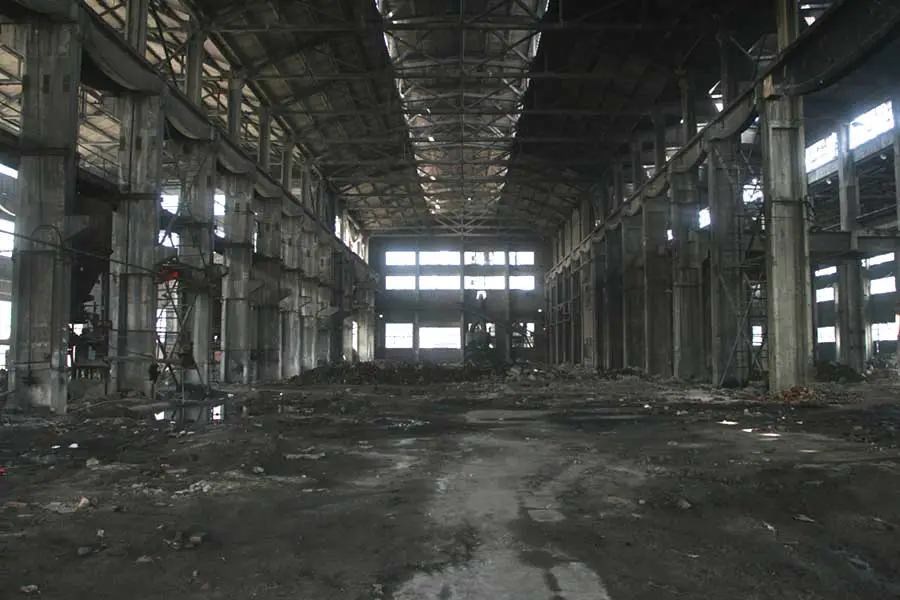

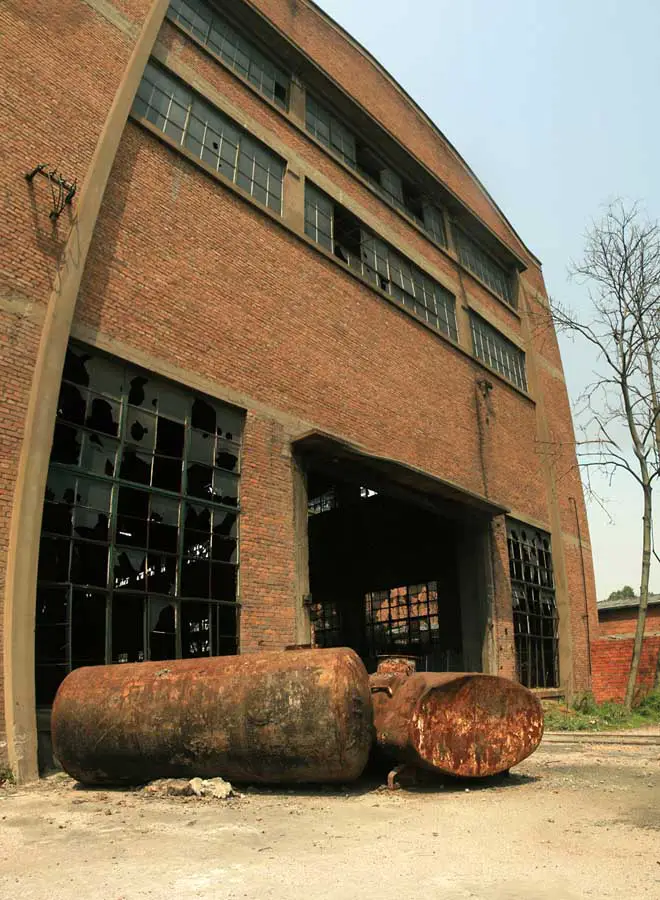

The exisiting Hangzhou Machine factory:
Hangzhou factory Hangzhou Machine factory Factory Hangzhou
images from Peter Ruge Architekten

Xintiandi Factory Hangzhou – Building Information

Title: Xinitiandi Factory Hangzhou
Programme: Renovation and reconstruction of an old factory into a high quality hotel and office building in Hangzhou
Dates: 2010-13
Client: Hangzhou New Land Group Co., Ltd
Architect: Pysall Ruge Architekten – Peter Ruge, Matthias Matschewski, Hyesook Ahn, Alexander Andrejew, Byoung Gil Jung, Lucas Gray, Tatjana Sinelnikova, Maria Katschalova
Project partner: DBH Stadtplanungs GmbH, Hangzhou
Location: Hangzhou, Zheijang Province, P.R. China
Brief: Renovation and reconstruction of an old cast iron workshop into a multi-functional modern complex for shopping, offices and hotel in order to maximize the preservation of the industrial heritage
Scope of services: Analysis, concept, design planning, preparation of approval documents, main detail planning, coordination of local engineers, monitoring of approval and execution documents
Size: Plot: 8.100 sqm, GFA: 17.900 sqm
Duration: 2010-11
Completion: Circa 2013

The office of Pysall Ruge Architekten ceased to exist after March 2011.

Renamed Peter Ruge Architekten, the architects studio is based in Berlin, Germany

Xintiandi Factory Hangzhou images / information from Peter Ruge Architekten
