Wuhan SUNAC 1890, Qintai Avenue Building, Hanyang Iron Works, New Chinese Architecture Photos

Sunac · Wuhan 1890 Building

19 Apr 2021

Sunac · Wuhan 1890

Design: Lacime Architects

Location: No. 170, Qintai Avenue, Wuhan City, People’s Republic of China

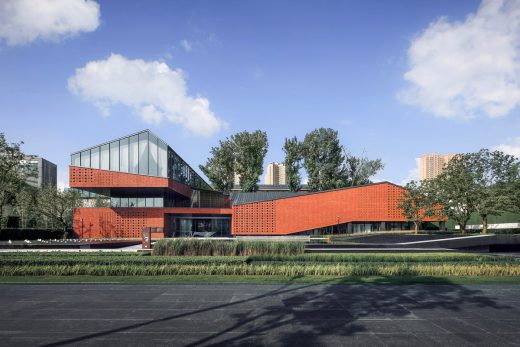

Wuhan SUNAC 1890 building China

Photos by Inter_mountain images unless stated otherwise

Wuhan·SUNAC·1890

Wuhan Hanyang Iron Works was founded by Zhang Zhidong in 1890, being the first and largest iron and steel gathering place in China’s modern history. After the founding of People’s Republic of China, Hanyang Iron Works was rebuilt on the site of the original Hanyang Gunpowder Factory. Wuhan Hanyang Iron Works moved to another place in 2007.

Wuhan SUNAC 1890, Hanyang District, China

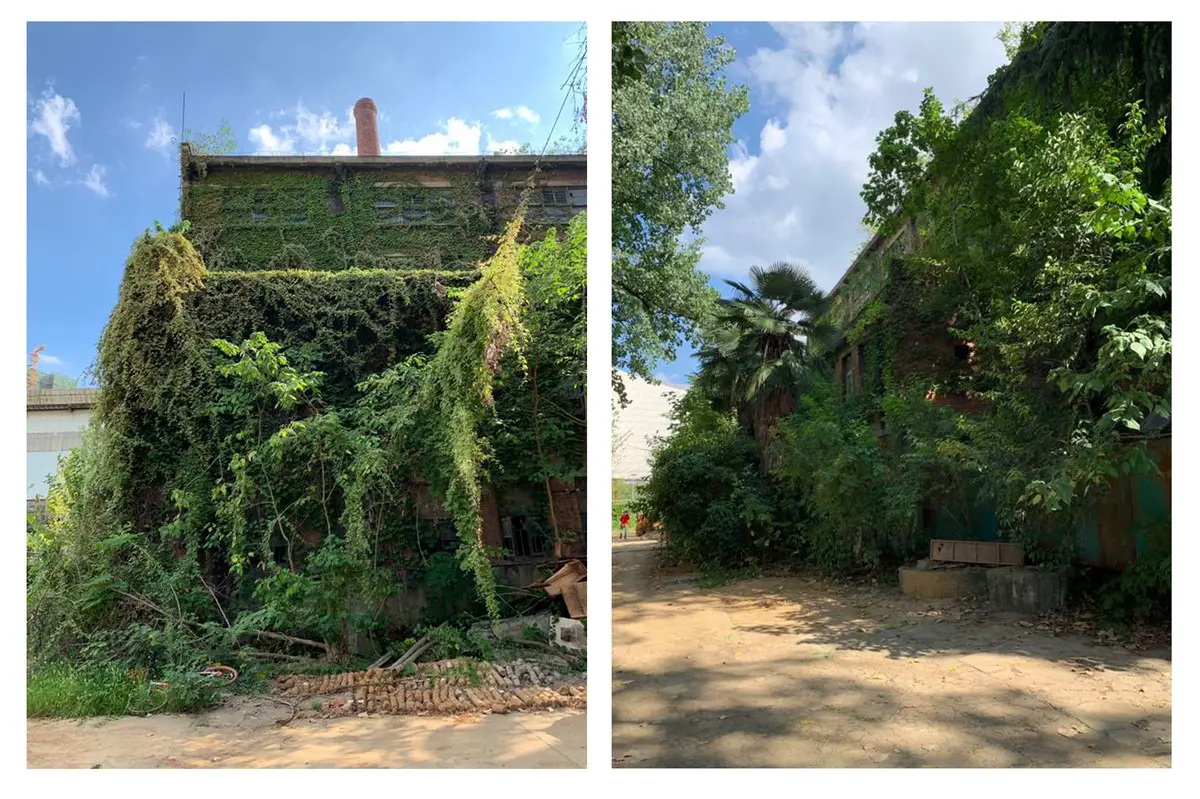

Today, the original Hanyang Iron Works site has ceased production activities, but in the factory area, the workshop buildings built in the 1950s and the remaining machines are in good condition. Different times have left indelible marks on the land of this factory area. Therefore, the protection and reuse of industrial sites in the factory area is an important practical carrier to show the national industry development and modern industrial culture elements of Wuhan city.

Wuhan SUNAC 1890, Hanyang District

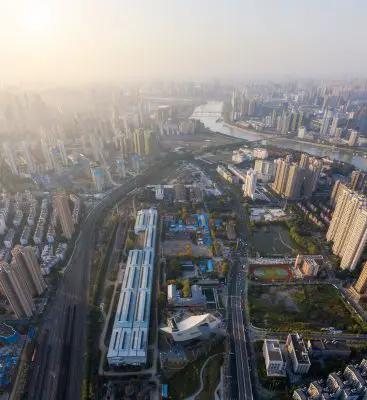

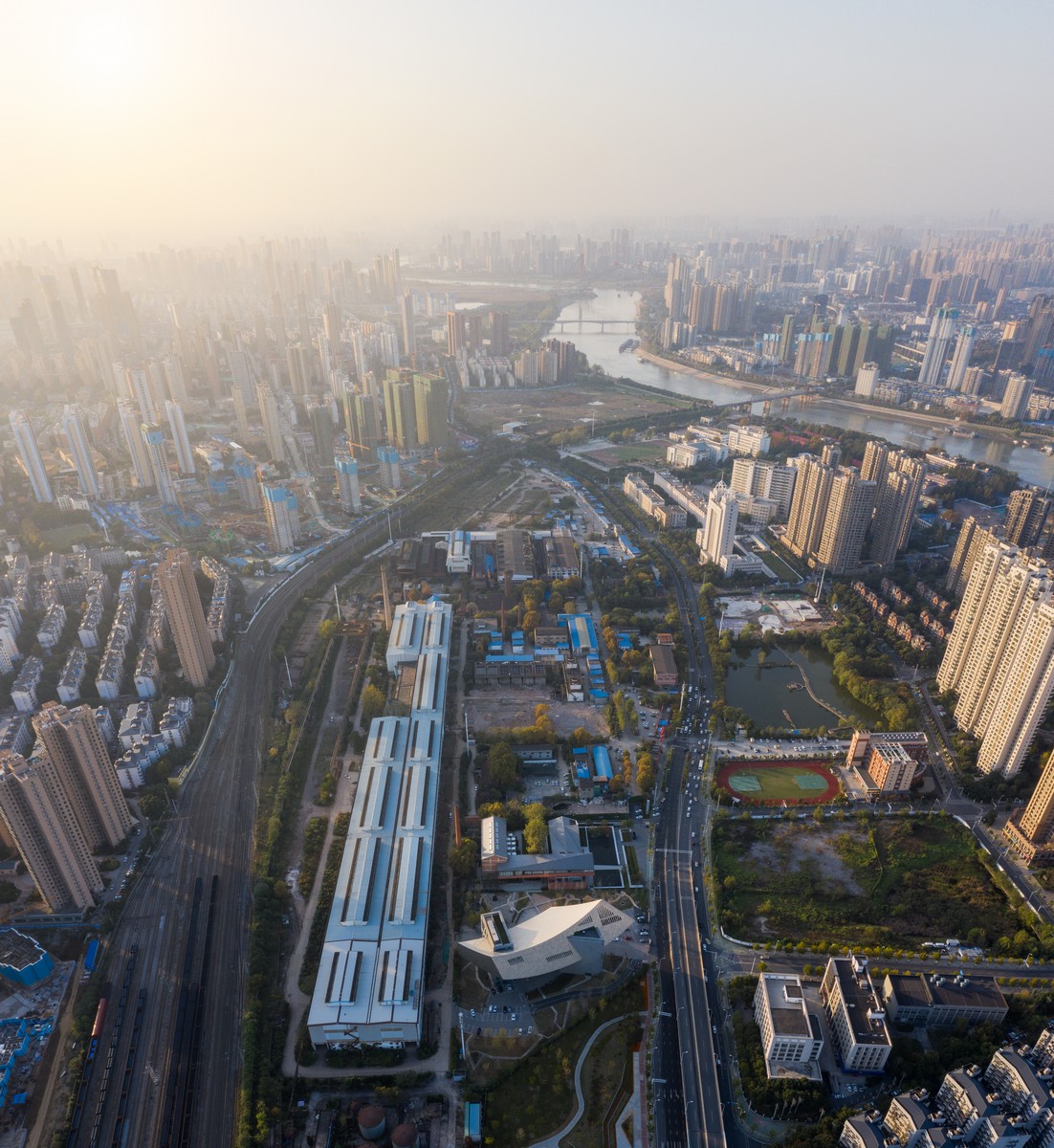

The pilot area of national industrial heritage site renovation of Hanyang Iron Works is located on the south side of the factory, with Qintai Avenue to the north and Zhang Zhidong Museum designed by Libeskind to the west. There are two workshop buildings, oxygen production workshop and oxygen charging station in this area. Due to the different functions of the two buildings, the volume, materials, preservation state and protection level are different. The oxygen generating plant is classified as a Grade II industrial site, and the oxygen charging station as a Grade III industrial site.

Wuhan SUNAC 1890 building China

Based on several field investigations and actual mapping of the positioning of old workshop buildings and preserved trees, the design demolished all the buildings with no preservation value in the front field. Trees with a diameter of more than 50cm in the site have been preserved in situ, and trees with a diameter less than 50cm were transplanted somewhere nearby. The chimneys in the site have also been completely preserved.

Wuhan SUNAC 1890 building China

The oxygen charging station, which is classified as a Grade III listed building, is near the Qintai Avenue. Due to the ambiguous character of the facade and the low level of protection, the design has adopted the method of remodeling the facade, while the internal structure has been selectively preserved. The Grade II oxygen generating plant is a two-story brick-concrete structure building with two-story side rooms in the north, and the side rooms are with varying heights.

Wuhan SUNAC 1890 building China

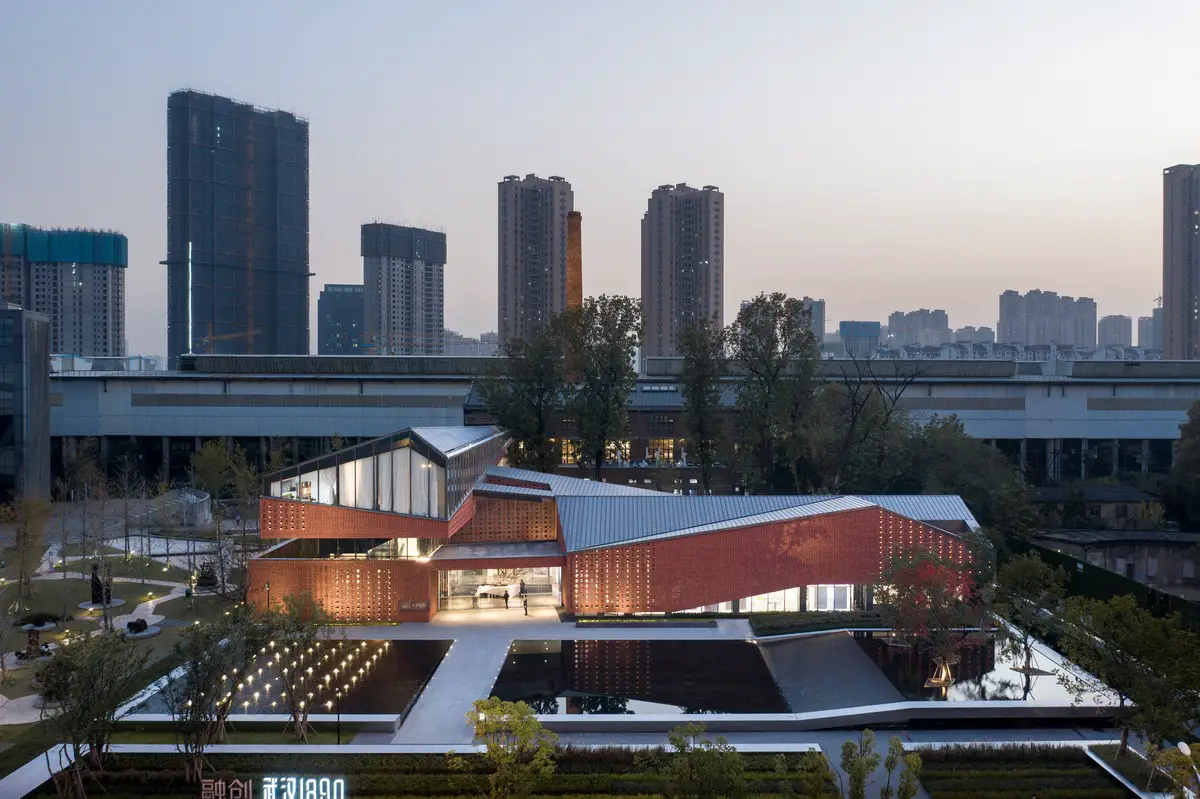

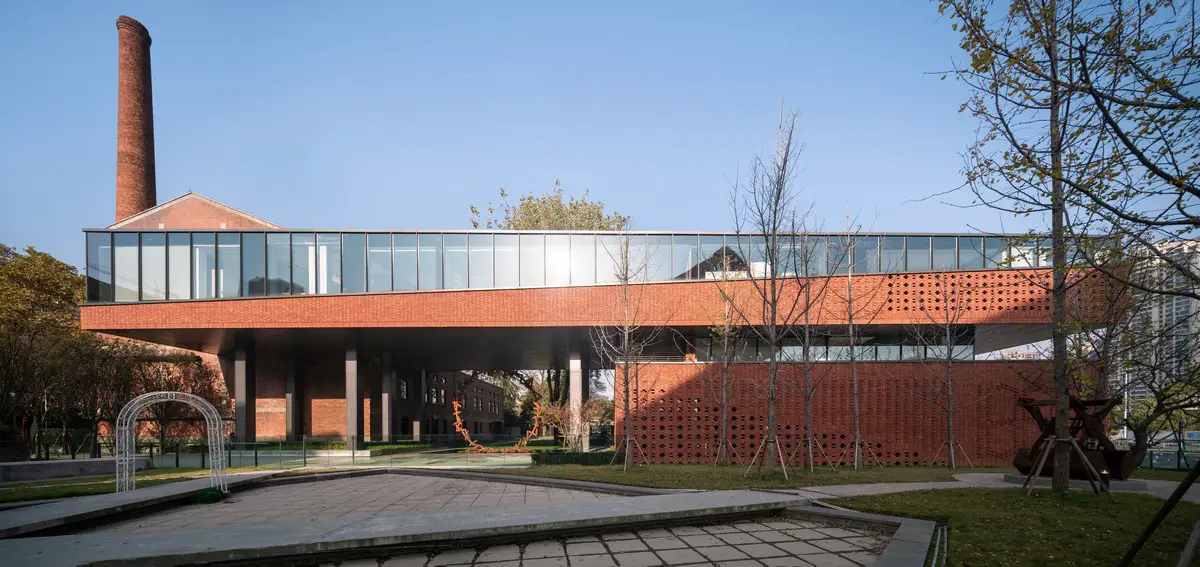

The facade is mainly red bricks with square windows, and the ring beams and columns are leveled with cement mortar. The facade is well preserved. The design scheme has adopted the measure of finishing and preserving, and the damaged parts of the red brick exterior walls have been repaired. A new floating corridor has been built between the two workshop buildings. Preserved trees are enclosed in an internal courtyard.

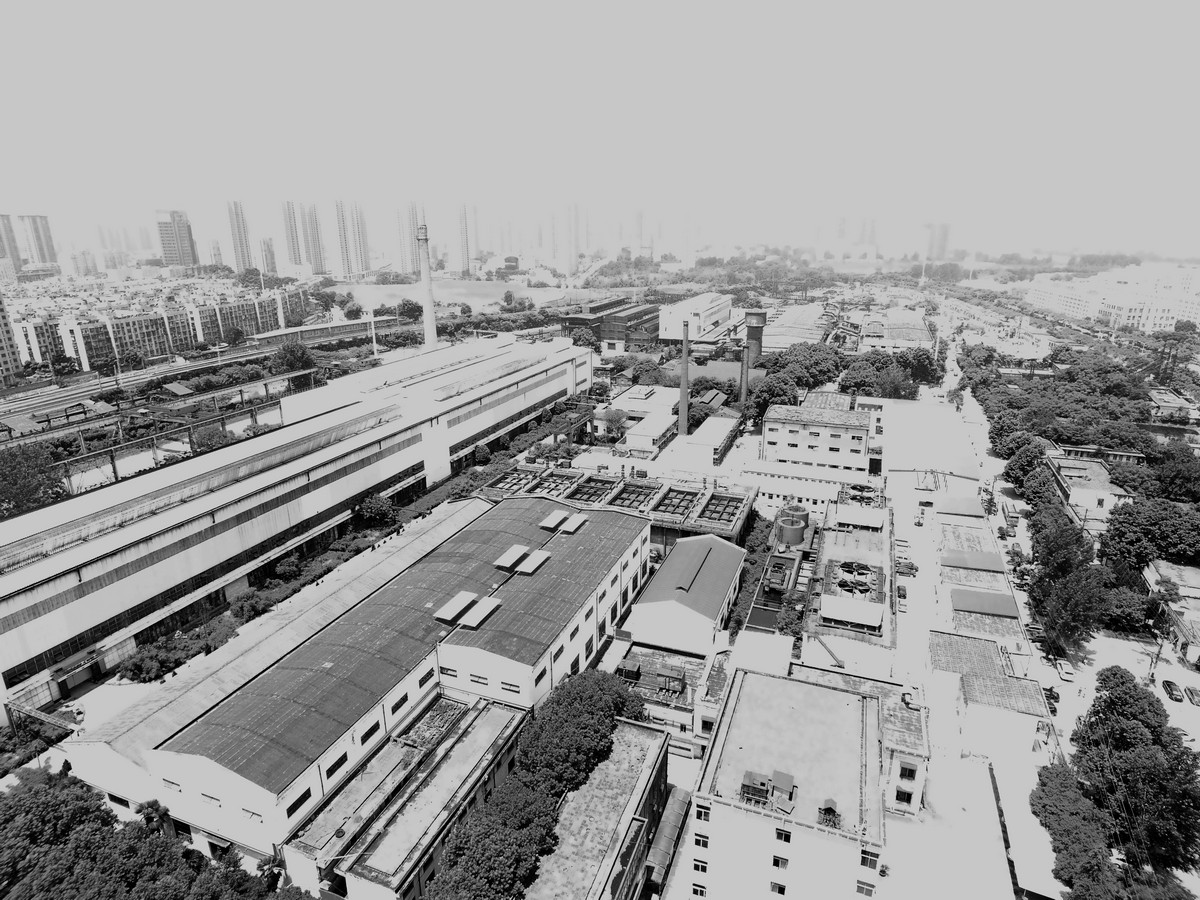

Hanyang Iron Works buildings:
Qintai Avenue Building, Hanyang Iron Works green nature

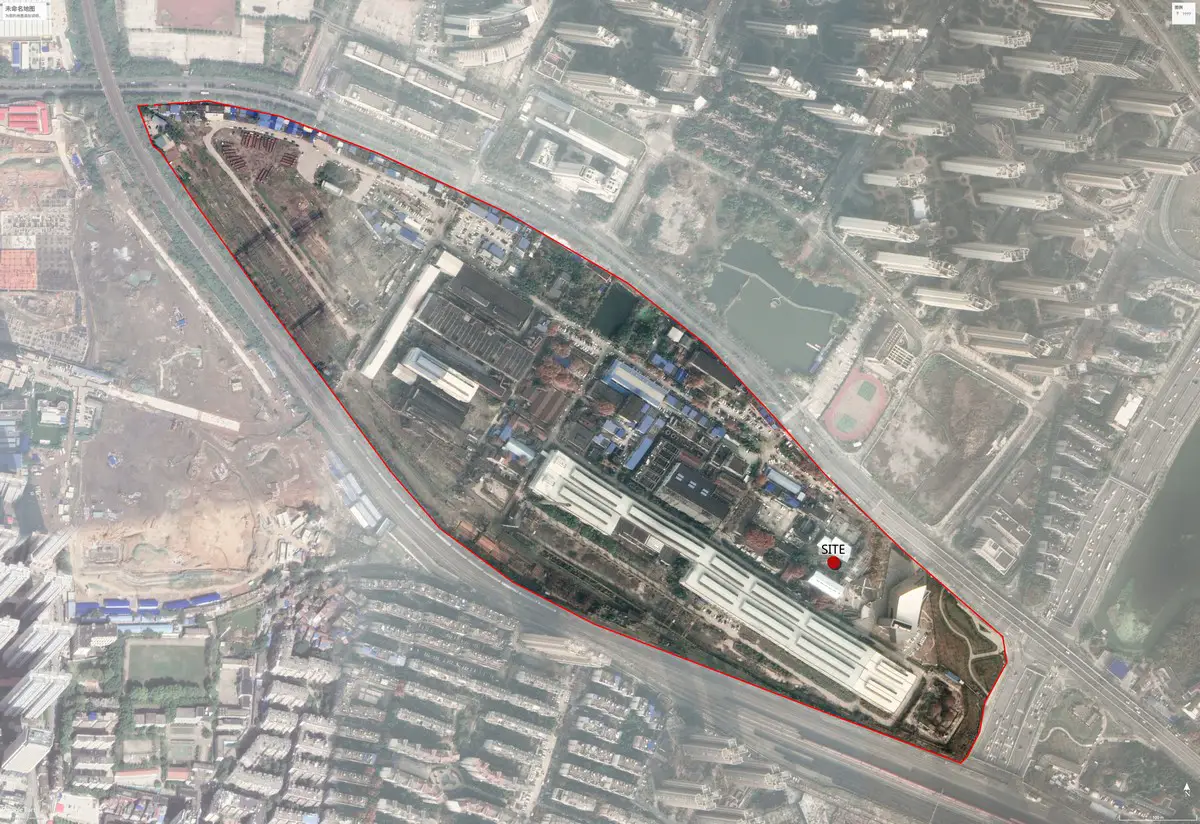

Hanyang Iron Works site plan:
Qintai Avenue Building, Hanyang Iron Works site plan

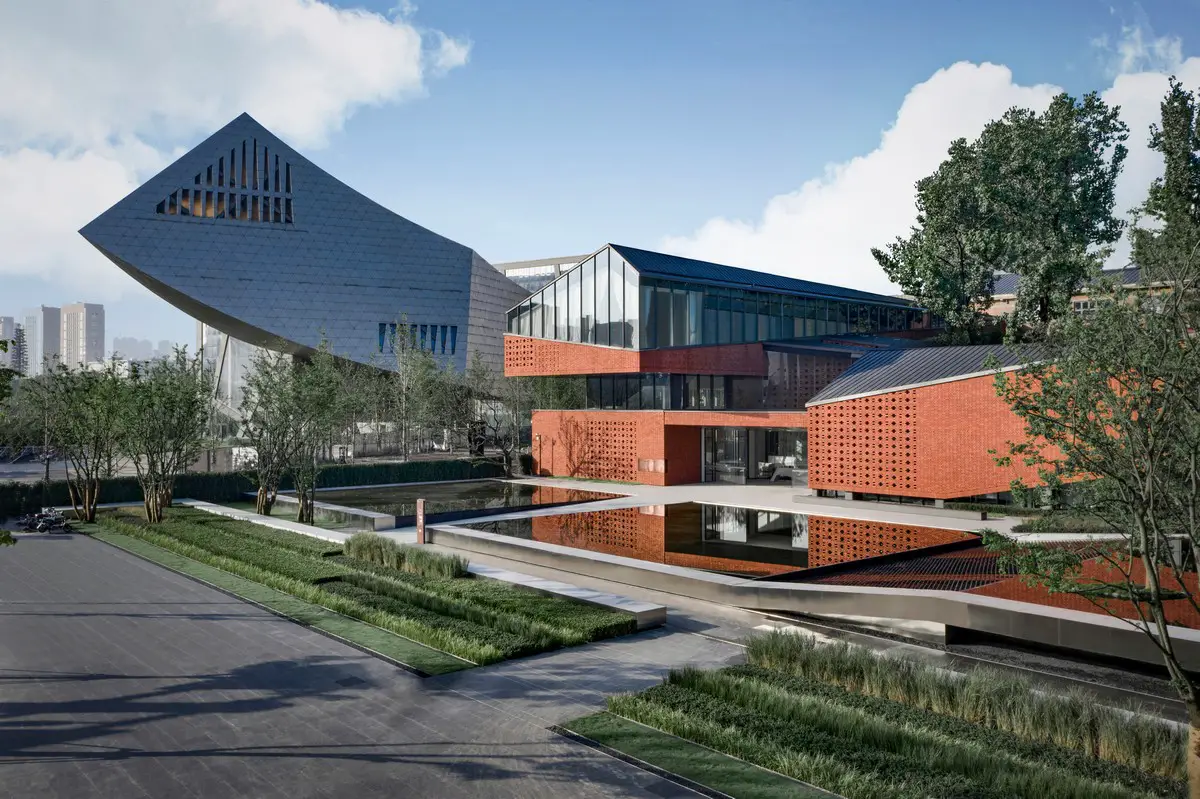

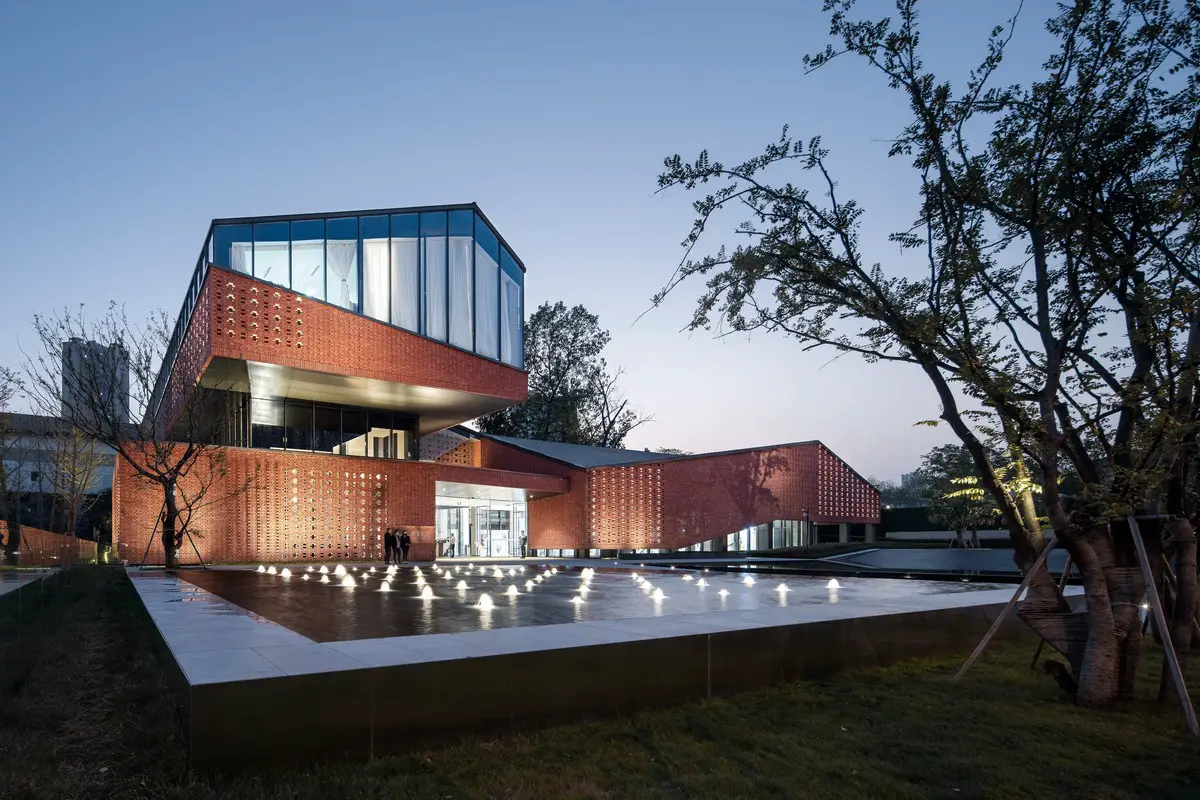

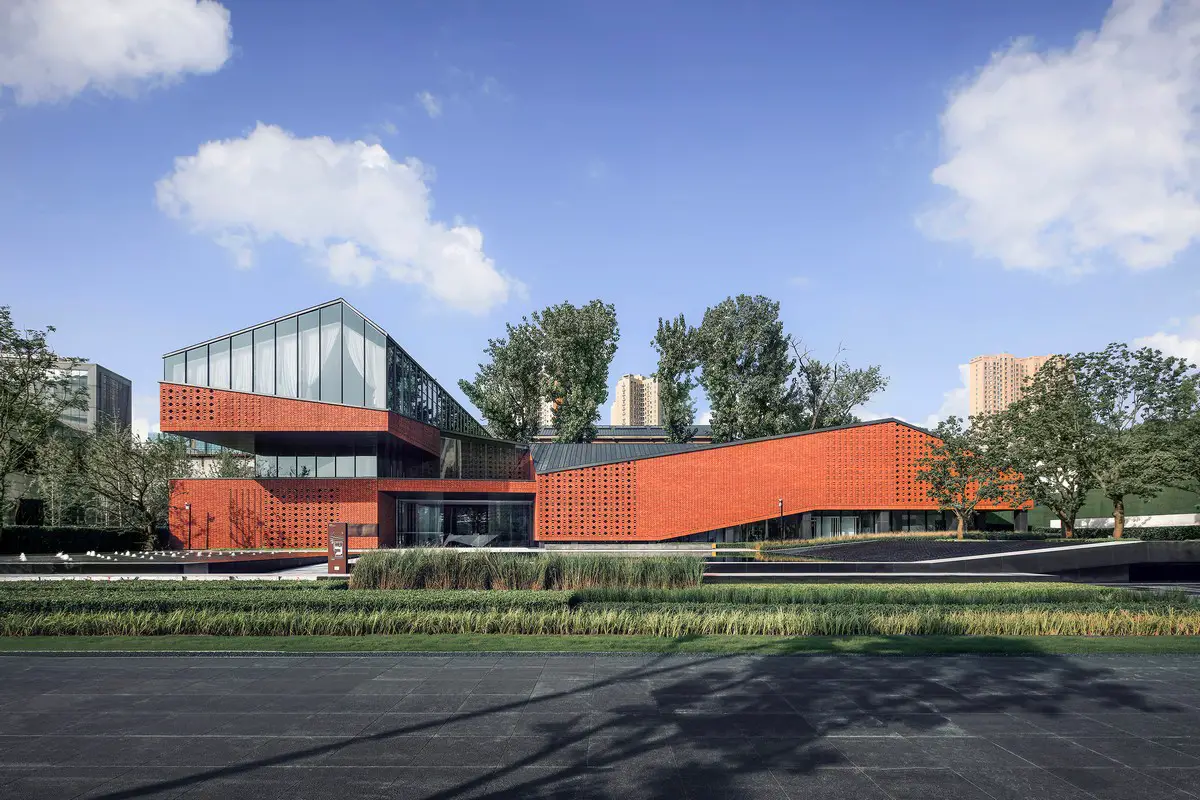

By adopting different levels of preservation and transformation to workshop buildings with different grades, the two buildings create a new architectural space form. The brand new and grand building form is located on one side of Qintai Avenue, with the open front yard providing a good display area.

Wuhan SUNAC 1890 building China

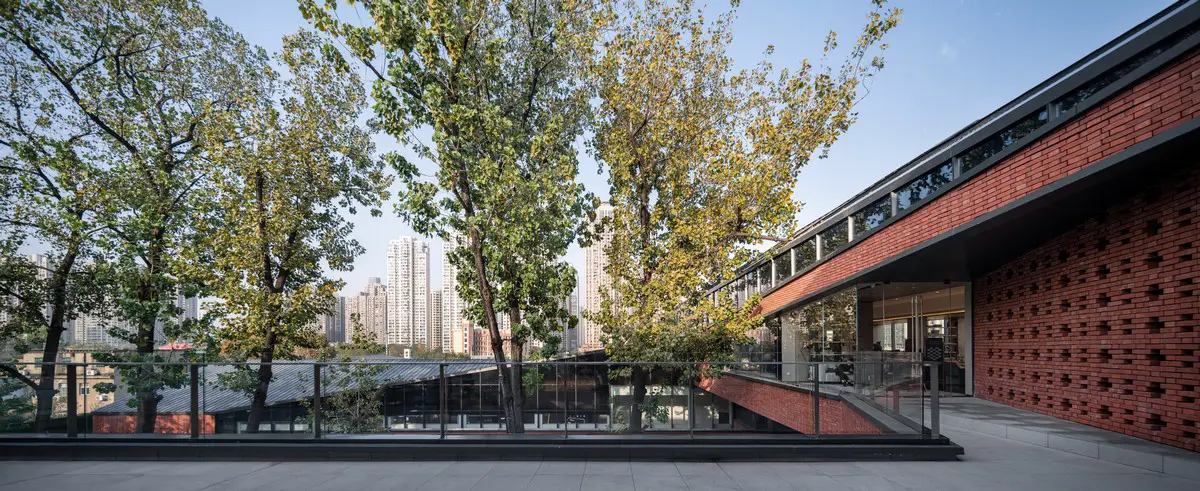

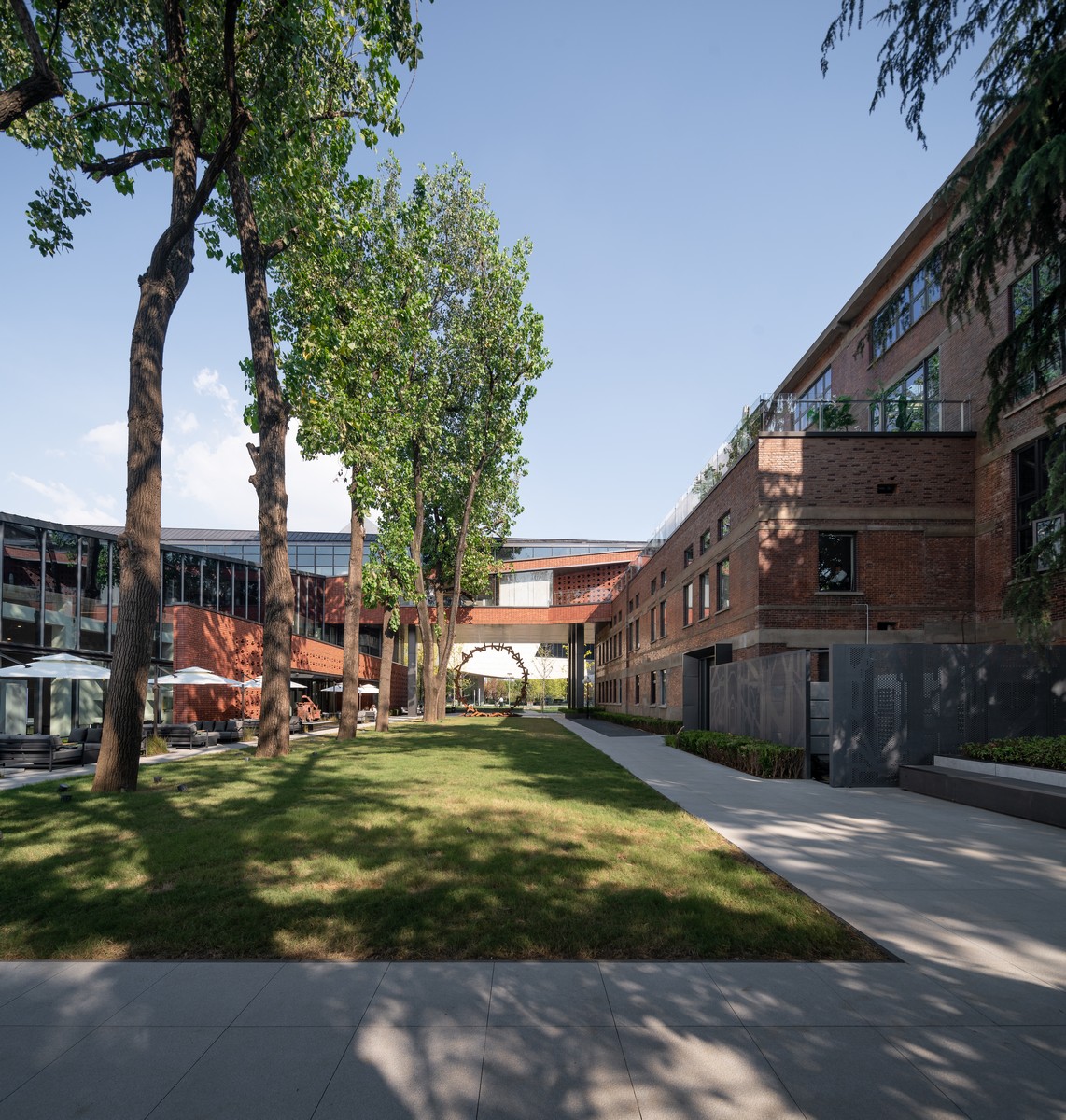

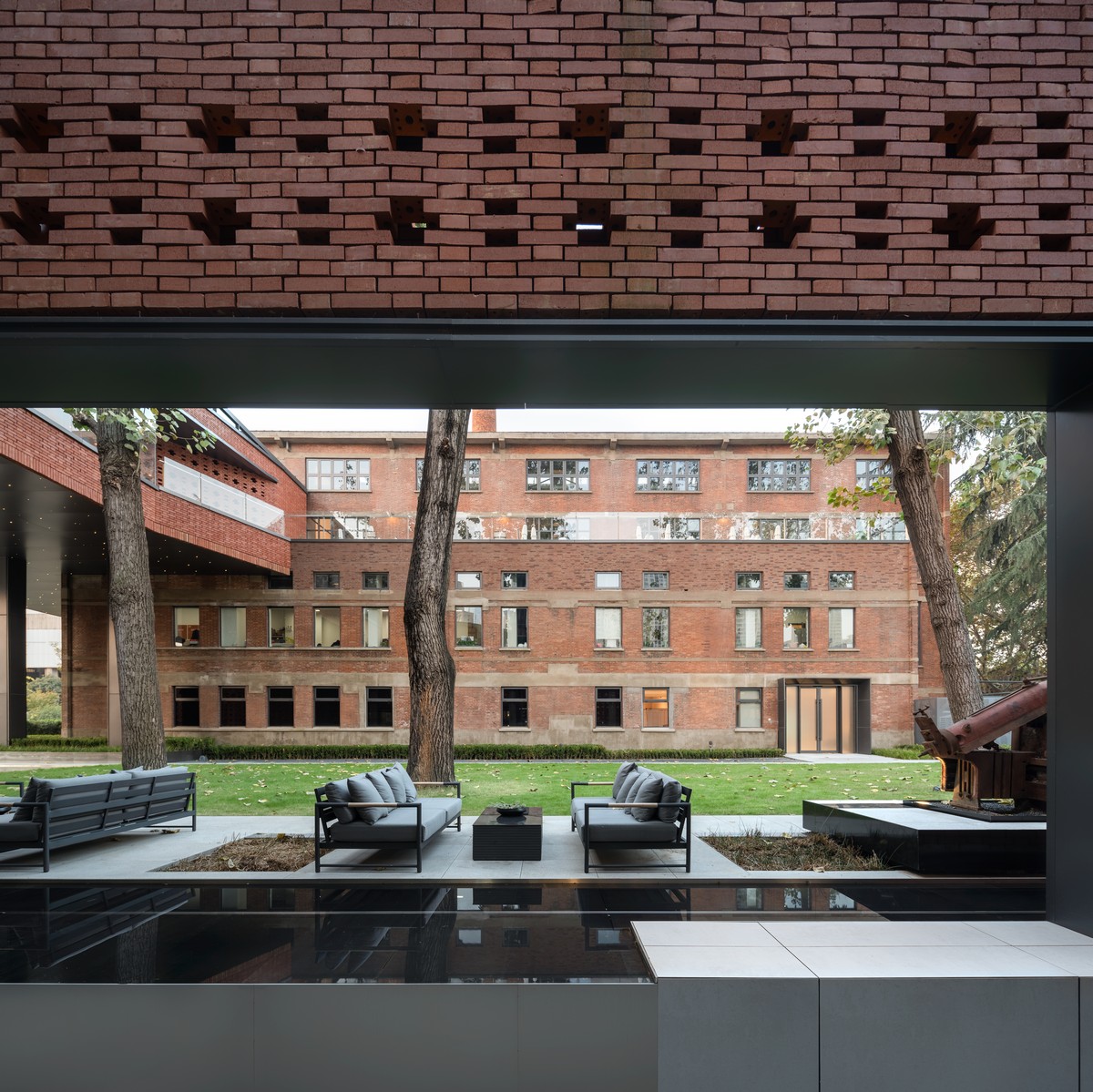

After entering the inner courtyard, one can see the well preserved Grade II protected building, and side rooms with different height have been technically restored to form a complete space. The roof connects with the air corridor to form a roof terrace for rest. Standing in the middle of the courtyard, one can see the building reflecting the characteristics of the new era on one side, and the “old workshop buildings” carrying the emotion and mission on the other side, as well as trees that are 50 years old.


Wuhan SUNAC 1890 building China

Architects bring new vitality to the old buildings by using a more accessible contemporary architectural vocabulary. This kind of space form familiar to contemporary people and the contemporary space vocabulary make visitors feel more close to the old buildings. While people appreciate the change of history, the new building also pays homage to the old buildings in its own way.

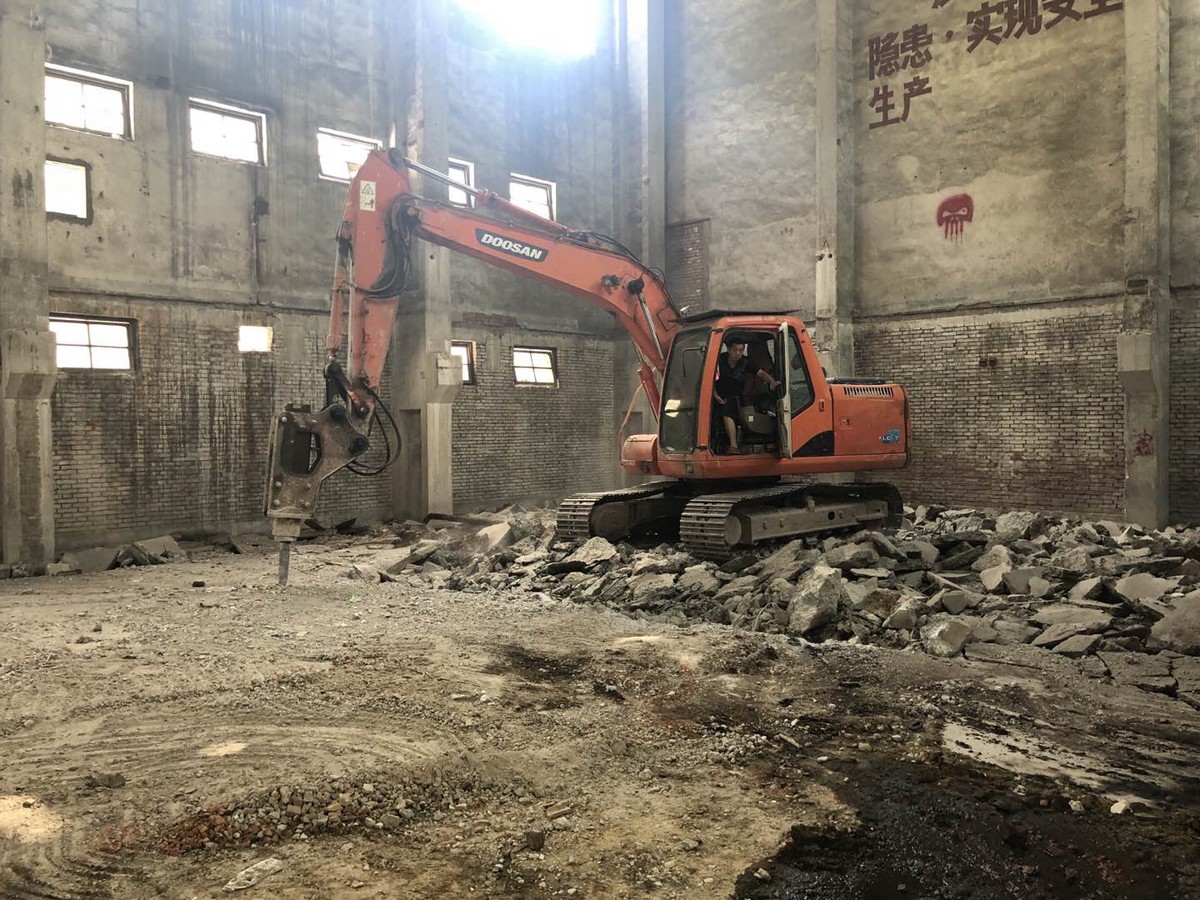

Hanyang Iron Works building demolition:
Qintai Avenue Hanyang Iron Works demolition

This project has been included in the National Industrial Heritage List – Hubei Volume.

Sunac Wuhan 1890 Building design
photo © Qiwen Images

Wuhan·SUNAC·1890 – Building Information

Project Name: Wuhan·SUNAC·1890
Location: No. 170, Qintai Avenue, Wuhan City
Category: Reconstruction
Gross Built Area (square meters): 4112.97㎡
Design time : 2019.06
Completion Year: 2020.06

Qintai Avenue site:
Qintai Avenue Building, Hanyang Iron Works China

Architect’ Firm: Lacime Architects
Project Owner: Wuhan Rongjing Zhenyuan Real Estate Development Co., Ltd.
Design unit of construction drawing: China Light Industry Wuhan Design & Engineering Co., Ltd.
Consultant and design unit of curtain wall: Shanghai Anxun Exterior Wall Engineering Design Co., Ltd.
Landscape deisign: Shenzhen Yi’an Design Consulting Co., Ltd.
Interior decoration design:mohen-design
Light Design : BPI
Construction unit of landscape: Zhejiang Hengchun Municipal Landscape Engineering Co., Ltd.
Construction unit: China Construction Seventh Engineering Division Corp. Ltd.
Construction unit of curtain wall: China State Construction Curtain Wall Co., Ltd.

Information of material and equipment suppliers:
Titanium-zinc sheet metal roofing: Wagandang Architectural Decoration Engineering Technology Co., Ltd.; earthenware brick curtain wall: Futaoke Ceramics Co., Ltd.

Lead Architects: Song Zhaoqing
Design team: Wei Wenyuan, Li Sheng, Shan You, Zhang Tao
Owner team: Luo Liyong, Ge Huaijing, Huang Ting, Zhang Xiaoliang, Chen Siyu, Huang Xiaohe, Lin Huimin, Yu Xiang

Wuhan SUNAC 1890 building China

Photo credits: Inter_mountain images

Wuhan SUNAC 1890, Hanyang District images / information received 190421 from Lacime Architects

Location: Wuhan, China

New Wuhan Architecture

Contemporary Buildings in Wuhan, China

Sino-Ocean Sales Center in Wuhan, China
Design: Waterfrom Design
Sino-Ocean Sales Center in Wuhan
photograph : Yuchen Chao
Sino-Ocean Sales Center Wuhan

Light Waterfall Design
Architects: Kris Lin International Design
Light Waterfall Wuhan
image courtesy of architects practice
Light Waterfall Wuhan / Light Waterfall Sales Center Wuhan Building

Huafa & City Hub
Architect: Qin Yue-Ming
Huafa City Hub
photograph : JING Xu-Feng
Huafa & City Hub in Wuhan

Wuhan Greenland Center Apartment

Greenland Optics Valley Center Wuhan

SCP Wuhan Qingshan InCity Master Plan

Molly Club in Wuhan

Wuhan Tiandi Park Place

New Chinese Architecture

Contemporary Buildings in China

THE FIELD, Huli District, Xiamen, Fujian, South East China
Design: TEAM BLDG, Architects, Shanghai
THE FIELD Xiamen City, Fujian building
photo : Jonathan Leijonhufvud
THE FIELD, Huli District, Xiamen City

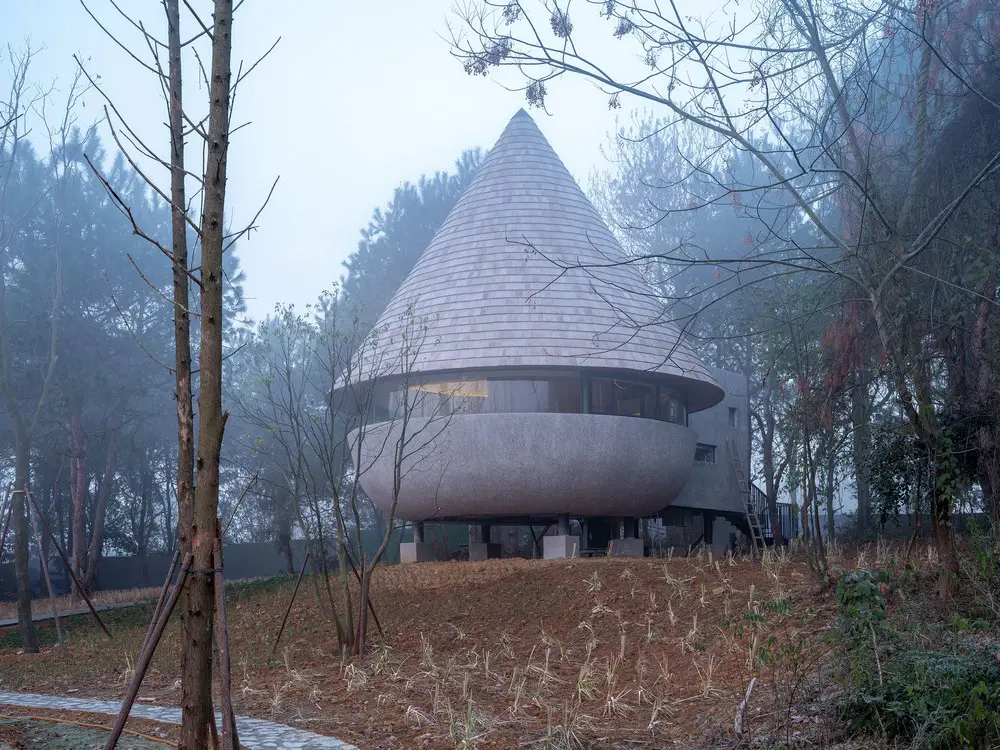

The Mushroom, Xin Yu City, Jiangxi Province
