Museum of Contemporary Art and Planning Exhibition

Architectural Lighting Design: GD-Lighting Design

Architectural Design: Coop Himmelblau with HSArchitects

Location: Shenzhen, Guangdong, southeastern China

Architectural Lighting Design for Mocape Shenzhen – The Museum of Contemporary Art and Planning Exhibition

Museum of Contemporary Art and Planning Exhibition

Shenzhen Mocape is located north of the Shenzhen Civic Centre; it is also the last major public cultural project in Shenzhen.

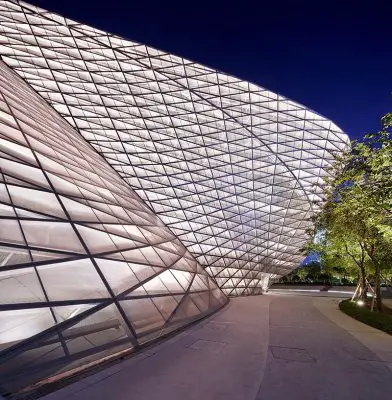

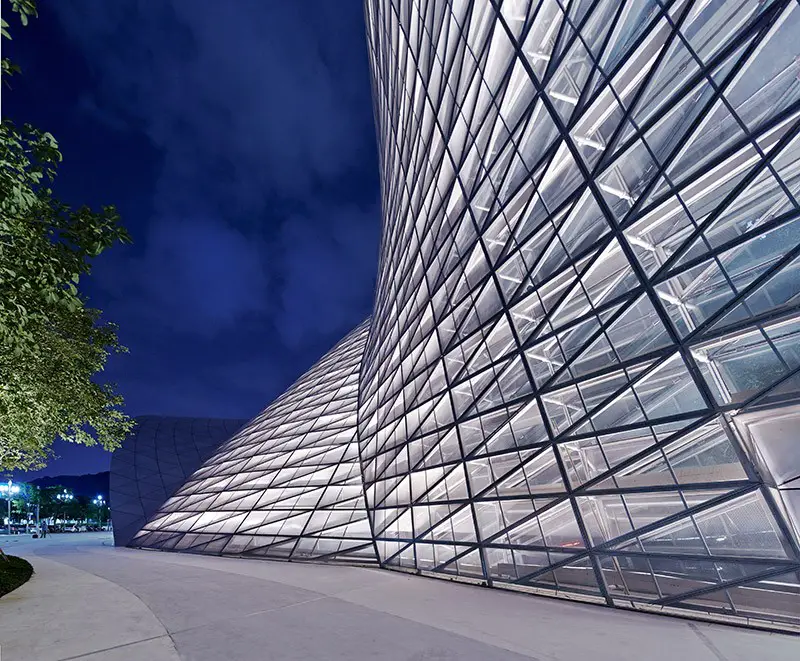

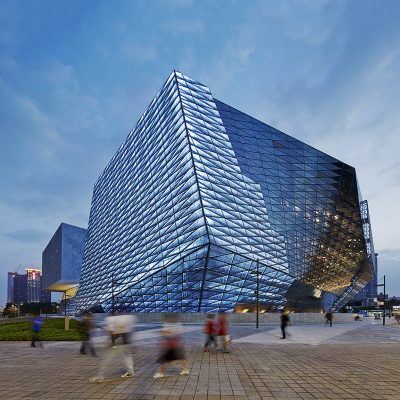

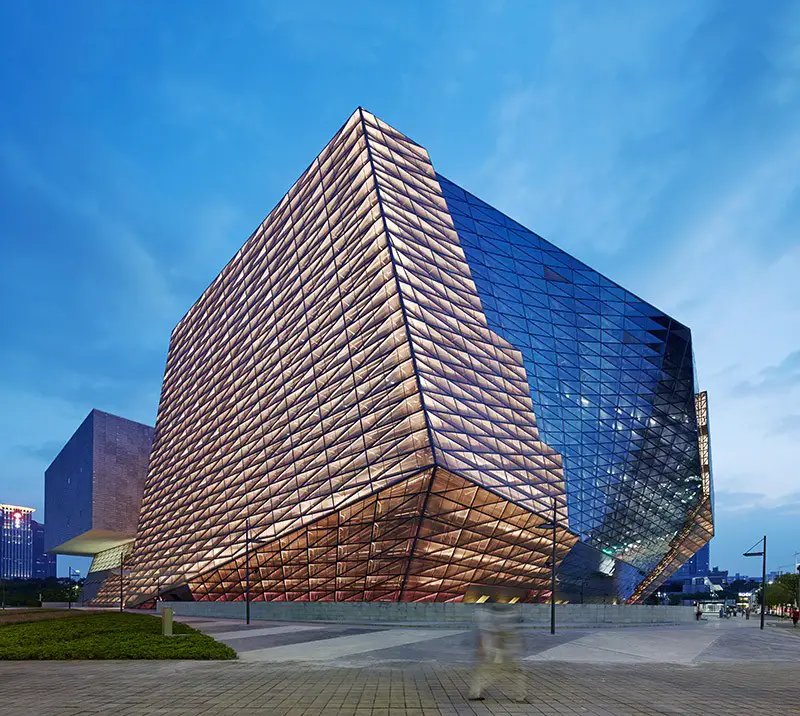

The building is an integration of the Shenzhen Museum of Contemporary Arts and the Urban Planning Exhibition Halls. Surface materials of glass, perforated plate, and stone extend and twist along the steel structure, creating a complicated architecture full of vitality. However, the unique façade form also created great difficulties in lighting design. Lighting design conquered multiple challenges and successfully integrated within the building, neatly and sharply presented a clear and translucent city “rock”.

Museum of Contemporary Art and Planning Exhibition

BIM is a fast and effective solution for irregular shaped buildings. For this time’s lighting design process, it is also an effective attempt to use BIM to assist with lighting design.

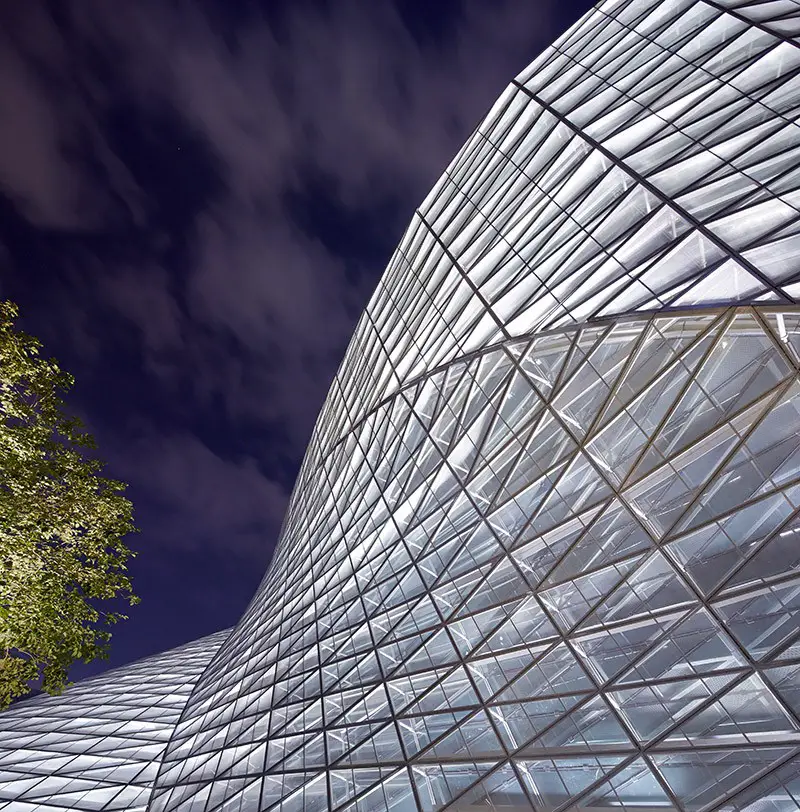

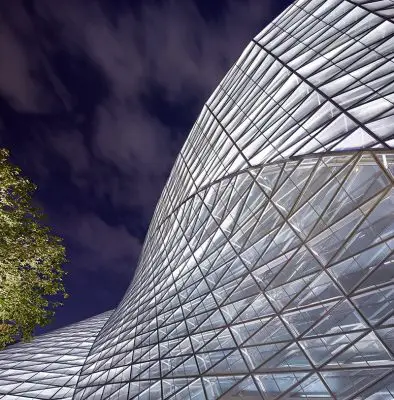

By constructing a 1:1 architectural digital model in Rhino, luminaire installation was mapped, and also calculated multiple times with lighting design software in order to analyze different photometric, power and material reflectance. In addition, in order to resolve glare issues caused by the building’s concave and convex corners, we have carried out multiple on-site tests with lumianires’ installation angels, manipulated its photometric and added shading accessories.

Museum of Contemporary Art and Planning Exhibition

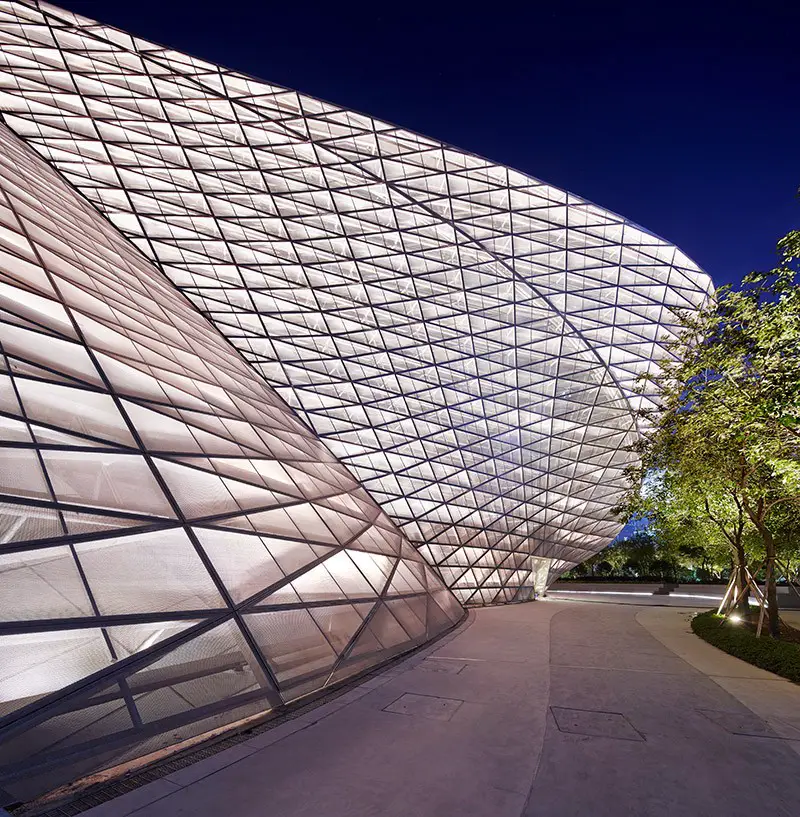

Considering the large quantity of luminaires and their installation difficulties, it was finally decided to use custom-made U-shaped shading grooves with exterior baffles adjustable in heights to block glare, and coated the groove interior matt black to reduce self-illumination.

The construction and commissioning process of this project took advantage of BIM’s convenience, seamlessly integrated building and its façade, perfectly presented luminaire installation, load, wiring and visual effects; which also laid the foundation for future lighting design process on similar complex irregular- shaped buildings.

Museum of Contemporary Art and Planning Exhibition

Museum of Contemporary Art and Planning Exhibition – Building Information

Developer: China Overseas Commercial Properties Co., Ltd
Architectural Lighting Design: GD-Lighting Design
Architectural Lighting Chief Designer: Yenchin Wang IALD Professional Member
Architectural Lighting Design Team: Hui Ren Registered Member of the Illuminating Engineering Society of North America Tim Cheng
Architectural Design: Coop Himmelblau, HSArchitects
Facade design: SuP Ingenieure GmbH
Location: Shenzhen, China
