Graft Designs E.ON Ultra-fast Charging Stations

1 Dec 2020

E.ON Ultra-fast Charging Stations News

Design: Graft, Germany / USA

E.ON Drive ultraschnelle Ladestation

With an elegant steel roof construction that extends up and over the user like a bright, airy canopy, the station’s design creates a defined space that is protected from the elements, transforming the charging area into a place of rest. Lighting integrated into the frame automatically activates when the charging zone is occupied, creating a clearly specified, safe and comfortable space. The design is by architects GRAFT.

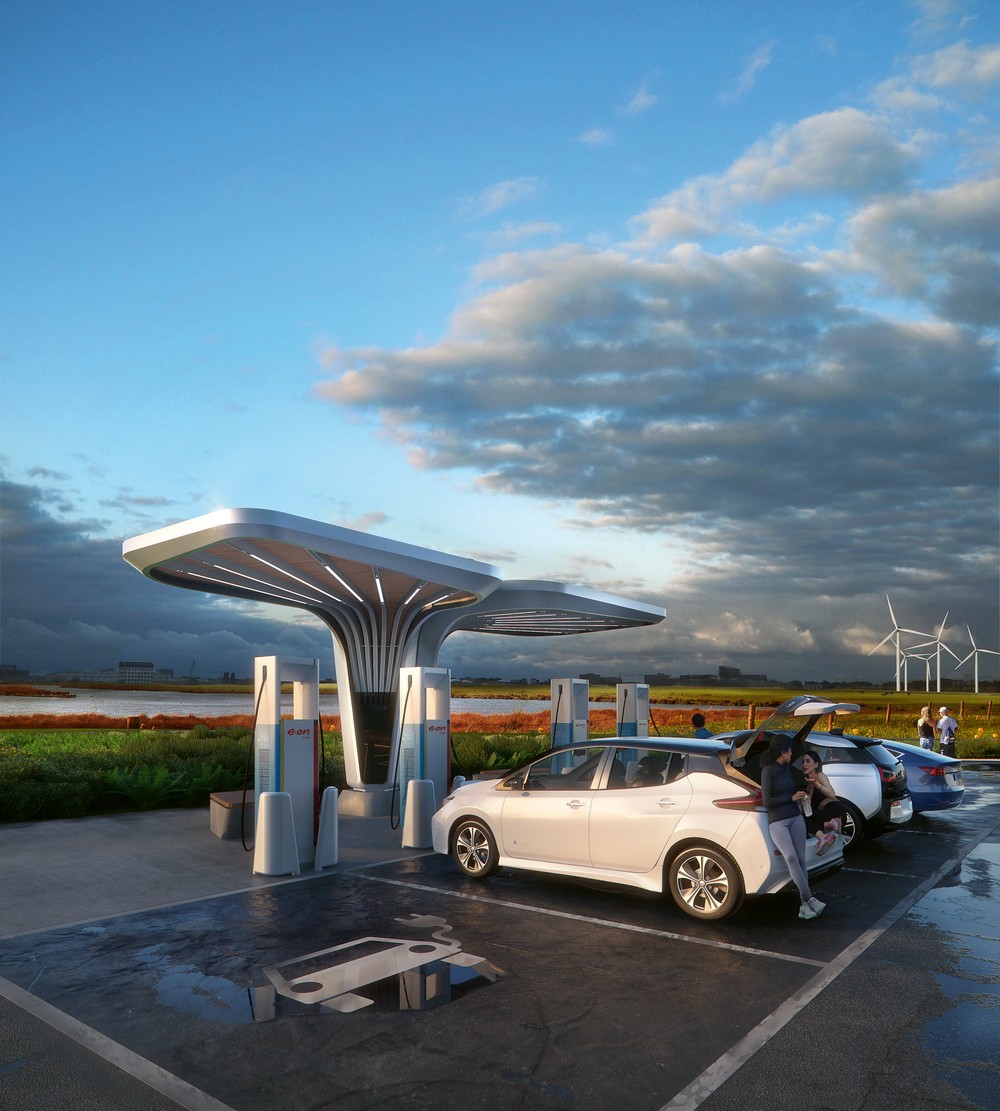

E.ON Ultra-fast Charging Stations by Graft
image © Bloom Images

These frames can be configured in different ways: either featuring an opaque roof with or without greenery; or a glass roof with or without integral photovoltaic panels. When implemented, the photovoltaic system supplies energy for the lounge and the integrated media technology. Slats beneath the roof act as filters, modulating and channeling sunlight into the charging bay area. The precision and dynamism of the construction underlines E.ON’s brand identity and consumer experience.

Based on two basic modules, the E.ON Ultra-fast Charging Stations system is able to cater to a wide variety of charging and parking situations:

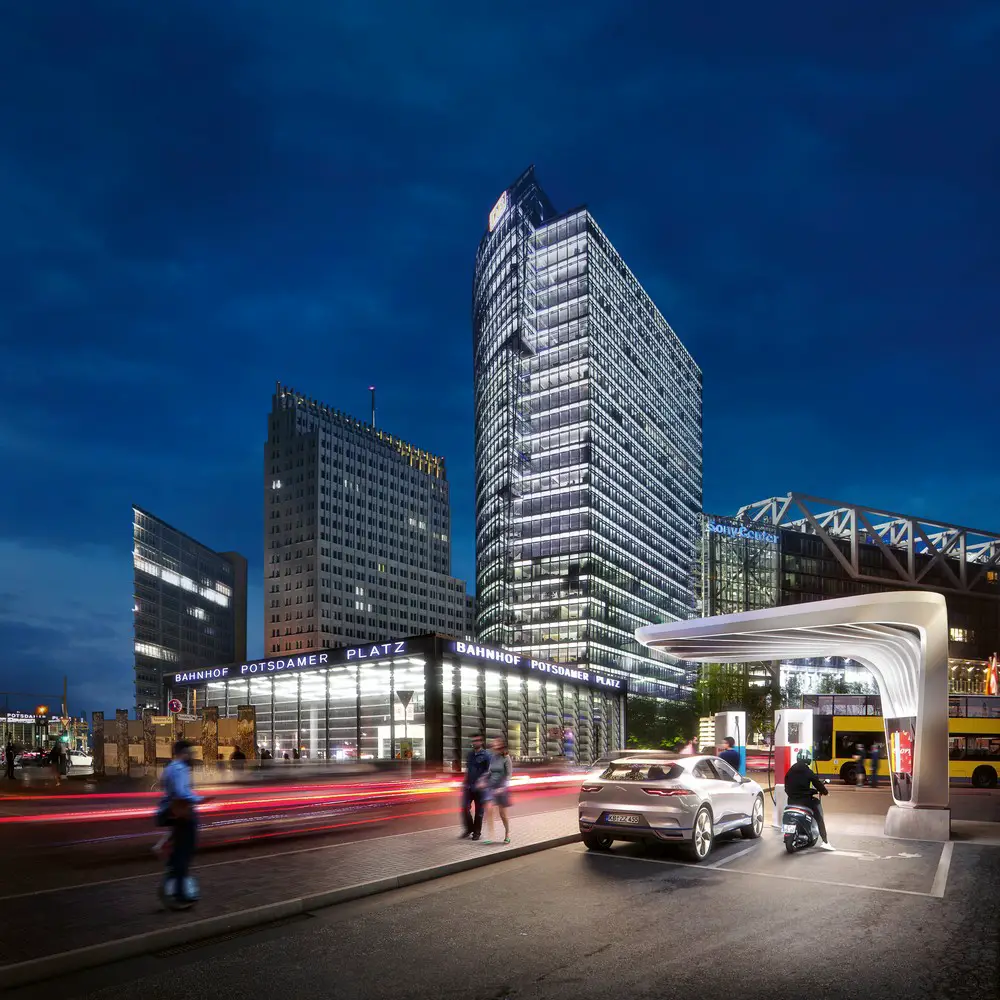

The smaller of the two modules can be combined to form XS or S stations. With a rectangular footprint of around 3.5m × 5m, it was developed for use in existing car parks and service areas. Its clever geometry makes it possible to provide partially covered parking for one to two spaces. Its self-supporting steel structure allows the modules to be extended linearly to create smaller drive-through variants with up to four charging points. Such stations are also suitable for urban contexts, providing covered barrier-free parking in parallel or angled configurations.

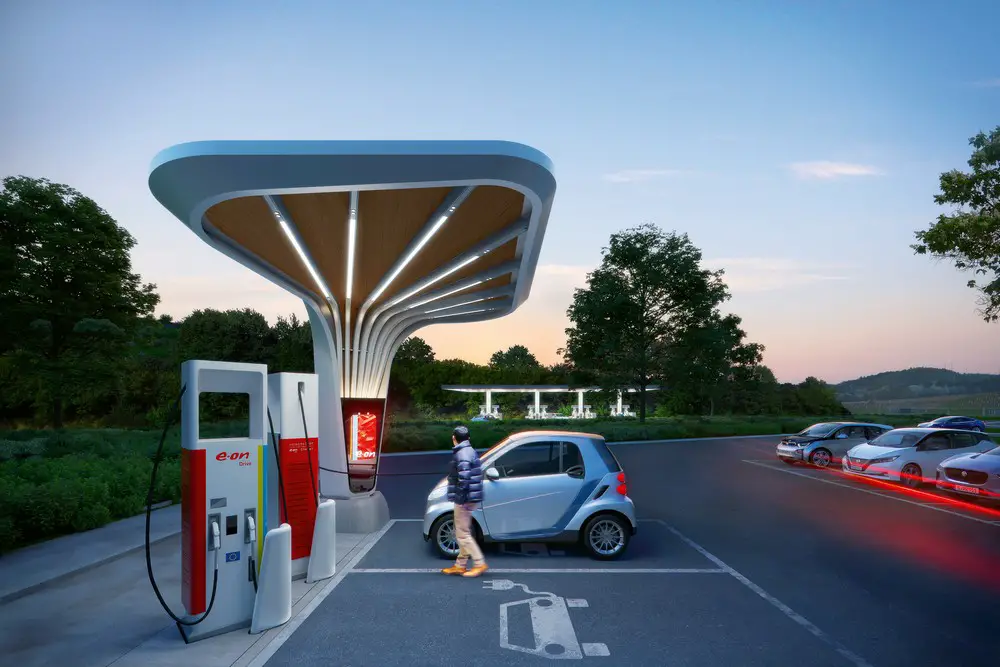

E.ON Ultra-fast Charging Stations Graft design
image © plomp

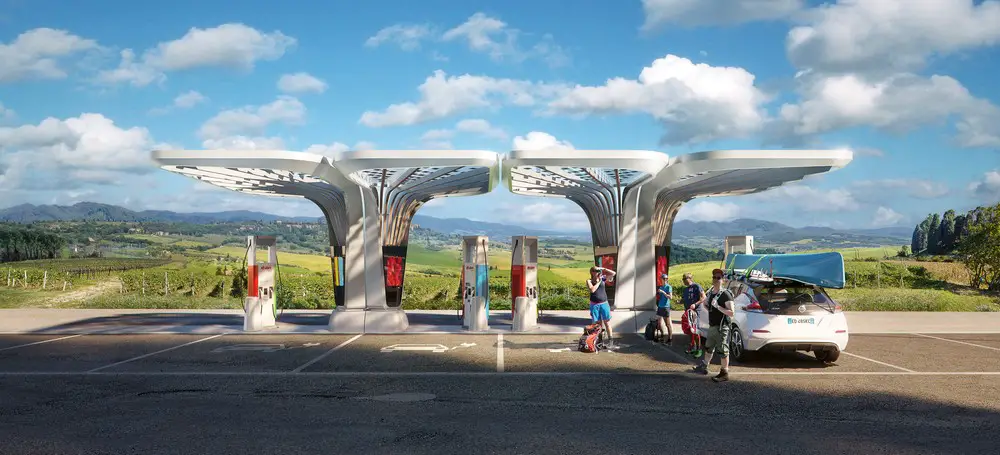

With a hexagonal footprint, the larger module can be used for M and L stations. The first generation of M stations are designed as drive-through solutions equipped with four to eight charging points, while the L stations, with six to eight charging points, incorporate a customer lounge for use during charging cycles.

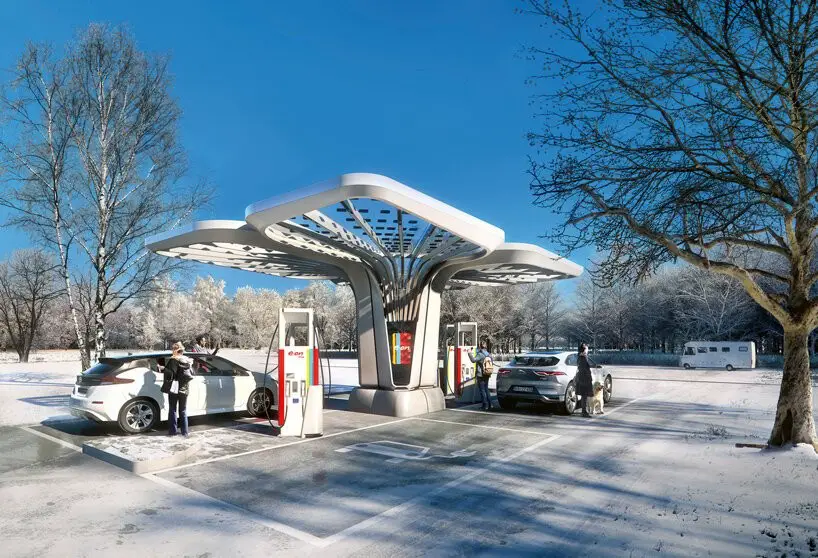

E.ON Drive Charging Station Graft design
image © plomp

In the future, the modular concept can be extended to create XL hubs of varying sizes with additional amenities such as shops, food provision, leisure, spas, fitness and entertainment.

E.ON Drive Charging Station Graft design
image © plomp

Embodying similar principles in order to ensure a high-quality stopover experience, the station lounges feature fully glazed external walls that create a sheltered space open to the surroundings. Natural materials are used throughout the interior to create a restful, relaxing atmosphere. Media elements are also incorporated in to the design, for example touch screens integrated in the furniture, which enable customers to communicate directly with suppliers.

E.ON Drive ultraschnelle Ladestation:

E.ON ULTRA-FAST CHARGING STATIONS from GRAFT on Vimeo.

The recognizable brand architecture of the first generation of E.ON charging stations is scalable, smart and sustainable, and perfectly embodies the company’s spirit of innovation at the forefront of technological solutions for society. A goal of the design is that many of the featured elements, which are primarily aimed at increasing customer experience and user friendliness, will find their way into future government tenders and consequently be made accessible to as many potential users as possible.

E.ON Drive Charging Station Graft design
image © plomp

E.ON Ultra-fast Charging Station Design – Building Information

Project: infrastructure, charging stations, electro mobility

Design: graft | @graft.official

Locations: germany, united kingdom, czech republic, slovakia, hungary, sweden, denmark and norway

Client: E.ON

Founding partners: lars krückeberg, wolfram putz, thomas willemeit

Partner: dennis hawner

Project leads: caroline lossack, sebastian maßmann

Design team: benedikt boschert, chrisanthi karta, dorian mandzukic, emma rytoft, haotian yang, jerzy gabriel, jesus navarro murcia, laurent thill, leon jakob seibert, luis tomas, marta piaseczynska-karaivanov, marvin bratke, philip weibhauser, sebastian gernhardt, sorin-gabriel gosa, veronika partelova, yue xiao

Project timeline: 2018 – ongoing

Status: design guideline, first implementation

E.ON Drive Charging Station Graft design
image © plomp
