PATCHWORK Sluisbuurt Building in Amsterdam

5 July 2021

Barcode Architects and krft present PATCHWORK, the new cornerstone of the Amsterdam Sluisbuurt

Design: Barcode Architects / krft

Location: Sluisbuurt, Amsterdam, the Netherlands

PATCHWORK Sluisbuurt Building Amsterdam PATCHWORK Sluisbuurt Building Amsterdam

PATCHWORK Building in Sluisbuurt

PATCHWORK, designed by Barcode Architects and krft, will be one of the first developments in the future sustainable Sluisbuurt area in Amsterdam. For the design, the architectural offices joined forces and won the tender for Sluisbuurt plot 5A1 in cooperation with ABC Planontwikkeling, EarthY, DGMR, and Buro Sant en Co.

The building is the cornerstone in the heart of the Sluisbuurt, at the pivot point where the main axes from the neighbourhood to the city and surroundings intersect. For the purpose of the future and healthy living, the central location of PATCHWORK turned into the inspiration for the architects to design a unique building concept in which physical activity and cycling play a key role.

PATCHWORK Sluisbuurt Building Amsterdam PATCHWORK Sluisbuurt Amsterdam design by Barcode Architects / krft

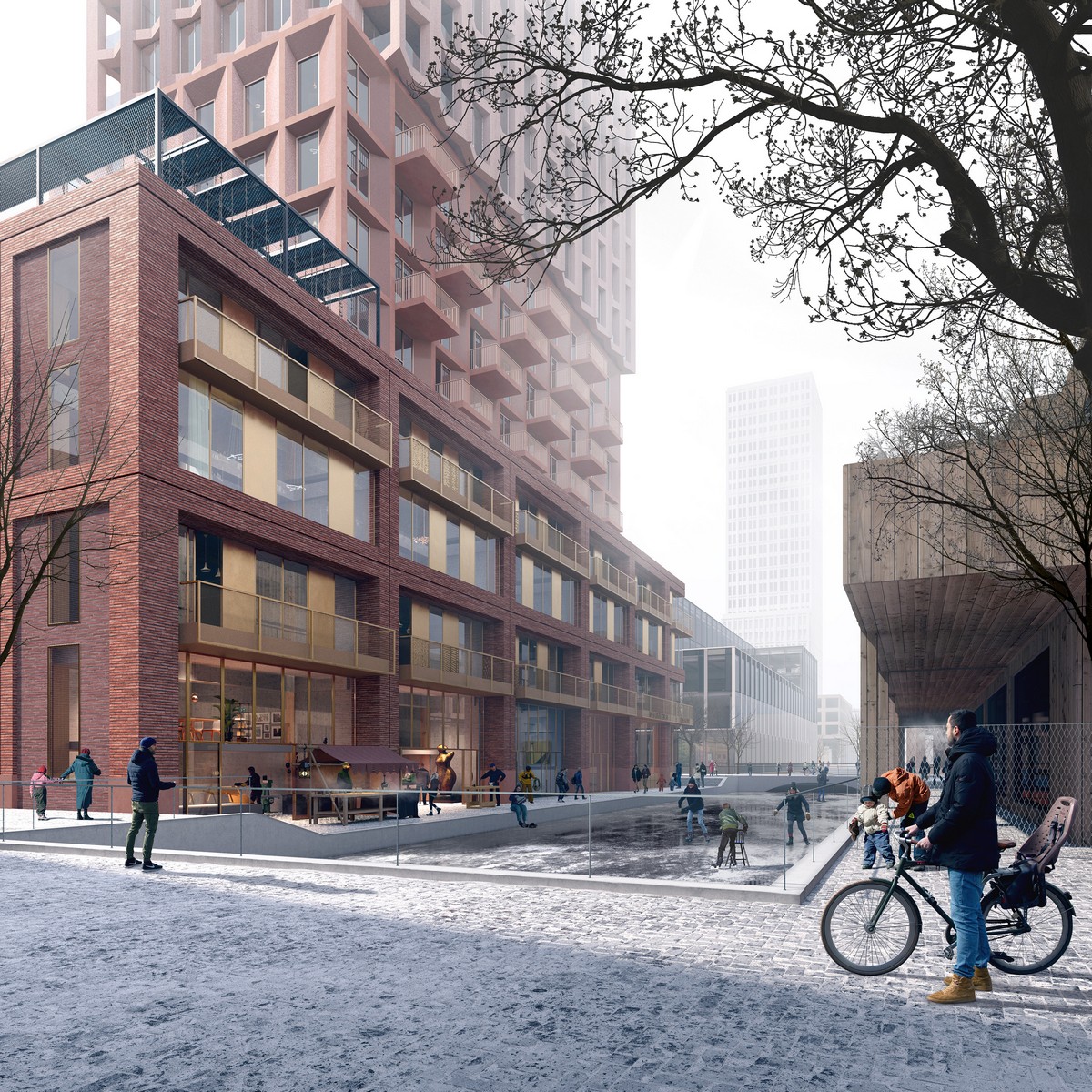

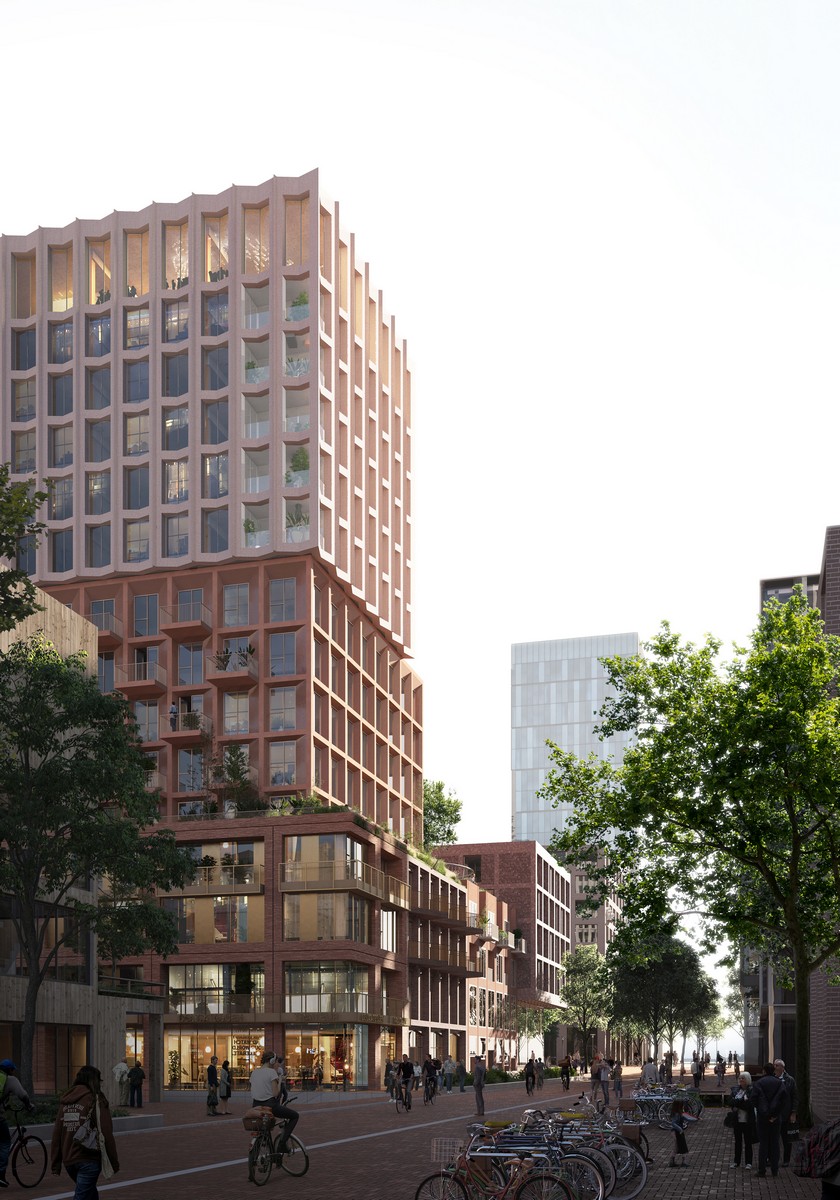

The low and medium-height volumes of PATCHWORK bring a mid-size grain and human scale to the cityscape of the Sluisbuurt, in which high towers and larger blocks will be dominant. The ‘orchestrated diversity’ of the eight blocks is the result of the collaboration between Barcode Architects and krft – two offices with their own signature, but with a shared vision on architectural quality and sustainable living in the city.

PATCHWORK Sluisbuurt Building Amsterdam

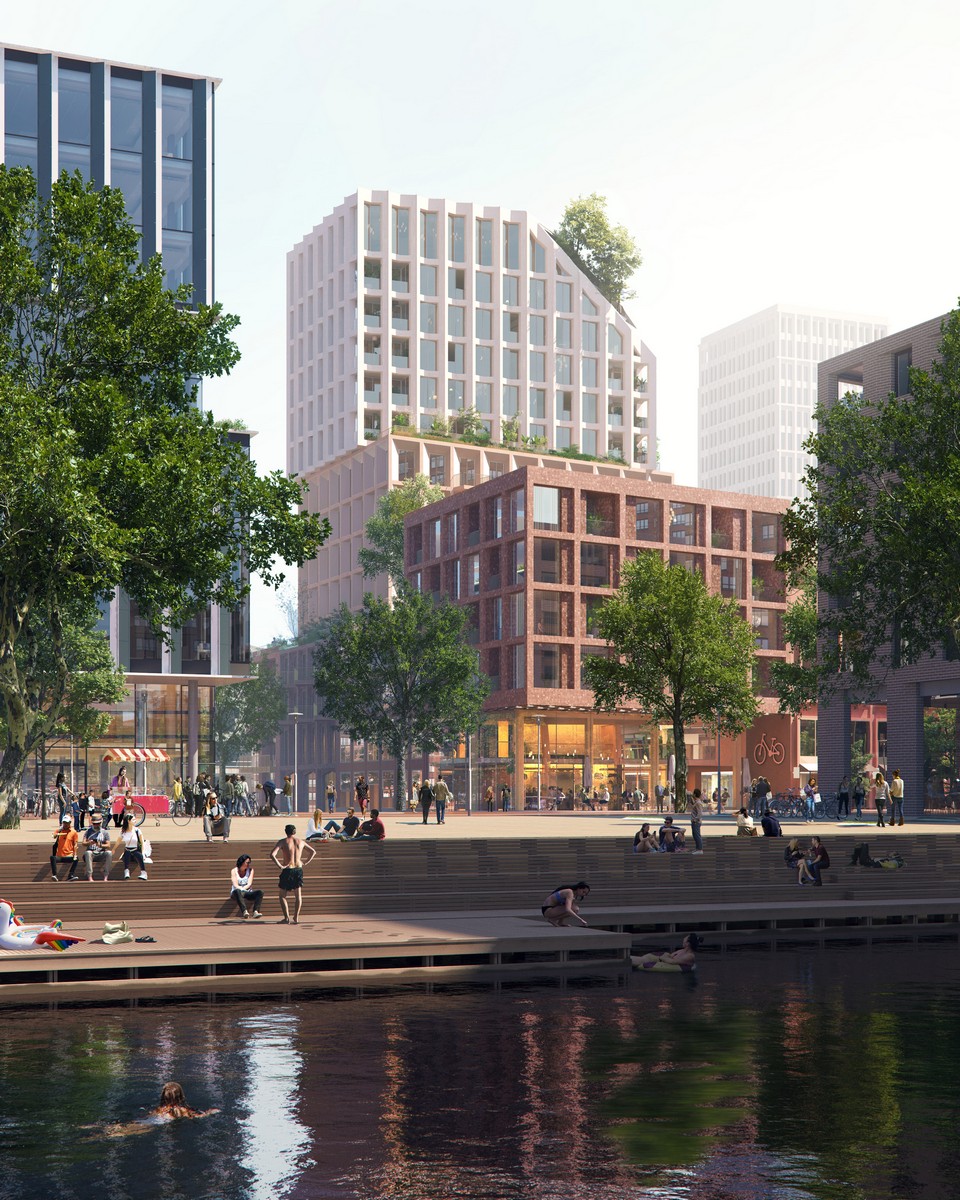

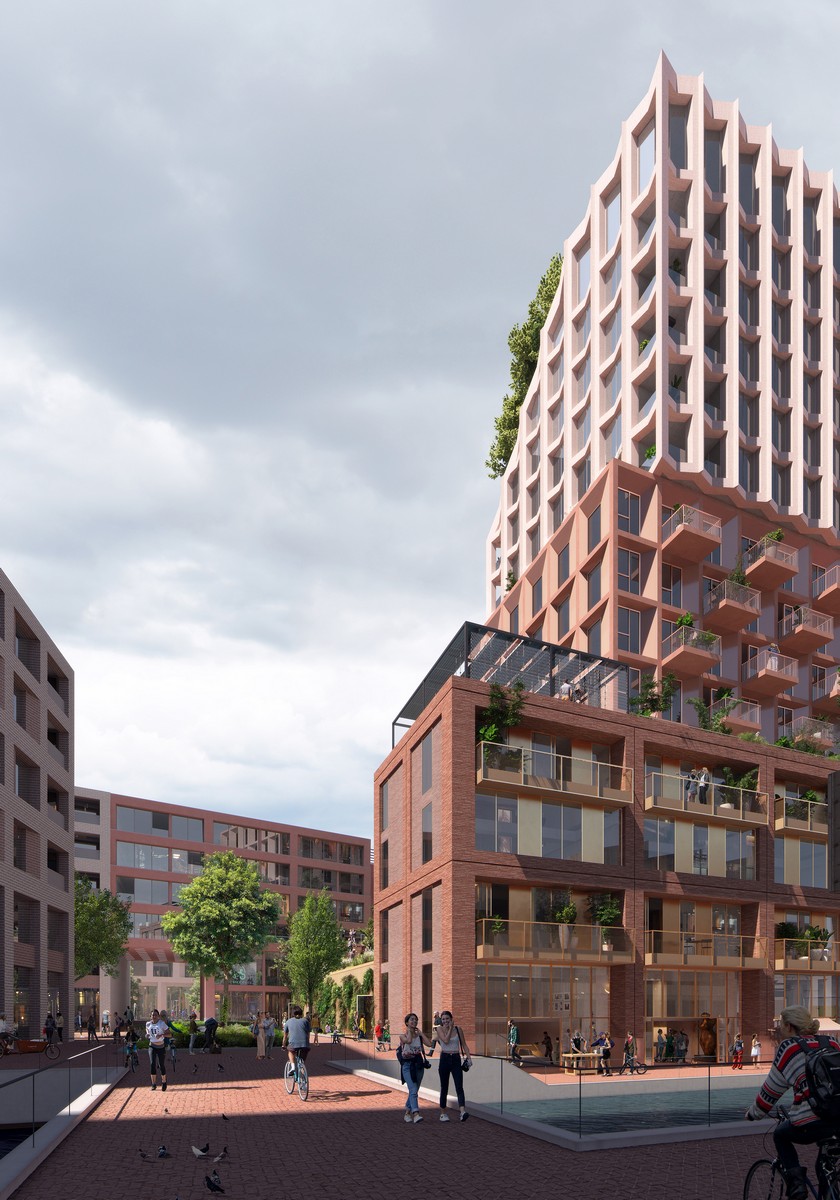

The eight blocks have a richness in circular material use and a variation in form and detailing. The palette of red and white tones and the robustness of the stone-like materials in the facade bring unity to the whole. The blocks house small-scale communities that meet in the many collective indoor and outdoor spaces. The housing program varies per block from compact studios and starter homes to town houses, family maisonettes and luxurious penthouses. Various orientations of the houses towards the street, the square, the quay, the garden or ‘in the clouds’ with a panoramic view over Amsterdam offer additional variation in living quality.

PATCHWORK Sluisbuurt Amsterdam design

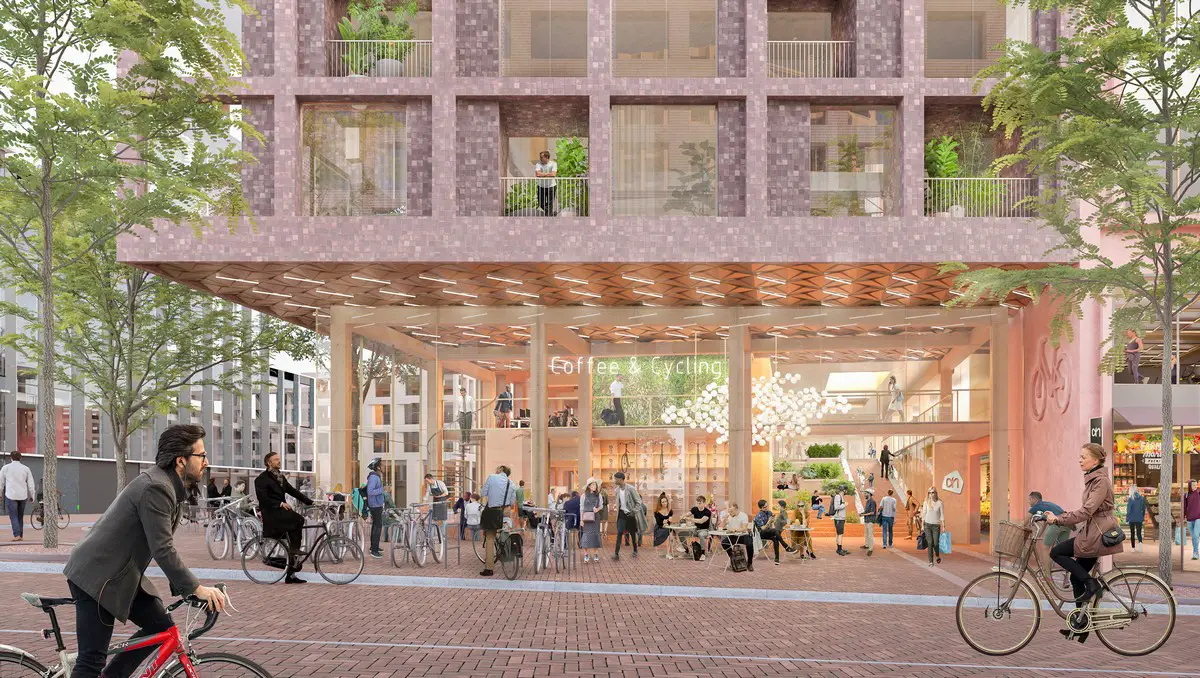

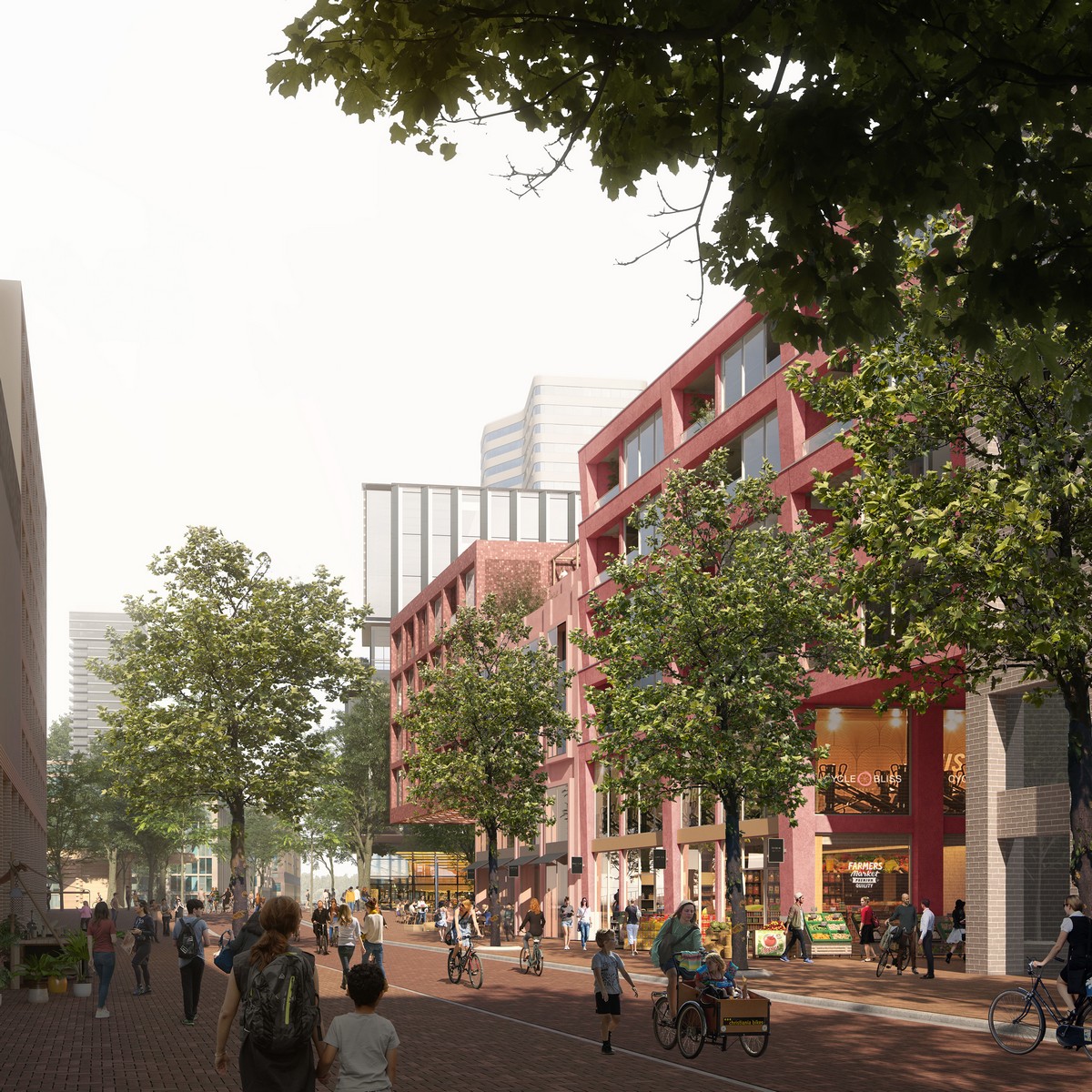

PATCHWORK has a transparent, lively plinth that provides space for the various entrances and small-scale businesses and functions, such as a cycling café, a neighbourhood deli, co-working spaces, a SuperSupermarket, food stalls, a bakery, and a gym. This activates the street life around the block and connects with the lively and healthy area in which walking and cycling take a central position.

Caro van de Venne, partner Barcode Architects:

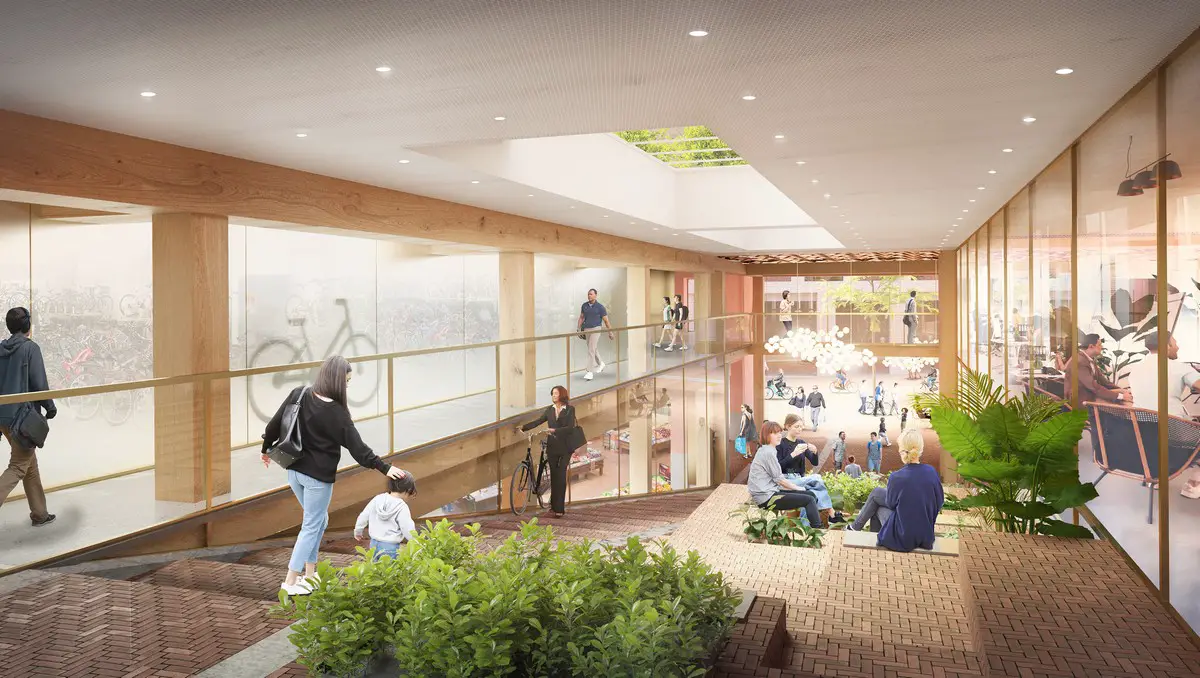

“The Red Carpet – the internal extension of the adjacent public street – is the building’s eye-catcher. Along the Red Carpet, you can cycle from the cycling café on the street past the bike gym in the core deeper into the building. The central Bicycle Heart on level 1 is PATCHWORK’s pivot.”

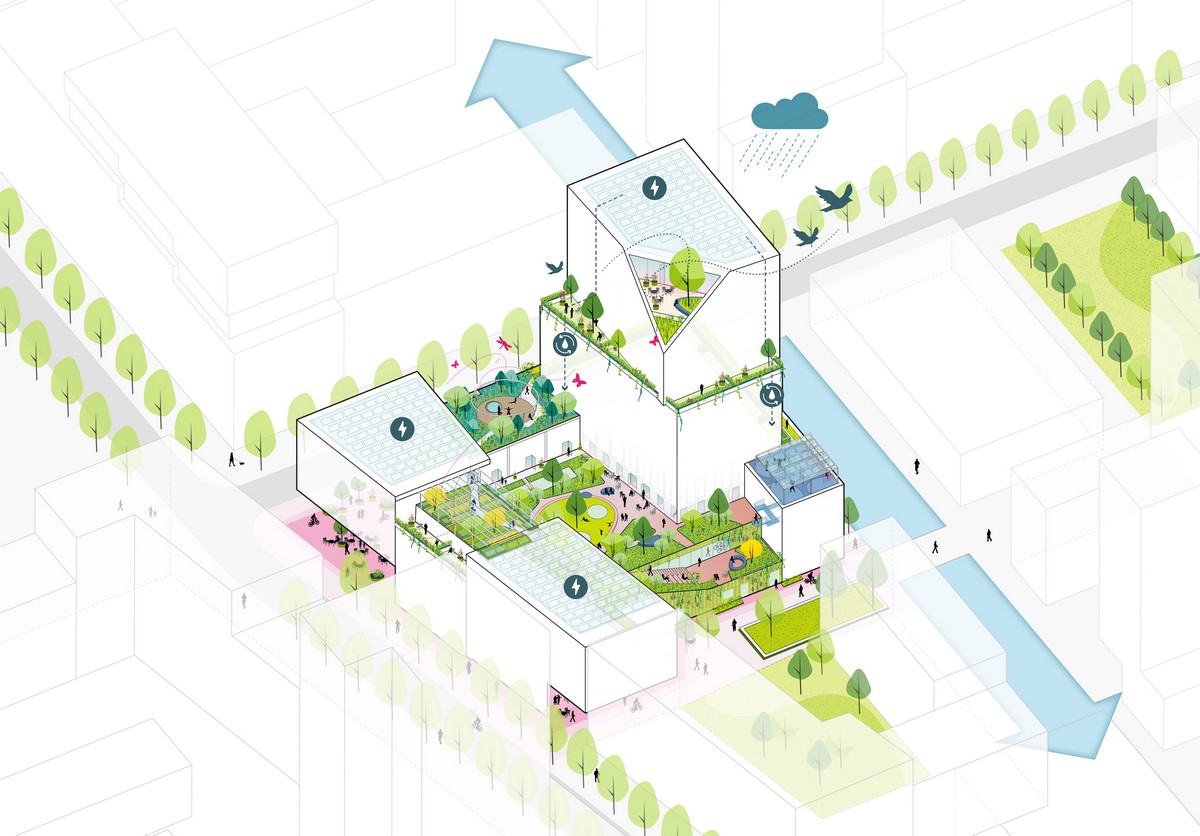

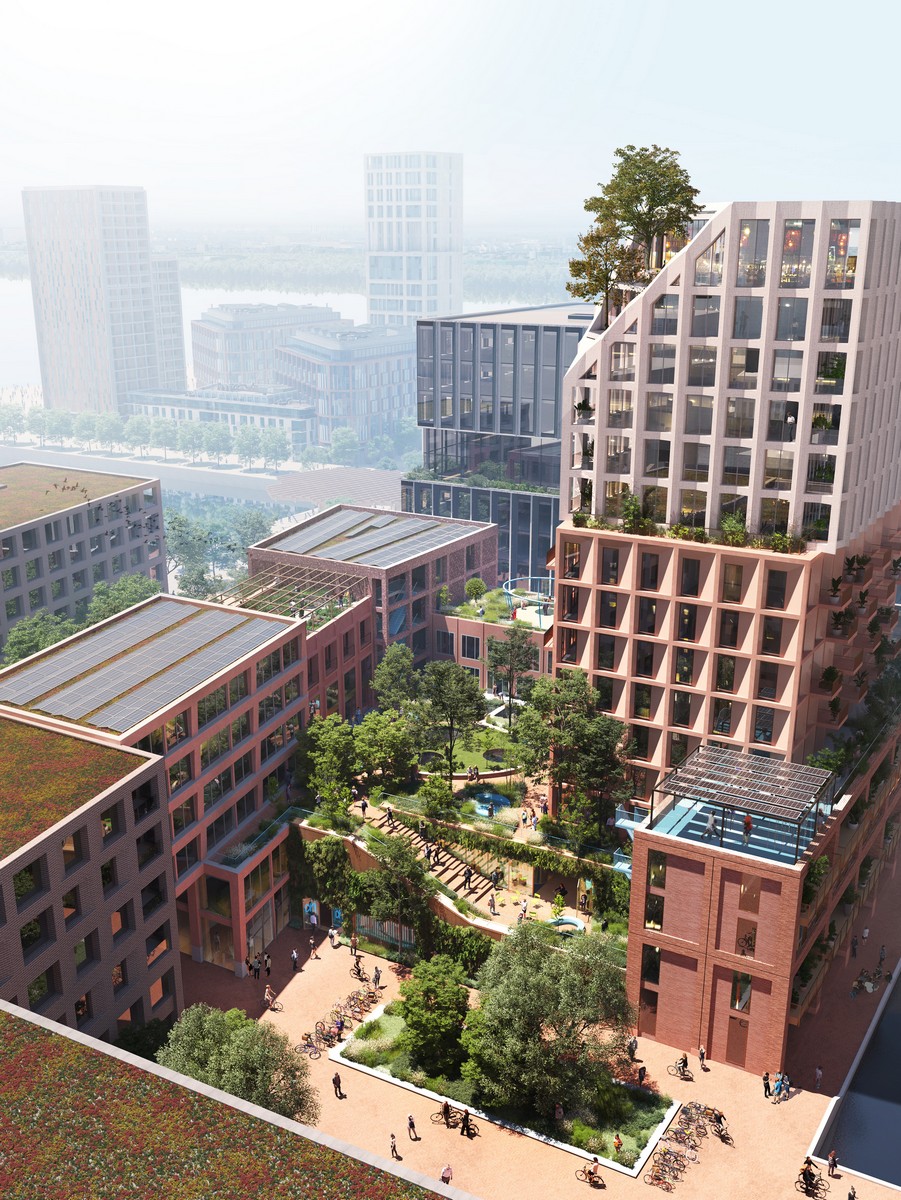

On top of the blocks, a sequence of roof gardens designed by Buro Sant en Co form the building’s green ‘patchwork’. The spaces are connected by various elements for physical exercise and interaction and are subdivided into the Yoga Garden, the Picking Garden, the Sports Garden, the Sky Garden, the central Meeting Garden with the adjacent, collectively accessible Garden Room, and the Entrance Garden. This sequence of indoor gardens and roof landscapes with nature-inclusive planting and nesting areas integrated into the architecture strengthens local biodiversity and reduces heat stress and water nuisance.

Sluisbuurt Amsterdam building design by Barcode Architects / krft

The top floors of the highest block house the Roof Room, which can accommodate different commercial functions depending on future needs. The raised ceiling and floor-to-ceiling windows offer a spatial experience with spectacular views of Amsterdam.

In both its program and appearance, PATCHWORK emphasises healthy living and a negative CO2 footprint. The wooden skeleton structure is remountable and ensures a separation between support and installation that provides for adaptability in the future.

In addition to the plenty of use of wood in the construction and in the façade design, bio-based cladding and bricks produced from residual flows were used. The design limits the energy demand with smart passive measures and a high-quality insulated shell. Solar panels, on the roofs, but also integrated in the façade in a high-quality manner, generate a significant amount of energy. With a BENG 2 rating of -0.32, the building is energy-saving.

PATCHWORK Sluisbuurt Amsterdam architecture design

Oscar Vos, partner krft:
“Thanks to the open and robust structure, we managed to design a building that can withstand multiple lifetimes. And in wood, the ultimate circular material. In this way, PATCHWORK is making an important contribution to the ambition of the City of Amsterdam to achieve a serious CO2 reduction through wooden housing.”

With its highly diverse architectural appearance and a rich program, PATCHWORK is a miniature city in the future Sluisbuurt. The building sets the tone for the development of a sustainable and lively new urban district in Amsterdam.

PATCHWORK Sluisbuurt Amsterdam architectural design

Sluishuis in IJburg – Building Information

Location: Sluisbuurt, Amsterdam, The Netherlands
Program: Residential, roof gardens, bicycle heart, commercial space, parking facility
Client: ABC Planontwikkeling
Year: 2020-ongoing
Status: Competition, first prize
Size: 19.000m2
Collaborators:
krft (partner architect), EarthY (investor), Fakton Capital (project management), Buro Sant en Co (landscape design), DGMR (sustainability advisor), Horeca Development (commercial program advisor), Proloog (visualization)
