John Spoor Broome Library, Ventura County Building, Camarillo Project Photos, US Design Image

John Spoor Broome Library

California State University Building, USA design by Foster + Partners Architects, UK

Location: Camarillo, Ventura County, California, USA

Design: Foster & Partners with Gruen Associates

John Spoor Broome Library Camarillo building

Photos by Tim Griffith

post updated 22 Mar 2021 ; Jan 29, 2010

John Spoor Broome Library Building

California/Tuebingen, January 2010. The new library of the Channel Islands California State University offers its students optimal working conditions in natural, glare-free light.

The Channel Islands California State University in Camarillo opened its 23rd campus in 2002. The social and academic heart of the complex is the John Spoor Broome Library which was planned by Foster & Partners Architects and completed in 2008.

John Spoor Broome Library Building John Spoor Broome Library California

The architects’ office had been part of the master plan set up for the university complex as early as 1999. The complex is located on the premises of a former psychiatric clinic. One of the main tasks of the design was to create a connection between the buildings existing from the 1930s and 1950s and the required new buildings. The library plays a central roll here. The constructor wanted a light, open building with an atmosphere conductive to studying.

Open and transparent

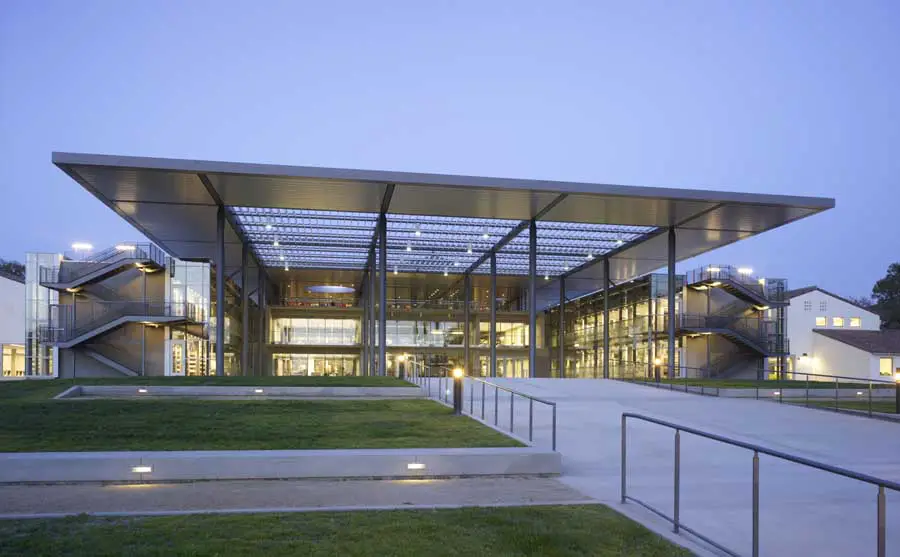

The imposing, two-storey library is located – in a direction axial to the main street of the campus – on the eastern boundaries of the street. The building is very inviting with a glass façade opening to a plaza bounded by the side wings of the new building. The generously projecting roof of the centre section supported by filigree steel columns is exciting: Connected to the other parts of the building solely through a glass band, it seems to be hovering over the plaza. Large parts of the roof consist of glass slabs so there are no shadows on the building.

The floor plan of the library is based on the u-form of the former admissions building. This had been built in the 1950s in the Spanish mission style with yellow plaster typical for California. The new parts of the buildings are grouped in the courtyard of the University. The floor plan of all three wings was expanded by the same width to two storeys. Towards the plaza, a cross-bar of the same depth and height reduces the courtyard and encloses an atrium.

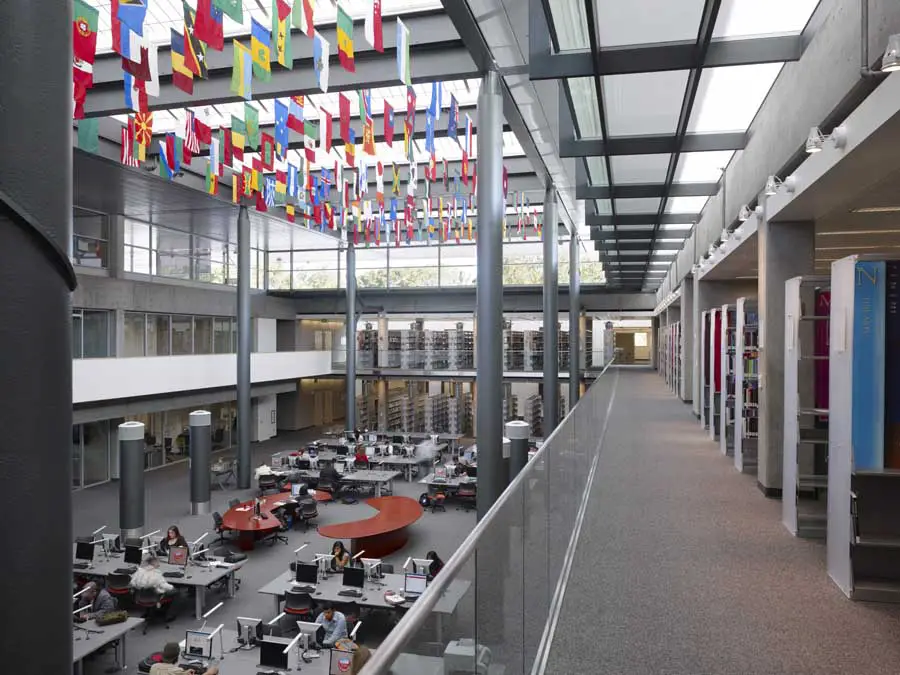

The new areas are wonderfully transparent: Resting on columns, almost without massive walls, they are structured only through shelves of books and glass. Towards the center they open to an atrium flooded with light housing the large reading hall. Here the roof of the plaza, still supported by slim steel columns, continues. The entire area over the atrium consists of glass shed roofs. In addition, natural light enters through a surrounding glass band.

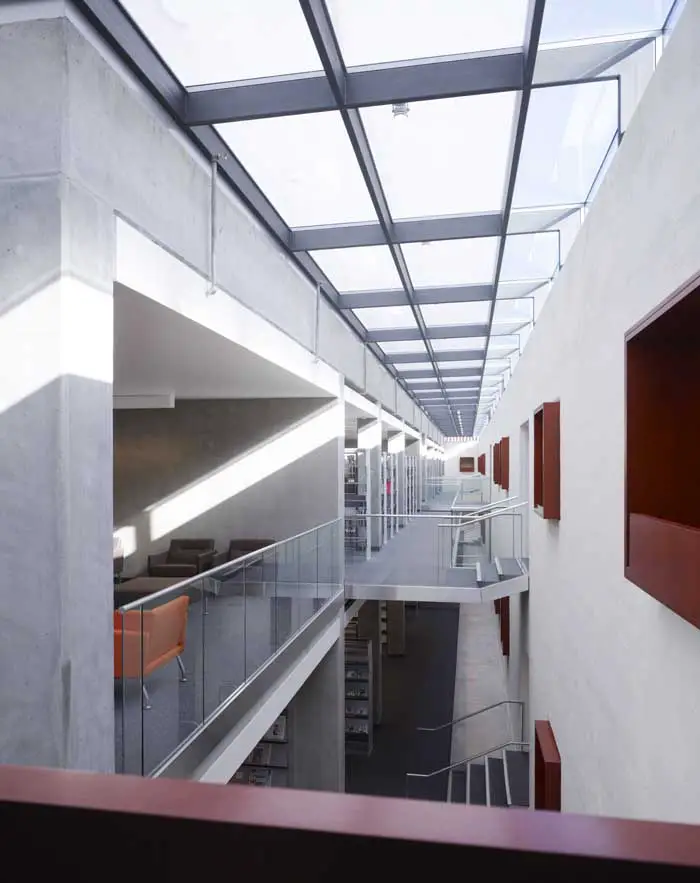

The architects did not make any changes to the closed structure of the old building, in which the classes and study rooms are located. Even the old punched window façade was left and became a part of the new design. In order to make the interface between old and new clear, the windows were accentuated with red frames and the armoured concrete construction erected at a distance of about 2 meters. Small bridges and the glass skylight band in the roof connect the parts of the building.

Channel Islands California State University in Camarillo – Glazing

The architects chose OKALUX, a light-diffusing insulating glass from OKALUX for both the skylight bands and the shed roofs. This glass ensures even and glare-free natural lighting which, for reading purposes, is definitely preferable to artificial light. Natural light is diffused deeply into the room through capillary -slabs in the cavities of the pane.

All of the areas of the library which border the atrium are thus optimally provided with natural light. This not only creates a comfortable atmosphere, it allows for large savings as far as artificial lighting is concerned. At the same time, the books are protected from direct sun rays. Furthermore, OKALUX insulating glass offers great thermic sun protection – especially important under the California sun.

The John Spoor Broome Library was rewarded with the Design Award of the California Construction Magazine for its outstanding architecture in 2008. The jury especially appreciated the sensitivity with which the existing buildings were handled and the energy savings through the large amount of natural light.

John Spoor Broome Library – Building Information

Project: John Spoor Broome Library, Channel Islands, Camarillo, USA
Client: California State University, Channel Islands, Camarillo, USA
Architect (Design) Foster & Partners, London, UK
Architect (Construction) Gruen Associates, Los Angeles, USA
Glass OKALUX from OKALUX GmbH, Marktheidenfeld, Germany

John Spoor Broome Library Photographs: Tim Griffith

Reading and studying in natural light
Light diffusing insulating glass from OKALUX

Library building designs

John Spoor Broome Library design : Foster + Partners

John Spoor Broome Library images / information received 280110

Location: Camarillo, Ventura County, California, United States of America
