Durban Stadium: Moses Mabhida Arena

Durban Stadium, Moses Mabhida Arena Building, FIFA World Cup 2010, South Africa

Moses Mabhida Stadium, Durban

South African Sports Venue Building, Location, Capacity

8 Jun 2010

World Cup Stadiums South Africa

There are ten stadiums in the 2010 Soccer World Cup in South Africa

Five of them are new, including this one, the second largest after Soccer City Stadium.

Moses Mabhida Stadium, FIFA World Cup 2010, South Africa

Durban Stadium World Cup 2010 arena building
image © Marcus Bredt, Berlin

Moses Mabhida Stadium, Durban, South Africa

Design: gmp Architekten von Gerkan, Marg und Partner

In its competition brief of 2006, the city of Durban invited designs for a multi-functional stadium for 70,000 to 85,000 spectators that would become an architectural icon and city landmark.

Durban Stadium South Africa Moses Mabhida Stadium Durban Moses Mabhida Stadium Durban Stadium
images © Marcus Bredt, Berlin

Our Ibhola Lethu Consortium won the competition to build the new Durban stadium, and was subsequently responsible for the design and the management of construction. This project group consisted of a total of 32 South African architectural firms plus German partners von Gerkan, Marg and Partners (gmp) as consultant architects and Schlaich, Bergermann und Partner (sbp) as conceptual structural engineers.

Durban Stadium South Africa Durban Stadium Moses Mabhida Stadium Durban Moses Mabhida Stadium
images © Marcus Bredt, Berlin

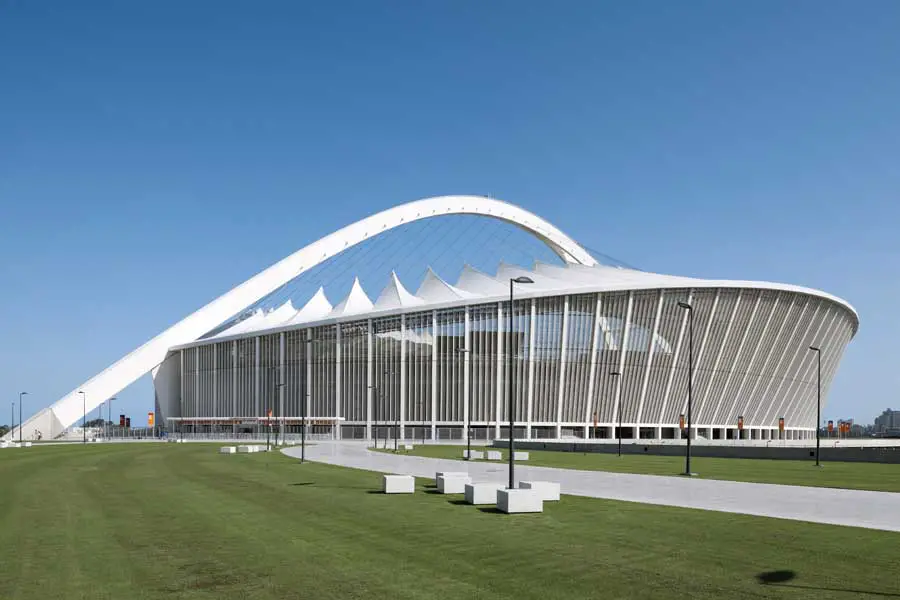

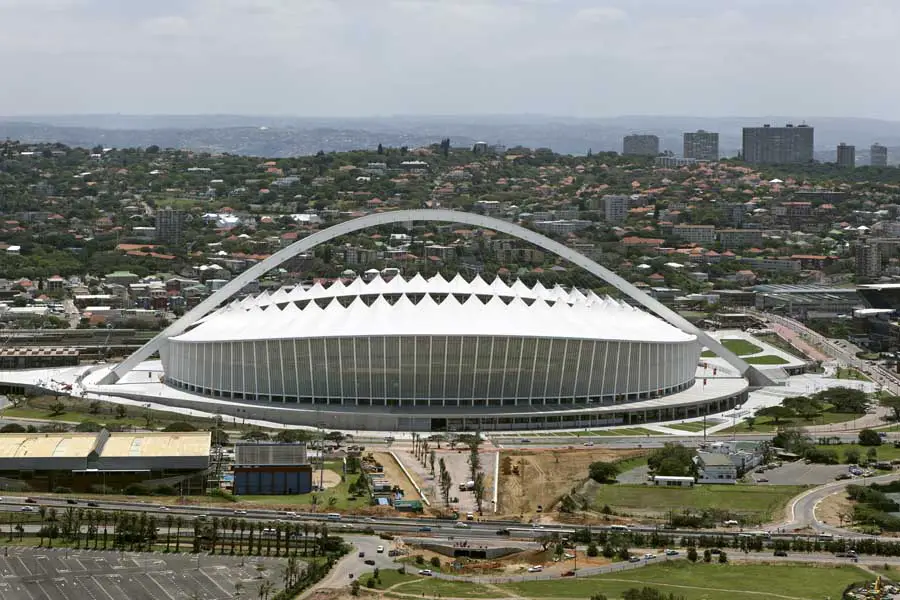

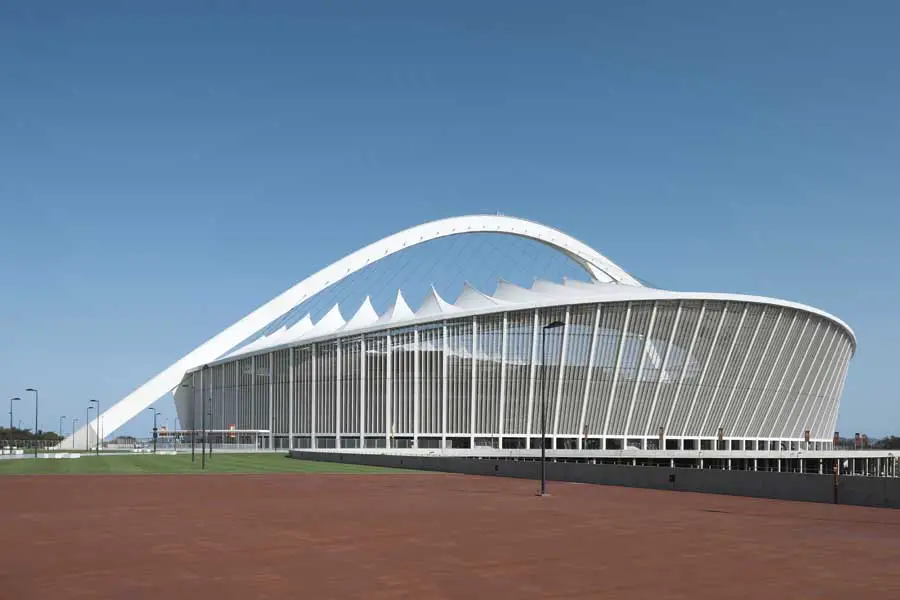

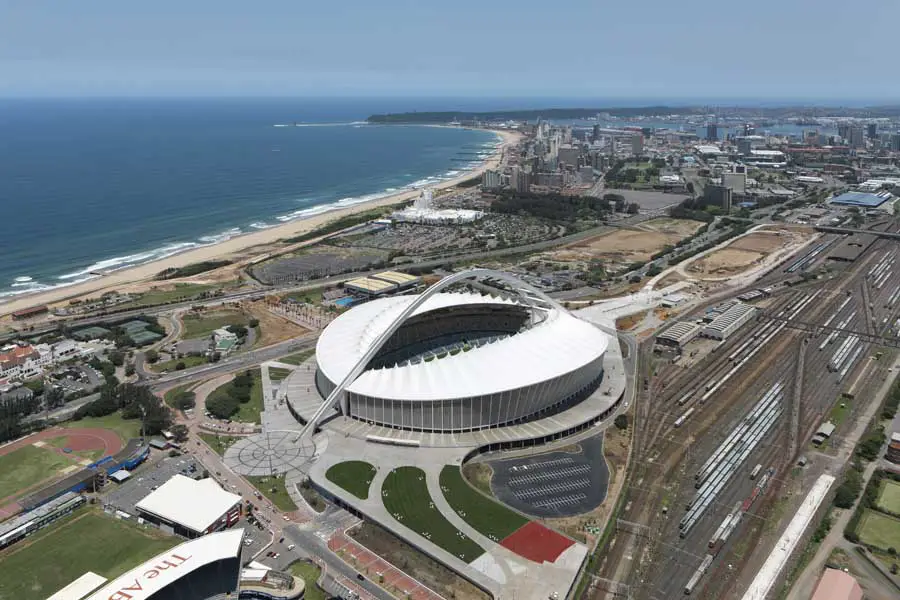

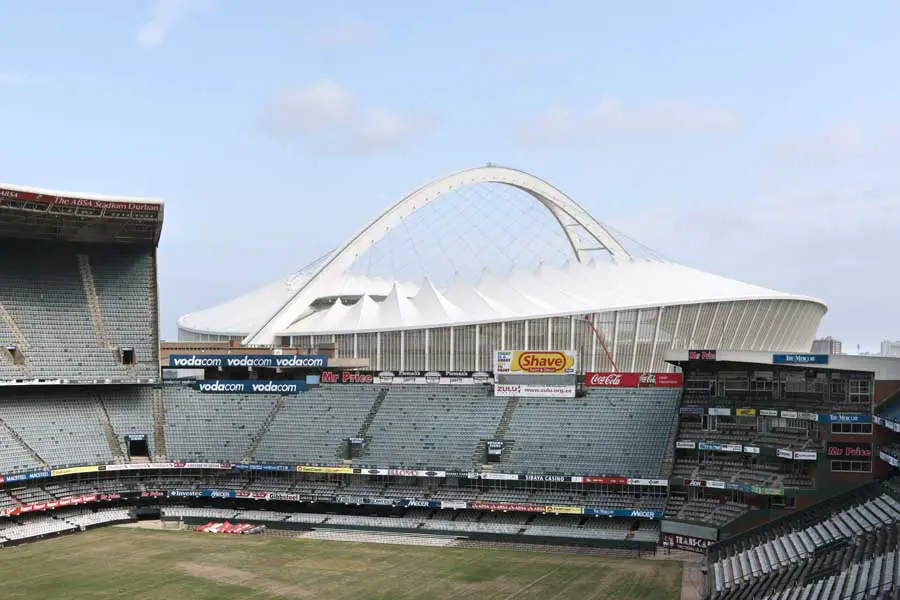

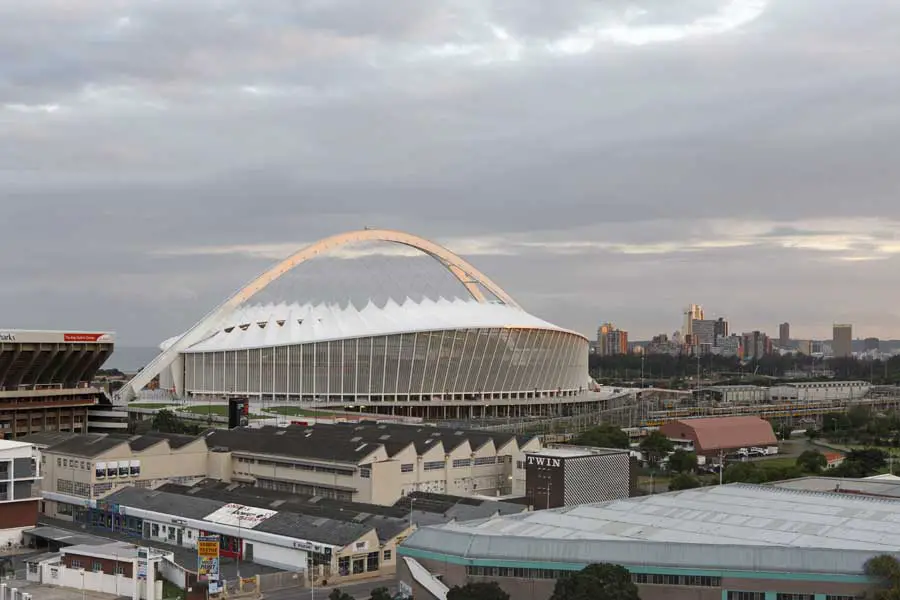

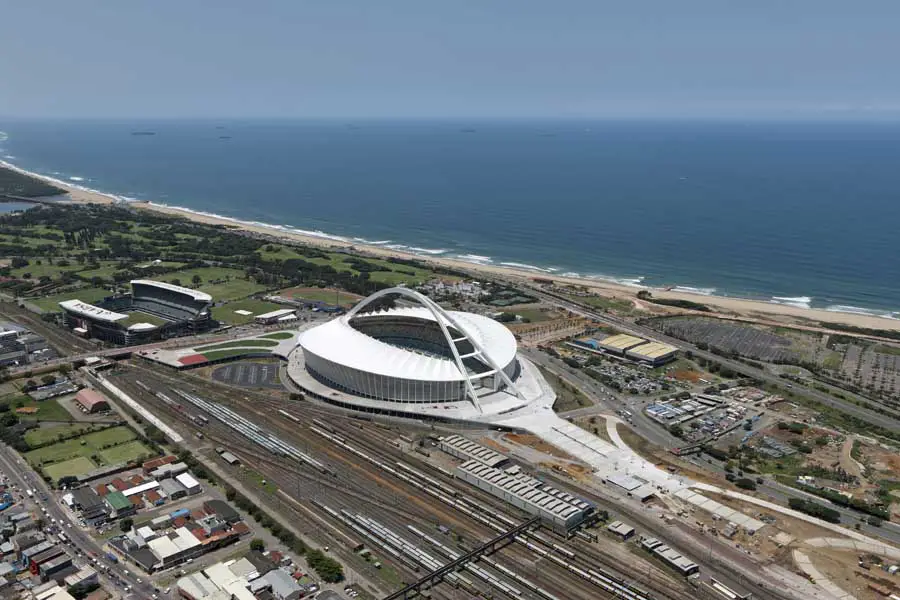

The Moses Mabhida Stadium is situated on an elevated platform in the central sports park on the shore of the Indian Ocean, and is accessed from the city and station via a broad flight of steps. A 105m arch rises high over the stadium as a landmark visible from afar.

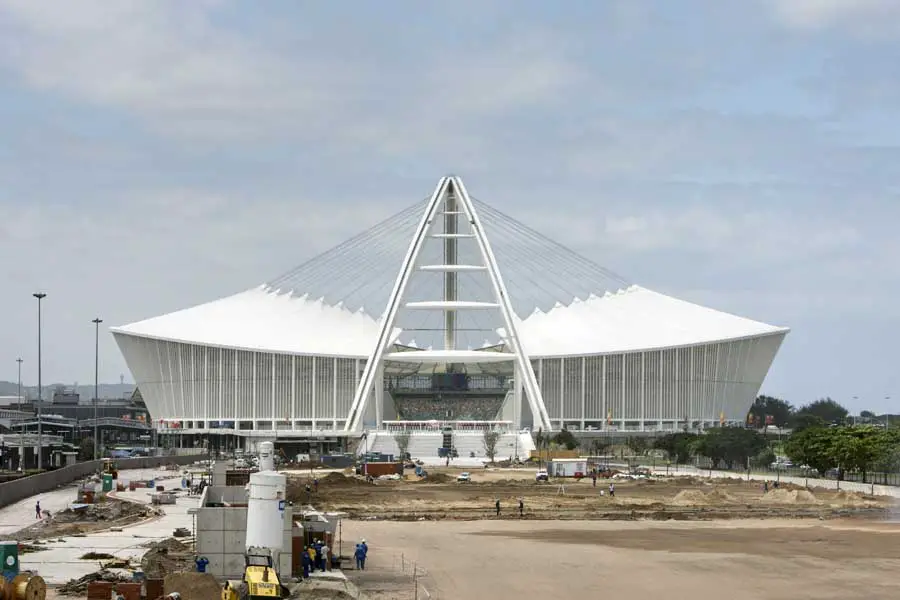

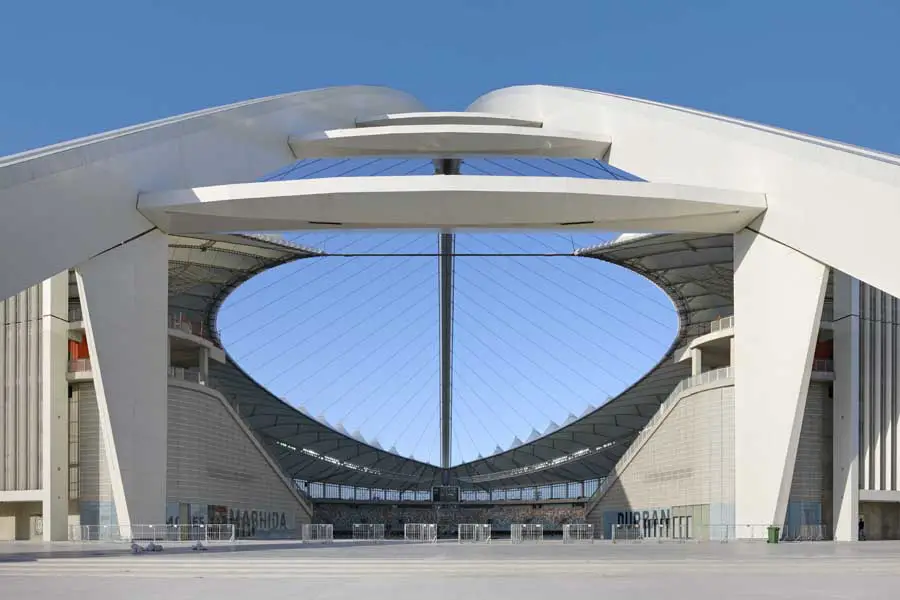

The main entrance at the south end of the 1.5km long linear park symbolizes the stadium’s gateway to the city, and is formed by the bifurcation of the huge arch. At the northern end, a cable car transports visitors to the ‘Skydeck’ at the apex of the arch. From here, you get a panoramic view of the city and the Indian Ocean.

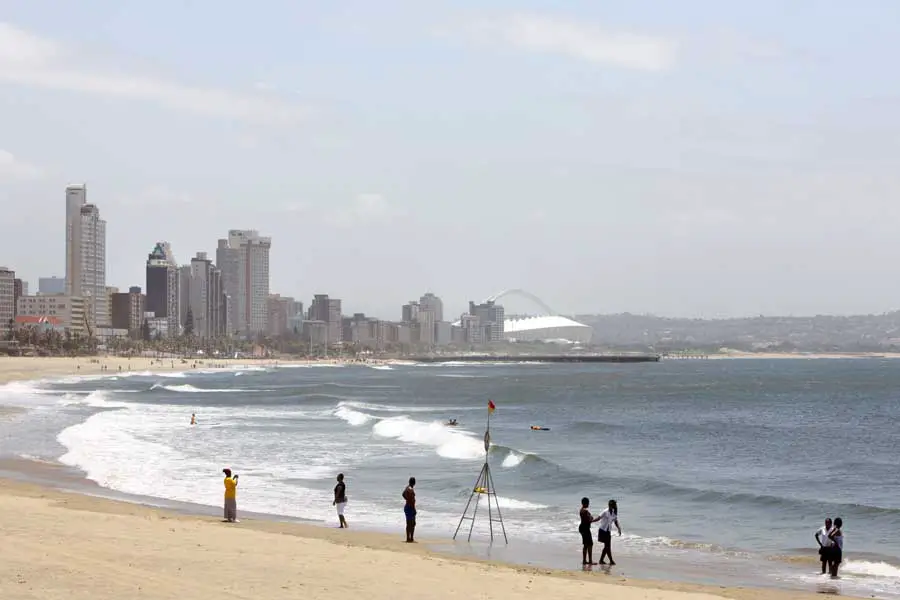

The arch flags the presence of the new stadium, making it an evocative icon on Durban’s urban skyline, interpreted by the multi-ethnic population as a unifying rainbow and, seen from above, a representation of the national flag.

Durban Stadium South Africa Durban Stadium Moses Mabhida Stadium Durban Moses Mabhida Stadium
images © Marcus Bredt, Berlin

For the 2010 World Cup, the stadium will be fitted with seating for 70,000 spectators. Afterwards, the number will be reduced to 56,000, but can be temporarily increased to as many as 85,000 for major events.

The multi-purpose stadium not only meets FIFA requirements but can also host the Commonwealth Games or Olympic Games. The building offers excellent conditions for participants, journalists and spectators, with VIP facilities, the President and Ocean Atriums (both over six stories high), clubrooms and 130 spectator boxes.

Durban Stadium South Africa Durban Stadium Moses Mabhida Stadium Durban Moses Mabhida Stadium
images © Marcus Bredt, Berlin

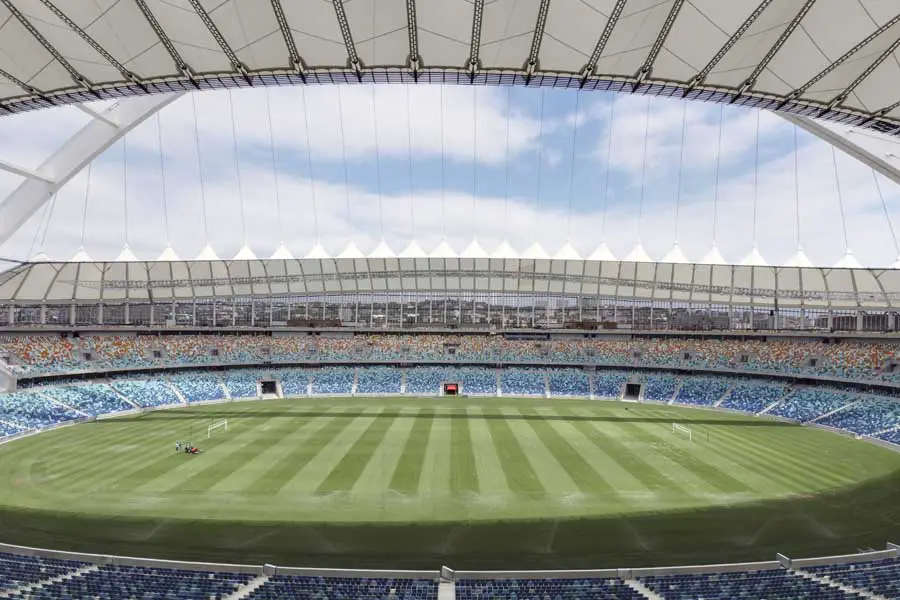

The shape of the bowl results from the interaction of the circular roof structure with the triple-radius geometry of the arena.

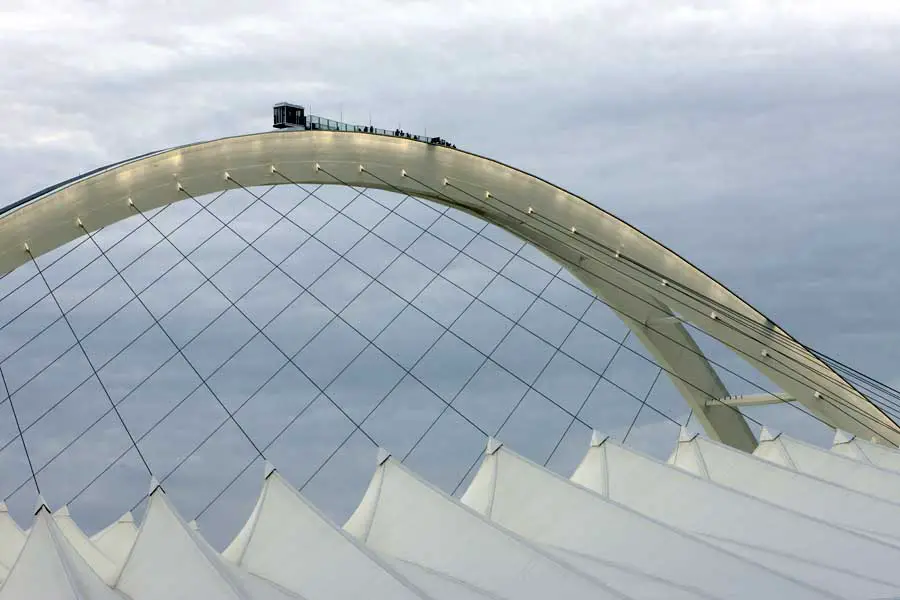

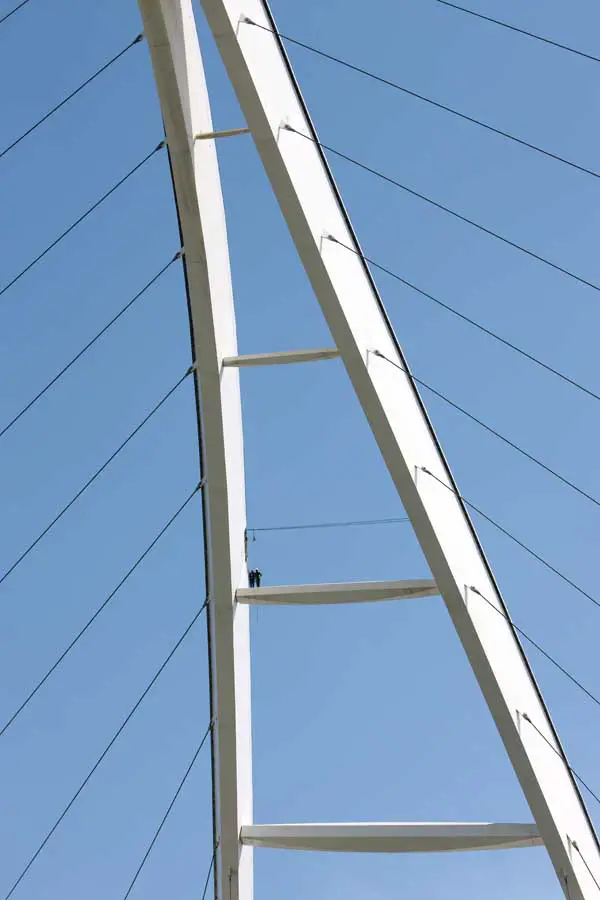

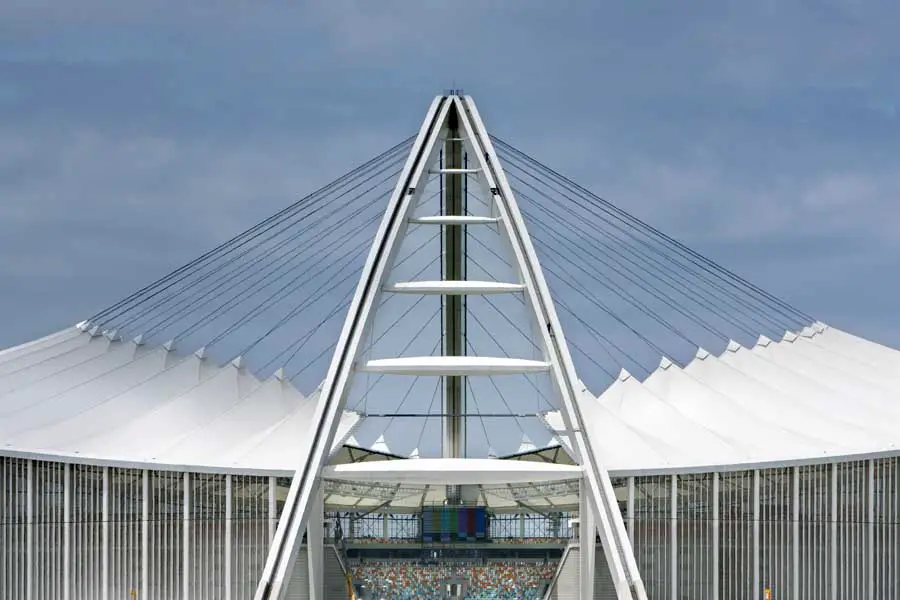

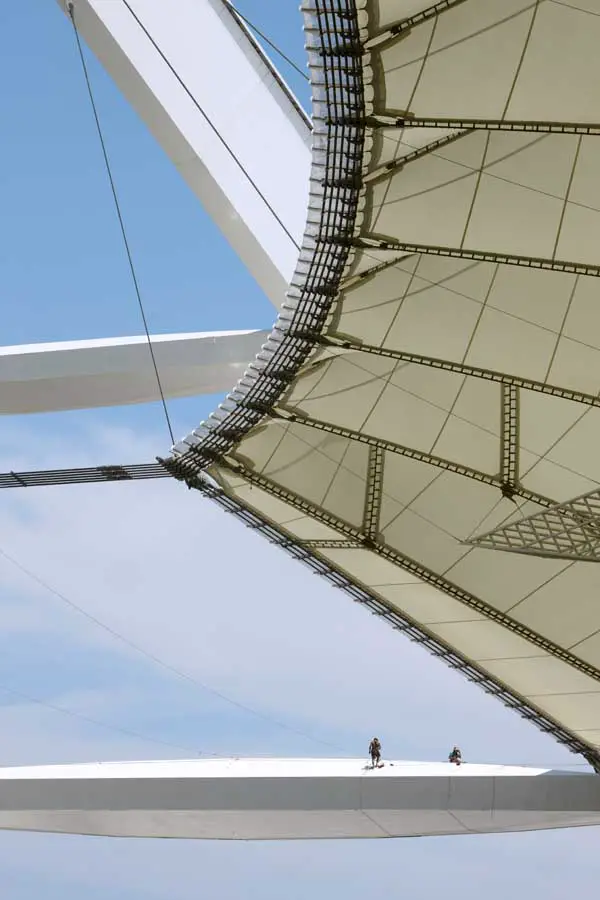

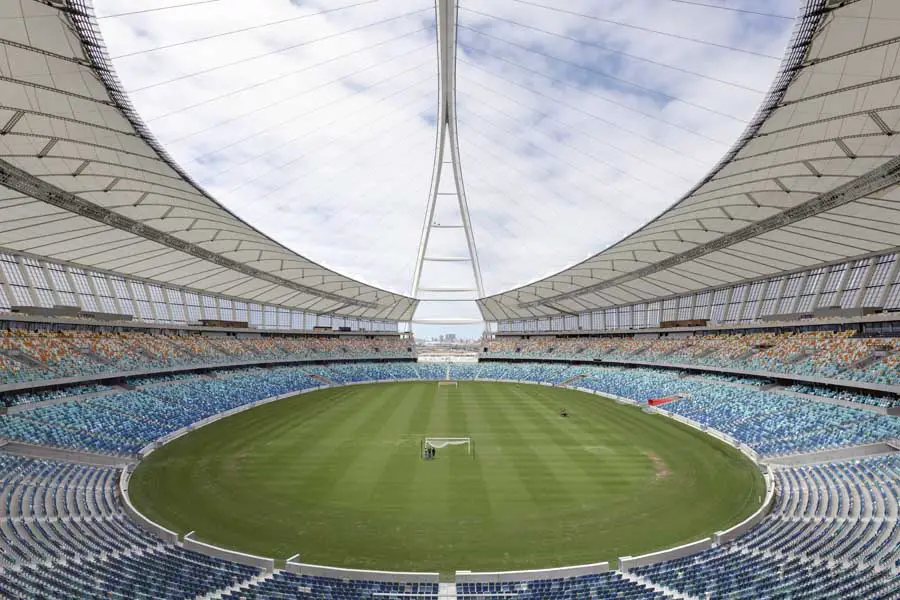

The great arch carries the weight of the inner membrane roof. The unusual geometry of the cable system is derived logically from the structure. Radial prestressing cables are attached to the external edge of the roof all round the stadium and the great arch on one side and the inner edge of the roof on the other, thus forcing the latter into an almond shape. The PTFE-coated roof membrane admits 50% of the sunlight into the arena while also providing shade.

Durban Stadium South Africa Durban Stadium Moses Mabhida Stadium Durban Moses Mabhida Stadium
images © Marcus Bredt, Berlin

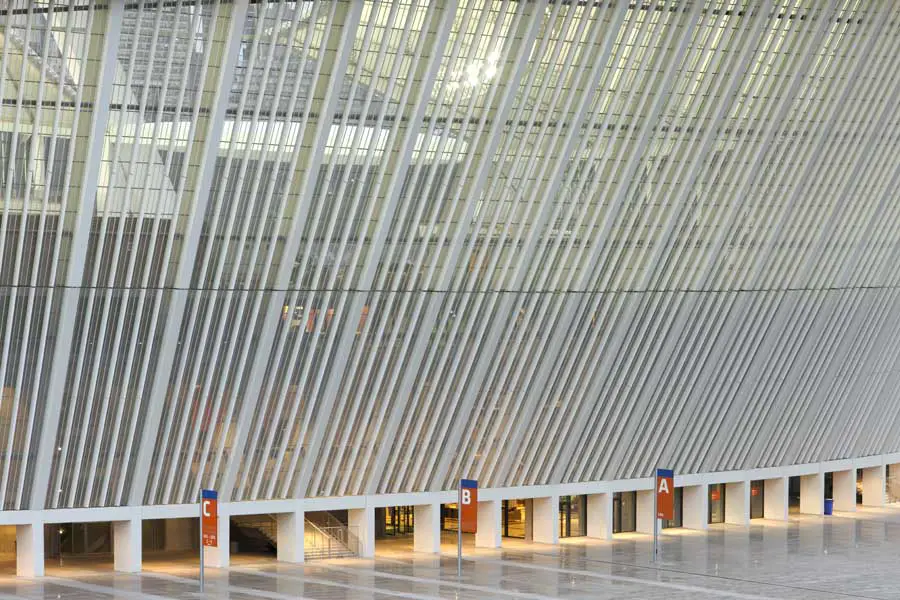

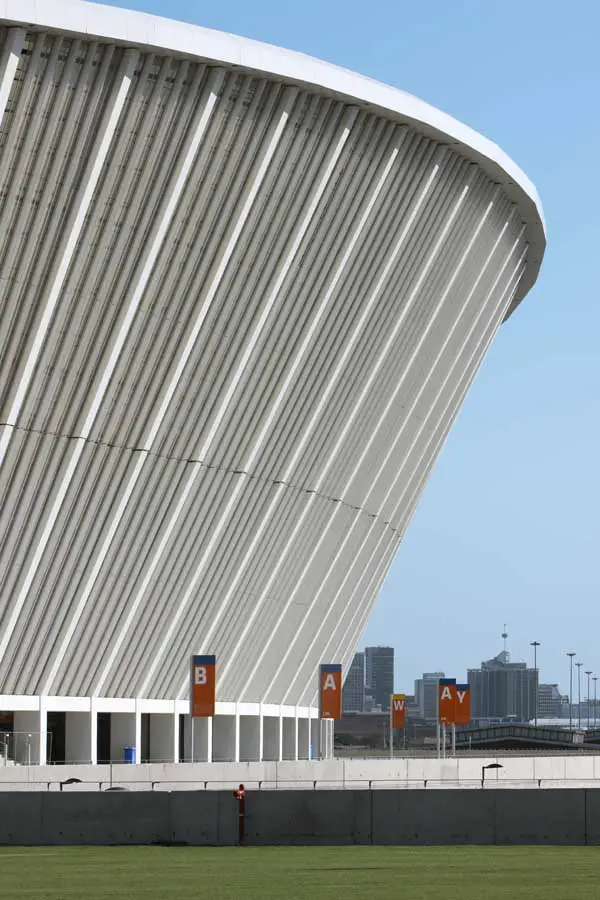

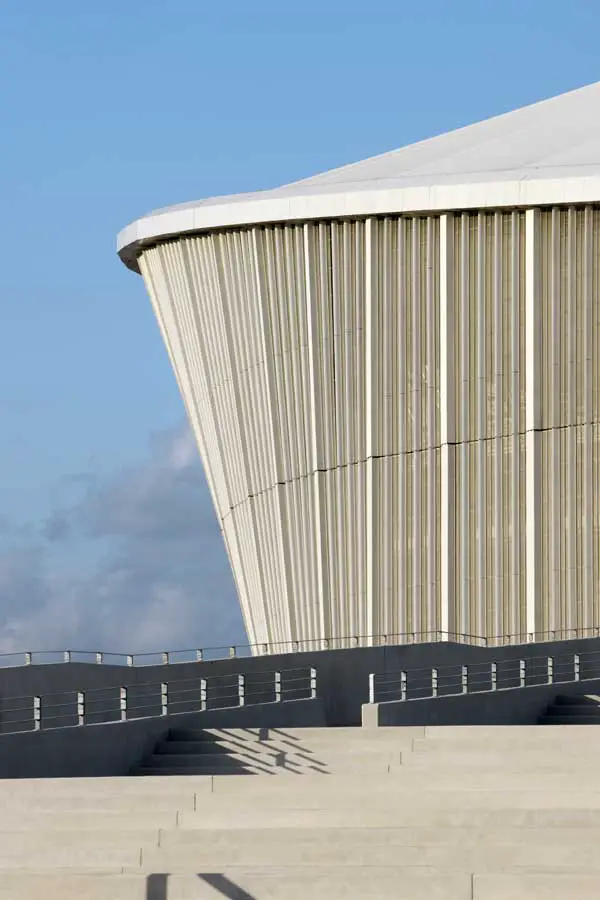

The perforated façade membrane of profiled metal sheeting rises to the outer edge of the roof, forming a lively pattern of light and shadow and offering glimpses of the interior, which lends the stadium a light and airy feel. The compression ring and façade are carried on precast concrete columns below and hollow box steel columns above, the height and angle of inclination varying around the stadium from approx. 30m with a 90° inclination to about 50m with a 60° inclination.

The façade membrane of perforated metal sheeting provides protection against driving rain, strong winds and direct sunlight without excluding the outside world.

Durban Stadium South Africa Durban Stadium Moses Mabhida Stadium Durban Moses Mabhida Stadium
images © Marcus Bredt, Berlin

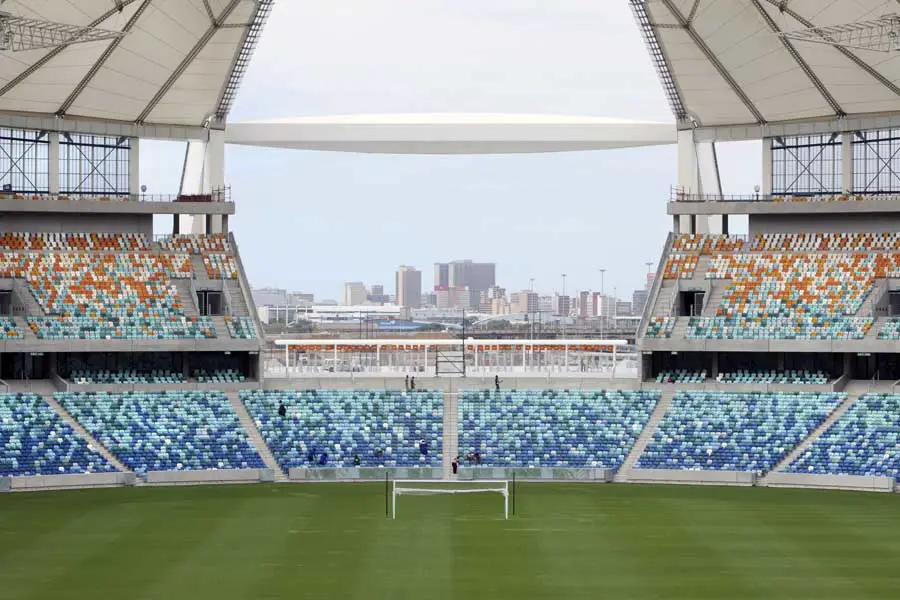

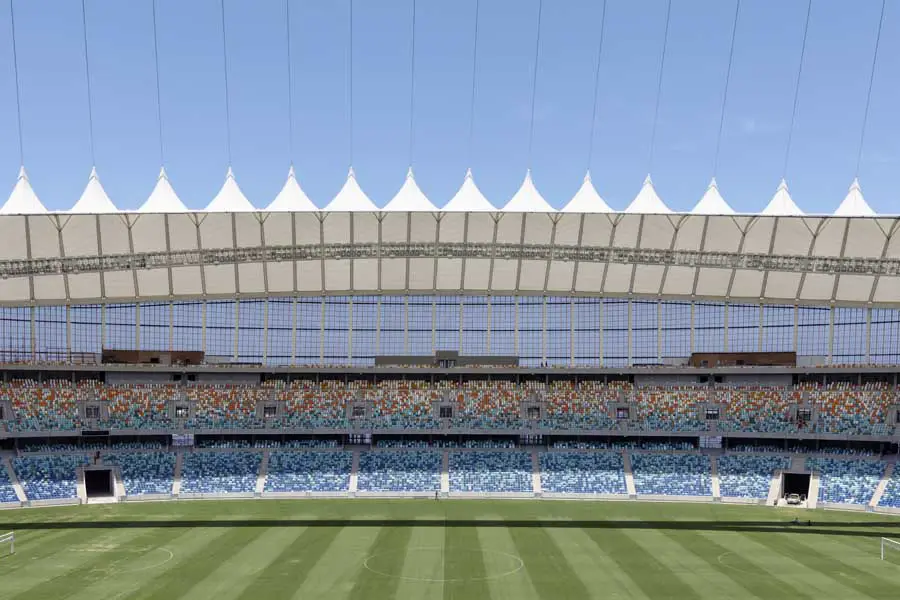

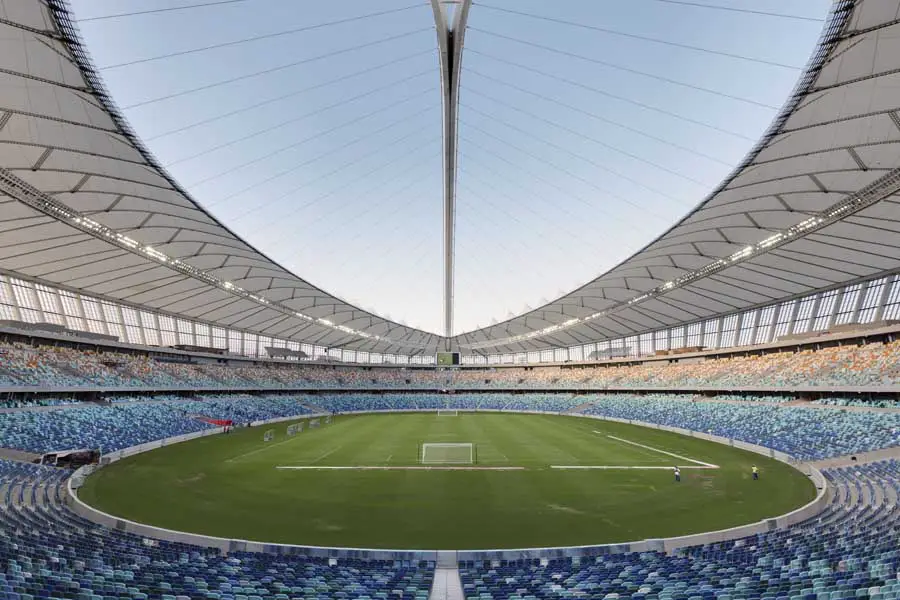

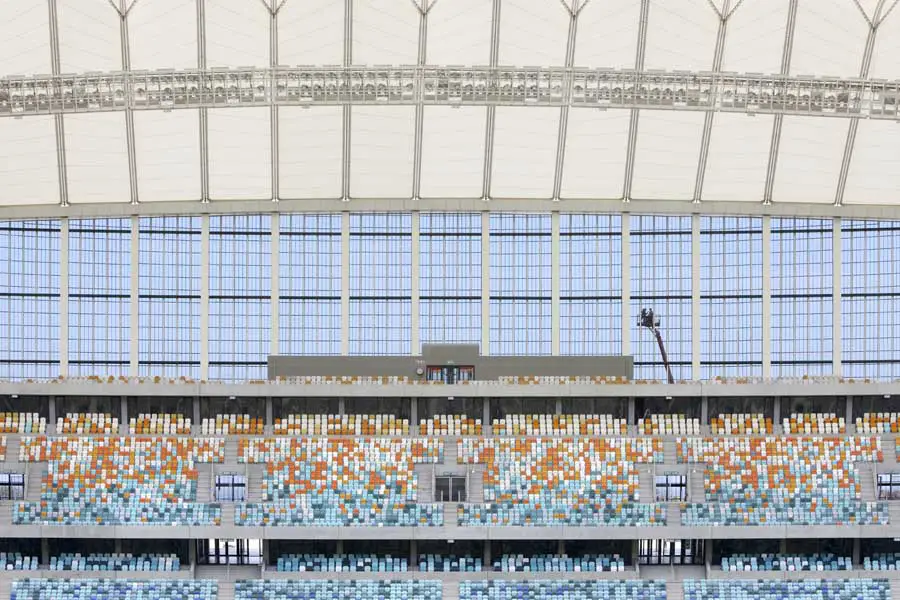

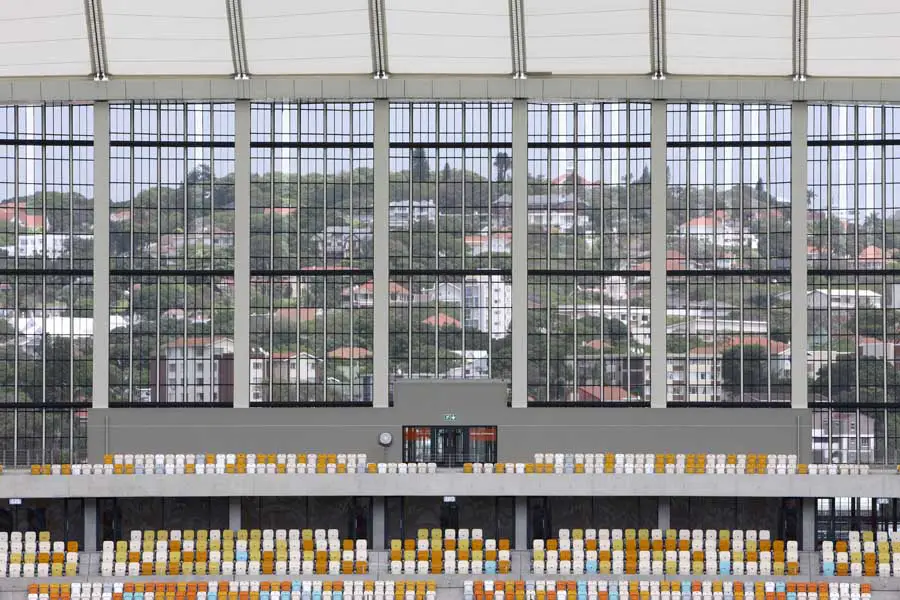

Inspired by the typical palette of colors of Durban’s coastal landscape, we chose a “maritime” color scheme for the seat shells, ranging from blue and green to ivory, paling from dark at the bottom to light on the top rows. From a distance, the empty seats in different colors look already occupied, and make a cheerful sight.

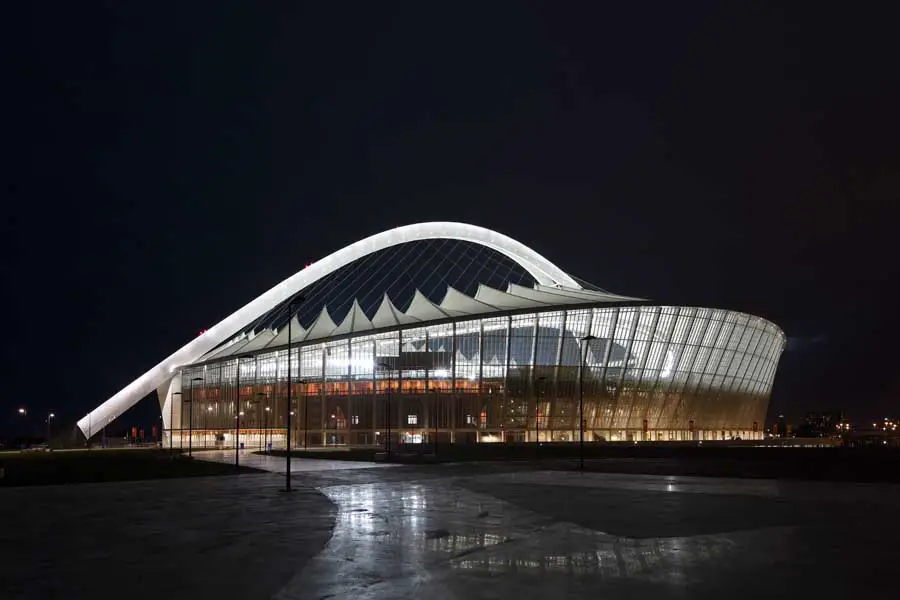

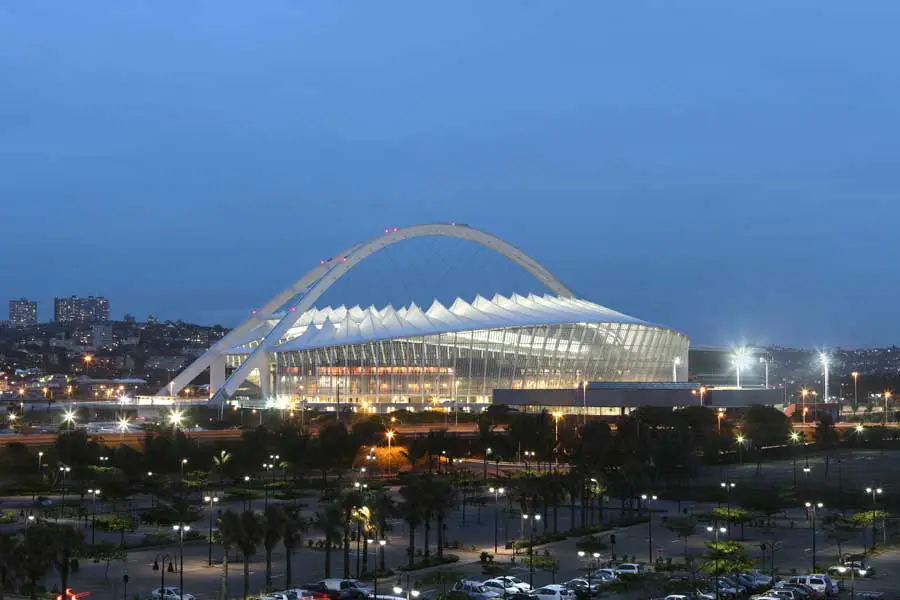

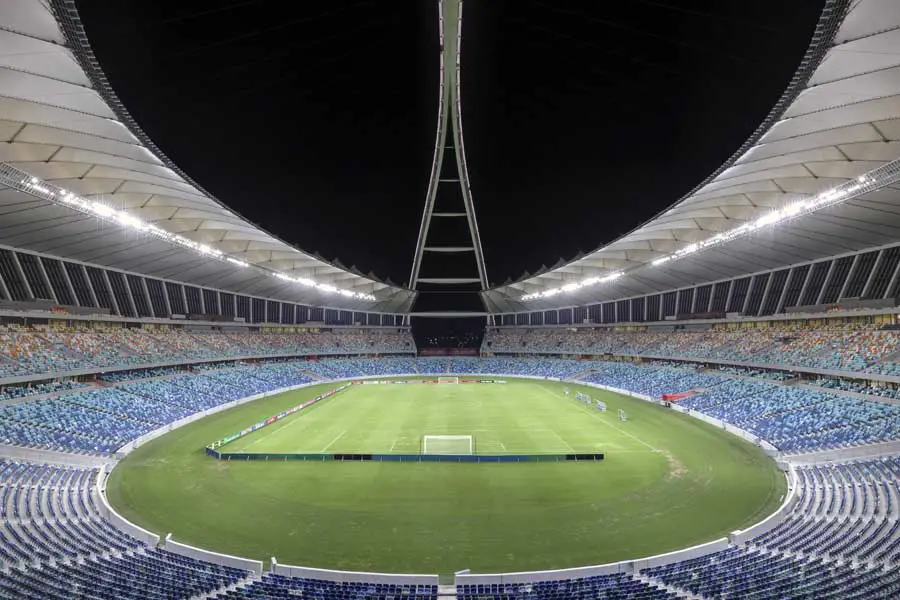

The artificial lighting of the stadium is not just functional, but also serves to illuminate the architecture, floodlighting some parts and spotlighting or highlighting others.

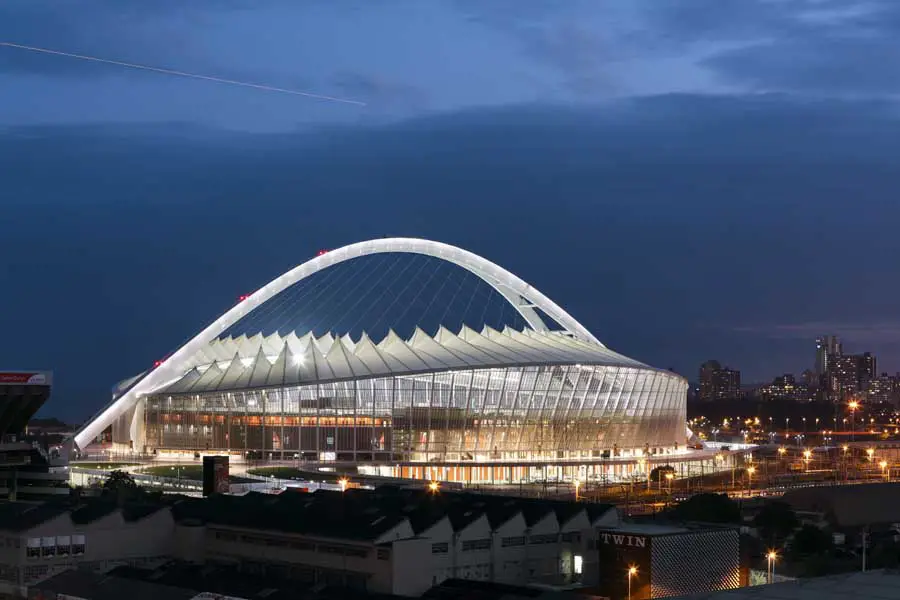

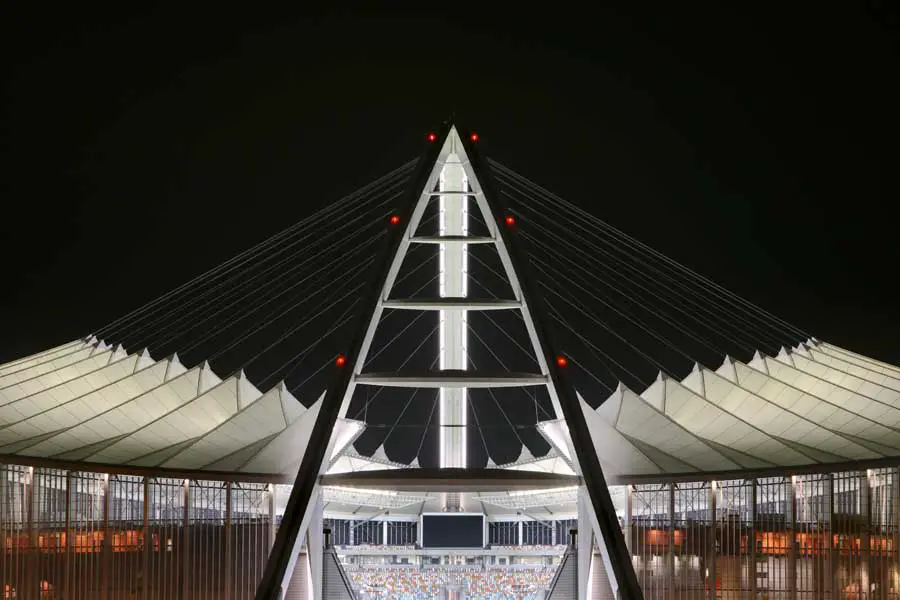

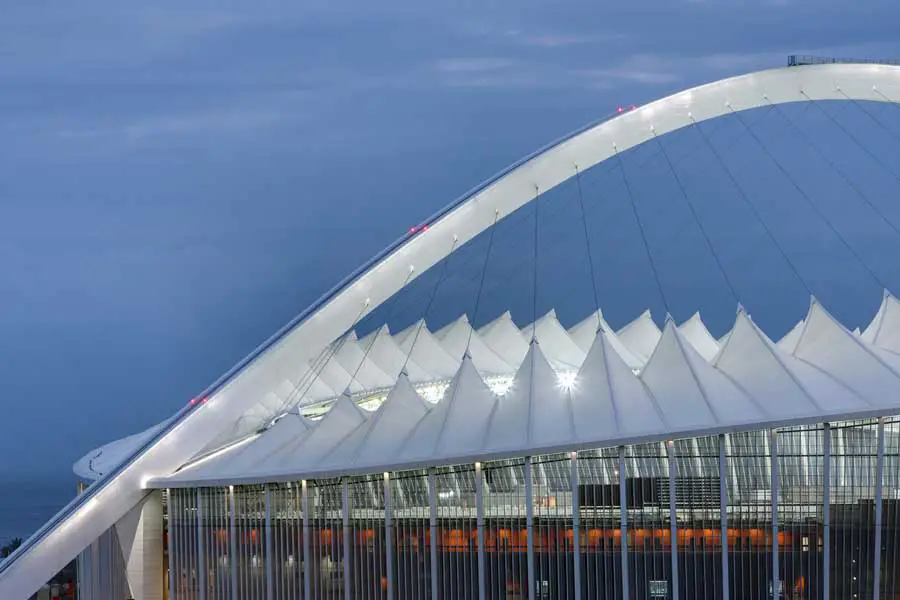

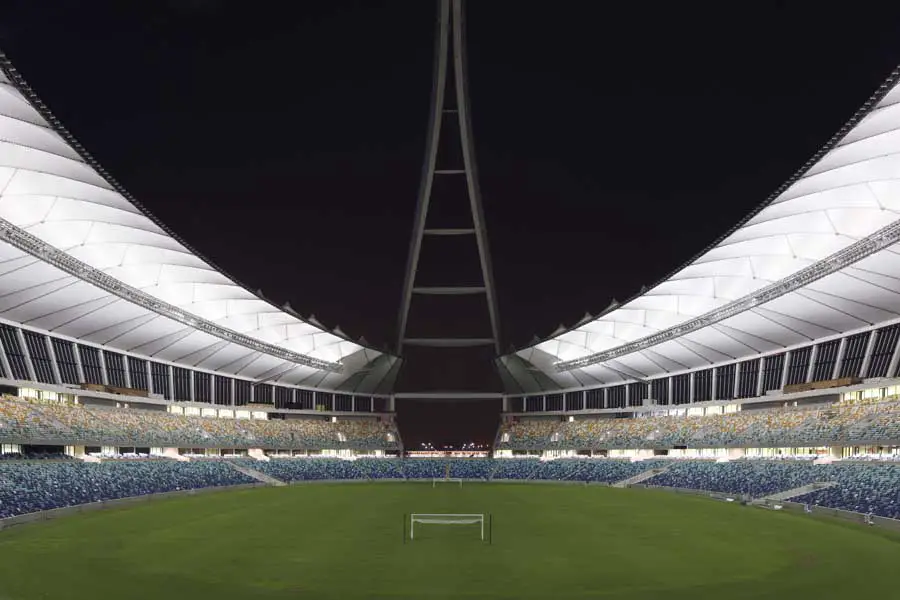

The roof surfaces on either side of the great arch are illuminated on top by a line of LEDs mounted directly on the arch. The rest of the roof membrane is lit from below by floodlights installed on the catwalk. Atmospheric quality and functional efficiency combine to put Durban’s new icon in the right light.

Durban Stadium South Africa Durban Stadium Moses Mabhida Stadium Durban Moses Mabhida Stadium
images © Marcus Bredt, Berlin

Moses Mabhida Stadium Durban – Building Information
Competition: 2006 – 1st prize
Design: Volkwin Marg and Hubert Nienhoff with Holger Betz
Project leaders: Holger Betz (06/2006-09/2007), Burkhard Pick, Elisabeth Menne (09/2007-02/2009)
Staff (design) in alphabetical order: Christian Blank, Alberto Franco Flores, Rüdiger von Helmolt, Jochen Köhn, Martin Krebes, Helge Lezius, Florian Schwarthoff, Kristian Uthe-Spencker
Staff (execution) in alphabetical order: Barbara Düring, Robert Essen, Alberto Franco Flores, Chris Hättasch, Martin Paul, Michèle Rüegg, Susan Türke
Planning consortium with: Ibhola Lethu Consortium, Theunissen Jankowitz Architects, Ambro Afrique Architects, Osmond Lange Architects, NSM Designs, Mthulusi Msimang Architects, SA
Structural concept and design roof: Schlaich Bergermann und Partner – Knut Göppert with Markus Balz
Structural engineering: BKS (Pty) Ltd
Project management: Ibhola Lethu Project Management JV
General contractor: Group Five, WBHO + Pandev JV
Client: Municipality of Durban (eThekwini Municipality), Strategic Projects Unit (SPU)
Construction period: 2006–09
Gross floor area: 92.300 m2
Tiers: 3
Seats: 70.000 for FIFA WC 2010, 56.000 permanent, 85.000 for Olympic mode
VIP seats: 6.090
VIP boxes: 130
VVIP seats: 1.807
Places for wheelchair users: 80
Places for press: 63
Underground parking places for cars: 1.500
Length of the stadium: 290 m
Width of the stadium: 290 m
Length of the arch: 340 m
Highest point of the arch: 105 m
PTFE-membrane panels surface area: 40.000 m²

Durban Stadium South Africa Durban Stadium Moses Mabhida Stadium Durban Moses Mabhida Stadium
images © Marcus Bredt, Berlin
