STATOIL Oslo Offices, Norway : Fornebu Building

Norwegian Offices Architecture – design by a-lab, architects

14 Aug 2016

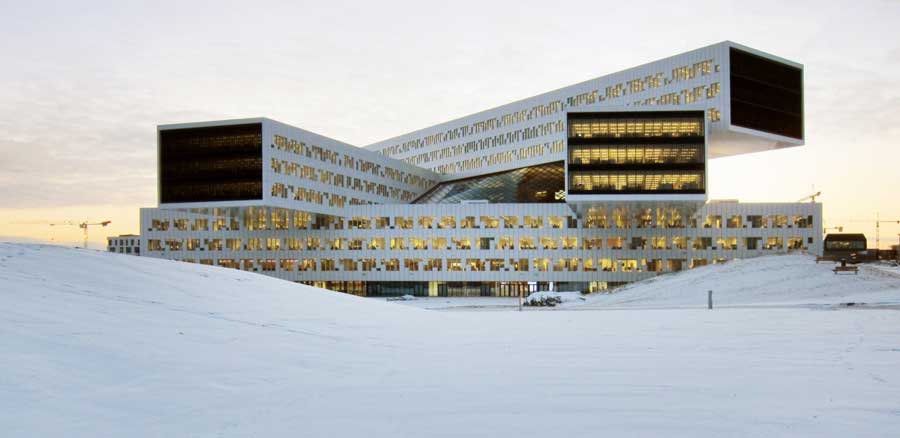

STATOIL Oslo Offices by a-lab is an International Architecture Awards Winner in 2016

International Architecture Awards 2016

7 + 4 Oct 2013 :

WAF Completed Building Office winner

World Architecture Festival Awards

photograph from WAF

This completes the circle, the project won the Future commercial prize at the World Architecture Festival in 2009.

1 Sep 2011

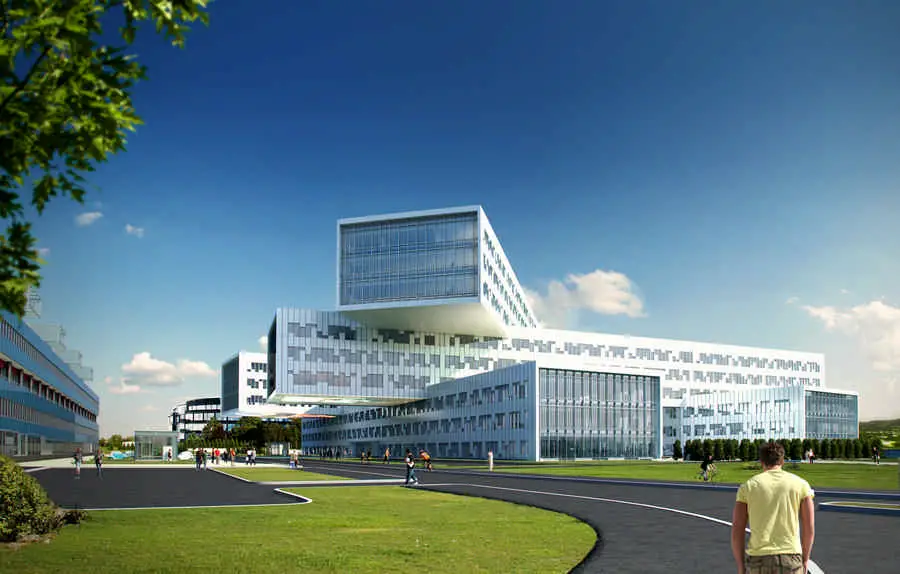

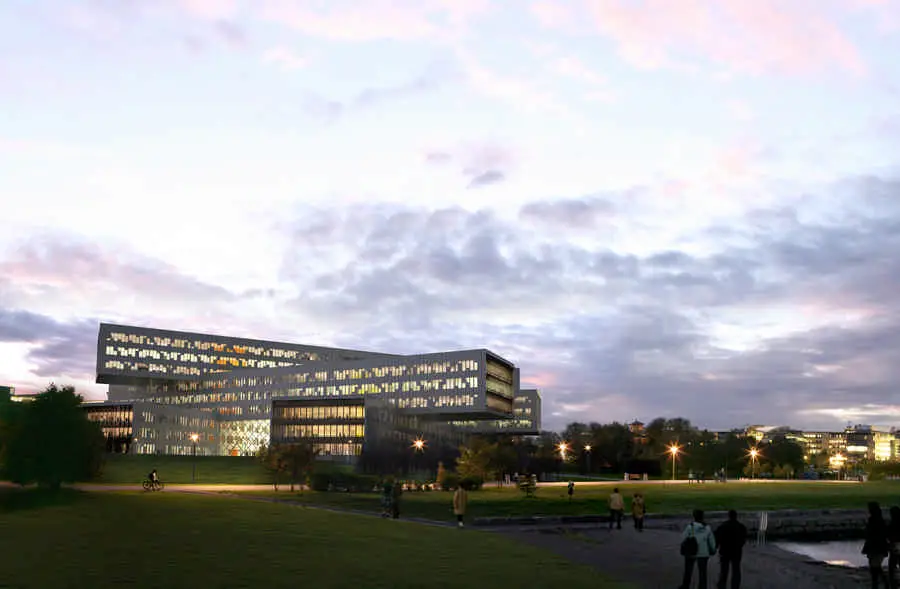

Statoil Oslo Offices

Design: a-lab

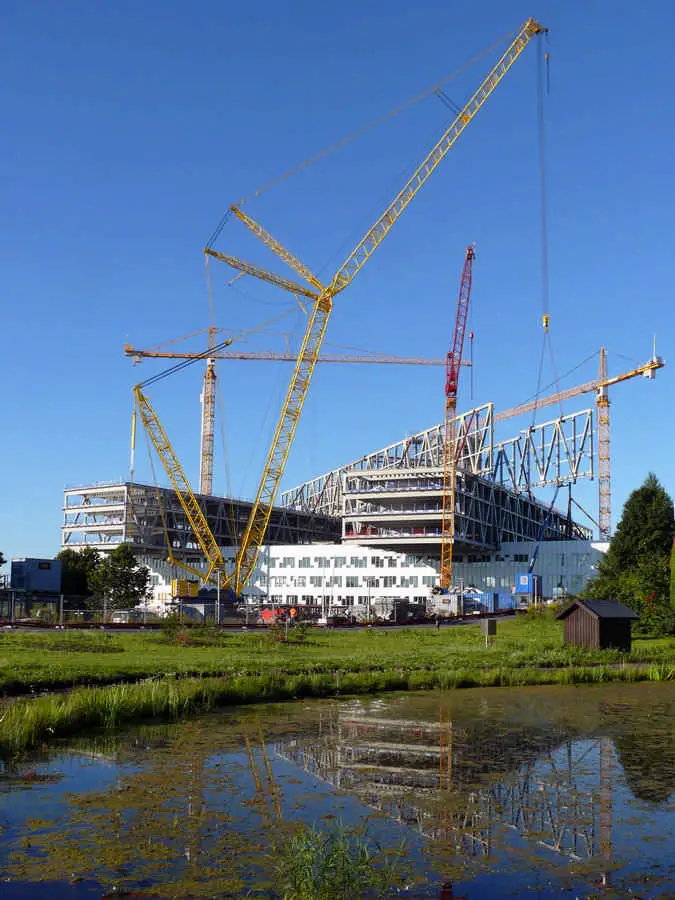

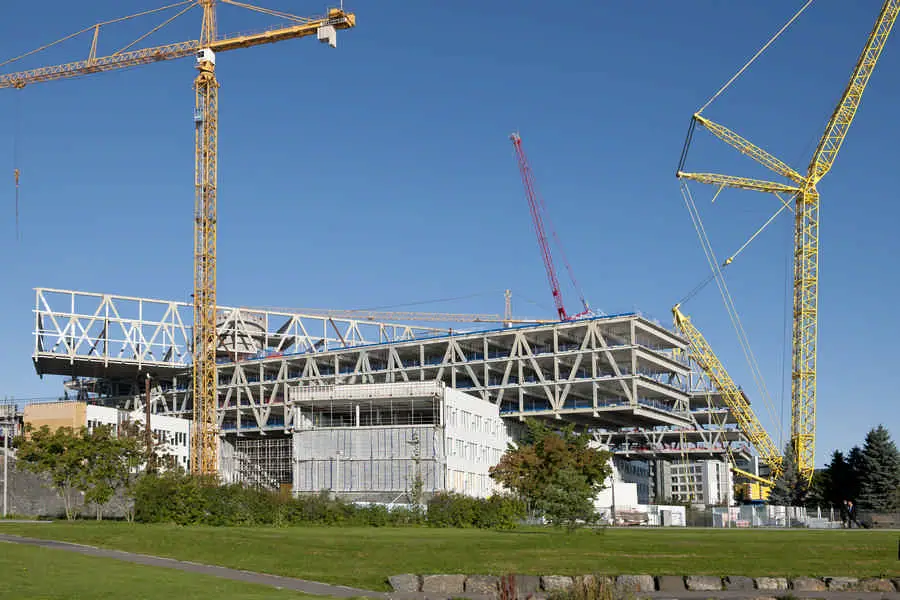

STATOIL Oslo Offices under construction

Construction continues apace on Statoil’s new office at Fornebu, Oslo.

photograph : Luis Fonseca

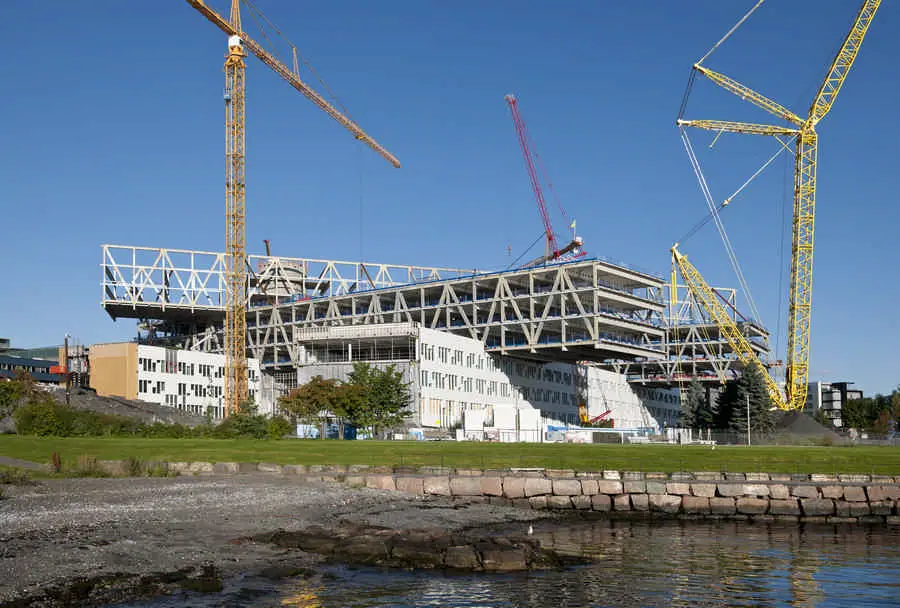

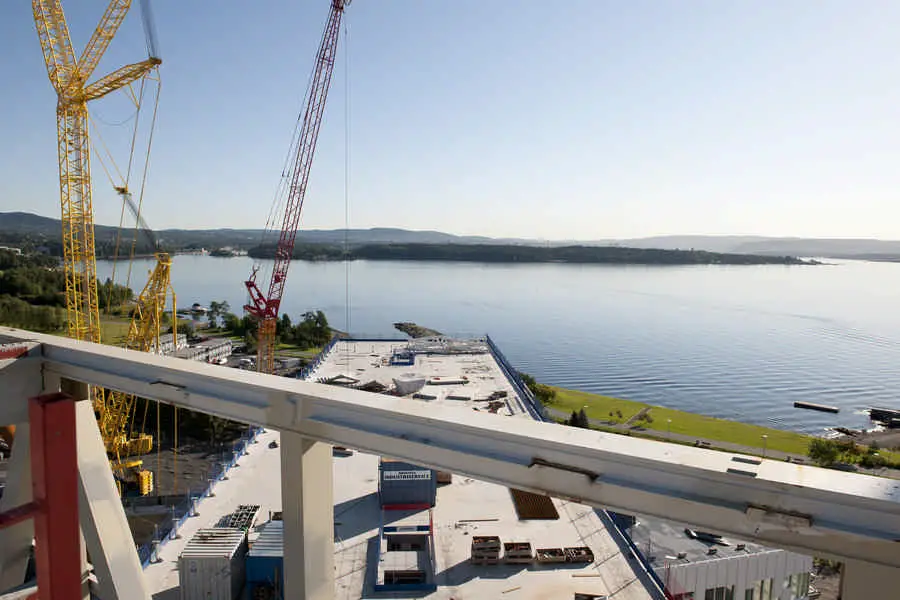

Since January Skanska Norway have been progressing the above-ground works, building the superstructure at a rate of about one office lamella per month. Each lamell is 140m long and 12,5m/3 storeys high. Whilst the steel truss sections for the upper lamellas are being lifted into place by Northern Europe’s largest mobile crane, prefabricated façade elements produced in central Sweden are being mounted on the lower lamellas.

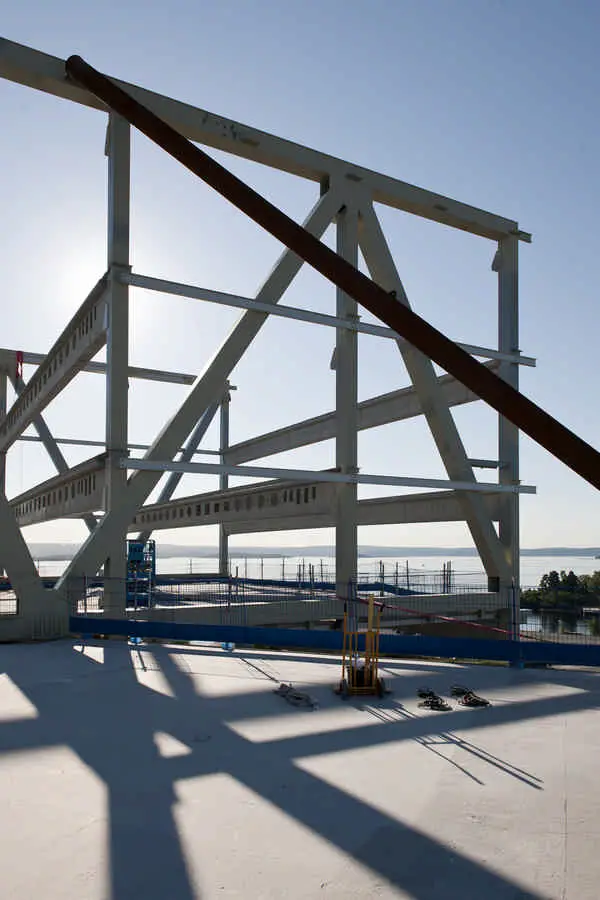

Steel superstructure

Each 140m truss is divided into 5 sections. Each 100 tonne section is welded together on site using prefabricated steel members that are delivered by lorry from Finland. The sections are then welded together in situ, inside welding “nests” hanging high up in the superstructure, before the temporary underpinning is removed. The steel subcontractor is the Finnish Ruukki corporation.

pictures : Placebo Effects for A-lab

Facades

The prefabricated façade is being delivered by Flex facades from Sweden using bespoke profiles from Schüco. Each element spans one storey and is 3m wide. The geometry of the facades has been developed to allow for fully integrated external solar shading. This has introduced a verticality to the façade which is solved with a continuous vertical cover profile every meter. These provide fixing for the cladding cassettes and a guide track for the blinds. The glazed panels are triple-glazed units with a U-value of 0,6 W/(m²K).

pictures : Jiri Havran

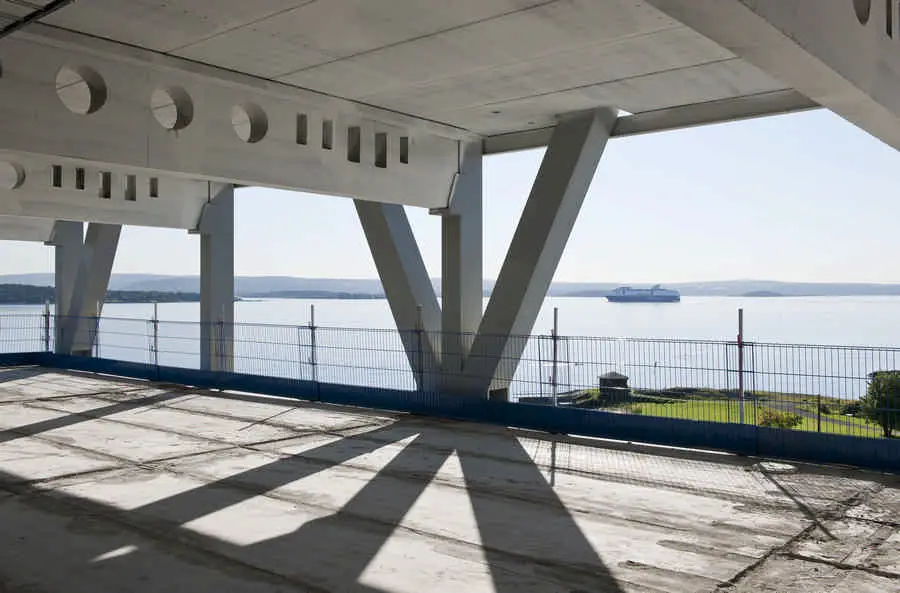

The scale and drama of the spaces created under the cantilevers is breathtaking and points in the direction of a remarkable achievement for both the client, IT Fornebu, and the architect, A-lab. The project won the Future commercial prize at the 2009 World Architecture Festival. Total area approx. 115 000 sqm, including 65 500 sqm above ground office space and 50 000 below ground parking and technical areas.

pictures : Jiri Havran
