699 Bourke Street Melbourne

AGL Energy Limited: Commercial Building in Victoria, Australia – design by GRIMSHAW, architects

15 Dec 2015

699 Bourke Street, Melbourne

Architects: Grimshaw

Grimshaw’s first commercial building in Melbourne rises 64m above rail environment

699 Bourke Street is the first commercial building to be designed by Grimshaw in Melbourne. Situated above the rail environment of Southern Cross Station, the building is the new Victorian office of AGL Energy Limited (AGL) and offers an exceptional workplace environment to its 1500 employees.

699 Bourke Street

Photographs : John Gollings

Grimshaw worked closely with the developers of the building, Mirvac, and major tenants, AGL, to deliver an A-Grade office space that is designed to take best advantage of the unique over-rail air-rights site.

699 Bourke Street

Construction over rail is becoming more common as Melbourne densifies, presenting tough design and technical challenges. In a typical building construction, basements and footings allow for flexibility in the location of structure and a place to hide bulky plant equipment and services. When building in the air, a new ground plane needs to be constructed and this was done for 699 Bourke Street, with 2m-deep concrete-filled beams that span 20m between supports. Aligned with the western edge of the existing Southern Cross Station roof, this ground plane sits 24m above the train tracks and is the lowest occupied level of 699 Bourke Street. All of the basic services, such as electricity and water, need to rise to this level to enter the plant equipment rooms.

699 Bourke Street

A benefit of overcoming the technical issues is foremost the improved views and daylight; 90% of the office floor is within 12m of the high-performance glazed façade, surpassing a key requirement of the 6 Star Green Star office ratings. Excellent views can be obtained at all levels, with views of the undulating Southern Cross Station roof and Melbourne’s Central Business District (CBD) to the east, Mount Macedon to the north and Port Philip Bay to the south.

Conceived as part of the Southern Cross Station Master Plan designed by Grimshaw in association with Jackson Architecture, 699 Bourke Street forms a considered backdrop to the roof of the station while providing a strategic connection between Melbourne’s CBD and the Docklands precinct.

699 Bourke Street

Grimshaw Partner, Neil Stonell, said of the air-rights development, “Rising 64m above the rail environment, 699 Bourke Street offers an important opportunity to bring the built urban form of Docklands closer to Melbourne’s city centre. In doing so, our design seeks to help unify the two precincts, delivering a building that not only responds to its urban context, but also delivers premium office space in a newly created Melbourne address.”

Mirvac’s Head of Cities and Urban Renewal, David Rolls said, “699 Bourke Street is an innovative and world-class building that has re-energised and redefined the workplace. Developed, constructed and owned by Mirvac in conjunction with TIAA-CREF, 699 Bourke Street’s exceptional environmental design and sustainability initiatives have been made possible as a result of the design excellence of Grimshaw Architects working in close collaboration with Mirvac, AGL and Hassell (tenant fit-out).”

699 Bourke Street

With more than 275 bike racks and 360 lockers, the end-of-trip facilities set a new benchmark in Australia for quality and amenity.

“The building features premium services, a 360 panel solar farm supplying 90kW of electricity (the largest solar power system on a commercial office building in Melbourne), and over 19,000sqm of net office space across nine floors. Its coming to life is a very proud moment for Mirvac. We are proud of our partnership with AGL and that we have been able to realise another world-class workplace at the heart of Melbourne,” said Mr Rolls.

699 Bourke Street

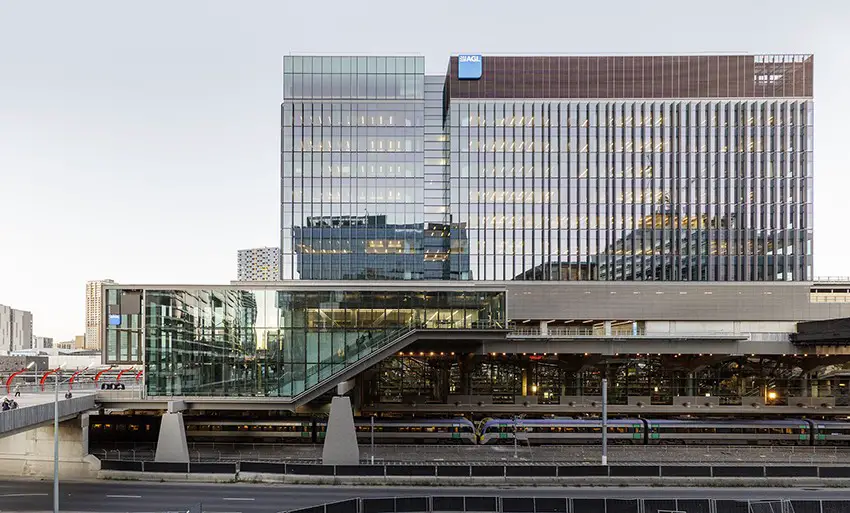

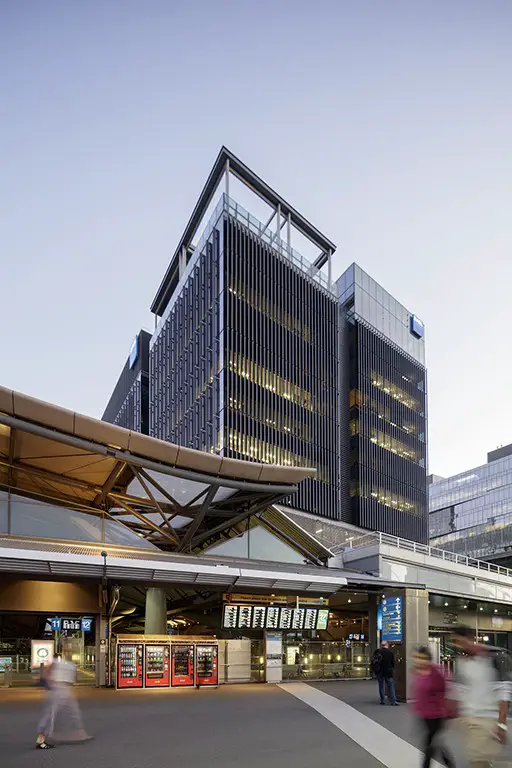

A key feature of 699 Bourke Street is the design of the building’s north façade which prevents glare reflectivity on to the rail yard environment below, mitigating risk to train drivers. To achieve this, Grimshaw led a detailed solar analysis to determine the solar angles and devised an integrated fixed-louvre screen which maintains views while preventing reflections. These louvres are an identifying feature of the north façade, a precise and layered surface which diffuses light.

699 Bourke Street

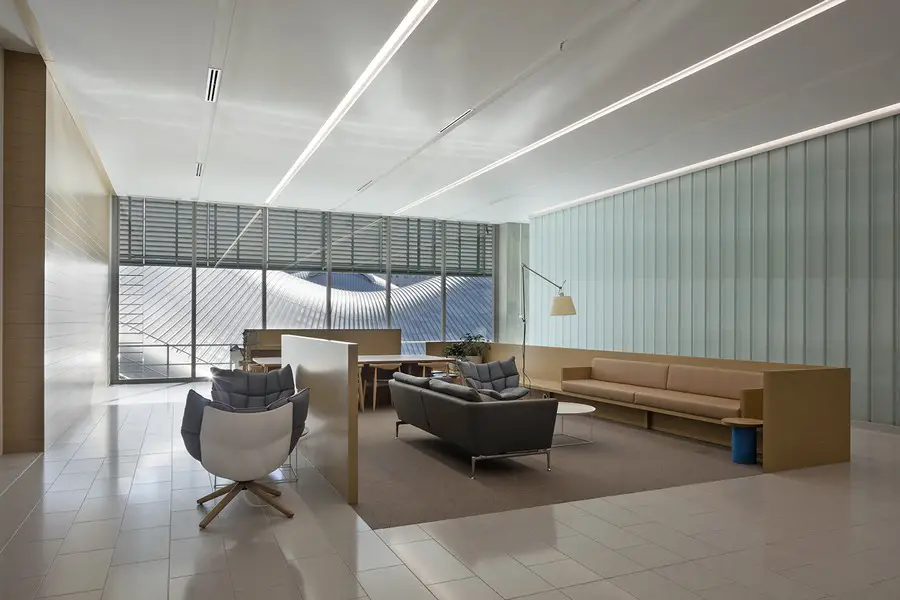

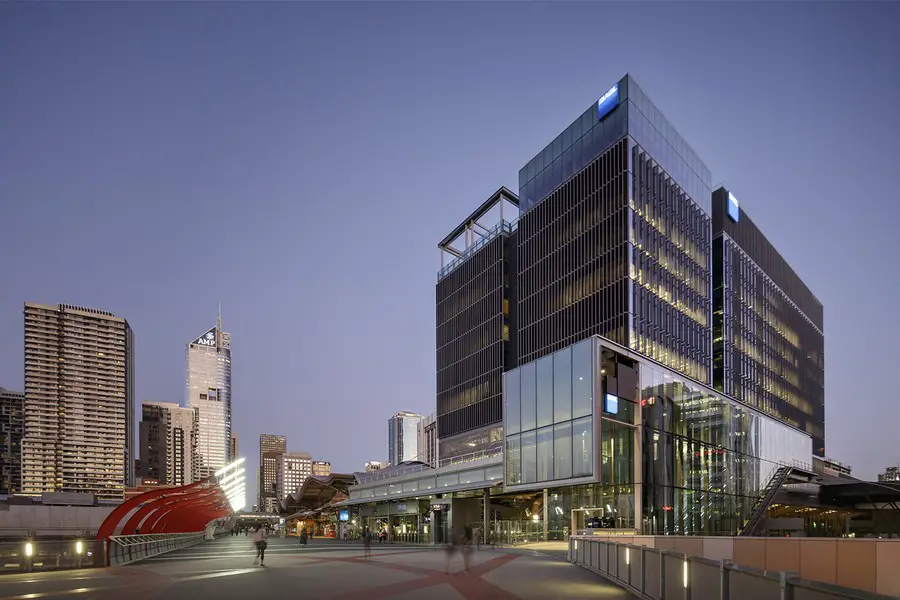

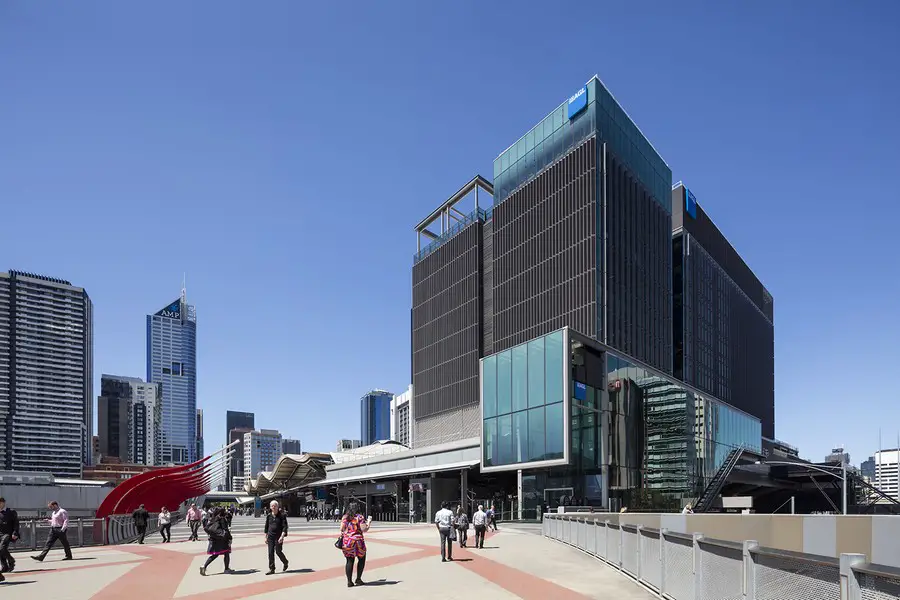

The main address of the building is the Bourke Street Bridge which provides pedestrian access between the CBD and Docklands. To help identify the entrance and negotiate the 8m rise to the lowest lobby level of 699, Grimshaw designed a glazed pavilion that accommodates stairs and escalators, and which is delicately supported at only two points over the rail below. The foyer leads to the AGL lobby and Business Lounge and is designed to embrace its position in the sky by utilising light-weight, reflective materials such as glass and stainless steel.

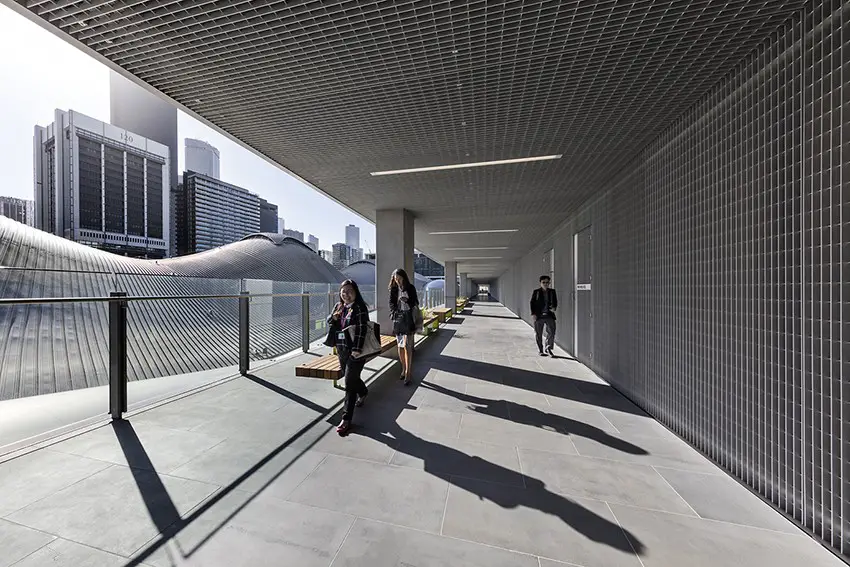

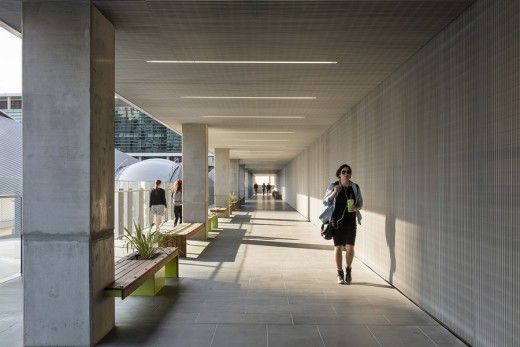

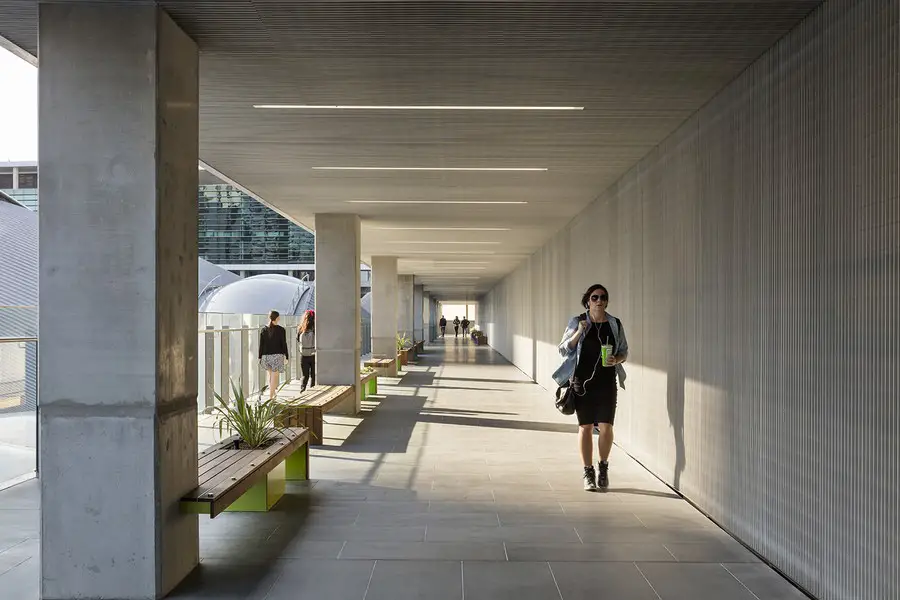

From the lobby, an open-air public walkway provides a pedestrian laneway that connects Bourke Street Bridge and Collins Street at number 664.

699 Bourke Street

Mr Stonell said, “This elevated laneway offers a unique vista over the undulating roofscape of Southern Cross Station, with Melbourne’s city skyline as its backdrop. This was a key planning initiative which we fully embraced to enhance the public realm in a quintessentially Melbourne way while creating a unique space for the city and Docklands precinct.”

699 Bourke Street was officially opened in 2015 by the Minister for Energy, Hon Lily D’Ambrosio.

699 Bourke Street

About Grimshaw

Grimshaw is an award-winning, international architectural practice with offices in New York, London, Melbourne, Sydney and Doha, employing over 400 staff. Committed to providing architecture of the highest calibre, the company’s work is characterised by strong conceptual legibility, innovation and a rigorous approach to detailing, underpinned by the principles of enduring and sustainable design. Complete architectural services are provided: master planning, feasibility studies and planning applications through tendering to construction and inspections on site. Grimshaw’s international portfolio covers all major sectors, and has been honoured with over 170 international design awards including the prestigious Lubetkin Prize. www.grimshaw-architects.com

Southern Cross Station

Grimshaw was appointed to work in collaboration with Jackson Architecture on the reorganisation and expansion of Southern Cross Station. As well as the transport interchange and associated track and signalling works, the redevelopment includes a major office building on Collins Street and a retail plaza serving the Central Business District’s west end.

The key generators for the station’s design were practical performance, ease of passenger circulation and an improved working environment for staff with sheltered, high-quality ticketing, baggage-handling and waiting services. These are all equipped with comfortable seating, lighting and passenger information display systems.

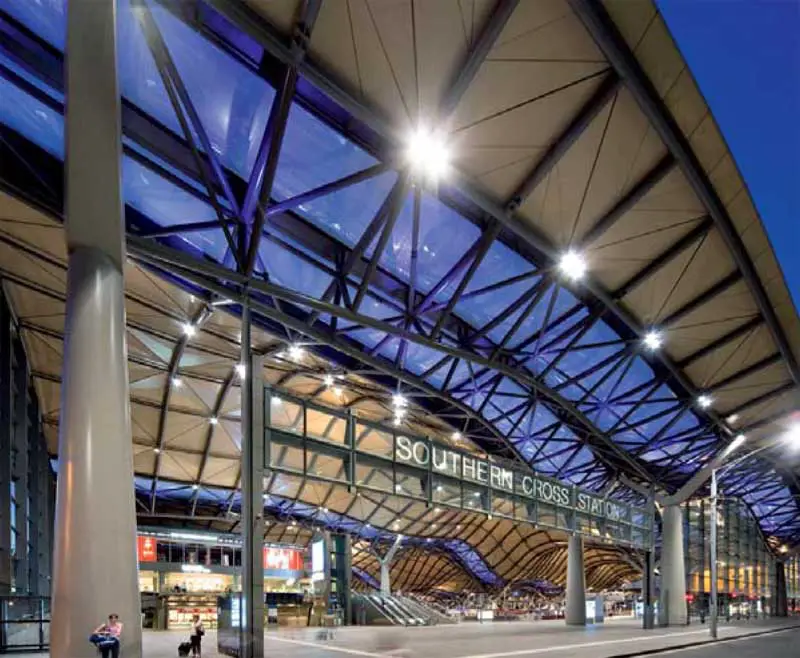

The design focus of Southern Cross Station is the dune-like roof that covers an entire city block. The roof’s form plays a crucial role as part of the environmental envelope, ensuring that it is a symbol of sustainable architecture developed in response to the hot external climate and the internal need for diesel extraction and ambient cooling via natural ventilation.

699 Bourke Street Melbourne images / information from Grimshaw Architects

Melbourne Southern Cross Station architect : Grimshaw

Southern Cross Station Expansion, Melbourne, Australia
Design: Grimshaw Jackson Joint Venture
Southern Cross Station Southern Cross Melbourne
Southern Cross Station Building in Melbourne

Location: Southern Cross Station, Melbourne, Victoria, Australia

Architecture in Melbourne

Melbourne Architecture Designs – chronological list

Melbourne Architecture Tours

Melbourne Architecture

Melbourne Architect

Australian Architecture

Another Melbourne building design by Grimshaw:

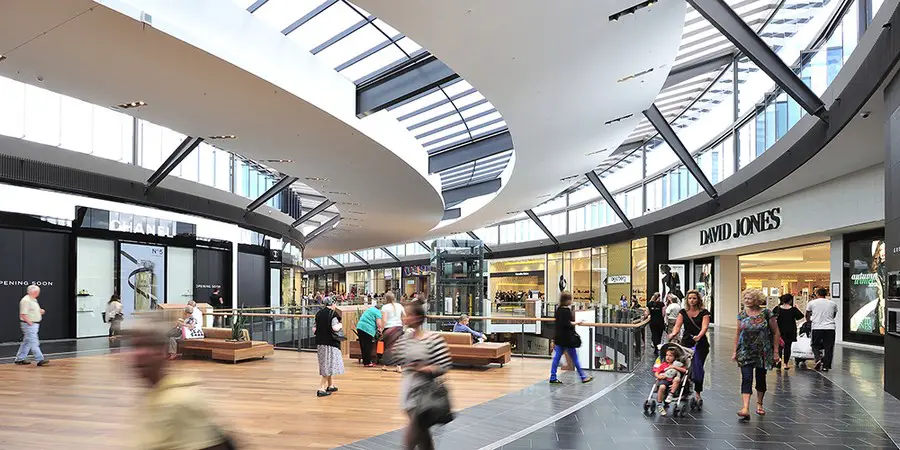

Highpoint Shopping Centre
