Idom Office Madrid Headquarters

Idom Headquarters Madrid, Architecture, Building, Architect, Photos, Spain Commercial Design

Idom Office, Madrid : Spanish Office HQ

Spanish Office Headquarters design by ACXT Architects

17 Oct 2012

Design: ACXT Architects

Location: Madrid, Spain

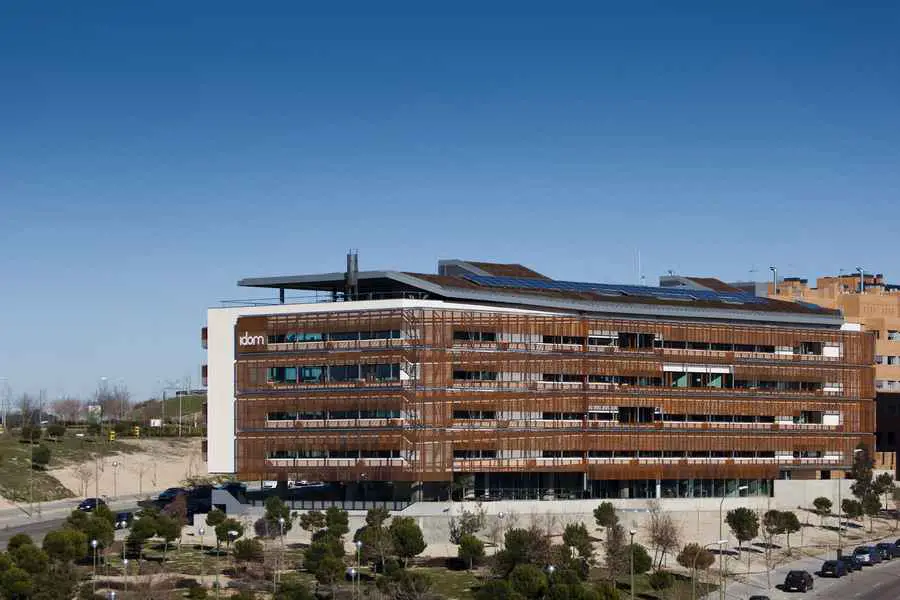

Idom Office Madrid Headquarters

Photographs : Fernando Guerra

Idom Headquarters, Madrid

ACXT Architects aren’t dealing with a project influenced by the pressure of the real estate boom or the need for an iconic brand image. The most pleasant and unique circumstances were set before us: the client was also the developer, the architect, the contractor and the user.

The initial aspiration of the assignment was simple: to erect a building that would house the activity of IDOM, while at the same time representing it and becoming as it were a visiting card for clients. Its culture and way of working should be clear from the building itself. This was an opportunity to turn a building into a showcase for its philosophy.

Idom Office Madrid Headquarters

Codes – Keys
Where could ACXT Architects find the keys that represent a firm like the one at hand? Taking into account the special culture of IDOM, it was obvious ACXT Architects would have to abandon any idea of its being media approved, short term or of rapid recognition or emotional representative. All these qualities seem to be an obsession which worries many corporations today, who need rapid success and visual appeal.

Idom Office Madrid Headquarters

ACXT Architects decided to focus our work far from that rationale. ACXT Architects aimed for true environmental comfort, measureable, credible, real and not conditioned solely by its representative or spatial tectonic values. Our objective was also to create a more domestic, porous, ventilated, natural and agreeable working environment; something closer to the working conditions of a home than those of a typical tertiary bubble. ACXT Architects had to overcome the classic miseries and limitations of the 20th century office, consequences of its unhealthy attempt to create an artificial atmosphere and an iconic brand image.

Idom Office Madrid Headquarters

In order to change those paradigms, a radically new approach was necessary. It was essential to make energy, the load bearing systems, the HVAC, the light, the orientation, the management of water or space and the sustainable strategies the bottom line of the codes over which the architectonic and formal references were to be supported, and not the other way round. The architects had to forget many references and images, load up with reasons and work with a new premise: the idea is not imposed on reality; the idea is conceived by the needs that reality imposes.

Building the Non – Office

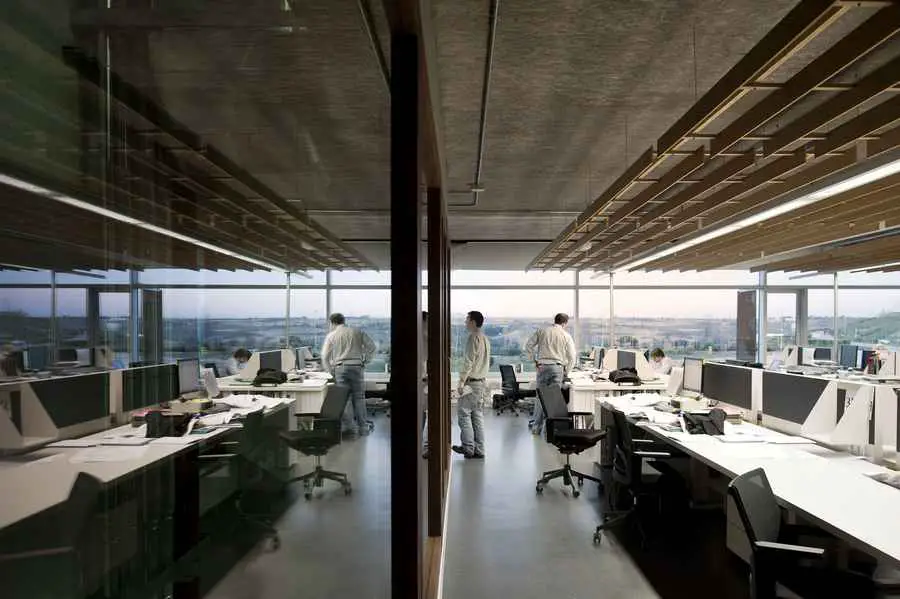

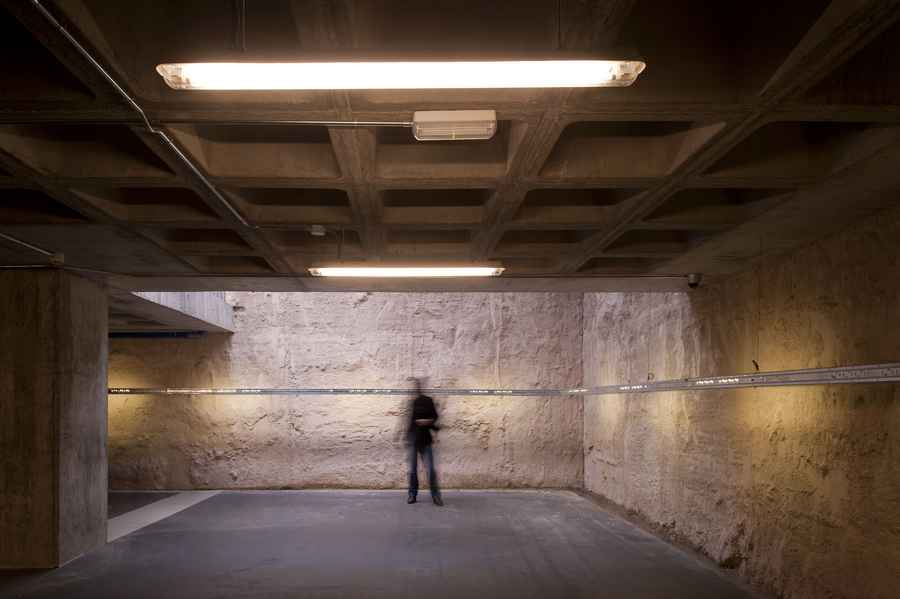

An atmosphere closer to that of a household which would do away with the axioms of the traditional office building. A space free from false ceilings and floors and with wood carpentry, cloth ducts, bare masonry walls, slow propulsion of air at room temperature and operational windows…in a nut shell: the non – office.

The HVAC based on radiant systems (TABS), using the high thermal inertia of the structure and its post-tensioned concrete floor slabs. An air propulsion system conceived exclusively for slow air renovation through cloth ducts, which can be cleaned and which avoids noise pollution.

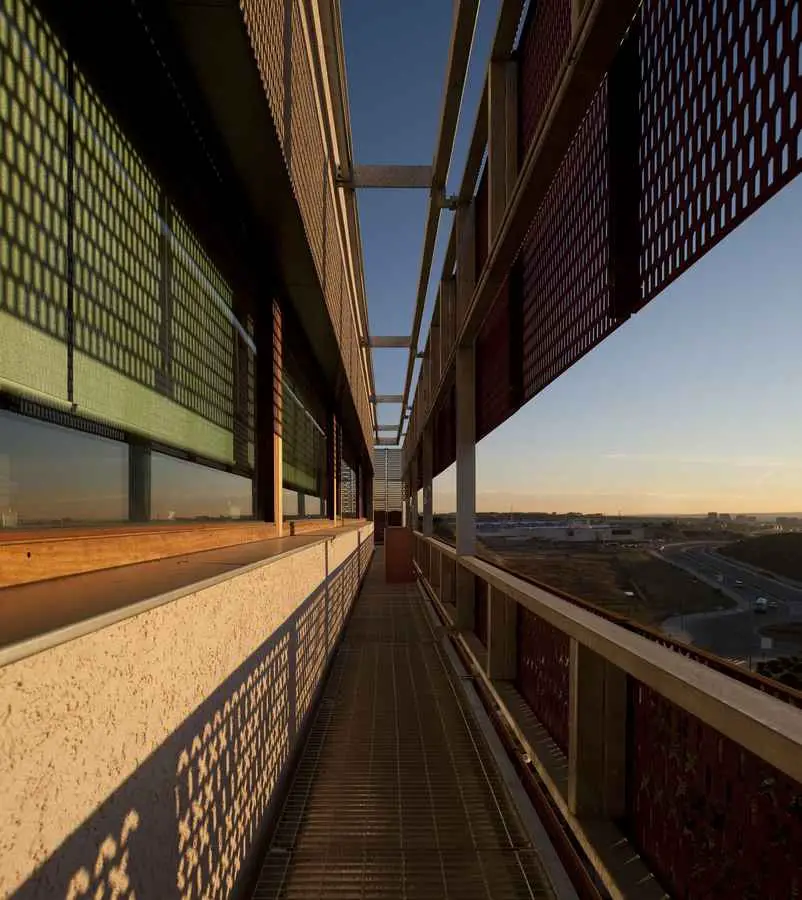

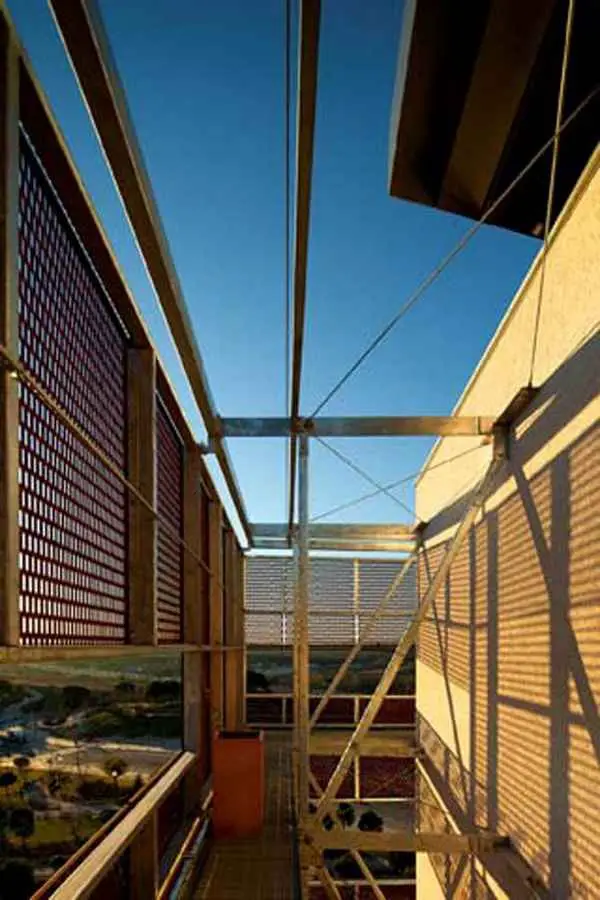

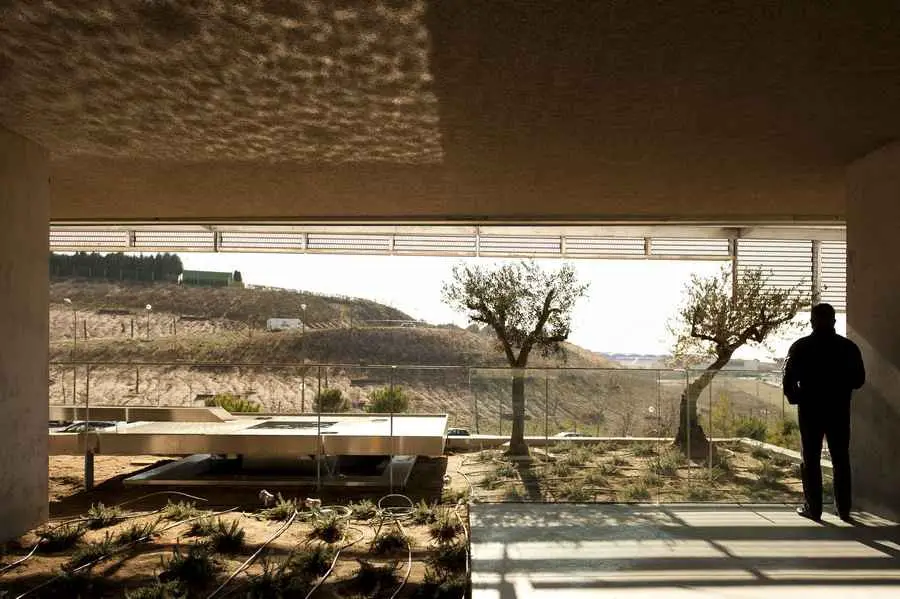

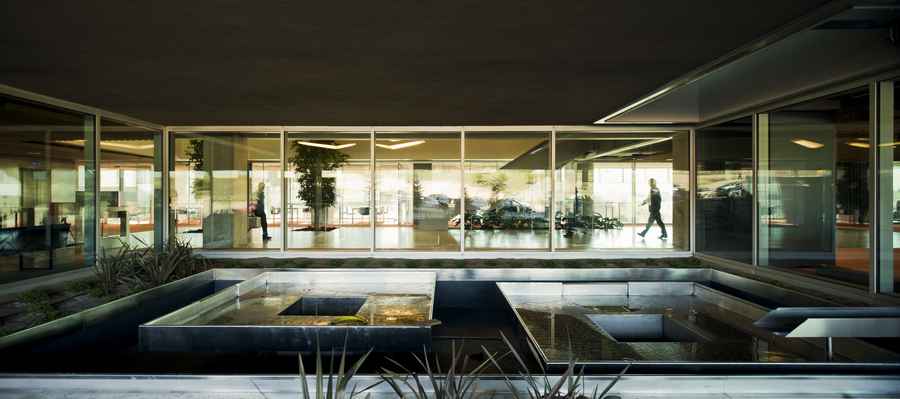

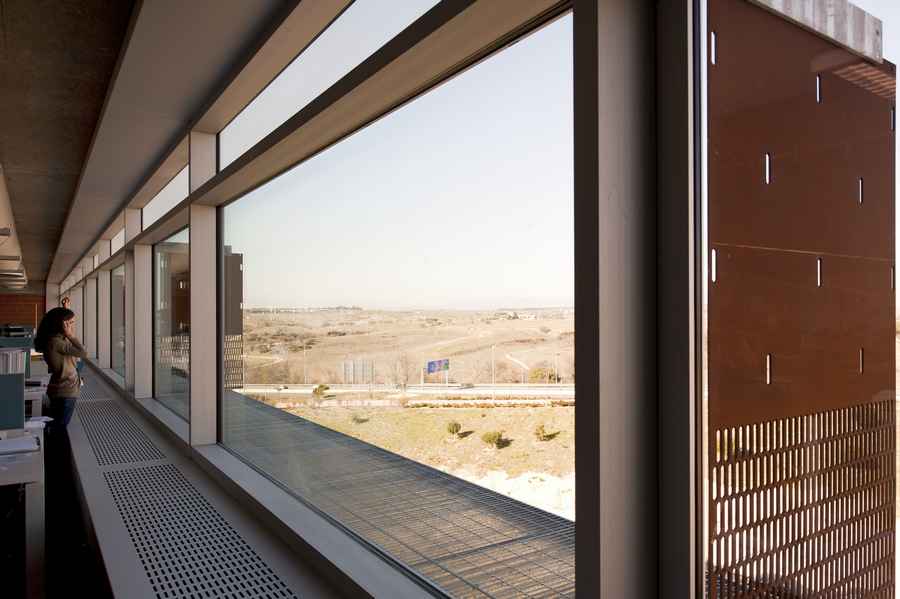

Great structural spans that allow for a smooth and flexible flow area. Sun protection towards the south, and toned down light from the north. The perception of a continuous space both horizontally and vertically. A setting that includes fragments of nature, hanging gardens and green walls. A correct strategy for reusing water making the most of it for visual and acoustic pleasure.

Idom Madrid Idom Headquarters Spain Idom Spaim Idom Office Headquarters Madrid
photographs : Fernando Guerra

Good, Attractive and Cheap
A building of reasonable cost and simple maintenance, easy to use and understand, flexible, kind in its presentation, quick upon changes, good, attractive and cheap and maximalist in its aspiration. A hi-tech building with low profile technology, complex in its conception but simple in its resolution.

ACXT Architects wanted a rigorously sustainable building, convinced of the high architectonic return of such an approach; an adequate balance between ecological, economic and social aspects. ACXT Architects pursued the aim of simply being able to work in a healthy environment, free from heat and cold, without any dazzles or toxic elements. All this implies high satisfaction levels and a healthy atmosphere.

This dynamic fitted in perfectly with the strategic objective of IDOM, and that is how the user has perceived it: an effort to build new offices breaking away from the old guidelines.

Thermally Active Structure
The building has an HVAC system which must be considered an integral part of the building itself (TABS: Thermally Activated Building System). A number of hydraulic circuits are laid out over the concrete slabs, keeping the temperature of the mass of the whole building within values very similar to those of the surrounding environment. There is no thermal stress. There is no noise or temperature difference between areas.

It is the first building of its class in Spain which incorporates this technology, which is already being used in central Europe. The adaptation of this system to the Mediterranean climate, and specially to the particular conditions of Spanish construction methods, have proven to be quite a challenge, research wise, which has finally paid off with the construction of this building.

The high inertia of the system manages to separate completely in time the demand for energy from its production, granting it clear advantages over traditional systems. The energy accumulated in the structure during the day is freed by overnight evaporative cooling. The efficiency of this method cannot easily be matched by any other.

Idom Office Spain Idom Building Madrid Idom Spanish Headquarters Idom Office Headquarters
photographs : Fernando Guerra

Air Renovation
Air is renewed in a much calmer way, since temperature is no longer an issue, by means of a shifting textile ducts system. It is a technology that has its origin in the food industry due to its high hygienic and sanitary levels, never before having been applied to an office building project in Spain. Making the most of its clear advantages and researching the system design alongside the manufacturer (KE-Fibertec) to adapt it to its new function, good results have been achieved regarding its salubrity, air quality and comfort, key issues in this type of building.

This system contributes a great deal with the energy efficiency factor. The network deals with great flow variations and allows for making the most of favourable exterior conditions to ventilate the interior almost free of charge, without any unnecessary energy consumptions.

Natural Ventilation

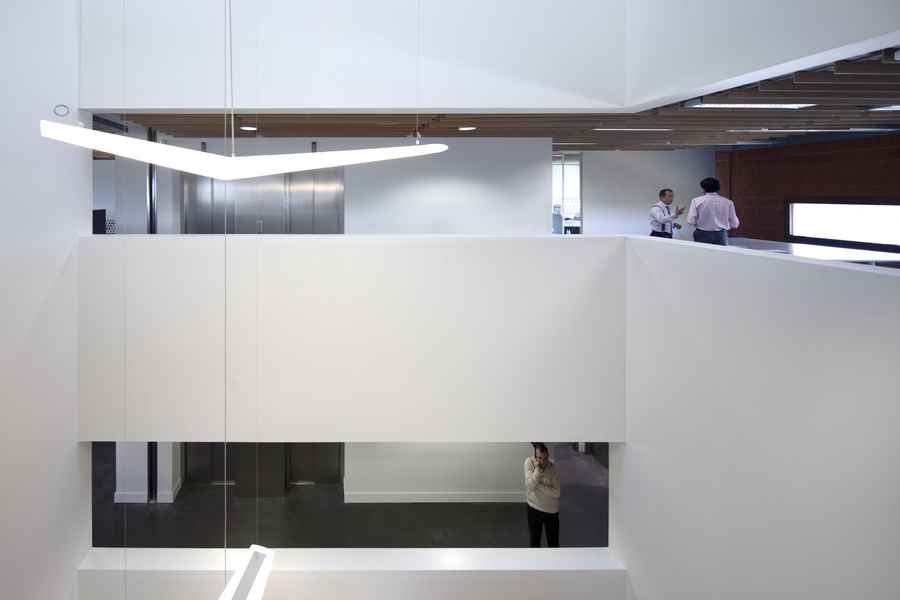

The use of a natural ventilation system, without any mechanical aid, has been researched. To that purpose, vertical communication atriums have been planned, working as great HVAC return air collectors, dispensing with conventional return ducts. When natural ventilation starts, the air propulsion machines stop and the atrium continues to work as a return chimney, only this time it drives the air towards the exterior through the discharge systems at the top of the atriums, while the new air enters through the tilting windows of the offices, which are aimed at the ceiling. Zero consumption and natural ventilation allow the building to work without any other support when exterior conditions are adequate.

Therefore, consumption levels are expected to be so low as to comply with regulations that will follow the new EU Directive on the energy performance of buildings (Directive 2010/31/EU of 19 May 2010), which will come into full effect by 2020.

Idom Madrid Idom HQ Madrid Idom Office Spain New Idom Headquarters
photographs : Fernando Guerra

Idom Headquarters in Madrid – Building Information

Location: Avenida Monasterio del Escorial, 4, Madrid, Spain
Client: IDOM
Completion: 2010
Cost: €16M
Area: 15.300 m2
Project Architects: Jesús M. Susperregui Virto (ACXT Arquitectos), Jorge Martínez Bermejo (ACXT Arquitectos)
Project Engineer: Antonio Villanueva Peñalver (ACXT Arquitectos)
Architects: Andrés Mackenna Rueda, Borja Aróstegui Chapa, Pablo Elorz Gaztelu

Project Management: Guillermo Digregorio Verdún
Costs: Jon Anduela Mugraza, José Manuel Vidal de Torres Ruiz
Structures: Fernando De Aguinaga García, Rocío García Cuevas, Jorge De Prado Romero, David García Menéndez
Environmental Engineering: Antonio Villanueva Peñalver, Ramón Gutiérrez Fernández-Cuervo, Isaac Lorenzo Morales
Lighting: Noemí Barbero Zumalacarregui
Public Health Services: Miguel Pastor Llamas
Electrical Engineering: Carlos Trujillo Campi, Eugenio Domínguez Fernández
Fire Strategy: Santiago Alonso Ornat, Jaled Salman Callejo, Héctor Mayordomo Herraiz
Acoustics: Mario Torices Fernández
Sustainability: Ismael Díaz Salvador, Ramón Gutiérrez Fernández-Cuervo, Miguel Pastor Llamas
CAD Administration: Óscar Martín Corpa, José Luis Macías Toledano, Alexey Lysogor, Ezequiel Dangello Zanellato, Javier Garrayo Franco

Photographs: Fernando Guerra

Idom Headquarters, Madrid – images / information from ACXT Architects

Location: 4, Monasterio del Escorial Avenue, Madrid, Spain

Madrid Buildings

Contemporary Madrid Architecture

Madrid Architecture Design – chronological list

Madrid Architecture Walking Tours by e-architect

Madrid Architects Offices

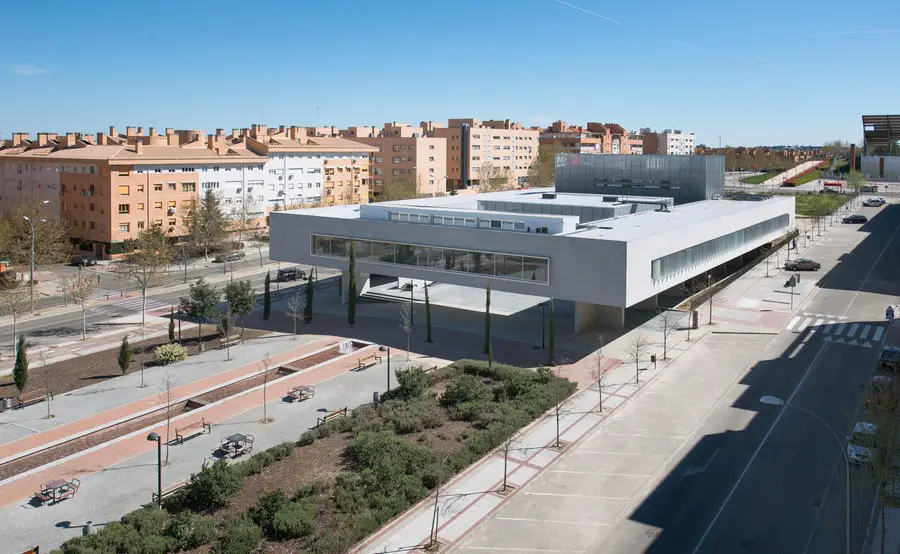

Espacio Miguel Delibes in Alcobendas – approx. 13 km north of Spanish capital
Design: Rafael de La-Hoz Arquitectos
Espacio Miguel Delibes Building in Madrid
photograph : Alfonso Quiroga
Espacio Miguel Delibes Building in Madrid

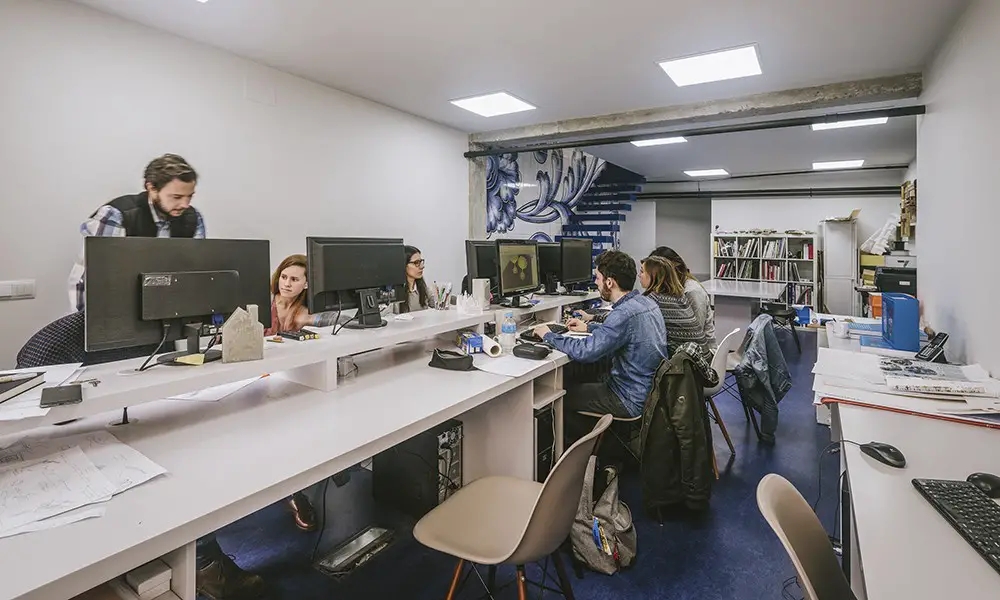

New OOIIO Office in Madrid Rio
