Morpheus Hotel, City of Dreams Resort in Macau

Contemporary Hotel on Hengqin Island, China design by Zaha Hadid Architects (ZHA)

26 July 2019
Morpheus Hotel, City of Dreams Resort in Macau – World Architecture Festival 2019 Shortlist News
Morpheus Hotel by Zaha Hadid Architects
photograph © Ivan Dupont
Morpheus Hotel in Macau shortlisted for World Architecture Festival 2019

15 Jun 2018

Morpheus Hotel in Macau

Design: Zaha Hadid Architects

Location: Macau, Hengqin Island, China

Morpheus Hotel

Morpheus Hotel City of Dreams Resort in Macau

Asia’s most popular entertainment destination, Macau welcomed more than 32 million tourists in 2017, with visitor numbers increasing every year. Located in Cotai, Macau, City of Dreams is a leading integrated resort including casino, two theatres, shopping district, 20 restaurants and four hotels.

Morpheus Hotel City of Dreams Resort in Macau

Informed by the fluid forms within China’s rich traditions of jade carving, the Morpheus’ design combines dramatic public spaces and generous guest rooms with innovative engineering and formal cohesion.

Morpheus Hotel City of Dreams Resort in Macau Morpheus Hotel City of Dreams Resort in Macau

Conceived as a vertical extrusion of its rectangular footprint, a series of voids is carved through its centre to create an urban window connecting the hotel’s interior communal spaces with the city and generating the sculptural forms that define the hotel’s public spaces.

Morpheus Hotel City of Dreams Resort in Macau

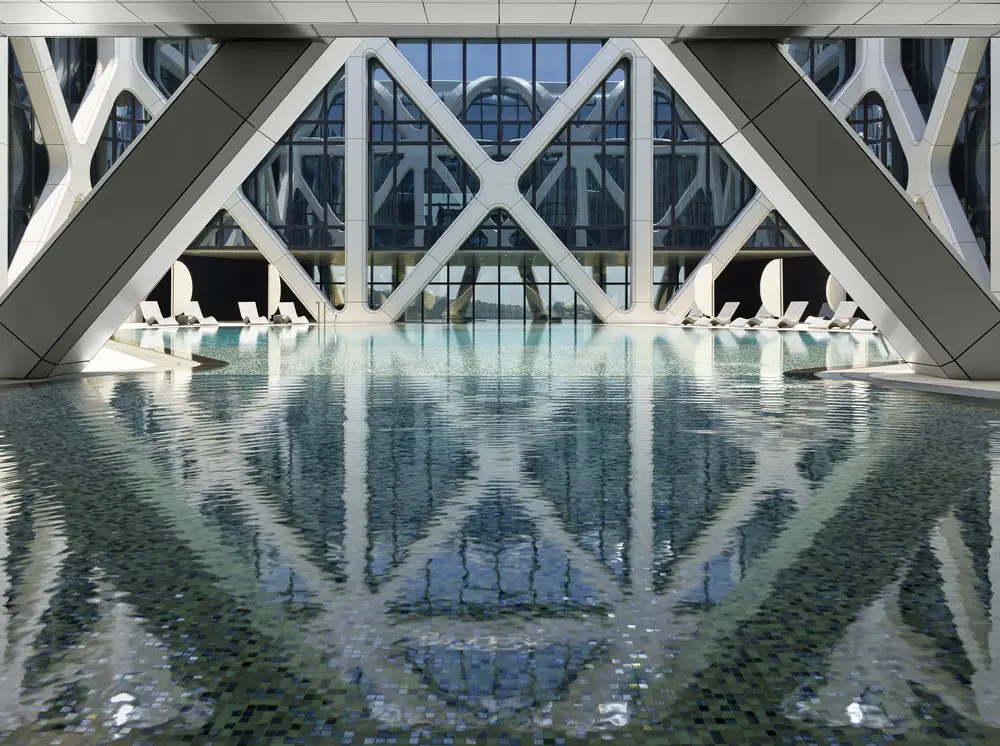

Linked at ground level with the surrounding three-storey podium of the City of Dreams resort, the Morpheus houses 770 guest rooms, suites and sky villas, and includes civic spaces, meeting and event facilities, gaming rooms, lobby atrium, restaurants, spa and rooftop pool, as well as extensive back-of-house areas and ancillary facilities.

Morpheus Hotel City of Dreams Resort in Macau

The design resolves the hotel’s many complex programmes within a single cohesive envelope. Zaha Hadid Architects (ZHA) was commissioned to build the hotel in 2012. At that time, foundations were already in place of a condominium tower that did not progress.

Morpheus Hotel City of Dreams Resort in Macau

ZHA designed the Morpheus as a simple extrusion of the existing abandoned foundations; using this rectangular footprint to define a 40-storey building of two internal vertical circulation cores connected at podium and roof levels where the many guest amenities were required.

Morpheus Hotel City of Dreams Resort in Macau

This extrusion generated a monolithic block making best use its development envelope that is restricted to a 160m height by local planning codes. This block was then ‘carved’ with voids.

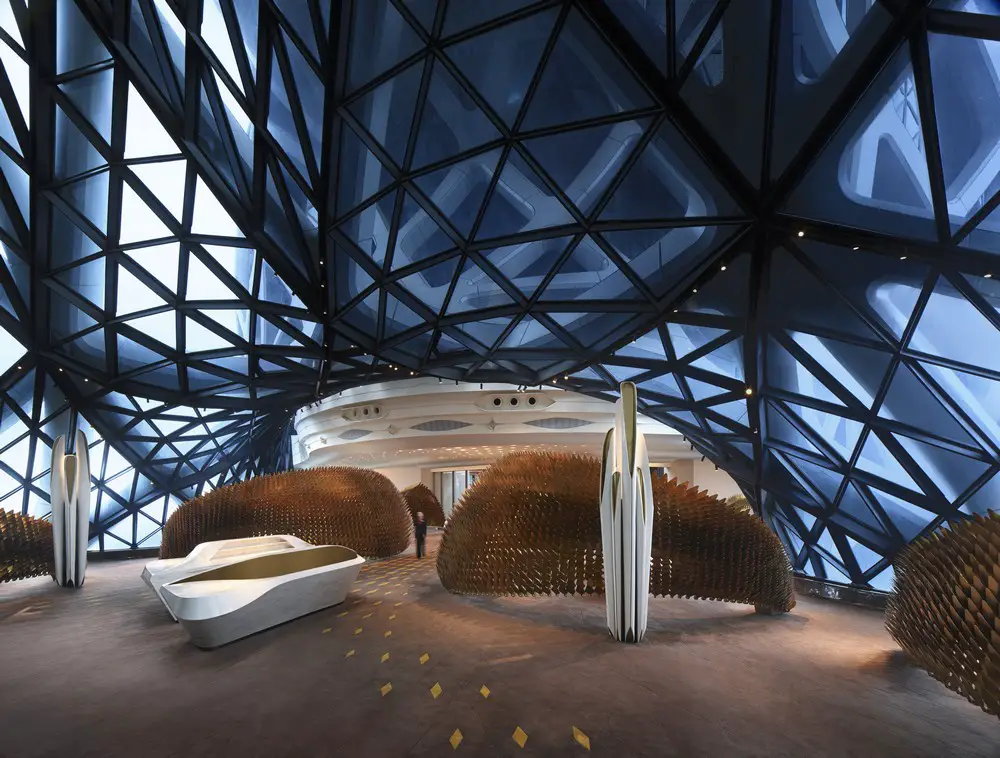

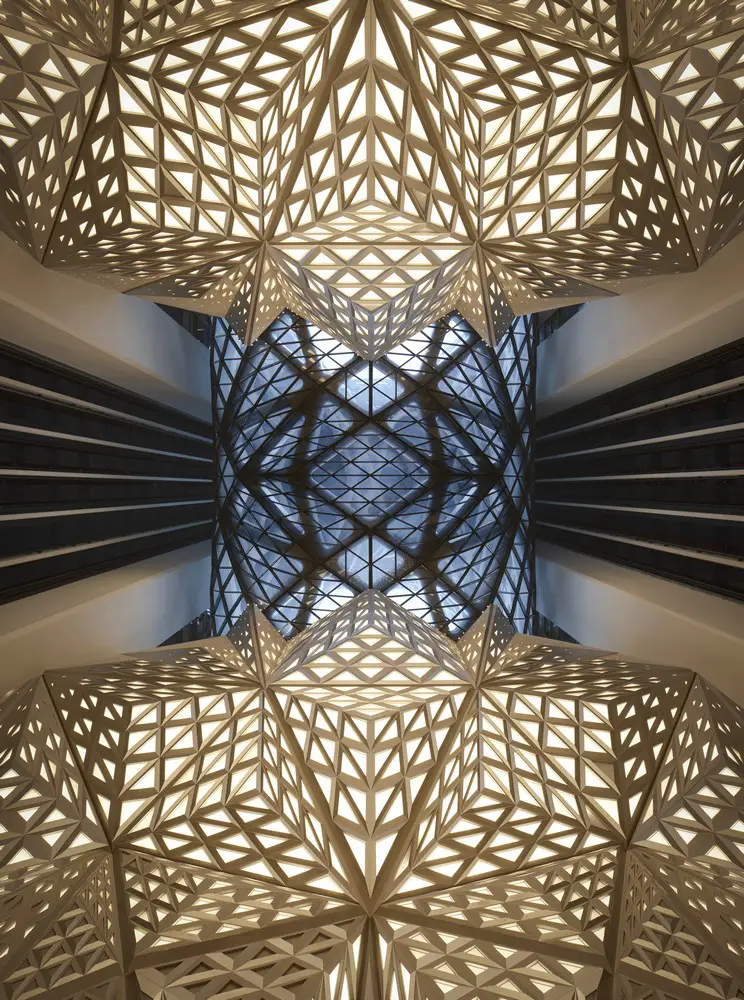

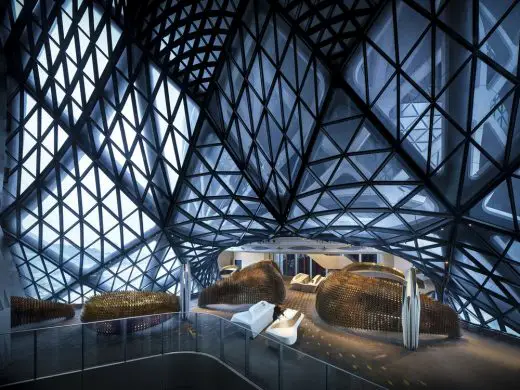

The underlying diagram of the hotel’s design is a pair of towers connected at ground and roof levels. The central atrium in-between these towers runs the height of the hotel and is traversed by external voids that connect the north and south facades. These voids create the urban window that links the hotel’s interior communal spaces with the city.

Three horizontal vortices generate the voids through the building and define the hotel’s dramatic internal public spaces; creating unique corner suites with spectacular views of both the atrium and the city. This arrangement maximises the number of hotel rooms with external views and guarantees an equal room distribution on either side of the building.

Morpheus Hotel City of Dreams Resort in Macau Morpheus Hotel City of Dreams Resort in Macau

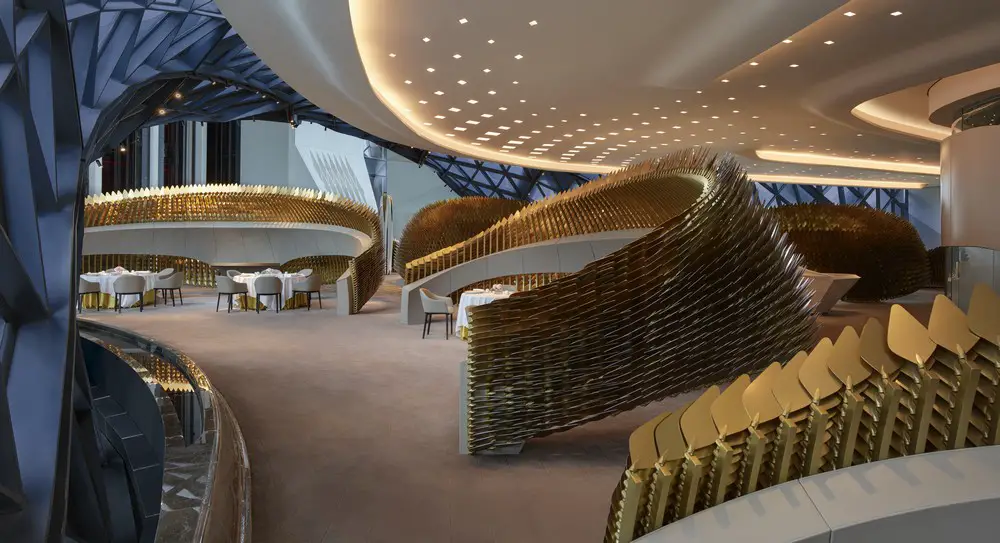

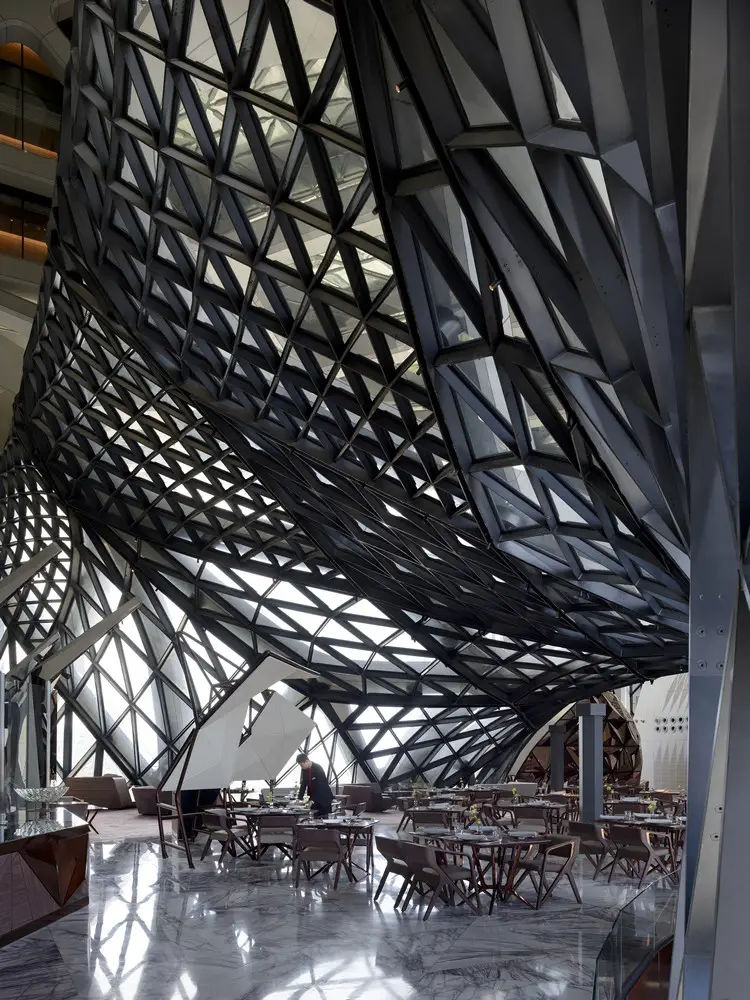

In-between the free-form voids that traverse the atrium, a series of bridges create unique spaces for the hotel’s restaurants, bars and guest lounges by renowned chefs including Alain Ducasse and Pierre Hermé.

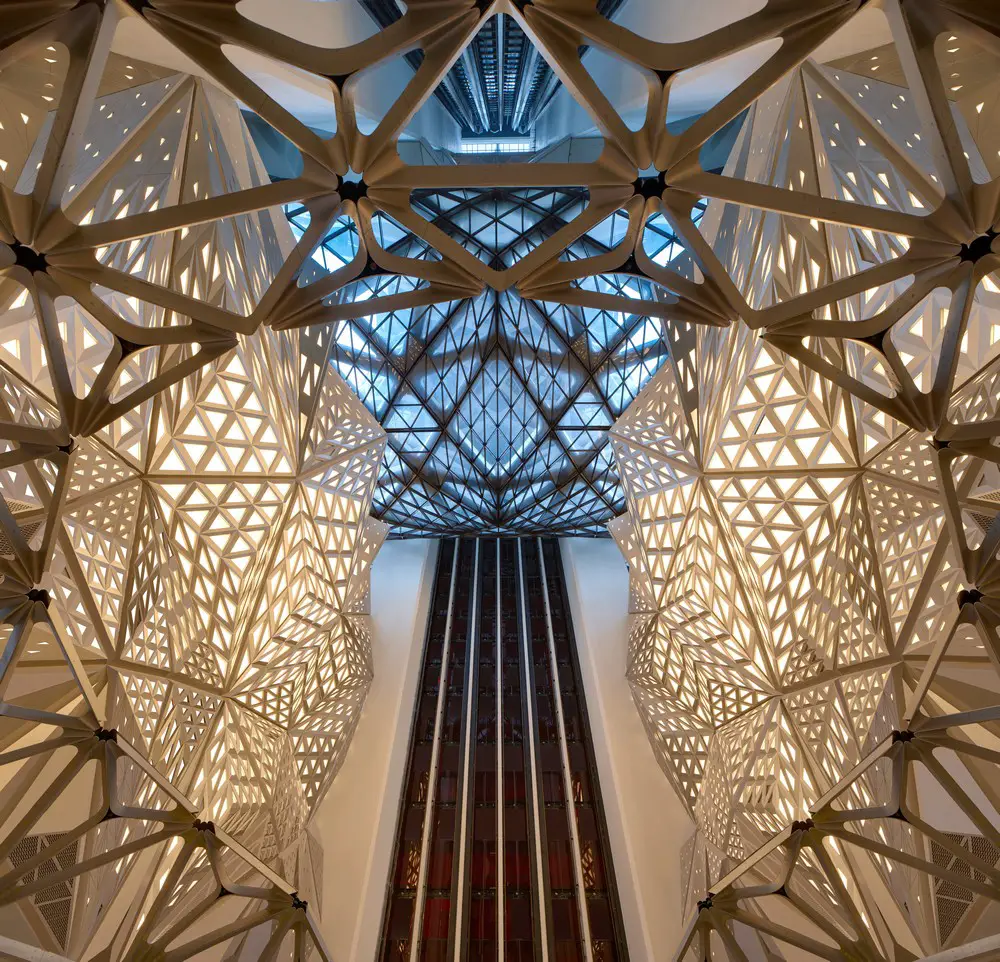

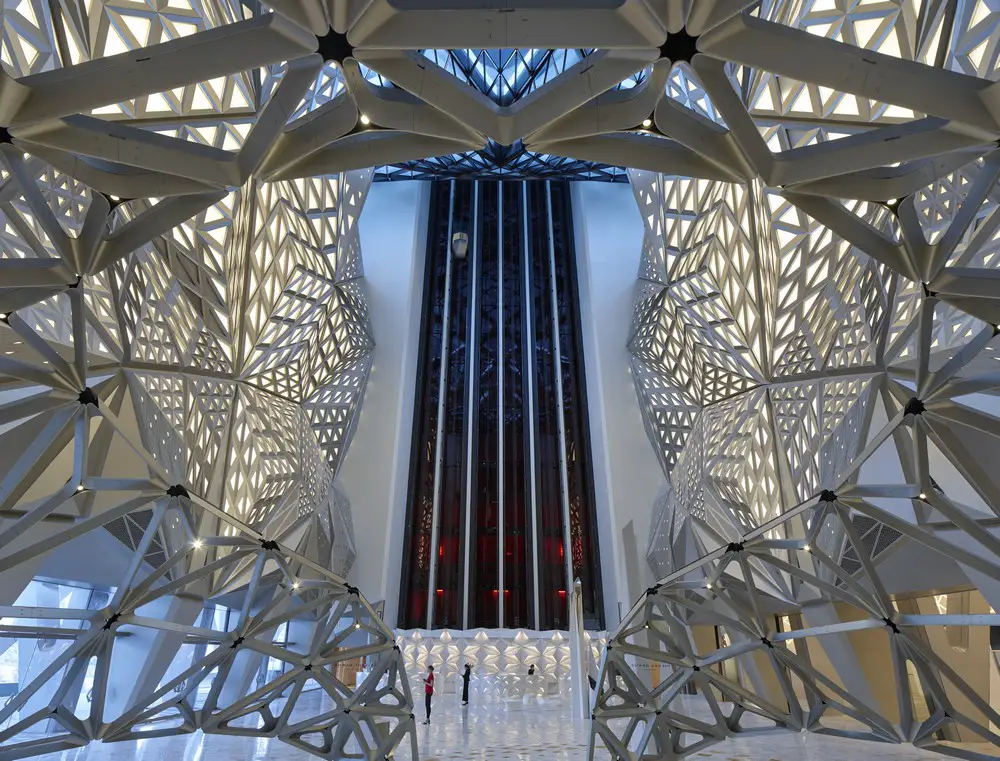

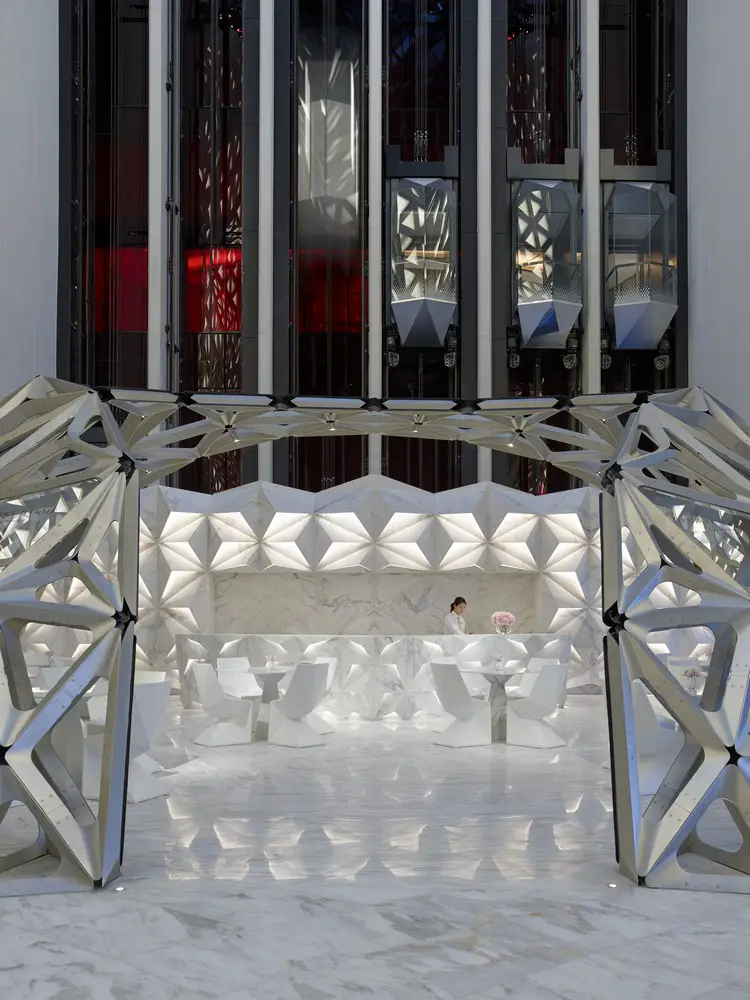

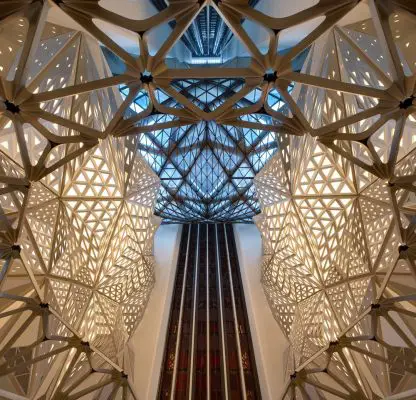

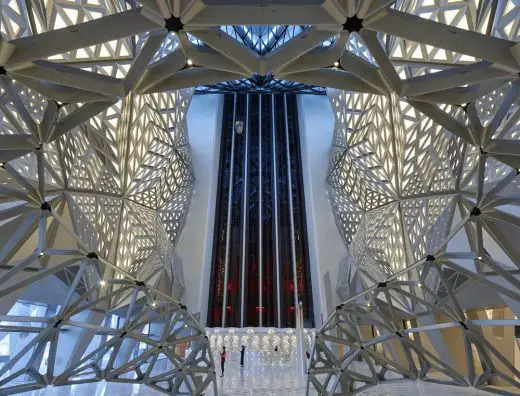

The atrium’s twelve glass elevators provide guests with remarkable views of the hotel’s interior and exterior as they travel between the voids of the building.

As one of the world’s leading hotels, the Morpheus’ interior spaces necessitated a high degree of adaptability to accommodate the many varying requirements of its guest amenities. The building’s exoskeleton optimizes the interiors by creating spaces that are uninterrupted by supporting walls or columns.

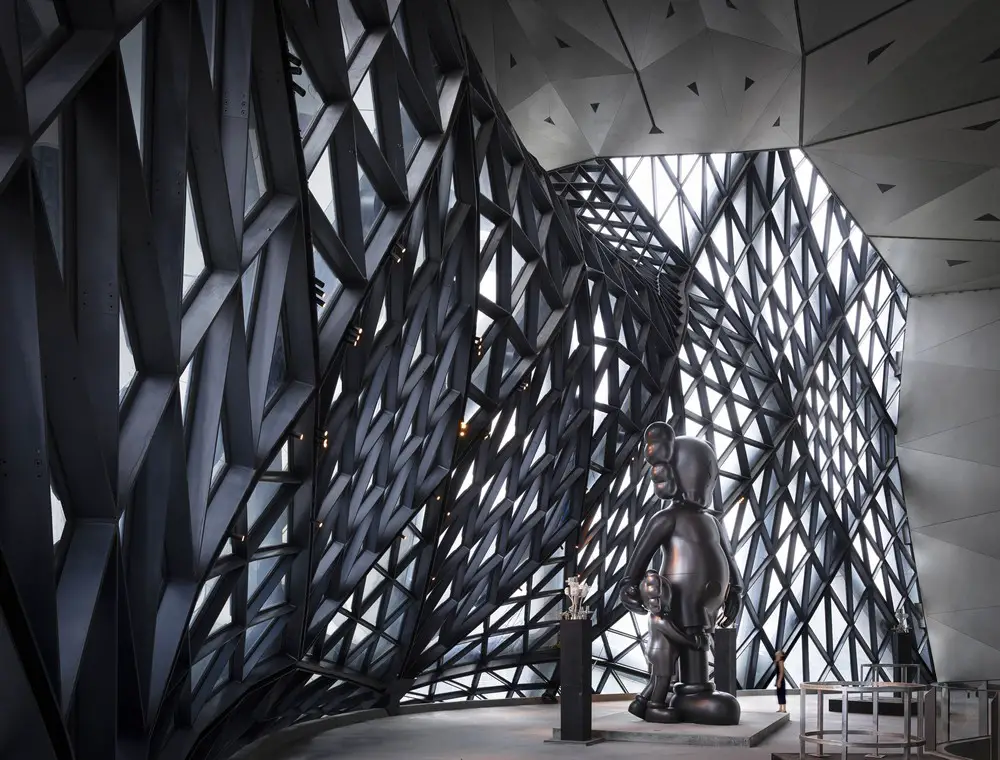

The world’s first free-form high-rise exoskeleton, its rich pattern of structural members at lower levels progresses upwards to a less dense grid of lighter members at its summit.

Morpheus draws on a ZHA’s 40 years of research into the integration of interior and exterior, civic and private, solid and void, Cartesian and Einsteinian. Space is woven within structure to tie disparate programmes together and constantly make connections.

Morpheus Hotel City of Dreams Resort in Macau

Viviana Muscettola, ZHA’s project director explains, “Morpheus combines its optimal arrangement with structural integrity and sculptural form. The design is intriguing as it makes no reference to traditional architectural typologies.

“Macau’s buildings have previously referenced architecture styles from around the world. Morpheus has evolved from its unique environment and site conditions as a new architecture expressly of this city.

“The expertise of all members of the Morpheus team has created new possibilities for architecture,” continued Muscettola. “The comprehensive parametric model combined all of the hotel’s aesthetic, structural and fabrication requirements and will radically change how our built environment is planned and constructed.”

Lawrence Ho, chairman and CEO of Melco Resorts said, “From the very beginning, we shared ZHA’s vision and determination to push boundaries. Morpheus offers a journey of the imagination. From the curved exterior to the dramatic interior spaces, it pleases the eye and excites the senses: a contemporary masterpiece to be enjoyed by many generations to come.”

Morpheus Hotel City of Dreams Resort in Macau

Morpheus Hotel in Macau – Building Information

Client: Melco Resorts & Entertainment
Design: Zaha Hadid Architects
Design: Zaha Hadid and Patrik Schumacher
ZHA Project directors: Viviana Muscettola, Michele Pasca di Magliano
ZHA Facade director: Paolo Matteuzzi
ZHA Project architects: Michele Salvi, Bianca Cheung, Maria Loreto Flores, Clara Martins
ZHA Project team: Miron Mutyaba, Milind Khade, Pierandrea Angius, Massimo Napoleoni, Stefano Iacopini, Davide Del Giudice, Luciano Letteriello, Luis Migue Samanez, Cyril Manyara, Alvin Triestanto, Muhammed Shameel, Goswin Rothenthal, Santiago Fernandez-Achury, Vahid Eshraghi, Melika Aljukic
ZHA Interior team: Daniel Fiser, Thomas Sonder, Daniel Coley, Yooyeon Noh, Jinqi Huang, Mirta Bilos, Alexander Kuroda, Gaganjit Singh, Marina Martinez, Shajay Bhooshan, Henry Louth, Filippo Nassetti, David Reeves, Marko Gligorov, Neil Ridgen, Milica PihlerMirjanic, Grace Chung, Mario Mattia, Mariagrazia Lanza
ZHA Concept team: Viviana Muscettola, Tiago Correia, Clara Martins, Maria Loreto Flores, Victor Orive, Danilo Arsic, Ines Fontoura, Fabiano Costinanza, Rafael Gonzalez, Muhammed Shameel

Executive architect: Leigh & Orange, Hong Kong
Local architect: CAA City Planning & Engineering Consultants, Macau
Structural engineering: Buro Happold International, London/Hong Kong
M&E engineering: J. Roger Preston
Facade engineering: Buro Happold International, Hong Kong
Third party reviewer: Rolf Jensen & Associates
Other interior designer:
• Remedios Studio, Hong Kong – Guestrooms, L01 VIP lobby, L03 Spa & Gym, L40 Pool deck and pool villas
• Westar Architects International – L02 Gaming areas & Li Ying Restaurant, L42 Gaming Salons
• Jouin Manku – L03 Alain Ducasse Restaurant
• MC Design – L30 Executive Lounge
• Leigh & Orange, Macau – BOH Areas

Quantity surveyor: WT Partnership, Hong Kong
Lighting design: Isometrix, London/Hong Kong
Fire engineering: Arup, Hong Kong
Acoustic consultant: Shen Milson & Wilke, Hong Kong
Traffic engineer: MVA Hong Kong

Footprint: 52m x 99m
Height: 160m
Total GFA: 147,860sqm
Number of storeys: 42
Height of Atrium lobby space: 40m
Number of keys: 780
Hotel rooms per floor: 28 to 36
Panoramic lifts: 12
Services lifts: 8
Stairs: 4
Atrium sky bridges: 2
Total glazed envelope area: 43,388 sqm
Freeform glazed envelope: 14,300 sqm
Total glass panels: 24,577
Total Exoskeleton cladding area: 57,000 sqm
Doubled-curved Exoskeleton cladding area: 12,155 sqm (21%)
Steel cleat connections for freeform Exoskeleton cladding: 18,580
Freeform Exoskeleton cladding panel stiffeners: 79,310
Freeform Exoskeleton cladding aluminium brackets: 1,059,234
Unique freeform Exoskeleton cladding components: 1,212,637
Total freeform Exoskeleton cladding fabricated components: 1,668,301
Freeform Exoskeleton cladding fasteners: 5,135,563
Combined length of freeform Exoskeleton cladding extrusions: 137,238m
Structural steel tonnage: 28,000
Volume of reinforced concrete: 70,500m3

Morpheus Hotel City of Dreams Resort in Macau

Morpheus Hotel Environmental Engineering
Solar gain is minimised by the use of high performance glazing. The building’s exoskeleton provides additional screening from the sun. The atrium’s middle areas are not served by air conditioning, only zones used by guests and staff – such as lobbies, bridges and restaurants – are air conditioned.

Melco Resorts has applied long-life specification throughout the Morpheus Hotel to strictly limit requirements for maintenance and replacement. All the hotel’s exterior panel fabrication was procured locally to the highest international standards, reducing unnecessary transportation and making full use of local expertise and equipment.

Additional active solutions have been implemented to increase energy efficiencies including the air handling units with high efficiency variable speed water-cooled chillers and thermal wheel energy exchangers to recover energy from exhaust air. A water-towater heat pump pre-heats domestic water, while the hotel’s intelligent building management system responds in real time to usage and environmental conditions to minimise energy consumption.

About City of Dreams
City of Dreams is an integrated entertainment resort owned and operated by Melco Resorts and Entertainment, a leading developer, owner and operator of gaming and entertainment resorts in Asia. Located in Cotai, Macau, City of Dreams combines entertainment, diverse accommodation, regional and international dining, shopping and a casino with 475 gaming tables. The resort brings together renowned brands including Grand Hyatt and Dragone to create an exceptional entertainment experience for visitors from around the world.

Morpheus Hotel City of Dreams Resort in Macau

Photography: Virgile Simon Bertrand
