Seoul Creative Play Supporting Facility by KILD

Seoul Creative Play Supporting Facility, Korean Architecture Contest, New Building Design

Seoul Creative Play Supporting Facility

Park Canopy Building: South Korea Architecture Competition – design by KILD architects

20 Dec 2017

Seoul Creative Play Supporting Facility Building

Architects: KILD – Ksnelashvili . Išora . Lozuraitytė . Daunys

Location: Seoul, Korea

Seoul Public Project Competition

Seoul Creative Play Supporting Facility design by KILD architects

Seoul Creative Play Supporting Facility

PARK CANOPY

1. Architectural design

The key aim of the proposal is to balance the high-density development and the existing public park. ‘Park Canopy’ enhances the green space with its natural potential and reaches new human-scale intervention in the park.

Seoul Creative Play Supporting Facility

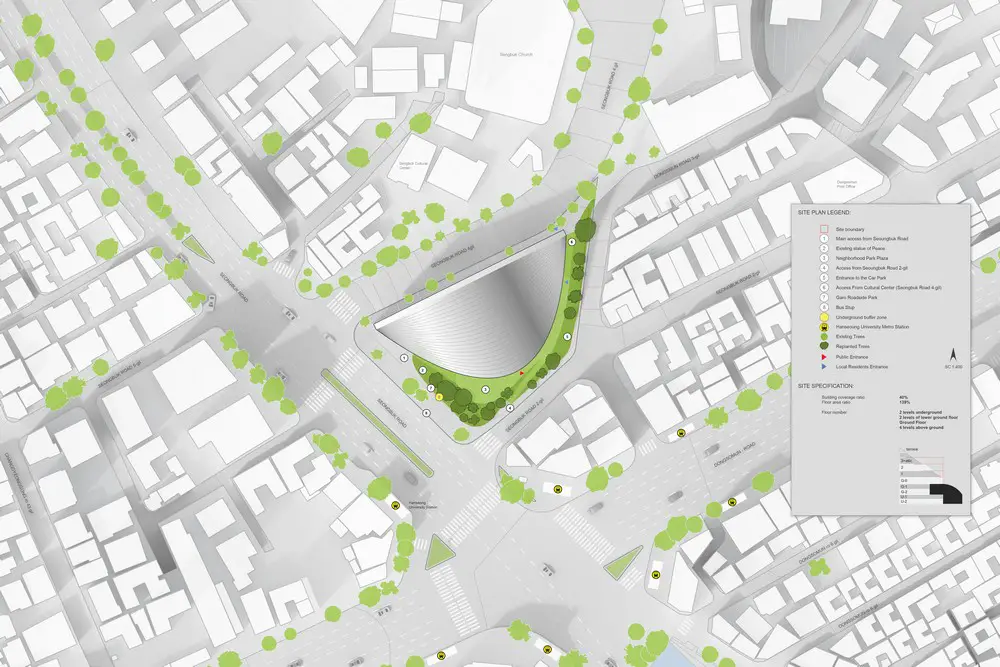

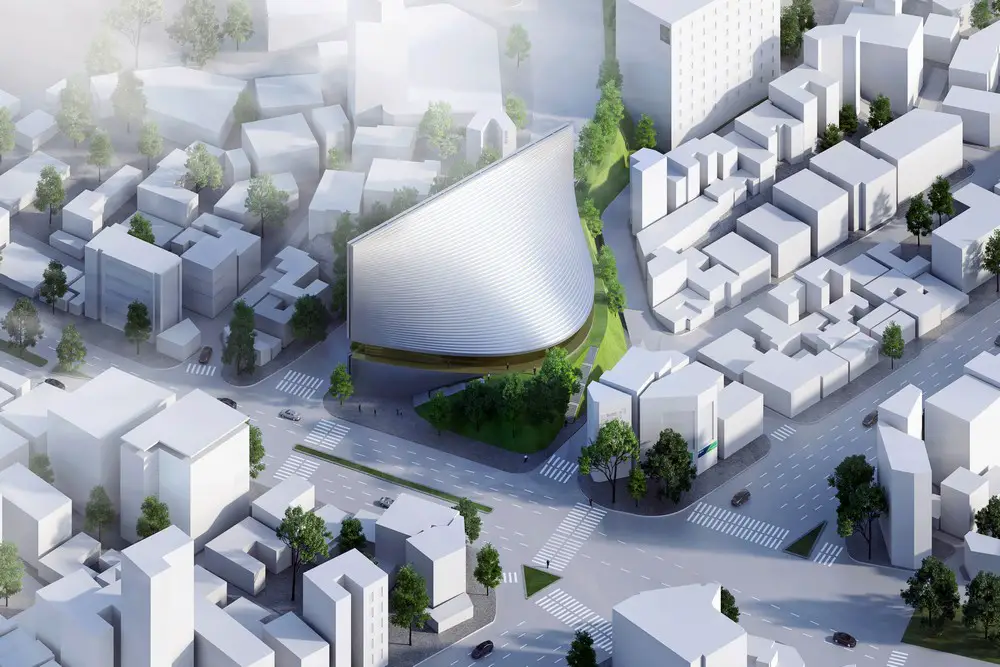

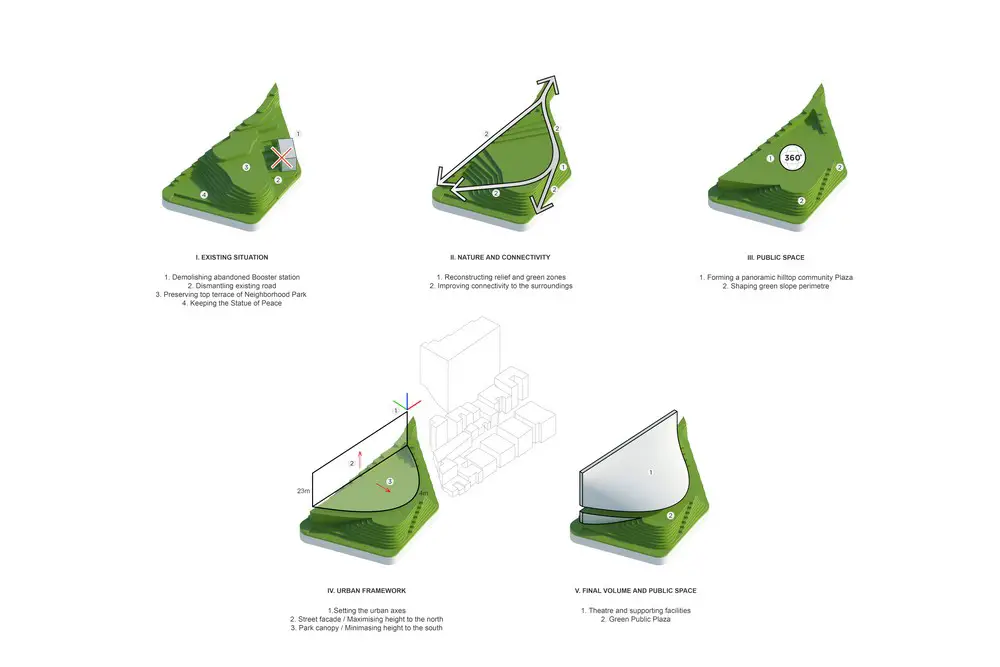

Eight major mountains that have shaped the city scape for centuries, are the cornerstone of the Seoul identity. Respectfully in this situation we have chosen to position the existing mountain park as the icon of this development, maximizing the new intervention to the north side (road side). This way the building becomes a background of the existing mountain, exposing life in the park as an everyday spectacle.

Seoul Creative Play Supporting Facility

Together it proposes a diverse and contemporary theatrical environment and opens panoramic views to the wider urban surroundings.

Seoul Creative Play Supporting Facility

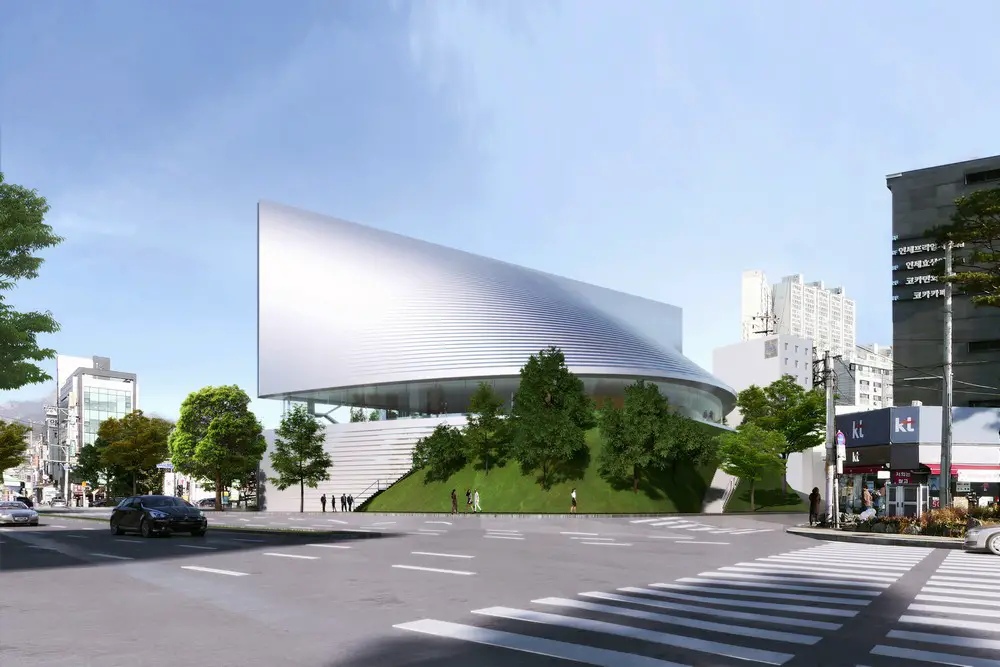

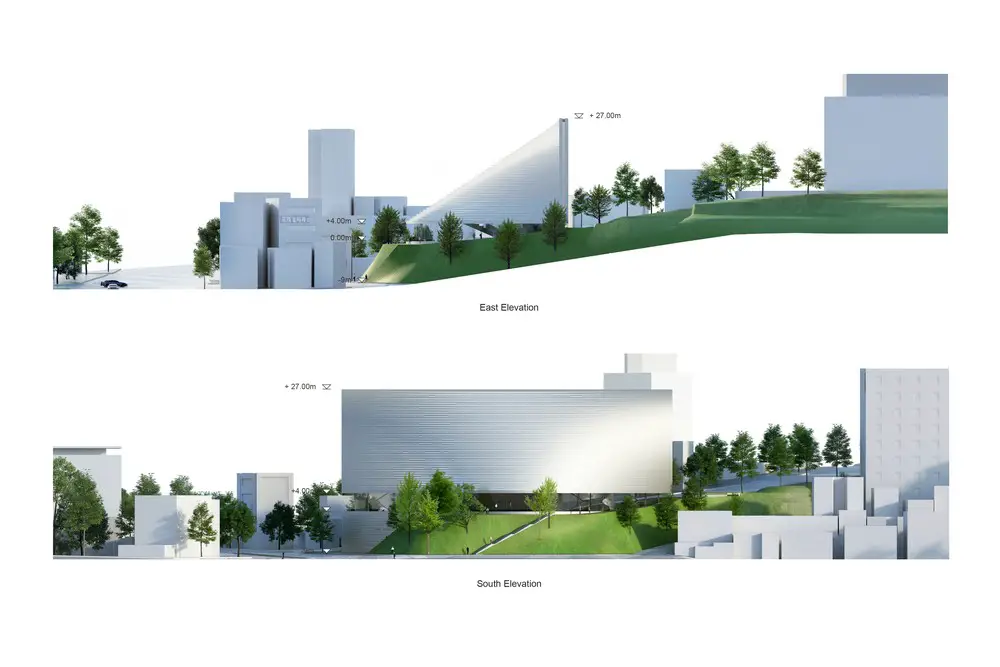

The south side facade follows the continuation of the undulating slope character of the existing topography. It also shapes as one level (human scale) canopy in the side of green park and in a side of the south-east neighborhood of small-scale housing. Consequently north side of the development takes shape of an urban block (near Seongbuk-ro 4 street and the multi-storey housing development).

Seoul Creative Play Supporting Facility

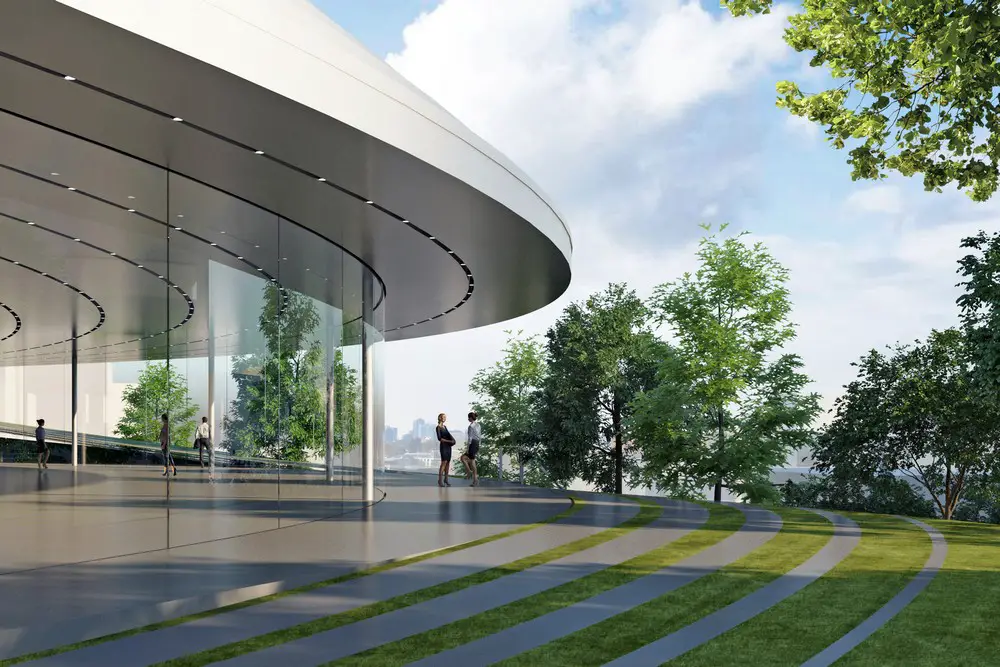

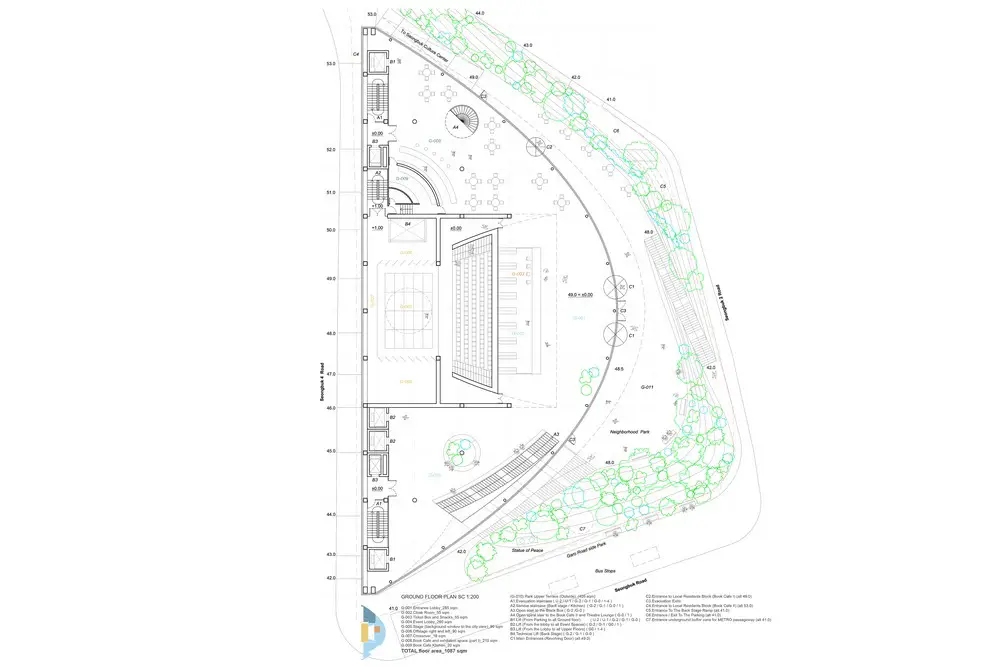

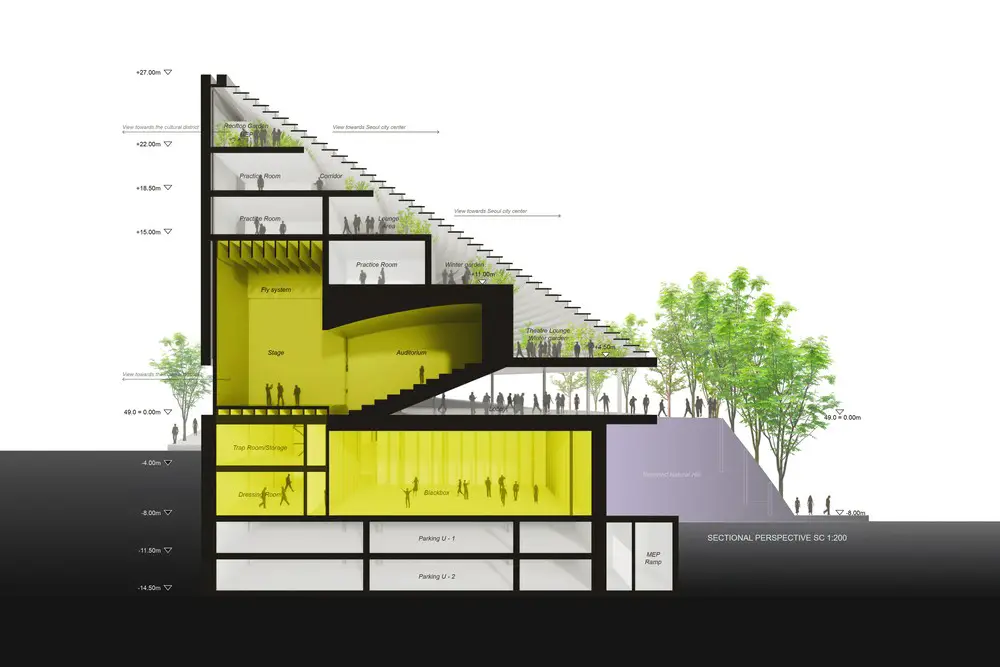

Ground floor is designed as a public space. It detaches the underground and upper floors with a transparent and open panoramic lobby. The gap works as a smooth connection between exterior and interior (in the altitude of 49.0). The lower part of the volume merges with a landscape where upper part of the volume levitates over the landscape as a roof.

Seoul Creative Play Supporting Facility

A theatre is interpreted as the core of facilities and suggests a fusion of traditional Korean and Modern Theater principles.

Seoul Creative Play Supporting Facility

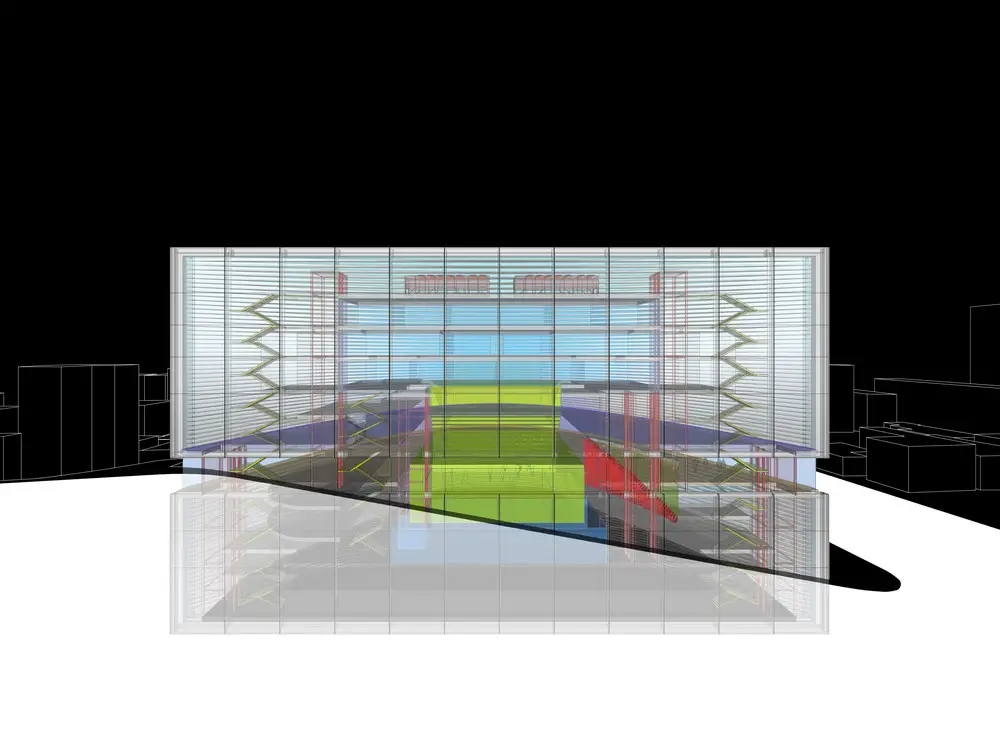

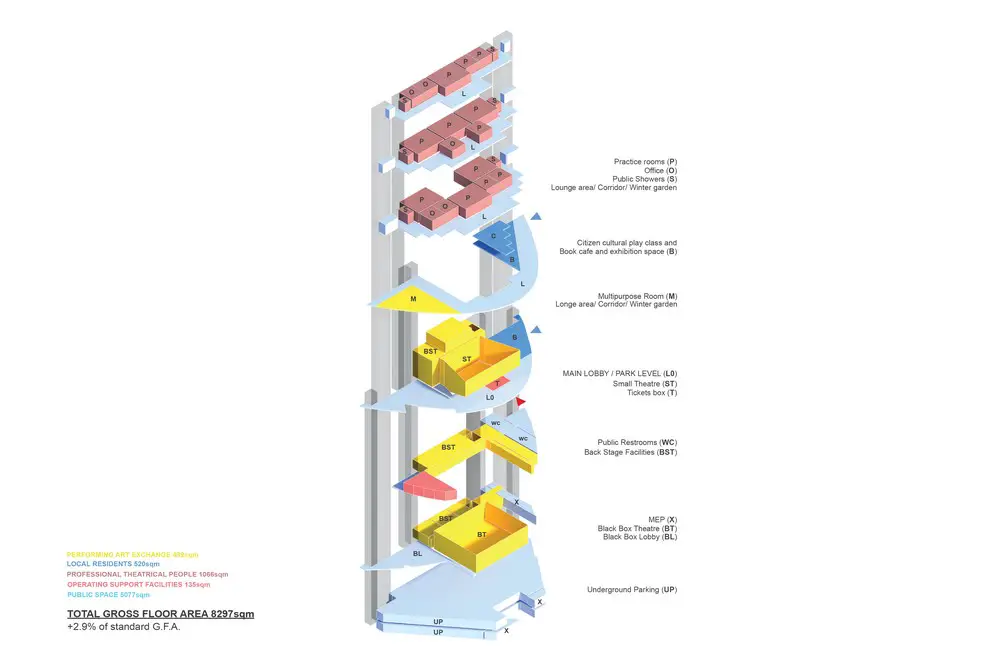

The Facility formation can be explained in five main aspects:

1. 360° ground floor lobby – where all events start and main circulations come together (inside and outside)

2. Theatre (Main theatre and the black box) are the volumetric epicenters of functions.

3. The plinth is for vertical circulation which works as an infrastructure at the north facade.

4. Atrium – Winter garden on the south facade connecting all the terraces of upper floors.

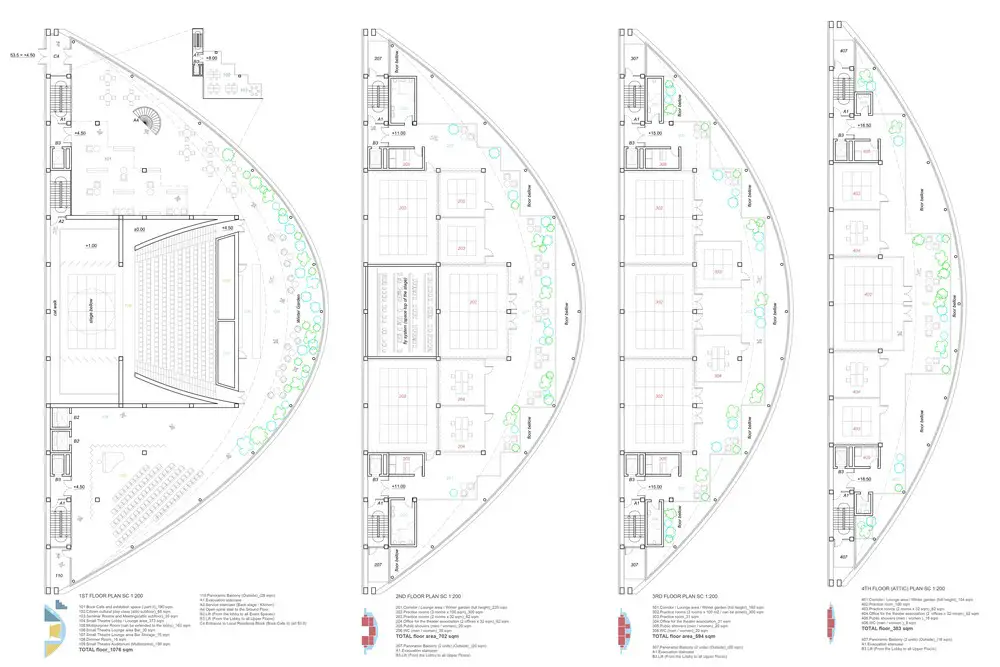

5. The layering of other functions by levels:
-Theatre people top 3 floors;
-Event spaces and Book cafe with community meeting areas in the 1st floor;
-All Ground floor is served as public for pre-events with the reception, including part of Book cafe and its terrace in the park;
-Support and backstage in the lower ground floor;
-Parking in U-1 a U-2 floors (88 cars / >3% for disabled people)
-Public Showers and WC are spread in every upper floor near the practice rooms;
-Public toilets are below the lobby with a separate public sub-lobby in G-1 floor;

Seoul Creative Play Supporting Facility

2. Structural Engineering

Key Aspirations
The key design aspiration for the building structure design is to maximize clear floor to ceiling heights and to provide flexibility for under-slab building services distribution.

Seoul Creative Play Supporting Facility

These have been achieved by considering structural framing options that minimize the structural floor depth. Flexibility is provided by removing down-stand beams and having a flat soffit. This allows the building services engineer to distribute freely in both horizontal directions which is an important criteria for the theatre building.

Seoul Creative Play Supporting Facility

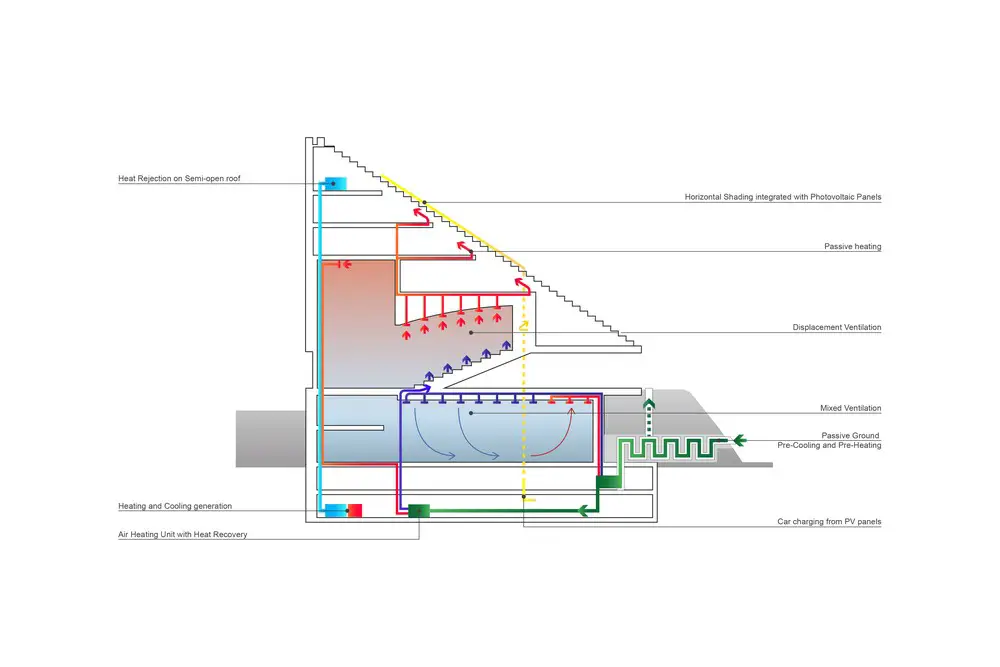

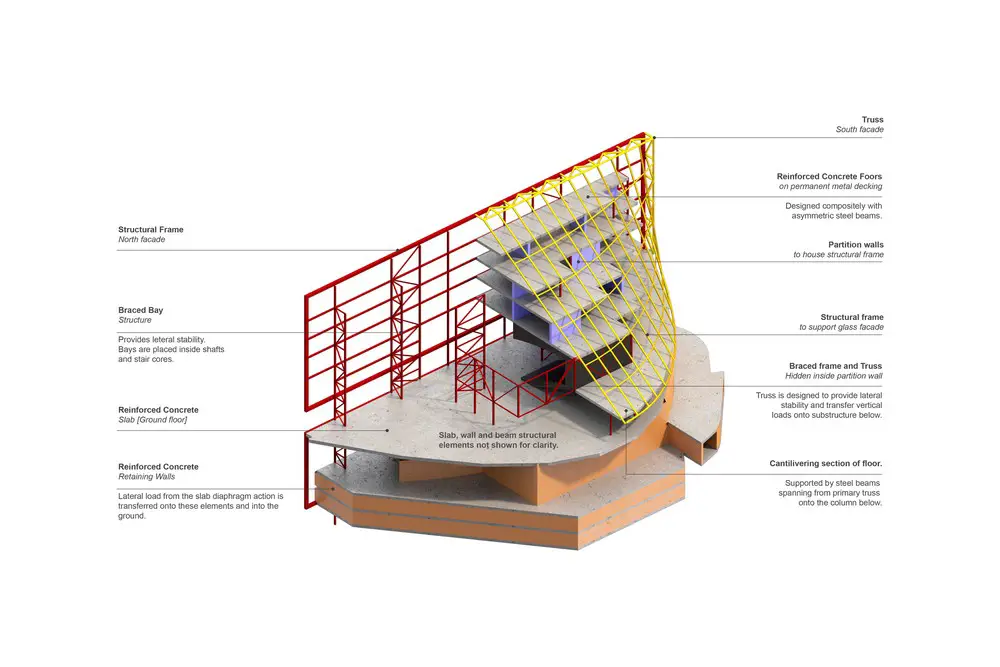

Frame Development
The current preference is for a composite steel framed building, which sits on top of the reinforced concrete substructure, partially covered by soil. The selected floor solution is Reinforced Concrete floors on permanent metal decking, designed compositely with asymmetric steel beams. The overall depth of this solution is much shallower than for a standard steel frame. In addition, steel frame construction is quick compared with other forms of construction.

Seoul Creative Play Supporting Facility

The building has several cantilevered sections of floor. These are located along the South face. The cantilevers will be supported using a combination of back-spans and bracing. The heavily loaded pant rooms have been positioned away from the cantilevered areas – North face.
Structure below the ground floor (main lobby) is primarily made of in-situ Reinforced Concrete walls, slabs and columns. The column layout has been developed to maximize the space of the ‘black box’ and amount of car parking available.

Seoul Creative Play Supporting Facility

Stability
Wind and Seismic loads imposed on the building are distributed horizontally to the steel braced bays through diaphragm action across the suspended slabs. The braced bays then transfer forces to the RC substructure and foundations.
Braced bays were identified by selecting full height walls where possible (typically lift shafts and stair cores), with a good distribution throughout the building. Where bracing is to be installed within a wall cavity wall flat bar bracing is proposed, therefore this does not affect architectural vision.

Seoul Creative Play Supporting Facility

External glass facade

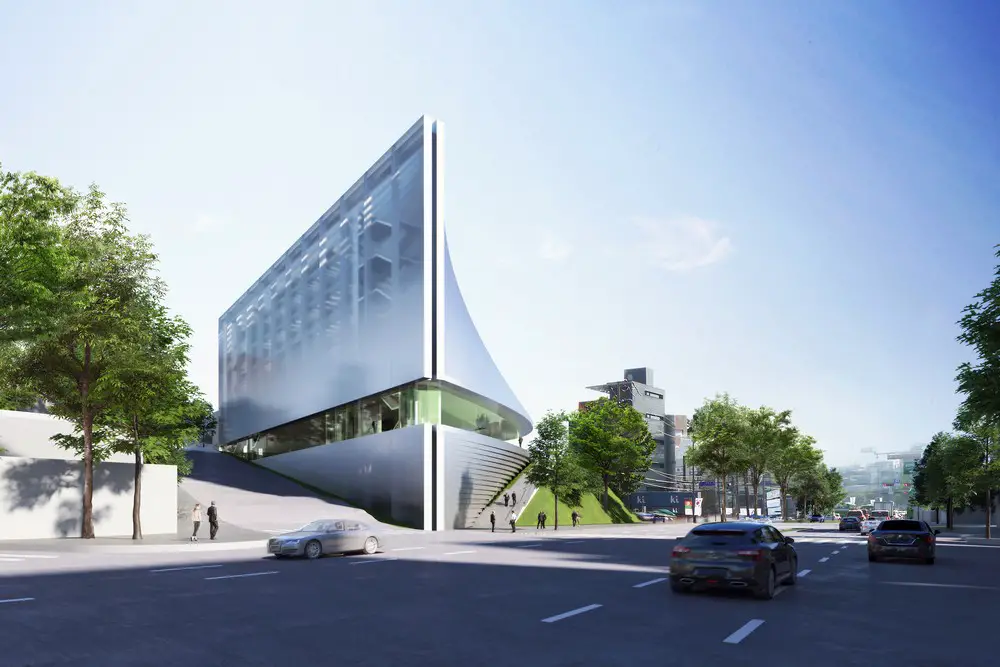

North face façade is assumed to span vertically between two floors. This will be supported by the primary steel structure and a secondary mullion system required for the glass curtain wall.
The South façade required a more complex solution. Structural steel frame is suggested to support glazing. A combination of tubular shaped sections and moment connections to the slab is proposed.

Seoul Creative Play Supporting Facility

Seoul Public Project Competition Building Information

Project Architects – KILD:
Ivane Ksnelashvili, Petras Išora

Team – KILD:
Dominykas Daunys, David Tsanava, Nikoloz Maisuradze, Ona Lozuraitytė

Structural, Mechanical Engineer Consultant:
Arup Group (https://www.arup.com)

Local Architect Consultant:
Zabel and Partner (www.zabel-partner.com)

Seoul Creative Play Supporting Facility

Status:
Competition

Type:
Cultural and gathering facilities: Performing Theatres

Location:
Seoul, South Korea

Client:
The Seoul Metropolitan Government

Area:
8300 sqm

Budget:
17.1mil eur

Seoul Creative Play Supporting Facility design by KILD architects images / information received 230617
