Sishane Park Istanbul Landscape

Sishane Park, Istanbul Public Landscape, Turkey, Turkish Architecture, Architect, Images

Sishane Park in Istanbul

Turkish Urban Landscape Development design by SANAL arc

29 Oct 2014

Sishane Park in Istanbul Landscape

Location: Sishane, Beyoglu-Istanbul Turkey

Design: SANAL arc

Park in Istanbul

Sishane Park

Sishane Park

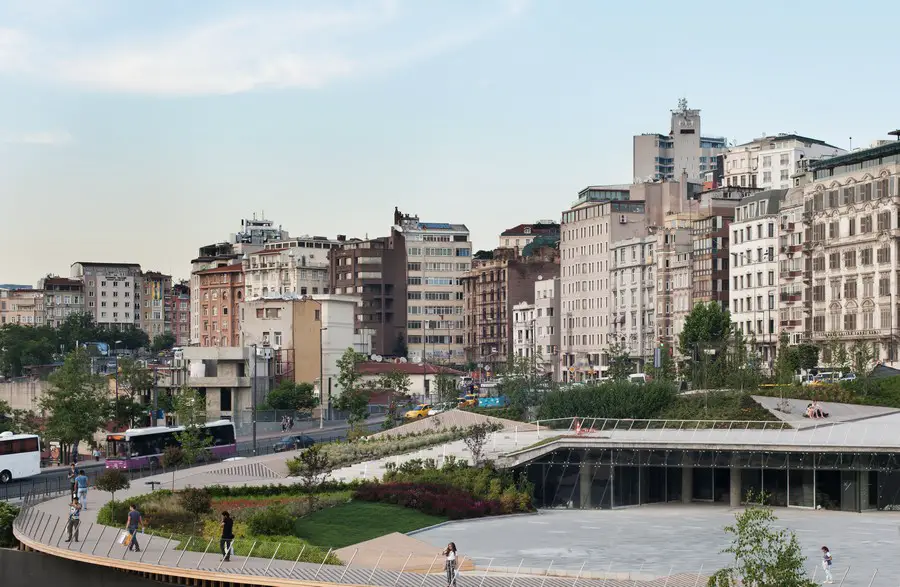

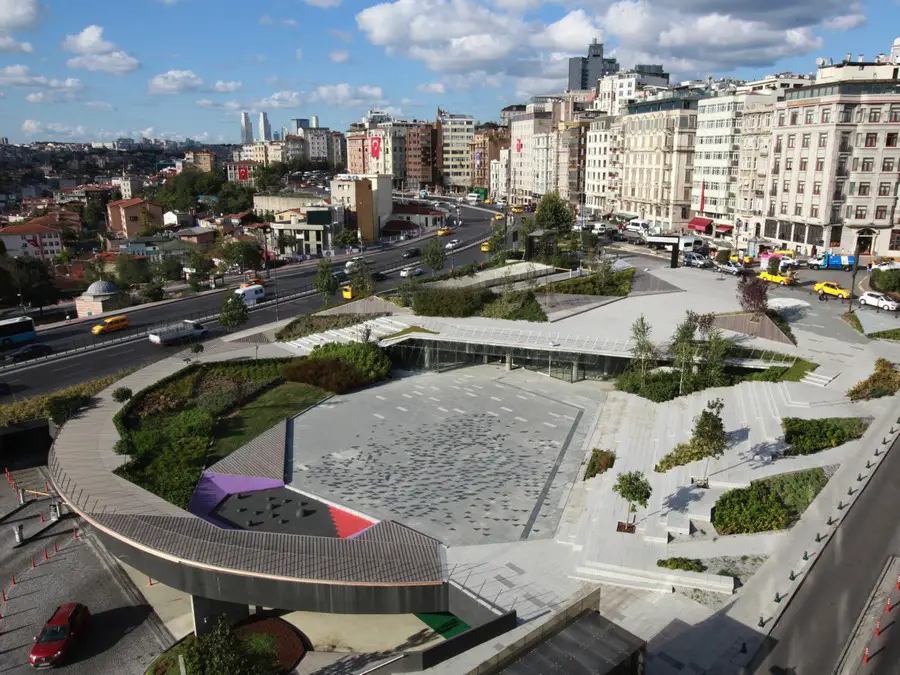

Sishane Park is a bold shift regarding the public spaces in the center of Istanbul. Located between the southwestern edge of Beyoglu and Tarlabasi Road, the site used to be a park with a fire station that was connected to the water front before the road with a heavy traffic was built in the 70s.

Sishane Park

Sishane Park

With reference to that, the geometry of Sishane Park is carefully crafted to give a 360 view of Istanbul’s past and future urban cultures. The design intention is to re-engage residents and visitors into the natural qualities of that unique urban environment as an alternative public space where people could enjoy together in the middle of a dense city.

Sishane Park

Sishane Park

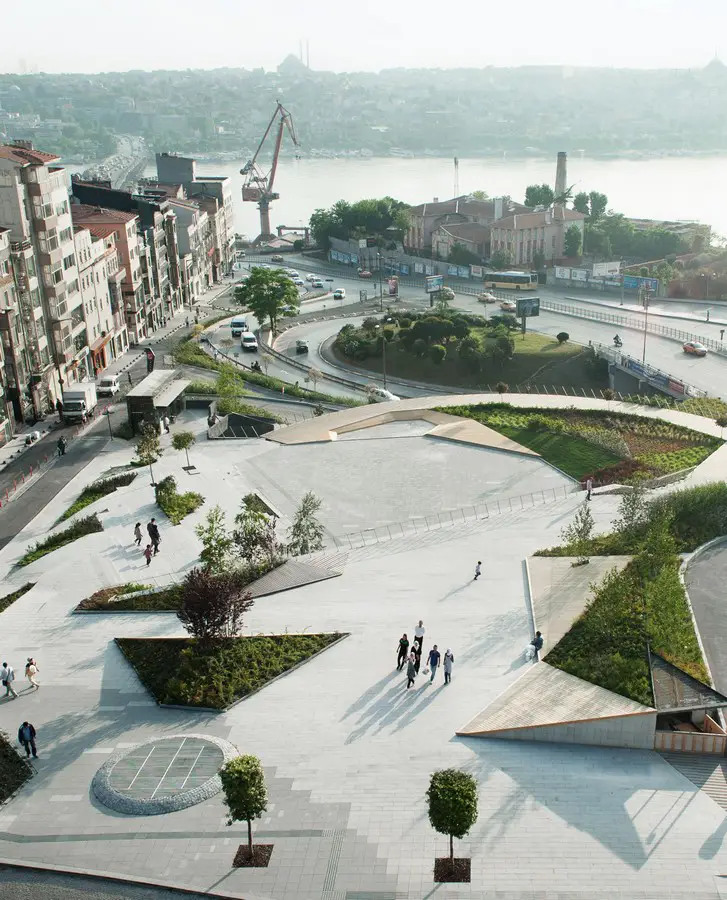

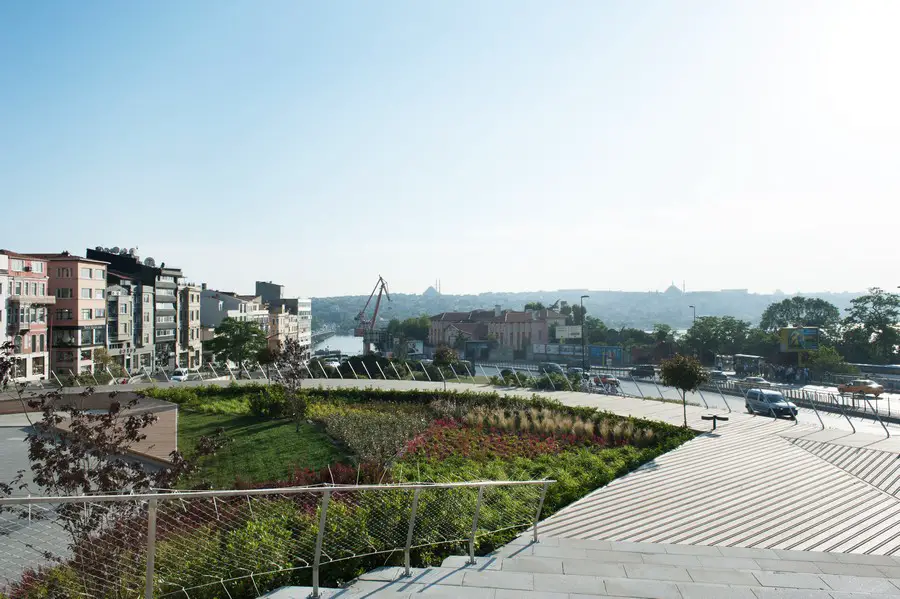

The park is in a dialogue with the sweeping views and flora of the Halic (Golden Horn); meanwhile it creates a large open public space for cultural programing as well as contrasting intimate spaces for resting, enjoying the shade of trees, playing and spending time as a group. Its geometry and terracing surpasses the negative perception of the underground parking. Besides, Sishane Park ascribes how the site has always been in-between and on the edge of the city and therefore needs a clearly identified place in Istanbul’s shared future.

Sishane Park

Sishane Park

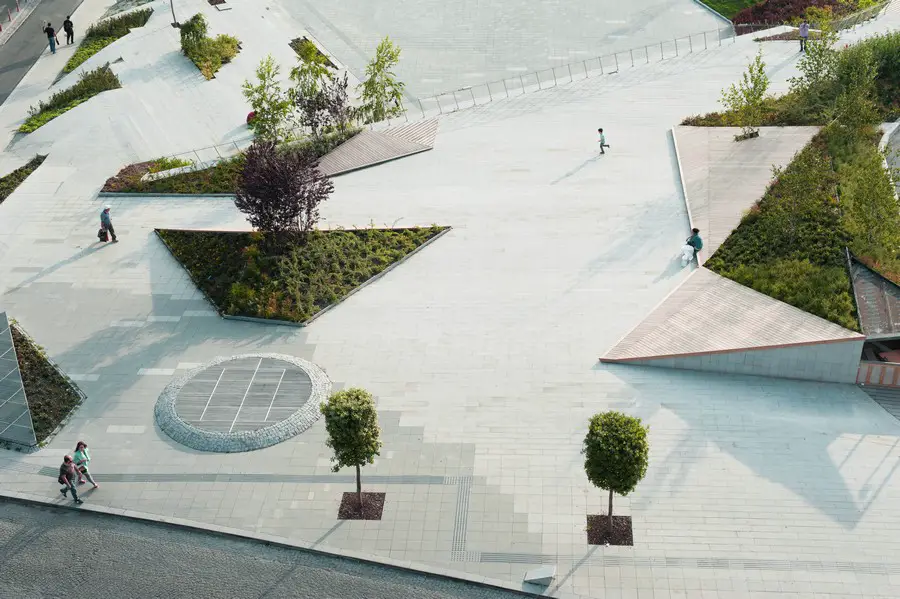

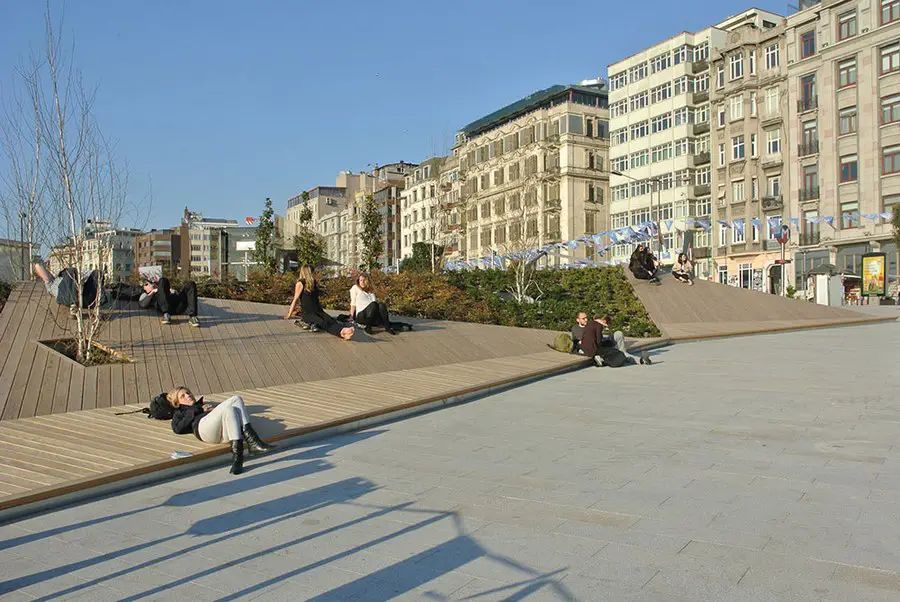

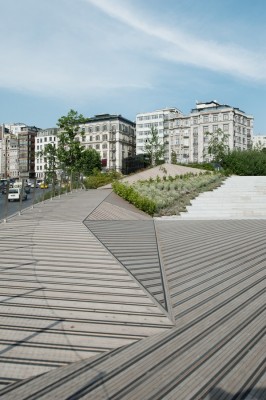

The park penetrates into the streets of the city with an alternative approach and unconventional elements considering the other parks in Istanbul. It is defined by three main features: the silhouette walk, the decks and the outdoor room.

Sishane Park

Sishane Park

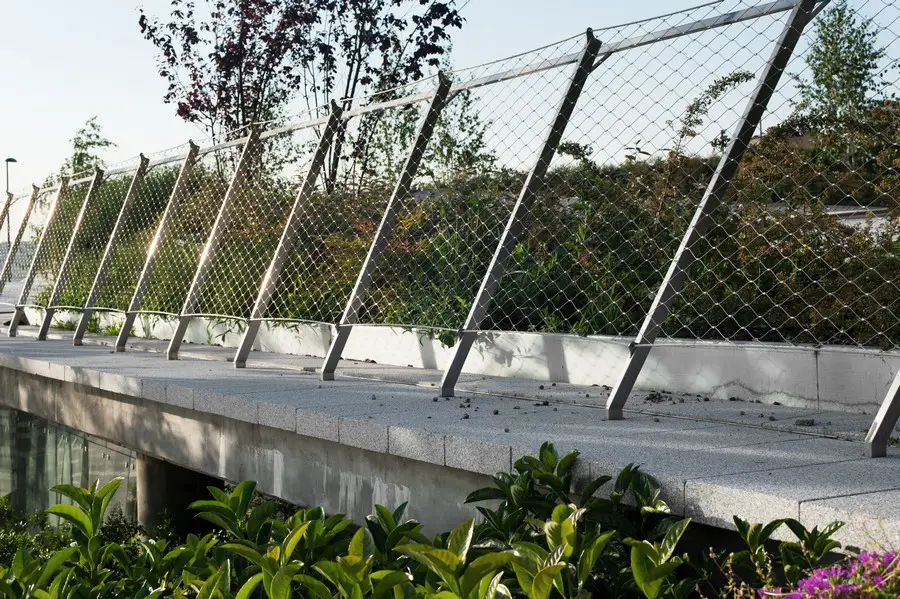

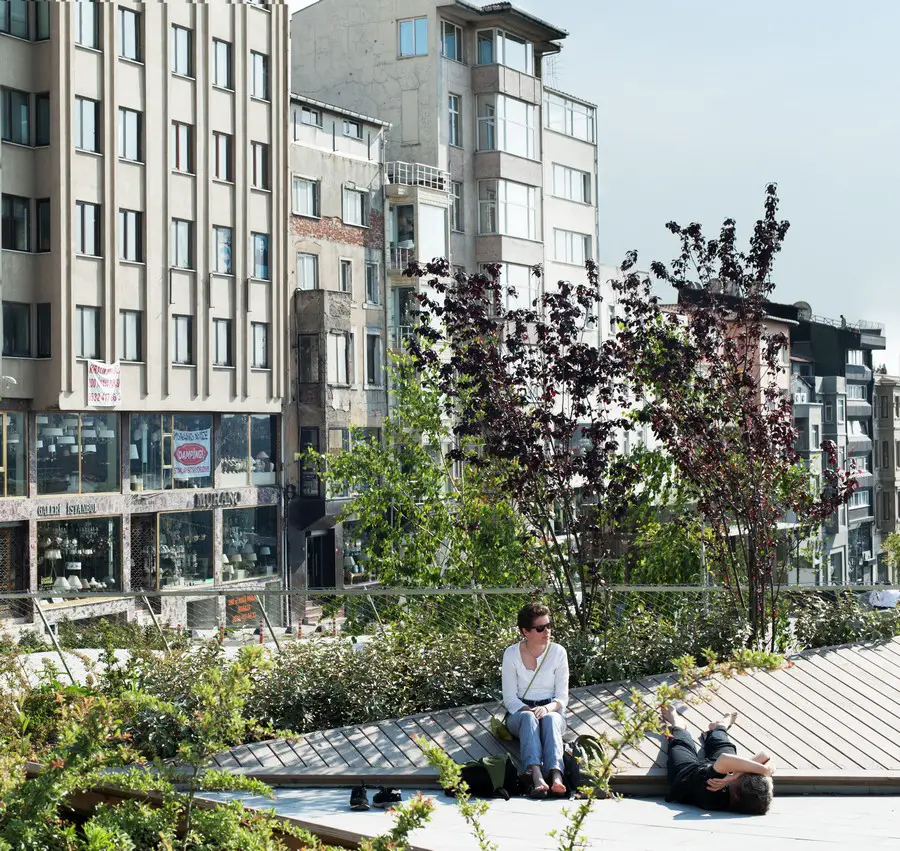

These elements are framed by a rich landscape of various species unique to the Halic in order to enhance the feeling of delight and comfort. It is aimed to have deep site lines, be attractive for quality social life and make people touch natural materials including wood rails to lean on and orient one-self within a complex city. There are unique places and experiences waiting for people of all ages to discover in Sishane Park.

Sishane Park

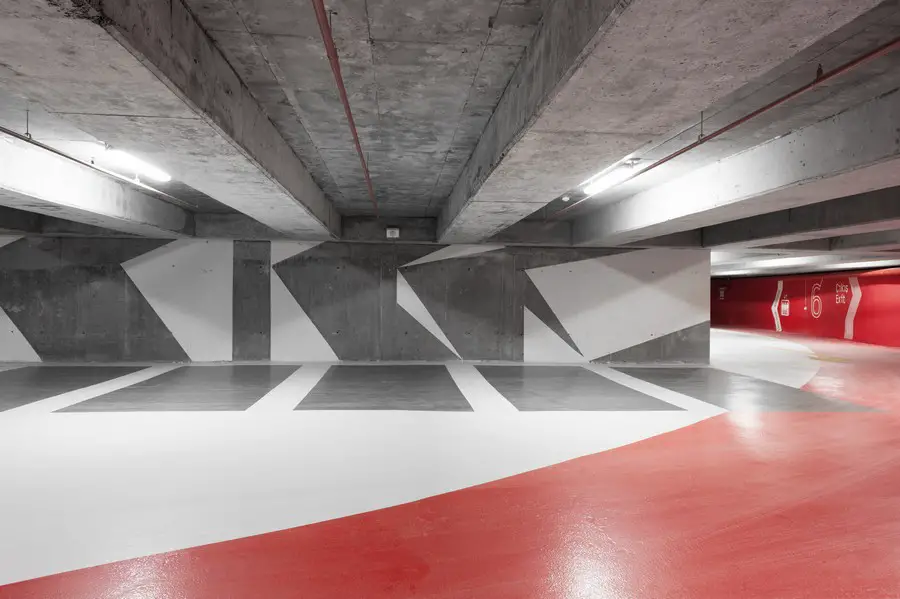

Sishane Market-Underground Parking

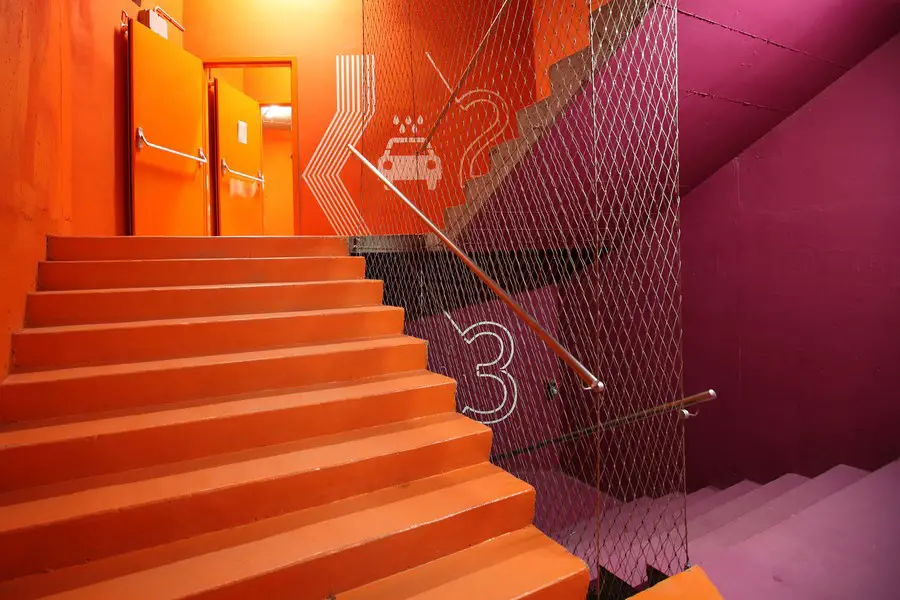

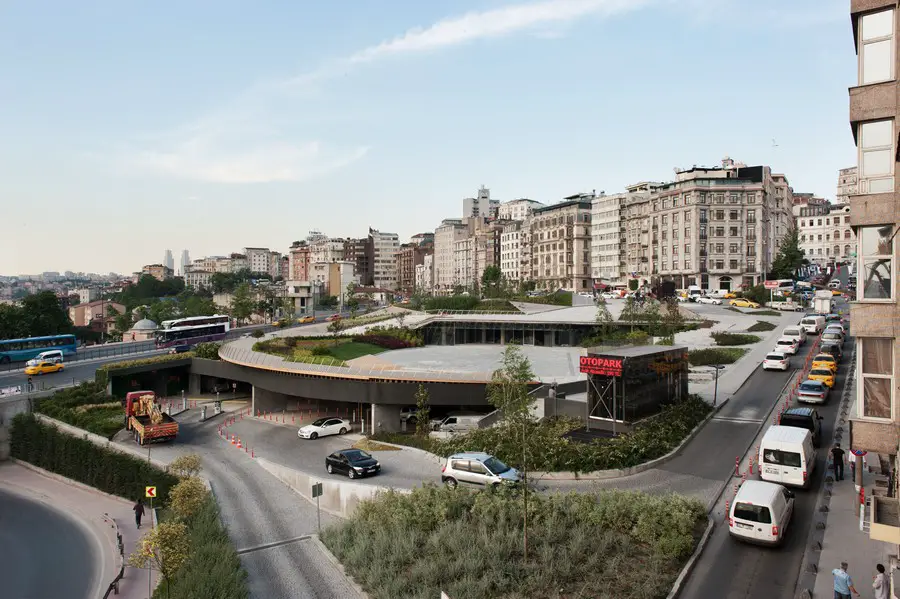

Animating the public space, Sishane Park has a multi-modal service both to the public and private transportation of Istanbul. Directly connected to the Sishane Metro, it links the pedestrians to the bus/dolmus hubs and Kasimpasa while the 1,000 capacity car park solves the parking problem. A system of motion sensor for lighting and LED for stair wells allow the parking to use energy on demand.

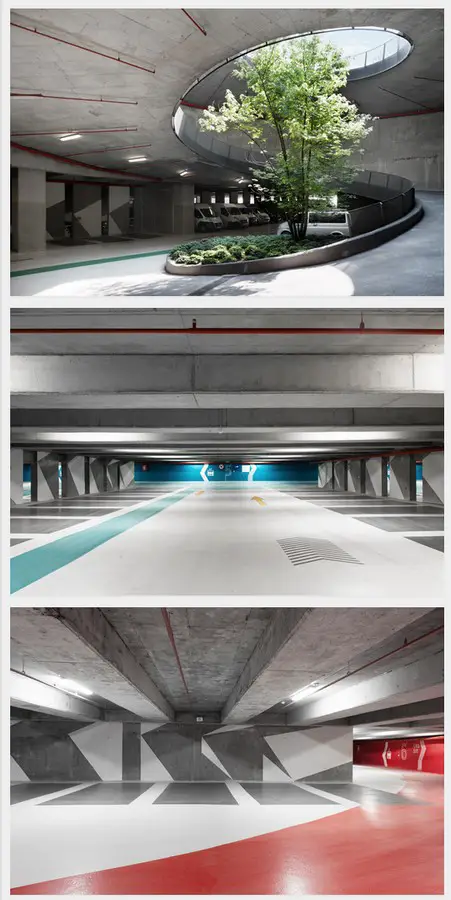

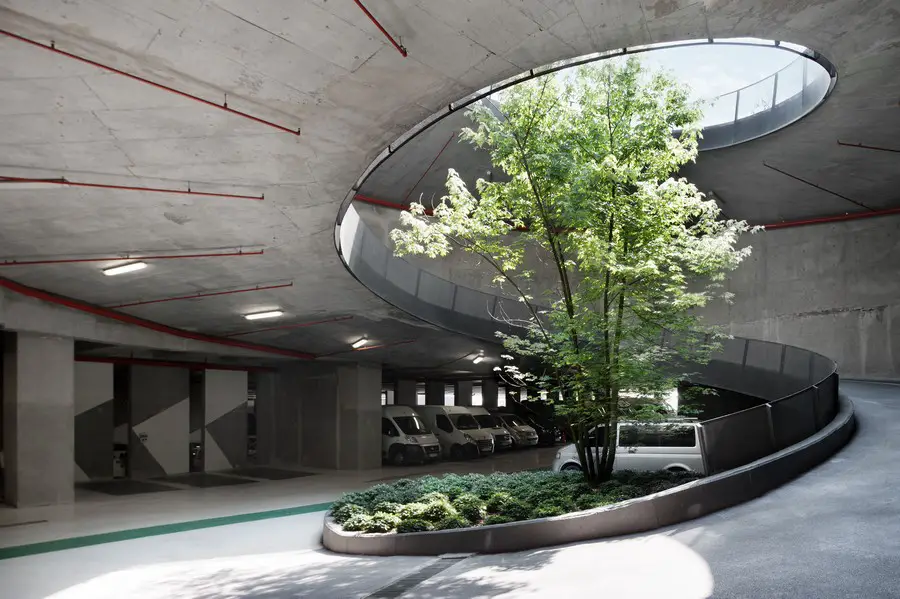

The top level of parking is open to the air and natural light while the lower 5 levels are ventilated with cross ventilation and an automated fan system. A water recapture system allows the extensive green roof-scape and the 30% landscaped surface, wood decks and choice of light granite significantly reduce the negative impacts of heat island effect. The landscape, water recapture and the permeable pavers also minimize the projects impact to the storm water infrastructure in the historic area.

Sishane Park

The market place, on the other hand, will be a mix of services, retail and cultural platforms. Hence, meeting point for various transportation and other services will create a dynamic movement of people buzzing through the city in Sishane Park.

Sishane Park

Celebrating the city’s unique geography and nature

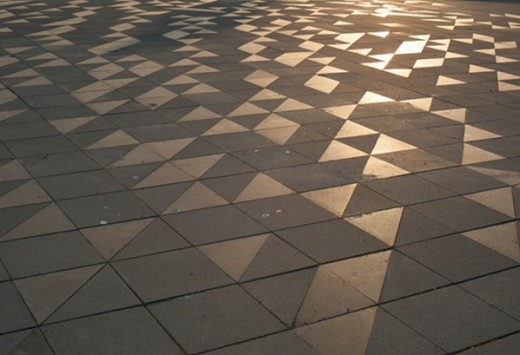

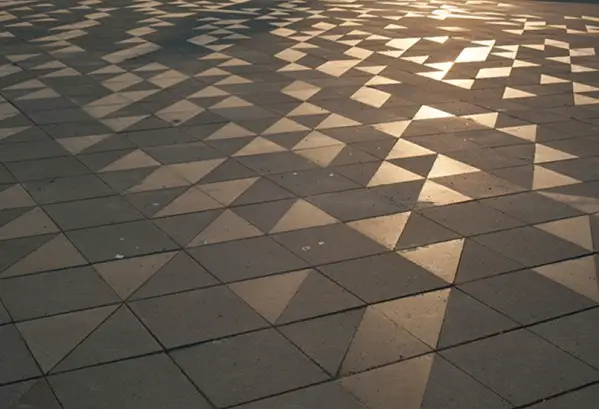

Seasonal change, the choreography of the sun from dawn to night, cultural events and the spontaneity of people enjoying the park amenities are intended to create familiar but ever-changing experiences. To do so, materials are selected with the aim of offering acquaintance; yet alternative textures are added to the hardness of the city surfaces to trigger narratives on the surface design and engage people’s imagination to the city beyond.

Sishane Park

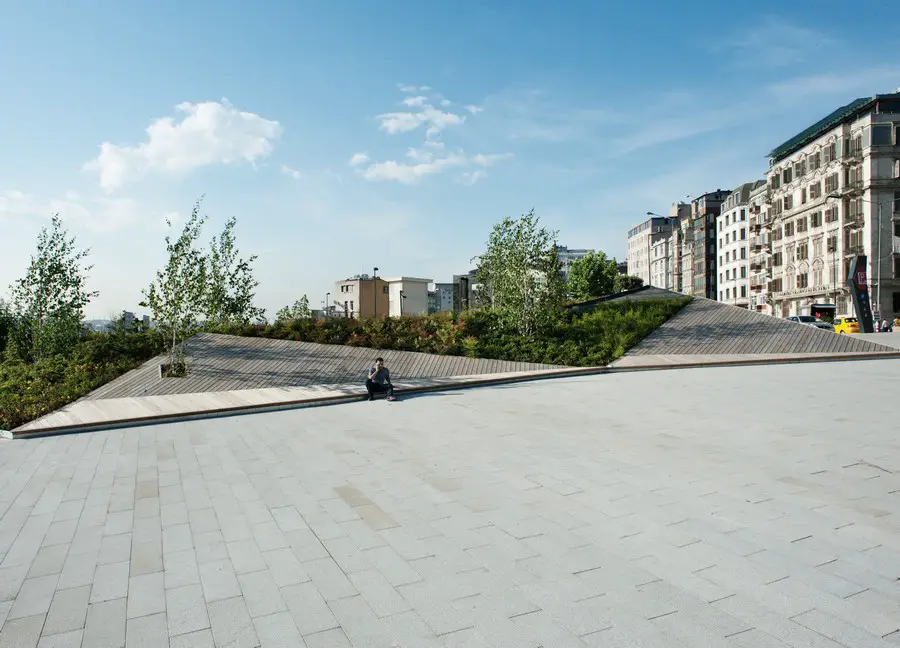

Challenging to the design and clarity of circulation there is a twelve-meter level difference from the upper urban entry to the lower under-pass road edge. The challenge is turned into a chance of creating terraces.

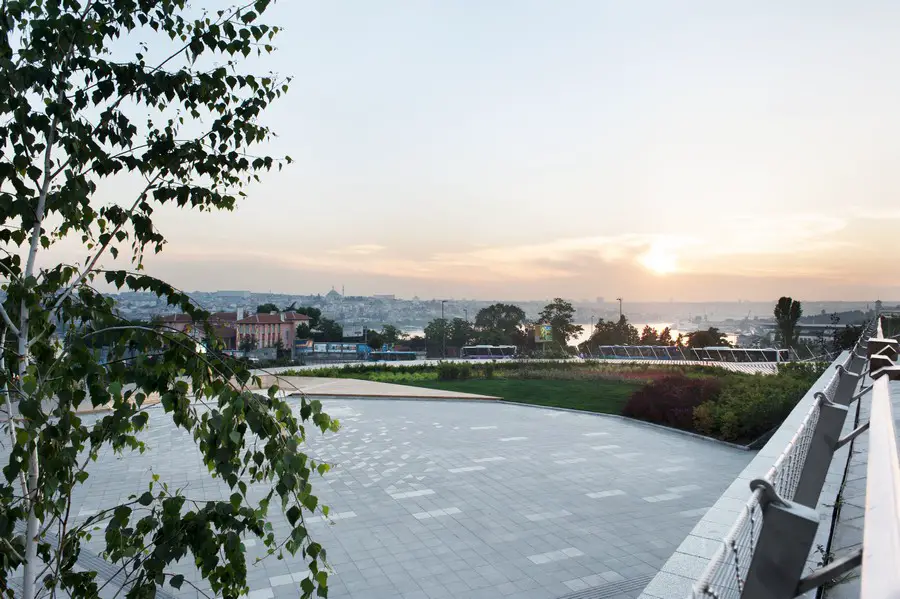

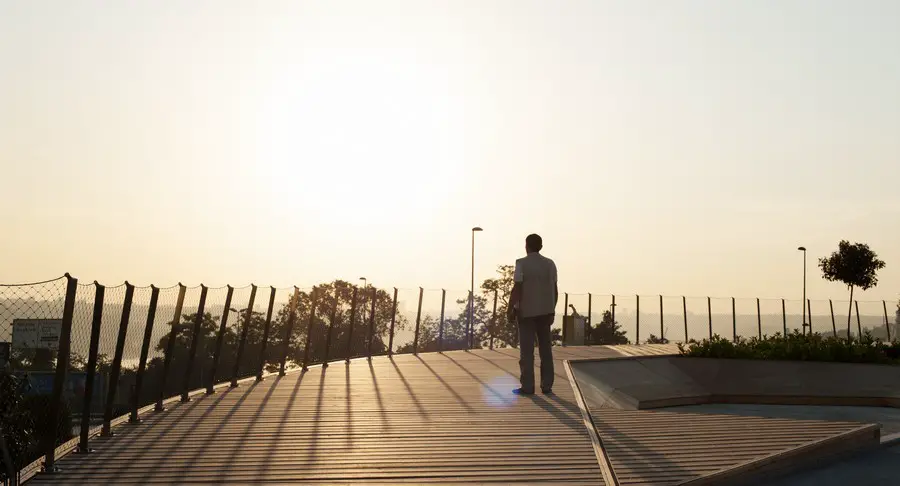

The upper terrace creates a viewing deck through Halic enhancing the intense, noisy and polluted area of the six lane road of Tarlabasi, the middle creates a defined/protected outdoor space and the third allows a flood of natural light and ventilation to entrance level of the parking area. Both upper and lower amphi-seating is set up to face the equinox and summer solstice while the vegetation and terraces mitigate the noise pollution of the city center and the adjacent six-lane road.

Sishane Park

The design team’s aim is that Sishane Park forms a gateway to Galata and to the other districts of Beyoglu as well as a link to the social life of Kasimpasa. It is envisioned as a place to experience the infamous spontaneous urban life of Galata to have a strong connection with the rich natural environment around while offering a new formal and informal platform for cultural venues to program and engage the public in public space. Reflection on design during the realization, there is already a collection of stories from social media sent to the design team after winter 2014:
“First underground parking I felt safe as a women — especially at night. Thank you for this gift to Istanbul!” A. Uludag

“It is so beautiful. I am going to bring my family.” Stone Master Ali.

Sishane Park

Sishane Park in Istanbul – Building Information

Genearl: 32,000 m2 gross project area
24,525 m2 gross enclosed space
6 elevators
3 vehicular entry points
1 vehicular exit point
Integrated parking on underground circulation ramps
100% public access

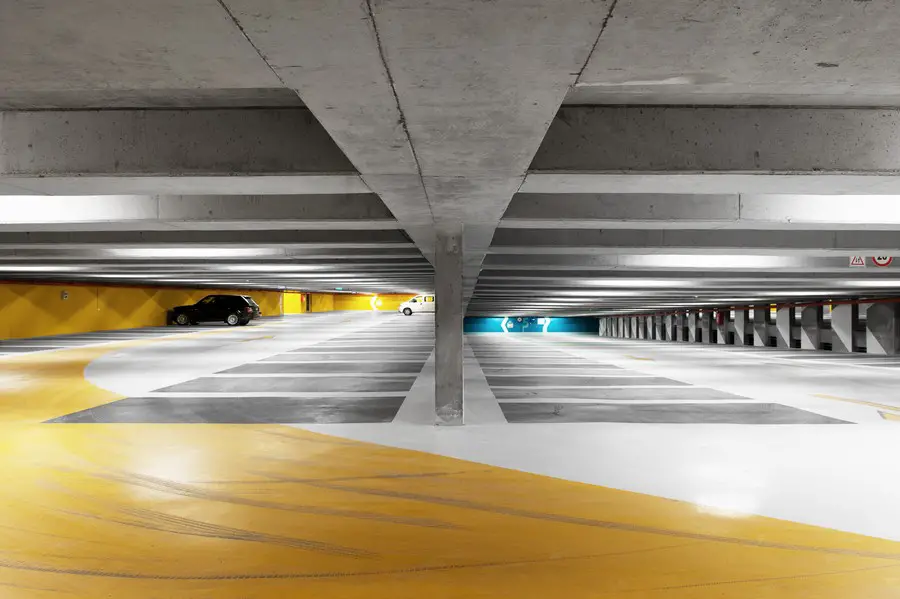

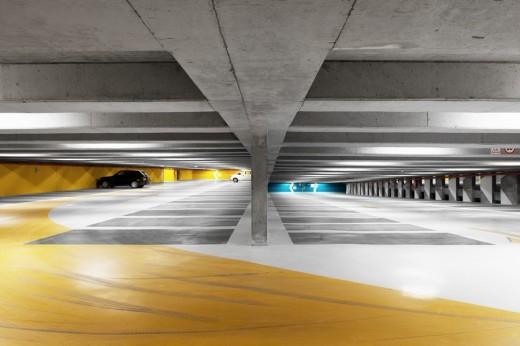

3 meters typical floor to floor at parking levels with 16 meter clear span unobstructed visual and parking zones.

Sishane Park

Park: 3,265 m2 gross public realm
Underground Parking: Typical level 4.025 m2
cars capacity (950 standard cars + 50 tandem parking)
40 handicap spots
12 electric charge stations
19 service buses
Entry level IPG spots
On-demand club car service and car rentals provided by a variety of brands

Sishane Park

Marketplace: 1,350 m2 gross
Multi-modal transit: Direct Metro access, bus stops, mini-bus hub, Park+Ride services.
Services: Public toilets, Tourist Information, ATM, Walking Tours
Retail: car rental, coffee/tea brands, new stand, boutique food, retail shopping, cultural organization outreach, changing gallery spaces.

Location: Sishane, Beyoglu-Istanbul Turkey
Use: Multimodal Transportation Hub, Urban Park and Underground Car-parking
Site Area: 5,100 m2
Bldg. Footprint Area: 4,760 m2
Gross Floor Area: 32,000 m2
Bldg. Scale: Urban transformation through civic infrastructure with urban public realm, six level of car parking, metro connection and market place.
Structure: Reinforced Concrete, Timber
Max. Height: -26 m.
Landscape Area: 3,500 m2
Parking Lot: 1,000 cars
Exterior Finish: Natural stone, wood,

Sishane Park

Principal Design Architects: Murat Şanal, Alexis Şanal
Project Architects: Begum Öner, Cibeles Sanchez Llupart, Orkun Beydagi
Project Team: Merve Akdag Öner, Hazar Arasan, Leo Pollock, Cristina Aleman Serrano
Completion: 2014
Client: İSTANBUL BÜYÜKŞEHİR BELEDİYESİ ve KARAKÖY GAYRİMENKUL YATIRIMLARI // Istanbul Greater Municipality and Karaköy Real Estate Development PPP.

Project Management: KARAKÖY GAYRİMENKUL YATIRIMLARI
Structural Engineer: YBT Yapısal Tasarım Hizmetleri
Mechanical Engineer/Contractor: AKIM Mühendislik
Electrical Engineer: ESAN Mühendislik
Traffic: HARTEK Harita Teknoloji
Infrastructure: FEM Insaat Mühendislik Zemin ve Çevre
Survey: GEOSAN, TESPİT Mühendislik
Landscape Designer: ARZU NUHOĞLU PEYZAJ TASARIM
Graphic Designer: Philippa Tamsin

Photographs: olivve.com
